Cisco Connected Mobile Experiences (CMX) Location Analytics requires accurate tracking of devices within the wireless network’s coverage area. To utilize CMX Location Analytics effectively, it is essential to enable tracking parameters in Cisco Mobility Services Engine (MSE). This allows MSE to collect data on device locations and movements within the environment, which can then be analyzed by CMX for insights into customer behavior, asset tracking, or other analytical purposes. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The command cmxha convert backup is used on the backup Cisco CMX server to designate it as the secondary server in a high-availability deployment. This command helps to resolve the issue where both servers are considered primary. References: Cisco CMX high-availability documentation will provide more details on this command.

The issue described indicates a problem with the 802.1X authentication policy on the authenticator, which is typically the wireless controller or access point. Even though the CA certificate is correctly installed on the laptop, if the authenticator’s policy is incorrectly configured or does not match the required settings for the corporate network, the user’s authentication attempts will fail. It is essential to review and correct the 802.1X policy settings on the authenticator to resolve this issue. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

If PEAP authentication is failing and the server is sending an Access-Reject message, one possible action to resolve the issue is to disable the server certificate validation on the client. This means that the client device will not check the authenticity of the RADIUS server’s certificate, which can sometimes resolve connection issues, especially if there is a problem with the certificate chain or trust settings. However, this should be done with caution as it reduces the security of the authentication process. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 To provide guests access using social media authentication, the engineer must configure the “Social Connect” service. This service allows guests to use their Facebook credentials, among other social media platforms, to authenticate and gain network access. It simplifies the guest access process by leveraging existing social media accounts for authentication. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The primary change to the network when adding APs for location-based services, such as VolMLAN, would be the AP footprint. This refers to the physical coverage area of the access points. Increasing the AP footprint enhances the ability to perform location-based services by improving the accuracy of triangulation and location tracking of devices. This is because a denser AP footprint allows for more precise determination of a device’s location within the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, specifically the sections discussing location-based services and AP deployment strategies for optimal coverage and location tracking.

 When configuring Cisco OfficeExtend Access Points (OEAPs), enabling NAT IP only for office-extend is necessary if the APs are behind a NAT device and need to communicate with the Wireless LAN Controller (WLC) using the internal IP management address. The command config flexconnect office-extend nat-ip-only enable allows the APs to discover and associate with the WLC when the management interface is configured with a NAT address.

The Extensible Authentication Protocol (EAP) is an authentication framework frequently used in wireless networks and Point-to-Point connections. During the EAP authentication process, EAP Request and EAP Response packets are exchanged between the supplicant (client device) and the authenticator (network). These packets are used to transport messages for the authentication process. An EAP Request packet is sent by the authenticator requesting identity information from the supplicant, while an EAP Response packet is sent by the supplicant in reply to the request. The other options, such as EAP complete, EAP failure, and EAP reply, are not standard EAP packet types. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To take full advantage of the WLAN configuration, VoWLAN phones must support 802.11e, which is a standard for wireless QoS, and Wi-Fi Multimedia (WMM), which is a subset of 802.11e that provides prioritized media delivery. These standards ensure that voice traffic is prioritized appropriately in the wireless network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 In passive fallback mode for RADIUS, when the primary RADIUS server fails, the controller will start using the secondary RADIUS server. The default timer settings include an inactive timer, which, upon expiration, prompts the controller to attempt to send RADIUS requests back to the primary server. If the primary server is responsive, the controller will resume sending requests to it. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 Link-Local Service (LSS) filtering for mDNS (Multicast Domain Name System) is used to control the propagation of mDNS services across the network. To enable LSS for the AppleTV mDNS service only when ORIGIN is set to Wired, the correct action is to set ORIGIN to Wired and enable LSS specifically for the AppleTV service. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Client profiling involves using various properties to identify and classify wireless clients. The HTTP user agent can provide information about the client’s device type and browser, DHCP can reveal details about the client’s network configuration and requests, and the MAC OUI (Organizationally Unique Identifier) can be used to determine the manufacturer of the device. These properties are crucial for profiling because they offer insights into the device’s capabilities and identity. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Local EAP (Extensible Authentication Protocol) allows wireless LAN controllers to directly authenticate clients using an internal database, which can be useful when external RADIUS servers are unreachable. By enabling local EAP, client devices can still connect to wireless networks even if communication with RADIUS servers fails, ensuring continuous network access for users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 A single SSID method satisfies the requirements for a BYOD policy that includes onboarding unknown machines, scalability, and low overhead on the wireless network. It simplifies network access for users and reduces overhead by minimizing broadcast traffic associated with multiple SSIDs.

When using FlexConnect Smart AP Image Upgrade without a configured FlexConnect Master AP, the WLC will transfer the image to one indoor AP and one outdoor AP separately. Each AP model needs a different firmware image due to hardware differences. Therefore, there will be two image transfers from the WLC: one for the 2702i APs and another for the 1532i APs.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on FlexConnect Smart AP Image Upgrade

 For a wireless network supporting voice and video applications for Apple devices, especially with Fastlane implementation, the QoS profile to configure on the user WLAN for iPhones updated to version 14.5.432302546 is Platinum. This profile provides the highest level of QoS, ensuring priority for voice and video traffic. References:= (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The ‘aaa session-id common’ command is essential when implementing Cisco Identity Based Networking Services (IBNS) with downloadable ACLs on a Cisco Catalyst 3850 Series Switch. This command configures the switch to use a common session identifier for all AAA (Authentication, Authorization, and Accounting) transactions. This is important for downloadable ACLs because it ensures that the correct policies are applied consistently across different sessions and services.

 In a Cisco WLAN deployment where it is required that all APs from branch1 remain operational even if the control plane CAPWAP tunnel is down, the operational mode that must be configured on the APs is standalone (option B). In standalone mode, the APs can continue to function and provide network access to clients even without a connection to the WLC, which is essential during a WAN failure to headquarters. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, with a focus on AP operational modes and their behavior during network disruptions.

In Quality of Service (QoS) for networking, Class of Service (COS) and Differentiated Services Code Point (DSCP) are used for traffic classification and prioritization. Voice traffic is generally given high priority due to its sensitivity to delay and requires proper tagging to maintain quality over the network.

The correct mapping for voice traffic, according to best practices, is a COS value of 5 mapped to a DSCP value of 46. This is because DSCP 46 corresponds to Expedited Forwarding (EF), which is typically used for voice traffic prioritization in IP networks.

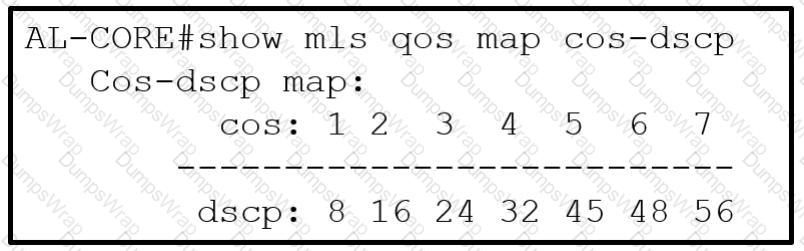

The exhibit shows the output from a command on a network device that displays the current mappings between COS values and DSCP values. The mapping that needs modification for correct voice traffic tagging can be identified by looking at the standard practice for voice QoS, which uses a COS value of 5 mapped to a DSCP value of 46.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 The issue described indicates that the Angle of Arrival (AoA) data is not being transmitted between the Cisco Wireless LAN Controller (WLC) and the virtual CMX server. To resolve this, the network administrator must ensure that port 2003 is allowed for AoA packets to flow through between the CMX appliances, which is necessary for Hyperlocation data transmission. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 The configuration for the Rogue Rule named “Rule 1” is set to classify an access point (AP) as malicious if it meets certain conditions. The rule specifies that the AP must have a Minimum RSSI (Received Signal Strength Indicator) of less than or equal to -65 dBm and must have been seen for a Time Duration greater than or equal to 3600 seconds. Among the options provided, both A and C have been seen for more than 3600 seconds, which satisfies the Time Duration condition. However, for the RSSI condition, only option C with an RSSI of -60 dBm meets the criteria of being less than or equal to -65 dBm. Therefore, option C is the correct answer, as it fulfills both conditions set by the Rogue Rule.

For the MSE to communicate with the Cisco Wireless LAN Controller (WLC) over NMSP when installed on a different network, the necessary configuration is to allow TCP/16113 port on the firewall. NMSP uses TCP port 16113 for its communications, and opening this port on the firewall will enable the MSE and WLC to establish a connection and communicate effectively. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 Application Visibility and Control (AVC) profiles in AireOS controllers allow the identification and management of bandwidth consumption by different applications. By using AVC, administrators can set policies to prioritize or restrict bandwidth for specific applications, thus ensuring that critical services like voice and video are not adversely affected by bandwidth-heavy programs. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 FlexConnect is a wireless solution for branch office and remote office deployments. It allows APs to switch client data traffic locally and perform client authentication locally when they are disconnected from the WLC. For WLAN A to work in FlexConnect mode and WLAN B to work in local mode, the APs need to be part of a FlexConnect group with proper WLAN-VLAN mappings. This ensures that the correct VLAN is used for each WLAN, which is essential when the APs are operating in FlexConnect mode. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To segregate iOS devices to the guest SSID on VLAN 101 and distribute the rest of the clients on VLAN 102, creating a service template and enabling device classification are required. The service template specifies the VLAN assignment, while device classification identifies the type of device connecting to the network. References: Cisco Catalyst 9800-80 WLC documentation on local policies and device classification.

 To ensure the 1810 OEAP can join the controller from remote teleworker locations, the firewall must allow specific UDP ports that are used for AP communication with the controller. UDP ports 5246 and 5247 are used for Control and Provisioning of Wireless Access Points (CAPWAP) control and data messages, while UDP ports 12222 and 12223 are used for OfficeExtend APs’ data traffic. Blocking these ports would prevent the APs from joining the controller, hence they must be allowed on the firewall.

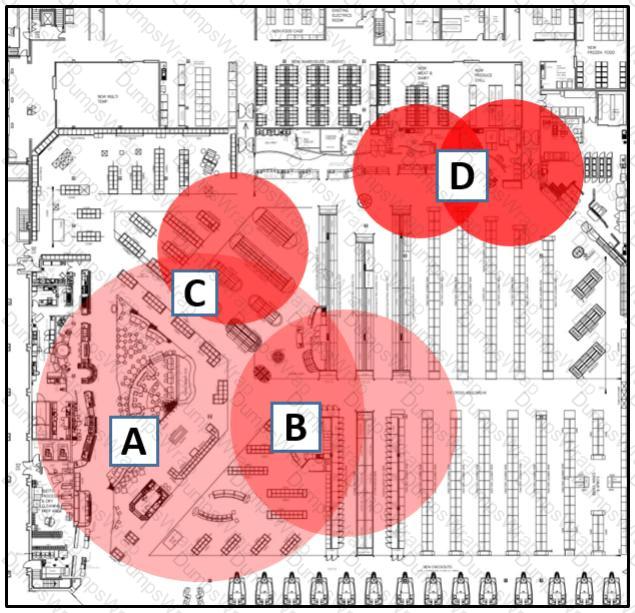

 The exhibit provided appears to be a floor map overlay with Cisco CleanAir Zone of Impact for interferers, which shows different areas affected by interference on a wireless network. The area labeled ‘A’ indicates the greatest impact on the wireless network due to its larger size compared with other zones, suggesting more significant interference or a stronger source of interference within this zone. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

When configuring access control on a WLC using a TACACS+ server for centralized authentication on network devices, the role value that must be configured under the shell profile on the TACACS+ server for a user with read-only permissions is “MONITOR”. This role restricts the user to monitoring functions without the ability to make changes to the configuration. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

On a Cisco Catalyst 9800 Series Wireless Controller, the command set that prevents a FlexConnect AP from allowing wireless clients to connect when its Ethernet connection is nonoperational is the fallback-radio-shut command within the FlexConnect profile configuration. This command disables the radios on the AP, thus preventing client connections during Ethernet link failure. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Cisco Hyperlocation feature requires enabling on both the wireless LAN controller and Cisco CMX to function correctly. This allows for precise location tracking by integrating data from both components. Additionally, if the Cisco CMX server is a virtual machine (VM), it is recommended to use a high-end VM to handle the processing demands of Cisco Hyperlocation deployments, ensuring optimal performance and accuracy.

To ensure end-to-end QoS and preserve markings correctly in the VoWLAN setup, the configurations needed on the wired network are trust boundaries and policy maps. Trust boundaries define where the network trusts the QoS markings on packets, and policy maps are used to enforce QoS policies on the network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The OfficeExtend Access Point (OEAP) split tunnel feature allows the separation of corporate and local traffic. By implementing a split tunnel, remote workers can maintain wireless connectivity to the corporate network while simultaneously accessing local network resources such as printers. This solution ensures that local traffic does not have to traverse the corporate network, which can cause connectivity issues like the ones reported by the users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

A rogue AP with open authentication poses a high security risk as it does not require a password, making it easy for unauthorized users to connect. If the rogue AP accepts clients, it can potentially capture sensitive data from those clients. A foreign SSID indicates that the AP is not part of the managed network and could be maliciously installed to lure unsuspecting users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, focusing on security risks associated with rogue APs.

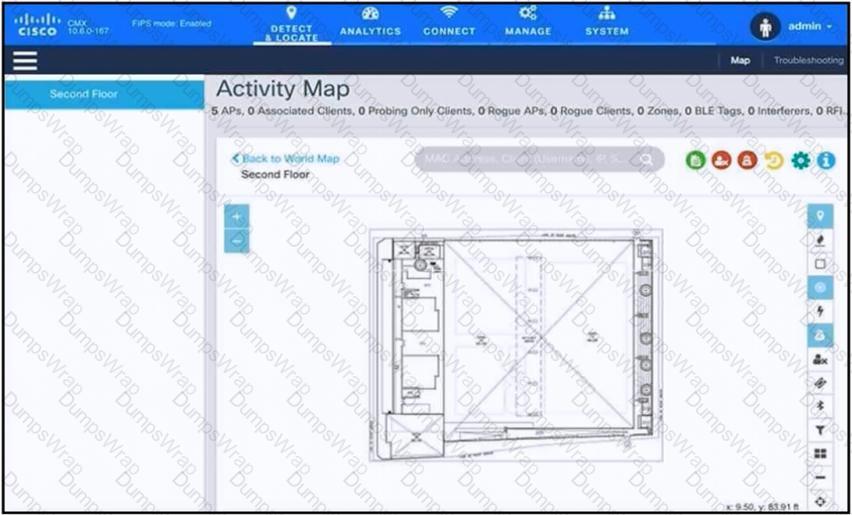

The issue with the Cisco CMX dashboard not showing any data can be resolved by integrating the Wireless LAN Controllers (WLCs) with the CMX system. The CMX solution relies on data from the WLCs to track and detect users’ presence in the office area. Without the WLCs being added to CMX, the system cannot collect the necessary analytics and location data for its operations.

 To resolve the issue of changing the Cisco Hyperlocation detection threshold, the engineer should shut down all radios on the controller, change the Cisco Hyperlocation detection range, and then enable the radios again. This process ensures that the new threshold settings are applied correctly across the network.

 Bluetooth Low Energy (BLE) is renowned for its ability to provide precise location services, especially in the context of indoor positioning systems. BLE beacons can be strategically placed throughout a facility, and when used in conjunction with a mobile application, they can deliver the high level of location accuracy required for various use cases, including navigation, asset tracking, and contextual marketing.

The issue with users configured for EAP-PEAP not being able to connect to the network, when a Cisco Wireless LAN Controller (WLC) is deployed using local EAP, typically points to a misconfiguration in the local EAP profile on the WLC. EAP-PEAP relies on a server-side certificate to create a secure TLS tunnel for the authentication process. If the local EAP profile is not correctly configured with the proper certificate or other necessary settings, the authentication process will fail, preventing users from connecting. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

For CMX high availability deployment, enabling the virtual IP address of the primary server is critical. This virtual IP facilitates seamless failover to the secondary server without requiring DNS updates or manual intervention, ensuring uninterrupted service during primary server outages. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 mDNS has specific restrictions regarding its configuration. Option C is correct because mDNS is not supported on FlexConnect APs with a locally switched WLAN, which limits its deployment in certain network designs. Option D is also correct; the controller software must be newer than version 7.0.6 to support mDNS features, which means that older controller software versions do not have the necessary capabilities to handle mDNS. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

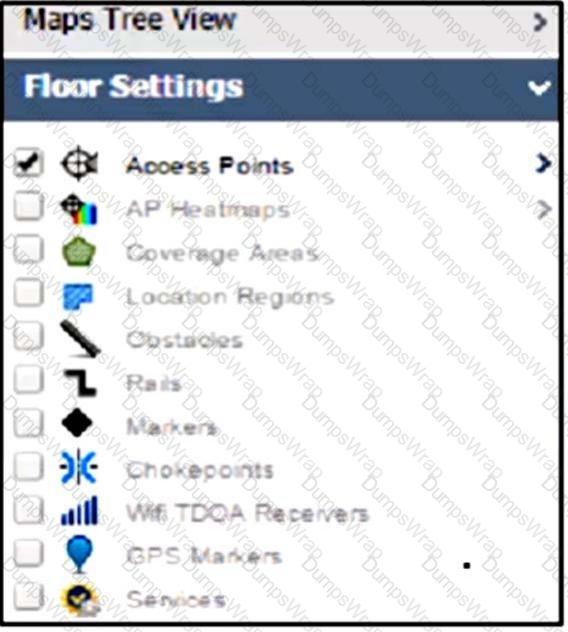

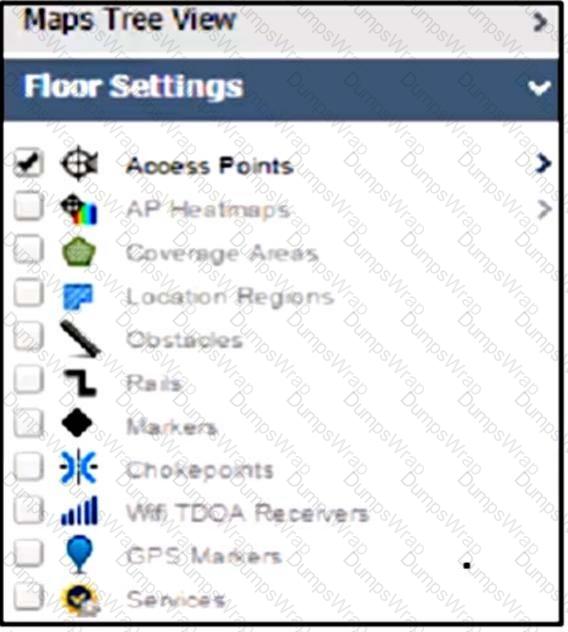

The absence of rogue AP options in the navigation menu under Maps in Cisco Prime Infrastructure (PI) version 3.0 indicates that there is an issue with integrating location services, which are provided by Mobility Services Engine (MSE). Without adding MSE to PI, location-based services such as tracking rogue access points cannot be utilized or displayed within PI’s interface. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When a client is authenticated but cannot pass traffic in the RUN state, it indicates that an ACL may be blocking the traffic post-authentication. Disabling or modifying this ACL to allow traffic can resolve the connectivity issue, ensuring that the client’s traffic flows correctly after authentication with Cisco ISE.

For guests to reach a Web Authentication Redirect page while blocking web management traffic to the controller, guest client HTTPS traffic must be allowed to a specific IP address that does not interfere with management access. The virtual interface IP on a Cisco Wireless LAN Controller serves as a DHCP relay and is used for web authentication processes. Therefore, allowing HTTPS traffic to this IP enables guests to reach the redirect page without granting them access to manage the controller. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The default NMSP echo interval between Cisco MSE and a Wireless LAN Controller is 15 seconds. This interval determines how frequently the MSE sends echo messages to the WLC to maintain the NMSP connection and ensure that the link is active and operational. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

To create an account for CLI access to an access point for troubleshooting, the WLC must be configured to allow user access with the capability to make changes. The ReadWrite User Access Mode enables an engineer to have full read and write access to the AP’s configuration via the CLI, which is necessary for performing troubleshooting tasks. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

For a network with 3000 APs and 7000 IPS licenses, scaling to a high-end server is appropriate. This will provide the necessary resources and capabilities to support the large number of APs and the extensive licensing requirements for the Intrusion Prevention System.

 Cisco AVC (Application Visibility and Control) on a Cisco Wireless LAN Controller (WLC) is used to prioritize traffic by marking the packets. For Cisco IP cameras that use the wireless network, the AVC rule would be configured to mark the packets with a specific QoS value, ensuring that the video traffic is treated with higher priority as it traverses the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Voice VLAN feature on switches allows the network to distinguish between voice traffic and data traffic from wireless clients connected to IP phones. This is crucial for applying the appropriate QoS to ensure that voice traffic is prioritized over client data traffic. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

In a multitenant building, competing wireless APs are initially classified as ‘unclassified’ in the WLC. This classification means that the APs are not recognized as part of the network’s infrastructure. Over time, administrators can classify these APs as ‘friendly’, ‘malicious’, or maintain them as ‘unclassified’ based on their potential impact on the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

When upgrading a Cisco AireOS WLC from version 7.3 to 8.9, it’s crucial to configure ACLs that allow necessary traffic for Cisco Central Web Authentication (CWA). The correct ACLs to configure are:

B. Permit 0.0.0.0 0.0.0.0 UDP DNS any: This ACL allows DNS queries from any source to any destination, which is essential for resolving domain names during the upgrade process.

E. Permit 0.0.0.0 0.0.0.0 UDP any any: This ACL permits all UDP traffic from any source to any destination, ensuring that services relying on UDP can continue to function during the upgrade.

These ACLs ensure that critical services like DNS resolution are not interrupted during the upgrade process, which could otherwise lead to system instability or failure to access network resources. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

When FlexConnect APs are in standalone mode due to losing connection to the WLC, they should still be able to serve clients if local switching and authentication are enabled. The issue described occurs because FlexConnect Local Authentication is disabled. With local auth enabled, the AP can authenticate clients directly, without needing to communicate with the WLC, thus allowing the SSID to remain advertised and clients to stay connected even if the WLC is unreachable. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When configuring access control on a WLC using a TACACS+ server for centralized authentication on network devices, the role value that must be configured under the shell profile on the TACACS+ server for a user with read-only permissions is “MONITOR”. This role restricts the user to monitoring functions without the ability to make changes to the configuration. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The Cisco Aironet 600 Series OfficeExtend APs support various Layer 2 security options, including WPA+WPA2 and 802.1X. WPA and WPA2 provide secure encryption for wireless data, while 802.1X offers a robust authentication framework. These security options ensure that the wireless network is protected against unauthorized access and data breaches, which is crucial for remote workers connecting to the corporate network. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco Hyperlocation is enabled in the RF Profile on a Cisco Catalyst 9800 Series Wireless Controller web interface. The RF Profile contains settings that pertain to radio frequency management, which includes the configuration for Hyperlocation.

In Cisco Wireless LAN Controller (WLC) environments, the feature that allows for different usernames and passwords for administrative support on specific APs is the local management users. This feature enables the configuration of unique credentials on individual APs, separate from the global credentials used for the rest of the network. By enabling local management users, the APs in the CEO’s office can have distinct administrative access controls, ensuring a higher level of security and customization. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

When implementing Cisco Identity-Based Networking on a Cisco AireOS controller with two ACLs where one is applied directly on the WLC interface and another referenced by ISE for a specific group policy, the resulting ACL for a user in that group would be a combination of both ACLs. The BASE_ACL applied on the corporate_clients interface acts as the default ACL for all corporate clients, while HR_ACL is specific for Human Resources users. When a Human Resources user connects, HR_ACL takes precedence but does not replace BASE_ACL; instead, it appends its rules to those of BASE_ACL resulting in an aggregated set of rules from both ACLs. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 On a WLAN that uses IEEE 802.1X for wireless network authentication, enabling local EAP allows clients to authenticate using locally stored credentials on the Cisco Wireless LAN Controller (WLC), which is useful in scenarios where the external RADIUS server is unavailable. The LDAP server option is used to authenticate clients against a central repository, such as an LDAP directory. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Media Stream feature on a Cisco WLC allows for the prioritization of streaming media. To guarantee at least 2 Mbps stream per user, the ‘coarse’ Resource Reservation Control (RRC) template should be used, as it provides the necessary bandwidth allocation for each user’s media stream. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco Prime Infrastructure reporting provides a comprehensive summary of inconsistencies and missed best practices related to WLAN controllers. It aggregates data from all WLCs, Cisco MSE, and itself to generate detailed reports. References: Cisco Prime Infrastructure reporting features documentation.

CMX Facebook Wi-Fi is designed to provide limited access to the network before a user completes authentication. This feature allows HTTP traffic only before authentication while blocking all other traffic, which corresponds with option A. Additionally, it intercepts HTTP traffic to redirect the user to the authentication page, which aligns with option D. The purpose of these restrictions is to ensure that users can be directed to log in via Facebook for Wi-Fi access without compromising network security by allowing unchecked access. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

For RADIUS to restrict administrative control effectively, the engineer needs to define a Network Access Server (NAS) entry that corresponds to the WLC’s management IP address and the AP subnet. The correct entry would be the NAS IP of the virtual interface (typically used for RADIUS communications) and the specific network range of the AP subnet, which is 192.168.2.0 with a subnet mask of 255.255.255.0. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

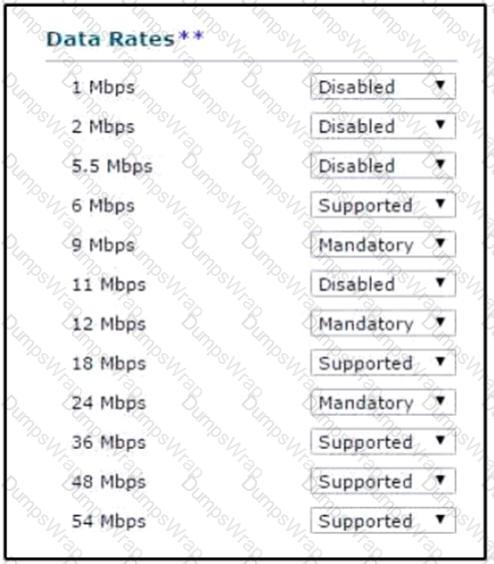

 To ensure that the guest network uses only lower rates instead of 802.11n data rates, the WMM (Wi-Fi Multimedia) policy of the WLAN should be set to disabled ©. This will prevent the use of 802.11n data rates, which require WMM to be enabled. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 Bluetooth Low Energy (BLE) is renowned for its ability to provide precise location services, especially in the context of indoor positioning systems. BLE beacons can be strategically placed throughout a facility, and when used in conjunction with a mobile application, they can deliver the high level of location accuracy required for various use cases, including navigation, asset tracking, and contextual marketing.

To prevent the network from a Layer 2 flooding of multicast frames and ensure a seamless transfer of multicast data to the client when roaming, IGMP snooping should be enabled on the WLC. This feature allows the WLC to monitor and control multicast traffic at Layer 2, preventing unnecessary multicast forwarding.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

In Cisco ISE version 2.1 for BYOD with a Single SSID setup, 802.1x must be configured to provide the necessary layer of security and to facilitate the device registration process. 802.1x authentication allows for the use of EAP (Extensible Authentication Protocol) to authenticate users before they can access the network. This ensures that only authorized devices can join the BYOD network, providing a secure method for device onboarding and access control. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To load balance the data coming through NMSP from the WLCs and spread the load between multiple CMX servers, the configuration cmxctl config feature flags nmsplb.cmx-ap-grouping true should be used. This enables the load balancing feature and helps optimize the data flow for APs in a large network environment. References: The configuration for load balancing in CMX is explained in the certification guide, which outlines the commands and flags necessary to manage data flow efficiently.

Apple’s Fastlane technology is used to prioritize traffic from iOS devices on the network. By enabling Fastlane under each WLAN setting, the network can recognize and prioritize traffic from Apple iOS devices, addressing the QoS issues for these devices on the WLANs. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 When configuring Cisco OfficeExtend Access Points (OEAPs), enabling NAT IP only for office-extend is necessary if the APs are behind a NAT device and need to communicate with the Wireless LAN Controller (WLC) using the internal IP management address. The command config flexconnect office-extend nat-ip-only enable allows the APs to discover and associate with the WLC when the management interface is configured with a NAT address.

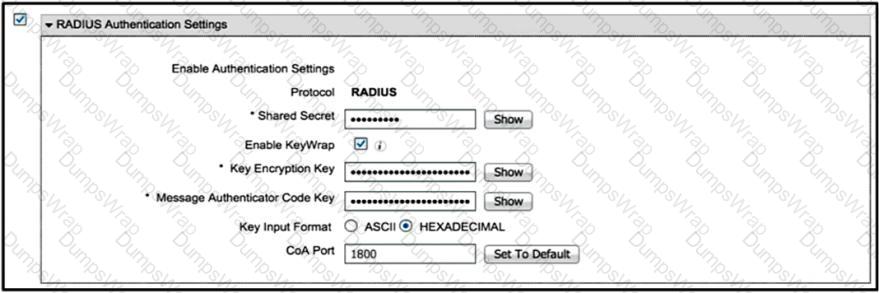

The configuration that must be applied in the RADIUS Authentication Settings section from the ISE Network Device page when clients are able to authenticate successfully but the ISE policies designed to place them on different interfaces are not working is to change the CoA Port. The CoA (Change of Authorization) port is used by ISE to send messages to the network device to apply different policies post-authentication. If the CoA port is not correctly configured, the network device will not receive or act upon these messages, resulting in clients not being placed on the correct interfaces as per ISE policies. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 For a startup company without LDAP, using the internal database of the RADIUS server is a viable solution to authenticate wireless users. This approach allows the company to maintain a directory of users within the RADIUS server itself, providing similar security and user experience as LDAP would. Users can be authenticated against this internal database, ensuring secure access to the wireless network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 EAP-TLS (Extensible Authentication Protocol-Transport Layer Security) is an EAP method that an Access Point (AP) can use to authenticate to the wired network. EAP-TLS is considered one of the most secure EAP methods because it uses mutual authentication, where both the client and the server authenticate each other using certificates.

To ensure reliable streaming of multicast video over a wireless link, it’s essential to optimize the multicast settings on the controller. Option B, implementing video-stream for the multicast video on the controller, is a feature that optimizes the delivery of multicast streams by converting them into unicast streams for specific clients, thus improving reliability. Option C, allowing multicast-direct to work correctly, involves enabling multicast-direct globally, which allows multicast packets to be sent directly to clients without the need for them to subscribe to a specific multicast group, enhancing efficiency and reliability. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 In Cisco CMX, to view active RFID tags, the engineer needs to enable the tracking of these tags within the system settings. This is typically done by selecting an option that allows for RFID tag tracking, which makes them visible on location-based services like the Detect and Locate window of Cisco CMX. By enabling this feature, the system starts to interpret signals from RFID tags and displays their location accordingly. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 Configuring an AVC profile for the Jabber traffic and applying it to the WLAN ensures that voice traffic from Cisco Jabber receives Platinum QoS while keeping other WLAN traffic at Silver class. AVC allows for deep packet inspection which can identify Jabber application packets so they can be given priority over other types of traffic.

For location analytics in a shopping center using AireOS controllers with Cisco Wave 2 APs, the CMX server settings must exclude probing clients to track only associated clients. This setting ensures that the location analytics data reflects the movements of clients that are actively connected to the WLAN, providing accurate insights into popular areas within the shopping center. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Removing unnecessary controllers from the mobility group (B) would create less load on the controllers while maintaining the same mobility messages. This is because each controller in a mobility group shares its client database with other controllers, which can lead to increased overhead. By minimizing the number of controllers in the group, the load is reduced. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 If the administrator is unable to see interferers on the Cisco Prime Infrastructure maps, it could be due to the MSE (Mobility Services Engine) not being added and synchronized with Cisco Prime Infrastructure, which is essential for tracking and locating devices, including interferers. Additionally, if interferer tracking is not enabled on the MSE, it would not track or display the location of interferers on the maps. The other options, such as SNMP failure, reaching the Context Aware Service tracking limit, or inactive NSMP communication, would affect other aspects of network visibility but not specifically the tracking and display of interferers. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Cisco Aironet 1800s Active Sensor is designed to work with Cisco DNA Center. It is a compact, flexible sensor that provides insights into the wireless network’s health and is used for proactive monitoring and troubleshooting. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, which includes information on Cisco DNA Center and compatible AP models.

 The correct configuration for limiting Internet bandwidth for each guest client on a Cisco Catalyst 9800 WLC is through a policy map. A policy map allows the creation of policies that can manage traffic within a network. By setting a bandwidth limit within the policy map, the WLC can enforce the required QoS for guest clients. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)
