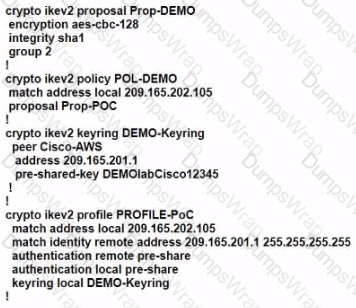

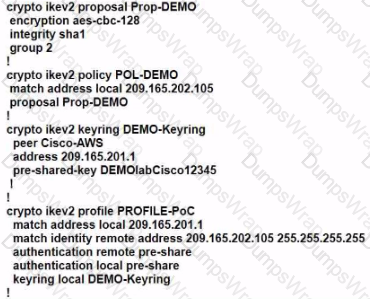

 Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication pre-share in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS1 and Cisco2 for setting up an IKEv2 IPsec site-to-site VPN between a Cisco IOS-XE router and an AWS virtual private gateway. References :=

• 1: AWS VPN Configuration Guide for Cisco IOS-XE
• 2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

Azure ExpressRoute is a service that enables a dedicated and secure connection between an on-premises infrastructure and Azure data centers through a colocation provider. A colocation provider is a third-party data center that offers network connectivity services to multiple customers. Azure ExpressRoute allows customers to bypass the public internet and connect directly to Azure services, such as virtual machines, storage, databases, and more. This provides benefits such as lower latency, higher bandwidth, more reliability, and enhanced security. Azure ExpressRoute also supports hybrid scenarios, such as connecting to Office 365, Dynamics 365, and other SaaS applications hosted on Azure. Azure ExpressRoute requires a physical connection between the customer’s network and the colocation provider’s network, as well as a logical connection between the customer’s network and the Azure virtual network. The logical connection is established using a Border Gateway Protocol (BGP) session, which exchanges routing information between the two networks. Azure ExpressRoute supports two models: standard and premium. The standard model offers connectivity to all Azure regionswithin the same geopolitical region, while the premium model offers connectivity to all Azure regions globally, as well as additional features such as increased route limits, global reach, and Microsoft peering. References: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep, ENCC | Designing and Implementing Cloud Connectivity | Netec

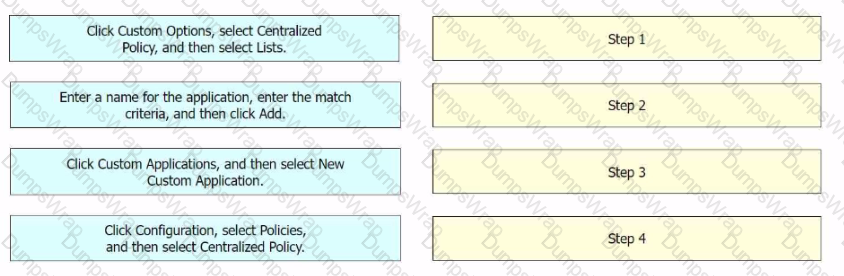

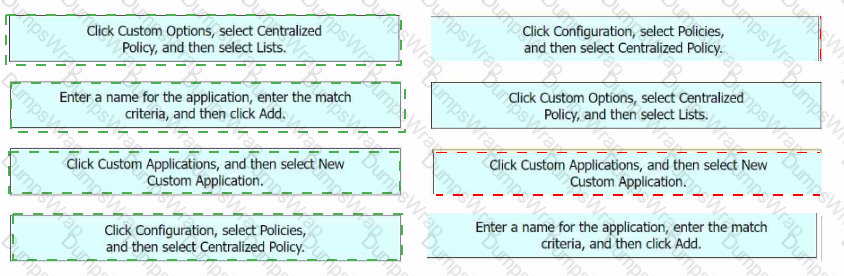

• To configure a custom application with Cisco SD-WAN centralized policy, you need to follow these steps25:

The process of configuring a custom application with a Cisco SD-WAN centralized policy using Cisco vManage involves several steps1.

• Click Configuration, select Policies, and then select Centralized Policy: This is the first step where you navigate to the Policies section in the Configuration menu of Cisco vManage1.
• Click Custom Options, select Centralized Policy, and then select Lists: In this step, you select the Custom Options, then select Centralized Policy, and finally select Lists1.
• Click Custom Applications, and then select New Custom Application: After setting up the Lists, you click on Custom Applications and then select New Custom Application1.
• Enter a name for the application, enter the match criteria, and then click Add: Finally, you enter a name for the application, specify the match criteria, and then click Add to complete the configuration1.

References :=

• Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE

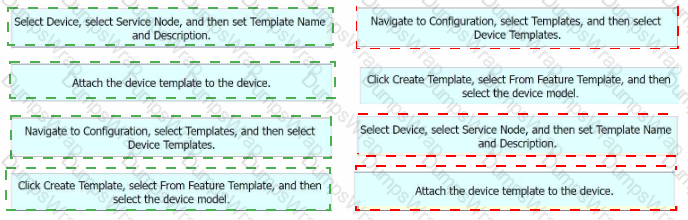

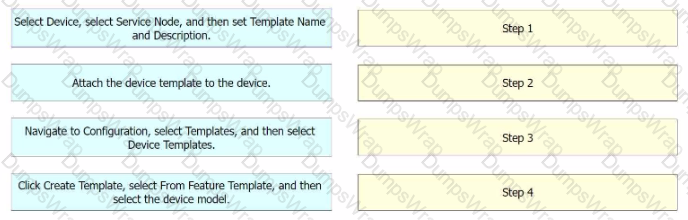

Step 1 = Navigate to Configuration, select Templates, and then select Device Templates. Step 2 = Click Create Template, select From Feature Template, and then select the device model. Step 3 = Select Device, select Service Node, and then set Template Name and Description. Step 4 = Attach the device template to the device.

The process of configuring an AppGoE service node for WAN optimization for applications that are hosted in the cloud using Cisco vManage for C8000V or C8500L-8S4X devices involves several steps12.

• Navigate to Configuration, select Templates, and then select Device Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.
• Click Create Template, select From Feature Template, and then select the device model: In this step, you create a new template for the device model from the feature template1.
• Select Device, select Service Node, and then set Template Name and Description: After setting up the template, you select the device and the service node, and then set the template name and description1.
• Attach the device template to the device: Finally, you attach the created device template to the device1.

References :=

• AppQoE - Step-by-Step Configuration - Cisco Community
• Cisco Catalyst SD-WAN AppQoE Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x

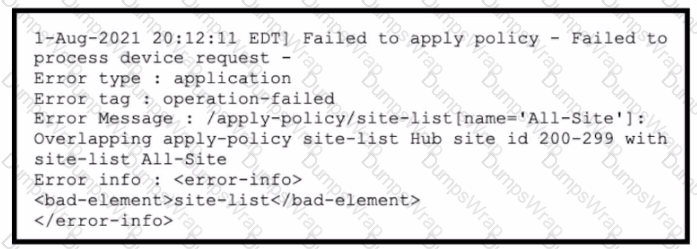

The problem is that the site-list “All-Site” has a higher match sequence than the site-list “Hub”, which means that the policy for “All-Site” will take precedence over the policy for “Hub” for any site that belongs to both lists. This creates a conflict and prevents the engineer from adding a new centralized control policy in Cisco vManage. To resolve this issue, the site-list “All-Site” should be configured with a new match sequence that is lower than the sequence for site-list “Hub”, so that the policy for “Hub” will be applied first and then the policy for “All-Site” will be applied only to the remaining sites that are not in the “Hub” list. References :=

• Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Cisco SD-WAN Cloud OnRamp for Colocation, Lesson 3: Cisco SD-WAN Cloud OnRamp for Colocation - Centralized Control Policies
• Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide, Chapter 4: Configuring Centralized Control Policies
• Cisco SD-WAN Configuration Guide, Release 20.3, Chapter: Centralized Policy Framework, Section: Policy Configuration Overview

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits:

• It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices12. This reduces the latency and improves the performance of the critical business applications.
• It leverages SD-WAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN13. SD-WAN can dynamically select the best path for each application based on the network conditions and policies13. SD-WAN can also provide redundancy, security, and visibility for the WAN13.
• It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices14. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering14. BGP can also enable seamless integration with the cloud service providers (CSPs) and internet service providers (ISPs)14.

References :=

• 1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U. login required)
• 2: Cisco SD-WAN Design Guide

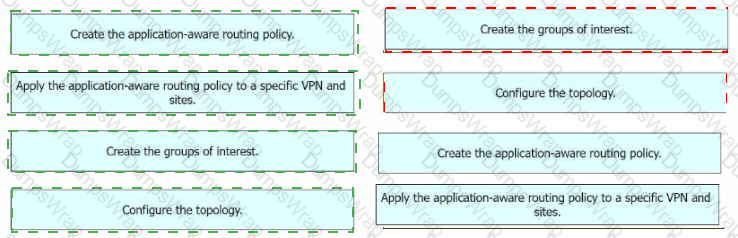

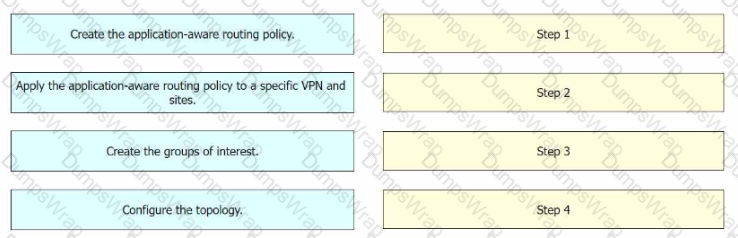

Step 1 = Create the groups of interest. Step 2 = Configure the topology. Step 3 = Create the application-aware routing policy. Step 4 = Apply the application-aware routing policy to a specific VPN and sites.

The process of configuring an application-aware routing policy in Cisco vManage involves several steps12.

• Create the groups of interest: This is the first step where you define the applications or groups that the policy will affect1.
• Configure the topology: This involves setting up the network topology that the policy will operate within1.
• Create the application-aware routing policy: After setting up the groups and topology, you then create the application-aware routing policy. This policy tracks network and path characteristics of the data plane tunnels between Cisco SD-WAN devices and uses the collected information to compute optimal paths for data traffic31.
• Apply the application-aware routing policy to a specific VPN and sites: Finally, the created policy is applied to a specific VPN and sites. This allows the policy to affect the desired network traffic1.

References :=

• Designing and Implementing Cloud Connectivity (ENCC) v1.0
• Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440)
• Information About Application-Aware Routing - Cisco
• Configuring Application-Aware Routing (AAR) Policies | NetworkAcademy.io
• Policies Configuration Guide, Cisco IOS XE SD-WAN Releases 16.11, 16.12

The architecture model that establishes internet-based connectivity between on-premises networks and AWS cloud resources is the one that establishes an iPsec VPN tunnel with Internet Key Exchange (IKE) for secure key negotiation and encrypted data transmission. This model is also known as the VPN CloudHub model12. It allows multiple remote sites to connect to the same virtual private gateway in AWS, creating a hub-and-spoke topology1. The VPN CloudHub model provides the following benefits12:

• It enables secure communication between remote sites and AWS over the public internet, using encryption and authentication protocols such as IPsec and IKE.
• It supports dynamic routing protocols such as BGP, which can automatically adjust the routing tables based on the availability and performance of the VPN tunnels.
• It allows for redundancy and load balancing across multiple VPN tunnels, increasing the reliability and throughput of the connectivity.
• It simplifies the management and configuration of the VPN connections, as each remote site only needs to establish one VPN tunnel to the virtual private gateway in AWS, rather than multiple tunnels to different VPCs or regions.

The other options are not correct because they do not establish internet-based connectivity between on-premises networks and AWS cloud resources. Option B relies on AWS Elastic Load Balancing (ELB) for traffic distribution and uses SSL/TLS encryption for secure data transmission. However, ELB is a service that distributes incoming traffic across multiple targets within a VPC, not across different networks3. Option C employs AWS Direct Connect for a dedicated network connection and uses private IP addresses for secure communication. However, AWS Direct Connect is a service that establishes a private connection between on-premises networks and AWS, bypassing the public internet4. Option D uses Amazon CloudFront for caching and distributing content globally and uses HTTPS for secure data transfer. However, Amazon CloudFront is a service that delivers static and dynamic web content to end users, not to on-premises networks5.

References:

• 1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5)
• 2: Cisco ASA Site-to-Site VPN
• 3: What Is Elastic Load Balancing?
• 4: What is AWS Direct Connect?

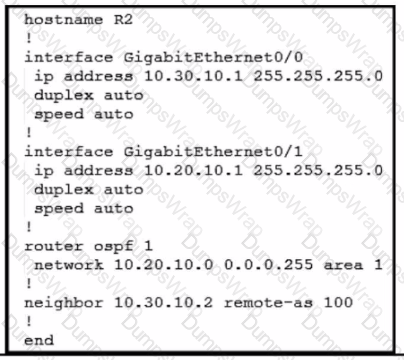

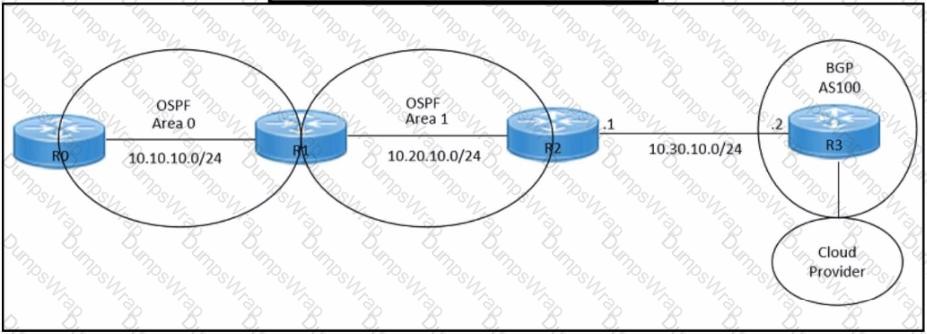

To redistribute OSPF internal routes into BGP for connecting an on-premises network to a cloud provider, the engineer should run the commands “router bgp 100” and “redistribute ospf 1” on router R2. The command “router bgp 100” is used to create a BGP routing process with AS number 100. The command “redistribute ospf 1” is used to redistribute OSPF routes from process ID 1 into BGP. References: = I need to access the specific content of Designing and Implementing Cloud Connectivity (ENCC) v1.0 from Cisco’s official resources to provide exact references. However, I don’t have direct access to external databases or resources, including the Cisco ENCC course materials. I recommend referring to the ENCC course materials for the most accurate and detailed information. Please note that this answer is based on general networking principles and may not reflect the specific content of the ENCC course. Always refer to the official course materials for the most accurate information.

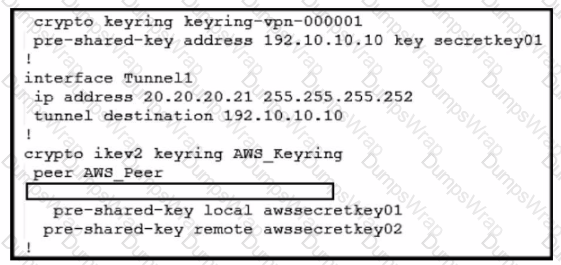

 In the given scenario, an engineer is configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router and AWS. The correct command to complete the tunnel configuration is “tunnel source 20.20.20.21”. This command specifies the source IP address for the tunnel, which is essential for establishing a secure connection between two endpoints over the internet or another network1. References:

• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
• [Security for VPNs with IPsec Configuration Guide, Cisco IOS XE Release 3S - Config

An identity mismatch occurs when the local and remote identities configured on the IPsec peers do not match. This can prevent the establishment of an IPsec tunnel or cause traffic to be dropped by the IPsec policy. In this case, the network engineer should verify that the local and remote identities configured on the Cisco WAN edge router and the AWS endpoint match the values expected by each peer. The identities can be an IP address, a fully qualified domain name (FQDN), or a distinguished name (DN). The identities are exchanged during the IKE phase 1 negotiation and are used to authenticate the peers. If the identities do not match, the peers will reject the IKE proposal and the IPsec tunnel will not be established or will be torn down. References :=

• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services, Topic: Troubleshooting
• Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 2: Implementing Cisco SD-WAN Cloud OnRamp for IaaS, Topic: Troubleshooting Cisco SD-WAN Cloud OnRamp for IaaS
• Cisco IOS Security Configuration Guide, Release 15M&T, Chapter: Configuring IPsec Network Security, Topic: Configuring IPsec Identity and Peer Addressing
