Cisco 300-620 Dumps

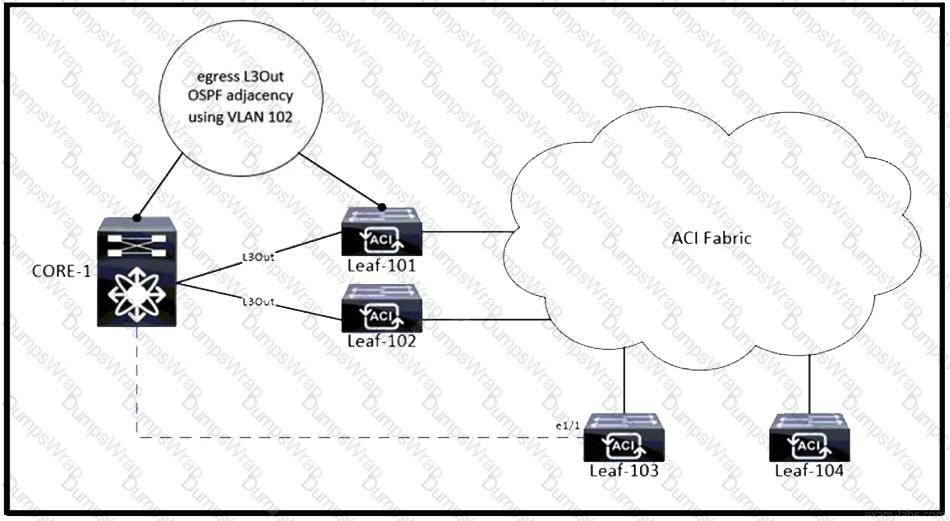

To clear the MCP (Mis-Cabling Protocol) fault in a Cisco ACI fabric when an egress L3Out is configured from Leaf-101 and Leaf-102 to CORE-1, and VLAN 102 is used for OSPF adjacency, the encapsulation VLAN on the EPG-101 static port binding should match the VLAN used for OSPF adjacency. This means that VLAN 102 should be used as the encapsulation VLAN for the static port binding on Leaf-103 e1/1. Using the same VLAN for both OSPF adjacency and the static port binding ensures consistency and prevents misconfiguration that could lead to MCP faults1.

References :=

ACI Fabric L3Out White Paper - Cisco1

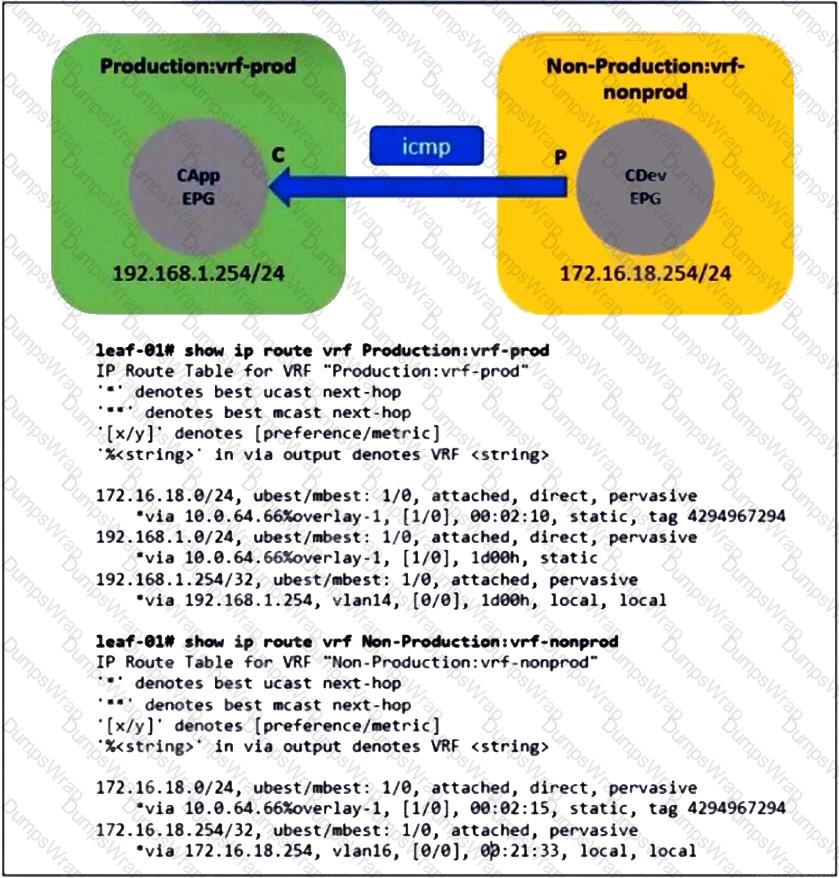

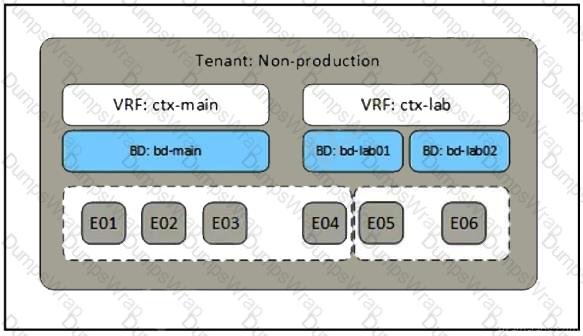

 To resolve the VRF route leaking issue and ensure that the route in the Non-Production:vrf-nonprod VRF to the production tenant is present, the action that should be taken is to enable the “Shared between VRFs” option for the bridge domain (BD) subnet in the production VRF. This setting allows the subnet to be shared across different VRFs within the same tenant or across tenants, enabling communication between EPGs that are in different VRFs1.

References :=

ACI Inter VRF/Tenant Route Leaking Configuration Example

When configuring in-band management, the new construct that must be created is a bridge domain1.

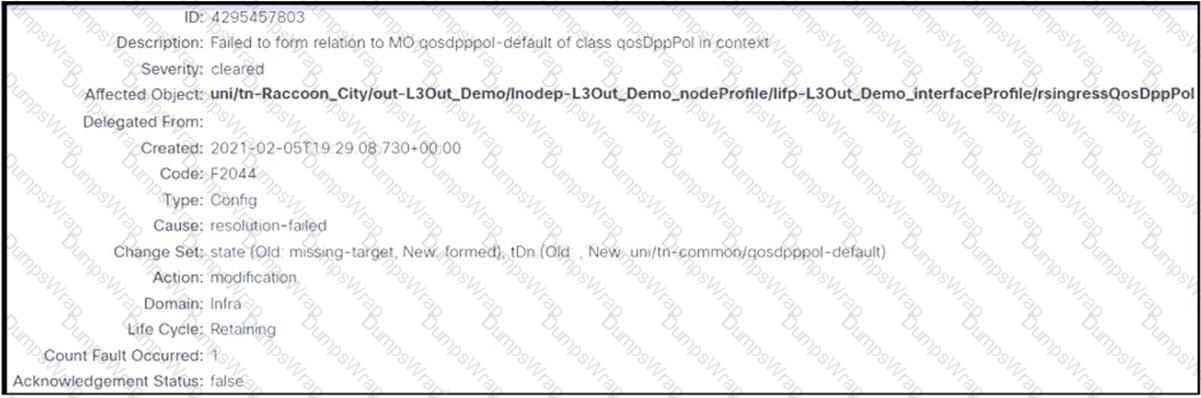

When configuring an L3Out in Cisco ACI and encountering a QoS-related error, creating a custom QoS policy is often necessary to clear the fault. This involves defining a QoS policy that meets the specific requirements of the L3Out configuration and applying it to the relevant interfaces or globally within the fabric. The custom QoS policy should be designed to prioritize traffic appropriately and ensure that the necessary QoS settings are in place for the L3Out connections1.

References :=

Cisco ACI L3Out Configuration Examples1

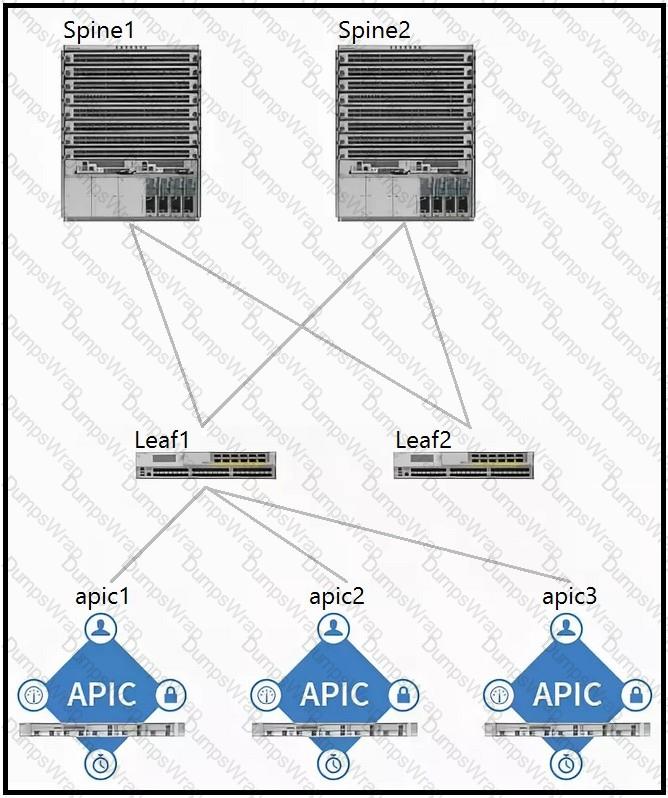

 In a Cisco ACI fabric, the spine switches are typically configured as route reflectors. This is because spine switches are central to the fabric’s architecture and are responsible for interconnecting all the leaf switches, making them ideal for reflecting BGP routes within the fabric. Therefore, the components that should be configured as route reflectors are:

Spine1 (Option A)

Spine2 (Option C)

For the BGP Route Reflector policy to take effect, the components that must be configured are the leaf fabric interface overrides and profiles. These configurations are necessary to establish the route reflector relationships within the BGP protocol on the leaf switches

 In the Cisco ACI VMM domain configuration, to generate port groups with names formatted as “Tenant=Application=EPG”, the configuration option used is delimiter. The delimiter is a character that separates the elements of the port-group name. By changing the delimiter setting to “=”, the port-group names will be generated with the desired format.

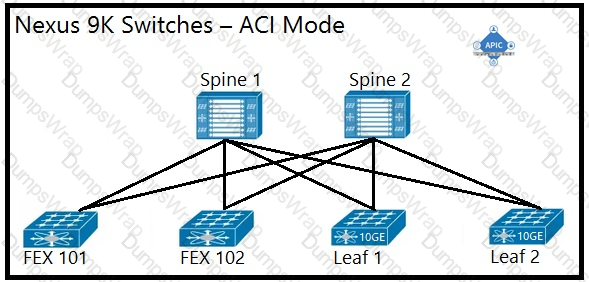

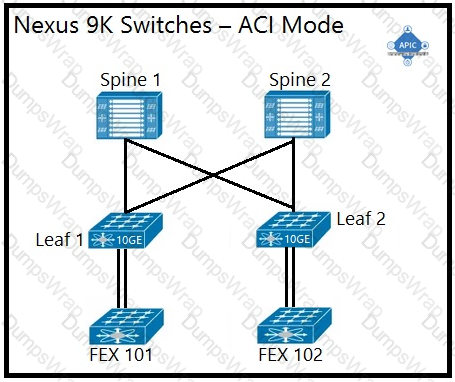

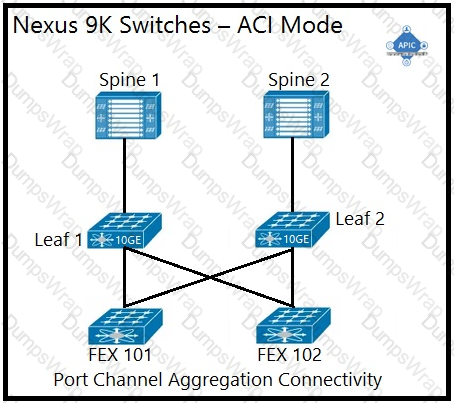

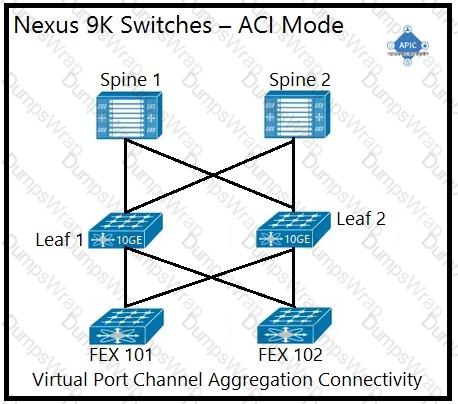

The supported physical topology for a Cisco ACI data center network that includes Cisco Nexus 2000 Series 10G fabric extenders is depicted in Option A. This topology illustrates a pair of spine switches connected to leaf switches, which are then connected to the fabric extenders. The Cisco Nexus 2000 Series Fabric Extenders act as remote line cards for a parent Cisco Nexus switch, extending the network fabric. The topology shown is a spine-leaf architecture, which is a scalable, high-bandwidth framework that is typical in ACI deployments.

References :=

For a detailed understanding of the ACI fabric and supported topologies, you can refer to the Cisco Application Centric Infrastructure Design Guide, which provides comprehensive information on design recommendations and deployment models: Cisco ACI Design Guide.

To learn more about the role of fabric extenders in the ACI architecture, the following resource offers insights into how they integrate with the ACI fabric: Understanding the ACI Fabric.

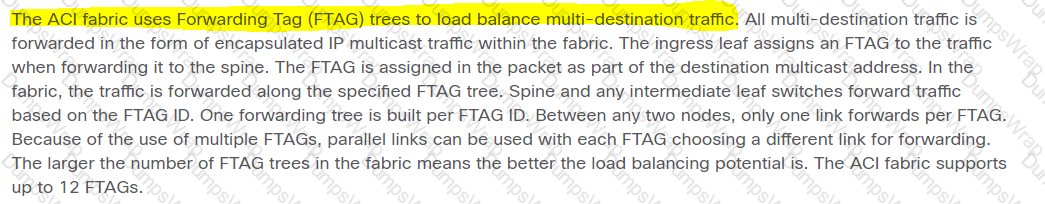

The method that the Cisco ACI fabric uses to load-balance multidestination traffic is forwarding tag trees3. This method involves assigning a forwarding tag (FTAG) to the traffic when it is forwarded within the fabric, ensuring efficient load balancing of multi-destination traffic3.

s/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

 To prevent a fault from appearing that is not directly relevant to the environment, the ACI administrator should create a fault severity assignment policy that hides the fault. This can be done by selecting “Ignore Fault” under System -> Faults in the APIC UI2

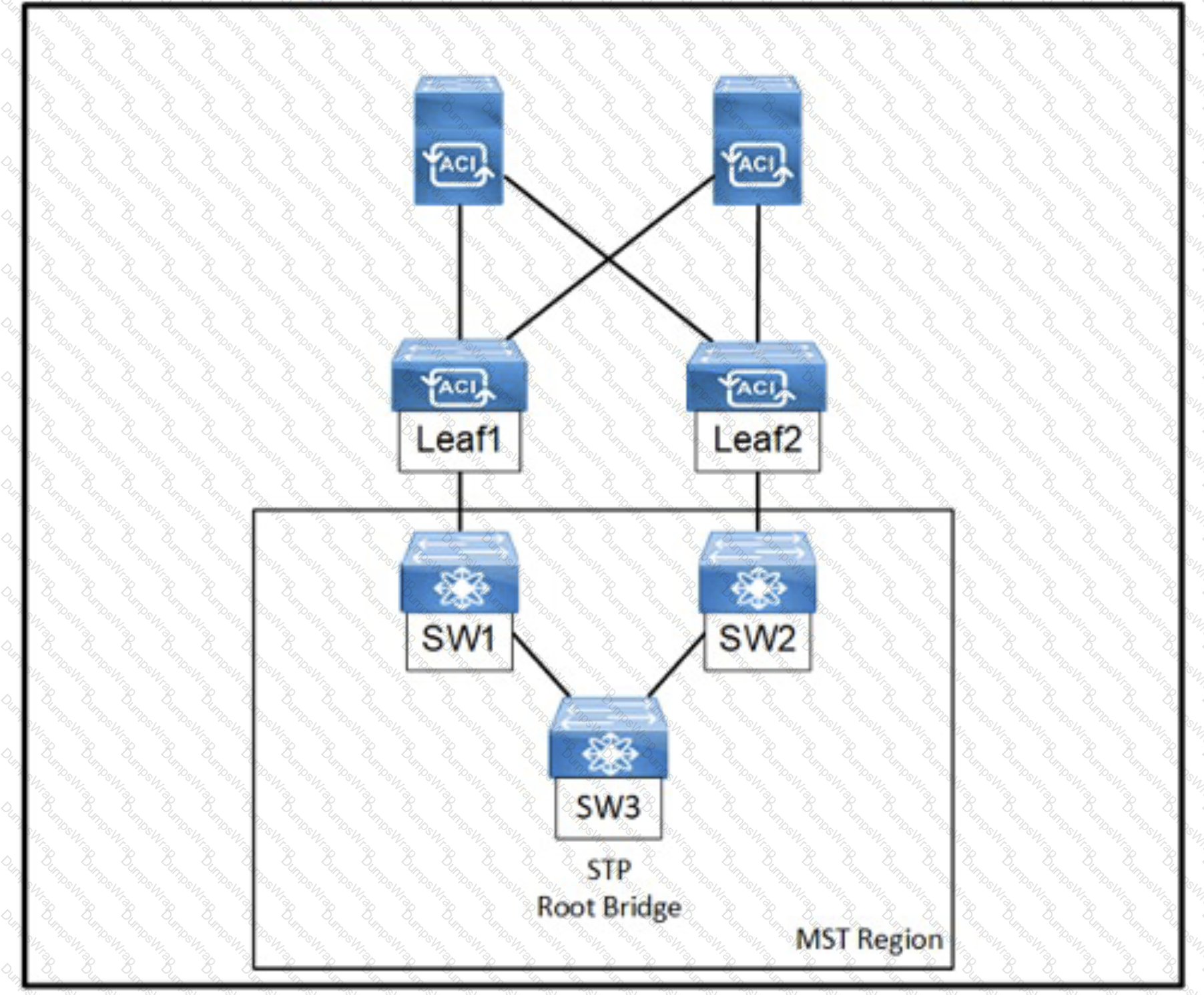

To connect Cisco ACI fabric using Layer 2 with external third-party switches configured using 802.1s protocol, the two constructs required are:

Spanning tree policy for mapping MST Instances to VLANs (Option A): This policy will ensure that the Multiple Spanning Tree (MST) instances on the third-party switches are correctly mapped to the VLANs in the ACI fabric.

Static binding of native VLAN in all existing EPGs (Option E): This construct is necessary to maintain the native VLAN across all EPGs when integrating with third-party switches that use 802.1s protocol.

frastructure/white-paper-c07-732033.html

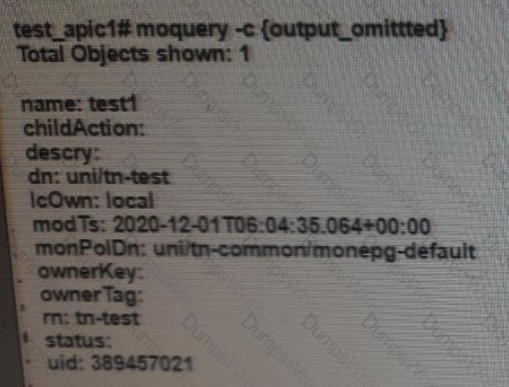

 In Cisco ACI, the object classes are used to categorize different types of managed objects within the ACI model. The output presented is indicative of a Tenant class object. Tenants in ACI are a top-level container for application policies, essentially providing a unit of isolation from other tenants. Each tenant can contain its own application policies, services, and network policies, and they are separate from other tenants to ensure multi-tenancy1.

References :=

Cisco ACI Policy Model Guide1

Object Renaming in Cisco ACI - Cisco2

Application Centric Infrastructure (ACI) REST API Guide - Cisco DevNet

/apic/sw/4-x/openstack/ACI-Installation-Guide-for-Red-Hat-Using-OSP13-Director/m-configuring-ironic-for-openstack.html

To reduce instability during the migration of a legacy environment to Cisco ACI, the feature that should be enabled in the bridge domain is to Set Multi-Destination Flooding to Flood in BD (Option A). This setting allows unknown multicast, broadcast, and unknown unicast traffic to be flooded within the bridge domain, which can help prevent traffic loss during the migration process.

The feature that dynamically assigns or modifies the EPG association of virtual machines based on their attributes is uSeg EPGs. uSeg EPGs allow for microsegmentation within the Cisco ACI environment, enabling the dynamic assignment of VMs to EPGs based on attributes such as VM name, tag, or other identifiers

To support the addition of new ESXi hosts to the existing VMM domain, the action that should be taken is to map the leaf interface selector to the AEP that is associated with the VMM domain (Option D). This ensures that the correct policies are applied to the interfaces where the new ESXi hosts are connected.

To ensure that destination updates from a newly created L3Out are propagated to all Cisco ACI leaf switches, a BGP route reflector policy should be applied. This policy allows the border leaf switches, which act as BGP route reflectors, to redistribute the learned routes to other leaf switches within the fabric1.

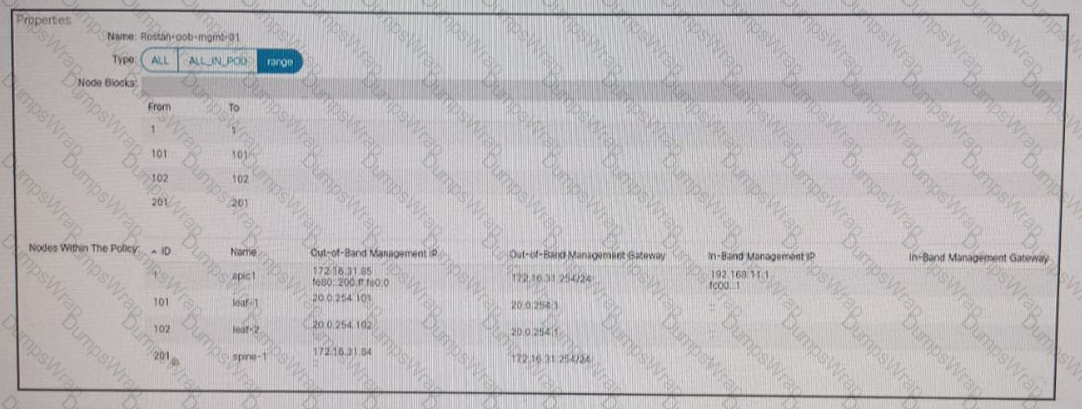

To enable the APIC in a Cisco ACI fabric using out-of-band management connectivity to access a routable host with an IP address of 192.168.11.2, you need to add a Fabric Access Policy that allows management connections. This involves configuring a contract that will be consumed and provided to your OOB devices. The contract will let the system know what traffic is allowed. In this case, you will use the default/common contract to permit any traffic. This is necessary because the APIC needs to be able to send traffic to and receive traffic from the management network1.

References :=

ACI: Configuring Out-of-Band (OOB) Access for Your Fabric - Cisco1

Troubleshoot ACI Management and Core Services - In-band and Out-of-band Management - Cisco2

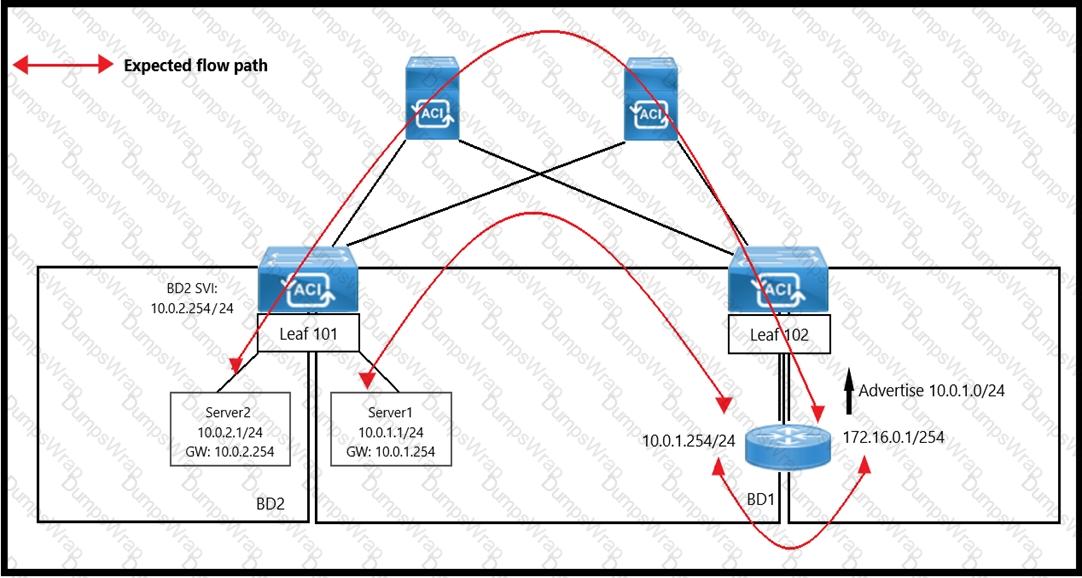

In the Cisco ACI environment, when an engineer wants to enforce a specific path for ICMP replies and prevent packets from taking a direct path, setting Layer 2 Unknown Unicast to Hardware Proxy on the bridge domain (BD1) is the appropriate action. This setting ensures that the unknown unicast traffic, which includes ICMP packets destined for an unknown MAC address, is forwarded to the spine proxy. The spine proxy then forwards the packets based on the endpoint table information, ensuring that the packets follow the expected path through the fabric and do not take any shortcuts or direct paths that bypass the intended routing.

To redirect HTTP traffic between the EPG client and EPG server through the Cisco ASA firewall using a service graph in Cisco ACI, a precise filter must be configured to allow only HTTP traffic. This filter will specify the protocol (HTTP) and the Layer 4 port (typically port 80 for HTTP) to ensure that only HTTP traffic is redirected to the firewall for inspection or processing. The service graph can then be associated with the relevant EPGs to enforce the redirection1.

References :=

Service Graph Design with Cisco ACI (Updated to Cisco APIC Release 5.2) White Paper

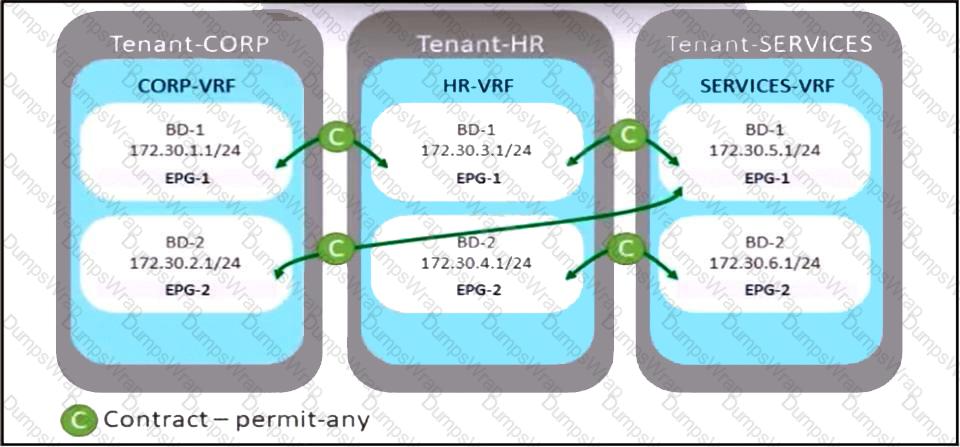

To enable communication between EPGs and BDs from any tenant without the need for contracts or VRF route leaking, the best approach is to implement an unenforced VRF within the common tenant. By doing so, all bridge domains that are associated with this VRF will be able to communicate with each other without additional configurations. This method simplifies the network architecture and reduces the complexity associated with contract management and VRF route leaking1.

References :=

Cisco ACI Contract Guide White Paper1

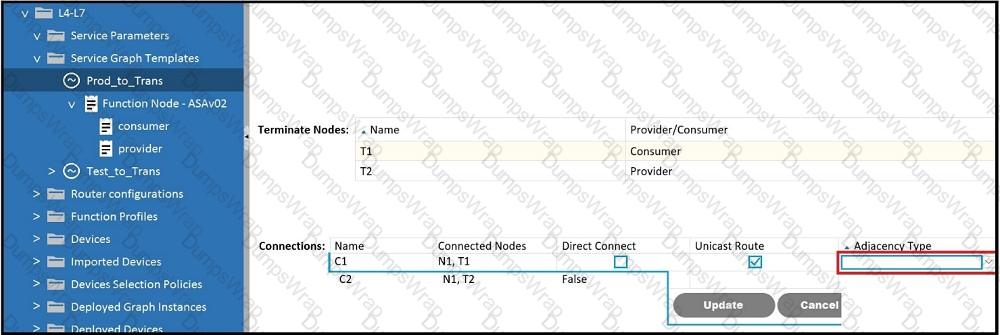

When the client endpoint and the service node interface are in different subnets, the Adjacency Type value should be set to Routed. This setting is used to indicate that routing is required between the client endpoint and the service node interface, as they are not in the same Layer 2 broadcast domain and need Layer 3 routing to communicate.

When designing two data centers based on Cisco ACI technology that can extend L2/L3, VXLAN, and network policy across locations with ACI Multi-Pod, the two requirements that must be considered are:

A single APIC Cluster is required in a Multi-Pod design4.

ACI Multi-Pod requires an IP Network supporting PIM-Bidir2.

In a Cisco ACI fabric, Spanning Tree Protocol (STP) Bridge Protocol Data Units (BPDUs) that are generated by an external switch, such as Switch2 in this scenario, are indeed forwarded across the fabric. This allows externally connected switches to maintain a loop-free topology. While Cisco ACI does not participate in STP as it uses its own protocols and mechanisms for loop prevention within the fabric, it will forward STP BPDUs across End Point Groups (EPGs) on whichthey are received1. This ensures that the connected external switches can still use STP for their loop prevention mechanisms.

References :=

Cisco Community Discussion on STP BPDUs in ACI1

 When VM2 is live migrated from POD1 to POD2, the spines in POD2 will send an MP-BGP EVPN update to the leaves in POD1. This update informs the leaves in POD1 about the new location of VM2, allowingthem to update their forwarding tables and ensure that traffic destined for VM2 is correctly routed to its new location in POD2.

The advantage of implementing an active-active firewall cluster that is stretched across separate pods when anycast services are configured is that local traffic within a pod is load-balanced between the clustered firewalls. This means that traffic destined for the anycast IP address of the service node (firewall) will preferentially be directed to the local node within the same pod, thus optimizing traffic flows and reducing latency by avoiding unnecessary traffic tromboning to a remote pod1.

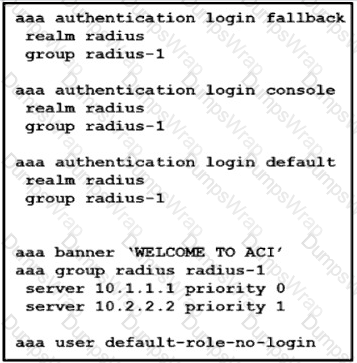

To ensure authentication if the RADIUS servers are unavailable, the action that should be taken is to set the fallback login to local. This setting allows users to authenticate using the local database on the Cisco APIC when external RADIUS servers cannot be reached.

To allow SNMP traffic on the APIC controller, a contract under tenant mgmt must be configured3.

The type of policy that configures the suppression of faults generated from a port being down is the ‘fault severity assignment’ policy. This policy allows administrators to change the severity of a fault or suppress it altogether, which can be useful for managing expected faults and reducing noise from non-critical events

To meet the requirement of sending all faults and events related to endpoint groups, bridge domains, and VRFs to the new SNMP configuration and syslog servers, the network engineer should utilizecommon tenant monitoring policies in the Cisco APIC. The common tenant is used for global configurations that apply across the entire fabric, including monitoring policies.

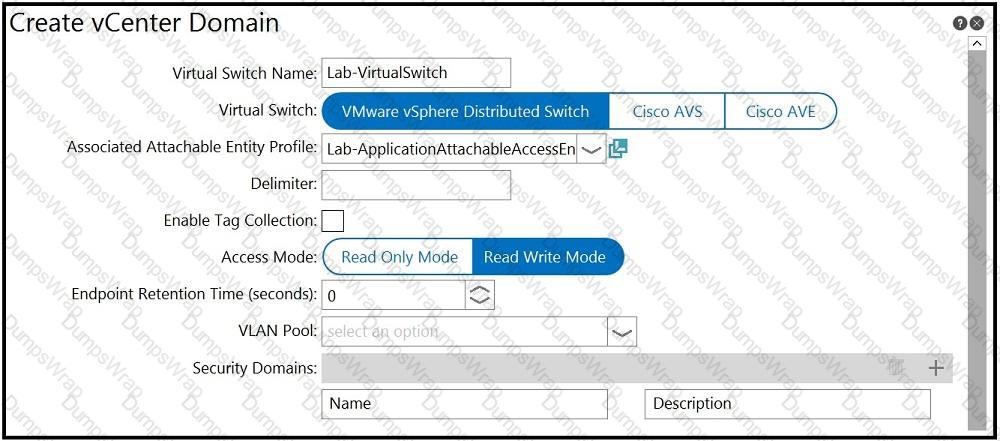

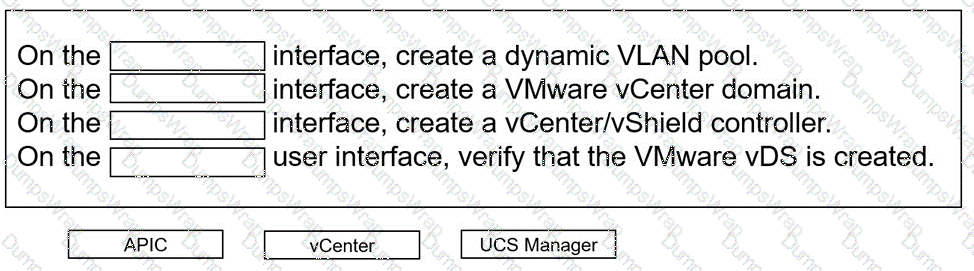

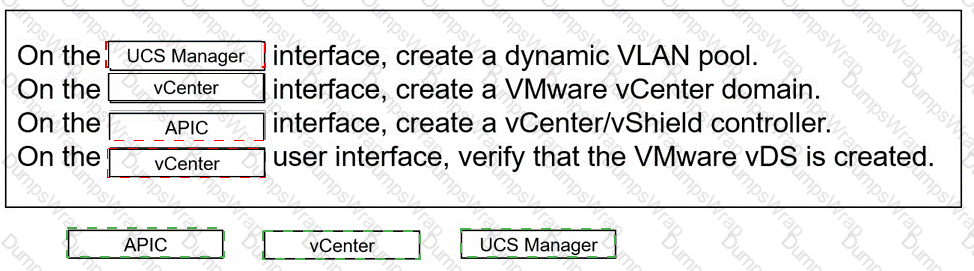

To meet the criteria for configuring the Cisco ACI fabric to connect to vCenter, the following actions should be taken:

Create a dynamic VLAN pool with the VLAN range of 20-30: This step involves creating a VLAN pool that dynamically assigns VLANs within the specified range to the port groups as they are created1.

Create a VMM domain and associate it with the VLAN pool: The VMM domain is a representation of the VMware vSphere Distributed Switch (VDS) in ACI, and associating it with the VLAN pool allows for the automatic creation of port groups on the VDS1.

Create the EPG and associate the domain: An Endpoint Group (EPG) is a logical entity to which workloads are attached. Associating the EPG with the VMM domain ensures that the port groups are automatically created in vCenter when the EPG is associated with a VMM domain1.

Set the deployment immediacy to On Demand: Setting the deployment immediacy to ‘On Demand’ optimizes the CAM space on the leaf switches by deploying policies to leaf nodes only when endpoints assigned to this EPG are connected, rather than immediately upon configuration12.

By following these steps, the network engineer can ensure that the Cisco ACI fabric is correctly configured to connect to vCenter, with port groups being automatically created on the distributed virtual switch, using the VLAN allocation in the range between 20-30, and optimizing the CAM space on the leaf switches.

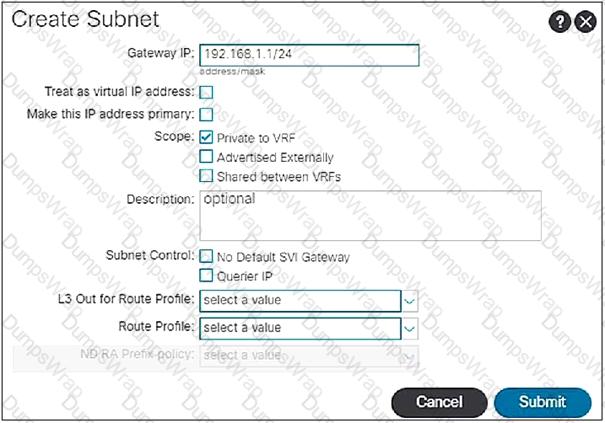

 In Cisco Application Centric Infrastructure (ACI), when a subnet is configured on a bridge domain, the gateway IP address is configured on the leaf switches where the bridge domain of the tenant is present. This configuration allows for localized routing within the fabric, providing efficient east-west traffic handling without requiring traffic to traverse up to the spine nodes unless necessary for north-south routing or policy enforcement.

 To determine if a change in the behavior of the ACI fabric was due to human intervention, an ACI administrator should inspect the audit logs in the APIC UI. The audit logs provide a record of all user events, which includes actions performed by users, making it possible to trace any changes back to specific human activities1.

o protect the ACI fabric from spanning-tree loops, the feature that must be enabled on the ACI leaf ports is BPDU Guard

When a pre-provision immediacy is used, the policy is downloaded to the Cisco ACI leaf switch and programmed into the hardware policy Content Addressable Memory (CAM) as soon as the change isimplemented on the Cisco Application Policy Infrastructure Controller (APIC). This means that the policy is ready on the leaf switch before any endpoints are actually connected.

The two protocols that support accessing backup files on a remote location from the APIC are FTP (File Transfer Protocol) and SFTP (SSH File Transfer Protocol). Both FTP and SFTP allow for the transfer of files to and from a remote location, but SFTP provides an additional layer of security by utilizing SSH.

 A bridge domain in Cisco ACI represents a Layer 2 forwarding construct345. It defines a unique Layer 2 MAC address space and can include one or more subnets. Bridge domains are associated with a VRF and can contain multiple EPGs345.

In Cisco ACI, when a packet is routed between two endpoints on different leaf switches, the VXLAN VNID that is applied to the packet corresponds to the Bridge Domain (BD). The BD VNID is used to encapsulate the packet for Layer 2 transport across the fabric. This VNID ensures that the packet is delivered to the correct bridge domain, maintaining the segmentation and policy enforcement required by the ACI fabric.

References :=

Cisco ACI Fabric Forwarding White Paper

Cisco ACI Basic Configuration Guide

To create a backup of the Cisco ACI fabric for disaster recovery that is secure, encrypted, and in a format conducive to processing with a Python script, the engineer must select Secure Copy Protocol (SCP) for secure and encrypted transport. The backup file should be in JSON format, which is similar to a Python dictionary and can be easily processed by a Python script. Additionally, enabling Global AES Encryption ensures that all user and password-related information is included securely in the backup1.

To meet the requirements for the new endpoint group’s bridge domain in the Cisco ACI fabric, the following actions must be taken:

Disable ARP Flooding: This action prevents ARP requests from being broadcast across the entire bridge domain, which reduces excessive broadcast traffic.

Enable Limit IP Learning to Subnet: This setting restricts IP address learning to only those IPs within the configured subnet, minimizing the impact of misconfigured virtual machines.

Enable Unicast Routing on the bridge domain and configure a subnet: Enabling unicast routing allows the bridge domain to function as the default gateway for the subnet, ensuring that routing remains within the Cisco ACI fabric.

To filter the System Faults page and view only the active faults present in the Cisco ACI fabric, the two lifecycle stages that must be selected for filtering are:

Raised (Option A): This stage indicates that the fault is currently active and has been raised.

Raised, Clearing (Option D): This combination indicates that the fault is active but is in the process of being cleared.

To move the gateway address for VLAN 1001 from the core outside the Cisco ACI fabric into the Cisco ACI fabric and ensure that endpoints in EPG-1001 route traffic to endpoints in other EPGs while minimizing flooded traffic in the fabric, the following configuration set is needed on the bridge domain:

Enable Hardware Proxy: This step involves enabling the hardware proxy feature, which allows the fabric to learn and maintain endpoint information more efficiently7.

Enable Unicast Routing: This step involves enabling unicast routing within the bridge domain, which allows for the routing of traffic between different EPGs and minimizes flooded traffic

In a Cisco ACI Multi-Pod environment, the supported routing protocol between Cisco ACI spines and IPNs (Inter-Pod Network) is Open Shortest Path First (OSPF)4.

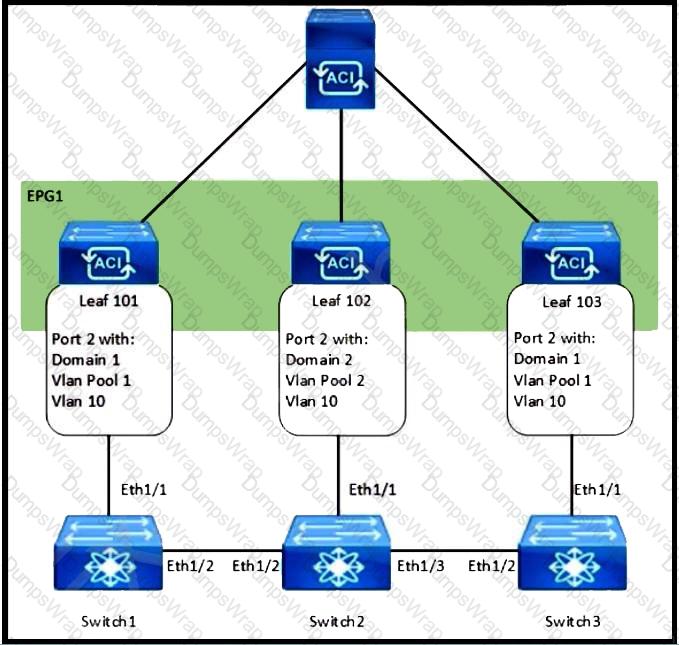

To break the STP loop between switch1 and switch2 in a Cisco ACI environment, enabling BPDU filtering on the interfaces facing the MST (Multiple Spanning Tree) switches is the necessary step. BPDU filtering prevents BPDUs from being sent or received through a port, which effectively stops the STP process on those ports and breaks the loop1.

When BPDU filtering is enabled on an interface, the switch does not send any BPDUs and ignores any BPDUs it receives on that interface. This can be used to prevent unwanted STP negotiations on ports where loops are not expected to happen or where STP is not desired1.

References :=

Use of ACI Operation with L2 Switches and Spanning Tree Link Types - Cisco1

The type of port used for in-band management within ACI fabric is the spine switch port4.

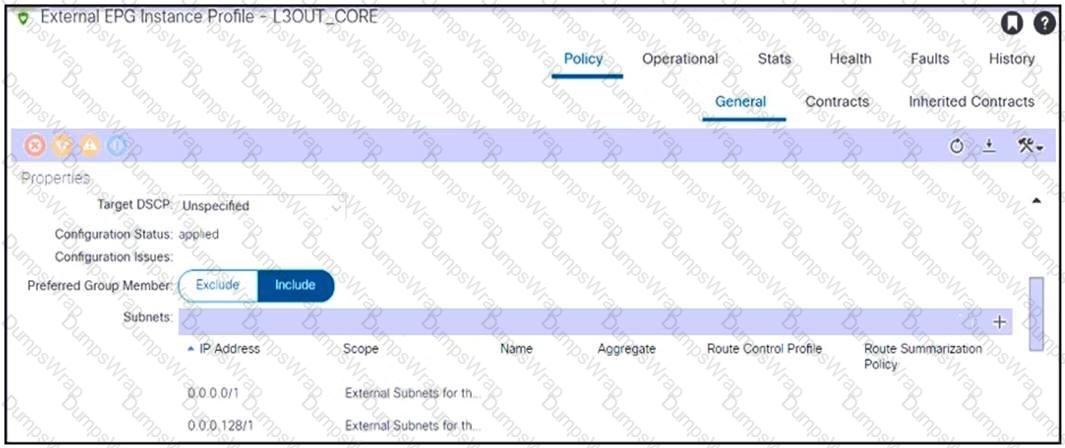

To enable connectivity for the external endpoints in the 172.16.1.0/24 subnet, the following actions should be taken:

Delete both external EPG subnets: This action removes any specific subnet configurations that might be causing routing issues or conflicts within the external EPG1.

Create the 0.0.0.0/0 subnet: By configuring a 0.0.0.0/0 subnet, you are effectively creating a default route that allows all traffic to be routed, ensuring that endpoints in any subnet, including the 172.16.1.0/24 subnet, can reach internal endpoints1.

This configuration change addresses the issue where traffic from the 172.16.1.0/24 subnet is not reaching the internal endpoints, likely due to a lack of a default route or misconfigured subnets within the external EPG

To resolve the issue of STP convergence causing a microloop and significant CPU spike on all switches after connecting legacy non-ACI switches to the Cisco ACI fabric, BPDU filtering should be configured on the interfaces of the external switches that face the Cisco ACI fabric. BPDU filtering prevents Bridge Protocol Data Units (BPDUs) from being sent or received on those interfaces, which stops the STP process and eliminates the possibility of microloops.

To configure a bridge domain for an EPC called “Web Servers” that meets the specified requirements, the following steps should be taken:

Set L2 Unknown Unicast to Hardware Proxy: This setting ensures that only traffic to known MAC addresses is allowed, which helps to reduce noise by preventing unknown unicast flooding within the bridge domain1.

Configure L3 Unknown Multicast Flooding to Optimized Flood: This setting limits multicast traffic to the ports that are participating in multicast routing, which optimizes the delivery of multicast packets1.

Create an Endpoint Retention Policy with a Local Endpoint Aging interval of 1200 seconds (20 minutes): This policy ensures that endpoints within the bridge domain are kept in the endpoint table for 20 minutes without any updates, maintaining the stability of the network1.

By following these steps, the bridge domain will be configured to satisfy the requirements for the EPC called “Web Servers” in the Cisco APIC environment.

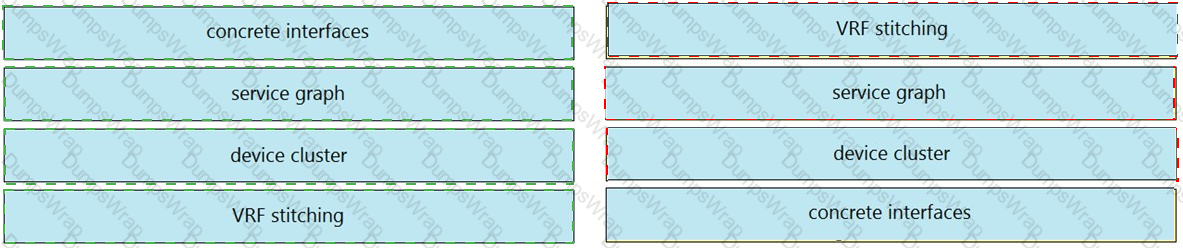

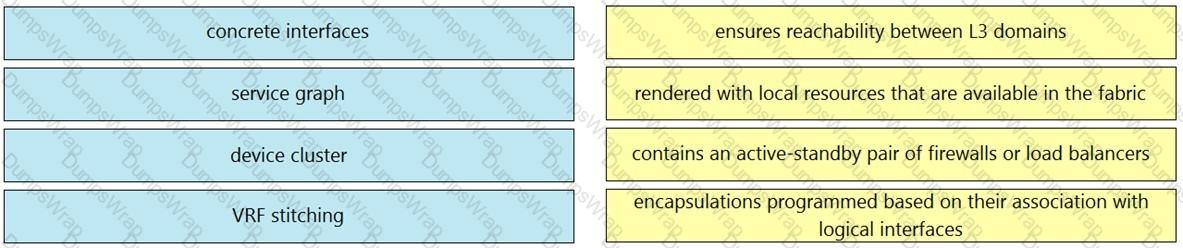

 To redirect traffic to the firewall using a one-armed policy-based redirect service insertion, the following configuration set should be used:

Configure a service graph: This involves defining the service graph template that represents the logical flow of traffic through network services.

Associate the service graph with All_Traffic_Allowed: By associating the service graph with the contract named All_Traffic_Allowed, traffic that matches the contract will be redirected through the service graph to the firewall device.

References :=

Cisco ACI Fabric Administration Guide, Release 4.2(1)

Cisco ACI Virtualization Guide, Release 4.2(1)

The two actions that extend a Layer 2 domain beyond the ACI fabric are extending the bridge domain out of the ACI fabric (Option D) and extending the EPG out of the ACI fabric (Option E)34. Extending the bridge domain involves creating a Layer 2 outside connection, while extending the EPG involves statically assigning a port with a VLAN ID to an EPG34.

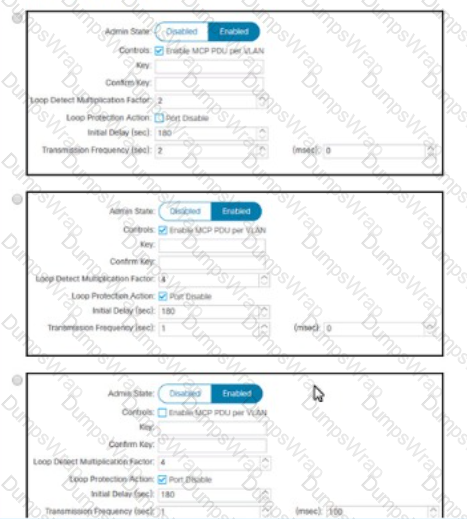

To configure a Cisco ACI system to detect network loops for both untagged and tagged traffic and to stop the loop by disabling an interface within 4 seconds, the following configuration must be used:

Enable Mis-Cabling Protocol (MCP): MCP detects loops from external sources and will err-disable the interface on which Cisco ACI receives its own packet. This is crucial for preventing loops in the network1.

Configure MCP Transmit Frequency: Set the MCP transmit frequency to a value that allows for quick loop detection. The Cisco ACI fabric provides faster loop detection with transmit frequencies from 100 milliseconds to 300 seconds. To meet the requirement of detecting and stopping a loop within 4 seconds, you would set the transmit frequency to a value less than 4 seconds2.

Set Action on Loop Detection: Configure the MCP policies to identify loops and decide how to act upon them. You can set the policy to generate a syslog message or disable the port upon loop detection2.

Implement Error Disabled Recovery Policy: Configure an error disabled recovery policy to automatically re-enable ports that were disabled due to loop detection after a configurable interval2.

By implementing these configurations, the Cisco ACI system will be able to detect and stop network loops quickly and efficiently, ensuring network stability and preventing potential disruptions.

References :=

Cisco APIC Online Help - Loop Detection2

Cisco ACI Best Practices Quick Summary

 In Cisco ACI, a contract is used to define the communication policy between EPGs (Endpoint Groups). It specifies which types of traffic are allowed to pass between EPGs and can include filters for protocols, ports, and other attributes. In the context of the logical system design, the contract would be the object that completes the communication requirements as indicated by the dotted line in the exhibit12.

References :=

Cisco Application Centric Infrastructure (ACI) Design Guide1

Cisco ACI Policy Model Guide2

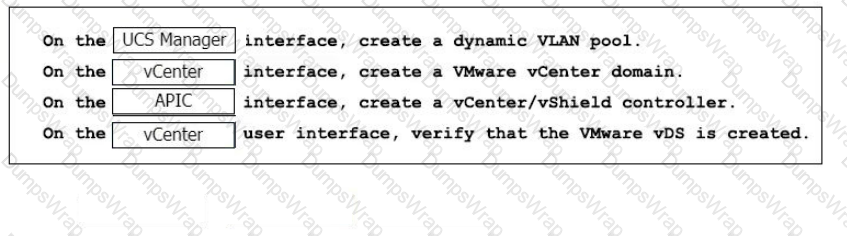

When configuring Cisco ACI VMM domain integration with VMware vCenter, the object that is created in vCenter is a VMware vSphere Distributed Switch (VDS)12. The VDS is a virtual switch that extends across all esxi hosts in the cluster and provides a centralized interface from which network configurations can be managed12. This switch allows network administrators to manage networking for multiple hosts and virtual machines from a single interface within vCenter12.

The import mode that must be used to ensure that the import process terminates if the imported configuration is incompatible with the existing system is the ‘atomic’ mode. This mode ignores shards that contain objects that cannot be imported while proceeding with shards that can be imported. If the incoming configuration’s version is incompatible with the existing system, the import process will terminate2.

The two IP address types that are available for transport over the Inter-Site Network (ISN) when they are configured from Cisco ACI Multi-Site Orchestrator (MSO) are the Anycast Overlay Multicast Tunnel Endpoint (TEP) and the MP-BGP EVPN Router-ID. These IP addresses are used for inter-site communication and routing in a Multi-Site deployment.

 In the Cisco ACI Active-Active Across Pods deployment mode, one of the key characteristics of Policy-Based Redirect (PBR) is that traffic is dynamically redirected to the firewall that owns the connection. This allows for load distribution across multiple Layer 4 to Layer 7 devices, also known as symmetric PBR. Additionally, deployment in this mode occurs in go-to mode only, which means that traffic is explicitly directed to a service node or firewall for processing
