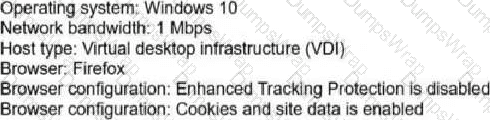

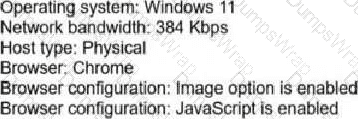

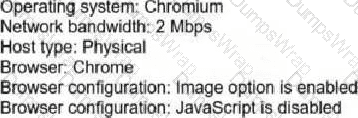

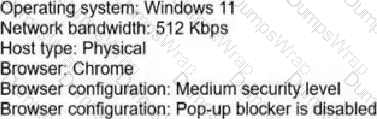

Option B is the only system profile that aligns with the Webex Contact Center Desktop WebRTC requirements shown in the exhibit. Cisco's desktop system requirements identify supported browsers and agent device models for calling, including Webex Calling desktop/app computer audio and WebRTC handling from Agent Desktop. A practical WebRTC station must have sufficient bandwidth, a supported operating system and browser, and browser settings that do not block required desktop behavior. Option A is weak because the 384 Kbps bandwidth value is below the practical WebRTC threshold shown by the comparison choices. Option C explicitly disables JavaScript, which prevents the browser-based desktop and WebRTC interaction logic from functioning properly. Option D uses a virtual desktop infrastructure condition, which is not the straightforward supported physical workstation profile presented by the question. Option B provides Windows 11, Chrome, physical host type, adequate bandwidth, a medium security level, and disabled pop-up blocking, making it the compliant choice. Reference: Cisco Help, System requirements for Webex Contact Center Desktop; Set up voice channels for Webex Contact Center.

A Web Chat widget that is visible in configuration but does not load on the company website commonly points to an asset-domain mismatch. Cisco Webex Connect live chat assets require the website domain to be configured for the asset so the platform can validate where the widget is embedded. The exhibit shows the browser-side failure after widget code is implemented, which is consistent with the site domain not matching the domain configured for the Web Chat Asset. Missing Webex Connect flow configuration usually causes chat handling or routing failures after a chat is initiated, not the widget failing to load. A firewall block to a widget domain is possible in the real world, but the question says the engineer sees output in the browser while investigating Webex Contact Center, and the Cisco configuration control involved is the website domain on the asset. Content Security Policy allow-listing in Webex Contact Center is for desktop/embedded content behavior, not the primary asset-domain validation for web chat loading. Reference: Webex Connect Help, Livechat; Cisco Help, Set up digital channels in Webex Contact Center.

A widget that executes background logic without presenting a visible user-interface panel belongs in the Headless area of the Agent Desktop layout. Cisco's custom desktop layout framework separates visible layout regions, such as panels or persistent areas, from headless widgets that run logic in the background. The requirement says the custom widget should trigger a CRM screen pop when an SMS arrives. That is event-driven background behavior; the agent does not need to see a standalone widget tab or panel for the code to work. A Panel object would be appropriate for visible content placed in the desktop interface. Navigation is used for navigation entries or visible application areas. Persistent is for UI that remains visible across desktop contexts. Headless is deliberately designed for invisible logic, event listeners, and background integrations that react to contact events, making it the correct object for this SMS-triggered CRM screen-pop logic. Reference: Cisco Help, Create custom desktop layout; Webex Contact Center Desktop developer documentation.

For PSTN calls arriving at Webex Contact Center, the safe media statement is that the supported voice codecs are G.711 mu-law and G.711 A-law. Cisco's Webex Contact Center telephony material emphasizes PSTN and Local Gateway interoperability through standard SIP media, and the exam objective expects knowledge of codec compatibility at the service edge. Opus is widely used in WebRTC and collaboration media contexts, but it is not natively supported for PSTN ingress into Webex Contact Center without appropriate interworking or transcoding in the overall design. SIP early media support also must not be assumed as fully supported in every Webex Contact Center call path. DTMF handling is important, but the option saying it can use out-of-band is not the most accurate description of the PSTN media requirement in this question. The codec restriction is the definitive media requirement and is why option B is correct. Reference: Cisco Help, Set up voice channels for Webex Contact Center; Webex Contact Center architecture and telephony documentation.

A reorder tone followed by call drop at call ingress is usually a telephony signaling or trunk acceptance symptom, not an Analyzer or queue-configuration symptom. In a Bring Your Own PSTN design, the customer's PSTN carrier and session border controller are responsible for delivering calls toward Webex Contact Center through the agreed voice path. Cisco's Webex Calling and Local Gateway documentation emphasizes trunk status, SIP connectivity, registration or certificate state, and SBC reachability as the first checks when calls fail before application routing. If the call cannot be successfully established across the customer's SBC or Local Gateway, Webex Contact Center will not have a usable interaction to queue, analyze, or route. Analyzer becomes useful after the platform has received enough call data to create records; it is not the first place to diagnose a reorder tone at ingress. Channel and queue association should still be reviewed later, but the symptom points first to SIP trunk status on the SBC. Reference: Cisco Help, Get started with Local Gateway; Configure trunks, route groups, and dial plans for Webex Calling.

A Webex bot conversation must preserve conversation context between incoming messages. If each incoming message starts the Webex Connect flow from the beginning, the flow is treating every webhook event as a new start event instead of waiting for the next message from the same user. The Receive node is the correct mechanism for continuing the flow after the initial webhook trigger. It should use a custom event that matches the user email, because the user identity is what links the next inbound message to the same conversation path. Matching the bot email would identify the bot endpoint, not the specific human conversation participant. Creating multiple webhooks for different steps would fragment the design and still would not preserve state cleanly. A Call Flow node is useful for modularizing logic but does not by itself wait for and correlate the user's next message. The Receive node with the user-email custom event keeps the conversation from restarting. Reference: Webex Connect Help, Receive Node and flow debugging; Webex Connect Webex Chat/Webex Engage documentation.

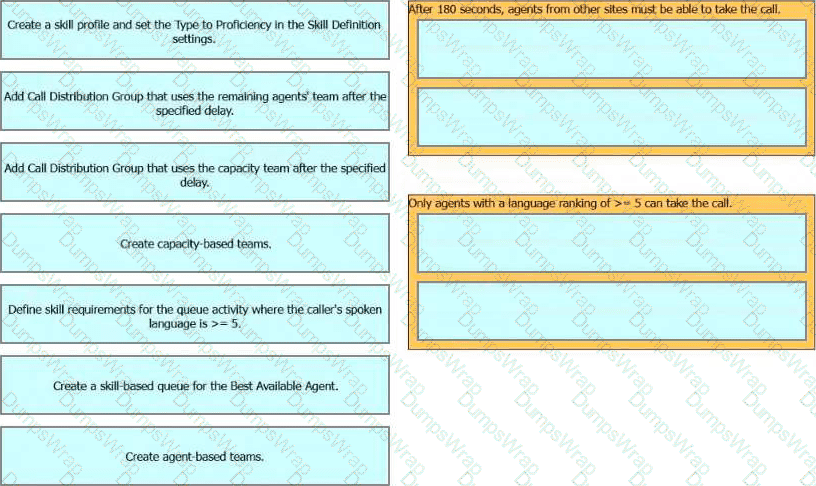

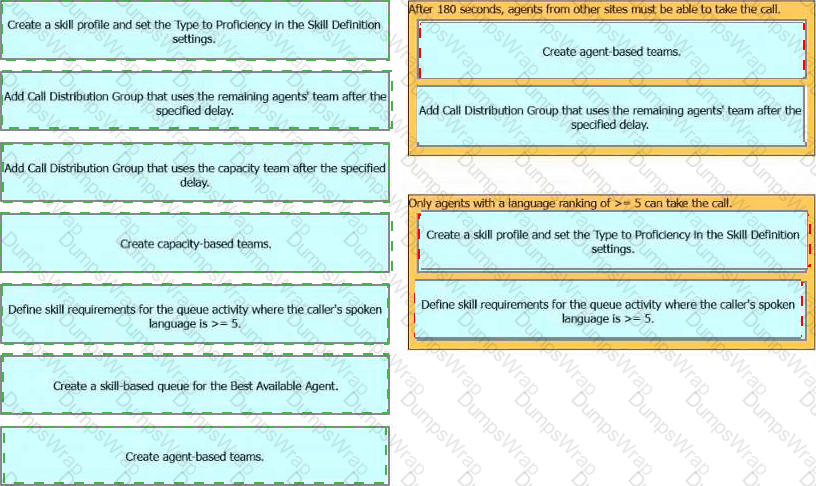

See mapping below

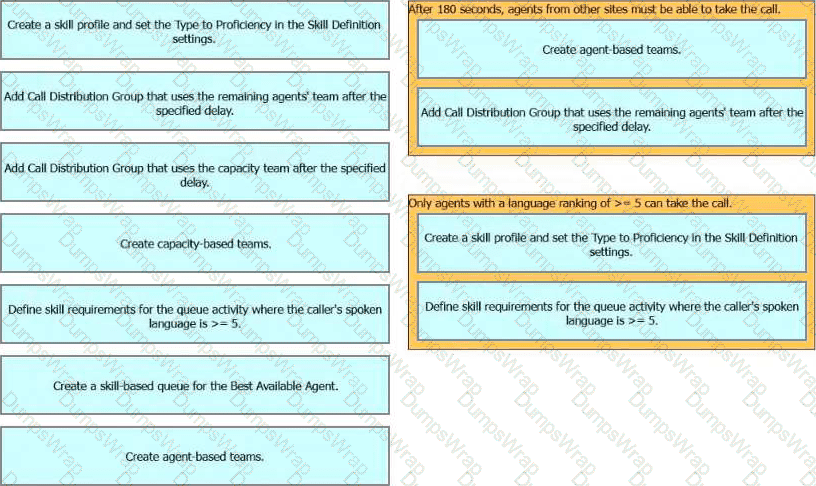

After 180 seconds, agents from other sites must be able to take the call: Create agent-based teams; Add a Call Distribution Group that uses the remaining agents' team after the specified delay.

Only agents with a language ranking of > = 5 can take the call: Create a skill profile and set Type to Proficiency in the Skill Definition settings; Define skill requirements for the Queue activity where the caller's spoken language is > = 5.

The completed mapping follows Cisco's two different routing constructs. For the 180-second requirement, the call first targets the local or primary agents and then expands after a delay. Cisco documents Call Distribution Groups as the method used by non-skill queues to define levels of teams that become eligible after configured intervals. That is why an agent-based team plus a delayed call distribution group is the right match; a capacity-based team is used for unmanaged destinations and does not represent normal agent routing. The language-ranking requirement is different. It must be handled through skills and proficiency. Cisco documents skill definitions, skill profiles, and queue skill requirements as the pieces used to limit routing to agents with matching skill values. Therefore the skill definition must use Proficiency and the Queue activity must define the language requirement of at least 5. A Best Available Agent queue alone is insufficient unless the skill requirement is actually applied. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Create queues and configure routing patterns.

Queue ranking is the feature designed for this exact business rule. Cisco's Webex Contact Center team configuration documentation allows administrators to rank queues for a team by media type, with lower numerical rank having higher priority. Cisco's routing documentation explains that ranked queues take precedence over queues without the same priority and that queue ranking can be used across media types. In the scenario, Sales must always be handled before Accounting, even when an Accounting call has waited longer. This is not a normal first-in-first-out queue rule; it is a cross-queue prioritization requirement. Configuring capacity-based queues would change the queue operating model but would not impose Sales-before-Accounting precedence. Asking agents to ignore Accounting calls is not a system configuration and would produce inconsistent reporting and service levels. A Sales-only skill profile would prevent Accounting handling rather than defer it until Sales is empty. Queue ranking is the controlled team-based mechanism that satisfies the requirement. Reference: Cisco Help, Manage teams in Webex Contact Center; Understand Routing and Queueing in Webex Contact Center.

Cisco's Recording Control activity gives caller consent precedence over tenant, queue, and recording schedule settings. In the documented precedence order, if user consent is set to Yes in the flow, the call is recorded regardless of the recording configuration at those other levels. If the user does not consent, the call is not recorded, also regardless of those other settings. If the Recording Control activity is not configured in the flow, the system falls back to the normal recording hierarchy: if any applicable tenant, queue, or schedule configuration is Yes, the call is recorded; if all are No, it is not. That is why option B is true and option C is false. Option D is also true because removing the flow activity returns control to queue-level or other configured recording policy. Option E is false because explicit Yes consent in the flow takes precedence over a recording schedule set to No. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Build and manage flows with Flow Designer.

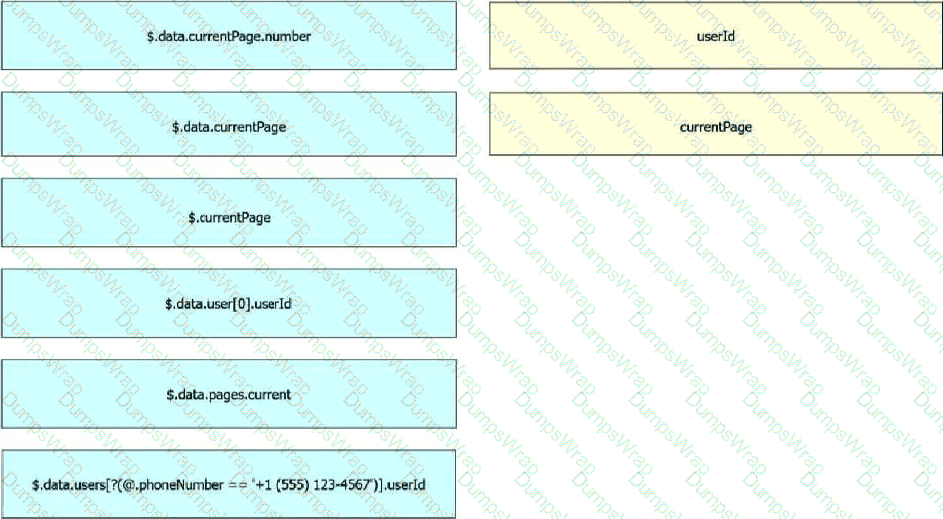

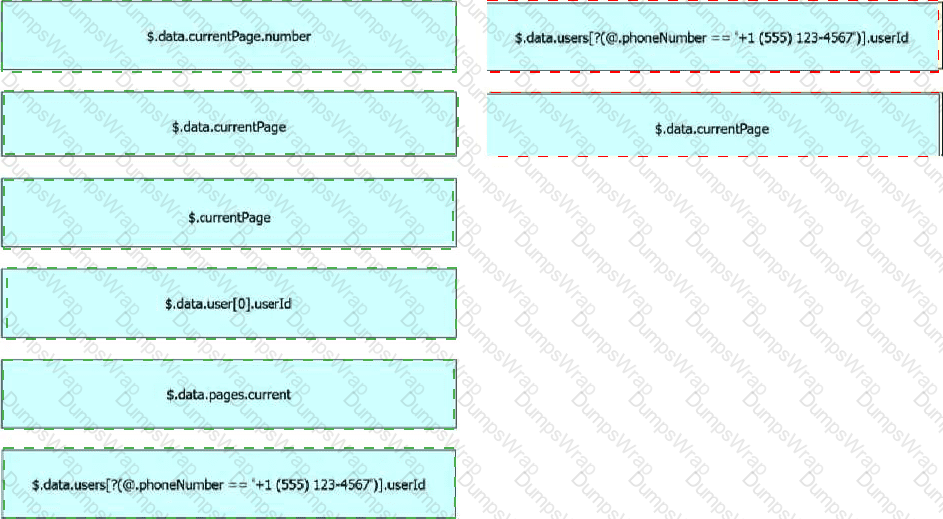

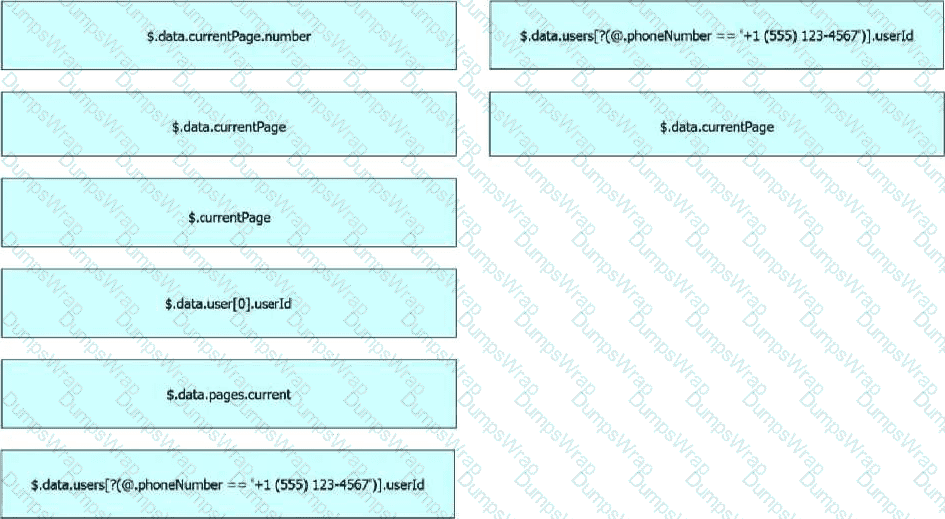

userId: $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId

currentPage: $.data.currentPage

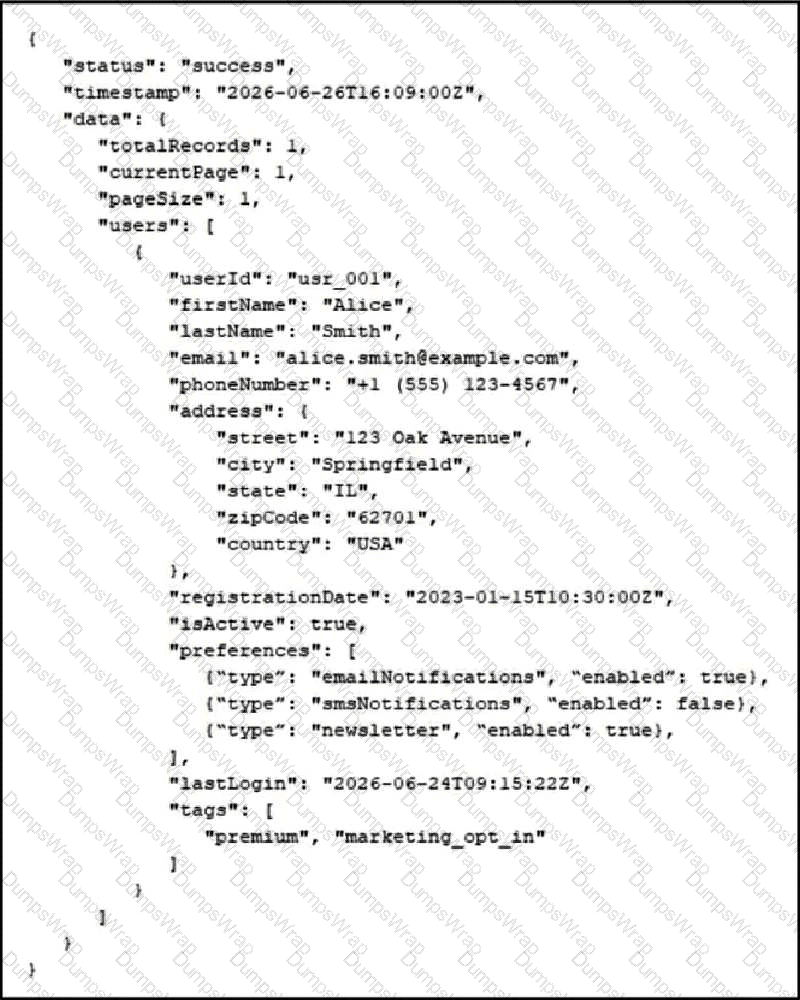

The JSONPath mapping must match the structure shown in the API response. The userId variable is not a simple top-level property; it sits inside the users array. The expression must filter the users array for the object whose phoneNumber equals +1 (555) 123-4567 and then return that object's userId. That is why the filtered JSONPath expression using $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId is the correct mapping. The currentPage variable is directly under data, so the correct expression is $.data.currentPage. Expressions such as $.currentPage miss the data wrapper, and $.data.currentPage.number assumes currentPage is an object with a number property, which the response does not show. $.data.user[0] .userId is also wrong because the array name in the response is users, not user, and it would take the first user rather than the matching phone number. Reference: Webex Connect Help, Custom Node Integration; Webex Connect flow data parsing guidance.

Cisco protects Webex Contact Center APIs with rate limiting per client ID so that one application cannot exhaust shared platform capacity. The current default limit represented in this question is 30 requests per second and 1800 requests per minute for a given client ID. Those two values are the same rate expressed at different time scales, and both are used by administrators and developers when sizing integration retry logic. The Webex developer guidance also stresses that clients must handle HTTP 429 responses and Retry-After behavior rather than assuming unlimited API throughput. The 300 requests per second and 1000 requests per minute options do not match the stated current Contact Center API limits. The 300 requests per minute figure appears in broader Webex REST API guidance for many APIs, but the question is asking specifically about the Webex Contact Center API limits in this context. Correct integrations should therefore throttle to 30 RPS and 1800 RPM unless Cisco grants or documents a different tenant-specific limit. Reference: Webex Developer, Webex Contact Center APIs; Webex Developer blog, Rate Limiting and the Webex API.

For an email digital channel that routes to live agents, the engineer must create the channel asset and create the Webex Contact Center entry point. Cisco's digital channel setup process starts with channel assets in Webex Connect, because assets define the external channel identity and connection, such as an email mailbox or service provider configuration. The Contact Center side then requires entry points so interactions can enter the routing and queueing path. Templates can accelerate flow design, but they are not mandatory configuration objects in every email channel deployment. Onboarding the company is a broader tenant or Webex Connect setup activity and is not the specific action required once the organization already contains several channels. Authorizing nodes is a prerequisite for digital-channel setup, but this question asks what actions are part of configuring the email channel itself. The two required channel configuration actions are creating channel assets and creating entry points. Reference: Cisco Help, Set up digital channels in Webex Contact Center; Webex Connect Help, Email - WXCC.

A Scheduled Callback activity must know when the callback should occur and the timezone in which that schedule should be interpreted. Cisco's callback scheduling API and Webex Connect scheduling behavior use normalized date/time inputs so a callback is created at the expected customer time. The date format in the answer set is YYYY-MM-DD, which is the standard year-month-day format used by modern APIs and scheduling fields. The timezone is required because the same date and time can represent different UTC instants depending on the caller's or business's region. Customer name and phone ANI may be useful data in a broader callback workflow, but they are not the two key values asked here for configuring the Scheduled Callback node successfully. The YYYY-DD-MM format is not the accepted ordering and would create ambiguous or invalid schedules. The correct pair is therefore schedule date in YYYY-MM-DD format and schedule timezone. Reference: Webex Developer, Callback Schedule API; Webex Connect Help, Event Scheduler and scheduled flow activities.

The Exclusive multimedia profile type is used when an agent must handle only one interaction at a time. Cisco's multimedia-profile model controls how many simultaneous contacts an agent can receive and how different media types are blended. A blended profile can allow multiple channels, and a blended real-time profile is designed for voice plus real-time digital interactions under concurrency rules. Voice Only would restrict agents to voice and would not satisfy a team that handles voice, email, and chat. The scenario is not asking to remove digital channels; it says a few agents cannot focus on multiple interactions. Exclusive solves that by allowing the agent to work one contact regardless of channel, preventing simultaneous assignments that could reduce quality or agent performance. This is a tenant and desktop-experience configuration decision, not a queue routing problem. The agent can still be eligible for the configured channels, but the desktop capacity model keeps workload to one active interaction. Reference: Cisco Help, Webex Contact Center Setup and Administration Guide; Manage desktop profiles.

Webex Contact Center APIs use OAuth 2.0 for authentication and authorization. Cisco's developer documentation for Webex and Webex Contact Center describes integrations as the mechanism used to request permission and obtain access tokens for API calls, using the OAuth 2.0 authorization framework rather than static API keys or basic HTTP authentication. OAuth 2.0 gives the platform scoped access control, token issuance, and administrative consent behavior appropriate for enterprise automation. Mutual TLS may be used in specific transport-security or trunking contexts, but it is not the authorization specification for normal Webex Contact Center REST APIs. Basic HTTP authentication would require sharing credentials directly with the client and does not match the Webex developer model. API key authentication is also not the supported authorization pattern for these Contact Center APIs. The typo in the original option has been corrected to OAuth 2.0. Reference: Webex Developer, Integrations and Authorization; Webex Contact Center API documentation.

The call reaches the initial greeting and accepts an IVR option, so the Local Gateway and inbound call delivery are working at least through the first media and signaling stage. The failure occurs after the caller makes a menu selection, which points at the flow branch or the next activity after that menu, not at the trunk itself. Cisco's Flow Designer documentation explains that flows define what happens at each stage of a call, including prompts, menu handling, queueing, transfers, and disconnect behavior. If a branch after the selected option has an invalid Queue Contact configuration, an invalid transfer destination, an unhandled error, or an incorrect terminal node, the customer may hear the greeting and then be disconnected. Analyzer can confirm call records after the fact, but the fastest root-cause path is to inspect the flow configuration and the branch selected by the caller. Queue or channel association issues would usually prevent reaching the intended IVR stage. Reference: Cisco Help, Build and manage flows with Flow Designer; Understand Routing and Queueing in Webex Contact Center.

A Local Gateway design is the correct migration pattern when the enterprise wants to retain an existing PSTN carrier and on-premises PBX-based agent environment. Cisco positions Local Gateway as the component that integrates the existing on-premises deployment with Webex Calling, allowing organizations to migrate at their own pace while continuing to use existing PSTN and call-control investments. In this design, an on-premises SBC, commonly Cisco Unified Border Element or another supported border element, routes calls between the enterprise environment and Webex Calling/Webex Contact Center. Porting DIDs to Cisco Calling Plan would replace the PSTN arrangement rather than retain it. Asking the PSTN carrier to forward all contact center numbers to Webex Calling may work for a simple design, but it does not retain PBX-based routing and agent connectivity in the same controlled way. The requirement is implementable, and Local Gateway is the documented method. Reference: Cisco Help, Get started with Local Gateway; Webex Contact Center Data Sheet.

The Queue Task node is the Webex Connect node that routes a digital interaction to Webex Contact Center for distribution. Cisco's Webex Connect documentation states that Queue Task calls the Webex CC Queue Task API to queue the contact at Webex Contact Center. In an email digital-channel flow, the channel receives or creates the conversation in Webex Connect, but a live-agent handoff requires creating or queueing a task so Webex Contact Center can apply routing, queue selection, skills, and agent assignment. A Screen Pop node provides information to an agent desktop after routing has occurred; it does not queue the email. Create Conversation creates the conversation object but does not distribute the work to a contact center agent. Add Participant is used to add a participant to a conversation, not to place the email interaction into the contact center routing engine. Therefore, Queue Task is the required node for contact distribution. Reference: Webex Connect Help, Queue Task - WXCC; Webex CC Task Integration Nodes and Node Authorizations.
