Route Priority

Each type of route configured on the MX has a specific priority in comparison with other types of routes. The priority is as follows:

Directly Connected

Client VPN

Static Routes

AutoVPN Routes

Non-Meraki VPN Peers

BGP learned Routes

NAT*

When band steering is enabled on an SSID, APs will stop advertising that SSID in 2.4GHz beacons. Since 2.4GHz-only clients that rely on a passive scan will not “see” that SSID in beacons, they might not be able to join this SSID unless they do an active scan or have been pre-configured with the SSID name and security settings (for example, a pre-shared key).

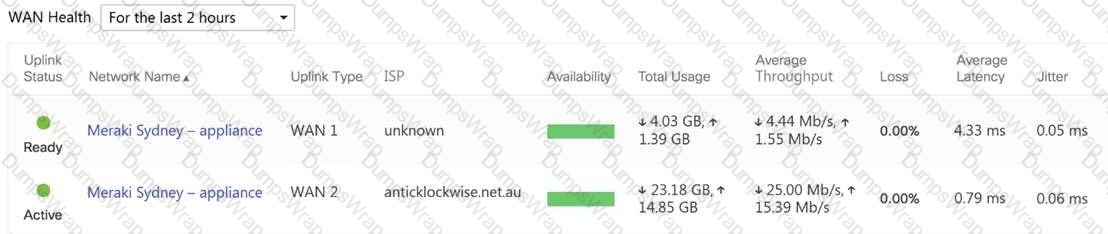

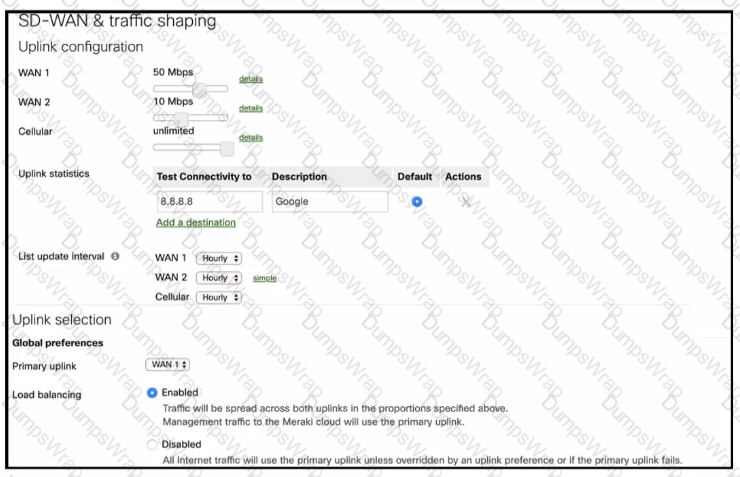

Quote from referred documentation-Link: Loss and latency will be determined over the configured IP address under Security and SD-WAN > SD-WAN and Traffic Shaping > Uplink Statistics. If no IP is configured, these values will be measured against 8.8.8.8 by default. On the WAN Health page, all the configured IP address statistics can be reviewed by changing the destination under the "Ping Destination" column.

.

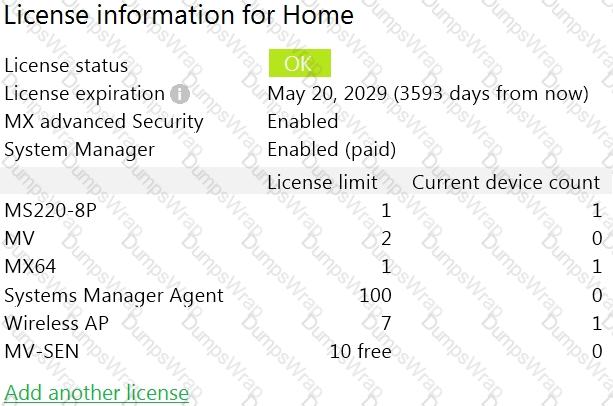

The number of devices in an organization can not exceed the license limits. If this occurs, the organization will enter a 30-day grace period, during which the organization must be brought back into compliance, otherwise it will be shut down until proper licensing is applied to the organization.

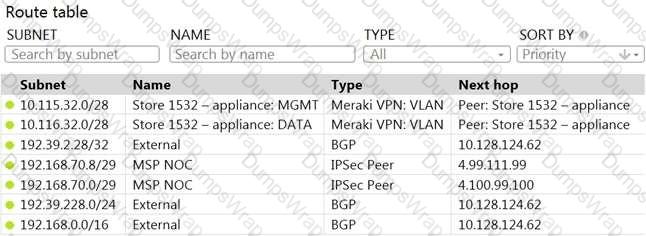

This can be determined by looking at the concentrator routing table and finding the entry for the destination IP 10.116.32.4. The next hop for this entry is the Auto VPN peer “Store 1532 – appliance”.

This question is related to the topic of Implementing Dynamic Routing Protocols in the Engineering Cisco Meraki Solutions (ECMS) official training documentation. You can find more information about this topic in the ECMS v2.2 Course Overview or the ECMS1 v2.1 Course Overview.

Configuring a syslog server for the network is the Cisco Meraki best practice method to preserve complete historical network event logs. A syslog server can be configured to store messages for reporting purposes from MX Security Appliances, MR Access Points, and MS switches1. The syslog server can collect various types of events, such as VPN connectivity, uplink connectivity, DHCP leases, firewall rules, IDS alerts, and security events2. The syslog server can also help with troubleshooting and monitoring the network performance and security.

.

When a rogue access point is contained, clients will be unable to connect to the rogue AP. Additionally, any currently associated clients will lose their connection to the rogue AP.

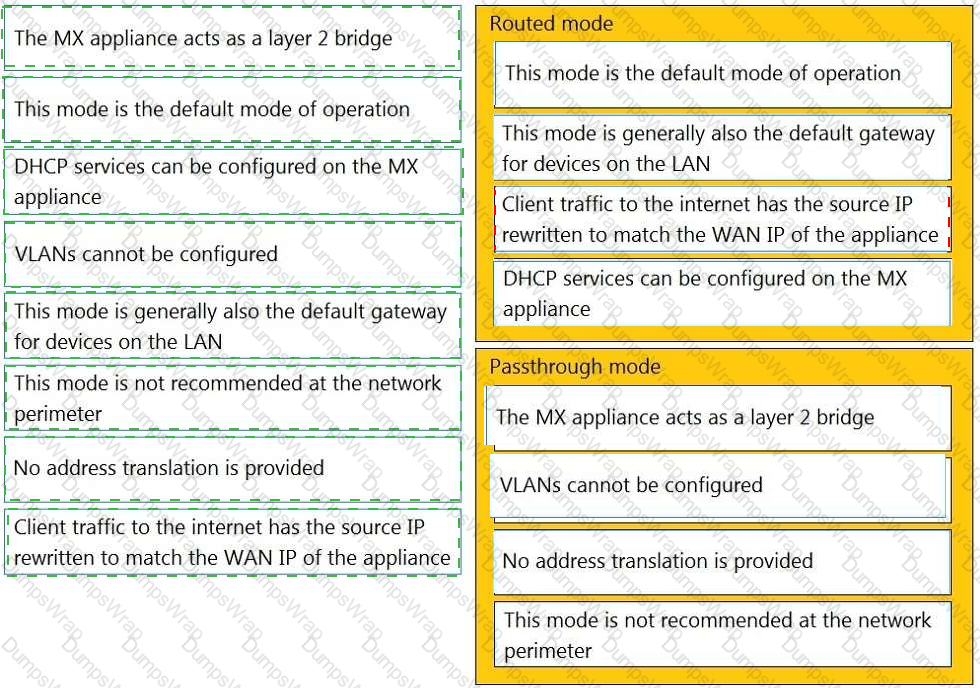

Routed Mode:

• This mode is the default mode of operation
• This mode is generally also the default gateway for devices on the LAN
• Client traffic to the internet has the source IP rewritten to match the WAN IP of the appliance
• DHCP services can be configured on the MX appliance

Passthrough Mode:

• The MX appliance acts as a layer 2 bridge
• VLANs cannot be configured
• No address translation is provided
• This mode is not recommended at the network perimeter

This question is related to the topic of MX Addressing and VLANs in the Cisco Meraki documentation. You can find more information about this topic in the MX Addressing and VLANs article or the General MX Best Practices page.

Verbs in the API follow the usual REST conventions:

GET returns the value of a resource or a list of resources, depending on whether an identifier is specified.

POST adds a new resource

PUT updates a resource

DELETE removes a resource

These are the two features and functions that are supported when using an MX appliance in Passthrough mode. According to the [MX Addressing and VLANs] article, Passthrough mode allows the MX appliance to act as a layer 2 bridge, passing traffic between its LAN and WAN ports without performing any routing or address translation. However, some features such as intrusion prevention and site-to-site VPN are still available in this mode.

- Under Live Tools Selective Wiping is only for MacOS. Here we have Windows Laptop as well
