The header of a UDP (User Datagram Protocol) segment includesport numbers. Specifically, it contains the source port number and the destination port number, which are used to identify the sending and receiving applications. UDP headers do not include IP addresses or MAC addresses, as those are part of the IP and Ethernet frame headers, respectively.Additionally, UDP does not use sequence numbers, which are a feature of TCP (Transmission Control Protocol) for ensuring reliable delivery of data segments1.

References:=

Segmentation Explained with TCP and UDP Header

User Datagram Protocol (UDP) - GeeksforGeeks

Which three fields are used in a UDP segment header

=========================

UDP Header: The header of a UDP segment includes the following key fields:

Source Port: The port number of the sending application.

Destination Port: The port number of the receiving application.

Length: The length of the UDP header and data.

Checksum: Used for error-checking the header and data.

IP Addresses: These are included in the IP header, not the UDP header.

Sequence Numbers: These are part of the TCP header, not UDP.

MAC Addresses: These are part of the Ethernet frame header and are not included in the UDP header.

References:

RFC 768 - User Datagram Protocol: RFC 768

Cisco Guide on UDP: Cisco UDP Guide

On a Cisco switch, a port with a blinking green LED typically indicates that the port is up (active) and is currently transmitting or receiving data. This is a normal state indicating active traffic on the port.

•A. Link is up with cable malfunctions: Usually indicated by an amber or blinking amber light.

•B. Link is up and not stable: Not typically indicated by a green blinking light.

•D. Link is up and there is no activity: Would be indicated by a solid green light without blinking.

Thus, the correct answer is C. Link is up and active.

References :=

•Cisco Switch LED Indicators

•Cisco Ethernet Switch LED Patterns

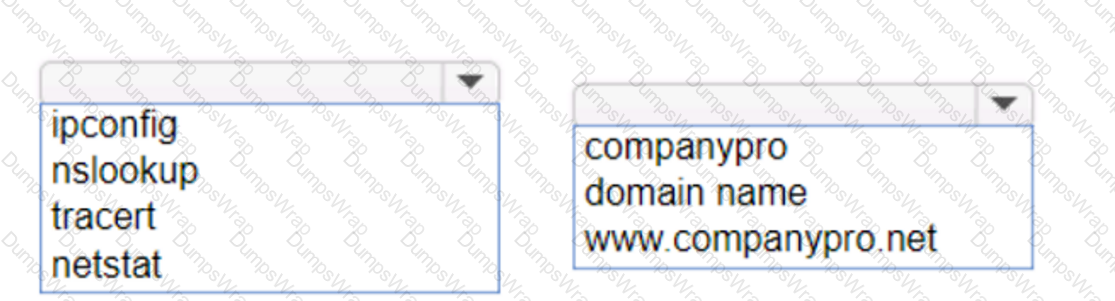

To list the IPv4 addresses associated with the host name you should use the following command:

nslookup

This command will query the DNS servers to find the IP address associated with the hostname provided.If you want to ensure that it returns the IPv4 address, you can specify the-type=Aoption, which stands for Address records that hold IPv4 addresses1. However, thenslookupcommand by default should return the IPv4 address if available.

To list the IPv4 addresses associated with the host name , you should use thenslookupcommand.

Command: nslookup

Target:

So, the completed command is:

nslookup

nslookup: This command is used to query the Domain Name System (DNS) to obtain domain name or IP address mapping or for any other specific DNS record.

: This is the domain name you want to query to obtain its associated IP addresses.

References:

Using nslookup: nslookup Command Guide

SFTP, or Secure File Transfer Protocol, is a protocol that allows for secure file transfer capabilities between networked hosts. It is a secure extension of the File Transfer Protocol (FTP). SFTP encrypts both commands and data, preventing passwords and sensitive information from being transmitted openly over the network. It is typically used for secure file transfers over the internet and is built on the Secure Shell (SSH) protocol1.

References :=

•What Is SFTP? (Secure File Transfer Protocol)

•How to Use SFTP to Safely Transfer Files: A Step-by-Step Guide

•Secure File Transfers: Best Practices, Protocols And Tools

The Secure File Transfer Protocol (SFTP) is a secure version of the File Transfer Protocol (FTP) that uses SSH (Secure Shell) to encrypt all commands and data. This ensures that sensitive information, such as usernames, passwords, and files being transferred, are securely transmitted over the network.

•ICMP (Internet Control Message Protocol) is used for network diagnostics and is not designed for file transfer.

•NTP (Network Time Protocol) is used to synchronize clocks between computer systems and is not related to file transfer.

•HTTP (HyperText Transfer Protocol) is used for transmitting web pages over the internet and does not inherently provide secure file transfer capabilities.

Thus, the correct protocol that allows secure uploading of files to another computer on the internet is SFTP.

References :=

•Cisco Learning Network

•SFTP Overview (Cisco)

The IEEE 802.11 standard contains the specifications for Wi-Fi networks. It is a set of media access control (MAC) and physical layer (PHY) specifications for implementing wireless local area network (WLAN) computer communication in various frequencies, including but not limited to 2.4 GHz, 5 GHz, and 6 GHz1. This standard is maintained by the Institute of Electrical and Electronics Engineers (IEEE) and is commonly referred to as Wi-Fi. The standard has evolved over time to include several amendments that improve speed, range, and reliability of wireless networks.

References :=

•The Most Common Wi-Fi Standards and Types, Explained

•802.11 Standards Explained: 802.11ax, 802.11ac, 802.11b/g/n, 802.11a

•Wi-Fi Standards Explained - GeeksforGeeks

=========================

•192.168.200.0/24 Network: This subnet includes all addresses from 192.168.200.0 to 192.168.200.255. The /24 indicates a subnet mask of 255.255.255.0, which allows for 256 addresses.

•192.168.199.13: This address is in the 192.168.199.0/24 subnet, not the 192.168.200.0/24 subnet.

•192.168.200.13: This address is within the 192.168.200.0/24 subnet.

•192.168.201.13: This address is in the 192.168.201.0/24 subnet, not the 192.168.200.0/24subnet.

•192.168.1.13: This address is in the 192.168.1.0/24 subnet, not the 192.168.200.0/24 subnet.

References:

•Subnetting Guide: Subnetting Basics

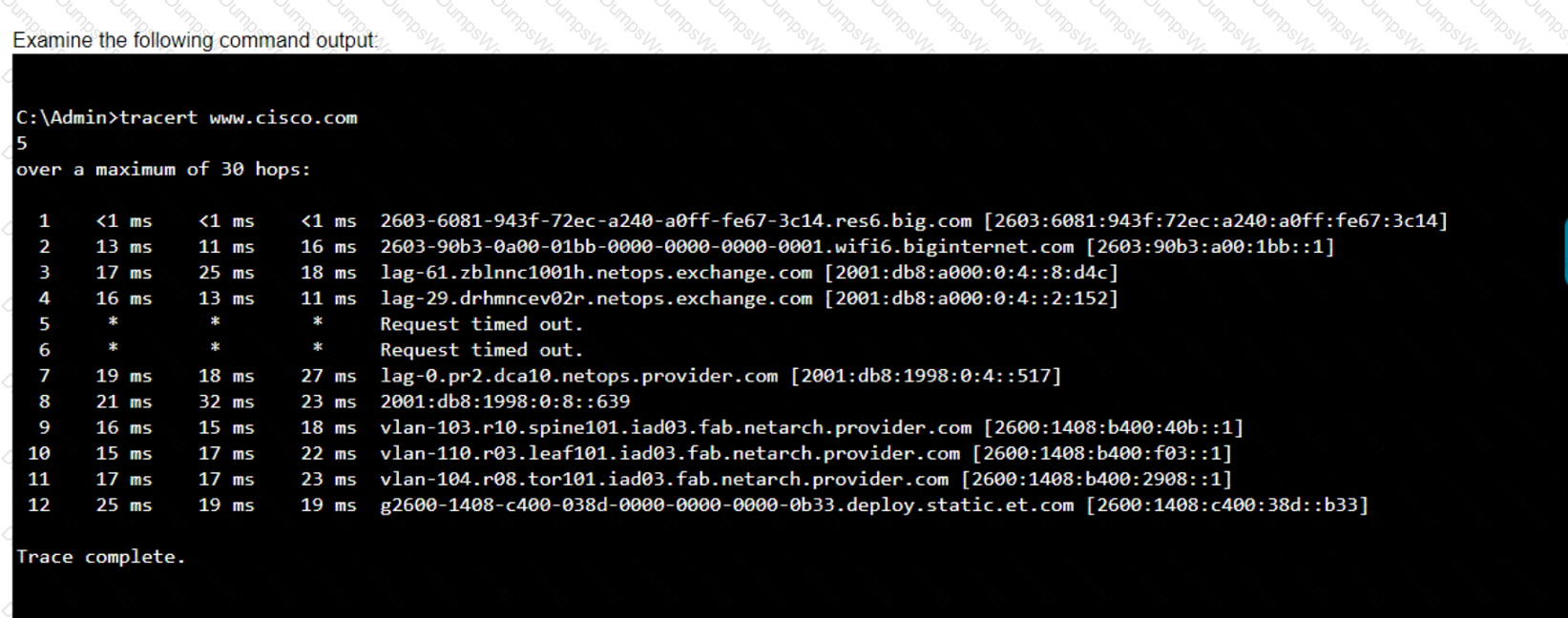

•Statement A: "The trace successfully reached the server." This is true as indicated by the "Trace complete" message at the end, showing that the trace has reached its destination.

•Statement C: "The IPv6 address associated with the server is 2600:1408:c400:38d::b33." This is true because the final hop in the trace, which is the destination, has this IPv6 address.

•Statement B: "The trace failed after the fourth hop." This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.

•Statement D: "The routers at hops 5 and 6 are offline." This is not necessarily true. The routers might be configured to not respond to traceroute requests.

•Statement E: "The device sending the trace has IPv6 address 2600:1408:c400:38d::b33." This is incorrect; this address belongs to the destination server, not the sender.

References:

•Understanding Traceroute: Traceroute Guide

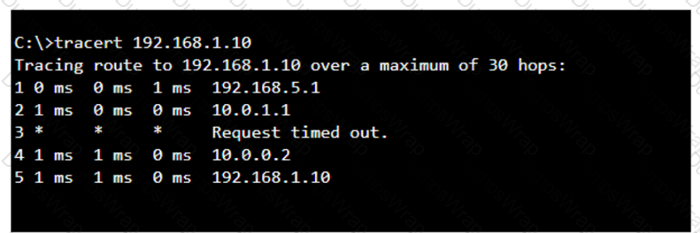

The tracert command output shows the path taken to reach the destination IP address, 192.168.1.10. The command output indicates:

•Hops 1 and 2 are successfully reached.

•Hop 3 times out, meaning the router at hop 3 did not respond to the tracert request. However, this does not necessarily indicate a problem with forwarding packets, as some routers may be configured to block or not respond to ICMP requests.

•Hops 4 and 5 are successfully reached, with hop 5 being the destination IP 192.168.1.10, indicating that the server is reachable.

Thus, the correct answer is C. The server with the address 192.168.1.10 is reachable over the network.

References :=

•Cisco Traceroute Command

•Understanding Traceroute

The tracert command output indicates that the server with the address 192.168.1.10 is reachable over the network. The asterisk (*) at hop 3 suggests that the probe sent to that hop did not return a response, which could be due to a variety of reasons such as a firewall blocking ICMP packets or the router at that hop being configured not to respond to ICMP requests. However, since the subsequent hops (4 and 5) are showing response times, it means that the packets are indeed getting through and the server is reachable12.

References :=

•How to Use Traceroute Command to Read Its Results

•How to Use the Tracert Command in Windows

When devices within a VLAN are unable to reach addresses outside their VLAN, it typically indicates that they do not have a configured path to external networks. The engineer should configure a default gateway for VLAN2. The default gateway is the IP address of the router’s interface that is connected to the VLAN, which will route traffic from the VLAN to other networks12.

References :=

•Understanding and Configuring VLAN Routing and Bridging on a Router Using the IRB Feature

•VLAN 2 not able to ping gateway - Cisco Community

=========================

•VLANs: Virtual Local Area Networks (VLANs) logically segment network traffic to improve security and performance. Devices within the same VLAN can communicate directly.

•Default Gateway: For devices in VLAN2 to communicate with devices outside their VLAN, they need a default gateway configured. The default gateway is typically a router or Layer 3 switch that routes traffic between different VLANs and subnets.

•Additional VLAN: Not needed in this scenario as the issue is related to routing traffic outside VLAN2, not creating another VLAN.

•Default Route: While a default route on the router may be necessary, the primary issue for devices within VLAN2 is to have a configured default gateway.

•Static Route: This is used on routers to manually specify routes to specific networks but does not address the need for a default gateway on the client devices.

References:

•Cisco VLAN Configuration Guide: Cisco VLAN Configuration

•Understanding and Configuring VLANs: VLANs Guide

IPv6 addresses can be compressed by removing leading zeros and replacing consecutive groups of zeros with a double colon (::). Here’s how to compress the address 2001:0db8:0000:0016:0000:001b:2000:0056:

Remove leading zeros from each segment:

2001:db8:0000:0016:0000:001b:2000:0056 becomes 2001:db8:0:16:0:1b:2000:56

Replace the longest sequence of consecutive zeros with a double colon (::). In this case, the two consecutive zeros between the 16 and 1b:

2001:db8:0:16::1b:2000:56

Thus, the most compressed valid format of the IPv6 address is 2001:db8:0:16::1b:2000:56.

References:=

Cisco Learning Network

IPv6 Addressing (Cisco)

WPA2-Personal, also known as WPA2-PSK (Pre-Shared Key), is the wireless security option that uses a pre-shared key to authenticate clients. This method is designed for home and small office networks and doesn’t require an authentication server. Instead, every user on the network uses the same key or passphrase to connect1.

References :=

•What is a Wi-Fi Protected Access Pre-Shared Key (WPA-PSK)?

•Exploring WPA-PSK and WiFi Security

=========================

•WPA2-Personal: This wireless security option uses a pre-shared key (PSK) for authentication. Each client that connects to the network must use this key to gain access. It is designed for home and small office networks where simplicity and ease of use are important.

•WPA2-Enterprise: Unlike WPA2-Personal, WPA2-Enterprise uses 802.1x authentication with an authentication server (such as RADIUS) and does not rely on a pre-shared key.

•802.1x: This is a network access control protocol for LANs, particularly wireless LANs. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN.

•802.1q: This is a networking standard that supports VLAN tagging on Ethernet networks and is not related to wireless security.

References:

•Cisco Documentation on WPA2 Security: Cisco WPA2

•Understanding Wireless Security: Wireless Security Guide

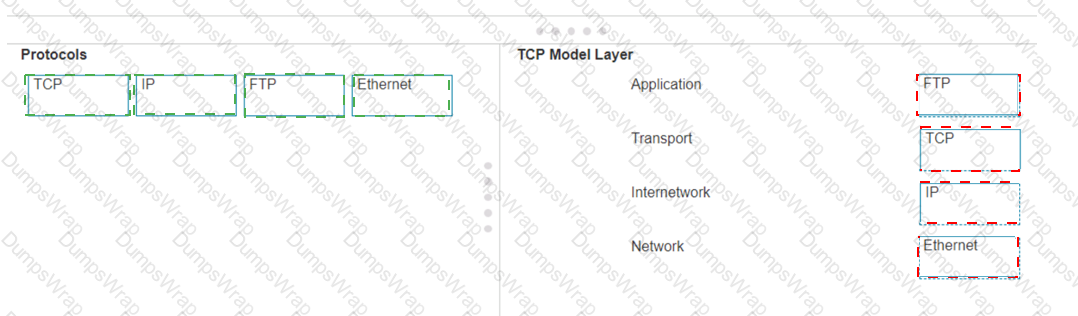

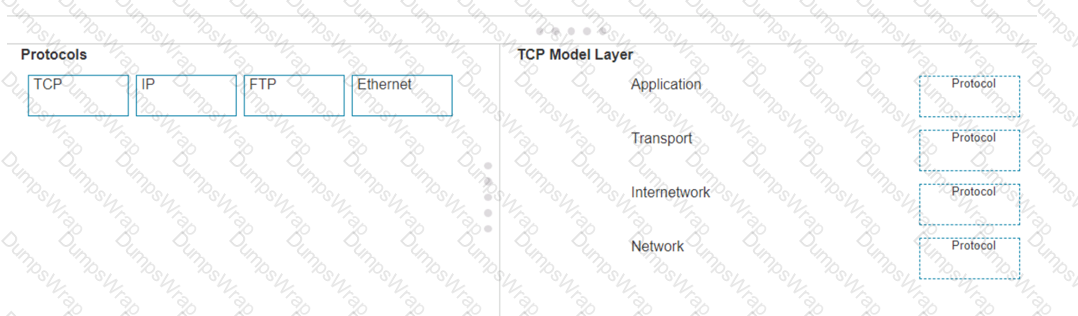

Here’s how each protocol aligns with the correct TCP/IP model layer:

TCP (Transmission Control Protocol): This protocol belongs to theTransportlayer, which is responsible for providing communication between applications on different hosts1.

IP (Internet Protocol): IP is part of theInternetworklayer, which is tasked with routing packets across network boundaries to their destination1.

FTP (File Transfer Protocol): FTP operates at theApplicationlayer, which supports application and end-user processes.It is used for transferring files over the network1.

Ethernet: While not a protocol within the TCP/IP stack, Ethernet is associated with theNetwork Interfacelayer, which corresponds to the link layer of the TCP/IP model and is responsible for the physical transmission of data1.

The TCP/IP model layers are designed to work collaboratively to transmit data from one layer to another, with each layer having specific protocols that perform functions necessary for the data transmission process1.

TCP:

TCP Model Layer: Transport

Explanation: The Transport layer is responsible for end-to-end communication and error handling. TCP (Transmission Control Protocol) operates at this layer to provide reliable, ordered, and error-checked delivery of data.

IP:

TCP Model Layer: Internetwork

Explanation: The Internetwork layer, also known as the Internet layer, is responsible for logical addressing and routing. IP (Internet Protocol) operates at this layer to route packets across networks.

FTP:

TCP Model Layer: Application

Explanation: The Application layer provides network services to applications. FTP (File Transfer Protocol) operates at this layer to transfer files between computers over a network.

Ethernet:

TCP Model Layer: Network

Explanation: The Network layer, also known as the Link layer in the TCP/IP model, is responsible for physical addressing and access to thephysical medium. Ethernet operates at this layer to provide the physical and data link functions.

Transport Layer: This layer is responsible for providing communication services directly to the application processes running on different hosts. TCP is a core protocol in this layer.

Internetwork Layer: This layer is responsible for logical addressing, routing, and packet forwarding. IP is the primary protocol for this layer.

Application Layer: This layer interfaces directly with application processes and provides common network services. FTP is an example of a protocol operating in this layer.

Network Layer: In the TCP/IP model, this layer includes both the data link and physical layers of the OSI model. Ethernet is a protocol used in this layer to define network standards and communication protocols at the data link and physical levels.

References:

TCP/IP Model Overview: Cisco TCP/IP Model

Understanding the TCP/IP Model: TCP/IP Layers
