Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

To increase the performance of a laptop working with a large database stored on drive C, a systems administrator should increase the RAM and migrate to an SSD. Increasing the RAM will help the laptop to better handle the large database, while migrating to an SSD will improve the speed at which the laptop can access the database. Configuring RAID 1, installing a hybrid drive, upgrading to a 1GB NIC, and upgrading the power supply will not directly improve the laptop's performance when working with a large database. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.1

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

RAID 1 is a mirrored configuration that utilizes two drives and provides redundancy by allowing one drive to fail without data loss. This configuration meets the requirement of mirrored storage with two 4TB drives that support one failure. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 8

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

The digitizer is the component that enables input on a mobile device's touch screen. It is a transparent layer that sits over the screen and detects the location of touch inputs. OLED (Organic Light Emitting Diode) is a type of display technology. Inverter is a component used in older LCD displays to provide power to the backlight. CMOS (Complementary Metal-Oxide-Semiconductor) sensor is a type of image sensor used in digital cameras and smartphones to capture images. References: CompTIA A+ Certification Exam: Core 1 - Page 177

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

In this situation, the MOST cost-effective cable medium that would not sacrifice system performance would be B. Shielded Cat 6. Electromagnetic interference (EMI) can disrupt network connectivity by interfering with the signals transmitted over network cables. Shielded Cat 6 cables are designed to provide protection against EMI by incorporating a layer of shielding material around the cable’s conductors. This shielding helps to prevent EMI from interfering with the signals transmitted over the cable.

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

The flashing green and orange LEDs on the NIC indicate connection issues. The technician should first check for loose connections, pinched bends, and physical damage, which are the most common causes of connection problems. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 14

The symptoms—flashing green and orange LEDs on the workstation’s NIC—suggest a connectivity issue. In networking troubleshooting, flashing LEDs typically indicate activity (green for link/activity, orange for speed or errors, depending on the NIC), but the combination and context imply an unstable or degraded connection. The cable length of 275ft (84m) is within the maximum distance for Cat 5 UTP (100 meters or 328 feet), so length alone isn’t the immediate problem. However, physical issues like loose connections, pinched bends, or damage could degrade signal quality, causing intermittent or erroneous data transmission.

The CompTIA A+ Core 1 Study Guide emphasizes a systematic troubleshooting approach, starting with the simplest and most common causes before escalating to more complex solutions. Checking the cable’s physical integrity—ensuring proper termination, no sharp bends, and no cuts or interference—is a fundamental first step in network troubleshooting. This aligns with Objective 5.5 ("Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power") and Objective 5.2 ("Given a scenario, troubleshoot and diagnose problems with storage drives and RAID arrays"), which extend to networking in practice.

Option A (Check for loose connections, pinched bends, and physical damage): This is the least invasive, most immediate step to rule out common cabling issues, as recommended by CompTIA’s methodology.

Option B (Install a powered hub halfway): Adding a hub or repeater could extend signal strength, but the length is within spec, and this assumes a distance issue without evidence. It’s not the first step.

Option C (Replace with Cat 5 STP): Shielded twisted pair reduces interference, but there’s no indication of EMI yet, and replacing the cable is premature without basic checks.

Option D (Upgrade to multimode fiber): Fiber eliminates distance and interference issues but is a costly, last-resort solution, not a first step.

The study guide prioritizes physical inspection and basic diagnostics before hardware replacements or upgrades, making Option A the correct initial action.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.6, Networking Hardware:

"Twisted Pair Cabling: The maximum length of a twisted pair cable run (such as Cat 5, Cat 5e, or Cat 6) is 100 meters (328 feet). This includes both patch cables and the main run. Beyond this length, signal degradation (attenuation) becomes significant, and a repeater or switch is needed to boost the signal."

Implication: At 275ft (84m), the cable is within spec, so length isn’t the primary concern.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"No connectivity or intermittent connectivity—Check the following: Ensure that all cables are securely connected at both ends (NIC and switch or wall jack). Inspect the cable for damage, such as cuts, crimps, or excessive bending, which can disrupt signal integrity… Verify that the cable length does not exceed the maximum specification for the cable type (e.g., 100 meters for twisted pair)."

"LED indicators—Most NICs and switches have LED indicators to show link status and activity. A solid green light typically indicates a good connection, while flashing may indicate activity. Amber or orange lights can indicate speed (e.g., 10/100 Mbps vs. 1 Gbps) or errors, depending on the device."

Section 5.4, Troubleshooting Methodology:

"Identify the problem… Gather information… Establish a theory of probable cause… Test the theory to determine cause (e.g., check physical connections before replacing components)."

These excerpts highlight that checking physical connections and cable condition is the first step when LEDs indicate potential issues, especially before assuming hardware failure or specification limits are exceeded.

Additional Reasoning:

LED Behavior: Flashing green and orange LEDs vary by NIC manufacturer, but per the study guide, green flashing often means activity, and orange flashing could signal errors or a speed mismatch. This suggests a link is established but unstable, pointing to cabling issues.

Cable Length: At 275ft, the run is well under 328ft, ruling out immediate need for a hub or fiber upgrade.

Common Issues: Loose RJ45 connectors, pinched cables (exceeding bend radius), or physical damage are frequent causes of intermittent connectivity, easily checked first.

Alternatives: Installing a hub (B) or replacing the cable (C, D) assumes a specific failure without evidence, violating CompTIA’s step-by-step approach.

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

Based on the information provided in the question, the MOST likely component that needs to be replaced is A. power adapter. If a laptop has been working as expected for several years but suddenly stops working when it is plugged into a wall outlet, it is possible that the power adapter has failed and is no longer able to provide power to the laptop. In this case, replacing the power adapter would likely resolve the issue.

The other components listed in the options (battery, system fan, and hard drive) could also potentially fail and cause issues with a laptop’s performance. However, based on the specific scenario described in the question (the laptop suddenly stops working when plugged into a wall outlet), it seems most likely that the issue is related to the power adapter.

If the laptop has been working as expected for several years and suddenly stops working, the power adapter is the most likely component that needs to be replaced. Over time, the power adapter can become worn or damaged, resulting in a loss of power to the laptop. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 3

A router (option C) is a network device that is used to separate broadcast domains. A broadcast domain is a logical division of a computer network in which all nodes can reach each other by broadcast at the data link layer. Routers operate at the network layer of the OSI model and use routing tables to determine the best path for forwarding packets between different networks.

By separating broadcast domains, routers can help to reduce network congestion and improve performance. When a router receives a broadcast packet on one of its interfaces, it does not forward the packet to any other interfaces. This means that only devices within the same broadcast domain as the sender will receive the broadcast packet.

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

The issue described in the question is most likely due to an incorrect configuration of the printer's duplex settings. To enable automatic duplex printing, the technician needs to read the printer's installation manual to understand how to configure the printer's duplex settings correctly. Once the settings are configured, the printer should be able to print on both sides of the paper automatically.

To fix the issue of a newly installed printer capable of automatically printing on both sides of the paper but only printing on both sides manually, the technician should read the installation manual and configure duplex settings. Duplex printing settings can be configured in the printer driver software, which can be accessed through the printer settings in the Control Panel. Installing the most recent firmware upgrade available for the printer, contacting the vendor for a hardware replacement, or reinstalling the printer software and drivers and restarting the printer will not resolve the issue.

This is a safe and sensible option if you value your data more than anything else. You don’t want to risk losing your data by trying other methods that may worsen the situation. You can use a software tool or a service provider to recover your data before attempting any repairs.

PaaS (Platform as a Service) is a cloud computing model in which a provider offers a platform that allows developers to create, run, and manage applications without the complexity of building and maintaining the infrastructure. An application development environment is a valid use for PaaS. References: CompTIA A+ Certification Exam Objectives 1001, 1.7

DSL (Digital Subscriber Line) uses POTS (Plain Old Telephone Service) lines to provide high-speed internet access. If the POTS lines are not working, it could cause an internet outage for DSL customers. Fiber and cable internet typically use different types of infrastructure, while satellite internet is not reliant on POTS lines. References: CompTIA A+ Certification Exam: Core 1 - Page 231

The connection type that the technician should recommend is Satellite. Satellite internet is a good option for people who travel around the world and want to have connectivity while visiting remote camping locations. It works by using terminals which can give you internet access in remote locations as long as they have a line of sight to the satellite in orbit above12.

Since the customer travels to remote camping locations with limited or unreliable cellular service, the best recommendation is satellite internet connection. Satellite internet uses a dish to connect to satellites orbiting the earth, which can provide coverage anywhere in the world as long as there is a clear line of sight to the satellite. This is especially useful in remote areas where traditional terrestrial connections are not available. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.6 Given a scenario, evaluate connection type and bandwidth.

FTP (File Transfer Protocol) uses TCP ports 20/21 and transfers data in cleartext, which means the data is not encrypted and can be read by anyone who intercepts it. This makes FTP insecure for transferring sensitive information. SSH (Secure Shell), on the other hand, uses port 22 and encrypts data, making it more secure. SNMP (Simple Network Management Protocol) uses ports 161/162 and is used to monitor network devices. Telnet uses port 23 and transfers data in cleartext, making it insecure. References: CompTIA A+ Certification Exam: Core 1 - Page 199

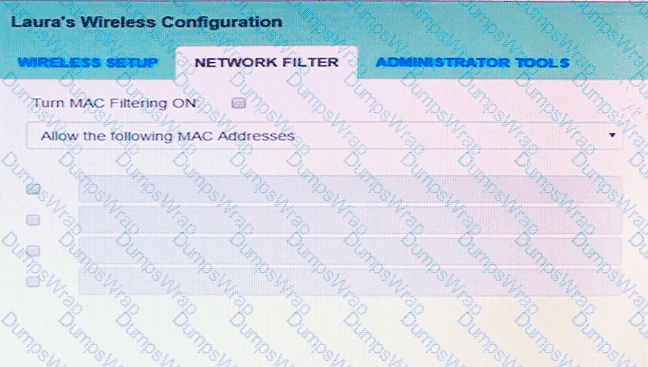

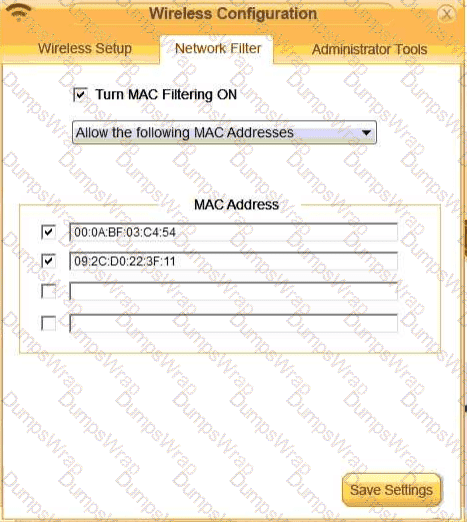

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

Dot Matrix printers do not use heat, they use a pin striking an inked ribbon (for the first copy, the subsequent copies are handled by the carbon paper)

The ribbon is low on ink or missing and must be replaced to get proper output in a dot matrix printer that uses carbon paper. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 361

If a laptop's external webcam software is running, but it shows no image or video, the first step the technician should perform is to reseat the webcam. Reseating the webcam involves disconnecting it from the motherboard and then reconnecting it. If this doesn't work, the technician should then check the webcam drivers or software. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 502)

Toner Probe Many cable testers also incorporate the function of a toner probe, which is used to identify a cable from within a bundle. This may be necessary when the cables have not been labeled properly. The tone generator is connected to the cable using an RJ45 jack and applies a continuous audio signal on the cable. The probe is used to detect the signal and follow the cable over ceilings and through ducts or identify it from within the rest of the bundle.

Mobile Device Management (MDM) is a software solution that allows companies to manage and secure mobile devices used in the corporate environment. MDM provides features such as remote data wipe, application management, and device security policies to ensure data protection and compliance with company policies. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device hardware and operating systems - 2.8

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

RAID 10 array is often used for server virtualization as it provides both redundancy and performance benefits. It uses a combination of mirroring and striping to provide both fault tolerance and improved I/O performance. An optical disk drive or eMMC storage device would not provide enough storage or performance for a VM host server, while a 15,000rpm drive may provide good performance but would not provide redundancy for fault tolerance. Therefore, a RAID 10 array is the best option for cost-effective storage that will be used for all VMs that run from the server.

A network tap is used to intercept the signals passing over a cable and send them to a packet or protocol analyzer. Taps are either powered or unpowered:

Domain Name System (DNS) is an Internet service that translates domain names (e.g., its.umich.edu) into IP addresses. Dynamic Host Configuration Protocol (DHCP) is a protocol for automatically assigning IP addresses and other configurations to devices when they connect to a network.

The technology that allows multiple networks to traverse a switch is VLAN (Virtual Local Area Network) which is a logical grouping of devices on the same network regardless of their physical location12.

Virtual Local Area Network (VLAN) technology can allow multiple networks to traverse a switch. A VLAN is a logical network created within a physical network that can separate traffic and allow multiple networks to coexist on the same physical network infrastructure. VRRP (Virtual Router Redundancy Protocol), VPN (Virtual Private Network), and DHCP (Dynamic Host Configuration Protocol) do not allow multiple networks to traverse a switch. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.2

The tool that the technician should use to see all drives is Diskmgmt. Diskmgmt is a Windows utility that allows you to manage disk drives and partitions on your computer. It can be used to view all drives, including USB drives, that are connected to the computer12.

A load balancer distributes network traffic evenly across multiple servers, ensuring each server is being properly utilized. This helps to prevent overloading of any individual server, which can cause downtime or slow response times for users. In this scenario, adding a load balancer would be the best way to ensure the new servers are being properly utilized. References: CompTIA A+ Certification Exam: Core 1 - Page 181

Changing the connector setting on the monitor is a possible solution for a PC and its monitor that display the error message "No input signal detected". This error can be caused by an incorrect input selected on the monitor, so changing the connector setting to the correct input should resolve the issue. References: CompTIA A+ Certification Exam Objectives 1001, 1.10

Top of Form

Regenerate response

Bottom of Form

To fix a Cat 5 cable issue where the cable fails when it is moved around, the technician would need to use an RJ45 connector (option E) and a crimper (option F). The technician can use the crimper to attach a new RJ45 connector to the end of the cable, which should resolve the issue.

An RJ45 connector (option E) is a type of connector commonly used for Ethernet networking. It is an 8-position, 8-contact (8P8C) modular plug and jack that is used to terminate Cat 5 and other types of twisted pair cables. A crimper (option F) is a tool used to attach connectors to the ends of cables. In this case, the technician would use the crimper to attach a new RJ45 connector to the end of the Cat 5 cable.

When a cable fails when it is moved around, it often indicates that there is a problem with the connector at the end of the cable. By attaching a new RJ45 connector using a crimper, the technician can ensure that the cable has a secure and reliable connection.

The clicking sound is the sound of a damaged disk in the HDD

A clicking sound from a hard disk drive typically indicates a mechanical failure, such as the read/write head hitting a physical obstruction or a problem with the disk motor. This can cause the drive to fail to initialize or not be recognized by the system during booting.

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

The issue of video but no audio on a projector in a conference room can be resolved by utilizing an HDMI connection between the PC and the projector. HDMI supports both video and audio signals and is commonly used to connect a PC to a projector for presentations. Changing the input on the projector to VGA, changing the output on the PC to DVI, or modifying the projector's refresh rate will not resolve the issue. References: CompTIA A+ Certification Exam: Core 1 - Objective 2.5

If the filesystem check shows that all files are accessible and the filesystem is clean, but a hard drive error message persists, it's possible that the hard drive is experiencing S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) failure. This is a warning system built into hard drives to alert users of potential issues before they become critical. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

Based on the information recorded by the technician, the network connection appears to be functioning normally. The user's computer is properly configured with an IPv4 address, subnet mask, and default gateway, which should allow the user to access the internet and online videos. The high download and upload speeds and low ping time recorded from the test laptop also indicate that the network is working well. However, the user's inability to watch online videos suggests that there might be an issue with the network card (NIC) on the user's computer. The NIC might be faulty or malfunctioning, which is preventing the computer from receiving and processing the video data. The technician should try replacing the NIC to resolve the issue.

Three beeps indicate a "base memory read/write test error". Check out "beep codes" for more information.

Reseating the RAM is the best course of action to remediate the issue of three consecutive beeps during boot, as it may indicate a RAM failure or loose connection. By reseating the RAM, the technician can ensure that the connection is secure and the computer should boot normally. References: CompTIA A+ Certification Exam Objectives 1001, 1.9

When a user connects a smartphone to a laptop, they create a Personal Area Network (PAN). A PAN is a type of network used for communication between devices in close proximity to each other, typically within a range of a few meters or less. This type of network is commonly used for wireless communication between personal devices, such as connecting a smartphone to a laptop for file sharing or internet access. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.1 Explain common connectors and their uses.

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

In this situation, the best course of action for the technician to take NEXT would be C. Verify the socket type and manufacturer. If the pins on the CPU do not line up with the socket on the motherboard, it is likely that there is a compatibility issue between the two components. The technician should verify that the socket type and manufacturer of the motherboard match those of the CPU to ensure that they are compatible.

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

Client-side virtualization guest machines require isolation from other guest machines to maintain their security. Isolation ensures that each virtual machine is separated from others and runs its own operating system and applications, making it less vulnerable to attacks from other guest machines. References: CompTIA A+ Certification Exam Objectives 220-1002 - Virtualization and cloud computing - 4.1

Running the printer’s alignment process is the first step that a technician should do to fix the shadowing problem on the printouts. Shadowing is a print quality issue that occurs when the printer prints a faint duplicate image of the original text or graphics, usually slightly offset from the original position. This can be caused by a misalignment of the printhead, which is the part of the printer that sprays ink onto the paper. The printer’s alignment process is a procedure that adjusts the position and angle of the printhead to ensure that the ink is applied accurately and evenly on the paper. The printer’s alignment process can be performed from the printer’s menu, the printer’s software, or the printer’s maintenance tool, depending on the model and type of the printer.

The other options are not the best solutions for this problem. Reseating the new ink cartridges may not solve the shadowing issue, unless the cartridges are not properly installed or recognized by the printer. However, this is unlikely to be the case, as the printer would usually display an error message or refuse to print if the cartridges are not compatible or inserted correctly. Replacing the fuser assembly or installing the maintenance kit are more drastic and expensive measures that are usually done when the printer has more serious problems, such as paper jams, smearing, streaking, or fading. The fuser assembly is the part of the printer that heats and melts the toner onto the paper, and the maintenance kit is a set of components that need to be replaced periodically to keep the printer in good condition. These parts are not directly related to the shadowing issue, and replacing them may not fix the problem.

The correct answer is C. Check the RAID drive status LEDs.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple physical disks into a logical unit that provides improved performance, reliability, or both1. RAID can be implemented using hardware or software, and there are different levels of RAID that use different methods of data distribution and redundancy1.

One of the common issues with RAID is disk failure, which means that one or more of the disks in the array stop working properly. Disk failure can affect the performance and availability of the network fileshares, depending on the RAID level and the number of failed disks2. For example, RAID 0, which uses striping to split data across multiple disks, has no redundancy and will lose all data if any disk fails. RAID 1, which uses mirroring to duplicate data on two disks, can tolerate one disk failure and still function. RAID 5, which uses striping with parity to distribute data and error correction information across three or more disks, can also tolerate one disk failure and still function1.

One of the ways to detect disk failure is to check the RAID drive status LEDs, which are lights that indicate the health and activity of each disk in the array. Different RAID controllers may have different LED patterns and colors, but generally, a green LED means that the disk is working normally, a red LED means that the disk has failed or is offline, an amber LED means that the disk is degraded or rebuilding, and a blinking LED means that the disk is active or busy34.

The first step that a technician should perform when troubleshooting network fileshare issues is to check the RAID drive status LEDs to see if any disk has failed or is degraded. This can help identify the cause of the problem and determine the appropriate solution. For example, if a disk has failed in a RAID 1 or RAID 5 array, the technician can replace the failed disk and rebuild the array to restore performance and redundancy. If a disk has failed in a RAID 0 array, the technician will need to restore the data from a backup2.

The other options are not the best steps to perform first. Defragmenting the files on the network share may improve performance by reducing fragmentation, but it will not solve the problem if there is a disk failure in the RAID array. Asking the users to perform a network speed test may help diagnose network issues, but it will not help identify disk issues in the RAID array. Starting the process of rebuilding the array may be necessary after replacing a failed disk, but it should not be done before checking the RAID drive status LEDs.

After resolving an issue, it's crucial for a technician to document the findings, actions taken, and the outcome. This documentation serves several purposes: it provides a record of the problem and the solution for future reference, which can be helpful if the issue recurs or if similar problems arise with other users. It also ensures that any follow-up actions, if necessary, are well-informed by the history of the issue. Documenting the resolution process contributes to knowledge sharing among the support team and can improve the efficiency of future troubleshooting efforts.

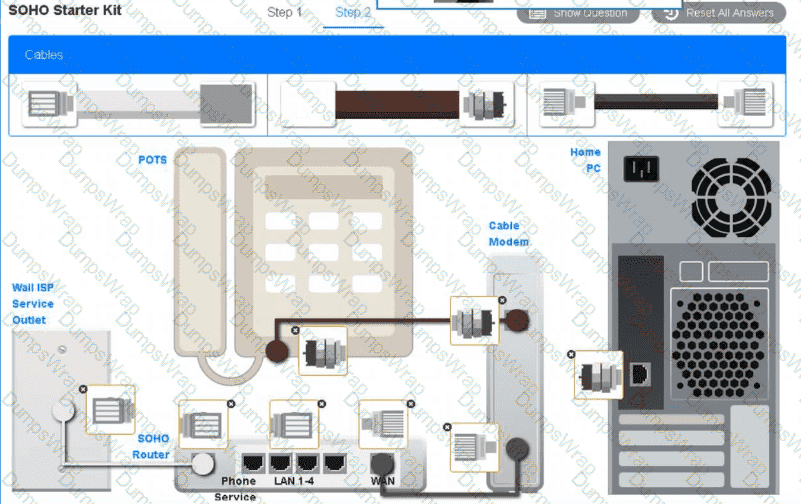

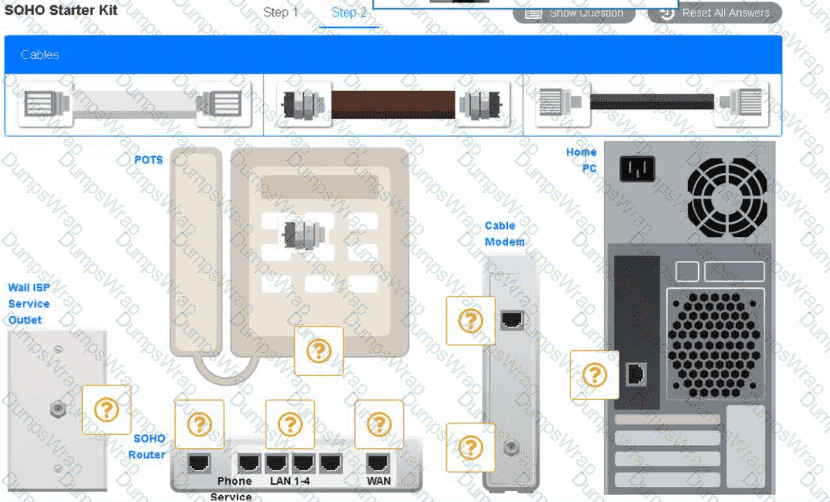

The correct answer is C. Ethernet.

An Ethernet cable is a type of network cable that is used to connect devices on a local area network (LAN), such as computers, routers, switches, and modems. Ethernet cables have RJ-45 connectors at both ends, which are similar to telephone jacks but larger. Ethernet cables can carry data signals at speeds ranging from 10 Mbps to 10 Gbps, depending on the type and quality of the cable.

A cable modem is a device that connects to a coaxial cable from a cable service provider and provides high-speed internet access. A SOHO router is a small office/home office router that connects to a cable modem or DSL modem and provides network and internet access to multiple devices on a LAN. A SOHO router typically has one WAN port and four LAN ports. The WAN port is used to connect to the cable modem or DSL modem, while the LAN ports are used to connect to computers or other devices on the LAN.

To connect a cable modem to a SOHO router, an Ethernet cable is needed. The Ethernet cable is plugged into the WAN port of the SOHO router and the Ethernet port of the cable modem. This allows the SOHO router to receive an IP address from the cable service provider and share it with the devices on the LAN using network address translation (NAT). The SOHO router also provides firewall and wireless features for the LAN.

The other options are incorrect because they are not suitable for connecting a cable modem to a SOHO router. FireWire is a type of serial bus that is used to connect devices such as digital cameras, external hard drives, and audio interfaces. FireWire cables have different connectors than Ethernet cables and cannot be used for network communication. Fiber is a type of optical cable that uses light signals to transmit data over long distances. Fiber cables have special connectors that are not compatible with Ethernet ports. Coaxial is a type of copper cable that has a central conductor surrounded by an insulating layer and a braided shield. Coaxial cables are used for cable TV and internet services, but they cannot be directly connected to Ethernet ports without an adapter.

Near Field Communication (NFC) is the most suitable connection method for the user's need to quickly collect contact information. NFC allows for short-range communication between compatible devices by simply bringing them close together or tapping them together. This feature is ideal for exchanging contact information or transferring small amounts of data quickly and conveniently, making it perfect for a sales environment at a conference. This recommendation is supported by the CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically in sections 2.3 "Compare and contrast protocols for wireless networking" and 1.3 "Given a scenario set up and configure accessories and ports of mobile devices", where NFC is mentioned as a connection method for mobile devices .

Thermal paste is a substance that fills in any gaps between a CPU and its heat sink, which is a device that dissipates heat from the CPU. Without adequate thermal paste, the CPU may overheat and cause the system to shut down automatically to prevent damage. This is especially likely when running 4K video or games, which are more demanding and generate more heat. The technician should check if the CPU heat sink was attached properly and apply enough thermal paste to ensure good contact and heat transfer. Reference: (page 28)

A router is a device that can dynamically distribute an IP address to the devices connected to its network using a protocol called DHCP (Dynamic Host Configuration Protocol). DHCP allows a router to automatically assign an IP address and other network configuration information to a device when it joins the network, without requiring manual intervention from the administrator. A router can also act as a gateway between different networks, such as a local area network (LAN) and the internet1.

A hub is a device that connects multiple devices on a network and forwards data packets between them. However, a hub does not assign IP addresses or perform any routing functions. A hub operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

A switch is a device that connects multiple devices on a network and forwards data packets between them based on their MAC addresses. A switch can improve the performance and security of a network by reducing collisions and isolating traffic. However, a switch does not assign IP addresses or perform any routing functions. A switch operates at the data link layer of the OSI model and does not understand IP addresses or other network protocols.

An injector is a device that provides power to another device over an Ethernet cable, such as a wireless access point or a security camera. This is also known as Power over Ethernet (PoE). An injector does not assign IP addresses or perform any routing functions. An injector operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

Application virtualization is a technique that allows an application to run on a computer without being installed or affecting other applications on the system. Application virtualization creates a virtual environment for the application that isolates it from the underlying operating system and hardware. This way, the technician can verify the application deployment will not affect other legacy applications on the end users’ computers.

M.2 SSD and NVMe interface are the best options for storage devices and interfaces that provide the best performance. M.2 SSD is a form factor that allows for faster data transfer and lower power consumption than traditional SATA SSDs. NVMe is a protocol that enables direct communication between the SSD and the PCIe bus, bypassing the SATA controller and reducing latency and overhead. Together, they offer the highest speed and efficiency for storage devices.

The most likely component that is failing and causing the PC to overheat is D. CPU fan. The CPU fan is a vital part of the cooling system that prevents the CPU from overheating by blowing air over the heatsink and dissipating the heat. If the CPU fan is faulty, noisy, or clogged with dust, it can reduce the airflow and cause the CPU temperature to rise12. This can result in poor performance, instability, or shutdowns of the PC.

The other components are less likely to be the cause of overheating. RAM, motherboard, and SSD do not generate as much heat as the CPU and usually do not require fans to cool them down1. They may overheat if there is poor ventilation in the case or if they are defective, but they are not as common as a failing CPU fan.

Therefore, the correct answer is D. CPU fan. This is the most likely component that is failing and causing the PC to overheat.

Virtualizing the application is the best action that a technician can take to complete the OS migration when there is no compatible current software for a specialized hardware device. Virtualizing the application means running the application in a virtual machine (VM) that emulates the previous OS environment that supports the application and the hardware device. This way, the technician can avoid the need to replace the PC or the hardware device, or to restrict user access to the application. Virtualizing the application also allows the technician to benefit from the new OS features and security updates, while maintaining the functionality and compatibility of the application and the hardware device.

The other options are not as effective or feasible for this scenario. Restricting user access may prevent unauthorized or accidental changes to the application or the hardware device, but it does not solve the compatibility issue or allow the OS migration to proceed. Replacing the PC or the hardware device may be costly, time-consuming, or impractical, especially if the hardware device is rare, expensive, or customized. Upgrading the BIOS to UEFI may improve the boot speed, security, and compatibility of the PC, but it does not guarantee that the application or the hardware device will work with the new OS.

The correct answer is D. VPN.

A VPN (Virtual Private Network) is a service that allows a remote user to access network resources securely over the internet. A VPN creates an encrypted tunnel between the user’s device and the VPN server, which acts as a gateway to the network. The user can then access the network resources as if they were directly connected to the network, without exposing their traffic to eavesdropping, interception, or censorship.

A VPN can provide remote users with access to various services on a company network, such as file and print services, client/server applications, and remote network administration1. A VPN can also protect the user’s privacy and identity online by masking their IP address and location.

The correct answer is B. Gather additional details.

According to the CompTIA troubleshooting process for the A+ certification exams1, the technician should gather additional details after testing a theory that is incorrect. This step helps to identify the problem more accurately and establish a new theory of probable cause. The other options are not appropriate for this stage of the troubleshooting process. Documenting the findings, escalating the problem, and identifying user changes are steps that should be done later in the process, after determining the cause and implementing a solution1.

Ac stands for 802.11ac, which is a wireless networking standard that operates in the 5 GHz frequency band and offers a maximum data rate of 1.3 Gbps. 802.11ac is also backward compatible with 802.11a, 802.11b, 802.11g, and 802.11n standards. If a technician wants to install a WAP (wireless access point) in the company break room that has a rating of higher than 50 Mbps and minimal range to avoid interference with other access points, they should select the 802.11ac standard.

The answer is C. Test the theory to determine the cause.

According to the CompTIA A+ troubleshooting methodology, the steps to troubleshoot any problem are:

Identify the problem and act

Establish a theory of probable cause

Test the theory to determine the cause

Establish a plan of action to resolve the problem and implement the solution

Verify system functionality and implement preventive measures

Document key findings, actions, and outcomes

In this scenario, the technician has already identified the problem (trouble accessing files on the network) and established a theory of probable cause (a failed NIC). The next step is to test the theory to determine the cause, which involves verifying whether the NIC is working properly or not.

Some possible ways to test the theory are:

Check the physical connection and status of the NIC port and cable12

Check the link state and speed of the NIC using ethtool or ip commands2

Check the configuration and state of the NIC using nmcli, teamdctl, or teamnl commands2

Check the driver and firmware of the NIC using lspci, modinfo, or dmesg commands2

Check the logs for any errors or warnings related to the NIC using journalctl or grep commands2

Uninstall and reinstall the NIC driver using Device Manager or modprobe commands13

Replace the NIC or cable with a known good one and test again13

If any of these tests confirm that the NIC is faulty, then the technician can proceed with the next step of establishing a plan of action to resolve the problem and implement the solution. If none of these tests reveal any issues with the NIC, then the technician can eliminate it as a probable cause and look for other possible causes. Therefore, option C is the correct answer.

The technician should replace the patch cable that connects the desktop to the network switch or outlet. The patch cable may be damaged or incompatible with the upgraded network infrastructure, which can cause slow network speeds. According to the CompTIA Core1 objectives, one of the common symptoms of a bad cable is slow transfer speeds. A research paper on network performance also states that cable quality and length can affect network speed.

The most likely issue is C. Tray settings.

Tray settings are the configuration options that tell the printer what size and type of paper is loaded in each tray. If the tray settings do not match the actual paper size and type, the printer may not be able to feed the paper correctly and cause paper jams.

In this scenario, the team that is having issues prints legal-sized documents, which are 8.5 x 14 inches, while the other teams print letter-sized documents, which are 8.5 x 11 inches. If the printer’s tray settings are set to letter size by default, the printer may not recognize the legal-sized paper and try to pull it as if it were letter-sized paper. This can result in paper jams or misaligned printing.

To fix this issue, the team should check and adjust the tray settings on the printer to match the paper size and type they are using. They can also use a separate tray for legal-sized paper and another tray for letter-sized paper, and make sure to select the correct tray when printing.

The other options are less likely to cause the issue, because:

•Worn rollers are the rubber parts that grip and move the paper through the printer. They can wear out over time and lose their traction, causing paper jams or misfeeds. However, worn rollers would affect all teams and all paper sizes, not just one team and one paper size.

•Page orientation is the direction of the paper, either portrait or landscape. It can affect how the document is printed on the paper, but not how the paper is fed into the printer. Page orientation can be changed in the print settings or in the document itself, but it would not cause paper jams unless the paper size is also incorrect.

•Multipage misfeed is when more than one sheet of paper is pulled into the printer at once, causing a jam. This can happen if the paper is too thin, too thick, or too slippery, or if there is too much or too little paper in the tray. However, multipage misfeed would also affect all teams and all paper sizes, not just one team and one paper size.

For more information and tips on how to prevent and fix paper jams, you can visit these links:

•Fix Paper Jam Errors | HP® Support

•Common Causes of Paper Jams and How to Fix Them - 1ink.com

The most likely issue that the technician will encounter is A. Corrupt job in print spooler.

A corrupt job in the print spooler is a common problem that can cause a printer to stop printing or print slowly. The print spooler is a service that manages the print queue, which is a list of documents that are waiting to be printed. Sometimes, a document in the print queue can become corrupted or incompatible with the printer, and prevent other documents from being printed. This can happen due to various reasons, such as power outage, network interruption, driver mismatch, virus infection, etc12.

To troubleshoot and resolve this issue, the technician can use the diagnostic tool in the printer’s administrator menu, which is a feature that allows the technician to access and configure various settings and options of the printer. The diagnostic tool can help the technician identify and delete the corrupt job in the print spooler, and restart the print service. The technician can also use the diagnostic tool to check the printer’s status, error messages, firmware updates, network settings, and other information that can help with the troubleshooting process34.

The other options are less likely to be encountered by the technician, as they are not related to the printer’s heavy use or the diagnostic tool. Insufficient space in the printer is an issue that can occur when the printer’s memory or storage is full, and it can cause the printer to print slowly or incompletely. However, this issue can be easily resolved by clearing the printer’s memory or storage, or adding more memory or storage to the printer12. Network connectivity issues are problems that can affect the communication between the printer and the network, and they can cause the printer to be offline or unreachable. However, these issues can be resolved by checking and fixing the physical or wireless connection, the network configuration, the firewall settings, and the printer’s IP address12. Improperly installed drivers are issues that can affect the compatibility and functionality of the printer, and they can cause the printer to print incorrectly or not at all. However, these issues can be resolved by updating, reinstalling, or rolling back the printer’s drivers, or by using the correct drivers for the printer’s model and operating system12.

The correct answer is A. Number of DIMM slots.

The number of DIMM slots on a motherboard determines how much RAM can be installed on the system. RAM is a crucial component for running multiple large applications at the same time, as it allows the CPU to access data faster and avoid swapping to the hard drive. Having more DIMM slots means that more RAM can be added, which can improve the performance and responsiveness of the system.

B. Number of HDMI ports. This is not a correct answer. The number of HDMI ports on a motherboard determines how many monitors can be connected to the system. HDMI ports are used for video and audio output, but they do not affect the performance of the system when running multiple large applications.

C. Number of PCI slots. This is not a correct answer. The number of PCI slots on a motherboard determines how many expansion cards can be installed on the system. PCI slots are used for adding devices such as sound cards, network cards, or graphics cards, but they do not affect the performance of the system when running multiple large applications.

D. Number of USB ports. This is not a correct answer. The number of USB ports on a motherboard determines how many peripherals can be connected to the system. USB ports are used for connecting devices such as keyboards, mice, printers, or external drives, but they do not affect the performance of the system when running multiple large applications.

Optical media, such as CDs, DVDs, or Blu-ray discs, are a suitable choice for backing up a large collection of DVDs and photos in the most economical way. Optical media are inexpensive, widely available, and have a long shelf life. They can store large amounts of data, up to 50GB on a dual-layer Blu-ray disc, and can be easily labeled and organized. Optical media are also less prone to mechanical failure, data corruption, or accidental deletion than hard disk drives (HDDs) or solid state drives (SSDs).

The other options are not as economical or suitable for this purpose. A 5,400rpm HDD is a slow and noisy type of HDD that has moving parts that can wear out or break. A HDD also consumes more power and generates more heat than an SSD. A M.2 NVMe SSD is a fast and compact type of SSD that uses a PCIe interface to transfer data. However, an SSD is more expensive than an HDD or optical media, and has a limited number of write cycles before it degrades. A SAS RAID array is a complex and costly system that uses multiple HDDs or SSDs connected by a Serial Attached SCSI (SAS) interface to provide redundancy, performance, or both. A RAID array requires a RAID controller, a compatible motherboard, and a dedicated power supply.

The correct answer is C. PoE switch.

A PoE switch is a network device that can provide both data and power to other devices over an Ethernet cable. PoE stands for Power over Ethernet, which is a technology that allows electrical power to be transmitted along with data on twisted pair Ethernet cabling. This eliminates the need for separate power supplies or AC adapters at the users’ desks, as the VoIP devices can receive power from the PoE switch12.

A firewall is a network device that monitors and controls incoming and outgoing network traffic based on predefined security rules. It does not provide power to other devices1.

A power injector is a device that adds electrical power to an Ethernet cable for a single device. It is not suitable for a large number of devices, as it would require one power injector per device1.

A router is a network device that connects multiple networks and forwards data packets between them. It does not provide power to other devices1.

Satellite internet is the most widely available internet connection type, as it does not depend on cables or wires. It can reach remote areas that lack infrastructure for other types of internet connections1. References: Satellite Internet

The correct answer is A. Imaging drum.

An imaging drum is a part of a laser printer that transfers the toner to the paper. The imaging drum is coated with a photosensitive material that reacts to light and creates an electrostatic charge. The charge attracts the toner particles from the cartridge and forms an image on the drum. The image is then transferred to the paper by heat and pressure from the fuser assembly.

If the imaging drum is defective or damaged, it can cause various printing problems, such as solid black pages, blank pages, streaks, spots, or faded prints. A solid black page can occur when the imaging drum is unable to create a charge pattern on its surface, and instead attracts all the toner from the cartridge. This can happen due to a faulty laser unit, a dirty or scratched drum surface, or a worn-out drum.

To fix this issue, the technician should replace the imaging drum with a new one. The imaging drum usually has a limited lifespan and needs to be replaced periodically. The technician should also check the toner cartridge and the fuser assembly for any signs of damage or leakage123

The most likely reason for the issue is that the webcam is not on a level surface, which causes the camera angle to be distorted. The user should adjust the position of the webcam so that it is aligned with the laptop screen and captures the user’s face fully. The other options are not relevant to this issue, as they would not affect the camera angle or visibility of the user’s face. Verified References: How to Position Your Webcam Correctly.

ECC (Error Correcting Code) memory is a type of memory that can detect and correct errors that may occur during data transmission or storage. ECC memory is essential for high-availability computing, as it prevents data corruption and system crashes2. References: ECC Memory

The technician is unable to access the company portal website, but other websites work fine. This suggests an issue with resolving the specific URL of the company portal, which is a function of DNS.

Here's why other options are not the most likely cause:

DHCP reservations: This is not relevant as the issue persists even when the technician tries a different workstation, indicating a problem beyond individual device configuration.

Static IP addresses: Similar to DHCP reservations, static IPs are not likely the cause as both affected workstations are experiencing the issue.

Default gateway: While the default gateway is necessary for internet access, other websites are working, making it less likely to be the root cause.

DisplayPort is a type of external monitor connection that provides the highest possible resolution for a PC. DisplayPort supports up to 8K resolution at 60 Hz, or 4K resolution at 120 Hz, with a maximum bandwidth of 32.4 Gbps. DisplayPort also supports audio, multiple monitors, and adaptive sync. DisplayPort is compatible with other types of connections, such as HDMI and DVI, with adapters.

The correct answer is A. Toner probe.

A toner probe is an electronic test instrument that can help trace wires and locate the port where a printer is connected on a patch panel. A toner probe consists of two parts: a tone generator and a tone detector. The tone generator sends a signal through the cable, and the tone detector picks up the signal at the other end. By using a toner probe, a technician can identify which port on the patch panel corresponds to the printer cable.

A loopback plug is a device that can test the functionality of a network port by sending and receiving signals from the same port. A loopback plug is not useful for locating ports on a patch panel.

A cable tester is a device that can verify the integrity and continuity of a cable by checking for open, short, or miswired connections. A cable tester can also measure the length and resistance of a cable. A cable tester is not useful for locating ports on a patch panel.

A Wi-Fi analyzer is a software or hardware tool that can monitor and analyze wireless networks by scanning for available channels, signal strength, security settings, and other parameters. A Wi-Fi analyzer is not useful for locating ports on a patch panel.

To enable network printing, the firewall needs to open the ports that are used by the network printers and the print servers. Two common ports for network printing are 515 (LDP) and 631 (IPP). LDP stands for Line Printer Daemon Protocol, which is a TCP-based protocol for sending print jobs to a remote printer. IPP stands for Internet Printing Protocol, which is a HTTP-based protocol for managing and monitoring print jobs over the Internet. According to the CompTIA Core1 objectives, one of the network ports that is related to printing is 515. A research paper on network printing also mentions that LDP and IPP are widely used protocols for network printing.

The best option that the technician should do to optimize performance is D. Utilize all channels. This option means that the technician should install the RAM modules in a way that maximizes the number of memory channels that are used by the motherboard. Memory channels are pathways that connect the memory controller to the RAM modules, and they allow data to be transferred between them. The more memory channels that are used, the higher the memory bandwidth and performance1.

DDR5 memory supports up to eight memory channels per module, which is twice as many as DDR42. However, not all motherboards can support eight channels per module, and some may only support four or two channels per module. Therefore, the technician should check the motherboard specifications and manual to determine how many memory channels it supports and how to install the RAM modules accordingly.

For example, if the motherboard supports four channels per module, then the technician should install four RAM modules in slots 1, 3, 5, and 7 to use all 16 available channels. If the motherboard supports two channels per module, then the technician should install eight RAM modules in all slots to use all 16 available channels. If the technician installs fewer modules than the number of slots, then some channels will be left unused and the performance will be lower1.

The most likely answer is C. The pen batteries need recharging.

An active touch pen is a stylus that uses a battery to power features such as pressure sensitivity, buttons, or Bluetooth connectivity. If the pen batteries are low or depleted, the pen may stop working or become inaccurate1. To fix this issue, you should recharge the pen batteries using the provided charger or cable, or replace them with new ones if they are not rechargeable1.

The other options are less likely to cause the issue. A scratched tablet screen may affect the touch sensitivity, but it should not affect the pen functionality. The pen software may need updating to improve performance or compatibility, but it should not stop the pen from working altogether. Software updates may disable the pen if they change the settings or drivers, but this can be fixed by re-enabling the pen or reinstalling the drivers2.

The message to clean the air filters, despite them being clean, is likely due to the projector's preconfigured settings related to the hours of use. Many projectors have maintenance reminders that trigger based on usage hours to prompt regular cleaning and maintenance. This reminder may need to be reset after checking or cleaning the filters. Adjusting the maintenance reminder or resetting the hours of use counter in the projector's settings can resolve the issue. This approach is consistent with the troubleshooting principles outlined in the CompTIA A+ Core 1 (220-1101) Exam Objectives under section 5.4 "Given a scenario troubleshoot video, projector, and display issues", where it's advised to consider all potential causes, including preconfigured settings, when diagnosing display-related problems .

The maximum distance that Cat 5, Cat 5e, Cat 6, and Cat 6a cables can be ran is 100 meters or 328 feet, according to the TIA/EIA standards. This is the maximum length for a cable segment, which is the distance between two devices, such as a switch and a computer, or a router and a printer. If the cable segment exceeds this length, the signal quality may degrade and cause errors or loss of data. Therefore, it is important to measure the cable length before installation and use repeaters or extenders if necessary.

References

1 Cable Distance | Comms InfoZone

2 Discussing Cat5 and Cat6 Max Length Limits - ShowMeCables

3 Cat5e vs Cat6 - Difference and Comparison | Diffen

High availability is a design principle that ensures a system or service can operate continuously without significant downtime or disruption. High availability can be achieved by implementing redundancy, failover, load balancing, and backup strategies. High availability can prevent a single point of failure within the system, which means that if one component fails, another one can take over its function. Rapid elasticity is the ability to scale up or down the resources of a system according to the demand, but it does not prevent a single point of failure. RAID is a method of storing data across multiple disks to provide redundancy and performance, but it does not prevent a single point of failure at the server level. Shared resources are the resources that are pooled and accessed by multiple users or systems, but they do not prevent a single point of failure either. References:

Systems can be provisioned according to demand. This is the essence of rapid elasticity, which is one of the essential characteristics of cloud computing. Rapid elasticity means that cloud services can be scaled up or down quickly and automatically, depending on the changing needs of the customers. This provides flexibility, efficiency, and cost-effectiveness for both the customers and the providers. According to the CompTIA Core1 objectives, one of the benefits of cloud computing is rapid elasticity. A research paper on cloud elasticity also defines it as the ability to dynamically adjust the amount of resources allocated to a service in response to its workload variation.

A spam gateway is a software solution that filters email messages based on various criteria, such as sender, recipient, subject, content, attachments, and URLs. A spam gateway categorizes incoming network messages as spam or non-spam, and either blocks, quarantines, or delivers them accordingly. A spam gateway can help protect email servers and users from malicious or unwanted emails, such as phishing, malware, or advertising.

A. Serves as a repository for email routing logs. This is not the primary function of a spam gateway. Email routing logs are records of the path and status of email messages as they travel through the network. Email routing logs can help troubleshoot email delivery issues, but they do not filter or categorize email messages.

B. Blocks unrequested ICMP packets from external networks. This is not the primary function of a spam gateway. ICMP (Internet Control Message Protocol) packets are used to communicate network information, such as errors, requests, or replies. Blocking unrequested ICMP packets from external networks can help prevent network scanning or denial-of-service attacks, but it does not filter or categorize email messages.

D. Mitigates DDoS attacks. This is not the primary function of a spam gateway. DDoS (Distributed Denial-of-Service) attacks are attempts to overwhelm a network or server with a large amount of traffic from multiple sources. Mitigating DDoS attacks can help maintain network availability and performance, but it does not filter or categorize email messages.

The internal antennas are the components that allow the laptop to receive and transmit wireless signals from and to the wireless access point. The internal antennas are usually located inside or around the laptop screen, and they are connected to the wireless network card or adapter by thin wires or cables. If the internal antennas are disconnected, damaged, or misaligned, the laptop may experience wireless connectivity issues, such as low signal strength, limited range, or intermittent connection.

In this scenario, a customer reports that, after a technician replaced a laptop screen, the laptop is only able to connect to a Wi-Fi network if it is positioned very close to a wireless access point. This could indicate that the technician accidentally disconnected or damaged the internal antennas during the screen replacement process, and that the laptop is not receiving enough wireless signals from the wireless access point. Therefore, the first thing that the technician should verify is that the internal antennas are properly connected and positioned inside or around the laptop screen.

To verify and reconnect the internal antennas, the technician should follow these steps :

Turn off the laptop and disconnect it from any power source or external device.

Remove the battery and any screws that secure the laptop screen bezel.

Carefully pry off the laptop screen bezel and expose the internal antennas.

Check if the internal antennas are intact and securely connected to the wireless network card or adapter. The internal antennas may have different colors or labels, such as black, white, gray, main, aux, or 1, 2.

If the internal antennas are disconnected or loose, reconnect them to the corresponding connectors on the wireless network card or adapter. Make sure that they snap into place and that there is no gap or bend in the wires or cables.

If the internal antennas are damaged or broken, replace them with compatible ones. Make sure that they have the same length and shape as the original ones.

Realign and reposition the internal antennas inside or around the laptop screen. Make sure that they do not interfere with any other component or cable, and that they follow the original path and direction.

Reattach the laptop screen bezel and secure it with screws.

Reinsert the battery and turn on the laptop.

Test the wireless connectivity and performance of the laptop.

A sandbox is a virtual environment that allows testing or running applications without affecting the main system. A sandbox can isolate the applications from the rest of the system, preventing any unwanted changes, errors, or security risks. A sandbox can also be easily reset to the initial state, discarding any modifications or data generated by the applications12.

A sandbox is a useful tool for stress testing multiple applications, as it can:

•Simulate different scenarios and conditions for the applications, such as high load, low memory, network latency, etc.

•Monitor and measure the performance, stability, and resource consumption of the applications under stress.

•Compare and analyze the results of different applications or different versions of the same application.

•Identify and fix any bugs, errors, or vulnerabilities in the applications before deploying them to the main system.

The answer is D. Replace the toner cartridge.

Vertical lines on a laser printer output are usually caused by a faulty or empty toner cartridge, a dirty or damaged drum unit, or a clogged or obstructed laser glass. According to the web search results, some possible steps to troubleshoot and resolve this issue are:

Check the toner level and replace the toner cartridge if it is low or empty1.

Remove the toner cartridge and inspect the drum unit for any signs of damage, such as scratches, cracks, or toner buildup. Clean the drum unit with a soft cloth or replace it if it is damaged23.

Locate the laser glass, which is a narrow strip of glass under the scanner lid or inside the printer. Clean the laser glass with a lint-free cloth moistened with water and remove any dust, dirt, or debris that might block the laser beam24.

The best practice methodology for troubleshooting is to follow these steps:

Identify the problem.

Establish a theory of probable cause.

Test the theory to determine cause.

Establish a plan of action to resolve the problem and implement the solution.

Verify full system functionality and implement preventive measures.

Document the findings, actions, and outcomes. Since the technician has already verified full system functionality and implemented preventive measures, the next step is to document the findings, actions, and outcomes. Verified References: CompTIA A+ Certification Exam Objectives, page 8.

A PSU (power supply unit) is a component that converts the AC power from the wall outlet into DC power that the PC components can use. A faulty or failing PSU can cause random system crashes, as well as other problems such as noise, overheating, or no power at all. A PSU can fail due to various reasons, such as age, dust, power surges, or poor quality.

To troubleshoot a PSU, the technician can use a multimeter to measure the voltage output of the PSU connectors. The voltage should be within the acceptable range of the specifications. For example, the 12V rail should be between 11.4V and 12.6V. If the voltage is too low or too high, the PSU is likely defective and needs to be replaced.

Alternatively, the technician can try swapping the PSU with a known good one and see if the system crashes persist. If the system works fine with a different PSU, then the original PSU is the problem and should be replaced.

The other options are not likely to fix the random system crashes. Testing the fan speed may help to diagnose overheating issues, but it is not related to the PSU. Disabling the USB ports may help to eliminate potential conflicts with USB devices, but it is not related to the PSU. Decreasing the RAM timings may help to improve performance and stability, but it is not related to the PSU.

The most likely answer is C. Fuser.

A fuser is a component in a laser printer that uses heat and pressure to fuse the toner powder onto the paper. If the fuser is damaged or worn out, it can cause humming and grinding noises, as well as ghost images on the printouts. Ghost images are faint copies of previous images that appear on the same page. They are caused by the fuser not heating the toner properly, or by the toner sticking to the fuser roller and transferring to the next page12.

To fix this problem, you should replace the fuser unit with a new one. You can check your printer manual for instructions on how to remove and install the fuser unit. You can also use a diagnostic ruler to measure the distance between the ghost images and determine if the fuser is the source of the problem2. If the ghost images are far apart (between 4cm and 5cm), then the fuser is likely to be faulty.

The most likely issue that prevents the user’s mobile device from saving pictures to an external drive at home is that the peripherals are managed via MDM (mobile device management). MDM is a software solution that allows an organization to remotely control, secure, and enforce policies on mobile devices, such as smartphones, tablets, or laptops. MDM can also restrict the access and functionality of the peripherals, such as external drives, cameras, microphones, or printers, that are connected to the mobile devices.

One of the possible reasons why the user’s mobile device can back up classified files to an external hard drive at work but not save pictures to an external drive at home is that the MDM policy allows only authorized peripherals to be used with the mobile device. For example, the MDM policy may require the external drive to have a certain encryption level, a specific serial number, or a valid certificate to be recognized by the mobile device. The external drive at work may meet these criteria, while the external drive at home may not. Therefore, the mobile device can back up the classified files to the external drive at work, but it cannot save the pictures to the external drive at home.

To resolve this issue, the user may need to contact the IT administrator or the MDM provider and request permission to use the external drive at home. Alternatively, the user may need to use a different method to transfer the pictures from the mobile device to the external drive, such as using a cloud service, a wireless network, or a USB cable.

Rapid elasticity is the ability of a cloud service to scale up or down the resources (such as virtual servers, storage, bandwidth, etc.) according to the demand of the users. This is an efficient way to handle unusually high web traffic usage, as it allows the company to provision more virtual servers when needed and release them when not needed, without wasting resources or paying for unused capacity. Rapid elasticity also improves the performance and availability of the web service, as it can adjust to the fluctuations in traffic and avoid overloading or downtime.

References

Rapid Elasticity in Cloud Computing: On-Demand Scaling for Business

Chapter 4: Virtualization and Cloud Computing

The correct answer is A. Examine the application and device mute controls.

One of the possible reasons for the USB headset microphone not working is that the microphone is muted in the application or device settings. The technician should check if the mute button on the headset or the microphone icon in the application is active. If so, the technician should disable them and try to record sound again.

Some applications may also have their own settings for the microphone input. The technician should make sure that the USB headset is selected as the input device and that the volume level is appropriate. The technician can also test the microphone in different applications to see if the problem is specific to one application or not.

The other options are less likely to solve the problem, because:

•Connecting the headset to a different USB port may not make any difference if the device is already installed and recognized by the system.

•Checking the device’s driver release date may not be relevant if the microphone was working before and no updates were installed recently.

•Increasing the speaker volume setting may not affect the microphone input at all, and may only make the audio playback louder.

For more information and tips on how to fix USB headset problems, you can visit these links:

•USB Headset Mic Not Working? Here Are All Possible Fixes - TechNorms

•Fix microphone problems - Microsoft Support

•USB Headset Not Working? Try These Fixes - Tech News Today

The most likely cause of the issue is that the user’s USB-C hub is faulty or incompatible with the laptop. The USB-C hub is a device that allows the user to connect multiple peripherals to the laptop using a single USB-C port. If the hub is not working properly, it may prevent the monitor, keyboard, mouse, and headset from functioning. The technician should replace the user’s USB-C hub with a new one that is compatible with the laptop and test the peripherals again. Verifying the AC adapter voltage will not help with the issue, as the AC adapter is used to power the laptop, not the peripherals. Repairing the operating system will not help either, as the issue is not related to software. Reinstalling the drivers for affected devices may not help, as the issue may be caused by the hub, not the devices. Making sure the printer is not drawing too much power is irrelevant, as the printer is not connected to the hub or affecting the other peripherals. References:

The manufacturer’s specifications for the components are the best source of information to determine the appropriate power supply for the workstation. The manufacturer’s specifications will list the power requirements and recommendations for each component, such as the graphics card, the CPU, the hard drives, and the motherboard. By adding up the power consumption of each component, the technician can estimate the total wattage needed for the workstation. The technician should also consider some extra headroom for future upgrades or peak loads. The technician can then choose a power supply that meets or exceeds the total wattage and has the right connectors and form factor for the workstation.

S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) is a feature of hard drives that monitors various parameters, such as temperature, error rate, spin-up time, and seek time, to assess the health and performance of the drive. S.M.A.R.T. can also predict the likelihood of failure based on the historical trends of these parameters. A technician can check the S.M.A.R.T. information of a hard drive using various tools, such as the BIOS, the operating system, or third-party software. Checking the S.M.A.R.T. information can help the technician diagnose the cause and severity of the drive corruption and determine the best course of action.

CHKDSK (Check Disk) is a command-line utility that scans the file system and the disk surface for errors and attempts to fix them. CHKDSK can also recover readable data from bad sectors and mark them as unusable. A technician can run CHKDSK on a corrupt drive using various options, such as /f (fix errors), /r (recover data), or /x (dismount the drive). Running CHKDSK can help the technician repair the drive corruption and retrieve the missing files.

Shared resources is the concept that allows several websites from different companies to be housed on the same virtual server. A virtual server is a software-based server that runs on a physical server and can host multiple virtual machines (VMs). Each VM can run a different operating system and application, such as a website, and have its own allocated resources, such as CPU, memory, disk space, and network bandwidth. However, the VMs share the underlying hardware resources of the physical server, which reduces the cost and complexity of maintaining separate servers for each website. This also enables rapid scalability, as new VMs can be created or deleted as needed.

One of the methods to host multiple websites on the same virtual server is to use virtual hosts. Virtual hosts are a feature of web servers, such as Apache, that allow the web server to serve different websites based on the domain name or IP address requested by the client. For example, a web server can host two websites, a.example.com and b.example.com, on the same virtual server and the same port (such as 80 or 443), by using virtual hosts to map each domain name to a different document root directory. The web server will then deliver the content of the corresponding website to the client based on the domain name in the HTTP request header.

According to the CompTIA A+ Core 1 (220-1101) Certification Study Guide1, a network crimper and a cable stripper are the tools that a technician should use to resolve this issue. A network crimper is used to attach a new RJ-45 connector to the end of the cable, and a cable stripper is used to remove the outer insulation of the cable and expose the twisted pairs of wires. A toner probe, a punchdown tool, a multimeter, and a loopback plug are not needed for this task.

Here are some web resources that explain how to repair an Ethernet cable:

Ethernet Cable Repair - iFixit: This guide provides step-by-step instructions and pictures on how to fix a broken Ethernet cable.

How to Repair a Cut Cat5e Ethernet Cable - wikiHow: This article shows how to solder the wires of a cut Ethernet cable and use shrink tube to cover the joints.

Amazon.com: Ethernet Cable Repair Kit: This page lists some products that can be used to repair an Ethernet cable, such as crimping tools, connectors, testers, and strippers.

The concept described in the question is related to virtualization and resource management in a virtual environment. The approach that allows all virtual machines (VMs) to have memory (RAM) allocated for use is known as resource pooling. Therefore, the correct answer is D: "Resource pooling." This approach allows resources to be allocated dynamically to VMs based on their current needs, and ensures that resources are used efficiently in the virtual environment.

Resource pooling is a technique used in virtualization to share resources among multiple virtual machines (VMs). With resource pooling, RAM can be allocated dynamically to VMs as needed, allowing all VMs in a virtual environment to have RAM allocated for use.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

The cause of the issue is likely due to a DNS resolution issue. While the technician can ping the servers by IP address, they cannot ping the UNC path, indicating an issue with the name resolution. This can be resolved by configuring the correct DNS server settings.

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

The company should buy Coaxial cables to be used with F-type connectors.

If a user is unable to connect a laptop to a projector or videoconferencing system and sees the error message "No source found," the next step should be to check the display settings on the computer and set them to extend/duplicate. This will ensure that the laptop's display is being output to the external device. References: CompTIA A+ Certification Exam Guide, pg. 514

HDMI-ARC (Audio Return Channel) is an HDMI connection that allows audio to be sent from the TV to an external sound system, such as a soundbar. If the TV's HDMI-ARC port is not being used, then the soundbar will not receive any audio from the TV and thus will not produce any sound. To resolve the issue, the technician should ensure that the TV's HDMI-ARC port is being used to connect the TV to the soundbar.

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

802.11ax, also known as Wi-Fi 6, has the longest range and the highest wireless throughput of all the wireless technologies listed. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 3

If the printed text is not adhering properly to the paper on a laser printer that has had repairs previously for scanning issues, the fuser should be replaced to resolve this issue. The fuser is a component of the printer that uses heat and pressure to fuse the toner onto the paper. If the fuser is not functioning properly, the toner may not adhere properly to the paper.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References:

Before attempting to resolve the issue, it is important to first determine the cause or probable cause of the issue, so that a plan of action can be developed. In this case, the fact that the retention policy was updated shortly before users first noticed the issue suggests that this could be the cause of the issue. The systems administrator should investigate this further to determine if this is indeed the cause of the email server issue.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This ensures that no static electricity is transferred to any of the server components, which could cause permanent damage. The other options are not the correct methods for replacing RAM. Unplugging one power cable is not recommended, as it could cause the server to go offline and disrupt any services that are running. Verifying the RAM temperature is not necessary and does not provide any additional safety measures, and replacing the RAM while the server is running is not recommended, as it could cause system instability.

To configure the laptop to show both screens, the technician should adjust the monitor display settings. On Windows 10 or 11, the technician can select the Start menu, then open Settings, then select Display. The PC should automatically detect the monitors and show the desktop. If the monitors are not detected, the technician can select Multiple displays, then Detect. The technician can then use the dropdown list next to the image of the desktop to choose how the screen will project across the displays12345.

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

A Virtual Private Network (VPN) is a secure method for connecting a remote user's laptop to a corporate server. VPNs use encryption to protect data transmitted over the internet.

NFC (Near Field Communication) is a wireless communication technology that is commonly used for contactless payments, mobile payments, and other mobile transactions. It allows two devices to communicate with each other when they are placed in close proximity.

Contactless payments commonly use NFC (Near Field Communication). NFC is a wireless communication technology that allows two devices to communicate with each other when they are in close proximity. Contactless payments use NFC to enable customers to make payments by simply tapping their contactless card or mobile device on a payment terminal.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

A SIM card is needed for the device to use cellular network services, so without it, the device will be unable to connect to the cloud services when taken off site. MDM (Mobile Device Management) can be used to manage settings and access on a device, but it is not necessary for the device to be able to use cloud services. S/MIME (Secure/Multipurpose Internet Mail Extensions) certificates are used to encrypt and digitally sign emails, and are not related to device connectivity. Bluetooth can be used to connect devices together, but it is not necessary for the device to be able to use cloud services.

Verifying the correct type of paper is loaded is the best solution for resolving the issue of blank receipts being printed by a point-of-sale printer. Some receipt printers require a specific type of paper, and using the wrong type can result in blank receipts. References:

Top of Form

Verify the correct type of paper is loaded. If a point-of-sale printer is printing blank receipts, one possible cause could be that the wrong type of paper is loaded in the printer. Thermal printers require thermal paper to print properly. If regular paper is loaded instead of thermal paper, the printer will not be able to produce an image on the paper and will print blank receipts.

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

If a workstation shuts down unexpectedly during a burn-in test, overheating is the most likely cause. This is because a burn-in test is designed to stress the components of the workstation, which can generate a lot of heat. Therefore, overheating is the correct answer. References: CompTIA A+ Certification Exam Guide, Ninth Edition, page 120

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

The earliest PoE switches from a few years ago generated 15 Watts per port (IEEE 802.3af). Today, most use the PoE+ standard (IEEE 802.3at), which generates up to 30 Watts per port. That's plenty for most devices that people want to connect

Reducing the frequency of location checks using cellular location services will consume less battery power while still allowing the user to view weather forecasts while travelling. The other options may not solve the battery drain issue while using the weather application.

Configuring less frequent location checks using cellular location services is the best option for the salesperson to view weather forecasts while traveling without draining the battery too quickly. References:

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

Lightning Connector: Apple introduced this brand-new connector back in 2012. It is over 80% smaller than the 30-pin connector and is reversible.

The technician should verify the header panel connector is properly connected. A beep code is a diagnostic tool used by motherboards to indicate issues with hardware components. This beep code may be indicating an issue with the connection between the motherboard and the case's header panel connector. This connector is responsible for providing power to the system and any connected peripherals. Therefore, the technician should verify the connection is secure and properly connected before attempting any other troubleshooting steps.

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

This is because high-end graphics cards, processors, and multiple hard drives require a significant amount of power to operate. A power supply with insufficient wattage could cause stability issues or even damage the components.

The CompTIA A+ Core1 certification guide emphasizes the importance of selecting an appropriate power supply for a computer build. In addition to wattage, other factors to consider when selecting a power supply include efficiency, modularity, and the number and type of connectors required to power the components. However, of the options listed, the wattage rating is the most critical consideration.

Therefore, the technician should ensure that the power supply they select has a wattage rating that is sufficient to power all the components in the gaming computer. It is always a good practice to select a power supply with a wattage rating that exceeds the estimated power usage of t

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

The first step in troubleshooting a printer issue is to disconnect the printer power to avoid electric shock or further damage to the printer. The technician can then inspect the fuser and determine if it needs to be replaced or repaired. Installing a printer roller kit or replacing the paper with thicker paper stock will not solve the problem of the overheating fuser. Replacing the fuser without disconnecting the power is dangerous and not recommended. References:

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

The minimum cable category that could be used to support a 10Gbps throughput is Cat 6a. Cat 6a cable is required with 10 Gigabit Ethernet for reliable performance with cable lengths up to 100 metres. However, lower-specification cables can often be successfully used, particularly with the shorter cable lengths required in a typical home123.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

When installing a printer on a network, the technician needs to configure the network settings, which include the IP address, subnet mask, and gateway. These settings are used to ensure that the printer can communicate with other devices on the network.

When installing a printer on a network, the technician must configure the network settings of the printer to ensure that it can communicate with other devices on the network. This includes configuring the gateway, subnet mask and IP address of the printer.

The gateway is the device that connects the local network to other networks or the Internet. The subnet mask is used to determine which part of an IP address represents the network and which part represents individual hosts on that network. The IP address is a unique identifier for each device on a network.

Comprehensive and Detailed In-Depth Explanation:

USB-C is a versatile connector capable of transmitting data, video, audio, and power. With standards like DisplayPort over USB-C or Thunderbolt 3/4, it can be used for external displays, file transfers, charging, and more — all through one cable.

Option B (HDMI): Supports video and audio but not general data transfer.

Option C (DisplayPort): Similar to HDMI — supports video/audio but not general file transfer.

Option D (VGA): Legacy analog video only — no data or audio support.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.1: Identify common connector types.

A network tap (Test Access Point) is a device used for monitoring network traffic. It allows the technician to passively observe the traffic between two network nodes in real-time without introducing latency or affecting the network's performance. By using a network tap, the technician can analyze the data packets flowing through the network to identify if packet loss is occurring, which could be contributing to the slow network traffic in the branch office.

When a user connects a laptop to a projector and the image displayed is very fuzzy (blurred) but the brightness level is satisfactory, the first setting to adjust on the projector is the focus. The focus control adjusts the clarity and sharpness of the projected image. Incorrect focus settings can lead to a fuzzy or blurred image even when the brightness is adequate. Adjusting the focus should help in making the image clear and sharp.

Configuring the monitor as an "extended" display will allow the laptop and monitor to show different content. By default, laptops mirror displays, so this setting change enables dual display functionality. This is covered under CompTIA Core 1 exam objectives for managing display configurations and settings​.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

To clean sticking keys on a laptop keyboard, using compressed air is the most effective and safest method. Compressed air can dislodge and remove crumbs, dust, and other debris from under the keys without risking damage to the keyboard's electronic components or the keys themselves. This approach is non-invasive and widely recommended for keyboard maintenance.

C. Installing redundant PSUs (Power Supply Units):

Redundant PSUs provide fault tolerance by ensuring that if one power supply fails, another will take over seamlessly.

This is a cost-effective way to increase uptime while waiting for the UPSs to arrive.

Incorrect Options:

A. Purchasing backup generators: Generators are costly and are typically used for long-term outages, not as an immediate or cost-effective solution.

B. Increasing input voltage: This is not a practical solution to hardware failures or power issues.

D. Activating a hot site: A hot site is an expensive, fully operational backup facility that would not be a cost-effective solution for this scenario.

Key Takeaway: Installing redundant PSUs is a cost-effective way to balance uptime requirements in case of power or hardware failure.

When a user is unable to save pictures to a new SD card after replacing a damaged one, the first thing to check is whether the card is locked. Many SD cards have a physical switch on the side that can be toggled to a "locked" position, which prevents data from being written to the card. Ensuring the switch is in the "unlocked" position allows the device to save data to the SD card.

In laser printing, the fuser unit is responsible for bonding the toner to the paper using heat and pressure. If the toner is not sticking to the paper, resulting in illegible documents despite trying different brands of paper, it indicates a problem with the fuser unit. It might not be reaching the necessary temperature to melt the toner properly, necessitating its replacement to ensure proper printouts.

The symptoms described, such as the operating system taking longer than usual to load and hearing clicking sounds from within the workstation, are indicative of a failing hard drive. Clicking sounds, often referred to as the "click of death," signal the read/write head of the hard drive struggling to function properly. This mechanical failure leads to longer load times as the system struggles to read data from the disk. It is crucial to back up data and consider replacing the hard drive to prevent data loss.

An IP address beginning with 169.254 indicates that the device has not received a valid IP from the DHCP server. Rebooting the router can resolve minor configuration or network glitches, allowing DHCP to function correctly. The other options, such as adjusting lease time or static IP addresses, do not address the core problem. CompTIA A+ Core 1 objectives emphasize DHCP troubleshooting in SOHO networks.

Security groups are used to manage access permissions to network resources, ensuring only authorized HR department members can access the shared materials.

Why Not B (Audit logs): Audit logs monitor activity but do not restrict access.

Why Not C (Time-of-day access): Time-of-day access limits when users can access resources but doesn’t specify user permissions.

Why Not D (Print server): A print server manages print jobs but does not control file access.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access control and permissions​.

A VLAN (Virtual Local Area Network) segments a physical network into separate logical networks, enhancing security by isolating traffic.

Why Not A (Minimizes collision domains): VLANs manage broadcast domains, not collision domains.

Why Not B (Provides private access to cloud resources): VLANs operate within a local network, not cloud-specific.

Why Not C (Increases network address space): VLANs do not affect address space.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, VLAN concepts​.

Identifying changes made to the system is the next step to troubleshoot why an application no longer launches, as recent changes often cause such issues.

Why Not A (Research the symptoms): Research is broader and should come after identifying changes.

Why Not C (Determine which steps need to be performed): This comes after identifying the issue.

Why Not D (Check the vendor's website): This is a later step if further guidance is needed.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​.

Comprehensive and Detailed In-Depth Explanation:

In laser printers, the fuser unit is responsible for melting the toner onto the paper using heat and pressure. If the toner rubs off easily, it's a clear sign the fuser is failing or not heating properly. Replacing the fuser will ensure the toner bonds correctly to the paper.

Option B (Drum): Transfers the image, but doesn't fuse the toner.

Option C (Developer roller): Applies toner to the drum — wouldn’t cause toner to rub off.

Option D (Discharge lamp): Prepares the drum for a new image; not related to toner adhesion.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

===========

SSH (Secure Shell) encrypts data communications for secure remote login and management of network devices, ensuring all console connections are encrypted.

Why Not B (LDAP): LDAP is used for directory services and does not encrypt by default.

Why Not C (FTPS): FTPS encrypts file transfers, not console communications.

Why Not D (SMTP): SMTP is used for email transmission, not for securing login sessions.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, network security protocols​.

When upgrading a laptop's storage from an HDD to an SSD, especially in laptops with only a single bay for a hard drive, the most critical characteristic to consider is the form factor. The form factor must match the physical dimensions and interface of the original HDD to ensure that the SSD can fit into the bay and connect properly. Storage size (B) is important for capacity reasons, transfer speed (D) affects performance, and partition type (A) is a software configuration aspect, but the form factor (C) is crucial for the physical compatibility of the SSD with the laptop.

Secure Shell (SSH) is a protocol used to securely access and manage devices over a network. It provides a secure channel over an unsecured network in a client-server architecture, enabling technicians to perform troubleshooting and management tasks remotely with encryption to ensure the security of the data transmitted. FTP and TFTP are used for file transfers and do not inherently provide the same level of security or direct device management capabilities. RDP is used for remote desktop connections but is not as universally applicable for various devices as SSH.

Comprehensive and Detailed Step-by-Step Explanation:

Modifying duplex settings to double-sided:

Printing on both sides of the paper (duplex printing) reduces paper usage, making it one of the most effective environmentally friendly printing initiatives.

It directly minimizes waste and supports sustainability goals in the workplace.

Incorrect Options:

A. Requiring user authentication for printing: While this can reduce unnecessary or unauthorized printing, it does not directly address environmental objectives like saving resources.

B. Locking down printing to only certain individuals: Limiting access may reduce printing overall, but it does not actively contribute to environmentally friendly practices like duplex printing.

D. Changing the print quality settings to best: Using the "best" print quality increases toner or ink usage, which is counterproductive to environmentally friendly objectives.

Key Takeaway:

Modifying duplex settings to enable double-sided printing is the best initiative to achieve environmentally friendly goals by reducing paper consumption.

Port 21 is used by FTP (File Transfer Protocol) for file transfers. Port 53 is for DNS, port 68 is for DHCP, and port 389 is for LDAP. Understanding standard network ports is essential in CompTIA A+ Core 1 objectives, especially in networking and troubleshooting scenarios.

The ATX 3.0 16-pin connector provides power to high-end graphics cards, and a poor connection could lead to power issues and burning smells.

If the user can hear sound through a Bluetooth headset but not through the laptop's internal speakers, the issue is likely related to the laptop's audio settings. One of the most common causes is that the laptop's speakers might be muted, either in the system settings or via a hardware mute button. This is the simplest and most likely solution to the problem.

B. Toggling the laptop's mute setting: Checking whether the laptop is muted, either through the keyboard shortcut or the system sound settings, is a quick way to resolve this common issue.

Why the other options are incorrect:

A. Updating the Bluetooth drivers: The issue is not with the Bluetooth headset, as it is working correctly. The problem is with the laptop's speakers.

C. Updating the speaker drivers: Updating the drivers is not the first step in troubleshooting, as the issue is more likely related to settings rather than outdated drivers.

D. Replacing the laptop's speakers: This is an extreme step and unlikely to be necessary if the problem is simply related to audio settings.

This scenario covers hardware troubleshooting and falls under the Hardware and Software Troubleshooting domain in the CompTIA A+ Core 1 exam​.

Upgrading a power supply to add a GPU typically requires more wattage to accommodate the additional power demands. Although the current power supply is 380W, adding a GPU with a six-pin power connector suggests a mid-range graphics card, which would likely need a total system power supply in the range of 450W to ensure adequate power for all components, providing a good balance between capacity and safety margins.

A DHCP lease is a temporary assignment of an IP address and other network configuration parameters (such as DNS and gateway) to a device. The lease is renewed periodically to maintain the assignment.

Why Not A (A definition of the scope of addresses): The DHCP scope defines the range of IP addresses but is not the lease itself.

Why Not B (A reservation of an IP configuration): DHCP reservations ensure a specific device always receives the same IP address, but this is not the lease.

Why Not D (A translation of network names to IP addresses): This describes DNS, not DHCP.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, DHCP concepts​.

A managed switch provides advanced features such as traffic monitoring and VLAN configuration, allowing a technician to view network statistics for devices on the local subnet.

Why Not B (Router): A router connects different networks and directs traffic between them but does not provide detailed subnet-level statistics.

Why Not C (Access point): Access points provide wireless connectivity but lack traffic monitoring features.

Why Not D (Firewall): A firewall filters traffic but is not used for monitoring detailed statistics on a local subnet.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, network monitoring tools​.

The Syslog server collects logs and system messages from devices on a network. It’s a standard protocol used to store log messages from network hardware like routers, switches, and servers for diagnostics and auditing.

Option A (DNS): Translates domain names into IP addresses, not used for logging.

Option B (Mail): Manages email communication.

Option C (Print): Manages print jobs and printer sharing.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.4: Compare and contrast common networking hardware.

To prevent unauthorized access to printed sensitive data on a shared printer in a high-traffic area, the best solution is to require user authentication via a PIN. This ensures that print jobs are only released when the authorized user is present at the printer, protecting sensitive information from being exposed.

A. Set up a PIN for user authentication at the printer: This allows users to securely release their print jobs only when they are physically at the printer, preventing unauthorized access.

Why the other options are incorrect:

B. Relocate the printer to an unused office space: While this may reduce traffic, it doesn't ensure that sensitive data is protected from unauthorized access.

C. Configure printing of sensitive data through a specific tray: This wouldn’t solve the issue of unauthorized users accessing sensitive prints.

D. Schedule print jobs to be released at certain times: This doesn't address the security concern of preventing unauthorized access to sensitive documents.

This falls under the Hardware and Security domain of the CompTIA A+ Core 1 exam​.

When connecting a Bluetooth device like a hands-free car system, using a PIN code adds a layer of security. The PIN code must be entered or confirmed during the pairing process to ensure that the connection is authorized and secure.

D. PIN code: Provides an additional security measure during Bluetooth pairing to prevent unauthorized access.

Why the other options are incorrect:

A. BitLocker: BitLocker is a drive encryption feature used to secure data on hard drives, not for securing Bluetooth connections.

B. Biometrics: Biometrics refers to authentication using physical traits like fingerprints, which are not typically used for Bluetooth connections.

C. TPM: Trusted Platform Module (TPM) is a hardware security feature used for encryption and secure boot processes, not for Bluetooth pairing.

This falls under the Mobile Devices and Security domain in the CompTIA A+ Core 1 exam​.

If the smartphone is showing a 5G symbol, it is connected to a cellular network rather than Wi-Fi. Enabling Autoconnect ensures the device automatically connects to the company Wi-Fi when in range, resolving the issue.

Why Not B (VPN): VPN is used for secure remote access and does not resolve Wi-Fi connection issues.

Why Not C (Encryption): Encryption settings are related to data security, not network connectivity.

Why Not D (WPS): WPS (Wi-Fi Protected Setup) is used to easily connect devices to Wi-Fi, but it is not required for this issue.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.4, wireless network troubleshooting​.

Duplex printing allows printing on both sides of a paper, which can significantly reduce paper consumption and costs associated with buying paper. This makes duplex printing the best feature for cutting costs on consumables.

The issue described suggests the 12V CPU power connector was likely forgotten during installation. The 12V power rail is essential for the operation of high-end workstation components, including the CPU. Without the 12V connection, the system will fail to POST and may power off shortly after being turned on.

Why 12V?

The 12V connector is critical for providing power to the CPU via the motherboard. Modern CPUs require a dedicated power source from the PSU, usually supplied through the 4-pin or 8-pin EPS12V connector.

If this connection is omitted, the motherboard will not receive adequate power for the CPU to function, resulting in the system failing to POST or shutting down after a brief period.

Incorrect Options:

A. 5V: The 5V rail powers USB devices, some motherboard components, and certain peripherals, but not the CPU directly.

C. 120V and D. 220V: These voltages refer to the power supply’s input from the wall outlet, not the internal connections to components.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 3.5: Explains power supply requirements and troubleshooting scenarios related to component connections​.

A loopback plug is a diagnostic tool used to test the functionality of network interfaces by creating a signal loop. In this case, since the user's device is hardwired to the network but cannot access the internet, using a loopback plug can help determine whether the issue is with the network interface card (NIC) or the Ethernet cable.

A. Loopback plug: This tool helps test whether the computer's network interface is functioning properly.

Why the other options are incorrect:

B. Network tap: A network tap is used to monitor network traffic, but it wouldn’t help diagnose the local connectivity issue here.

C. Wi-Fi analyzer: This tool is used to troubleshoot Wi-Fi networks, but since the issue is with a hardwired connection, it’s not applicable.

D. Punchdown tool: A punchdown tool is used to connect network cables to a patch panel or keystone jack. It is not used for diagnosing network issues.

This falls under the Hardware and Network Troubleshooting domain in the CompTIA A+ Core 1 exam​.

C. Initiate the system restore:

If the technician is confident that rolling back the system to a previous restore point will resolve the issue, the next logical step is to initiate the System Restore process.

System Restore allows the system to revert to a state before the OS update, which can eliminate the performance issues caused by the update.

Incorrect Options:

A. Document the findings: Documentation is important but should occur after resolving the issue.

B. Investigate any recent infrastructure changes: This is unnecessary if the issue is already attributed to the OS update.

D. Verify full system functionality: This step should be performed after the System Restore is completed.

Key Takeaway: When confident that rolling back will resolve the issue, the technician should proceed with initiating a System Restore to revert the OS.

To make sure that the new operating system on the USB drive loads automatically, the user must configure the boot options in the BIOS/UEFI. Boot options determine the sequence of devices the computer will attempt to boot from when powered on. Setting the USB drive as the first boot option ensures that the system will load from the USB before trying other devices.

D. Boot options: The user should configure the boot sequence to prioritize the USB drive, so the system boots from it automatically.

Why the other options are incorrect:

A. BIOS password: A BIOS password is used to restrict access to the BIOS settings, not to control boot order.

B. Trusted Platform Module (TPM): TPM is a security feature used for cryptographic operations and securing hardware, not for controlling boot options.

C. USB permissions: This refers to access permissions for USB devices but does not affect booting from a USB drive.

This concept is part of the Hardware domain in the CompTIA A+ Core 1 exam, specifically regarding BIOS configuration​.

The mechanical engineer's PC shutting off during resource-intensive tasks like rendering could be caused by overheating or hardware issues. The two most logical steps to diagnose the problem are:

B. Check if the computer is overheating: Rendering is a CPU- and GPU-intensive task that generates heat. Overheating could cause the system to shut down as a protective measure. Checking the system’s temperature can help identify if this is the cause.

A. Listen for POST beeps when turning on the PC: POST (Power-On Self-Test) beeps can indicate hardware issues, such as with the motherboard, CPU, or GPU. Listening for beeps can help identify potential problems with these components.

Why the other options are incorrect:

C. Run chkdsk: This tool is used for checking disk integrity, but the symptoms don’t suggest a hard drive issue.

D. Reinstall the operating system: Reinstalling the OS is a time-consuming step and not typically necessary for hardware-related shutdowns.

E. Check if the graphics card is compatible with the motherboard: If the PC has been working for three years, the GPU is already compatible with the motherboard.

F. Replace the HDD: There’s no indication that the hard drive is causing the issue, as the problem occurs during rendering, which is more GPU/CPU-intensive.

This topic falls under the Hardware Troubleshooting domain in the CompTIA A+ Core 1 exam​.

Reasoning: A docking station is designed to provide a central connection point for multiple peripherals, such as monitors, keyboards, mice, and network cables. It allows users to quickly connect or disconnect all devices by simply docking or undocking their laptop, improving mobility and reducing wear and tear on individual ports.

Why the Other Options Are Incorrect:

A. Serial interfaces:

Serial interfaces are outdated and rarely used in modern laptops or peripherals. They are not practical for facilitating the connection of multiple devices.

C. Network switch:

A network switch is used to connect multiple devices to a network, but it does not simplify the connection of peripherals to a laptop.

D. USB hub:

A USB hub can extend the number of available USB ports but lacks the full functionality of a docking station, such as video output or Ethernet connectivity.

Practical Example:

A user with a laptop, external monitors, keyboard, and mouse can use a docking station to connect all devices with a single action, instead of plugging in each device manually.

CompTIA A+ Exam Objective Alignment:

Objective 5.2: Explain device interfaces, connection types, and usage of docking stations.

An IDE hard drive uses a Molex connector for power. This 4-pin connector is a standard for older drives.

Why Not A (F type): F type connectors are used for coaxial cables in video and internet applications.

Why Not B (SC): SC connectors are for fiber optic cables.

Why Not D (Lightning): Lightning connectors are for Apple devices.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable types and connectors​.

D. POST Code Beeps:

During the Power-On Self-Test (POST), the BIOS performs checks on system hardware, including RAM. If the RAM is faulty, POST may produce a series of beep codes indicating memory issues.

These beep codes are often the first sign of RAM-related problems, especially if the BSOD occurs randomly.

Incorrect Options:

A. Wrong BIOS configurations: Incorrect BIOS settings may cause boot errors, but they are less likely to cause random BSODs.

B. Continuous reboots: Continuous reboots could result from multiple hardware or software issues but do not specifically point to RAM.

C. Distended capacitors: Faulty capacitors typically affect the motherboard, not the RAM.

Key Takeaway: POST beep codes are a common diagnostic tool for identifying RAM-related issues.

Comprehensive and Detailed In-Depth Explanation:

Virtual Desktop Infrastructure (VDI) hosts desktop environments on centralized servers. This allows rapid deployment and consistent configuration across multiple users, minimizing manual setup and easing IT management.

Option A: VDI still uses standard authentication methods.

Option B: Licensing can actually be more expensive due to virtualization software and backend servers.

Option D: VDI centralizes the desktop environment — viruses would affect the virtual session, not be "contained locally."

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

A sandbox in virtualization allows testing an application in an isolated environment to observe its behavior without affecting the host system.

Why Not A (Run an application on multiple workstations): This describes application virtualization, not sandboxing.

Why Not C (Migrate a legacy application): This is about virtualization for legacy support, not testing.

Why Not D (Create a firewall): A firewall does not act as a sandbox for application testing.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.2, virtualization and sandboxing​.

DKIM (DomainKeys Identified Mail) is an email authentication method that attaches a digital signature to outgoing emails to verify the email’s authenticity and detect email spoofing.

SPF (Sender Policy Framework): Specifies which mail servers are authorized to send emails for a domain but does not involve digital signatures.

DNS Pointer (PTR): Used for reverse DNS lookups, not email authentication.

MX Records: Specify mail servers for email delivery but do not authenticate emails.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.4, email security and authentication​.

Self-encrypting hardware, such as self-encrypting drives (SEDs), provides an effective solution for securing data with minimal user interaction. SEDs automatically encrypt all data stored on the drive without requiring any special software or user action, ensuring that data remains protected even if the drive is removed from the device. This feature is particularly beneficial for remote users who may not consistently follow manual encryption procedures, offering a seamless and user-transparent method to secure sensitive data.

Display burn-in occurs when a static image is left on a screen for a long time, causing the pixels to wear out unevenly and retain a ghost image even when new content is displayed. This issue can result in double images, where the "burned-in" stationary image persists alongside new, live content. This problem is more common in older displays or those used for static signage. Replacing the display cable or adjusting color settings would not address the underlying cause of uneven pixel wear, and burned-out bulbs would likely result in a loss of image clarity or brightness, not double images.

Comprehensive and Detailed In-Depth Explanation:

When a device shows as not connected even though it previously paired, the most effective action is to re-pair the devices. This resets the Bluetooth connection, clears any corruption in pairing profiles, and re-establishes communication.

Option A: Entering a PIN is only relevant during initial pairing and may not be prompted again.

Option B: Turning off Wi-Fi doesn’t typically affect Bluetooth; they operate on similar frequencies but don’t conflict this way in normal use.

Option D: If Bluetooth were disabled, the device wouldn’t appear at all, not just show as “not connected.”

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.5: Given a scenario, connect and configure accessories and ports of mobile devices.

A smart card provides an additional factor of authentication by storing secure credentials, such as certificates, that cannot be guessed or replicated. It complements user accounts and is "something you have".

Why Not A (Fingerprint reader): This is "something you are", but the scenario specifically requires a physical token.

Why Not C (Secure token): Secure tokens are also valid but may not integrate as seamlessly into multi-factor authentication for physical and system access.

Why Not D (NFC scanner): An NFC scanner is a device and not a token itself; it reads cards or other credentials.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access controls​.

When a user consistently receives an error requesting A4 paper for print jobs, and no other users are experiencing similar issues, it indicates a possible misconfiguration in the user's printer settings. By setting the printer defaults in the Control Panel to use letter-sized paper, which is more common in some regions, this ensures that the user's print jobs are aligned with the available paper size in the office printer. This approach addresses the root cause of the issue by ensuring that the default settings match the paper size used in the office, eliminating the need for the user to adjust settings for each print job.

An inverter failure commonly causes dim screens as it fails to power the backlight, which is crucial for visibility. The LCD glass, IPS panel, and digitizer relate to touch and image display, not brightness. According to CompTIA A+ Core 1 objectives, understanding mobile device display issues, including inverter-related problems, is essential for effective troubleshooting.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

eSIM is cost-effective, avoids physical SIM distribution, and provides flexibility in professional environments.

Option Evaluation:

A. Forward a company number to the employee's mobile phone: Temporary and lacks professionalism. Incorrect.

B. Offer a company SIM card: Requires physical handling and less secure than eSIM. Incorrect.

C. Give a company mobile phone: Expensive and not necessarily required. Incorrect.

D. Issue a company eSIM to the employee: Ensures cost-effectiveness and secure deployment. Correct.

ference: Domain 1.7 highlights the importance of device provisioning in corporate environments​​.

Before creating a virtual machine (VM) on a computer, it's crucial to ensure that the CPU supports virtualization and that this feature is enabled in the BIOS (or UEFI) settings. While sufficient RAM and hard drive space are also important for running VMs effectively, and compatibility with the graphics card might be a consideration for VMs with intensive graphical requirements, the foundational step is to verify that the CPU supports virtualization and that this feature is activated in the BIOS settings. This is because virtualization technology, often referred to as VT-x (on Intel CPUs) or AMD-V (on AMD CPUs), is a prerequisite for running most virtualization software efficiently.

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

Quad-channel memory architecture allows the CPU to access four memory modules simultaneously, increasing the memory bandwidth and performance. DDR4 RAM is a type of memory that has higher speed and lower power consumption than DDR3. SODIMM is a smaller form factor of memory that is typically used in laptops, not desktops. ECC RAM is a type of memory that can detect and correct errors, but it is more expensive and slower than non-ECC RAM. Triple-channel memory architecture is less common and less efficient than quad-channel. References:

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

To configure a printer for network communications, the technician must configure its network settings, such as gateway, subnet mask, and IP address. The gateway is the IP address of the router or device that connects the printer to other networks or the internet. The subnet mask is a value that defines which part of the IP address identifies the network and which part identifies the host or device on that network. The IP address is a unique identifier that allows the printer to communicate with other devices.

Loading the hard disk drive (HDD) drivers using a flash drive is the most likely action that can fix the issue of a computer not being able to find the hard drive during an OS installation from Windows 7 to Windows 10. The HDD may have a different interface or controller than what Windows 10 supports by default, such as SATA or RAID, which would require loading additional drivers during the installation process. The technician can use a flash drive to load the drivers from another device or source. Changing the partition to MBR, upgrading the RAM modules, or replacing the hard drive are not likely to fix the issue, as they are not related to the HDD drivers

A multipage misfeed is when more than one sheet of paper feeds into the printer at once, causing paper jams or misprints. A multipage misfeed can be caused by low paper supply or wrinkled paper in the tray, as reported by the user in this case. High latency is not related to paper jams, but to network delays or slow performance. Page orientation refers to whether the page is printed in portrait or landscape mode, which does not affect paper jams either. Driver mismatch could cause printing errors or compatibility issues, but not paper jams.

The most appropriate way for the technician to receive the latest official drivers for a USB Wi-Fi card is to download them from the vendor’s website. This ensures that the drivers are compatible, updated, and secure. Allowing the OS to install the drivers automatically may not provide the latest or best drivers for the device. Utilizing a third-party, non-OEM driver could cause compatibility or security issues. Running the autoinstall CD could install outdated or unnecessary software along with the drivers

The MX record is housed in the DNS (Domain Name System) which is responsible for translating domain names into IP addresses and vice versa. The MX record specifies the mail server responsible for accepting email messages on behalf of a domain name and is a resource record in the DNS123.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

 Enabling high-accuracy mode is the most likely action to resolve the issue of unreliable GPS on a user’s phone. High-accuracy mode uses multiple sources of location data, such as Wi-Fi, cellular networks, and Bluetooth, to improve the accuracy and reliability of GPS. Replacing the battery, disabling Wi-Fi connections, or utilizing a third-party map application are unlikely to fix the GPS issue, as they are not directly related to the GPS function

DNS stands for Domain Name System and is a service that translates domain names (such as into IP addresses (such as 192.168.1.100) that computers can use to communicate over a network. If the DNS server is offline, users may not be able to access websites or other network resources by using their domain names, even if they are online and reachable by their IP addresses. The technician should check if the DNS server is running and configured correctly, or use an alternative DNS server if possible. Reference: (page 81)

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

A digitizer is a component that handles touch-screen operation on a mobile device. It is a layer of material that detects and converts the touch of a finger or a stylus into an electrical signal that can be processed by the device12. A digitizer works with a display screen to create a touch-screen interface that allows a user to interact with the device by touching pictures or words on the screen.

The shared-tenant model for a cloud deployment, also known as a multi-tenant model, allows multiple customers to use the same resources and infrastructure of the cloud service provider, with each customer's data and applications isolated from one another. This model is often chosen for cost savings, as resources are shared and users only pay for what they use. Therefore, the MOST likely reason that an administrator chose this model is A. Cost savings.

The most likely cause of the problem is that the printing trays are not configured to match the paper size of the print jobs. The technician should verify that the printing trays are correctly set for 8.5in x 14in (216mm x 356mm) paper and that the printer driver settings match the tray settings. This will ensure that the printer can feed and print the paper correctly without cutting off any part of the document.

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

A repetitive clicking noise coming from a laptop is usually a sign of a failing hard disk drive (HDD), which is a type of storage device that uses spinning platters and moving heads to read and write data. A failing HDD can also cause severe delays in input and output operations, as well as data loss or corruption. The technician should replace the HDD with a new one or upgrade it to a solid state drive (SSD), which is another type of storage device that uses flash memory and has no moving parts. Reference: (page 24)

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

The BEST solution to mitigate spam that appears to come from an organization's own domain is to implement SPF (Sender Policy Framework). SPF is an email validation protocol designed to detect and prevent email spoofing, which is a common tactic used by spammers. By publishing SPF records in the organization's DNS (Domain Name System), the recipient's mail server can check if an incoming email originated from a valid source. If the email fails SPF authentication, it can be blocked or flagged as spam. Therefore, SPF helps to prevent email spoofing and mitigate the risk of spam coming from an organization's own domain

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: (page 59)

A cable tester and a crimper are the best tools to execute the task of replacing all RJ45 cables in a customer environment. A cable tester can be used to check the continuity and quality of a cable, and a crimper can be used to attach RJ45 connectors to the ends of a cable. An optical fiber tester is a tool that can be used to test fiber optic cables, which are not RJ45 cables. Scissors are not a tool for replacing cables, but for cutting them. A coaxial cable is a type of cable that has a single copper conductor at its center, which is not an RJ45 cable either. A screwdriver is not a tool for replacing cables, but for fastening or loosening screws.

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: (page 25)

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

Liquid cooling is a method of cooling the CPU by circulating a liquid through a closed loop that absorbs heat from the CPU and transfers it to a radiator. Liquid cooling is more effective and quieter than air cooling, which uses a fan and a heat sink. However, liquid cooling is also more expensive and complex to install. Upgrading the thermal paste, using a copper heat sink, or upgrading the CPU fan are ways to improve air cooling, but they will not lower the CPU temperature as much as liquid cooling. References:

Client-side virtualization is used to run an application or process on a separate virtual machine, isolated from the main operating system. To allow other users on the LAN to access the application, the software developer should configure a bridge networking connection between the virtual machine and the LAN. This will allow the virtual machine to communicate with other computers on the network. Application virtualization, virtual desktop, and site-to-site VPN are not necessary steps for allowing other users to access the application.

The power supply unit (PSU) is the component that converts AC power from the outlet to DC power for the computer. If the PSU fails, the computer will not turn on. The CPU, RAM, and GPU are not directly related to the power supply and would not prevent the computer from turning on.

The technician should check that the audio inputs are configured correctly for the videoconference software and that they are not muted or disabled.The technician should also make sure that the microphone is plugged in properly and that it is not faulty or damaged.If possible, the technician should test the microphone on another device or use another microphone on the same device to isolate the problem. Reference: (page 11)

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

Asking the user about the symptoms the computer is experiencing is the first step the technician should take when a user reports that a computer has a virus on it. This step helps the technician to gather information and identify the problem before determining a plan of action to resolve it. Running antivirus software, making a backup of the user’s data, or determining a plan of action are not the first steps, but possible actions that can be taken after identifying the problem.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: (page 84)

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: (page 47)

Cross-platform virtualization allows different operating systems, such as Linux and Windows, to run on the same hardware or software platform. This enables users to access applications and data from different operating systems without switching devices or rebooting.
