The correct answer is B. Elasticity.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud Concepts:

Elasticity refers to the cloud computing capability to automatically allocate and deallocate resources based on current demand. This ensures that applications have the necessary compute, storage, and network capacity during peak loads, and resources can be scaled down when demand decreases, optimizing efficiency and cost.

Why the other options are incorrect:

A. Hybrid deployment: Refers to using a combination of public and private clouds; it does not describe dynamic resource allocation.

C. Multitenancy: Describes the architecture where multiple users share the same infrastructure securely.

D. Metered utilization: Refers to charging based on resource consumption; it is a billing mechanism, not a dynamic allocation feature.

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

According to the CompTIA A+ Core 1 (220-1201) virtualization objectives, a Type 1 hypervisor is known as a bare-metal hypervisor because it installs directly onto the physical hardware of a system rather than running on top of a traditional operating system. This architecture allows the hypervisor to manage hardware resources—such as CPU, memory, storage, and networking—without the overhead of a host operating system. Because of this direct interaction with the hardware, Type 1 hypervisors typically provide higher performance, better scalability, and improved stability compared to Type 2 hypervisors.

Examples of Type 1 hypervisors include VMware ESXi, Microsoft Hyper-V (bare-metal deployment), and Citrix XenServer. These hypervisors are commonly used in enterprise data centers, cloud infrastructure, and large virtualization environments where multiple virtual machines must run efficiently on a single physical server. ???? ️

Option A (Host OS required) describes a Type 2 hypervisor, such as VMware Workstation or Oracle VirtualBox, which runs on top of an existing operating system. Option C (Lightweight OS) may describe some hypervisor environments but is not the defining characteristic. Option D (Local configuration options) is also not specific to Type 1 hypervisors.

Therefore, the key characteristic that defines a Type 1 hypervisor is that it performs a bare-metal server installation directly on the hardware

The correct answer is B. Reconnect the wireless antennas.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.

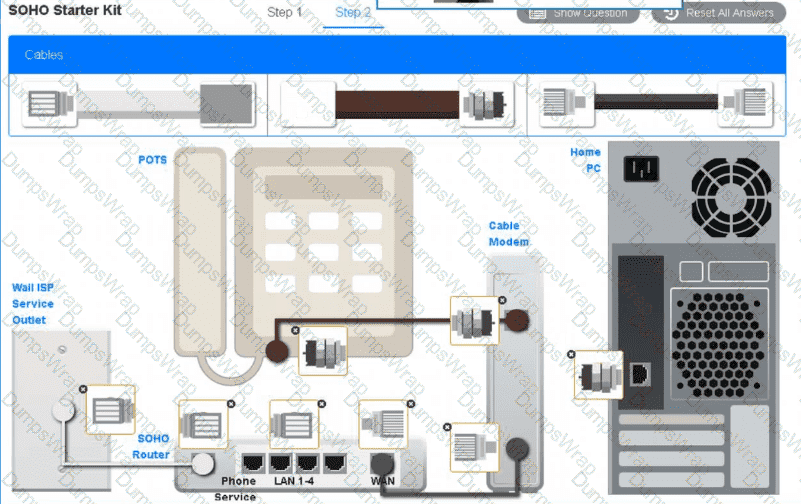

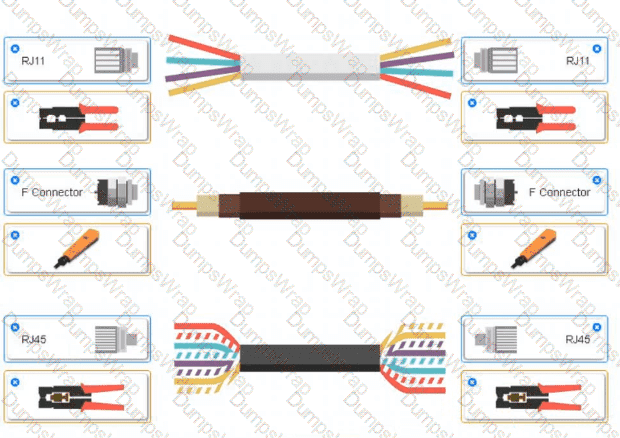

The correct answer is A. RJ11.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

RJ11 connectors are commonly used for telephone lines and data cables that use two pairs of wires (four wires total).

This connector is standard for analog telephone connections and DSL connections.

Why the other options are incorrect:

B. F-type: Used for coaxial cables, commonly in cable TV or broadband internet, not for two-pair data cables.

C. ST: A type of fiber optic connector, not used for copper two-pair wiring.

D. Molex: Primarily used for power connections in computer hardware, not for network or phone cabling.

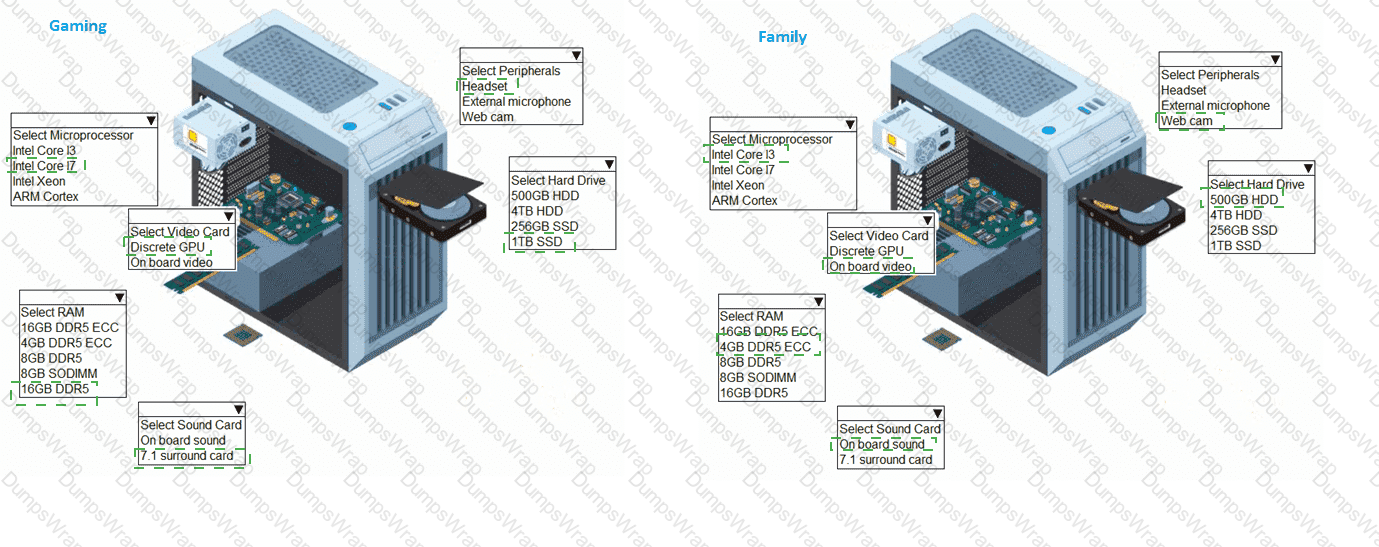

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

The correct answer is A. Virtual LAN (VLAN).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

The correct answer is D. Router.

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller: Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge: Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub: Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.

The correct answer is D. WLAN (Wireless Local Area Network).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

The correct answer is D. RAID 10 (also called RAID 1+0).

According to CompTIA A+ Core 1 220-1201 objectives under Storage:

RAID 10 combines the mirroring of RAID 1 with the striping of RAID 0. This provides both high data availability (because each drive has a mirror) and improved performance (because data is striped across multiple disks).

RAID 10 requires a minimum of four drives and is suitable for servers that handle high I/O workloads while maintaining redundancy.

Why the other options are incorrect:

A. RAID 1: Provides mirroring for redundancy but does not improve performance as effectively as RAID 10.

B. RAID 0: Provides striping for performance but has no redundancy; a single drive failure results in data loss.

C. RAID 5: Provides parity and can tolerate one drive failure with decent read performance, but write performance is lower than RAID 10 and rebuilds can impact system performance under heavy load.

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is B. Moving to a supported system under a Type 2 hypervisor.

In the CompTIA A+ Core 1 (220-1201) objectives, virtualization is a key concept for maintaining compatibility with legacy systems. A Type 2 hypervisor (hosted hypervisor) runs on top of an existing operating system and allows users to run a virtual machine (VM) with an older OS.

This solution is ideal because:

It allows the legacy application to run in its required OS environment.

It avoids replacing the application (which could cause data loss or compatibility issues).

It is cost-effective, as it uses existing hardware.

It minimizes user disruption, since users can continue using the application within a VM.

Why the other options are incorrect:

A. Setting up a bare-metal hypervisor

A Type 1 (bare-metal) hypervisor is more complex, costly, and disruptive. It typically requires dedicating hardware and is not ideal for a single department use case.

C. Upgrading to an alternative product and importing the data

Although this may be a long-term solution, it involves higher cost, potential data loss, retraining, and disruption.

D. Uploading the database to a private cloud

This does not solve the compatibility issue of the legacy application with the new OS.

Final Answer: B. Moving to a supported system under a Type 2 hypervisor

In the CompTIA A+ Core 1 (220-1201) networking concepts, satellite internet is commonly associated with higher (increased) latency compared with terrestrial options like cable, fiber, or DSL. Latency is the delay between sending data and receiving a response. With satellite, signals must travel from the user’s dish up to a satellite and then back down to a ground station (and return again for responses). That long travel distance adds noticeable delay, which can affect real-time activities such as VoIP, video conferencing, and online gaming. Even though newer low-earth-orbit (LEO) systems can reduce latency compared with older geostationary systems, satellite service is still generally discussed in A+ as having higher latency characteristics to consider.

The other options do not best fit satellite internet. Proximity to urban infrastructure (A) is more relevant to cable/fiber availability. An eSIM requirement (B) relates to cellular/mobile service, not satellite broadband. Line of sight to a nearby tower (C) describes cellular or fixed wireless services that depend on tower connectivity; satellite instead needs a clear view of the sky toward the satellite (not a nearby tower). Therefore, increased latency is the best characteristic to consider.

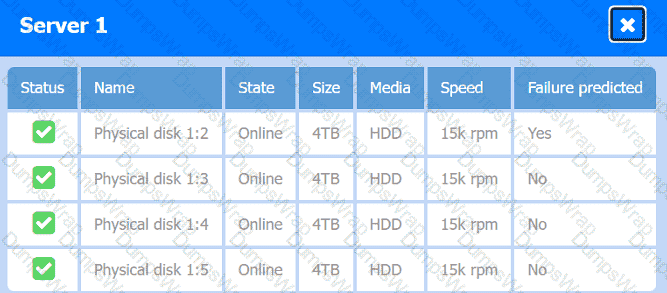

The correct answer is D. Replace the failed drive.

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The correct answer is A. Better compatibility.

According to CompTIA A+ Core 1 220-1201 objectives under Software Troubleshooting and Virtualization:

Application virtualization allows applications to run in an isolated environment on a client device without being installed directly on the operating system.

This improves compatibility, as applications can operate regardless of OS differences, avoiding conflicts with other installed applications or system configurations.

Why the other options are incorrect:

B. Reduced network latency: Application virtualization does not inherently reduce network latency; network performance depends on connectivity.

C. Secure telnet access: Telnet is unrelated to application virtualization.

D. Metered utilization: Metering refers to cloud service usage or billing, not a benefit of application virtualization itself.

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

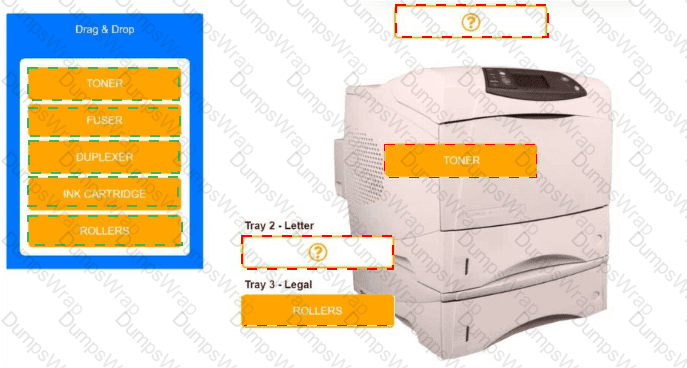

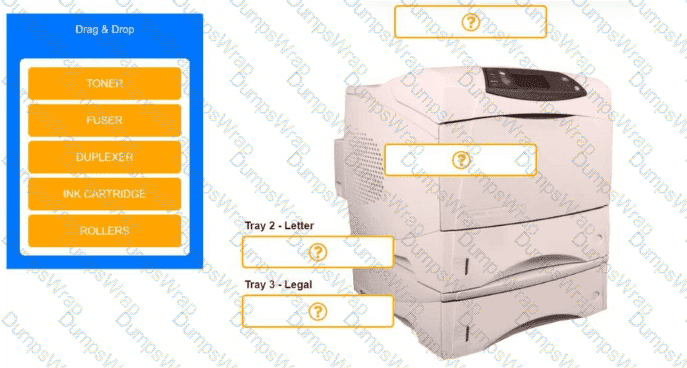

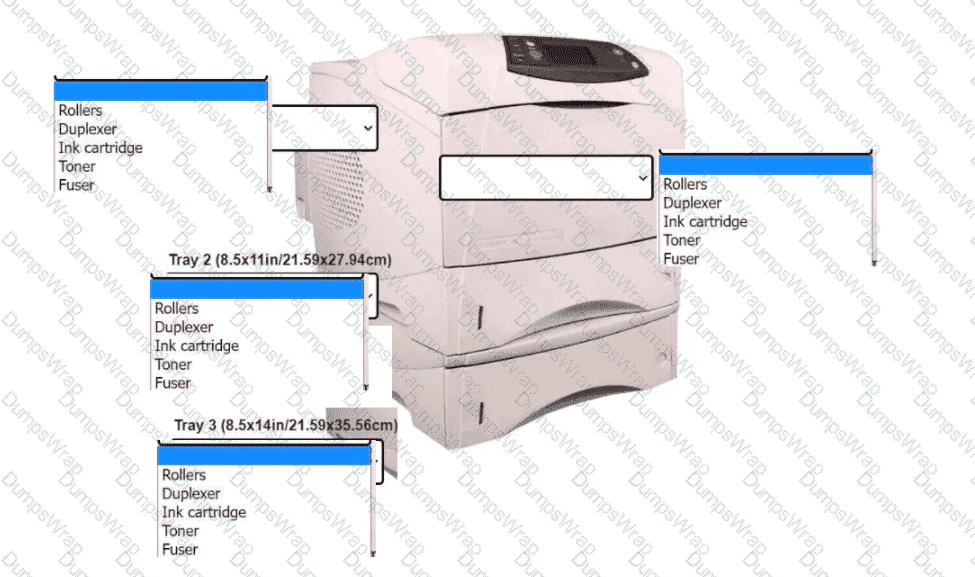

When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.

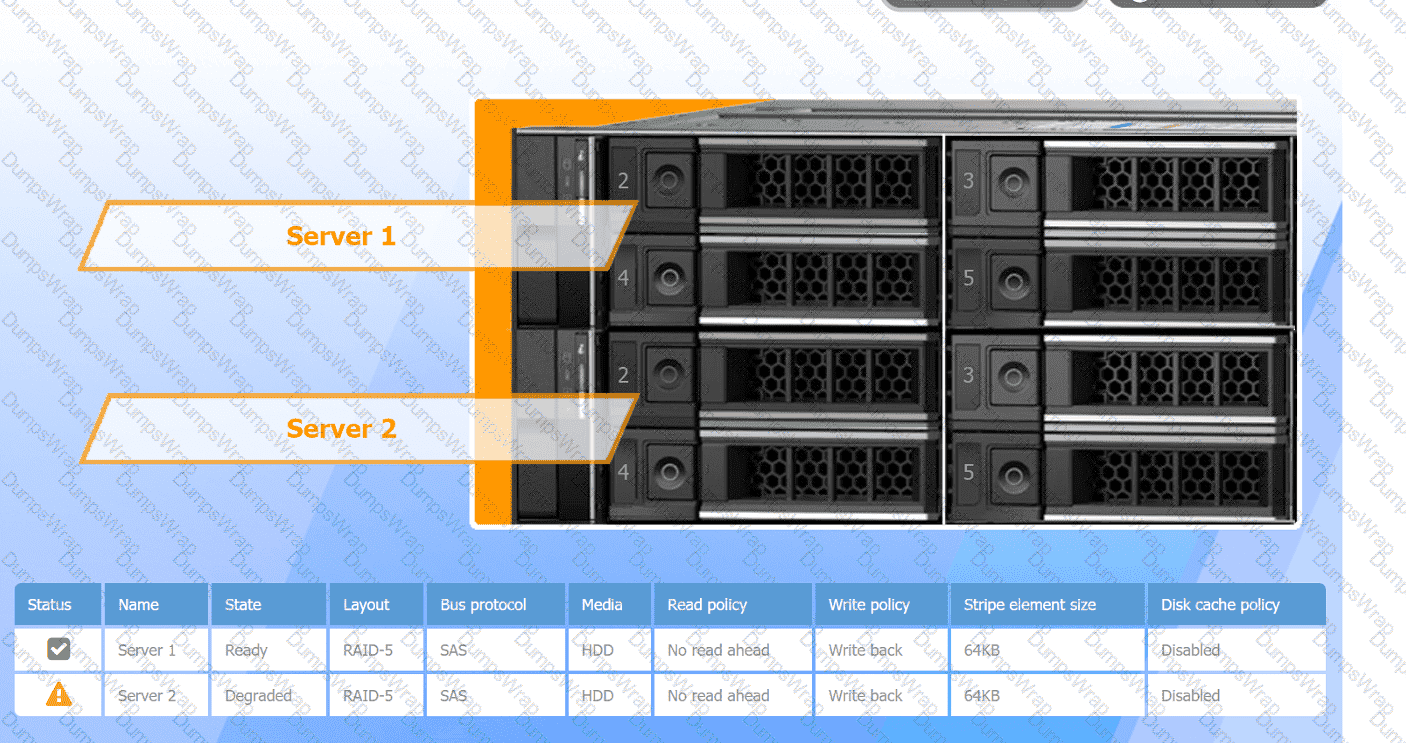

The correct answer is D. Replace the drive with a cold-swappable drive.

According to CompTIA A+ Core 1 220-1201 objectives under Storage and RAID:

RAID 5 provides both data striping and parity for fault tolerance, but if the RAID controller does not support hot swapping, replacing a failed drive while the system is running is not possible.

Cold-swappable drives are designed to be safely removed and replaced when the system is powered down, which allows maintenance without damaging the array or system.

Why the other options are incorrect:

A. Update the RAID controller firmware to support hot swapping: Firmware updates may add hot swap functionality, but this is not guaranteed and may require a system reboot.

B. Implement a software-based RAID solution: Software RAID requires a system reconfiguration and downtime; it does not immediately resolve the degraded RAID 5 array.

C. Change the drive during off-peak hours: While feasible, this is essentially the same as using a cold-swappable drive but is less precise; using cold-swappable drives ensures safe replacement without downtime considerations.

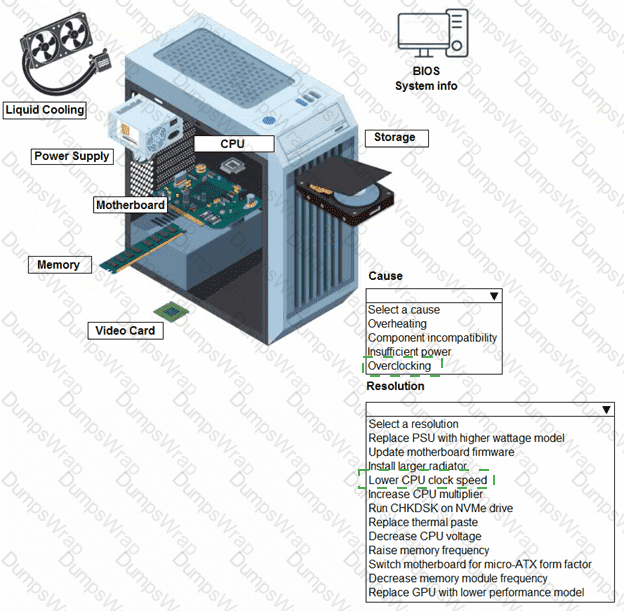

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far.

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

The correct answer is C. ECC (Error-Correcting Code).

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults.

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them. Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is A. Adjust the SMTP server configurations for email.

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server. The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols), not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

A screenshot of a computer AI-generated content may be incorrect.

For the highest possible stability, the best power-supply choice is a redundant power supply. In CompTIA A+ Core 1 (220-1201) hardware concepts, redundant PSUs are used in systems where uptime and reliability are critical. A redundant PSU configuration typically includes two power supply units operating together (often in a hot-swappable bay). If one PSU fails, the other continues supplying power, allowing the workstation to remain operational and preventing unexpected shutdowns that could interrupt CAD work or corrupt data. This directly matches the requirement for maximum stability.

A UPS improves resilience to power loss and brownouts by providing battery backup and line conditioning, but it is not a power supply type and doesn’t protect against the PSU itself failing. A surge protector helps guard against voltage spikes, but it also does not ensure system operation if the PSU fails. A modular PSU mainly improves cable management and airflow by allowing detachable cables; it can be convenient and neat, but it does not inherently increase stability compared with redundancy. Therefore, the most stability-focused PSU option is Redundant.

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

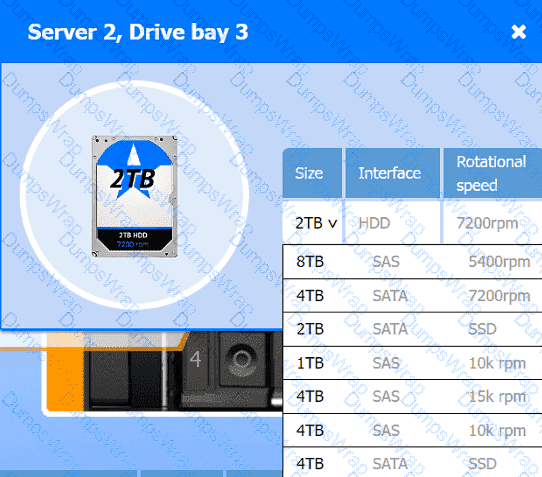

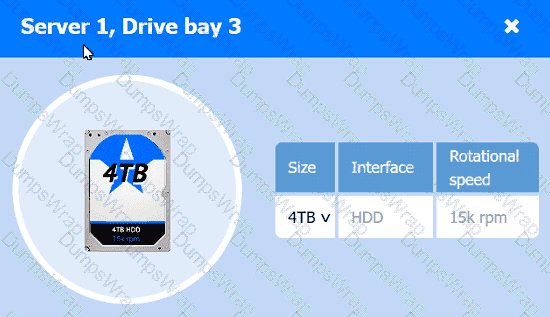

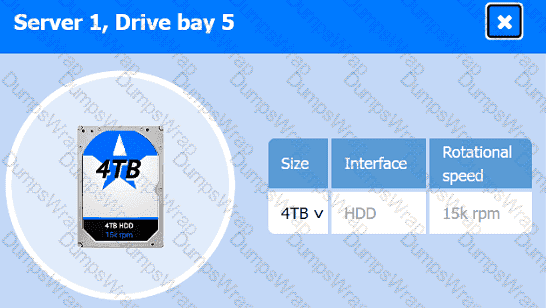

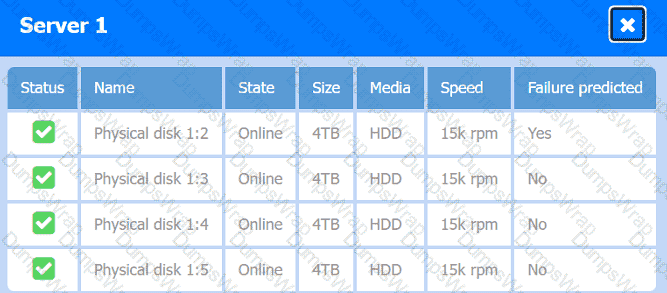

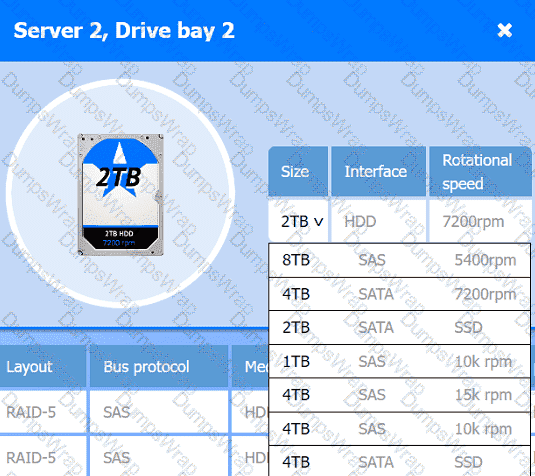

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

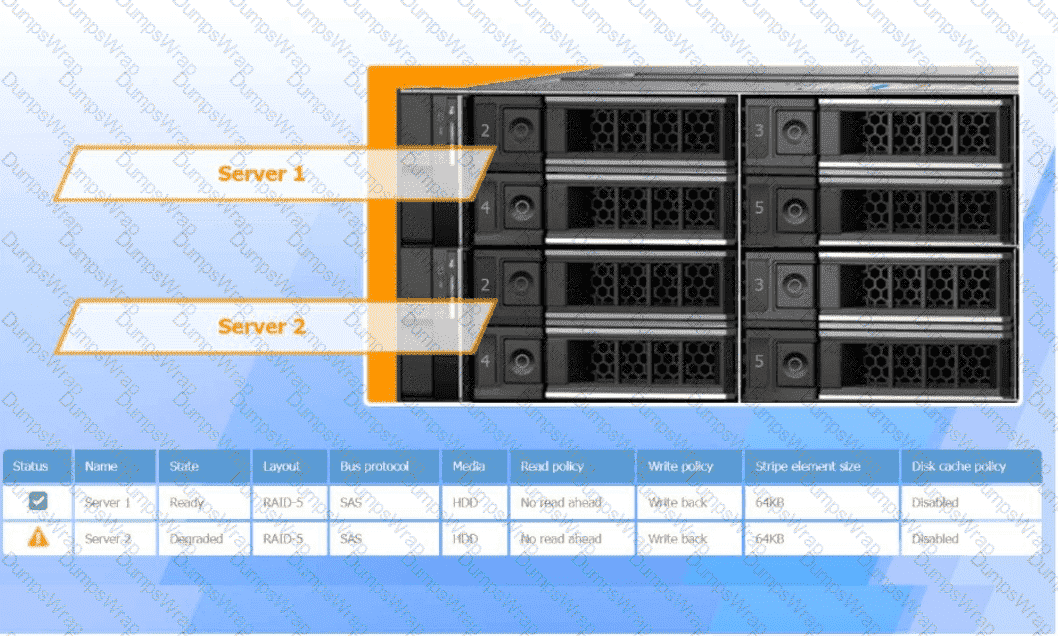

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

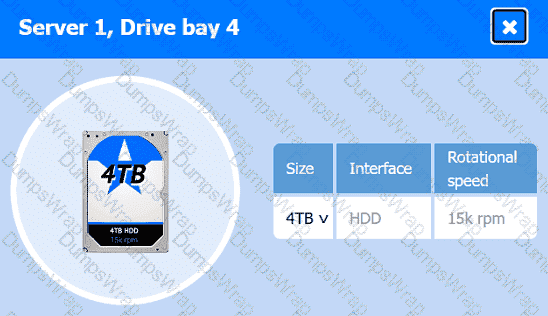

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

The correct answer is B. VGA.

VGA (Video Graphics Array) is an analog video interface. It transmits video signals as continuous electrical waves, which means the signal can degrade over distance or due to interference. VGA uses a 15-pin connector and is considered legacy hardware in modern systems, but it is still important for CompTIA A+ because you may encounter it in older equipment.

Why the other options are incorrect:

A. DVI

DVI can support both digital and analog signals, but in most modern contexts and exam questions, it is primarily treated as a digital interface (especially DVI-D). Since the question asks for a clearly analog cable, VGA is the best answer.

C. USB-C

USB-C is a digital interface that can carry video signals using protocols like DisplayPort Alternate Mode. It does not transmit analog video.

D. HDMI

HDMI is a fully digital interface used for high-definition video and audio transmission. It does not support analog signals.

Exam Tip (Core 1 220-1201):

Analog video = VGA

Digital video = HDMI, DisplayPort, USB-C, most DVI types

Final Answer: B. VGA

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

A printer with text boxes AI-generated content may be incorrect.

The correct answer is A. 2.4GHz.

In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

Why the other options are incorrect:

B. 5GHz

5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

C. 6GHz

6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

D. NFC

NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer.

Final Answer: A. 2.4GHz

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

The correct answer is C. DHCP (Dynamic Host Configuration Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.

The correct answer is B. Change the resolution.

According to the CompTIA A+ Core 1 220-1201 objectives, troubleshooting display issues involves checking the display settings, including resolution, scaling, and orientation. When a projector is only showing part of a laptop screen:

The most common cause is that the laptop’s output resolution does not match the projector ' s native resolution. If the laptop is set to a resolution larger than what the projector supports, only a portion of the screen is visible.

The technician should first adjust the laptop ' s resolution to match the projector’s native resolution before attempting other options like extending or mirroring the desktop.

Why the other options are incorrect:

A. Extend the desktop: This is only used if the user wants to have two separate screens (dual monitors), not to fix partial display issues.

C. Mirror the desktop: Mirroring duplicates the laptop display but does not solve issues caused by resolution mismatch.

D. Switch the input source: Necessary only if the projector is on the wrong input, but the problem here is a partial display, not no display.

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

The correct answer is D. Data is being throttled.

Data throttling refers to the intentional slowing down of internet speeds by a mobile carrier after a user reaches a certain data usage limit or during network congestion. In this scenario, the employee can still successfully upload files, but the speed has decreased compared to before—this is a classic symptom of throttling.

Why the other options are incorrect:

A. Wireless is turned off

If wireless were turned off, the employee would not be able to upload anything at all. The question clearly states that uploads are still successful.

B. 5G is disabled

Disabling 5G could reduce speeds slightly if the device falls back to 4G/LTE, but it would not typically cause a significant or noticeable degradation unless compared under ideal conditions. It is not the most likely cause.

C. Roaming is turned on

Roaming allows connectivity outside the home network. While it may incur additional charges, it does not inherently cause significant speed reduction in most modern networks. It is less likely than throttling.

Exam Tip (Core 1 220-1201):

Slow but working connection → Think throttling or congestion

No connection → Think disabled wireless or network issues

Final Answer: D. Data is being throttled

The correct answer is D. DVI (Digital Visual Interface).

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

DVI is primarily a video-only interface that transmits digital or analog video signals from a source (like a computer) to a display.

Unlike HDMI or USB-C, DVI does not carry audio signals, making it strictly for video.

Why the other options are incorrect:

A. DisplayPort: Supports video and audio as well as other features such as daisy-chaining multiple monitors.

B. HDMI: Transmits both video and audio signals over a single cable.

C. USB-C: Can carry data, power, and video/audio signals depending on the device and protocol (e.g., DisplayPort Alt Mode).

The correct answer is B. Inspect and replace the printer rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams with no visible obstruction are often caused by worn or dirty feed rollers, which fail to grip and feed paper properly.

Inspecting and replacing the rollers ensures smooth paper feeding and prevents repeated jams, particularly in high-use network printers.

Why the other options are incorrect:

A. Check for firmware updates: Firmware updates address software or functionality issues, not mechanical paper feeding problems.

C. Reseat the fuser assembly: Fuser issues typically cause smudging or incomplete toner adhesion, not paper jams.

D. Clean the corona wire: The corona wire affects toner adhesion and print quality, not paper feeding.

The correct answer is D. Decreased burn-in.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

Mini-LED displays use an array of tiny LEDs as a backlight for LCD panels.

Unlike OLED displays, which are susceptible to burn-in (permanent image retention when static content is displayed for long periods), mini-LEDs reduce the risk because the pixels themselves do not emit light individually and are less prone to permanent image retention.

Why the other options are incorrect:

A. Increased contrast: OLED typically provides better contrast because it can turn off individual pixels completely.

B. No backlight: Mini-LEDs still use a backlight, whereas OLEDs do not.

C. Improved viewing angle: OLEDs generally offer wider viewing angles than mini-LED LCDs.

The correct answer is A. Duplex.

In the CompTIA A+ Core 1 (220-1201) exam objectives under printer settings and configuration, duplex printing refers to printing on both sides of the paper automatically.

Using duplex printing is the best way to reduce resource consumption because:

It cuts paper usage in half, which is the primary resource being conserved.

It is ideal for multi-page documents and multiple copies.

It reduces physical storage and handling requirements.

Why the other options are incorrect:

B. Orientation

Orientation (portrait or landscape) changes the layout of the document but does not reduce resource usage.

C. Tray settings

Tray settings determine which paper tray is used (e.g., plain paper, letterhead), but they do not impact resource consumption.

D. Quality

Print quality (draft, normal, high) may affect ink/toner usage, but it does not reduce paper consumption as effectively as duplex printing, which is the main resource concern in this scenario.

Final Answer: A. Duplex

The correct answer is D. Restart the device.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

Warning messages like this can be caused by malicious pop-ups or temporary software glitches. Restarting the device is the safest and quickest first step to clear temporary processes, refresh the system, and remove transient malware or pop-up overlays.

This approach addresses the issue without risking data loss or unnecessary downtime.

Why the other options are incorrect:

A. Force close all running applications: May help if a specific app is causing the pop-up, but restarting achieves this more reliably and fully resets background processes.

B. Replace the tablet with a newer device: Unnecessary and costly for a potentially temporary software issue.

C. Reset the device to default settings: This is a last-resort action, as it erases personal data and settings; it is not the first step.

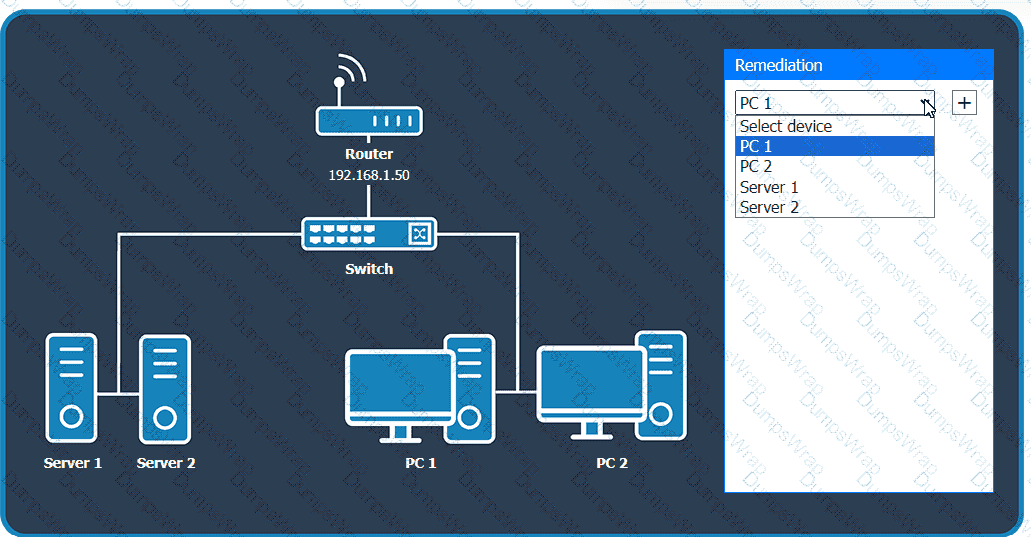

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

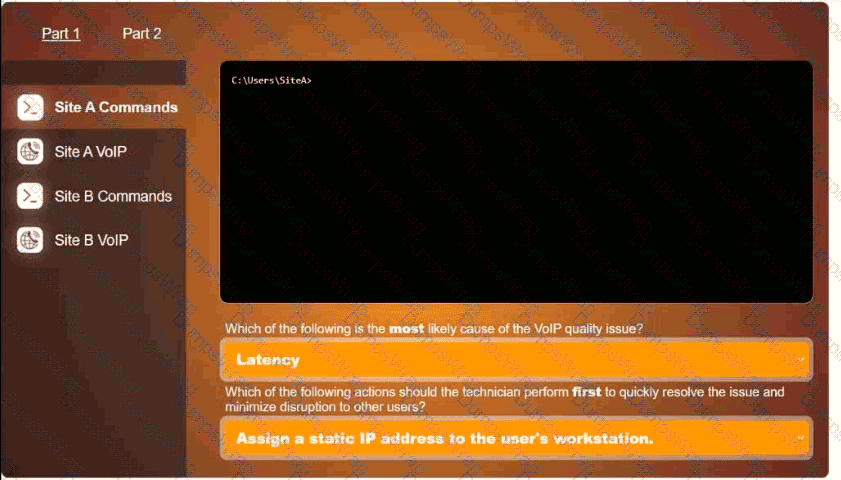

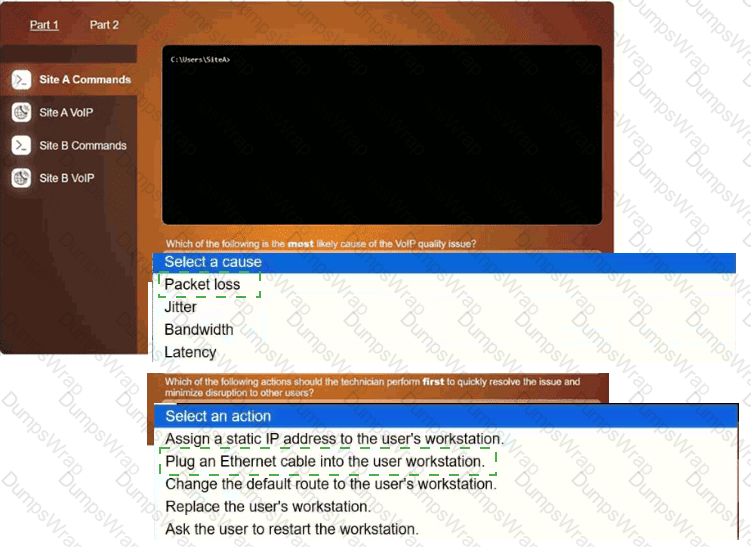

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

The correct answer is D. Verify the audio output assignment.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

HDMI carries both video and audio signals. If video displays correctly but audio is not heard, it is often because the computer is still outputting sound to its internal speakers rather than the HDMI-connected device.

The user should check the audio output settings in the operating system and ensure the HDMI device (TV or projector) is selected as the audio output device.

Why the other options are incorrect:

A. Adjust the volume settings: Volumes are already at 50%, so adjusting them will not solve the problem if the audio output is assigned incorrectly.

B. Swap the HDMI cable: The video is working fine, so the cable is likely functional.

C. Reinsert the HDMI cable: Unlikely to resolve audio assignment issues if the connection is already working for video.

The correct answer is D. SMTP (Simple Mail Transfer Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

SMTP is the standard protocol used to send emails from a client to a mail server or between servers.

POP3 (Post Office Protocol 3) and IMAP (Internet Message Access Protocol) are used for receiving emails, not sending them.

LDAP (Lightweight Directory Access Protocol) is used for accessing and managing directory services, such as authentication and organizational information, not for email transport.

In CompTIA A+ Core 1 (220-1201) networking and troubleshooting, a common cause of “can’t reach internal resources” while docked is that the laptop is still using the wireless interface (or has a higher interface priority for Wi-Fi) instead of the docking station’s wired Ethernet connection. If the Wi-Fi network is a guest/isolated VLAN, uses different routing, or has stricter access controls, the user may be blocked from reaching department file servers even though an Ethernet cable is physically connected to the dock. Disabling Wi-Fi is a fast, low-risk step that forces the system to use the wired NIC path through the docking station, which typically provides the correct corporate network access, DHCP scope, and routing to internal servers.

Restarting the computer might help in some cases, but it’s less targeted and not the “best next step” when the likely issue is interface selection. Replacing the Ethernet cable is appropriate if link lights are off or the wired connection is clearly down, but the scenario highlights that the dock has a hardwired connection—suggesting the physical layer may be fine. Dock firmware updates are not a first-line fix for basic connectivity/access symptoms.

The correct answer is B. USB.

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods, tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot.

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection, eliminating wireless interference.

It provides consistent bandwidth and low latency.

It also charges the phone while connected, which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless, not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

The correct answer is B. Header pinouts.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

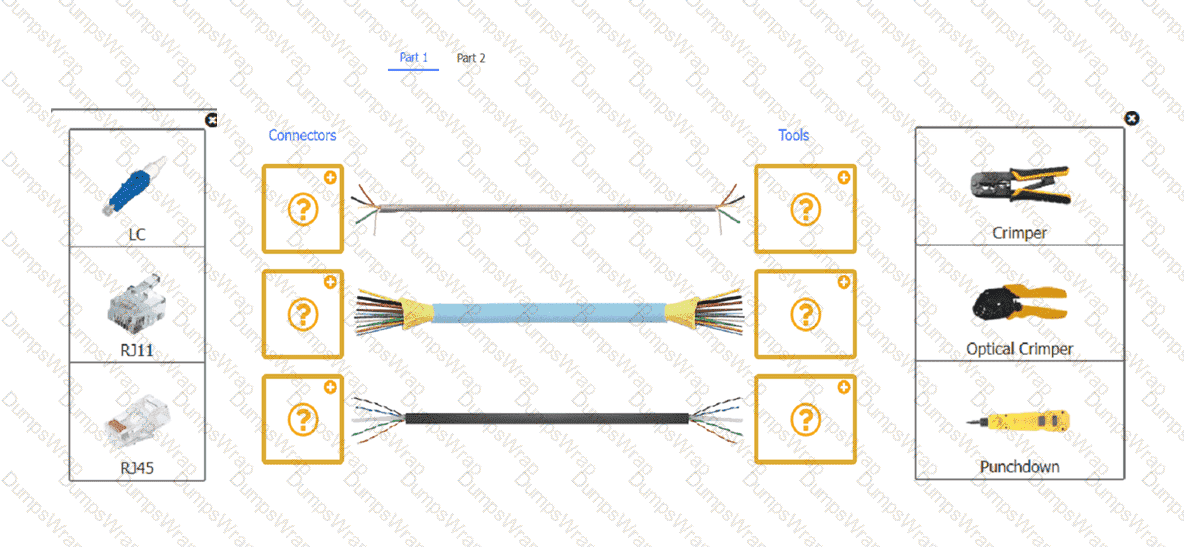

Answer of both steps below.

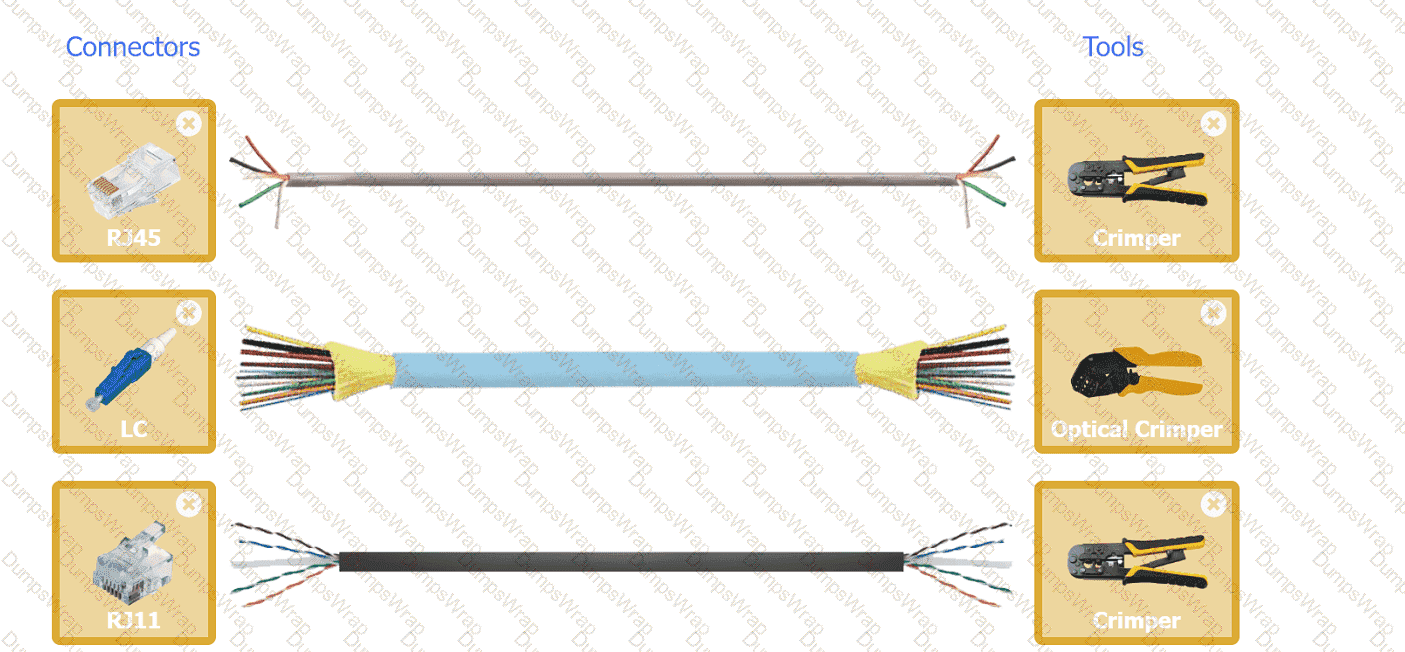

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

A valid public IP address must fall outside the private IP address ranges:

10.0.0.0 to 10.255.255.255

172.16.0.0 to 172.31.255.255

192.168.0.0 to 192.168.255.255

66.157.195.20 is outside these ranges, making it a public IP address.

Why Not A, C, D: These IPs fall within private IP address ranges.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, IP addressing​.

Wireless coverage issues at the physical edges of a building are typically caused by weak RF signal strength. The CompTIA A+ study material says the best solution is to add additional wireless access points (APs) or implement a mesh system to extend coverage and eliminate dead zones.

Enabling 5GHz often worsens the issue because 5GHz has shorter range. Wi-Fi 6 NIC upgrades improve performance but do not increase signal reach. Flushing DNS does not affect wireless coverage.

Installing more APs ensures stronger coverage, better signal-to-noise ratio, and stable connectivity aligning with CompTIA’s wireless troubleshooting best practices.

UDP (User Datagram Protocol) is the preferred protocol for real-time video streaming, such as feeds from network cameras. According to CompTIA Core 1 (220-1201) networking protocols objectives, UDP prioritizes speed and low latency over guaranteed delivery, making it ideal for time-sensitive applications.

Real-time video streaming can tolerate occasional packet loss, but it cannot tolerate delays caused by retransmissions. UDP does not perform error checking or packet retransmission, which reduces overhead and ensures smooth, continuous playback. This is critical for live video feeds where delayed packets are useless.

TCP, while reliable, introduces latency due to acknowledgments and retransmissions, making it unsuitable for real-time streaming. FTP is a file transfer protocol and does not support live streaming. RDP is used for remote desktop access and is not designed for transmitting continuous real-time video streams from cameras.

CompTIA emphasizes understanding protocol selection based on application requirements, particularly distinguishing between reliability and performance needs. For live video, UDP is the optimal choice.

The correct statement when comparing DDR3 and DDR4 memory technologies is that DDR4 offers faster data transfer rates compared to DDR3. According to CompTIA Core 1 (220-1201) memory and hardware objectives, DDR4 was designed as the successor to DDR3 and provides several performance and efficiency improvements.

DDR3 memory typically operates at data transfer rates ranging from 800 MT/s to 2133 MT/s, while DDR4 starts at 2133 MT/s and can scale significantly higher depending on the module and platform. This increased transfer rate allows DDR4 to handle more data per second, improving overall system performance, especially in modern systems and multitasking environments.

Option B is incorrect because DDR4 achieves higher bandwidth, not DDR3. Option C is incorrect because DDR4 operates at a lower voltage (typically 1.2V) compared to DDR3 (typically 1.5V), making DDR4 more power efficient. Option D is also incorrect because DDR4 is better suited for low-power environments due to its reduced voltage requirements.

CompTIA emphasizes understanding RAM generations, including differences in speed, bandwidth, and power consumption, making DDR4’s higher data transfer rates a key distinguishing factor.

Since the issue only occurs during scanning and copying (not printing or faxing), the problem is isolated to the document feeder. A vertical line is typically caused by debris or damage on theglass under the ADF (Automatic Document Feeder), not on components related to printing.

SAS (Serial Attached SCSI) is a high-performance drive interface commonly found in enterprise environments and servers due to its reliability and speed. While SATA is more common in consumer systems, SAS is specifically designed for mission-critical applications, offering features like full-duplex operation and compatibility with SATA drives.

A hypervisor is the best choice because it is the technology specifically used to create, run, and manage virtual machines. On a laptop, this is typically a Type 2 hypervisor (hosted hypervisor) that runs on top of the existing operating system and allows the programmer to install a separate guest OS in a VM for testing. This provides strong isolation, supports snapshots/checkpoints in many platforms, and lets the tester replicate different OS environments, configurations, and software dependencies without altering the host system. That matches the scenario exactly: the user needs an actual VM environment on their local machine.

Containerization is useful for packaging and running applications in isolated user spaces, but containers share the host OS kernel and are not full virtual machines. If the test requires a different OS or kernel-level behavior, containers won’t meet the requirement. VDI delivers desktops hosted on remote servers, not a local VM running on the laptop. Emulation imitates different hardware/architectures and is typically slower and used when running software built for incompatible hardware, which is unnecessary for standard VM testing. Therefore, a hypervisor is the best answer.

RAID 1 is known as mirroring. It duplicates all data to both drives simultaneously, providing redundancy in the event of a single drive failure. CompTIA A+ teaches that RAID 1 is ideal when reliability is the priority and only two drives are available exactly matching this scenario.

RAID 0 offers no redundancy. RAID 5 requires three or more drives. RAID 10 requires four or more drives.

Since the workstation has only two drives, RAID 1 is the only RAID configuration providing data protection and is heavily featured in CompTIA’s coverage of RAID technologies, their requirements, and their purposes in fault tolerance.

A loopback plug is a diagnostic tool used to test whether a physical port such as an Ethernet NIC port or serial port is capable of sending and receiving its own signal. When inserted, it “loops” outgoing signals back into the device, confirming the port ' s transmit/receive functionality.

CompTIA A+ emphasizes loopback plugs as essential tools during hardware and network troubleshooting, especially when isolating physical port or NIC failures.

Network taps passively monitor traffic, crimpers attach RJ45 connectors to cables, and patch panels organize cabling none of these verify port-level functionality. Therefore, only a loopback plug can confirm that a port is working correctly by testing signal integrity and hardware responsiveness.

A Layer 3 switch is the optimal solution when multiple VLANs must intercommunicate while maintaining high performance and minimal hardware complexity. CompTIA A+ explains that Layer 3 switches combine the capabilities of switching (Layer 2) and routing (Layer 3), allowing VLAN traffic to be routed internally at wire speed, without the latency typically associated with traditional routers.

Layer 3 switches use hardware-based routing, meaning they forward inter-VLAN traffic using ASICs (Application-Specific Integrated Circuits). This allows them to achieve extremely fast throughput, ideal for environments like computer training institutes where multiple VLANs may be used for student labs, instructor networks, and administrative traffic.

A router (D) can route between VLANs but introduces more latency due to software-based routing and typically requires additional equipment. A Web application firewall (A) and DDoS appliance (B) are security devices unrelated to internal VLAN communication.

Because the institute requires minimal hardware and high-speed inter-VLAN communication, the Layer 3 switch is the only CompTIA-supported device that meets both requirements simultaneously.

Quality of Service (QoS) prioritizes VoIP traffic on the network, reducing jitter, latency, and packet loss to improve call quality.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.4 – Network troubleshooting:

“Enabling QoS in the router ensures time-sensitive traffic, like VoIP, receives network priority, reducing dropped or lagging calls.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 2.4

============

When a newly built computer successfully passes POST, it indicates that the CPU, RAM, motherboard, video output, and other essential components are functioning at a hardware level. POST will typically fail or display error codes if there are problems with the CPU, RAM, GPU, or power delivery. Therefore, the fact that POST succeeds allows us to eliminate those components from suspicion.

The issue arises after POST, when the system attempts to load an operating system. For the OS to load, the BIOS/UEFI must detect a working storage device—such as an HDD, SSD, or NVMe drive—containing a bootable OS. If the computer cannot locate or read the drive, the system will halt at a boot error, such as “No boot device found,” “Insert boot media,” or similar messages. This is consistent with a failed or improperly connected HDD.

A failed HDD prevents access to boot files, even though the rest of the system hardware functions normally. Audio cards are irrelevant to booting. A failed CPU would cause a POST failure, not an OS loading issue. A faulty power supply would affect system stability during POST, not specifically OS boot failure unless the system is not powering at all.

Thus, the failed component is the HDD.

An eSIM (embedded SIM) allows users to change carriers and provision new cellular service without installing any physical hardware. It is managed via software and is ideal for international travelers who need to switch providers quickly.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 3.3 – Install and configure mobile device network connectivity:

" eSIMs provide carrier flexibility by enabling remote provisioning and profile switching, making it possible to connect to different networks without a physical SIM card. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Mobile Devices

CompTIA Exam Objectives 220-1101, Domain 3.3

Comprehensive and Detailed Explanation From Exact Extract:

PIN printing (also known as secure printing) ensures that documents are held in a queue until the authorized user enters a PIN directly at the printer. This prevents unauthorized viewing of confidential documents.

Inlaser printers, thefuser unitis responsible formelting the toner onto the paperusing heat and pressure. If the toner rubs off easily, it ' s a clear sign thefuser is failing or not heating properly. Replacing the fuser will ensure the toner bonds correctly to the paper.

Option B (Drum):Transfers the image, but doesn ' t fuse the toner.

Option C (Developer roller):Applies toner to the drum wouldn’t cause toner to rub off.

Option D (Discharge lamp):Prepares the drum for a new image; not related to toner adhesion.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

===========

NVMe (Non-Volatile Memory Express) drives commonly use the M.2 interface and provide the highest performance for SSDs.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Storage devices:

“NVMe drives connect via the M.2 slot and provide the fastest data transfer rates available for storage devices.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Storage Technologies

CompTIA Exam Objectives 220-1101, Domain 3.2

DHCP (Dynamic Host Configuration Protocol) is the service used to automatically assign IP addresses to network hosts. It dynamically manages the distribution of IP addresses and configuration details (like subnet mask, gateway, and DNS servers), ensuring no two devices are assigned the same address on the network.

Option B (DNS): Incorrect. DNS translates domain names into IP addresses but does not assign them.

Option C (LDAP): Incorrect. LDAP is a protocol used for accessing and maintaining directory services, such as user information and permissions.

Option D (SMTP): Incorrect. SMTP is used for sending and receiving email, not for IP address assignment.

Mobile Device Management (MDM)software often controls access to corporate resources based onlocation, network, or VPN status. If the MDM is not configured to allow access from outside the office or via home networks, the apps may be blocked. This is the most probable cause if apps work only on-premises.

Option A:GPS is used for location services, not access control.

Option C:WPA is a Wi-Fi security protocol, not related to access restrictions.

Option D:NFC enables close-range communication irrelevant to app access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

NFC (Near-Field Communication) is a subset of RFID technology designed for very short-range wireless communication, typically within a few centimeters. It is primarily used for contactless transactions, like mobile payments, and can also support peer-to-peer data exchanges. NFC operates at 13.56 MHz and enables devices to communicate when placed near each other.

Atoner probe(also known as a tone generator and probe) is the best tool fortracing and identifying cablesin a patch panel or wall jack. The tone generator sends a signal through the wire, and the probe helps locate the cable by detecting the tone.

Option A (Crimper):Used to attach connectors (e.g., RJ-45), not for tracing cables.

Option B (Punchdown tool):Used to terminate cables into patch panels or keystone jacks.

Option C (Cable stripper):Used to remove insulation, not to trace cables.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 5.1: Identify basic cable types, their connectors, and their features.

Amodular power supplyallows a technician toconnect only the power cables that are needed, reducing clutter and improving airflow. This is ideal when aiming for a clean build withminimal visible internal cables.

Option A (SATA drive connections):Still require both power and data cables, adding to cable count.

Option B (Liquid cooling):May reduce some bulk from large air coolers, but adds tubing and still needs cabling.

Option D (Wireless NIC):Adds wireless capability but has no relation to internal cabling cleanliness.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.3: Given a scenario, apply the appropriate PC configuration.

A switch is designed to connect multiple devices within the same local network so they can communicate efficiently. In a typical LAN, a switch provides multiple Ethernet ports and forwards traffic between connected devices by using MAC addresses. When a frame enters a switch port, the switch learns the source MAC address and associates it with that port in a MAC address table. When the destination MAC is known, the switch sends the frame only out the correct port, which reduces unnecessary traffic and improves performance compared to older hub-based networks. This is exactly what is meant by allowing multiple network devices to communicate “across a single platform” (the switching fabric).

A NIC is an adapter in an endpoint device that provides network connectivity, but it does not interconnect multiple devices by itself. A firewall focuses on filtering and controlling traffic based on security rules, not primarily on providing multi-device LAN connectivity. Routers connect different networks and forward traffic based on IP addresses (Layer 3), which is not the primary device for multi-device communication within the same network segment. Therefore, the correct answer is Switch.

The most likely cause is a swollen battery, which occurs when the battery ' s internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.

A Type 2 hypervisor is defined as a hypervisor that runs on top of a host operating system, rather than directly on the system’s hardware. According to CompTIA Core 1 (220-1201) virtualization concepts, Type 2 hypervisors are also referred to as hosted hypervisors and are commonly used in desktop, lab, and testing environments.

In this model, the host operating system (such as Windows, macOS, or Linux) is installed first, and the hypervisor runs as an application within that OS. The hypervisor then manages virtual machines by requesting hardware resources through the host OS. Examples of Type 2 hypervisors include VirtualBox, VMware Workstation, and Parallels Desktop.

Option B describes a Type 1 (bare-metal) hypervisor, which runs directly on the hardware without a host OS. Type 1 hypervisors are typically used in enterprise environments and offer higher performance and isolation. Option A is unrelated to virtualization, as firewall functionality controls network traffic. Option D is incorrect because hypervisors do not inherently increase CPU capabilities; they allocate existing resources.

CompTIA emphasizes understanding the distinction between Type 1 and Type 2 hypervisors, particularly that Type 2 hypervisors rely on a host operating system, making option C the correct answer.

Intermittent VoIP call quality issues that occur during peak hours are a classic symptom of network congestion caused by voice and data traffic competing for the same network resources. According to CompTIA Core 1 (220-1201) networking and VoIP objectives, one of the most effective solutions is to configure VLANs to separate voice and data traffic.

By placing VoIP devices on a dedicated voice VLAN, the network can apply Quality of Service (QoS) policies that prioritize voice packets over standard data traffic. This reduces latency, jitter, and packet loss, which are the primary causes of poor call quality. VLAN separation ensures that even during heavy data usage, voice traffic remains clear and reliable.

Routing calls through a gigabit port does not address traffic prioritization and is unlikely to resolve congestion during peak usage. Installing shielded network cables only helps in environments with excessive electromagnetic interference, which would affect performance consistently—not intermittently. Increasing the VoIP bit rate would actually worsen congestion by consuming more bandwidth.

CompTIA emphasizes VLAN implementation and QoS as best practices for VoIP deployments, especially when call quality degrades under high network utilization.

This scenario describes disk mirroring, which is RAID 1. With RAID 1, the same data is written to two drives simultaneously, creating an exact duplicate on each SSD. If one drive fails, the system can continue to operate using the remaining drive with no loss of data, which directly matches the requirement “no data loss if one drive fails.” RAID 1 is commonly used when fault tolerance and data redundancy are the priority. A key trade-off is capacity: because the data is duplicated, the usable storage is essentially the size of one of the drives (two 1TB drives in RAID 1 provide about 1TB usable). Performance can vary: read performance may improve slightly in some implementations, but write performance is generally similar to a single drive because data must be written to both drives.

RAID 0 is striping with no redundancy, so a single drive failure causes total data loss. RAID 5 requires at least three drives and uses parity. RAID 10 requires at least four drives and combines mirroring and striping. Therefore, the correct answer is RAID 1.

If only one key is not functioning and debris has been checked, replacing the individual keycap is the most cost-effective next step. It ' s a simple, low-cost option before considering more extensive repairs like replacing the entire keyboard.

Data centers and high-performance servers prioritize stability and fault tolerance. CompTIA A+ identifies ECC (Error-Correcting Code) RAM as the standard memory used in such environments. ECC RAM automatically detects and corrects single-bit memory errors, preventing system crashes, data corruption, and downtime—critical requirements for servers running mission-critical workloads.

ECC memory is commonly paired with registered/buffered modules (RDIMM) for additional stability, but ECC itself is the defining feature required in data center environments. Non-ECC, unbuffered memory is used in consumer desktops where minor memory errors pose minimal risk.

Single-channel memory (B) is simply a configuration and does not imply reliability. Unbuffered RAM (C) is not used in enterprise-grade systems because it lacks error correction and electrical stabilization. RDIMM (D) includes buffering but may come with or without ECC; however, ECC is the key requirement highlighted by the question.

Therefore, the correct answer is ECC RAM.

A proxy server acts as an intermediary between client devices and the internet. One of its primary functions is URL filtering, web-content restriction, and logging user activity. When a user attempts to connect to a website, the request first goes to the proxy, where filtering rules determine whether the site is allowed or blocked. CompTIA A+ 220-1201 emphasizes that proxies help organizations control outbound traffic, enforce browsing policies, block malicious or inappropriate content, and improve security through caching.

Spam gateways only filter email, DHCP assigns IP addresses, and RADIUS handles authentication, none of which enforce website restriction. Therefore, the correct solution for content control is a proxy server, as stated in the Networking domain of the A+ curriculum.

A distorted image where the screen is not symmetrical (wider at the top or bottom) is typically due to keystone distortion. Adjusting the projector ' s keystone settings corrects this trapezoidal effect caused by an angled projection.

CompTIA A+ identifies satellite internet as the connection type most susceptible to weather-related interference, particularly rain, snow, and heavy cloud cover. This phenomenon is known as rain fade. Satellite connections rely on high-frequency microwave signals transmitted between a dish antenna at the customer site and an orbiting satellite. Moisture in the atmosphere absorbs and scatters these signals, causing latency spikes, reduced bandwidth, or complete signal loss during storms.

Fiber (A) uses light signals through glass fiber and is immune to electromagnetic and weather interference. Cable internet (B) uses shielded coaxial lines buried or run overhead, but rain does not affect signal quality in normal conditions. DSL (D) uses telephone lines, which may degrade with physical line issues, but not directly due to rain in the same way satellite is affected.

Thus, satellite internet is most likely to experience signal degradation during rain conditions.

The most likely cause of a laptop screen dimming consistently in the evening is an ambient light/adaptive brightness feature. Many laptops include an ambient light sensor that automatically changes screen brightness based on room lighting conditions. As natural light decreases later in the day, the sensor detects a darker environment and reduces brightness to save power and reduce eye strain. Because this behavior occurs at a predictable time (evening) and the user can temporarily correct it by manually increasing brightness, it strongly points to automatic brightness control rather than a hardware failure.

Changing the Ambient light setting (disabling adaptive brightness/auto-brightness) provides a permanent fix by preventing the system from adjusting brightness in response to lighting changes. While battery/power plans can also dim displays to conserve energy, that usually correlates with running on battery power or specific power-saving modes—not a consistent evening pattern. Graphics settings typically affect resolution, scaling, or driver features and are not the primary control for time-of-day dimming behavior. Scheduled tasks could theoretically run display-related scripts, but that is uncommon compared to built-in ambient light adaptation. Therefore, adjusting the ambient light/adaptive brightness setting is the best CompTIA A+ answer.

Degraded performance that occurs only during business hours strongly suggests network congestion caused by simultaneous data and voice traffic. According to CompTIA Core 1 (220-1201) networking objectives, combining voice (VoIP) and data traffic on the same network without proper segmentation can lead to latency, jitter, and packet loss, especially during peak usage periods.

Implementing VLANs (Virtual Local Area Networks) allows administrators to logically separate voice and data traffic, enabling better traffic management and prioritization. VLANs also support Quality of Service (QoS) policies that ensure time-sensitive voice traffic is prioritized over standard data traffic, improving call quality and overall performance.

Replacing switches with higher-capacity models is costly and unnecessary if proper traffic segmentation has not yet been implemented. Adding RAM to PCs or VoIP lines does not address network-level congestion. Firmware updates may improve stability but will not resolve sustained performance degradation caused by traffic contention.

CompTIA highlights VLAN implementation as a best practice for environments that use IP phones, especially when performance issues occur during high utilization periods.

User authentication allows access to device functions (like printing and copying) to be restricted to authorized personnel. This is typically implemented on networked multifunction devices for security and auditing.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Printer and device security:

“Enable user authentication on shared multifunction devices to restrict access to specific features for authorized users only.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Printer Security

CompTIA Exam Objectives 220-1101, Domain 3.4

Clock frequency is one of the most significant factors influencing a computer system’s processing performance. According to CompTIA Core 1 (220-1201) CPU and performance objectives, clock speed—measured in gigahertz (GHz)—determines how many instruction cycles a processor can perform per second.

Higher clock frequencies generally result in faster execution of instructions, leading to improved performance in both single-threaded and multi-threaded workloads. While modern CPUs also rely on core count, cache size, and architecture efficiency, clock frequency remains a primary metric for evaluating raw processing speed.

An integrated GPU affects graphics performance rather than overall CPU processing capability. Power connectors ensure proper electrical delivery but do not directly improve processing performance. The voltage regulator module (VRM) stabilizes and regulates power supplied to the CPU but does not itself increase processing speed.

CompTIA expects candidates to recognize clock frequency as a key determinant of CPU performance when upgrading or comparing processors.

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

For a gaming PC with multiple GPUs, the power supply must safely deliver high current on the 12V rails, since GPUs and CPUs draw most of their power from 12V. A multiple-rail power supply divides the 12V output into separate rails protected by overcurrent protection (OCP). This configuration helps prevent a single rail from being overloaded and can provide safer distribution when several high-draw components (multiple GPUs, high-end CPU) are installed. From a CompTIA A+ Core 1 perspective, selecting PSU characteristics that match system load and expansion needs is key, and multi-rail designs are directly related to supporting multiple high-power devices with better protection controls.

The other options do not meet the goal. Redundant PSUs are typically used in servers for uptime, not consumer gaming builds, and they don’t inherently address GPU power distribution. Non-modular only affects cable management and airflow, not power capability or scalability. Low wattage directly conflicts with the requirement for multi-GPU performance and future upgrades. Therefore, the best choice given is multiple-rail.

Comprehensive and Detailed Explanation

CompTIA troubleshooting procedures emphasize confirming input source settings on the external display device.

Even if the HDMI cable is connected properly:

The projector must be set to the correct input source (HDMI 1, HDMI 2, etc.).

If the source is incorrect, the laptop will not display, even though the laptop output is functioning normally.

Since the projector is powered on, and the laptop is already set to “Duplicate,” and cables are good, the most likely cause is:

✔ The projector is set to the wrong input source.

This is a common real-world issue covered under " video and projector troubleshooting. "

Why the other answers are incorrect

A. Projector may support HDMI; this is not the “most likely.”

B. “Extend” is not required — “Duplicate” works for projectors.

C. A failed HDMI port is possible but not the most likely scenario.

Final Answer: D

Whenever a CPU heat sink is removed or replaced, thermal paste must be reapplied. Thermal paste fills microscopic gaps between the CPU heat spreader and the heat sink, ensuring efficient heat transfer. Without it, there is a significant air gap, which acts as an insulator, causing CPU temperatures to rise dramatically even under light load. CompTIA A+ stresses thermal compound application as a key step in CPU cooling installation.

The scenario indicates that temperatures increased drastically after upgrading to a better heat sink. A higher-performing heat sink should improve temperatures, not worsen them—unless a critical installation step was missed. Missing thermal paste is the most common cause of this symptom and easily explains the sudden overheating.

Decreased CPU voltage would lower temperatures, not raise them. Higher fan RPM increases cooling efficiency, not reduces it. Airflow interruption is possible but less likely in a simple heat sink upgrade scenario unless the technician installed the CPU cooler incorrectly; however, the most direct and common cause described by CompTIA is missing thermal paste.

Thus, D is the correct answer.

Comprehensive and Detailed Explanation

The wireless environment is crowded, and the office is using:

WEP encryption → obsolete, insecure, and supported only by outdated hardware

Default channel → likely causes interference in a busy area

CompTIA A+ emphasizes:

WEP should be replaced with WPA2 or WPA3

Older APs that only support WEP cannot simply be updated

Newer APs also allow dual-band / multiple channels to avoid interference

Therefore, the best solution is:

✔ Replace the access point with a modern WPA2/WPA3-capable AP that supports improved channel selection.

Why the other options are incorrect

B. Disabling SSID broadcast – Does nothing for performance or security.

C. MAC filtering – Ineffective for performance and easily bypassed.

D. Updating firmware – Cannot upgrade WEP hardware to WPA2/3 if hardware limitations exist.

Final Answer: A

A Virtual Private Network (VPN) creates an encrypted, secure tunnel across a public or untrusted network. It uses authentication credentials to ensure that only authorized users can connect, keeping data safe from interception.

A PoE injector is used to add power to an Ethernet cable, enabling the cable to deliver both power and data. This is crucial when connecting to PoE-enabled devices like IP cameras or wireless access points that are far from power outlets.

CompTIA A+ teaches that vertical lines on scanned or copied documents but not printed documents indicate a dirty or smudged scanner glass or ADF glass strip. Dust, ink smears, or debris create a line because the scanning sensor repeatedly passes over the same contaminated area.

If printing works normally, internal printer components such as the transfer roller or pickup rollers are not at fault. Maintenance kits apply to internal wear components like rollers, belts, or fusers not scanning artifacts.

Cleaning the scanner glass or ADF strip directly addresses this common problem. The A+ exam frequently includes troubleshooting questions about print vs. scan artifacts, and this scenario is a classic example.

Therefore, the correct solution is to clean the glass bed (or ADF strip).

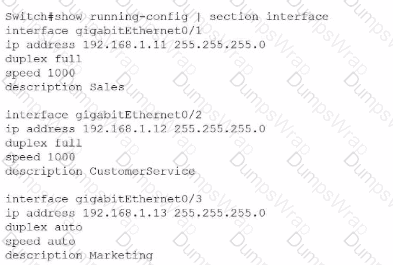

From the configuration, the Sales and Customer Service ports are hard-set to full duplex, 1000 Mbps, while the Marketing interface (GigabitEthernet0/3) is set to duplex auto and speed auto. CompTIA A+ explains that mismatched or lower-negotiated speeds and duplex settings can cause noticeable network slowdowns, collisions, and retransmissions—especially at busy times of the day when utilization is high.

Because all cabling is Cat 5e, it fully supports Gigabit Ethernet, so the cabling is not the limiting factor. The IP addresses are all in the same subnet (192.168.1.0/24) and formatted correctly, so there is no subnet or addressing problem. That rules out options A and C.

With speed auto, the Marketing port may be negotiating only 10/100 Mbps, or even a duplex mismatch (e.g., half duplex vs full). This would severely limit throughput compared to the gigabit links used by the other departments. In peak periods, that slower link would become congested first, which matches the users’ reports of performance degradation only in Marketing.

Therefore, the most likely cause is that the Marketing interface is operating at 10/100 instead of 1000 Mbps, making option D correct.

A hypervisor allows multiple operating systems to run simultaneously on a single physical host, making it the ideal solution for providing concurrent access to different test environments. Developers can use virtual machines (VMs) for testing and development.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Compare and contrast cloud computing concepts:

“A hypervisor is software that enables multiple operating systems to run on a single host as virtual machines. This is commonly used in development and testing environments for flexibility and isolation.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

The Trusted Platform Module (TPM) is a hardware-based security feature used to store cryptographic keys, such as those used for encryption, authentication, or device identification. It plays a critical role in ensuring secure operations for encrypted drives, BitLocker, and secure boot processes. Clearing TPM keys involves wiping all stored cryptographic data, which can lead to several consequences depending on what the TPM was being used for. Let’s break it down:

Correct Answer: A. Encrypted hard drives would probably not be accessible.

Encrypted hard drives, such as those secured with BitLocker encryption, rely on the cryptographic keys stored in the TPM to unlock data.

Clearing the TPM will erase these keys, making it impossible for the encrypted drive to decrypt its contents unless a recovery key (separate from the TPM) is available. Without this recovery key, the data will likely become inaccessible.

CompTIA A+ Core 1 Exam Objective Reference: This falls under Objective 3.5, which covers understanding BIOS/UEFI configurations, TPM functions, and securing devices.

Why the Other Options Are Incorrect:

B. All security certificates would need to be reinstalled from trusted roots.

Clearing the TPM does not erase security certificates stored in the operating system or other areas. Certificates are generally managed by the OS or specific applications, not the TPM.Clearing the TPM only affects cryptographic keys and data stored in the TPM chip, so this is incorrect.

C. The device would need to be reenrolled in the MDM platform.

Mobile Device Management (MDM) enrollment typically does not rely on the TPM. While certain enterprise security configurations may involve the TPM, clearing it does not inherently trigger MDM reenrollment unless specifically tied to the MDM configuration.

D. The laptop would need to be registered to the domain as a new client.

While domain registrations may sometimes use TPM for authentication or secure operations, clearing the TPM alone does not require re-registering the device to the domain. The domain registration and authentication process rely more on system-level credentials than the TPM itself.

Practical Example:

A user enables BitLocker on their laptop, which relies on the TPM to store the encryption key. Later, if they clear the TPM via BIOS/UEFI without saving the BitLocker recovery key separately, they will not be able to unlock the hard drive, leading to data loss unless the recovery key is available. This is a common issue when technicians or users inadvertently clear the TPM without understanding its role in encryption.

CompTIA A+ Exam Objective Alignment:

Objective 3.5: Given a scenario, install and configure laptop hardware and components, including UEFI/BIOS security settings (TPM, secure boot, etc.).

This question tests understanding of TPM functionality, encryption technologies, and secure device configurations.

802.11ac is a Wi-Fi standard that primarily operates in the 5GHz band and is known for higher throughput and improved performance compared with older 2.4GHz-focused standards. In CompTIA A+ Core 1 networking objectives, you are expected to recognize which IEEE 802.11 standards map to which frequency bands and the typical trade-offs. The 5GHz band generally provides more available non-overlapping channels and less interference from common household devices (like microwaves and many Bluetooth peripherals), which can improve real-world performance. While 5GHz typically has shorter range and weaker wall penetration than 2.4GHz, it often delivers better speeds in the same-room or nearby-room scenarios, which aligns with how 802.11ac is commonly deployed.

Bluetooth primarily uses the 2.4GHz ISM band and is designed for short-range personal area networking rather than high-speed WLAN connections. NFC operates at 13.56MHz for very short-range tap-based communications. RFID can operate at several bands (low frequency, high frequency, ultra-high frequency) depending on the use case, but it is not a Wi-Fi networking standard and does not “primarily” operate at 5GHz. Therefore, the correct answer is 802.11ac.

An automatic document feeder (ADF) is designed to speed up scanning jobs that involve many pages by feeding sheets through the scanner automatically, one after another, without requiring the user to lift the lid and position each page manually. For a 300-page contract, the biggest time loss is the manual handling of every page on a flatbed. With an ADF-equipped scanner or multifunction printer, the user can load a stack of pages into the feeder tray and the device will process them continuously, greatly improving productivity and reducing user effort. This is a common CompTIA A+ Core 1 concept when comparing scanner hardware features and selecting the correct device for high-volume tasks.

A flatbed scanner (A) is typically slower for large documents because it requires manual placement of each page. Duplexing (B) can be helpful when scanning double-sided documents because it captures both sides automatically, but it does not address the “each page must be scanned individually” issue as effectively as an ADF does for high page counts. Orientation configuration (D) only changes how pages are rotated or aligned in the output file and does not increase scan throughput. Therefore, an ADF is the best choice to increase scanning speed for a large contract.

The requirement to separate corporate and personal data on employee smartphones is a core function of Mobile Device Management (MDM). CompTIA A+ describes MDM as an enterprise toolset used to enforce security policies, manage applications, configure email profiles, and separate work-related data from personal user data. This separation is typically achieved through features such as containerization, where corporate data is stored in a protected, encrypted workspace that is isolated from the personal side of the device.

This ensures security, prevents data leakage, and enables IT administrators to remotely wipe corporate data without affecting the user’s personal information. MDM solutions are widely used in BYOD (Bring Your Own Device) environments and corporate-issued devices.

Encryption (A) protects data but does not create separation. Network access control (B) restricts network access but does not manage mobile apps or data separation. Endpoint protection (D) refers to antivirus/antimalware, not data partitioning.

Thus, Mobile Device Management (MDM) is the correct solution.

Software as a Service (SaaS) provides users access to fully managed applications hosted in the cloud. CompTIA A+ explains that SaaS is subscription-based and typically billed monthly or annually, which aligns perfectly with the phrase “recurring fee.” Business productivity applications—such as Microsoft 365, Google Workspace, Zoom, Slack, and Salesforce—are classic examples of SaaS offerings.

SaaS applications run entirely in the provider’s cloud environment, eliminating the need for installation, maintenance, or management by the customer. This makes SaaS ideal for businesses that need reliable, scalable tools without maintaining their own infrastructure.

DaaS (Desktop as a Service) provides virtual desktops.

PaaS (Platform as a Service) offers a development framework for building applications.

IaaS (Infrastructure as a Service) provides virtual servers, storage, and networking—not end-user productivity apps.

Thus, SaaS is the correct and only model that matches the description of subscription-based access to productivity applications.

The workstation ' s IP configuration (192.168.1.27/24 with gateway 192.168.1.1) shows that it has a correct IP address, correct subnet mask, and expected default gateway for a typical small office network. Because the IP is in the correct private range and not an APIPA address (169.254.x.x), this also confirms that DHCP is functioning properly. Therefore, option D (DHCP) cannot be the cause.

The user then pings the default gateway at 192.168.1.1, which should be the router—the device providing routing between local devices and outside networks. The repeated " Request timed out " responses indicate the workstation cannot reach the router at all. This type of failure points directly to a router outage, a powered-off router, a failed router interface, or a physical disconnection of the router from the switch.

If DNS (C) were the issue, the user would still be able to ping the IP address of the gateway because DNS is not required for IP-to-IP connectivity. A web server (A) has no relation to local gateway communication and does not affect workstation access.

Since the workstation has a valid IP but cannot reach its default gateway, the failure point is the router.

Inkjet printers are the best choice for a small company seeking full-color printing with a minimal initial cost. While they have higher operating costs (due to ink), they are affordable and capable of high-quality color output.

Why Not A (Thermal printer): Thermal printers are not designed for color printing and are typically used for labels or receipts.

Why Not C (Dot matrix printer): Dot matrix printers are outdated, noisy, and do not support full-color printing.

Why Not D (Laser printer): Laser printers have lower running costs but a higher initial purchase price, especially for color models.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer types​.

Running multiple operating systems at the same time on a single physical server is accomplished through virtualization. In this scenario, host-based virtualization means a host operating system is installed on the physical server first, and then virtualization software runs on top of that OS to create and manage multiple virtual machines. Each virtual machine can run its own guest operating system independently, while sharing the server’s CPU, RAM, storage, and network resources. This improves hardware utilization because one physical server can replace multiple separate machines, and resources can be allocated to VMs based on workload needs.

The other options do not directly describe the concept of running multiple OS instances on the same physical hardware. Public cloud services describe a delivery model where resources are provided by a third-party provider, but the underlying concept enabling multiple OS instances is still virtualization. High-availability clustering focuses on redundancy and failover across multiple servers. Software as a service provides a completed application to users, not multiple OS instances. Load balancing distributes traffic across systems and does not create separate operating systems. Therefore, the correct choice is host-based virtualization.

An IP address starting with169.254.x.xis aself-assigned address(also calledAPIPA– Automatic Private IP Addressing). It’s used when a client device cannot contact a DHCP server. This address allows limited communication on the local network segment butno internet access.

Option A:DHCP reservations assign specific IPs from the DHCP server they don’t result in APIPA.

Option B:Dynamic assignment from DHCP assigns valid IPs in the proper subnet, not 169.254.x.x.

Option D:Static IPs are manually set and would not fall in the 169.254.x.x range unless set incorrectly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

Adocking stationconnects to a laptop’sproprietary port or USB-C/Thunderbolt, providing access tomultiple additional ports(USB, Ethernet, video, audio, etc.). It allows users to transform a laptop into a full desktop workstation.

Option A (NFC adapter):Used for short-range communication, not port expansion.

Option C (Port replicator):Similar to a dock but usually less powerful and often lacks charging or video output.

Option D (USB dongle):Adds a single function (like Wi-Fi or storage), not full port expansion.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

===========

A common reason for aPOST failureafter a motherboard installation isimproperly seated RAM. The system requires working memory to successfully complete POST. Reseating (removing and reinserting) the RAM ensures it ' s making proper contact with the motherboard.

Option A:Flashing the BIOS is not possible if the system won’t POST.

Option B:A dead CMOS battery can cause BIOS settings to reset, but it usually won’t prevent POST entirely.

Option D:Reinstalling the old motherboard is premature basic troubleshooting steps should be completed first.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

Cellular networks offer broad coverage in rural or less populated areas where laying fiber, cable, or DSL lines may not be feasible or cost-effective. Cellular broadband (4G LTE/5G) provides fast speeds using existing mobile network infrastructure.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.7 – Compare and contrast Internet connection types:

" Cellular connections offer high speed and extensive coverage, especially in areas where other wired infrastructure may not exist or be practical. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Internet Connections

CompTIA Exam Objectives 220-1101, Domain 2.7

============

Abulging tablet casingis a classic sign of aswollen lithium-ion battery, often caused by age, overheating, or overcharging. This is adangerous condition, as swollen batteries can rupture or catch fire. It also explains why the tablet only works when plugged in the battery is no longer holding a charge.

Option A:Power supply issues wouldn’t cause physical bulging.

Option B:A bad charge port wouldn’t cause screen damage or physical distortion.

Option D:A broken screen could cause display issues, but not the bulging chassis.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

===========

A private cloud is the best choice when an organization requires ownership and control of all physical hardware. In CompTIA A+ terms, a private cloud is a cloud deployment model where the cloud infrastructure is dedicated to a single organization and can be implemented on-premises (or hosted for that organization only). If the requirement explicitly states the organization must own the servers, storage, and network equipment, that aligns with a private cloud built and maintained using the organization’s own datacenter resources. This provides greater control over security, compliance, customization, and data governance compared with shared models.

A public cloud is owned and operated by a third-party provider, so the organization does not own the underlying hardware. A hybrid cloud combines private and public components; since part of it relies on provider-owned infrastructure, it does not meet the requirement of owning all physical hardware. IaaS and PaaS are cloud service models (what is consumed), not deployment/delivery models (how it is deployed), and they commonly run on provider-owned hardware as well. Therefore, Private cloud is the correct answer.

RAID 0 (striping) provides the fastest read (and write) speeds at the lowest cost, as all disk capacity is used for storage and performance. However, it offers no redundancy.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – RAID types:

" RAID 0 stripes data across multiple disks, offering the best performance and lowest cost but no fault tolerance. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: RAID Levels

CompTIA Exam Objectives 220-1101, Domain 3.4

A VLAN (Virtual Local Area Network) is a network technology used to logically segment a physical network into multiple distinct broadcast domains, even if they share the same hardware.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“VLANs allow network administrators to segment a network logically, isolating broadcast traffic and improving security and management, regardless of the physical network layout.”

Other options explained:

MAC (Media Access Control) is a hardware address, not a segmentation method.

NIC (Network Interface Card) is network hardware, not for logical segmentation.

DSL (Digital Subscriber Line) is an internet connection type.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Concepts

CompTIA Exam Objectives 220-1101, Domain 2.2

The symptoms slow response and failed app launches indicate that thedevice ' s memory or processing resources are overutilized. Closing unnecessary apps can free up RAM and CPU resources, improving performance.

Option A:Overheating may cause sluggishness, but that’s not indicated here.

Option C:Factory reset is a last resort, not the next logical step.

Option D:Battery health would affect uptime, not system speed.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

If print quality remains poor after replacing the ink cartridge, the next step is to clean the printheads. Printheads can become clogged with dried ink, especially in inkjet printers, causing streaks or faded output.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshoot printing problems:

“Poor print quality after replacing cartridges is commonly caused by clogged or dirty printheads. Use the printer ' s cleaning cycle or manually clean the printheads as needed.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

SPF (Sender Policy Framework) is the mechanism used to verify whether a sending mail server’s IP address is authorized to send email on behalf of a specific domain. SPF works through a DNS record (typically a TXT record) published by the domain owner. When a receiving mail server gets an email claiming to be from a domain, it checks the SPF record for that domain and compares the source IP of the sending server against the list of permitted IP addresses or permitted sending services. If the IP is listed (or matches an allowed range/mechanism), SPF passes; if not, SPF fails. This directly matches the question requirement: “verify that an emailer is allowed and designated to send emails from a particular IP address.”

The other options do not focus on authorizing an IP to send mail. DKIM uses cryptographic signatures to verify message integrity and that the message was signed by a domain’s private key, not to authorize a sending IP. DMARC is a policy framework that tells receivers what to do when SPF and/or DKIM fail and adds alignment rules and reporting. CNAME is a DNS alias record and is not an email authorization control. Therefore, the correct answer is SPF.

A sandbox is an isolated virtual environment, often used for testing code or software safely without affecting the host system.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Virtualization:

“A sandbox provides an isolated environment, often implemented as a virtual machine, to safely test applications or code.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

============

The correct solution for this scenario is Mobile Device Management (MDM). According to CompTIA Core 1 (220-1201) mobile device security and management objectives, MDM is specifically designed to manage, secure, and enforce policies on mobile devices used to access corporate resources.

MDM solutions allow organizations to require employees to install management software on their smartphones before accessing corporate email. One of the key features of MDM is data separation, often referred to as containerization, which keeps corporate data isolated from personal data on the same device. This ensures that company information remains secure while still allowing employees to use their devices for personal purposes.

Encryption alone protects data but does not enforce separation or centralized control. Network access control (NAC) restricts which devices can connect to a network but does not manage data on the device itself. Endpoint protection focuses on malware prevention and threat detection, not policy enforcement or data separation.

CompTIA emphasizes MDM as the primary solution for BYOD (Bring Your Own Device) and corporate mobile access scenarios, making it the most suitable and complete answer for this requirement.

A firewall implements ACLs (Access Control Lists) to filter traffic and enforce policies based on rules such as IP address, port, or protocol.

Why Not A (Managed switch): A managed switch supports VLANs and QoS but does not enforce ACLs at the network perimeter.

Why Not B (Gateway): Gateways connect networks and translate protocols but don’t typically implement ACLs.

Why Not C (Repeater): Repeaters extend signal range but don’t enforce policies.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.2, firewall concepts​.

A power-redundant server typically has two power supplies so the system can continue operating if one power supply or one power feed fails. To gain the full benefit of redundancy, each PSU should be connected to independent power sources—commonly separate PDUs that are backed by different UPS units (and ideally separate circuits). This design removes a single point of failure: if one UPS

Comprehensive and Detailed 150 to 250 words of Explanation From CompTIA Core 1 Knowledge trips, fails, or is taken offline for maintenance, the other UPS still provides power and the server stays online.

Option C is best because it explicitly describes distributing the connections across different UPSs, which is the correct redundancy practice in a rack environment. Option A defeats redundancy because a single outlet/UPS failure would still bring the server down. Option B also wastes redundancy and can cause immediate downtime if the connected PSU fails, since the second PSU isn’t actively providing standby power. Option D still leaves a single UPS as the single point of failure. Therefore, splitting the two PSU power cords across separate UPS-backed outlets is the best approach.

SMB (Server Message Block)is a protocol used to access files and printers over a network, including across shared network folders. It enables the user to access and print files stored remotely on a shared directory.

Option A (ADF):Automatic Document Feeder hardware, not a network protocol.

Option B (USB):Used for direct physical connections, not for printing over networks.

Option C (PCL):Printer Command Language relates to printer drivers, not file sharing or access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.
