EMC D-VXB-DY-A-24 Dumps

Review Project Closure Documents: During the project closure phase, it’s important to gather feedback to understand the project’s success and areas for improvement1.

Identify Feedback Mechanism: The Customer Satisfaction Survey is the document typically used to capture customer feedback during the Lessons Learned phase1.

Understand the Importance of Feedback: This feedback is crucial for evaluating the project’s performance and for making necessary adjustments in future projects1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would outline the use of the Customer Satisfaction Survey as the tool for capturing feedback during project closure1.

Understand VxLAN: VxLAN, or Virtual Extensible LAN, is a network virtualization technology that allows for the creation of a Layer 2 network on top of a Layer 3 network1.

Identify Key Benefit: One of the key benefits of VxLAN is that it enables vMotion to occur over Layer 3 subnets, which can span across different geographic locations1.

Recognize VxLAN Capabilities: By encapsulating Layer 2 Ethernet frames into Layer 4 UDP packets, VxLAN allows for the extension of networks over long distances, facilitating vMotion in environments where the physical network infrastructure is spread out1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with this understanding of VxLAN, highlighting its ability to support vMotion across Layer 3 subnets as a significant advantage1.

=========================

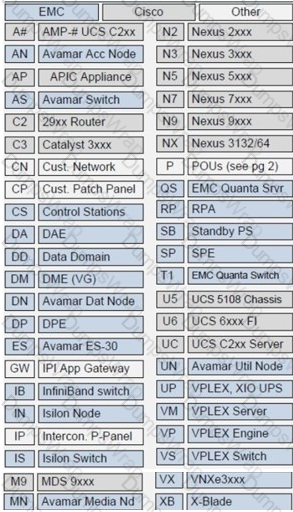

The label on the cable indicates two parts: “M91A-01:01” and “U61A-01:09”. The first part of the label “M91A” refers to a specific type of equipment as per the exhibit. According to the exhibit, “M9” corresponds to “MDS 9xxx”, which is a Cisco Multilayer Director Switch. The second part of the label, “U61A”, does not directly match any category in the provided list; however, it seems to be an internal reference that could be related to user-specific configurations or locations.

Since we are looking for the target equipment type and not where it was mistakenly connected, we focus on the first part of the cable label. The numbers following “M91A” indicate slot and port information. Therefore, based on this labeling system and referring to the exhibit provided, which lists various EMC and Cisco equipment types along with their corresponding codes (like AP for APIC Appliance or CN for Cust. Network), we can deduce that “M91A” stands for “MDS 9xxx”. The subsequent numbers “-01:01” suggest Slot 1, Port 1.

Identify the Issue: Heavy network utilization during video streaming indicates that multicast traffic is not being efficiently managed1.

Understand Multicast Traffic: Multicast applications use a single stream of data to deliver content to multiple recipients, which can cause network congestion if not handled properly1.

Recognize IGMP’s Role: Internet Group Management Protocol (IGMP) is used to manage multicast group memberships and is essential for optimizing multicast traffic on a network1.

Implement IGMP: Enabling IGMP allows the network to efficiently distribute multicast traffic only to hosts that have explicitly requested it, reducing unnecessary network load1.

Access vCenter Web Client: The Customer Engineer should log into the vCenter Web Client, which is the primary interface for managing vSphere environments1.

Navigate to Networking: Within the vCenter Web Client, navigate to the Networking section where NSX configurations are managed1.

Verify NSX Preparation: In the Networking section, the Customer Engineer can confirm that the correct vSphere clusters are prepared for NSX by checking the status of the NSX installation and configuration1.

Check Cluster Configuration: The preparation of vSphere clusters for NSX involves installing NSX VIBs on ESXi hosts and configuring VXLAN, which can be verified within the vCenter Web Client1.

In ACI (Application Centric Infrastructure), the logical entity that allows for logical separation and reuse of IP address space within an ACI fabric is the Tenant. A Tenant represents a unit of isolation from a policy perspective and allows for the segmentation of the network into multiple virtual environments, each with its own policies and IP address spaces.

References:

Cisco ACI documentation.

Technical resources on ACI architecture and logical entities.

Review ACI Fabric Concepts: Within the ACI fabric, logical constructs are used to organize and manage network resources1.

Identify the EPG: An Endpoint Group (EPG) is a collection of similar endpoints that represent an application tier or set of services within the ACI fabric1.

Understand the Role of EPGs: EPGs group endpoints with identical networking policy requirements, allowing for the application of policies that regulate how such groups can interact with each other1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with Cisco’s guidelines on ACI fabric, which define EPGs as collections of similar endpoints representing an application tier or set of services1.

To convert existing VxBlock Nexus 9396PX switches to ACI mode, a major physical connectivity change involves connecting the switch directly to the APIC (Application Policy Infrastructure Controller) to download the ACI software. Afterward, the existing Nexus 9396PX switches should be connected to a spine Nexus 93180YC switch as part of the ACI fabric setup.

References:

Cisco ACI deployment guides.

Dell EMC VxBlock system integration documentation.

In a VxBlock 1000 system running VMware vSphere 6.7, the Fabric Interconnect should be mapped to the access switch in a traditional data center architecture. The Fabric Interconnect is responsible for aggregating traffic from the servers before it is sent to the upstream network, functioning similarly to an access switch which connects end devices to the broader network infrastructure.

References:

Dell EMC VxBlock System architecture guides.

Cisco Unified Computing System (UCS) documentation, as Fabric Interconnects are commonly used in UCS environments.

Review VMKernel NIC Functions: The VMKernel NIC in VMware vSphere provides network connectivity for hosts and handles system traffic for various services1.

Identify vMotion Service: Among the services provided by the VMKernel NIC, vMotion is a key feature that allows for the live migration of virtual machines from one host to another without downtime1.

Understand vMotion: vMotion requires network connectivity to transfer the memory and state of a virtual machine.The VMKernel NIC facilitates this connectivity and ensures the seamless migration of VMs1.

Reference VMware Documentation: VMware documentation confirms that the VMKernel NIC handles system traffic for vMotion, among other services1.

Review PowerMax 8000 Specifications: The PowerMax 8000 is designed to support a dispersed configuration, allowing for flexibility in the physical placement of its components1.

Identify Maximum Dispersion: The maximum allowed dispersion between bricks in a PowerMax 8000 system is up to 25 meters1.

Understand Dispersion Considerations: This dispersion allows for the separation of individual or contiguous groups of system bays, providing options for physical layout within a data center1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with this specification, ensuring that the system meets both performance and physical space requirements1.

Review VxBlock 1000 UCS Domain Management: The UCS domain is managed via Fabric Interconnect A, which acts as the cluster lead and is critical for operations1.

Understand vMotion Process: vMotion is a VMware feature that allows for the live migration of virtual machines from one host to another without downtime1.

Identify Impact of FI A Power Disconnection: If the power to Fabric Interconnect A is disconnected during a vMotion process, the vMotion session being managed by FI A will fail because it loses its management connection1.

Recognize Automatic Retry Mechanism: Although vMotion fails when FI A is powered off, it is typically designed to retry the operation once the managing FI comes back online1.

Reference Official Dell Documentation: The Official Dell VxBlock Deploy Achievement document would confirm that the expected result of such a scenario is the failure of the vMotion process due to the power disconnection of the managing Fabric Interconnect1.

During an RCM (Release Certification Matrix) Assessment for VxBlock, the Element Manager is used to collect component information. Element Managers are specialized tools designed to gather detailed data and status information from individual components within the VxBlock system. These tools provide granular insights into the configuration and health of the system, facilitating the RCM assessment process.

References:

Dell EMC VxBlock System documentation.

Industry best practices for system assessments and management.

The Converged Systems Administration Guide includes a complete list of tools used to perform a VxBlock 1000 upgrade. This guide provides detailed instructions and necessary resources for administrators to manage and upgrade VxBlock systems.

References:

Dell EMC Converged Systems documentation.

Best practices for system upgrades and administration.

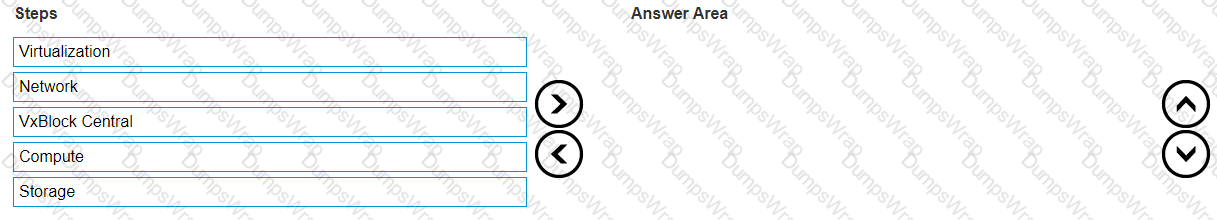

 VxBlock Central

 Network

 Storage

 Compute

 Virtualization

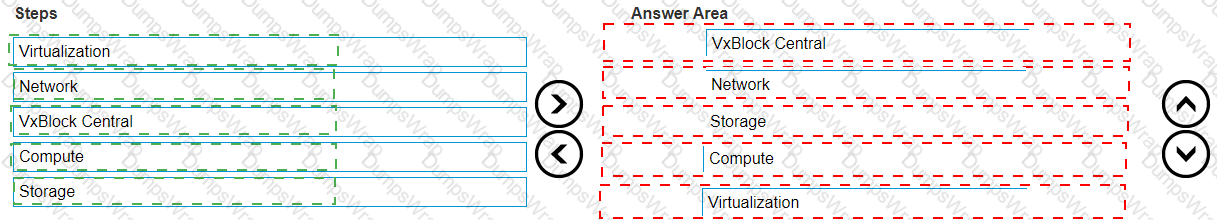

In the Dell EMC RCM (Release Certification Matrix) Workbook upgrade plan, the sequence of upgrading VxBlock components is designed to ensure system stability and minimize disruptions. Here’s the detailed reasoning for the correct sequence:

VxBlock Central:

Explanation: VxBlock Central is the management and orchestration layer of the VxBlock system. Upgrading this first ensures that the management tools are compatible with the new versions of the other components and can properly coordinate and monitor the upgrade process.

Locate the validation procedures and support documentation: The Implementation Specialist must locate the necessary validation procedures and support documentation that are essential for the deployment of the VxBlock Systems1.

Connect the VxBlock System to the customer network: After locating the documentation, the specialist is responsible for connecting the VxBlock System to the customer’s network1.

Validate a VxBlock 1000 installation using the LCS and Test Plan: The specialist must validate the VxBlock 1000 installation using the Lifecycle System (LCS) and the Test Plan to ensure that the system is correctly implemented and functioning as intended1.

Describe how to perform knowledge transfers: Part of the specialist’s role is to describe the process of knowledge transfer, ensuring that the customer’s staff is adequately trained and informed about the system1.

Review OneFS Operating System: The OneFS operating system is the foundation of the PowerScale scale-out NAS storage platform, designed to handle large and growing data stores efficiently1.

Identify Block Size: The native block size used by the OneFS file system is 8 KB.This block size is fundamental to the functionality of OneFS as it lays out data across the nodes and disks in a cluster1.

Understand Block Size Significance: The 8 KB block size is chosen to optimize storage efficiency and performance, particularly for the types of workloads and data patterns expected in a scale-out NAS environment1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with the technical specifications of the OneFS operating system, confirming the 8 KB block size as a standard configuration1.

Review Deployment Phase Requirements: The final implementation step during the Deployment Phase of a VxBlock 1000 involves ensuring that the system is functioning as expected1.

Identify Required Task: A critical task in this step is to execute the test plan that was agreed upon during the planning phase1.

Understand the Importance of Test Plan Execution: Executing the test plan is essential to validate that all components of the VxBlock 1000 are working correctly and that the system meets the customer’s requirements1.

Reference Official Dell Documentation: The Official Dell VxBlock Deploy Achievement document outlines the importance of executing the test plan as a required task in the final implementation step during the Deployment Phase1.

Access SolVe Online: SolVe Online is Dell EMC’s online tool that provides step-by-step procedures and support for various products, including VxBlock Systems1.

Navigate to VxBlock Section: Within SolVe Online, navigate to the section dedicated to VxBlock Systems to find resources specific to these models1.

Locate Test Plan: Look for the Test Plan associated with the specific VxBlock model you are working with.The Test Plan is typically available in the form of downloadable documents or guides1.

Download Test Plan: Once located, download the Test Plan for the specific VxBlock model to use as a reference for deployment or troubleshooting1.

Verify with Documentation: Ensure that the downloaded Test Plan matches the model and version of the VxBlock System you are using by cross-referencing with the official documentation1.

Review Project Closure Documents: The project closure phase involves several key documents that need to be reviewed and signed off to formally close the project1.

Identify Required Document: In addition to the Final Test Plan and Customer Satisfaction Survey, the Final Project Signoff is a crucial document that must be signed by the customer at the Project Closure Meeting1.

Understand the Significance: The Final Project Signoff serves as the customer’s formal acceptance of the project deliverables and confirms that all contractual obligations have been met1.

Ensure Compliance: It is important to ensure that the Final Project Signoff is completed and signed by the customer to officially close the project and release the project team from further responsibilities1.

When securely connecting to vCenter, the customer engineer needs to provide the correct source and destination port numbers. The valid source port range for secure connections is typically from 49152 to 65535, which are ephemeral ports assigned by the operating system for outbound connections. The destination port for secure connections to vCenter is 443, which is the standard port for HTTPS.

References:

VMware vCenter documentation.

Networking standards for secure HTTPS connections.

Review the VxBlock 1000 documentation: The System Engineer should review the VxBlock 1000 documentation to understand the standard cabling configuration for Fabric Interconnects1.

Identify the role of Fabric Interconnects 1A: Fabric Interconnects serve as the nerve center for data and storage networking in the VxBlock 1000.They manage the connectivity between the compute, storage, and networks1.

Determine the standard connection setup: Typically, Fabric Interconnects 1A would have server uplinks connected to the C-Series servers to manage data traffic between servers and the rest of the network2.

Validate against the deployment checklist: The System Engineer should validate the cabling against the deployment checklist provided in the VxBlock Deploy Achievement document to ensure all connections are correctly made1.
