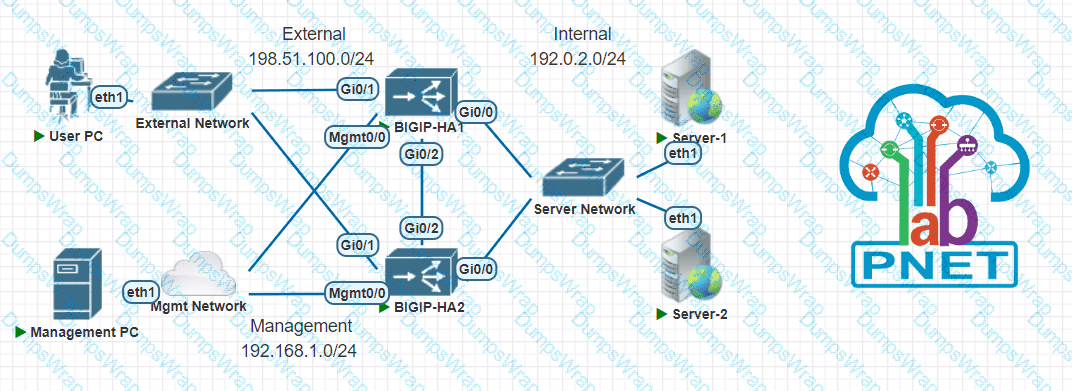

In a High Availability (HA) environment, a failover event occurs when the active BIG-IP system stops processing traffic and the standby unit takes over. This transition can cause a brief disruption in network traffic because the surrounding switches need to update their ARP tables to associate the Virtual IP (VIP) and floating Self-IPs with the MAC address of the new active unit.

MAC Masquerade Functionality: To minimize this impact, an administrator can configure MAC masquerading . This feature allows the administrator to assign a unique, " shared " MAC address to a traffic group.

Seamless Transition: When a failover occurs, the new active unit begins using this shared MAC address immediately. Since the MAC address for the traffic group remains the same regardless of which physical device is active, the upstream switches do not need to update their ARP tables or learn a new MAC-to-port mapping.

Packet Loss Reduction: By maintaining a constant MAC address, MAC masquerading significantly reduces the time it takes for traffic to resume, effectively eliminating the " gratuitous ARP " dependency and minimizing packet loss during the handover.

Why other options are incorrect:

External monitors: These are used for advanced health checking of pool members and do not directly impact the speed or smoothness of a device-level failover.

OneConnect profile: This is a performance optimization tool that aggregates multiple client-side requests into a single server-side TCP connection; it is not a failover mechanism.

Clone pool: This is used to replicate traffic for IDS or monitoring purposes and has no role in high availability or failover optimization.

BIG-IP uses a virtual server matching and precedence algorithm to determine which virtual server processes an incoming connection. This decision is made entirely in the data plane and is based on how specifically a virtual server matches the destination IP address and port.

BIG-IP Virtual Server Selection Rules (Simplified):

When multiple virtual servers could match a packet, BIG-IP selects the most specific match , using the following precedence:

Exact IP address and exact port

Exact IP address with wildcard port (port 0 / any)

Wildcard IP address with exact port

Wildcard IP address and wildcard port

Applying the Rules to This Scenario:

Incoming traffic destination: 1.0.0.10:8080

Option C: 1.0.0.10:8080

Exact IP match

Exact port match

Highest possible specificity

If the virtual server is available (green), it wins the match

Option B: 1.0.0.10:any

Exact IP match, but wildcard port

Lower priority than an exact IP + exact port match

Option D: 0.0.0.0:8080

Wildcard IP, exact port

Lower priority than an exact IP match

Option A: 0.0.0.0:any

Wildcard IP and wildcard port

Lowest priority, used only if no more specific virtual server exists

Final Determination:

Because a virtual server configured with destination 1.0.0.10:8080 exactly matches both the IP address and port of the incoming connection—and is available—it will always be selected to process the traffic.

Key Data Plane Concept Reinforced:

BIG-IP always processes traffic using the most specific matching virtual server . Exact destination IP and port matches take precedence over any wildcard or forwarding virtual server definitions.

===========

In BIG-IP terminology, a Trunk is the object used to implement Link Aggregation (IEEE 802.3ad/802.1AX). When a network engineer refers to " interface binding " or " EtherChannel " with LACP, the BIG-IP equivalent is a Trunk.

LACP (Link Aggregation Control Protocol): This is a protocol that allows the BIG-IP system to communicate with the upstream switches to negotiate the bundling of multiple physical links into a single logical link.

Resilience and Redundancy: By creating a trunk that includes interfaces connected to two different switches (typically configured as a VPC, VSS, or MLAG cluster on the switch side), the administrator ensures that the BIG-IP remains reachable even if one physical interface or one switch fails.

Data Plane Logic: The BIG-IP treats the trunk as a single Layer 2 interface. VLANs are then associated with the trunk rather than individual physical ports.

Why the other options are incorrect:

Option B: Trunks aggregate physical interfaces. While VLANs are associated with trunks, the trunk configuration itself does not " list " MAC addresses of the switches; it uses LACP to negotiate the connection.

Options C & D: Virtual Servers are Layer 4-7 objects used for traffic processing and load balancing. They do not possess " LACP profiles, " nor are physical interfaces or management IPs treated as pool members for the purpose of link aggregation.

In this scenario, two specific High Availability and Persistence requirements must be met to ensure session continuity during a failover.

Persistence Mirroring: By default, persistence records (which map a client to a specific server) exist only on the memory of the active BIG-IP. If a failover occurs, the standby unit has no knowledge of these sessions and will re-load-balance the client, likely to a different server. Enabling Persistence Mirroring ensures that the persistence table is synchronized in real-time to the standby peer.

Match Across Services: The requirement specifies that the session must persist across both HTTP and FTP . These are different Virtual Servers (and likely different ports). The Match Across Services setting in the persistence profile allows the BIG-IP to use the same persistence record for any Virtual Server that shares the same IP address and pool, regardless of the service port.

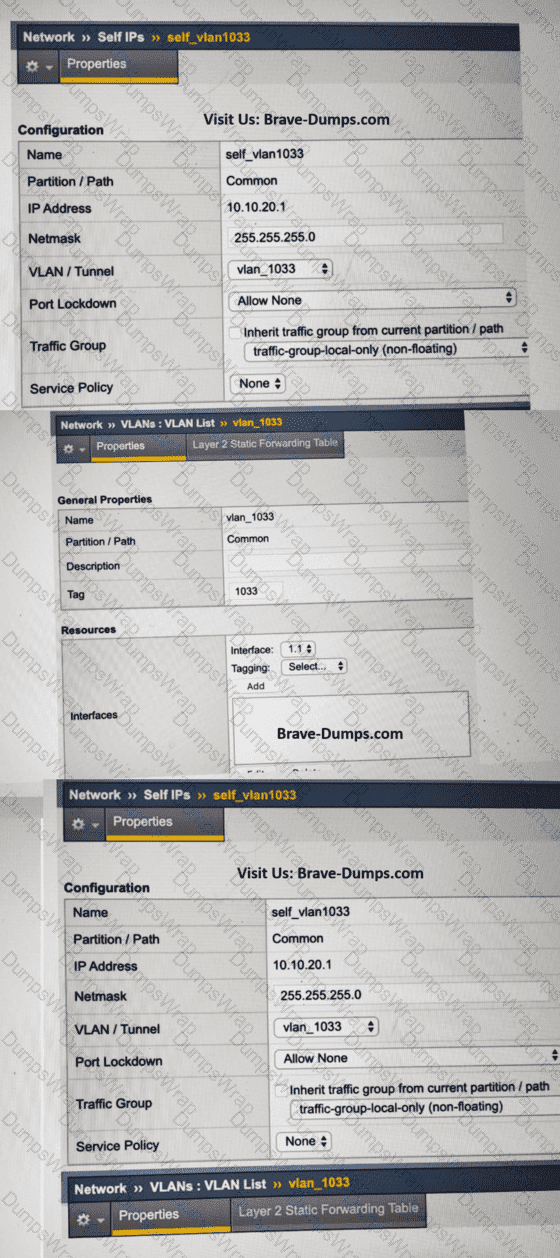

In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.

By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.

To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:

`tm.macmasqaddr_per_vlan = true`

When this feature is enabled:

BIG-IP derives a unique MAC address per VLAN

The base MAC address configured on the traffic group remains the first four octets

The last two octets are replaced with the VLAN ID expressed in hexadecimal

The VLAN ID is encoded in network byte order (high byte first, low byte second)

### VLAN ID Conversion:

VLAN ID: 1501 (decimal)

Convert to hexadecimal:

1501₁₀ = 0x05DD

High byte: 05

Low byte: DD

### Resulting MAC Address:

Base MAC: `02:12:34:56:00:00`

Per-VLAN substitution → last two bytes = `05:DD`

Final MAC address:

`02:12:34:56:05:dd`

### Why the Other Options Are Incorrect:

A (01:15) – Incorrect hexadecimal conversion of 1501

B (dd:05) – Byte order reversed (little-endian, not used by BIG-IP)

D (15:01) – Uses decimal values instead of hexadecimal

### Key BIG-IP HA Concept Reinforced:

Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.

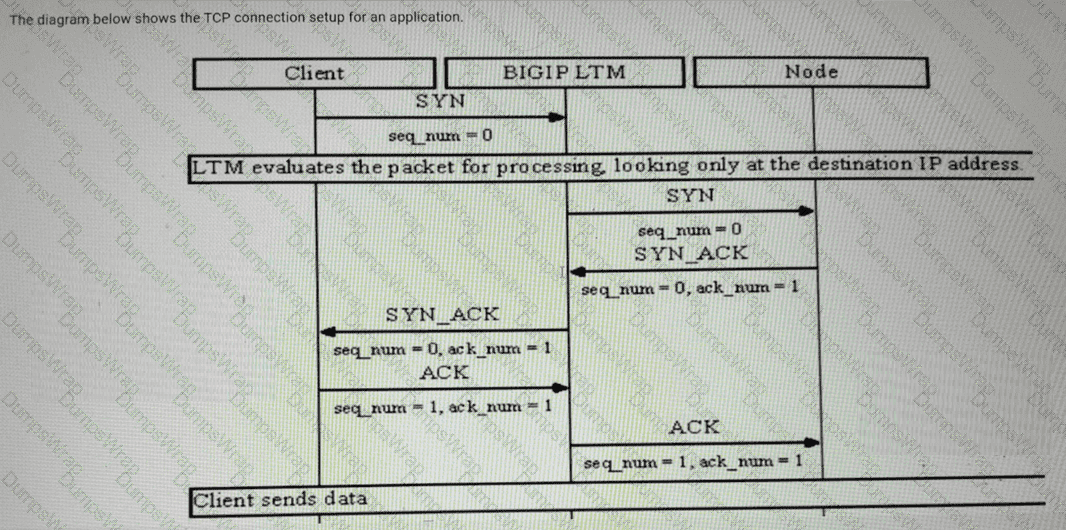

The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as a Forwarding (IP) virtual server are as follows:

Initial Packet Processing : The diagram explicitly states that the LTM evaluates the packet looking only at the destination IP address . This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system ' s routing table to make forwarding decisions instead of load balancing to a pool of members.

Handshake Sequence : Unlike a Standard virtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK) before initiating a separate connection to the server, the Forwarding IP virtual server passes the client ' s original SYN packet directly to the destination node.

Response Timing : The BIG-IP system waits for the SYN-ACK from the destination node before it sends a SYN-ACK back to the client. It essentially " passes through " the handshake signals while still maintaining a state entry in the connection table to track the flow.

Packet-by-Packet Logic : While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.

Why other options are incorrect:

Standard virtual server : A Standard virtual server is a " full proxy. " It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.

Stateless virtual server : A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.

In BIG-IP traffic management, persistence profiles cause existing client connections (and subsequent requests) to be repeatedly sent to the same pool member. When persistence is enabled, simply preventing new connections is not sufficient if the requirement is to immediately remove all existing connections .

Key behavior of pool member states:

Forced Offline

Immediately removes the pool member from load balancing.

Terminates all existing connections , regardless of persistence.

Prevents new connections from being established.

This is the correct state when urgent maintenance or troubleshooting is required.

Disabled

Prevents new connections from being sent to the pool member.

Allows existing connections to continue , which is not acceptable when persistence is configured and connections must be cleared immediately.

Offline (non-forced)

Similar to Disabled behavior depending on context.

Does not guarantee immediate termination of existing connections.

Manually deleting connections via the command line

Is unnecessary and operationally inefficient.

BIG-IP already provides a supported mechanism ( Forced Offline ) to cleanly and immediately remove traffic.

Conclusion:

To immediately remove all existing connections , including those maintained by persistence, the BIG-IP Administrator must set the pool member to a Forced Offline state. This directly satisfies the requirement without additional manual steps.

In a BIG-IP environment, load balancing and persistence work together but serve different purposes. While a load balancing method like Least Connections attempts to distribute traffic based on current connection counts, a persistence profile overrides this logic for returning clients.

Persistence Overrides Load Balancing: When a persistence profile (such as Source Address or Cookie persistence) is applied to a Virtual Server, the BIG-IP system tracks which client was sent to which backend member.

Sticky Sessions: If a client with a valid persistence record returns, the BIG-IP will send that client to the same pool member it was previously assigned to, regardless of the load balancing algorithm ' s current preference.

Uneven Distribution: If certain clients generate significantly more traffic or stay connected longer than others, the persistence table will " lock " those high-volume flows to specific members, resulting in an uneven distribution of connections across the pool.

This question tests understanding of Priority Group Activation (PGA) and how BIG-IP determines which pool members are eligible to receive traffic.

Key BIG-IP Priority Group Concepts:

Higher priority group numbers = higher priority

BIG-IP will only send traffic to the highest priority group that meets the Priority Group Activation condition

Lower priority groups are activated only when the condition is met

Only available (green) members count toward the activation threshold

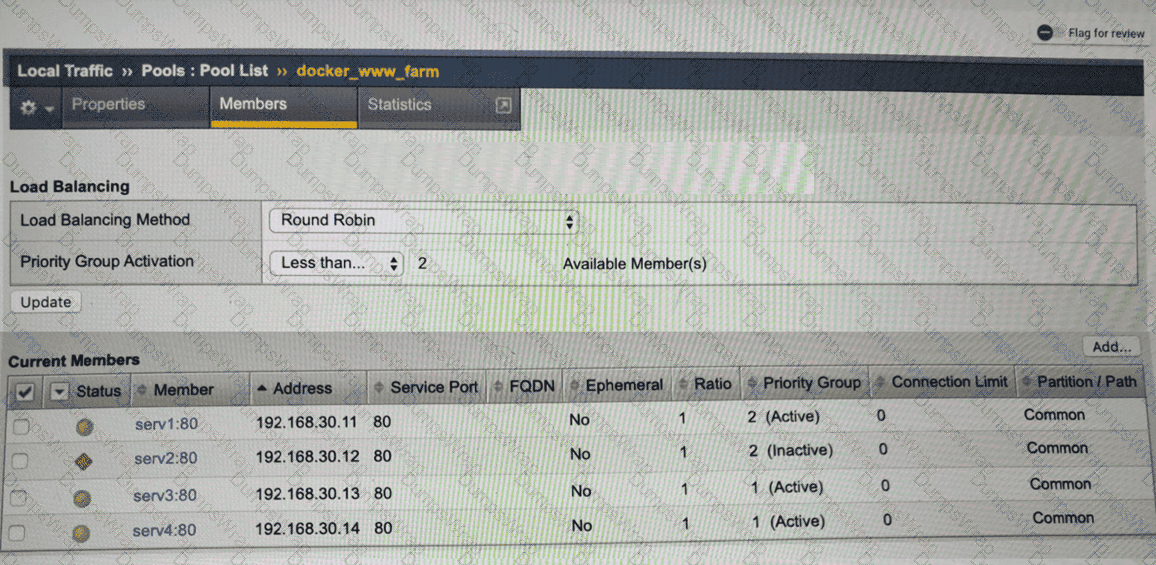

Configuration from the Exhibit:

Priority Group Activation: Less than 2 available members

Pool Members and Status:

Pool Member

Priority Group

Status

serv1

2

Active (available)

serv2

2

Inactive (down)

serv3

1

Active (available)

serv4

1

Active (available)

Step-by-Step Traffic Decision:

BIG-IP first evaluates the highest priority group (Priority Group 2)

Priority Group 2 has:

serv1 → available

serv2 → unavailable

Total available members = 1

Activation rule is Less than 2 available members

Condition is true (1 < 2)

BIG-IP activates the next lower priority group (Priority Group 1)

Traffic is now sent to:

serv1 (Priority Group 2)

serv3 and serv4 (Priority Group 1)

Final Result:

Traffic is distributed to serv1, serv3, and serv4

Why the Other Options Are Incorrect:

A – Ignores activation of the lower priority group

B – serv4 is also active and eligible

C – serv2 is down and cannot receive traffic

Key Data Plane Concept Reinforced:

Priority Group Activation controls when lower-priority pool members are allowed to receive traffic , based strictly on the number of available members in the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP to expand traffic distribution to lower-priority members to maintain availability.

===========

In the BIG-IP system, when you need to prevent traffic from reaching a specific destination or being processed by the system, you utilize specific Virtual Server types that act as " denial " points.

Reject Virtual Servers: When a packet matches a Reject virtual server, the BIG-IP system stops the packet from being processed and sends a reset (RST) in the case of TCP, or an ICMP unreachable message in the case of UDP. This is the preferred method for " blocking " specific IPs when you want the sender to receive immediate notification that the connection was refused.

Drop Virtual Servers: A Drop virtual server simply discards the packet without sending any response back to the source. While effective for " stealthing " a network, it is often less desirable for standard administration unless specifically mitigating a DoS attack.

Comparison with Standard: A Standard virtual server is used to process and load balance traffic to a pool of members; it does not inherently act as a " blocking " mechanism for a single IP within a subnet unless combined with complex iRules or Packet Filters.

Context of the Question: To block responses (or connection attempts) for a specific IP while other traffic in the subnet might be handled by more permissive virtual servers, a more specific (higher precedence) Reject virtual server is the standard administrative approach.

BIG-IP virtual server types define how traffic is handled at the data plane when it matches a virtual server’s destination address and service port.

According to BIG-IP Administration Data Plane Concepts:

Standard virtual server

The default and most commonly used type

Accepts client connections and forwards traffic to pool members

Supports both TCP and UDP traffic

Allows full use of profiles (UDP, FastL4, persistence, etc.) and iRules

Required when the goal is to process and pass traffic through BIG-IP

Drop virtual server

Silently discards matching traffic

No response is sent to the client

Reject virtual server

Actively rejects traffic by sending an error response

For UDP, BIG-IP may send an ICMP unreachable message

Block virtual server

Used to block traffic at the virtual server level

Traffic is neither forwarded nor processed by pools

In this scenario:

The administrator explicitly wants the UDP traffic to be forwarded

Only a Standard virtual server forwards traffic to a pool or next-hop destination

Why the Other Options Are Incorrect:

A. Drop – Traffic is silently discarded

B. Reject – Traffic is actively rejected

C. Block – Traffic is blocked and not forwarded

Key Data Plane Concept Reinforced:

When traffic must be accepted and forwarded —regardless of whether it is TCP or UDP—the BIG-IP administrator must use a Standard virtual server , which is the only virtual server type designed for normal application traffic processing.

===========

This scenario combines session continuity , multiple protocols (HTTP and FTP) , and HA failover behavior , which directly implicates persistence handling across devices and services .

Key Requirements Breakdown

Same pool member for entire session

Session must survive failover

Session must span multiple services (HTTP and FTP)

Why Persistence Mirroring + Match Across Services Is Required

Persistence Mirroring

Ensures persistence records are synchronized from the active BIG-IP to the standby BIG-IP.

Without mirroring:

After failover, the standby device has no persistence table

Clients are load-balanced again

Sessions break, forcing users to restart

Persistence mirroring is essential for session continuity during failover

Match Across Services

Allows a single persistence record to be shared across multiple virtual servers / protocols

Required when:

HTTP and FTP must use the same pool member

Multiple services are part of a single application session

Together, these settings ensure:

Persistence survives device failover

Persistence is honored across HTTP and FTP

Why the Other Options Are Incorrect

A. Cookie persistence and session timeout Cookie persistence only applies to HTTP and does not address FTP or failover synchronization.

B. Stateful failover and Network Failover detection Stateful failover applies to connection state , not persistence records , and does not link HTTP and FTP sessions.

D. SYN-cookie insertion threshold and connection low-water mark These are DoS / SYN flood protection settings, unrelated to persistence or HA behavior.

When troubleshooting performance and latency issues on BIG-IP, especially under peak load conditions, it is critical to identify which Virtual Servers are consuming the most resources . This is a core data plane analysis task .

BIG-IP provides multiple views of configuration and status, but only certain areas expose real-time and historical traffic statistics that correlate directly with CPU usage and throughput.

Why Option C Is Correct:

Statistics > Module Statistics > Local Traffic > Virtual Servers provides:

Real-time and cumulative statistics per Virtual Server

Metrics such as:

Bits in / Bits out

Packets in / Packets out

Current connections

Connection rate

Total requests

The ability to identify high-traffic or high-connection Virtual Servers , which are the most likely contributors to elevated CPU utilization

These statistics allow the administrator to objectively determine which Virtual Servers are the top consumers of system resources and therefore good candidates for migration to a dedicated BIG-IP device.

Why the Other Options Are Incorrect:

A. Local Traffic > Virtual Servers > Virtual Server List

Primarily a configuration view

Does not provide sufficient performance or utilization statistics to identify CPU-heavy Virtual Servers

B. System > Platform

Displays hardware-level information such as CPU cores, memory, disk, and platform type

Does not break down utilization by Virtual Server

D. Local Traffic > Network Map

Provides a logical topology view of Virtual Servers, pools, and pool members

Useful for understanding relationships, but not for identifying high-utilization Virtual Servers

Key Data Plane Concept Reinforced:

To diagnose performance problems and plan traffic redistribution, BIG-IP administrators must rely on Module and object-level statistics , not configuration screens. The Virtual Server statistics view is the authoritative location for identifying traffic hotspots that directly impact CPU and latency during peak events such as Black Friday.

===========

6

The End 7 User Diagnostics (EUD) utility is a software tool designed to test the hardware components of a BIG-IP system. Because the EUD must run when the standard Traffic Management Microkernel (TMM) and Operating System (TMOS) are not fully loaded (especially in " fail to boot " scenarios), it is accessed at the boot level.

Access Requirements: To run the EUD, the administrator must reboot the BIG-IP system and select the EUD option from the GRUB boot menu . Because the network interfaces (Internal, External, and Management) require a running operating system and drivers to function, they are unavailable during this pre-boot phase.

The Console Port: The Console Port provides a direct out-of-band serial connection to the hardware ' s BIOS and bootloader. This is the only interface that allows an administrator to interact with the system during the early stages of the power-on self-test (POST) and boot sequence to initiate diagnostic tests.

Purpose: The EUD performs a series of tests on the CPU, memory, hard drives, and physical interfaces to identify hardware-level failures before the data plane is even initialized.

The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:

The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4 . In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.

The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use). A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.

It is not a Forwarding IP virtual server: A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.

Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C) .

An Application Delivery Controller (ADC) provides application traffic-management functions between clients and application servers. Two fundamental ADC capabilities represented here are SSL offloading and load balancing .

SSL offloading allows the BIG-IP system to terminate client-side SSL/TLS connections and perform the cryptographic processing that would otherwise consume application-server resources. F5 specifically describes SSL offload as the BIG-IP system performing the SSL handshake and encryption/decryption functions normally performed by the destination server. Client SSL profiles are commonly applied to virtual servers to implement this functionality.

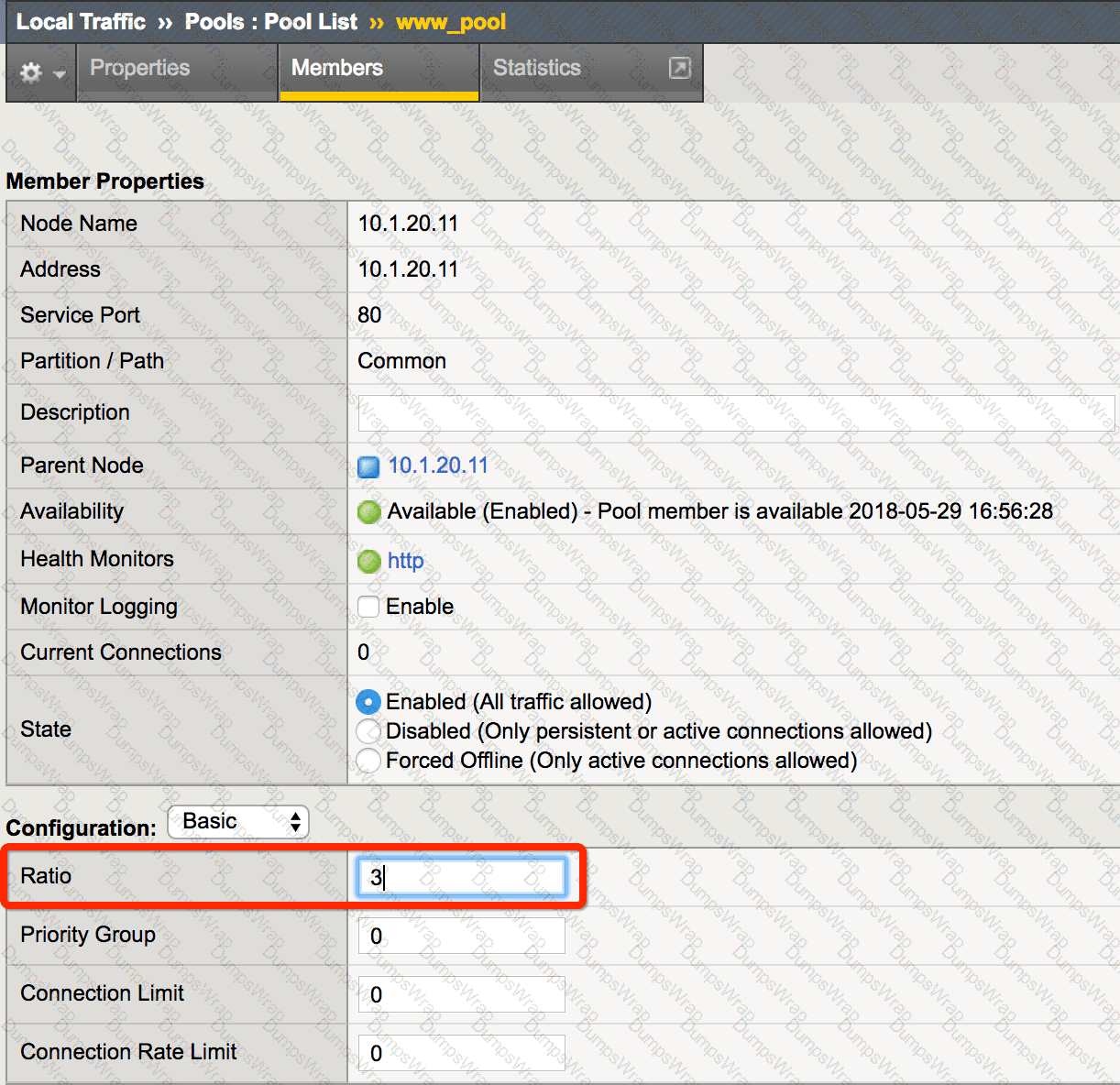

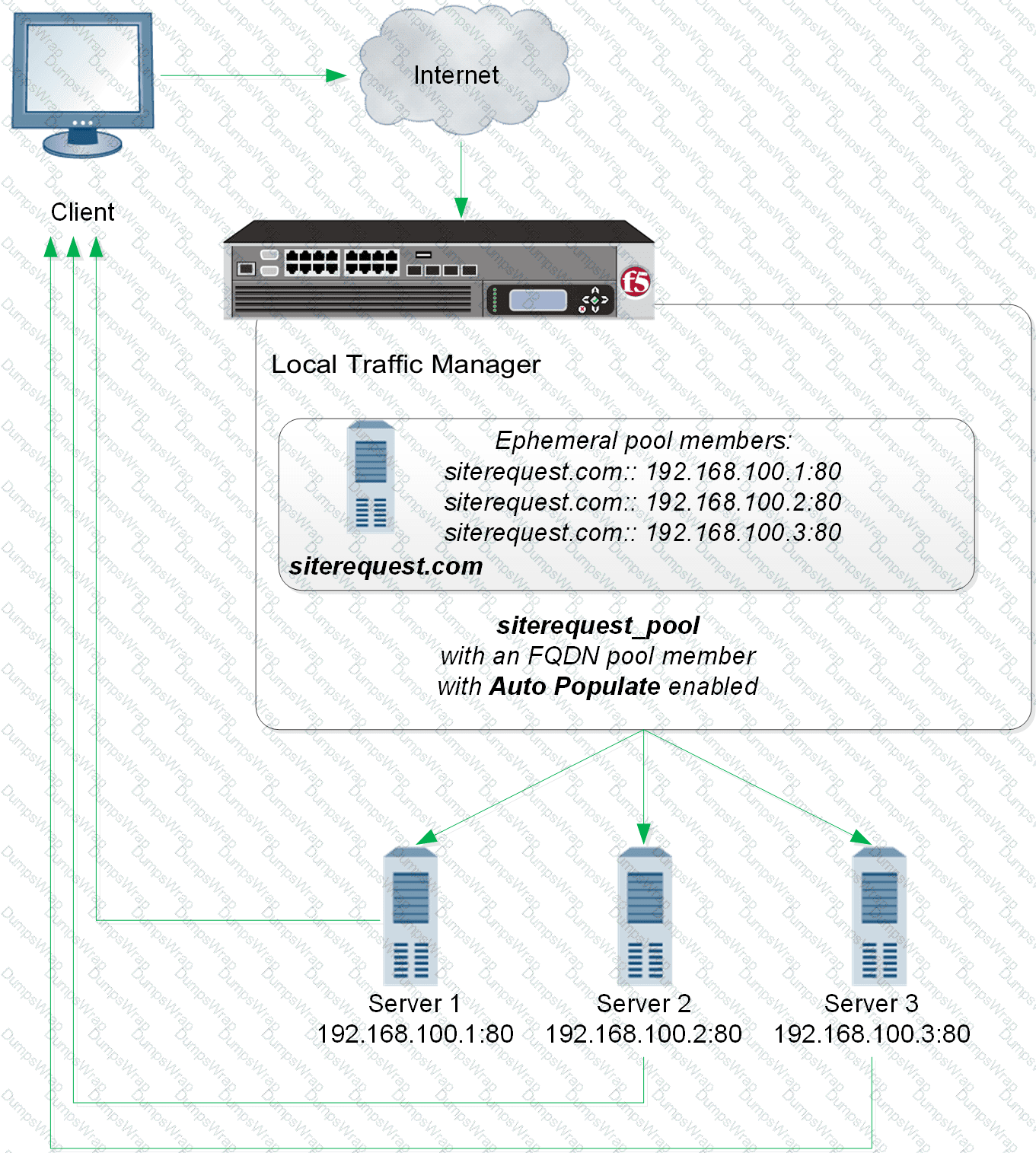

Load balancing is another core ADC function. BIG-IP LTM uses pools and configured load-balancing algorithms to select an appropriate pool member for each connection or request. For example, with Round Robin, BIG-IP distributes incoming requests sequentially across available pool members. F5 identifies the load-balancing method as a fundamental property of a server pool.

Log collecting can occur as part of system administration and telemetry, but it is not one of the fundamental ADC functions being tested here. Screen sharing is an end-user collaboration capability and has no role in ADC traffic delivery.

Study Guide References/Topics: Application Delivery Controller Functions; SSL/TLS Offload; Virtual Servers and SSL Profiles; Pools; Load-Balancing Methods.

===============

The BIG-IP processing flow follows a specific sequence of events as a packet moves through the system.

TCP Handshake: Before any application-layer data (like HTTP) can be processed, a TCP connection must be established.

The First Event: The very first event triggered when a client completes the 3-way handshake with the virtual server is CLIENT_ACCEPTED .

Profile Influence: Even if an HTTP profile is attached, the system must first " accept " the connection at the protocol level. HTTP_REQUEST only triggers after the client sends data that the BIG-IP recognizes as a valid HTTP request. If a client connects but never sends a request, CLIENT_ACCEPTED will have fired, but HTTP_REQUEST will not.

The Forced Offline state is a critical administrative tool used during maintenance to ensure a device remains in a non-functional state relative to the traffic group.

Preventing Active Status: When a device is in " Forced Offline, " it is effectively disqualified from the HA election process. Even if the other peer fails, a device in Forced Offline will not become active. This is vital during maintenance (like firmware upgrades or hardware replacement) to prevent an unstable or half-configured device from attempting to process traffic.

Traffic Termination: Placing a device in Forced Offline triggers the system to stop accepting new connections and, depending on the configuration, can facilitate the termination of existing connections so that the administrator can perform work without the data plane actively utilizing system resources.

Persistence Handling: Unlike the " Disabled " state, Forced Offline ignores persistence records, ensuring that no new traffic is steered to the device via session affinity.

The primary distinction between Activ 41 e and Standby units revolves around which unit is currently processing traffic.

Traffic Objects (C & E): The unit in the 43 Active state is the only one that answers ARP requests for Virtual Server addresses and Floating Self-IPs . The Standby unit remains " quiet " for these addresses to avoid IP conflicts on the network.

Monitors (A - False): Both the Active and Standby units perform health monitors on pool members by default. This ensures that the Standby unit is ready to take over with an up-to-date view of the pool ' s health.

Failover (B - False): A failover trigger (like a VLAN fail-safe) causes the Active unit to go Standby and the Standby unit to go Active; it affects both.

Management (D - False): Configuration changes can technically be made on either unit (though it is best practice to make them on the Active unit) and then synchronized to the peer.
