On BIG-IP systems, authentication and authorization events are logged in /var/log/secure . This includes:

Successful and failed SSH login attempts

Invalid user authentication attempts

PAM (Pluggable Authentication Module) authentication failures

Access denials related to secure services

Why the other options are incorrect:

/var/log/messages contains general system messages and service events, not detailed authentication failures.

/var/log/audit records administrative configuration changes (who changed what and when), not login attempts.

/var/log/ltm logs traffic-management (TMM) and application-related events.

Therefore, the correct log file for investigating unauthorized SSH login attempts is /var/log/secure .

===========

When BIG-IP is configured to use remote authentication (such as LDAP), all authentication and authorization attempts —including successes and failures—are logged to /var/log/secure .

For LDAP-based administrative login issues, /var/log/secure contains:

LDAP authentication failures

PAM authentication errors

Authorization and access-denied messages

Details explaining why a remote user could not log in

Why the other options are incorrect:

/var/log/user.log is not a standard BIG-IP log file for authentication.

/var/log/ltm logs traffic management events, not user authentication.

/var/log/messages contains general system messages but not detailed authentication failure information.

Therefore, the correct log file to troubleshoot LDAP administrative login failures is /var/log/secure .

===========

The " Management Port " is distinct from TMM data ports. Configuration for global platform-level settings, including administrative access restrictions (IP Allow lists for SSH and HTTPS) for the management port, is found under System > Platform. This is a critical Control Plane hardening step to prevent unauthorized remote access

Here is the next batch of 10 questions from your document that are 100% related to BIG-IP

When restoring a UCS file to replacement hardware (RMA device) , the license from the original device is not valid on the new system. If the UCS restore attempts to load the old license, BIG-IP reports license errors such as “License is not operational” , which can prevent traffic objects (including pools and virtual servers) from loading correctly.

To avoid this issue, F5 documentation recommends restoring the UCS without the license , using the following command:

tmsh load /sys ucs < ucs filename > no-license

This approach:

Restores all configuration objects (LTM, networking, certificates, keys, etc.)

Excludes the invalid license tied to the old hardware

Allows the administrator to activate a new license separately on the replacement device

Why the other options are incorrect:

A. Remove the license information from the UCS archive Not supported or recommended; UCS files should not be manually modified.

B. Revoke the license prior to restoring License revocation does not prevent the UCS from attempting to load license data.

D. Reactivate the license on the new device using the manual activation method This must be done after restoring the UCS and does not prevent the restore failure itself.

Therefore, the correct and supported method to avoid this error is C .

===========

Comprehensive and Detailed Explanation From BIG-IP Administration Con 10 trol Plane Administration documents: Placing a device in the FORCED_OFFLINE state is a critical procedural concept for HA maintenance 111213 . 1415 Unlike simply being ' Standby 16 ' , the FORCED_OFFLINE state ensures tha 17 t the Control Plane will not participate in failover selection, effectively preventing the device from becoming ' Active ' even if the peer fails 18 . This state also allows the administrator to terminate existing connections to ensure no traffic is being processed during the maintenance window 19 .

The EUD is a 33hardware-level diagnostic tool that runs outside of the TMOS operating system. Because it is used when the system cannot boot or is in a pre-boot state, it cannot be accessed via the GUI or management network. The administrator must connect physically via the serial Console Port to interact with the boot menu and initiate the hardware tests.

The recommended and supported method for creating BIG-IP users from the CLI is through TMSH , using the authentication subsystem.

tmsh create auth user < username > prompt-for-password:

Properly creates the user within BIG-IP’s AAA/authentication framework

Encrypts the password securely

Ensures the user is stored and managed correctly in the BIG-IP configuration database

Is fully supported and documented

Why the other options are incorrect:

B is unsafe and unsupported because editing bigip.conf directly and storing clear-text passwords violates security and configuration management best practices.

C (f5adduser / f5passwd) is deprecated and not recommended for modern BIG-IP versions.

D creates a Linux system user only , not a BIG-IP administrative user, and will not allow access to the Configuration Utility or TMSH roles.

When a BIG-IP Administrator changes module provisioning (for example, enabling ASM on a system previously provisioned only for LTM ), the BIG-IP system must restart the Traffic Management Microkernel (TMM) process.

The TMM process is responsible for:

Traffic handling

LTM, ASM, and other traffic-processing modules

Enforcing security and application policies

Provisioning changes affect how traffic modules are loaded and integrated into TMM. As a result, TMM is restarted , which causes a temporary interruption of traffic processing . This is expected behavior and is why module provisioning changes should be planned during a maintenance window .

Why the other options are incorrect:

A. bd is related to blade/platform management, not module provisioning.

C. sshd handles SSH access and is not affected by provisioning changes.

D. httpd supports the Configuration Utility (GUI) and does not restart due to module provisioning.

Therefore, the correct answer is B. tmm .

===========

Managing the state of a device often involves restoring configuration backups known as User Configuration Set (UCS) files These archives contain the full system configuration, including licenses and SSL certificates. The Control Plane provides a dedicated management area for these files under System > Archives, where administrators can upload, create, and restore configuration snapshots

In netstat output:

0.0.0.0:443 means the service is bound to all available IPv4 interfaces on the system.

LISTEN indicates the service is actively waiting for incoming connection requests.

Therefore, this output confirms that a service (commonly HTTPS/443, such as the BIG-IP Configuration Utility or an application listener) is actively listening on all interfaces , making B the correct answer.

Why the other options are incorrect:

A would show 127.0.0.1:443 if it were loopback-only.

C is incorrect because LISTEN explicitly indicates readiness to accept connections.

D is unrelated; standby state does not affect socket binding shown by netstat.

Hence, the correct answer is B .

To re 27 port the current status of high availability for specific traffic, an administrator must verify the Traffic Group association 28 . In the Configuration Utility, Virtual Server properties include the Virtual Address settings where the ' Traffic Group ' is assigned 29292929 . If the Virtual Address is assigned to a floating traffic group (like traffic-group-1), it is configured to fail over to the standby member 30303030 .

The correct command is tmsh show /cm sync-status because the displayed output is operational synchronization status, not configuration data. In TMSH, show is used to display runtime or current operational state, while list is used to display saved configuration objects and configured properties. The output contains status fields such as Color , Status , Summary , and Details , showing that the BIG-IP device is In Sync and that both the sync-fail-test device group and device trust group have all devices consistent. This is live ConfigSync/device-group state information under the configuration management module /cm . Therefore, the command that generates this status output is tmsh show /cm sync-status . Option A is incorrect because tmsh list /cm sync-status would attempt to list configuration, not display the operational sync status shown in the exhibit.

=========

On BIG-IP systems, all authentication attempts for administrative access—including logins to the Configuration Utility (GUI) —are logged in /var/log/secure . This log file records:

Successful and failed login attempts

The username used

The authentication method (local, LDAP, RADIUS, etc.)

Access denials and PAM authentication errors

Why the other options are incorrect:

/var/log/pam/tallylog tracks account lockouts and failed attempt counters, not detailed login attempts.

/var/log/ltm logs traffic management events, not administrative authentication.

/var/log/httpd logs web server activity but does not record authentication success or failure for BIG-IP administrative users.

Therefore, the correct log file to verify whether a user attempted to log in to the BIG-IP Configuration Utility is /var/log/secure .

===========

NTP (Network Time Protocol) is vital for management connectivity and HA state synchronization. Correct time is required for log timestamping and device trust group communication 46 . To manage these settings, the administrator navigates to System > Configuration, where general system-level services like NTP and DNS are defined to ensure the Control Plane remains synchronized with the network environment.

A BIG-IP device group cannot be deleted if it still contains device members , even if one of those devices has already been decommissioned or is unreachable. Before deleting the device group, the administrator must explicitly remove the decommissioned device from the device group configuration .

Once the removed or unreachable device is deleted from the device group membership, the BIG-IP system allows the remaining administrator to successfully delete the device group.

Why the other options are incorrect:

A. Remove all members from the device group This is not required; the key requirement is removing the decommissioned device , not all members.

B. Make sure all members are in sync Synchronization status does not prevent device group deletion.

D. Disable the device group Device groups cannot be disabled; they must be modified or deleted.

Therefore, the correct prerequisite action is to remove the decommissioned device from the device group , making C the correct answer.

===========

Traffic Groups are the mechanism BIG-IP uses to control which device owns specific application traffic in a high-availability (HA) configuration. When maintenance is required on a device that is currently active for a traffic group , the correct and recommended action is to fail over that traffic group to another device in the device group.

Failing over the traffic group moves ownership of that traffic group (and the virtual servers associated with it) to another available device without forcing the entire device into standby.

This allows targeted maintenance while minimizing impact to other traffic groups that may still be active on the device.

Why the other options are incorrect:

A is unnecessary and incorrect; traffic groups are not recreated for routine maintenance.

C forces the entire device to standby, which may move more traffic than intended.

D (Demote) affects device trust/priority behavior and is not the standard or recommended method for moving traffic group ownership.

Therefore, selecting the Traffic Group and choosing Failover is the correct solution.

The BIG-IP Control Plane monitors the " Commit ID " of the configuration on all group members. When a change is made on the Standby unit, it becomes the member with the most recent configuration. The " Recommended Action " in the HA status dashboard will be to synchronize that specific device ' s configuration to the rest of the group to ensure consistency

BIG-IP provides two supported and documented methods to manually force a device into standby state in a high-availability (HA) configuration:

CLI method (A) :

tmsh run /sys failover device standby

This is the correct and supported TMSH command to force the local device to transition from active to standby .

Configuration Utility method (B) : Navigating to Device Management > Devices > Local Device (Self) and selecting Force to Standby performs the same operation through the GUI and is fully supported.

Why the other options are incorrect:

C is incorrect : Traffic Groups do not provide a “Force to Standby” option for the local device; traffic groups are used to manage which device owns specific traffic, not to force device-level failover.

D is incorrect : tmsh run /sys failover standby is not a valid TMSH command . The correct syntax requires device standby.

Thus, the correct answers are A and B .

Maintaining an accurate and synchronized clock across all members of a device group is a fundamental requir5ement for the BIG-IP Control P6lane to establis7h and maintain device tru8st9.

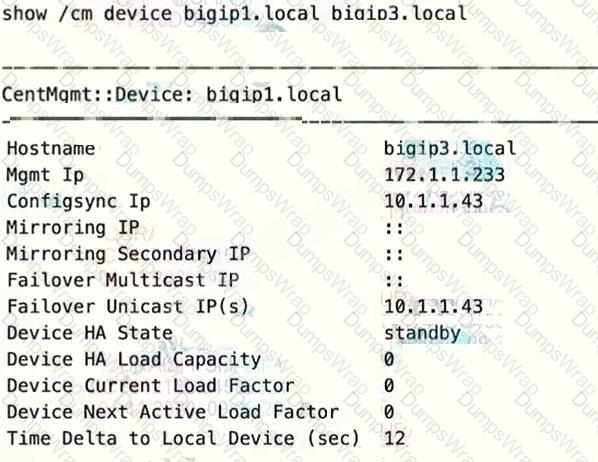

Time Delta Impact : As shown in the exhibit, the " Time Delta to Local Device (sec) " is 12 .

Trust Mechanism : Device trust relies on secure certificate-based communication (SSL/TLS) . If the time difference between devices is too large (typically more than a few seconds), the Control Plane cannot validate the certificates, leading to a failure in the trust relationship .

ConfigSync Failure : When device trust is broken due to time drift, the systems cannot verify the identity of the peer, which directly prevents the ConfigSync process from executing on the affected device, such as bigip3.local in this scenario.

Resolution : Administrators must ensure that all devices in a high availability pair are configured to use the same reliable NTP servers to keep their system clocks aligned.

The correct command for restoring an encrypted UCS archive via the command line is D. load /sys ucs < filepath > passphrase < password > .

In a High Availability pair, the " Force to Standby " action is a Control Plane command used to trigger a manual failover. This option is only logical and available on the device that is currently in the Active state. If the button is greyed out, it indicates that the administrator is already logged into the Standby unit, which has no active traffic groups to relinquish.

On a BIG-IP system, remote syslog server configuration is managed through the logging configuration framework. In the Configuration Utility, this is accessed via:

System > Logs > Configuration

This section allows the administrator to:

Define remote syslog destinations

Configure log publishers

Control which log types (system, audit, LTM, ASM, etc.) are forwarded to external syslog servers

Why the other options are incorrect:

A. System > Configuration > Local Traffic Used for traffic management settings, not logging.

C. System > Logs > Audit Displays audit log settings and content but does not configure remote syslog destinations.

D. System > Configuration > Device Used for device-level settings such as hostname and platform configuration, not logging.

Therefore, the correct location to reconfigure BIG-IP to send logs to new syslog servers is System > Logs > Configuration .

===========
