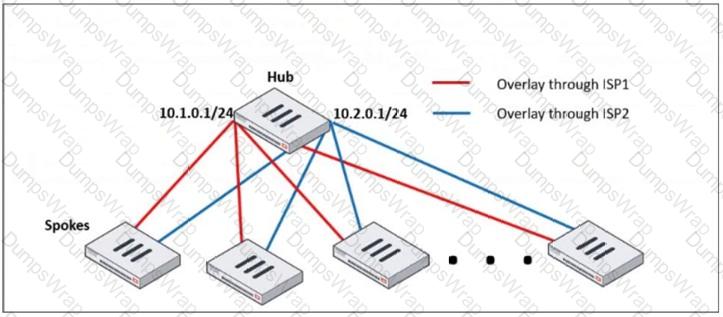

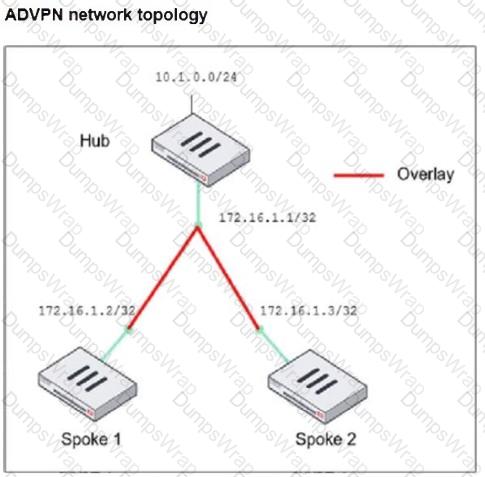

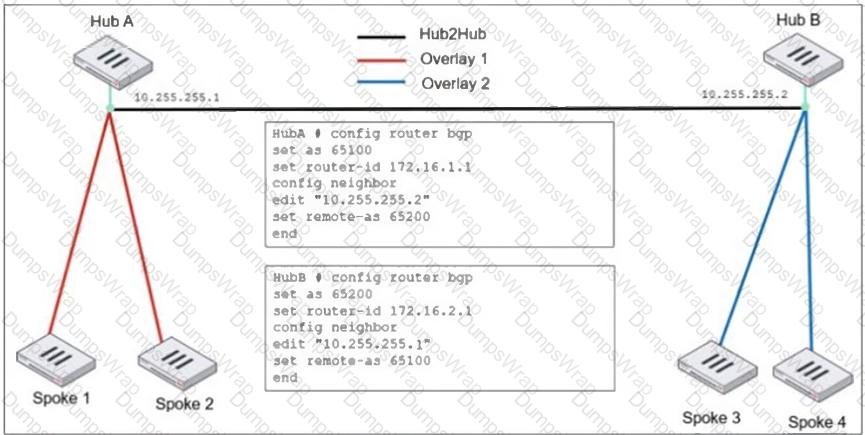

In the given ADVPN (Auto-Discovery VPN) topology, BGP is being used to dynamically establish routes between spokes. The neighbor-range configuration is crucial for simplifying BGP peer setup by automatically assigning neighbors based on their IP range.

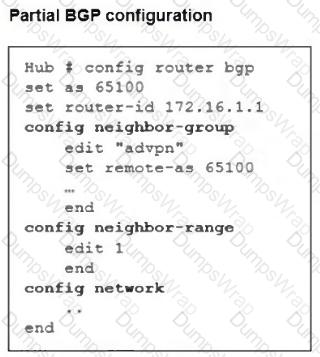

set neighbor-group advpn

● The neighbor-group parameter is used to apply pre-defined settings (such as AS number) to dynamically discovered BGP neighbors.

● The advpn neighbor-group is already defined in the configuration, and assigning it to the neighbor-range ensures consistent BGP settings for all spoke neighbors.

set prefix 172.16.1.0 255.255.255.0

● This command allows dynamic BGP peer discovery by defining a range of potential neighbor IPs (172.16.1.1 - 172.16.1.255).

● Since each spoke has a unique /32 IP within this subnet, this ensures that any spoke within the 172.16.1.0/24 range can automatically establish a BGP session with the hub.

" Zero phase 2 selectors " (also known as 0.0.0.0/0 selectors) are commonly used in dynamic VPN environments like ADVPN to allow any traffic to be routed into the tunnel. However, because the selector itself does not define the network range, there is a risk of traffic being sent down " invalid paths " if the routing table is not properly maintained.

Assign tunnel IP: For dynamic routing protocols to function over an IPsec tunnel, the tunnel interfaces must have IP addresses assigned.

Routing protocols: To ensure traffic only follows valid paths, dynamic routing protocols (such as BGP or OSPF) must be used to populate the routing table with the specific prefixes that are actually reachable through each tunnel.

==============

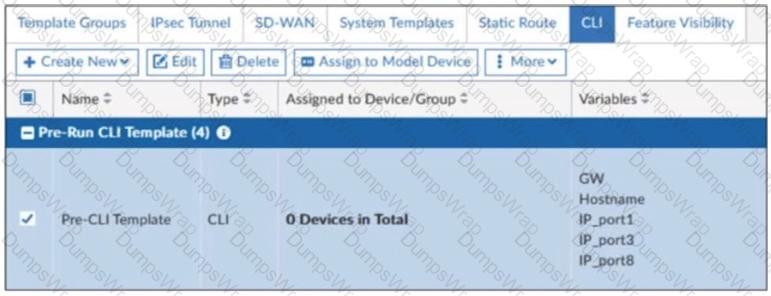

In FortiManager, pre-run CLI templates are used in Zero-Touch Provisioning (ZTP) and Low-Touch Provisioning (LTP) to configure a FortiGate device before it is fully managed by FortiManager.

These templates apply configurations when a device is initially provisioned. Once the pre-run CLI template is executed, FortiManager automatically unassigns it from the device because it is not meant to persist like other policy configurations. This prevents conflicts and ensures that the FortiGate configuration is not repeatedly applied after the initial setup.

Based on the FortiGate Infrastructure 7.6 study guide and the Hardware Acceleration technical documentation, the diagnose vpn tunnel list command provides the status of IPsec tunnel offloading to the Network Processor (NPU).

In the provided exhibit, the specific value npu_flag=20 (which corresponds to 0x20 in hexadecimal) indicates that the IPsec Security Association (SA) cannot be offloaded to the NPU. While the NPU may have visibility of the gateway IPs (npu_rgwy and npu_lgwy), the flag itself serves as a diagnostic indicator that the traffic must be processed by the system CPU rather than the hardware accelerator.

This lack of offloading typically occurs when the tunnel configuration uses a cipher (encryption algorithm) or an HMAC (authentication algorithm) that is not supported by the specific NPU model installed in the FortiGate. For example, if a tunnel is configured with a legacy or highly complex algorithm that the NP6 or NP7 chip is not designed to process in hardware, the FortiOS kernel handles the encryption and decryption, resulting in the npu_flag=20 status. Therefore, despite the presence of NPU-related fields, the specific flag value confirms that hardware acceleration is not active for these SAs.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In an enterprise architecture, LAN interface connections on a FortiGate (particularly for Internal Segmentation Firewalls or Data Center Firewalls) typically utilize two key technologies for connectivity and management:

802.3ad (Aggregate Interfaces): To provide redundancy and high-speed data transfer, firewalls connect to multiple physical switches using 802.3ad link aggregation, combining multiple physical interfaces into a single logical interface.

FortiLink: This is the proprietary protocol used for the management of FortiSwitch units by the FortiGate unit. When the LAN connection is to a FortiSwitch, FortiLink is used to extend the FortiGate ' s control over the switch ports as if they were local ports on the firewall itself.

==============

Based on the provided exhibit and the Fortinet Enterprise Firewall 7.6 Administrator curriculum, the architecture shown is a standard FortiLink deployment used to manage FortiSwitch units directly from the FortiGate.

FortiLink Interface (C): The exhibit explicitly shows the configuration of a logical interface designated as a FortiLink interface. This is a specialized Fortinet proprietary management protocol that allows the FortiGate to discover, authorize, and manage FortiSwitch devices. Once FortiLink is established, the FortiGate can manage switch ports, VLANs, and security policies on the switches as if they were local interfaces.

802.3ad Aggregate (A): To provide both redundancy and increased bandwidth, FortiLink is typically configured as an 802.3ad (Link Aggregation) aggregate interface. This allows the FortiGate to use multiple physical ports (in this case, port1 and port2) as a single logical pipe to the switches. In the exhibit ' s configuration snippet, the set type aggregate command is clearly visible, which confirms that an 802.3ad link is being used to facilitate the connection.

Regarding the incorrect options:

Option B is incorrect because SD-WAN is used for steering traffic across multiple WAN paths and is not the protocol used for internal switch management via FortiLink.

Option D is incorrect because while STP/RSTP is active on the FortiSwitches to prevent loops within the switching fabric, the FortiGate does not typically " run " STP on the FortiLink aggregate interface itself; rather, the link aggregation (LACP) and the FortiLink logic handle the path redundancy and loop prevention between the firewall and the managed switches.

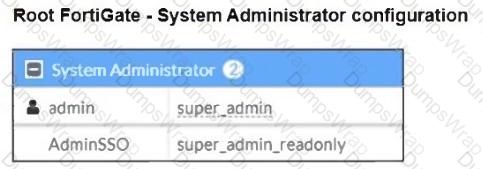

From the Root FortiGate - System Administrator Configuration exhibit:

● The AdminSSO account has the super_admin_readonly role.

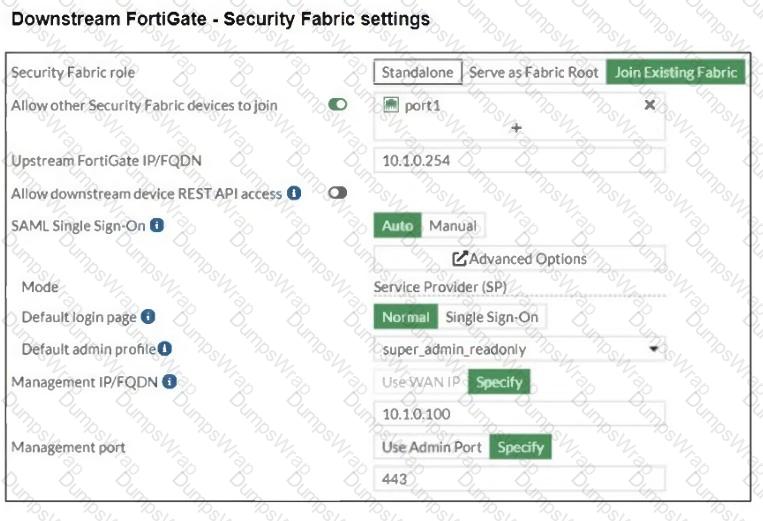

From the Downstream FortiGate - Security Fabric Settings exhibit:

● The Security Fabric role is set to Join Existing Fabric, meaning it will authenticate with the root FortiGate.

● SAML Single Sign-On (SSO) is enabled, and the default admin profile is set to super_admin_readonly.

When the AdminSSO user logs into the downstream FortiGate using SSO, the authentication request is sent to the root FortiGate, where AdminSSO has super_admin_readonly permissions. Since the downstream FortiGate inherits this permission through the Security Fabric configuration, the user will be granted super_admin_readonly access.

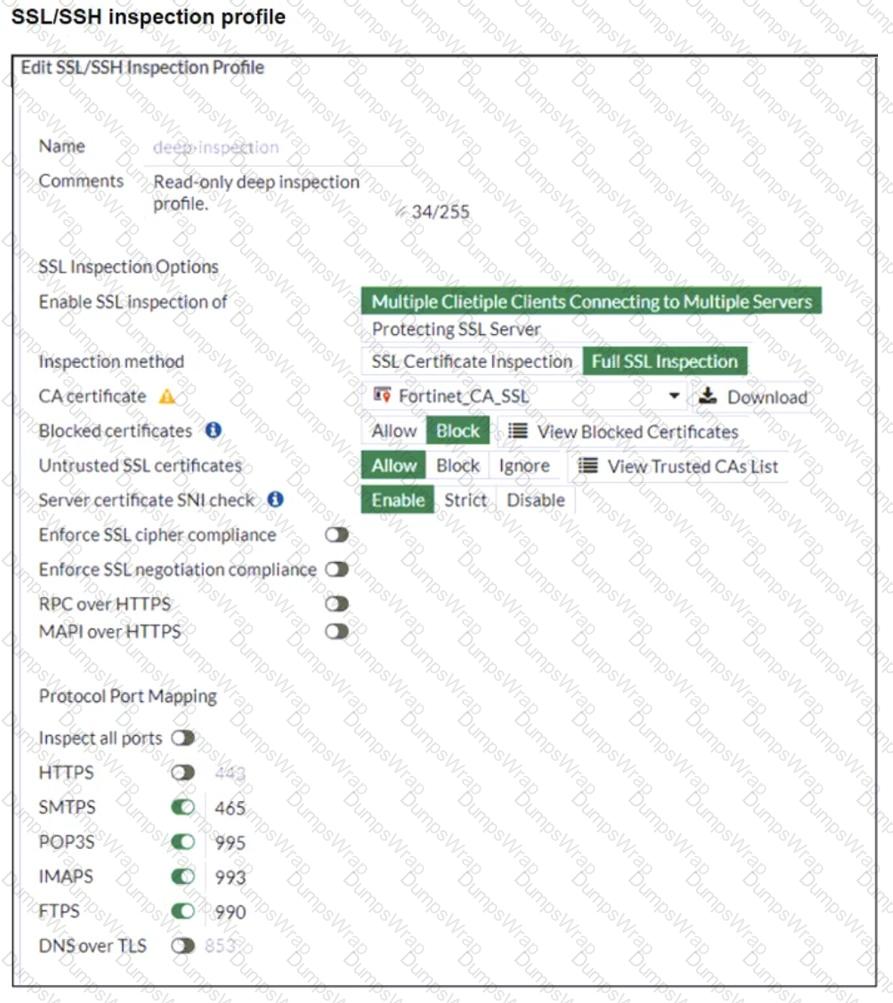

The FortiGate SSL/SSH inspection profile is configured for Full SSL Inspection, which is necessary to analyze encrypted HTTPS traffic. However, the firewall policy is protecting an SSL server (the Linux server hosting the website), and currently, the SSL/SSH profile only applies to client-side SSL inspection.

To detect HTTPS-based attacks targeting the Linux server:

● FortiGate must act as an SSL intermediary to inspect encrypted traffic destined for the web server.

● The administrator must upload the SSL certificate of the Linux web server to FortiGate so that the server-side SSL inspection can decrypt incoming HTTPS traffic before analyzing it.

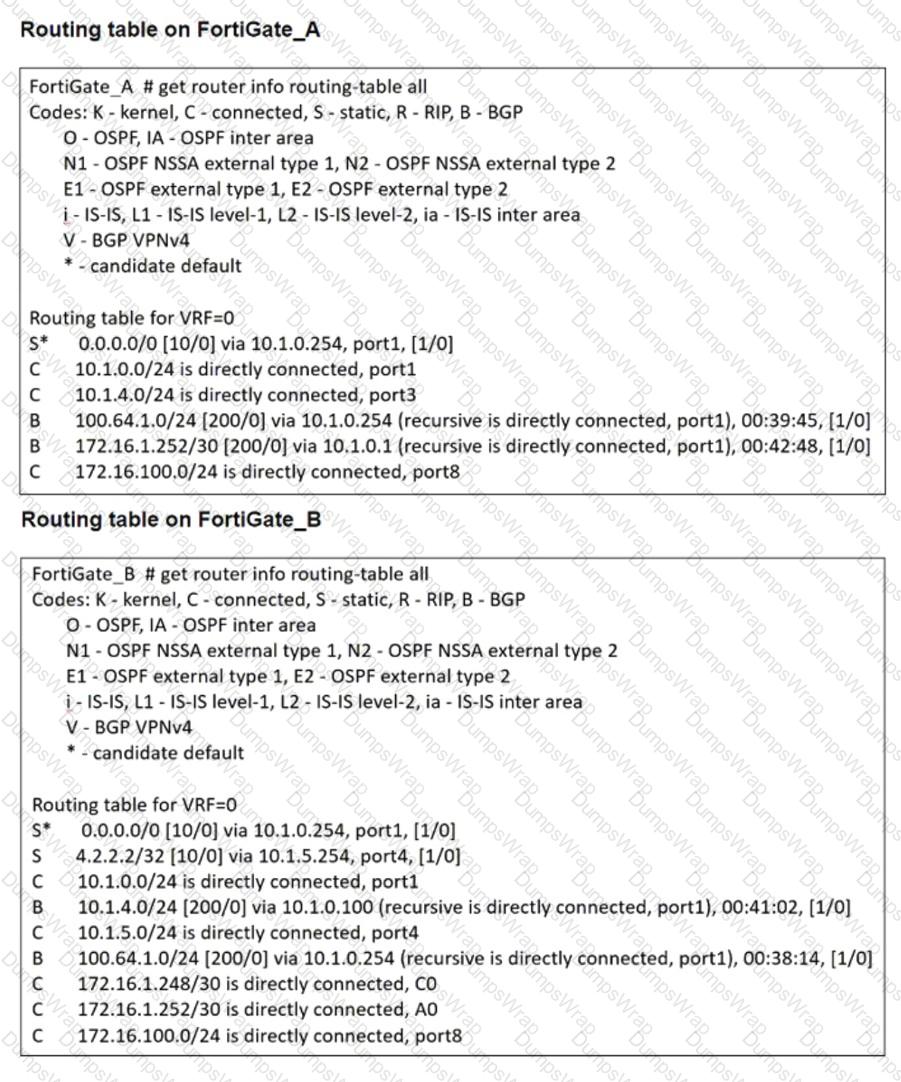

FortiGate_A and FortiGate_B are in the same autonomous system (AS), and FortiGate_A does not currently have route 172.16.1.248/30 in its routing table. However, FortiGate_B has this route as a connected route.

To dynamically advertise only 172.16.1.248/30 from FortiGate_B to FortiGate_A, the administrator must configure a BGP route map out on FortiGate_B that specifically permits only this prefix.

A BGP route map out on FortiGate_B controls which routes FortiGate_B advertises to FortiGate_A. If no filtering is applied, FortiGate_B might advertise all BGP-learned and connected routes, which is not what the administrator wants. The route map should include a prefix-list that explicitly allows only 172.16.1.248/30 and denies everything else.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

By default, FortiGate ' s SSL/SSH Inspection profile is configured to recognize and inspect HTTPS traffic on the standard port 443. To inspect HTTPS traffic on a non-standard port , such as 8443 , the administrator must modify the protocol-to-port mapping within the security profile.

In the SSL/SSH Inspection configuration (accessible via Policy & Objects > Security Profiles), there is a section for " HTTPS " where additional ports can be specified. By adding 8443 to this list alongside 443, the FortiGate ' s inspection engine (IPS and UTM) is instructed to apply SSL decryption and analysis to any traffic using port 8443 as if it were standard HTTPS traffic. Without this mapping, the firewall would treat the traffic as an unknown encrypted protocol and would not be able to perform deep content analysis.

==============

Network segmentation is a critical security practice used to divide a larger network into smaller, isolated sub-networks to improve security and performance.

VDOM (Virtual Domain): A FortiGate unit can be partitioned into multiple virtual domains (VDOMs) that act as independent units. This provides complete virtualization of the security configuration and network segmentation within a single physical device.

VLAN (Virtual Local Area Network): A VLAN is a logical subdivision of a network at Layer 2 that segregates devices into separate broadcast domains. The study guide explicitly lists " VLANs, VDOMs, zone-based interfaces, and micro-segmentation " as key features for internal segmentation firewalls (ISFW).

==============

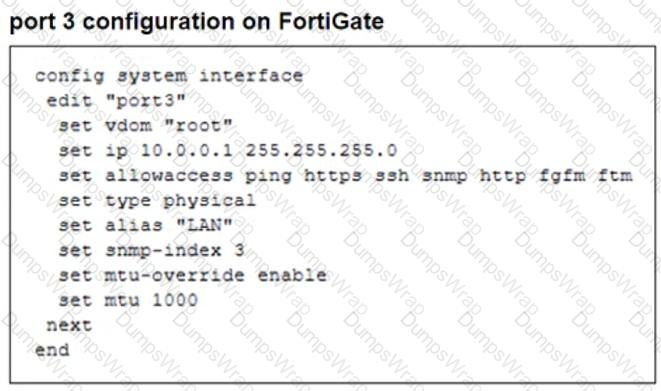

The issue occurs because FortiGate enforces the " do not fragment " (DF) bit in the packet, and the packet size exceeds the MTU of the network path. When the Windows PC1 (with an MTU of 1500 bytes) attempts to send a 1400-byte packet, the FortiGate interface (with an MTU of 1000 bytes) needs to fragment it. However, since the DF bit is set, FortiGate drops the packet instead of fragmenting it.

To resolve this, the user should adjust the ping packet size to fit within the path MTU. In this case, reducing the packet size to 972 bytes (1000 bytes MTU minus 28 bytes for the IP and ICMP headers) should allow successful transmission.

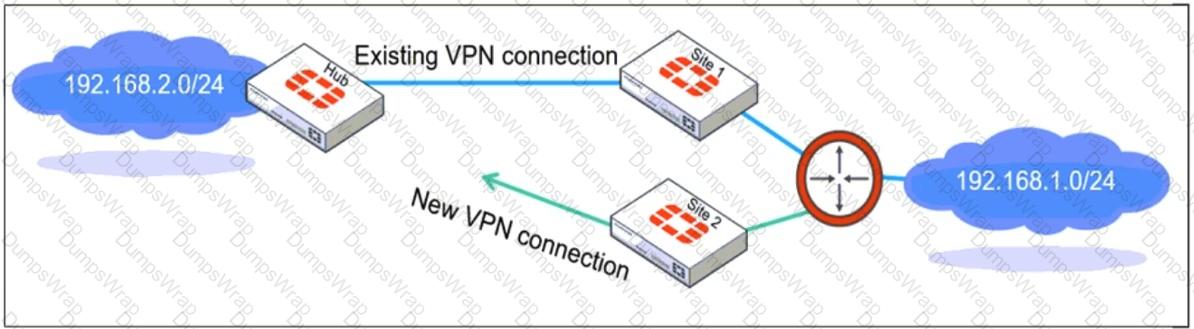

Zero phase selectors in IPsec Phase 2 mean that no specific traffic selectors (subnets) are defined, allowing any traffic to be encrypted through the VPN tunnel. This can cause unintended traffic forwarding issues and disrupt network operations.

To prevent this from happening during future migrations:

● Using routing protocols ensures that only specific subnets are advertised over the tunnel. Dynamic routing (such as OSPF or BGP) helps define which networks should use the tunnel, preventing unintended traffic from being encrypted.

● Clearly defining phase 2 selectors avoids the problem of encrypting all traffic by explicitly stating the allowed source and destination subnets. This prevents the tunnel from affecting unrelated network traffic.

In ADVPN (Auto-Discovery VPN) configurations, security concerns include protecting peer IDs during VPN establishment. Peer IDs are exchanged in the IKE (Internet Key Exchange) negotiation phase, and their exposure could lead to privacy risks or targeted attacks.

● IKEv2 encrypts peer IDs, making it more secure compared to IKEv1, where peer IDs can be exposed in plaintext in aggressive mode.

● IKEv2 also provides better performance and flexibility while supporting dynamic tunnel establishment in ADVPN.

In enterprise hub-and-spoke environments, the most scalable and efficient way to ensure the corporate Hub learns the internal networks of remote branches (such as 192.168.1.0/24) is through the use of dynamic routing protocols. Implementing OSPF over IPsec allows the Hub and Spoke units to exchange routing information automatically through the VPN tunnel. Once the OSPF adjacency is established over the IPsec interface, the spoke will advertise its local 192.168.1.0/24 network to the Hub, which then installs the route into its routing table. This avoids the administrative burden and potential errors associated with manually adding static routes for every remote site.

In BGP (Border Gateway Protocol), a neighbor (peer) configuration is required to establish a connection between two BGP routers. Since FortiGate A is connecting to the ISP (Autonomous System 10) from AS 30, the administrator must define the ISP ' s BGP router as a neighbor.

The config neighbor command is used to:

● Define the ISP ' s IP address as a BGP peer

● Specify the remote AS (AS 10 in this case)

● Allow BGP route exchanges between FortiGate A and the ISP

In an FGSP (FortiGate Session Life Support Protocol) cluster, sessions are synchronized between members to provide seamless failover or handle asymmetric traffic. By default, FortiGate only synchronizes connection-oriented sessions (TCP). For connectionless sessions such as ICMP or UDP , synchronization must be explicitly enabled using the session-pickup-connectionless setting under the HA configuration. Without this setting, connectionless traffic remains local to the device that processed it and is not reflected in the session table of peer members.

==============

IKEv2 (Internet Key Exchange version 2) is an improvement over IKEv1, offering enhanced security, efficiency, and flexibility in VPN configurations.

It includes stronger Diffie-Hellman (DH) groups, such as Elliptic Curve (ECP) groups.

IKEv2 supports stronger cryptographic algorithms, including Elliptic Curve Diffie-Hellman (ECDH) groups such as ECP256 and ECP384, providing improved security compared to IKEv1.

It supports the extensible authentication protocol (EAP).

IKEv2 natively supports EAP authentication, which allows integration with external authentication mechanisms such as RADIUS, certificates, and smart cards. This is particularly useful for remote access VPNs where user authentication must be flexible and secure.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Infrastructure study guide and Hardware Acceleration documentation, the Network Processor 7 (NP7) is the flagship hardware component designed to offload high-performance network traffic from the system CPU. A critical advancement of the NP7 over previous generations (such as the NP6) is its native support for Virtual eXtensible LAN (VXLAN) hardware acceleration.

In enterprise environments where VXLAN is used to extend Layer 2 segments over a Layer 3 network, the encapsulation and decapsulation of VXLAN headers can be computationally expensive. The NP7 provides specialized circuitry to perform these operations at line rate, significantly reducing latency and preventing CPU saturation. This allows the FortiGate to maintain high throughput even when handling complex overlay tunnels.

While the CP9 (Content Processor) (Option C) provides acceleration for SSL/TLS inspection and IPsec encryption, it does not handle network layer encapsulation like VXLAN. NTurbo (Option D) is a software feature that offloads firewall sessions to the network processors but is not a hardware chip itself. The SP5 (Option B) also supports VXLAN offloading in newer mid-range models, but the NP7 is the primary " specialized acceleration hardware " referenced for high-end enterprise performance in the 7.6 curriculum.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

The TCP Maximum Segment Size (MSS) defines the largest payload (the data portion of the segment, excluding TCP and IP headers) that a device can receive in a single TCP segment.

When you configure tcp-mss-sender and tcp-mss-receiver on a FortiGate interface or tunnel, the FortiGate intercepts the TCP 3-way handshake (SYN and SYN-ACK packets). It modifies the MSS value announced by the hosts to ensure that the resulting segments, once encapsulated (e.g., by IPsec or VXLAN), do not exceed the MTU of the path. By reducing the allowed payload size at the source, FortiGate prevents the need for fragmentation further down the line, which improves overall network efficiency and prevents packet loss in " MTU-tight " environments.

==============

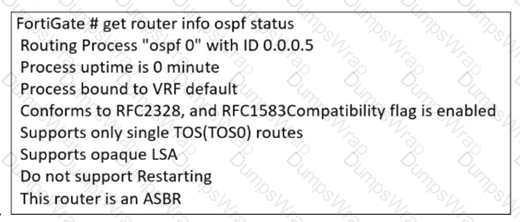

The issue described is a classic OSPF path selection behavior dictated by the version of the OSPF standard the device is following.

RFC 1583 vs. RFC 2328:

RFC 1583: This older standard does not distinguish between intra-area and inter-area paths when calculating the cost to an ASBR (Autonomous System Boundary Router) or an external route.

RFC 2328: This newer standard (which is the default behavior in FortiOS 7.6) introduces a preference for intra-area paths over inter-area paths to an ASBR. This is designed to prevent routing loops that could occur in specific complex topologies.

Analysis of the Exhibits:

FortiGate_A (HQ): Its routing table (image_bd08a0.jpg) shows two equal-cost paths (O E2) to the external destination 100.75.5.1/32, one via ISP1 (10.0.1.1) and one via ISP2 (10.0.11.1).

FortiGate_B (Branch): Its routing table (image_bd08a4.jpg) only shows a single path via FortiGate_A (10.0.2.1).

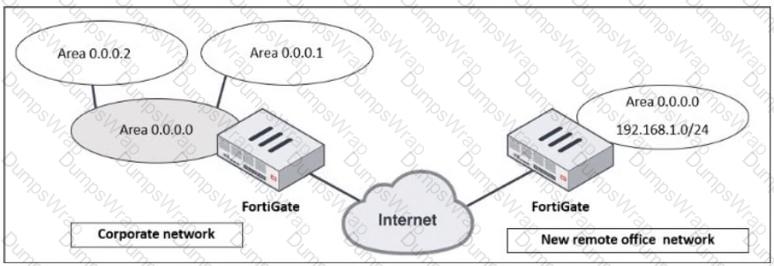

Topology: FortiGate_A acts as the ABR/ASBR. In this specific scenario (taken from the Enterprise Firewall Study Guide), one of the paths advertised by FortiGate_A reaches FortiGate_B as an inter-area path while the other is seen as an intra-area path.

Why only one route?

By default, rfc-1583-compatible is disabled on FortiGate. Therefore, it follows RFC 2328 logic.

Because RFC 2328 strictly prefers the intra-area path to the ASBR over the inter-area path, FortiGate_B discards the inter-area path and only installs the intra-area one in its routing table.

To allow FortiGate_B to use both paths (ECMP) for the external route, the administrator must enable RFC 1583 compatibility using the following CLI command:

config router ospf

set rfc1583-compatible enable

end

Once enabled, the FortiGate will stop preferring path types and will instead use the cost to determine the best path (or paths), allowing both routes to appear if the costs are equal.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Administration Guide and the Life of a Packet documentation (Parallel Path Processing), the FortiGate follows a specific, hardcoded sequence when processing the first packet of a new session. This process is divided into several stages: Ingress, Kernel, and Egress.

The very first stage is Ingress, where all packets accepted by a network interface are processed by the TCP/IP stack. Immediately following this, the packet must pass through IP integrity header checking. This step involves reading the packet headers to verify that the packet is a valid protocol (TCP, UDP, ICMP, etc.) and that the header length is correct. This sanity check is performed before any other security functions, such as decryption (which occurs later in the Ingress stage) or the Reverse Path Forwarding (RPF) check (which occurs even later during the Routing step in the Kernel stage).

Installation of the session key (Option A) only occurs after the packet has matched a firewall policy and the session has been fully established and offloaded to the NPU. Therefore, IP integrity header checking is the absolute first security-related validation performed on an incoming packet.

The Fortinet FGSP (FortiGate Session Life Support Protocol) cluster allows session synchronization between two FortiGate devices to provide seamless failover. However, ICMP (ping) is a connectionless protocol, and by default, FortiGate does not synchronize connectionless sessions unless explicitly enabled.

In the exhibit:

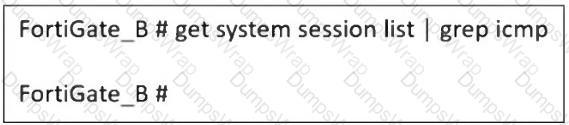

● The command get system session list | grep icmp on FortiGate_B returns no output, meaning that ICMP sessions are not being synchronized from FortiGate_A.

● If session-pickup-connectionless is disabled, FortiGate_B will not receive ICMP sessions, causing packet loss during failover.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

To deploy ADVPN (Auto-Discovery VPN) efficiently across an enterprise, Fortinet recommends centralized orchestration and standardized provisioning:

VPN Manager (A): Within FortiManager, the VPN Manager is the primary tool for orchestrating complex VPN topologies. It allows administrators to define a Hub-and-Spoke community and enable ADVPN features (like shortcuts) globally across all participating devices from a single interface.

IPsec templates (D): These templates (found under Provisioning Templates in FortiManager) allow administrators to define standard Phase 1 and Phase 2 settings once and apply them to multiple model devices or device groups. This ensures consistency across the enterprise and significantly reduces the manual configuration required for each spoke.

==============

In high-security environments, applying a restrictive IPS profile can sometimes lead to false positives , where legitimate application traffic is incorrectly identified as a threat and blocked. The standard troubleshooting procedure is to change the signature action to monitor mode .

Monitor mode allows the traffic to pass through while still generating logs in FortiAnalyzer or the FortiGate dashboard. By reviewing these logs, an administrator can identify the exact signature ID causing the issue and subsequently create an IPS sensor override or exception for that specific traffic, ensuring the application works while maintaining security for other threats.

==============

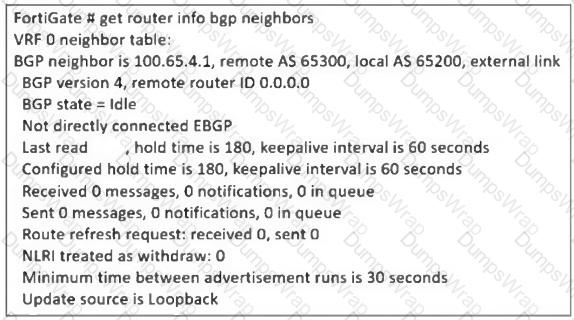

From the BGP neighbor status output, the key issue is that BGP is stuck in the " Idle " state, meaning the FortiGate is unable to establish a BGP session with its peer 100.65.4.1 (Remote AS 65300).

The output also shows:

● " Not directly connected EBGP " → This means the BGP peer is not on the same subnet, requiring multihop BGP.

● " Update source is Loopback " → Since a loopback interface is used, FortiGate must be configured to allow BGP neighbors over multiple hops.

To resolve this issue, the administrator must enable ebgp-enforce-multihop, which allows BGP sessions to be established even when the neighbors are not directly connected.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Administration Guide and the FortiGate Infrastructure study materials, inter-VDOM communication can be achieved using either software-based VDOM links or hardware-accelerated NPU VDOM links (vlinks).

While standard VDOM links (Option B) allow traffic to pass between VDOMs, they are processed by the system CPU, which can become a bottleneck in high-throughput environments. To ensure accelerated internet access as specified in the requirements, NPU vlinks (Option C) must be used. NPU vlinks are virtual interfaces created in pairs that allow traffic to be offloaded to the FortiGate’s Network Processor (NP6, NP7, etc.), significantly reducing latency and CPU overhead.

In the provided exhibit, the root VDOM has direct internet access, while VDOM1 and VDOMn do not. By configuring NPU vlinks between the non-root VDOMs and the root VDOM, you create a hardware-accelerated path. Traffic from the internal VDOMs is sent through the vlink to the root VDOM, which then forwards it to the Internet. This " hub-and-spoke " VDOM architecture, powered by NPU acceleration, ensures that all VDOMs share the internet connection without sacrificing performance.

In an IBGP (Internal BGP) network, all routers must be fully meshed, meaning every router must establish a BGP session with every other router in the same autonomous system (AS). This does not scale well in large networks due to the exponential increase in BGP sessions.

To optimize and scale IBGP, Route Reflectors (RRs) are used. A Route Reflector (RR) reduces the number of IBGP peer connections by allowing a centralized router (RR) to redistribute IBGP routes to other IBGP peers (called clients). This eliminates the need for a full mesh, significantly reducing BGP session overhead.

By configuring the route-reflector-client setting on IBGP peers, an administrator can:

● Scale IBGP sessions by reducing the number of direct BGP peer connections.

● Optimize the routing table by ensuring routes are efficiently propagated within the IBGP network.

● Eliminate the need for full mesh topology, making IBGP more manageable.

When FortiGate processes the first packets of a session, it follows a sequence of steps to determine how the traffic should be handled before establishing a session. The initial step involves:

● Access Control List (ACL) checks: Determines if the traffic should be allowed or blocked based on predefined security rules.

● Hardware Packet Engine (HPE) inspections: Ensures that packet headers are valid and comply with protocol standards.

● IP Integrity Header Checking: Verifies if the IP headers are intact and not malformed or spoofed.

Once these security inspections are completed and the session is validated, FortiGate then installs the session in hardware (if offloading is enabled) or processes it in software.

To have routes from one protocol (RIP) appear in another (OSPF), you must configure route redistribution on the router that acts as the Autonomous System Boundary Router (ASBR). In typical enterprise lab scenarios (such as those described in Lab 5), the primary boundary router (FortiGate_A or HQ-NGFW) is where redistribution is enabled to inject external routes into the OSPF backbone. By enabling redistribution for RIP under the OSPF process on this device, the RIP-learned routes are converted into OSPF External LSAs and propagated throughout the OSPF domain.

==============

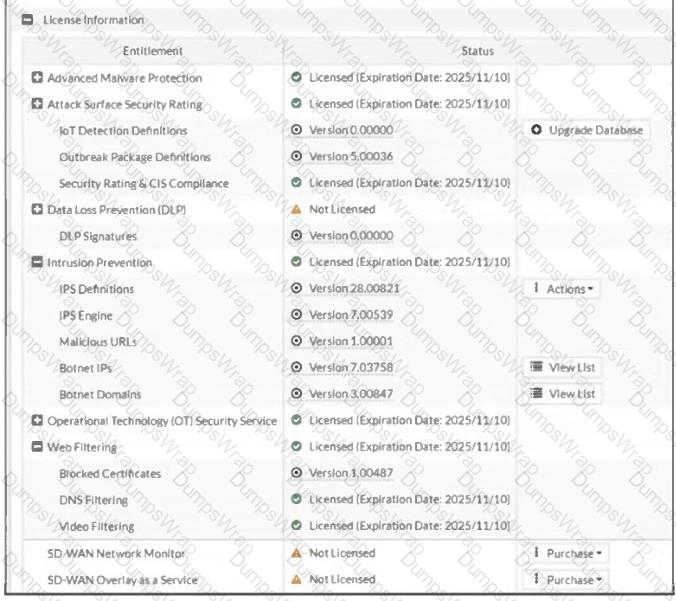

Unlike IPS or antivirus databases, FortiGate does not store a full web filter database locally. Instead, FortiGate queries FortiGuard (or FortiManager, if configured) dynamically to classify and filter web content in real time.

Key points:

● Web filtering works on a cloud-based model:

● When a user requests a website, FortiGate queries FortiGuard servers to check its category and reputation.

● The response is then cached locally for faster lookups on repeated requests.

● No local web filter database version:

● Unlike IPS and antivirus, which download and store signature updates locally, web filtering relies on cloud-based queries.

● This is why no database version appears in the GUI.

● Flow mode vs Proxy mode:

● In proxy mode, FortiGate can cache some web filter data, improving performance.

● In flow mode, all queries happen dynamically, with no locally stored database.

In a transparent mode Virtual Domain (VDOM) configuration, FortiGate operates as a Layer 2 bridge rather than performing Layer 3 routing. The set forward-domain < domain_ID > command is used to control how traffic is forwarded between interfaces within the same transparent VDOM.

A forward-domain acts as a broadcast domain, meaning only interfaces with the same forward-domain ID can exchange traffic. This setting is commonly used to separate different VLANs or network segments within the transparent VDOM while still allowing FortiGate to apply security policies.

The best way to block outdated SSL/TLS versions is to configure the SSL/SSH inspection profile to enforce a minimum SSL/TLS version and disable weak SSL versions.

By setting the minimum allowed SSL version in the HTTPS settings of the SSL/SSH inspection profile, FortiGate will:

● Block any connection using outdated SSL/TLS versions (such as SSLv3, TLS 1.0, or TLS 1.1).

● Enforce secure communication using only strong SSL/TLS versions (such as TLS 1.2 or TLS 1.3).

● Protect users from man-in-the-middle (MITM) and downgrade attacks that exploit weak encryption.
