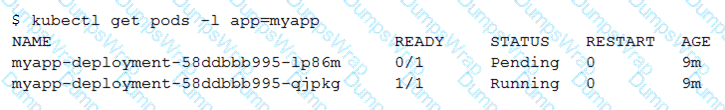

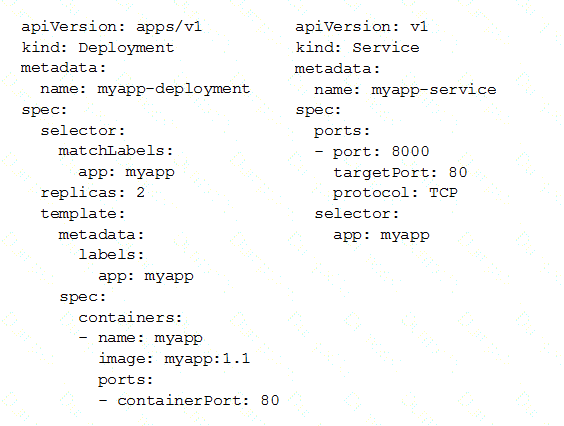

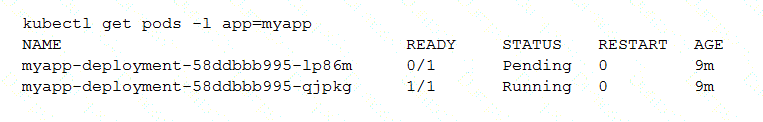

A deployment is responsible for keeping a set of pods running. A service is responsible for enabling network access to a set of pods.

Adding an API as a type provider

This page describes how to add an API to Google Cloud Deployment Manager as a type provider. To learn more about types and type providers, read the Types overview documentation.

A type provider exposes all of the resources of a third-party API to Deployment Manager as base types that you can use in your configurations. These types must be directly served by a RESTful API that supports Create, Read, Update, and Delete (CRUD).

If you want to use an API that is not automatically provided by Google with Deployment Manager, you must add the API as a type provider.

App engine is a regional service, which means the infrastructure that runs your app(s) is located in a specific region and is managed by Google to be redundantly available across all the zones within that region. Once an app engine deployment is created in a region, it cant be changed. The only way is to create a new project and create an App Engine instance in europe-west3, send all user traffic to this instance and delete the app engine instance in us-central.

Given that the new instance wants to access the application on the existing compute engine instance, these applications seem to be related so they should be within the same VPC. It is possible to have them in different VPCs and peer the VPCs but this is a lot of additional work and we can simplify this by choosing the option below (which is the answer)

1. Create a subnet in the same VPC, in europe-west1.

2. Create the new instance in the new subnet and use the first instance subnets private address as the endpoint. is the right answer.

We can create another subnet in the same VPC and this subnet is located in europe-west1. We can then spin up a new instance in this subnet. We also have to set up a firewall rule to allow communication between the two subnets. All instances in the two subnets with the same VPC can communicate through the internal IP Address

1. Create a service account. 2. Give the Cloud Run Invoker role to that service account for your Cloud Run application. 3. Create a Cloud Pub/Sub subscription that uses that service account and uses your Cloud Run application as the push endpoint.

The best option is to instruct the external consultant to generate an SSH key pair, and request the public key from the consultant. Then, add the public key to the instance yourself, and have the consultant access the instance through SSH with their private key. This way, you can grant the consultant access to the instance without requiring a Google account or exposing the instance’s public IP address. This option also follows the best practice of using user-managed SSH keys instead of service account keys for SSH access1.

Option A is not feasible because the external consultant does not have a Google account, and therefore cannot use Identity-Aware Proxy (IAP) to access the instance. IAP requires the user to authenticate with a Google account and have the appropriate IAM permissions to access the instance2. Option B is not secure because it exposes the instance’s public IP address, which can increase the risk of unauthorized access or attacks. Option D is not correct because it reverses the roles of the public and private keys. The public key should be added to the instance, and the private key should be kept by the consultant. Sharing the private key with anyone else can compromise the security of the SSH connection3.

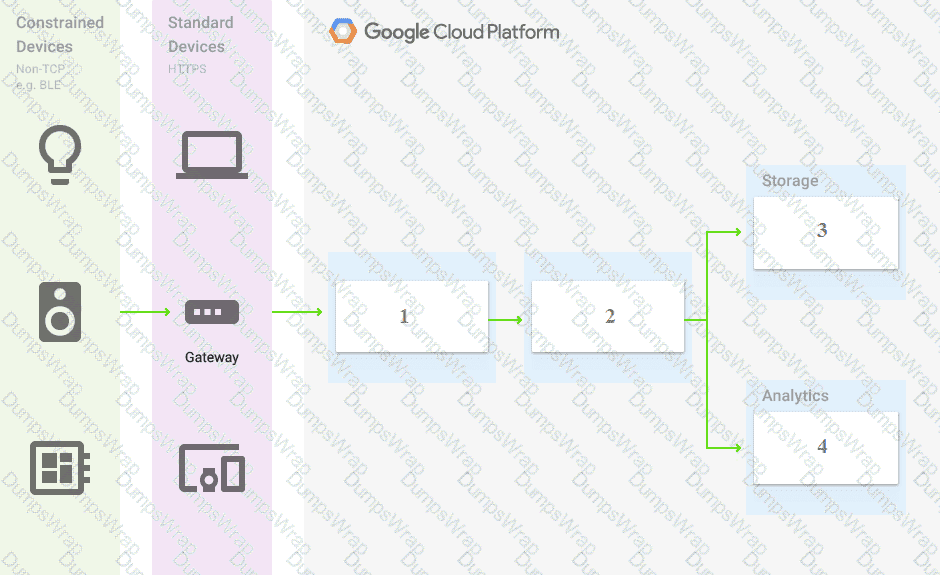

1:

2:

3:

For a web application (typically using HTTP/HTTPS), an Application Load Balancer is the recommended choice as it operates at Layer 7, providing features like content-based routing, SSL termination, and improved security. To expose the application publicly, you would need to use a public DNS zone. An A record in a public DNS zone maps a domain name to the public IP address of the Application Load Balancer. Using a CNAME record would also work but is generally recommended for aliasing one domain name to another, not directly to an IP address.

Option A & B: Network Load Balancers operate at Layer 4 (TCP/UDP) and lack the application-level features of an Application Load Balancer. Private DNS zones are for internal name resolution within your VPC, not for public access.

Option C: While an Application Load Balancer is the correct type, using a private DNS zone wouldn't make the web application publicly accessible.

Reference to Google Cloud Certified - Associate Cloud Engineer Documents:

The best practices for load balancing web applications on Google Cloud, including the use of Application Load Balancers for Layer 7 traffic and the configuration of public DNS records (A or CNAME) for public access, are detailed in the Google Cloud Load Balancing and Cloud DNS documentation, both important for the Associate Cloud Engineer certification.

Installing Jenkins

In this section, you use Cloud Marketplace to provision a Jenkins instance. You customize this instance to use the agent image you created in the previous section.

Go to the Cloud Marketplace solution for Jenkins.

Click Launch on Compute Engine.

Change the Machine Type field to 4 vCPUs 15 GB Memory, n1-standard-4.

Machine type selection for Jenkins deployment.

Click Deploy and wait for your Jenkins instance to finish being provisioned. When it is finished, you will see:

Jenkins has been deployed.

"Google Cloud VPC Network Peering allows internal IP address connectivity across two Virtual Private Cloud (VPC) networks regardless of whether they belong to the same project or the same organization."

while

"Cloud Interconnect provides low latency, high availability connections that enable you to reliably transfer data between your on-premises and Google Cloud Virtual Private Cloud (VPC) networks."

and

"HA VPN is a high-availability (HA) Cloud VPN solution that lets you securely connect your on-premises network to your VPC network through an IPsec VPN connection in a single region."

Cloud Debugger helps inspect the state of an application, at any code location, without stopping or slowing down the running app

The requirements specify a relational database that provides global scale and is a managed service.

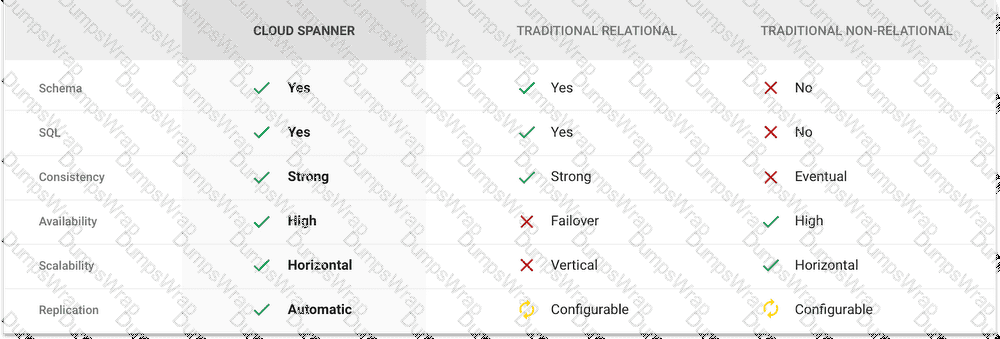

Cloud Spanner is Google Cloud's globally distributed, strong-consistency database service. It provides limitless horizontal scaling while maintaining the structure of a relational database, making it the best fit for an application with a rapidly growing, global user base. As a fully managed service, it inherently minimizes management and administration efforts.

Cloud SQL (Option A) is a regional managed relational database and does not offer the same unlimited, global horizontal scaling capability as Spanner.

Change your default zone and region in the metadata server Note: This only applies to the default configuration. You can change the default zone and region in your metadata server by making a request to the metadata server. For example: gcloud compute project-info add-metadata \ --metadata google-compute-default-region=europe-west1,google-compute-default-zone=europe-west1-b The gcloud command-line tool only picks up on new default zone and region changes after you rerun the gcloud init command. After updating your default metadata, run gcloud init to reinitialize your default

C:\GCP\appeng>gcloud config list

[core]

account = xxx@gmail.com

disable_usage_reporting = False

project = my-first-demo-xxxx

GKE Autopilot is a mode of operation in GKE where Google manages the underlying infrastructure, including nodes, node pools, and their upgrades. This significantly reduces the management and operational overhead for the user, allowing teams to focus solely on deploying and managing their containerized applications. Since the applications are not exposed publicly, the zonal or regional nature of the cluster primarily impacts availability within Google Cloud, and Autopilot is available for both. Autopilot minimizes the operational burden, which is a key requirement.

Option A: A Standard zonal GKE cluster requires you to manage the nodes yourself, including sizing, scaling, and upgrades, increasing operational overhead compared to Autopilot.

Option B: Manually installing and managing Kubernetes on a fleet of Compute Engine instances involves the highest level of management overhead, which contradicts the requirement to minimize it.

Option D: A Standard regional GKE cluster provides higher availability than a zonal cluster by replicating the control plane and nodes across multiple zones within a region. However, it still requires you to manage the underlying nodes, unlike Autopilot.

Reference to Google Cloud Certified - Associate Cloud Engineer Documents:

The different modes of GKE operation, including Standard and Autopilot, and their respective management responsibilities and benefits, are clearly outlined in the Google Kubernetes Engine documentation, a core topic for the Associate Cloud Engineer certification. The emphasis on reduced operational overhead with Autopilot is a key differentiator.

Signed URLs are used to give time-limited resource access to anyone in possession of the URL, regardless of whether they have a Google

Standard persistent disks are efficient and economical for handling sequential read/write operations, but they aren't optimized to handle high rates of random input/output operations per second (IOPS). If your apps require high rates of random IOPS, use SSD persistent disks. SSD persistent disks are designed for single-digit millisecond latencies. Observed latency is application specific.

Folders are nodes in the Cloud Platform Resource Hierarchy. A folder can contain projects, other folders, or a combination of both. Organizations can use folders to group projects under the organization node in a hierarchy. For example, your organization might contain multiple departments, each with its own set of Google Cloud resources. Folders allow you to group these resources on a per-department basis. Folders are used to group resources that share common IAM policies. While a folder can contain multiple folders or resources, a given folder or resource can have exactly one

You create the service account in proj-sa and take note of the service account email, then you go to proj-vm in IAM > ADD and add the service account's email as new member and give it the Compute Storage Admin role.

Custom roles enable you to enforce the principle of least privilege, ensuring that the user and service accounts in your organization have only the permissions essential to performing their intended functions.

The goal is to create a landing zone facilitating private IP communication across production projects and apply organization-wide firewall rules, following best practices and minimizing operational costs.

Network Structure:Individual VPCs with Peering (A, B): While VPC Peering allows private connectivity, managing a full mesh or complex peering topology across many projects becomes operationally complex and can hit peering limits. It's not the recommended pattern for centralized connectivity in a landing zone.

Shared VPC (C, D): This is the Google-recommended practice for scenarios where resources from multiple projects need to communicate privately within a common VPC network. A central host project owns the network, and service projects use it. This simplifies network administration and connectivity.

Firewall Rules:Organization Policies (A, C): These enforce organizational constraints (e.g., disable external IPs, restrict locations) but do not define specific network firewall rules (like allowing TCP ports).

Hierarchical Firewall Policies (B, D): These allow defining firewall rules at the Organization or Folder level, which are inherited by resources in descendant projects/folders. This is the mechanism to apply consistent firewall rules (like allowing specific TCP ports) across all VMs in the organization (or a specific folder) efficiently, without managing rules in each individual VPC or project.

Combining Shared VPC for the network structure (best practice for cross-project private communication and central management) with Hierarchical Firewall Policies (for applying organization-wide firewall rules) meets all requirements efficiently and follows Google recommendations.

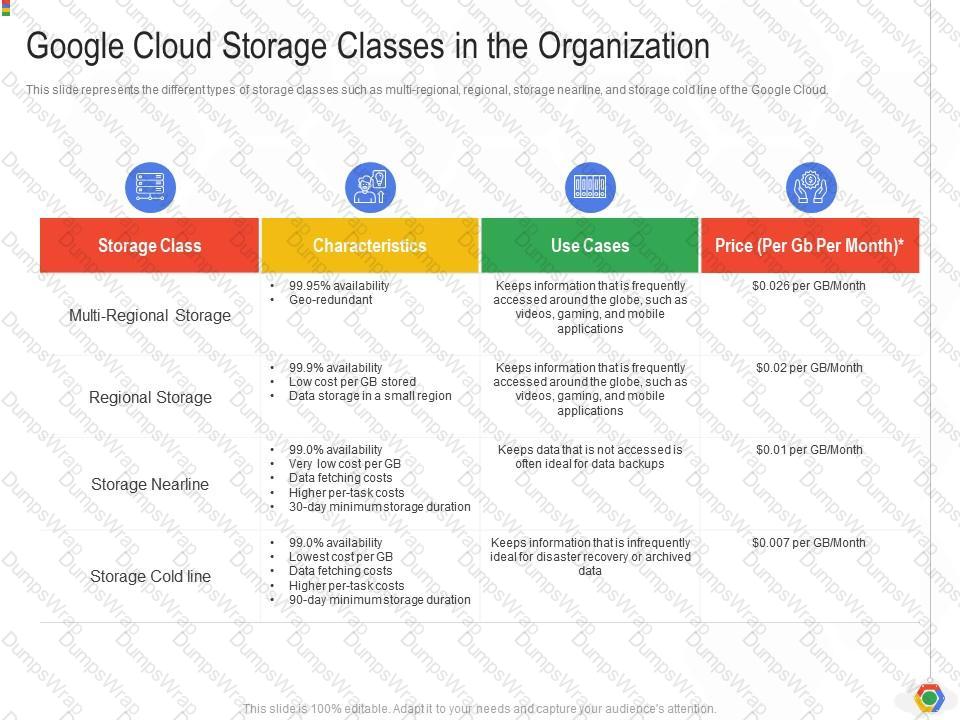

# The object's time spent set at the original storage class counts towards any minimum storage duration that applies for the new storage class.

To minimize latency for global users and support growth across multiple geographical regions, you must deploy your resources in those regions and use a global load balancing service.

Action B (Multi-Region Deployment): Deploying VMs in multiple regions closest to your users is necessary to reduce latency (by shortening the physical distance data must travel) and support regional growth.

Action C (Global External Application Load Balancer): The external Application Load Balancer (Global) is the Google-recommended Layer 7 solution for applications that require global reach. It provides a single anycast IP address and directs users to the nearest healthy backend, thus minimizing latency globally.

Creating scheduled snapshots for persistent disk This document describes how to create a snapshot schedule to regularly and automatically back up your zonal and regional persistent disks. Use snapshot schedules as a best practice to back up your Compute Engine workloads. After creating a snapshot schedule, you can apply it to one or more persistent

Navigate to Stackdriver Logging and select resource.labels.project_id=*. is not right.

Log entries are held in Stackdriver Logging for a limited time known as the retention period  which is 30 days (default configuration). After that, the entries are deleted. To keep log entries longer, you need to export them outside of Stackdriver Logging by configuring log sinks.

Configure a Cloud Scheduler job to read from Stackdriver and store the logs in BigQuery. Configure the table expiration to 60 days. is not right.

While this works, it makes no sense to use Cloud Scheduler job to read from Stackdriver and store the logs in BigQuery when Google provides a feature (export sinks) that does exactly the same thing and works out of the box.

Create a Stackdriver Logging Export with a Sink destination to Cloud Storage. Create a lifecycle rule to delete objects after 60 days. is not right.

You can export logs by creating one or more sinks that include a logs query and an export destination. Supported destinations for exported log entries are Cloud Storage, BigQuery, and Pub/Sub.

Sinks are limited to exporting log entries from the exact resource in which the sink was created: a Google Cloud project, organization, folder, or billing account. If it makes it easier to exporting from all projects of an organication, you can create an aggregated sink that can export log entries from all the projects, folders, and billing accounts of a Google Cloud organization.

Either way, we now have the data in Cloud Storage, but querying logs information from Cloud Storage is harder than Querying information from BigQuery dataset. For this reason, we should prefer Big Query over Cloud Storage.

Create a Stackdriver Logging Export with a Sink destination to a BigQuery dataset. Configure the table expiration to 60 days. is the right answer.

You can export logs by creating one or more sinks that include a logs query and an export destination. Supported destinations for exported log entries are Cloud Storage, BigQuery, and Pub/Sub.

Sinks are limited to exporting log entries from the exact resource in which the sink was created: a Google Cloud project, organization, folder, or billing account. If it makes it easier to exporting from all projects of an organication, you can create an aggregated sink that can export log entries from all the projects, folders, and billing accounts of a Google Cloud organization.

Either way, we now have the data in a BigQuery Dataset. Querying information from a Big Query dataset is easier and quicker than analyzing contents in Cloud Storage bucket. As our requirement is to Quickly analyze the log contents, we should prefer Big Query over Cloud Storage.

Also, You can control storage costs and optimize storage usage by setting the default table expiration for newly created tables in a dataset. If you set the property when the dataset is created, any table created in the dataset is deleted after the expiration period. If you set the property after the dataset is created, only new tables are deleted after the expiration period.

For example, if you set the default table expiration to 7 days, older data is automatically deleted after 1 week.

Choosing a region and zone You choose which region or zone hosts your resources, which controls where your data is stored and used. Choosing a region and zone is important for several reasons:

Handling failures

Distribute your resources across multiple zones and regions to tolerate outages. Google designs zones to be independent from each other: a zone usually has power, cooling, networking, and control planes that are isolated from other zones, and most single failure events will affect only a single zone. Thus, if a zone becomes unavailable, you can transfer traffic to another zone in the same region to keep your services running. Similarly, if a region experiences any disturbances, you should have backup services running in a different region. For more information about distributing your resources and designing a robust system, see Designing Robust Systems. Decreased network latency To decrease network latency, you might want to choose a region or zone that is close to your point of

Using the gcloud tool, execute the gcloud iam roles describe roles/spanner.databaseUser command on Cloud Shell. Attach the users to a newly created Google group and add the group to the role.

The goal is to create a serverless, scalable, and asynchronous transaction processing system with minimal management overhead.

Serverless Requirement:Options involving installing Kafka on VMs (A, B) or using VM instances for processing (B, C) introduce management overhead associated with VMs (patching, scaling configuration, OS management) and Kafka cluster management, violating the serverless and minimal management criteria.

Asynchronous Requirement:Both Kafka and Pub/Sub can handle asynchronous messaging. However, Pub/Sub is Google Cloud's fully managed, serverless messaging service, inherently minimizing management overhead compared to self-managed Kafka on VMs.

Scalability and Processing:Cloud Run is a fully managed, serverless platform that automatically scales based on traffic, suitable for processing transactions without managing underlying infrastructure. VM instances require manual scaling configuration or managed instance groups, adding overhead.

Combining Pub/Sub for asynchronous message ingestion (fully managed, serverless) and Cloud Run for processing (fully managed, serverless, scalable) directly meets all requirements: serverless, scalable, asynchronous, and minimal management overhead. Option D is the only one that uses fully serverless components for both ingestion and processing.

Managed instance groups offer autoscaling capabilities that let you automatically add or delete instances from a managed instance group based on increases or decreases in load (CPU Utilization in this case). Autoscaling helps your apps gracefully handle increases intraffic and reduce costs when the need for resources is lower. You define the autoscaling policy and the autoscaler performs automatic scaling based on the measured load (CPU Utilization in this case). Autoscaling works by adding more instances to your instance group when there is more load (upscaling), and deleting instances when the need for instances is lowered (downscaling).

We need to apply the GCP Best practices. roles/browser Browser Read access to browse the hierarchy for a project, including the folder, organization, and IAM policy. This role doesn't include permission to view resources in the

Google Cloud provides Cloud Audit Logs, which is an integral part of Cloud Logging. It consists of two log streams for each project: Admin Activity and Data Access, which are generated by Google Cloud services to help you answer the question of who did what, where, and when? within your Google Cloud projects.

Billing Administrators can not create a new billing account, and the project is presumably already created. Project Billing Manager allows you to link the created billing account to the project. It is vague on how the billing account gets created but by process of elimination

Google HTTP(S) Load Balancing has native support for the WebSocket protocol when you use HTTP or HTTPS, not HTTP/2, as the protocol to the backend.

So the next possible step is to Meet with the cloud enablement team to discuss load balancer options.

We dont need to convert WebSocket code to use HTTP streaming or Redesign the application, as WebSocket support is offered by Google HTTP(S) Load Balancing. Reviewing the encryption requirements is a good idea but it has nothing to do with WebSockets.

Understanding IAM custom roles

Key Point: Custom roles enable you to enforce the principle of least privilege, ensuring that the user and service accounts in your organization have only the permissions essential to performing their intended functions.

Basic concepts

Custom roles are user-defined, and allow you to bundle one or more supported permissions to meet your specific needs. Custom roles are not maintained by Google; when new permissions, features, or services are added to Google Cloud, your custom roles will not be updated automatically.

When you create a custom role, you must choose an organization or project to create it in. You can then grant the custom role on the organization or project, as well as any resources within that organization or project.

If an application uses third-party or custom identities and needs to access a resource, such as a BigQuery dataset or a Cloud Storage bucket, it must perform a transition between principals. Because Google Cloud APIs don't recognize third-party or custom identities, the application can't propagate the end-user's identity to BigQuery or Cloud Storage. Instead, the application has to perform the access by using a different Google identity.

The requirement is for an infrastructure-as-code (IaC) solution that can manage Kubernetes resources and other cloud resources across multiple cloud providers (Google Cloud and two others).

Option A (YAML manifests): YAML manifests are primarily used for defining Kubernetes objects, not for provisioning general cloud resources (like VPCs, IAM policies, databases) across different cloud providers.

Option C (Python + SDKs): While possible, writing custom scripts using each provider's SDK requires significant development effort to handle state management, dependencies, and provider differences. It essentially reinvents much of what dedicated IaC tools provide and is not a standard IaC approach.

Option D (Config Connector): Config Connector allows managing Google Cloud resources using Kubernetes-style manifests and APIs. It is specific to Google Cloud and cannot manage resources in other cloud providers.

Option B (Terraform): Terraform is an open-source IaC tool explicitly designed for building, changing, and versioning infrastructure safely and efficiently across multiple cloud providers and on-premises data centers. It uses providers for different platforms (GCP, AWS, Azure, Kubernetes, etc.), allowing a unified workflow to manage diverse resources across the required environments (Google Cloud, other clouds, Kubernetes).

Terraform is the standard tool for multi-cloud IaC automation as described in the scenario.

In Google compute engine, if predefined machine types don’t meet your needs, you can create an instance with custom virtualized hardware settings. Specifically, you can create an instance with a custom number of vCPUs and custom memory, effectively using a custom machine type. Custom machine types are ideal for the following scenarios:

   1. Workloads that aren’t a good fit for the predefined machine types that are available to you.

   2. Workloads that require more processing power or more memory but don’t need all of the upgrades that are provided by the next machine type level.

In our scenario, we only need a memory upgrade. Moving to a bigger instance would also bump up the CPU which we don’t need so we have to use a custom machine type. It is not possible to change memory while the instance is running so you need to first stop the instance, change the memory and then start it again. See below a screenshot that shows how CPU/Memory can be customized for an instance that has been stopped.

What is Google Cloud Memorystore?

Overview. Cloud Memorystore for Redis is a fully managed Redis service for Google Cloud Platform. Applications running on Google Cloud Platform can achieve extreme performance by leveraging the highly scalable, highly available, and secure Redis service without the burden of managing complex Redis deployments.

Cloud SQL Auth Proxy: This proxy ensures secure connections to your Cloud SQL database by automatically handling encryption (SSL/TLS) and IAM-based authentication. It simplifies the management of secure connections without needing to manage SSL/TLS certificates manually. IAM Database Authentication: This allows you to use IAM credentials to authenticate to the database, providing a unified and secure authentication mechanism that integrates seamlessly with Google Cloud IAM.

Best practices for persistent disk snapshots

You can create persistent disk snapshots at any time, but you can create snapshots more quickly and with greater reliability if you use the following best practices.

Creating frequent snapshots efficiently

Use snapshots to manage your data efficiently.

Create a snapshot of your data on a regular schedule to minimize data loss due to unexpected failure.

Improve performance by eliminating excessive snapshot downloads and by creating an image and reusing it.

Set your snapshot schedule to off-peak hours to reduce snapshot time.

Snapshot frequency limits

Creating snapshots from persistent disks

You can snapshot your disks at most once every 10 minutes. If you want to issue a burst of requests to snapshot your disks, you can issue at most 6 requests in 60 minutes.

If the limit is exceeded, the operation fails and returns the following error:

Cloud Run takes any container images and pairs great with the container ecosystem: Cloud Build, Artifact Registry, Docker. ... No infrastructure to manage: once deployed, Cloud Run manages your services so you can sleep well. Fast autoscaling. Cloud Run automatically scales up or down from zero to N depending on traffic.

The critical constraint for both the website and the background job is the requirement for autoscaling and no costs when not in use (scale to zero). Both workloads are suitable for containerization and HTTP invocation.

Cloud Run is the single best platform for both use cases under these constraints. It is serverless, fully managed, and natively supports scaling to zero when a containerized service is not receiving requests, making it the most cost-effective option for sporadic workloads.

The static website can run in a simple web server container on Cloud Run. The HTTP-triggered background job is a perfect fit for a Cloud Run service that runs, performs its work (invoice generation), and then scales down to zero.

The goal is to pull (fetch) messages from a subscription and acknowledge them.

The gcloud pubsub subscriptions **pull** command retrieves messages from a specified subscription.

The --auto-ack flag instructs the command to automatically acknowledge the messages after they are successfully retrieved, combining the two required actions into one command.

Comprehensive and Detailed In Depth Explanation:

The core requirements are secure access to a specific BigQuery dataset from a Compute Engine instance, using short-lived credentials, adhering to Google's best practices, and minimizing operational overhead.

A. Project-level IAM role: Granting the BigQuery Data Viewer role at the project level gives the service account broad access to all BigQuery datasets within that project. This violates the principle of least privilege, a fundamental security best practice, as the application should only have access to the designated dataset.

B. Hourly new service account with dataset-level role: While this aims to achieve short-lived credentials, the operational burden of creating, attaching, and managing IAM policies for a new service account every hour is significant and not a Google-recommended practice for routine access. It introduces unnecessary complexity and potential for errors.

C. Custom service account with dataset-level IAM role: This is the recommended and most efficient approach. You create a dedicated Google Cloud service account specifically for this application. You then grant this service account the necessary IAM role (e.g., BigQuery Data Viewer, or a more specific custom role) directly on the target BigQuery dataset. When the Compute Engine instance runs as this service account, the Google Cloud client libraries automatically handle the acquisition and rotation of short-lived OAuth 2.0 access tokens from the instance's metadata server. This eliminates the need to manage long-lived credentials (like service account keys) and ensures the application only has access to the intended dataset. This adheres to the principle of least privilege and minimizes operational costs.

D. Hourly new service account with project-level role: This option combines the high operational overhead of frequently creating new service accounts with the security risk of granting overly permissive project-level access. It is not a recommended practice.

Therefore, the most secure, cost-effective, and operationally efficient solution is to create a custom service account, attach it to the Compute Engine instance, and grant it the appropriate BigQuery IAM role specifically on the target dataset. The platform handles the short-lived credentials automatically.

Google Cloud Documentation References:

Creating and enabling service accounts for instances: - Explains how to create and associate service accounts with Compute Engine VMs.

Granting, changing, and revoking access to resources: - Details how to manage IAM policies and grant roles to service accounts on specific resources (like BigQuery datasets).

BigQuery IAM roles: - Provides information on the various IAM roles available for controlling access to BigQuery resources at different levels (project, dataset, table, etc.).

Best practices for using service accounts: - Emphasizes the importance of the principle of least privilege and avoiding the management of long-lived service account keys when possible (relying on the metadata server for short-lived tokens).

You write a lifecycle management rule in XML and push it to the bucket with gsutil lifecycle set config-xml-file. is not right.

gsutil lifecycle set enables you to set the lifecycle configuration on one or more buckets based on the configuration file provided. However, XML is not a valid supported type for the configuration file.

Write a script that runs gsutil ls -lr gs://myapp-gcp-ace-logs/ to find and remove items older than 90 days. Repeat this process every morning. is not right.

This manual approach is error-prone, time-consuming and expensive. GCP Cloud Storage provides lifecycle management rules that let you achieve this with minimal effort.

Write a script that runs gsutil ls -l gs://myapp-gcp-ace-logs/ to find and remove items older than 90 days. Schedule the script with cron. is not right.

This manual approach is error-prone, time-consuming and expensive. GCP Cloud Storage provides lifecycle management rules that let you achieve this with minimal effort.

Write a lifecycle management rule in JSON and push it to the bucket with gsutil lifecycle set config-json-file. is the right answer.

You can assign a lifecycle management configuration to a bucket. The configuration contains a set of rules which apply to current and future objects in the bucket. When an object meets the criteria of one of the rules, Cloud Storage automatically performs a specified action on the object. One of the supported actions is to Delete objects. You can set up a lifecycle management to delete objects older than 90 days. gsutil lifecycle set enables you to set the lifecycle configuration on the bucket based on the configuration file. JSON is the only supported type for the configuration file. The config-json-file specified on the command line should be a path to a local file containing the lifecycle configuration JSON document.

cell phones are sending UDP packets and the only that can receive that type of traffic is a External Network

Our requirement is to follow Google recommended practices to achieve the end result. Configuring Private Google Access for On-Premises Hosts is best achieved by VPN/Interconnect + Advertise Routes + Use restricted Google IP Range.

Using Cloud VPN or Interconnect, create a tunnel to a VPC in GCP

Using Cloud Router to create a custom route advertisement for 199.36.153.4/30. Announce that network to your on-premises network through the VPN tunnel.

In your on-premises network, configure your DNS server to resolve *.googleapis.com as a CNAME to restricted.googleapis.com is the right answer right, and it is what Google recommends.

You must configure routes so that Google API traffic is forwarded through your Cloud VPN or Cloud Interconnect connection, firewall rules on your on-premises firewall to allow the outgoing traffic, and DNS so that traffic to Google APIs resolves to the IP range youve added to your routes.

You can use Cloud Router Custom Route Advertisement to announce the Restricted Google APIs IP addresses through Cloud Router to your on-premises network. The Restricted Google APIs IP range is 199.36.153.4/30. While this is technically a public IP range, Google does not announce it publicly. This IP range is only accessible to hosts that can reach your Google Cloud projects through internal IP ranges, such as through a Cloud VPN or Cloud Interconnect connection. Without having a public IP address or access to the internet, the only way you could connect to cloud storage is if you have an internal route to it.

So Negotiate with the security team to be able to give public IP addresses to the servers is not right. Following Google recommended practices is synonymous with using Googles services (Not quite, but it is  at least for the exam !!).

So In this VPC, create a Compute Engine instance and install the Squid proxy server on this instance is not right.

Migrating the VM to Compute Engine is a bit drastic when Google says it is perfectly fine to have Hybrid Connectivity

So,

Use Migrate for Compute Engine (formerly known as Velostrata) to migrate these servers to Compute Engine is not right.

Logged onto console and followed the steps and was able to see all the assigned users and roles.

An external data source is a data source that you can query directly from BigQuery, even though the data is not stored in BigQuery storage.

BigQuery supports the following external data sources:

Amazon S3

Azure Storage

Cloud Bigtable

Cloud Spanner

Cloud SQL

Cloud Storage

Drive

Specifying conditions for alerting policies This page describes how to specify conditions for alerting policies. The conditions for an alerting policy define what is monitored and when to trigger an alert. For example, suppose you want to define an alerting policy that emails you if the CPU utilization of a Compute Engine VM instance is above 80% for more than 3 minutes. You use the conditions dialog to specify that you want to monitor the CPU utilization of a Compute Engine VM instance, and that you want an alerting policy to trigger when that utilization is above 80% for 3

In order to enable auto-healing, you need to group the instances into a managed instance group. Managed instance groups (MIGs) maintain the high availability of your applications by proactively keeping your virtual machine (VM) instances available. An auto-healing policy on the MIG relies on an application-based health check to verify that an application is responding as expected. If the auto-healer determines that an application isnt responding, the managed instance group automatically recreates that instance.

It is important to use separate health checks for load balancing and for auto-healing. Health checks for load balancing can and should be more aggressive because these health checks determine whether an instance receives user traffic. You want to catch non-responsive instances quickly, so you can redirect traffic if necessary. In contrast, health checking for auto-healing causes Compute Engine to proactively replace failing instances, so this health check should be more conservative than a load balancing health check.

Using primitive roles The following table lists the primitive roles that you can grant to access a project, the description of what the role does, and the permissions bundled within that role. Avoid using primitive roles except when absolutely necessary. These roles are very powerful, and include a large number of permissions across all Google Cloud services. For more details on when you should use primitive roles, see the Identity and Access Management FAQ. IAM predefined roles are much more granular, and allow you to carefully manage the set of permissions that your users have access to. See Understanding Roles for a list of roles that can be granted at the project level. Creating custom roles can further increase the control you have over user

The gcloud projects get-iam-policy command displays the IAM policy for a project, which includes the roles and members assigned to those roles. The Project Owner role grants full access to all resources and actions in the project. By using this command, you can review who has been granted this role and make any necessary changes. References:

1: Associate Cloud Engineer Certification Exam Guide | Learn - Google Cloud

2: gcloud projects get-iam-policy | Cloud SDK Documentation | Google Cloud

3: Understanding roles | Cloud IAM Documentation | Google Cloud

Cloud Billing export to BigQuery enables you to export detailed Google Cloud billing data (such as usage, cost estimates, and pricing data) automatically throughout the day to a BigQuery dataset that you specify. Then you can access your Cloud Billing data from BigQuery for detailed analysis, or use a tool like Looker Studio to visualize your data.

/25:

CIDR to IP Range

Result

CIDR Range 172.16.20.128/25

Netmask 255.255.255.128

Wildcard Bits 0.0.0.127

First IP 172.16.20.128

First IP (Decimal) 2886734976

Last IP 172.16.20.255

Last IP (Decimal) 2886735103

Total Host 128

CIDR

172.16.20.128/25

/24:

CIDR to IP Range

Result

CIDR Range 172.16.20.128/24

Netmask 255.255.255.0

Wildcard Bits 0.0.0.255

First IP 172.16.20.0

First IP (Decimal) 2886734848

Last IP 172.16.20.255

Last IP (Decimal) 2886735103

Total Host 256

CIDR

172.16.20.128/24

Comprehensive and Detailed In Depth Explanation:

The key requirement is to migrate applications that rely on hard-coded internal IP addresses without modifying the application code. To achieve this, the migrated VMs in Google Cloud need to retain their original internal IP addresses.

A. Non-overlapping CIDR ranges and new static IPs: This option requires changing the IP addresses of the migrated workloads, which would necessitate modifying the application code to reflect these new addresses. This violates a core requirement.

B. Migrating DNS and using ephemeral IPs: While migrating DNS can be beneficial in the long run, using ephemeral internal IP addresses for the migrated workloads means their IPs could change upon restart, breaking the hard-coded IP address dependencies.

C. Single subnet with Cloud NAT and static NAT IP: Cloud NAT allows instances without external IP addresses to access the internet, but it doesn't help in preserving the internal IP addresses that the applications use to communicate with each other. The internal IP addresses of the VMs would still be within the VPC subnet range and might conflict if they are the same as the on-premises IPs.

D. Same CIDR ranges and same static IPs: Creating a VPC with the same CIDR ranges as the on-premises network and assigning the same static internal IP addresses to the migrated workloads is the only way to ensure that the applications can continue to communicate using their hard-coded IP addresses without any code changes. This approach effectively extends the on-premises network's IP address space into Google Cloud (though without direct connectivity initially, as stated in the problem). Once the workloads are migrated, future steps can involve establishing connectivity (e.g., using VPN or Interconnect) if needed for hybrid scenarios.

Google Cloud Documentation References:

VPC Network Overview: - This document explains the fundamentals of VPC networks and their IP addressing. While it doesn 't explicitly detail lift-and-shift scenarios with identical IP ranges without connectivity, it lays the groundwork for understanding VPC configuration.

Considerations for planning IP address ranges: - This section discusses IP address planning, and while overlapping ranges are generally discouraged for connected networks, for isolated migration scenarios as described, it 's a necessary step to avoid application changes. The problem statement explicitly says the environments are not connected during the initial migration.

===========

IP 10.0.3.21 is internal by default, and to ensure that it will be static non-changing it should be selected as static internal ip address.

Comprehensive and Detailed In Depth Explanation:

The goal is to proactively identify stuck Dataflow jobs with minimal management effort. Let's analyze each option:

A. Error Reporting for slowdowns: Error Reporting primarily focuses on capturing and aggregating exceptions and errors (stack traces). While a stuck job might eventually throw an error, it might also just become unresponsive without generating explicit errors. Relying solely on Error Reporting might not provide timely detection of stuck jobs. Identifying stack traces that indicate slowdowns can also be complex and require significant manual configuration and analysis.

B. Personalized Service Health dashboard: The Personalized Service Health dashboard provides information about Google Cloud service incidents that might be affecting your resources. While it can alert you to broader Dataflow service outages, it won't specifically identify individual stuck jobs due to application-level errors or logic within your Dataflow pipeline.

C. Pub/Sub messages for delays, backup job, and Cloud Tasks alerts: This approach involves significant custom implementation and management. You would need to instrument your Dataflow jobs to detect delays, send messages to Pub/Sub, manage a backup job, and configure Cloud Tasks for alerting. This adds considerable operational overhead and complexity.

D. Cloud Monitoring alerts on data freshness metric: Dataflow provides built-in metrics, including "data freshness" (or similar metrics like "system lag" or "processing time"), which indicate how far behind the pipeline is in processing data. If a job gets stuck, the data freshness will deteriorate beyond an acceptable threshold. Cloud Monitoring allows you to easily set up alerts based on these built-in metrics. This requires minimal custom coding and leverages the platform's existing monitoring capabilities, aligning with the "minimal management effort" requirement.

Therefore, setting up Cloud Monitoring alerts on relevant Dataflow metrics like data freshness is the most efficient and recommended way to detect stuck Dataflow jobs with minimal management overhead.

Google Cloud Documentation References:

Monitoring Dataflow Pipelines: - This document details the various metrics available for monitoring Dataflow jobs in Cloud Monitoring, including metrics related to processing time, system lag, and data freshness.

Creating Alerts in Cloud Monitoring: - Explains how to set up alerts based on metrics collected by Cloud Monitoring.

Dataflow Metrics: - Provides a comprehensive list of Dataflow metrics that can be used for monitoring and alerting.

Cloud Storage allows world-wide storage and retrieval of any amount of data at any time. We dont need to set up auto-scaling ourselves. Cloud Storage autoscaling is managed by GCP. Cloud Storage is an object store so it is suitable for storing photos. Cloud Storage allows world-wide storage and retrieval so cater well to our worldwide audience. Cloud storage provides us lifecycle rules that can be configured to automatically delete objects older than 30 days. This also fits our requirements. Finally, Google Cloud Storage offers several storage classes such as Nearline Storage ($0.01 per GB per Month) Coldline Storage ($0.007 per GB per Month) and Archive Storage ($0.004 per GB per month) which are significantly cheaper than any of the options above.

Keywords, Financial data (large data) used globally, data stored and queried using relational structure (SQL), clients should get exact identical copies(Strong Consistency), Multiple region, low latency to end user, select storage option to minimize latency.

Granting more permissions than necessary violates the principle of least privilege, a fundamental security best practice. While option A grants the necessary permissions (as subsets exist in two predefined roles), it might also grant more permissions than the Operations team strictly requires for their tasks on GKE and Cloud SQL. Option D is too broad; 'Admin' roles grant extensive permissions that likely exceed the specific needs.

Google Cloud's best practices strongly recommend adhering to the principle of least privilege. Creating a custom role allows you to precisely define the set of permissions the Operations team needs for their specific tasks on the GKE cluster and the Cloud SQL instance, without granting any unnecessary permissions. This minimizes the potential blast radius in case of accidental or malicious actions.

Google Cloud Documentation References:

IAM best practices: - This document explicitly recommends granting the minimum necessary permissions.

Creating and managing custom roles: - This explains how to create roles tailored to specific job functions.

Understanding roles: - This outlines the concepts of predefined and custom roles and their use cases.

===========
