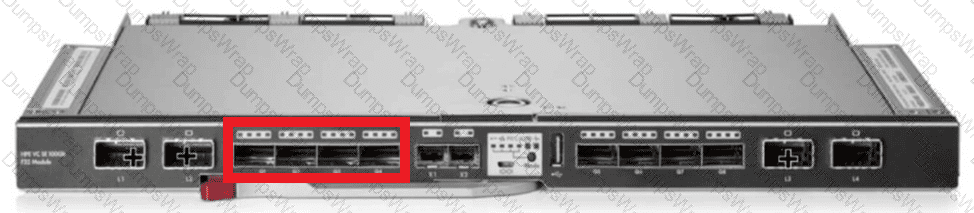

Port flap protection is a feature of the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy that can be configured to disable ports experiencing frequent up and down transitions. This feature helps to stabilize the network by preventing the disruptive effects of port flapping.

HPE Compute Ops Management (COM) integrates deeply with the iLO 6 Security Dashboard to provide centralized security posture monitoring for a fleet of servers.

Security Risk Monitoring: COM monitors specific configuration parameters on the iLO management processor that are considered " risky " by modern security standards. One of the primary risks identified is the use of legacy, insecure protocols for management and alerting.

SNMPv1 Risk (Option A): SNMPv1 is an inherently insecure protocol because it sends community strings (passwords) in cleartext across the network. In the iLO 6 Security Dashboard, if the setting " SNMPv1 Request " is set to Enabled , iLO will flag this as an " At risk " security status. HPE Compute Ops Management surfaces these alerts in its cloud console, allowing administrators to identify servers where insecure management protocols are active.

Scope of Management: COM focuses on hardware, firmware, and management-level security . It evaluates settings such as:

Minimum Password Length and complexity.

Secure Boot status.

Authentication requirements for host-based tools.

Global Component Integrity (via SPDM).

Protocol status (disabling IPMI/DCMI or SNMPv1).

Why other options are incorrect:

Option B: Monitoring for varying traffic patterns is typically a function of Network Detection and Response (NDR) or Intrusion Detection Systems (IDS) , such as those found in the Aruba networking portfolio. COM does not perform deep packet inspection or behavioral analysis of production network traffic.

Option C: Antivirus software is an Operating System (OS) level application. Since iLO and COM operate at the " below-the-OS " management layer, they do not have visibility into which software packages (like antivirus or EDR) are installed or running within the server ' s OS.

Option D: While iLO can manage Self-Encrypting Drives (SEDs) and display their encryption status, the presence of " unencrypted data " on a standard drive is an OS/Filesystem-level attribute. The security risks reported by the COM dashboard specifically target the management interface ' s vulnerabilities rather than the data residency state of the local storage.

The HPE Compute Ops Management (COM) service is a cloud-native management platform delivered through HPE GreenLake . To manage a physical server directly from the cloud using the activation key method , the following architectural hierarchy must be followed:

HPE GreenLake Inventory: Before a server can be successfully " activated " or managed by a specific service like COM, the HPE GreenLake platform must first recognize the hardware. This is achieved by adding the server ' s Serial Number (SN) and Product ID (PID) to the workspace ' s Device Inventory . This step " claims " the device for that specific customer workspace and proves ownership.

Activation Key Generation: Once the workspace is established, an administrator generates an Activation Key from within the Compute Ops Management console. This key is often associated with specific settings like server groups, locations, or subscription tiers.

iLO Integration: The activation key is then entered into the server ' s iLO (HPE Integrated Lights-Out) web interface (specifically iLO 5 v3.09+, iLO 6 v1.64+, or iLO 7). When the iLO initiates an outbound connection to the HPE GreenLake cloud, it presents its unique hardware identity (SN/PID) and the activation key. If the SN/PID matches an entry in the GreenLake inventory for that workspace, the onboarding process is finalized, and the server appears as " Connected " in COM.

Network Flexibility: While iLO requires internet access to reach the cloud endpoints, it can use either the Dedicated iLO Network Port or the Shared Network Port (LOM/FlexibleLOM). There is no requirement to use only the dedicated port, making Option B incorrect.

OS Independence: One of the primary benefits of COM is that it operates at the " out-of-band " management level. It does not require an operating system to be installed or even for the server to be powered on (as long as auxiliary power is available to the iLO), making Option A incorrect.

Key Technical Takeaway:

The HPE GreenLake Inventory serves as the foundational " Source of Truth " for all cloud-managed hardware. Without the serial number and product ID being registered in the inventory, the cloud gateway will reject the activation attempt from the iLO for security and multi-tenancy reasons.

HPE OneView is designed to provide a unified and consistent management experience across its entire software-defined storage portfolio. When a customer transitions from HPE 3PAR StoreServ to HPE Primera (or even newer Alletra 9000 systems), the core management workflows within HPE OneView remain essentially identical:

Storage Systems and Pools: In both cases, the storage system is added to the HPE OneView appliance. Once connected, HPE OneView discovers the available storage pools, which are referred to as Common Provisioning Groups (CPGs) on both 3PAR and Primera.

Volume Management: The process of creating, provisioning, and managing volumes is the same. Administrators use the same templates and server profiles to attach storage, regardless of the underlying hardware generation.

Automation and Templates: Because HPE OneView uses a software-defined approach, the " Logical " definitions of the infrastructure are decoupled from the physical hardware. This allows for a frictionless transition where existing automation scripts and REST API calls typically do not need to be modified when swapping a 3PAR array for a Primera array.

Licensing: Management of storage in HPE OneView does not require a different " type " of license when moving from 3PAR to Primera; the integration is built into the standard storage management capabilities of the appliance.

Why other options are incorrect:

Option B: While HPE Primera has many advanced internal features (like AI-driven optimizations via HPE InfoSight), these are handled at the array level. Within HPE OneView, CPG management and other basic provisioning features are functionally identical to those provided for 3PAR.

Option C: HPE OneView provides full support for HPE Primera. Far from being " limited, " Primera is a core platform for HPE’s " Intelligent Storage " strategy.

Option D: There is no " dedicated " license required specifically for Primera management that differs from the existing 3PAR management model in OneView.

The HPE OneView for VMware vCenter (OV4VC) plugin allows administrators to perform " Grow Cluster " operations directly from the vSphere Client. This process relies on a tight integration between the plugin appliance and the HPE OneView appliance.

Dependency on Server Profile Templates (SPT): When you " Grow " a cluster, the plugin must have access to a valid Server Profile Template defined in HPE OneView. This template dictates the hardware configuration, firmware levels, and network connectivity for the new nodes being added to the cluster.

Import and Registration Process: For an SPT to be available within the " Grow Cluster " wizard in vCenter, it must first be successfully imported and registered within the OV4VC appliance. If the SPT was recently created in OneView or if the synchronization between OneView and the OV4VC appliance has failed, the template will not appear, or the process will throw an error during the validation phase.

Troubleshooting Workflow: If an error occurs during the " Grow Cluster " operation, the primary troubleshooting step is to log into the HPE OneView for VMware vCenter Server management console (the appliance ' s own web interface). Here, you can verify:

The health of the connection to the HPE OneView appliance.

Whether the required Server Profile Templates are correctly listed and synchronized.

If the OS Deployment Plans associated with those templates are accessible.

Why other options are incorrect:

Option A: Hypervisor Cluster Profiles are a feature inside the HPE OneView UI itself. While they serve a similar purpose, the question specifically mentions the customer is using HPE OneView for VMware vCenter Server (the plugin), which operates from the vSphere side.

Option C: " Importing a cluster " is the initial step to bring an existing vSphere cluster under OneView management. The customer is already attempting to grow a cluster, implying the management relationship should already be established.

Option D: While iLO is essential for node health, a " Grow Cluster " error in the plugin is typically a higher-level orchestration issue related to template availability or appliance connectivity rather than an individual node ' s registration status in OneView.

The HPE Synergy Master/Satellite architecture is strictly defined by the compatibility between the " Master " (Primary) interconnect modules and the " Satellite " (Interconnect Link Modules - ILM) modules across multiple frames.

Fabric Generations: HPE Synergy fabrics are categorized into generations. The HPE Virtual Connect SE 100Gb F32 Module is a second-generation (Gen2) " Master " module. It is designed to work with the HPE Synergy 50Gb Interconnect Link Module as its satellite to extend the fabric to additional frames.

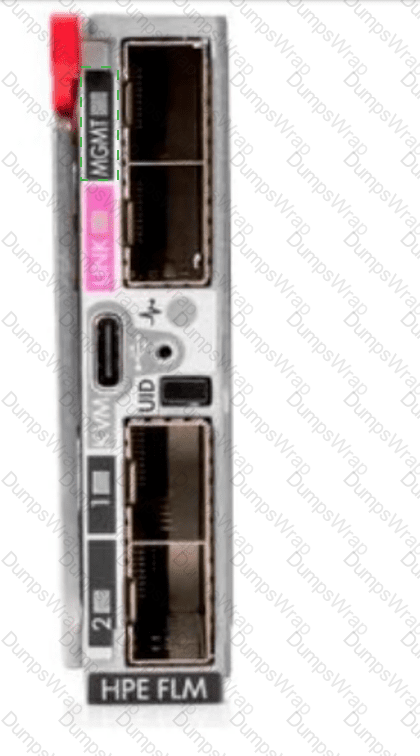

ILM Compatibility (The 20Gb vs 50Gb Issue): The 20Gb Interconnect Link Modules mentioned in the proposed new frame are first-generation (Gen1) satellite modules. They were designed to work with the HPE Virtual Connect SE 40Gb F8 Module (Gen1 Master).

According to HPE Synergy cabling and fabric rules, you cannot mix Gen1 satellites (20Gb ILM) with Gen2 masters (100Gb F32).

For the 100Gb F32 Master modules in Frame 1 to extend the Ethernet/FCoE fabric to Frame 2, Frame 2 must use the 50Gb Interconnect Link Modules .

Fibre Channel Connectivity: Unlike the Ethernet fabric, the HPE Synergy Virtual Connect SE 32Gb FC Modules are not master/satellite modules. They are standalone SAN interconnects. Each frame that requires native Fibre Channel connectivity typically contains its own pair of FC modules. They are managed within the same Logical Enclosure in HPE OneView, but they do not use " Interconnect Link Modules " or " stacking " in the way Ethernet masters do.

Why other options are incorrect:

Option A: There is no requirement to " balance " the number of compute modules across frames (12 in one, 8 in another) for a Logical Enclosure to function.

Option C: HPE OneView licensing for Synergy is per-node/per-frame (OneView Advanced). There is no specific " Extended Logical Enclosure " license required to add a second frame to an existing LE; the management infrastructure simply scales as frames are added.

Option D: " Stacking " is a term often used for traditional switches. In Synergy, the 32Gb FC modules provide individual uplinks to the SAN fabric. While they are part of the same logical management entity, the term " stacked " is technically inaccurate for how these modules are interconnected or managed across frames in this specific architecture.

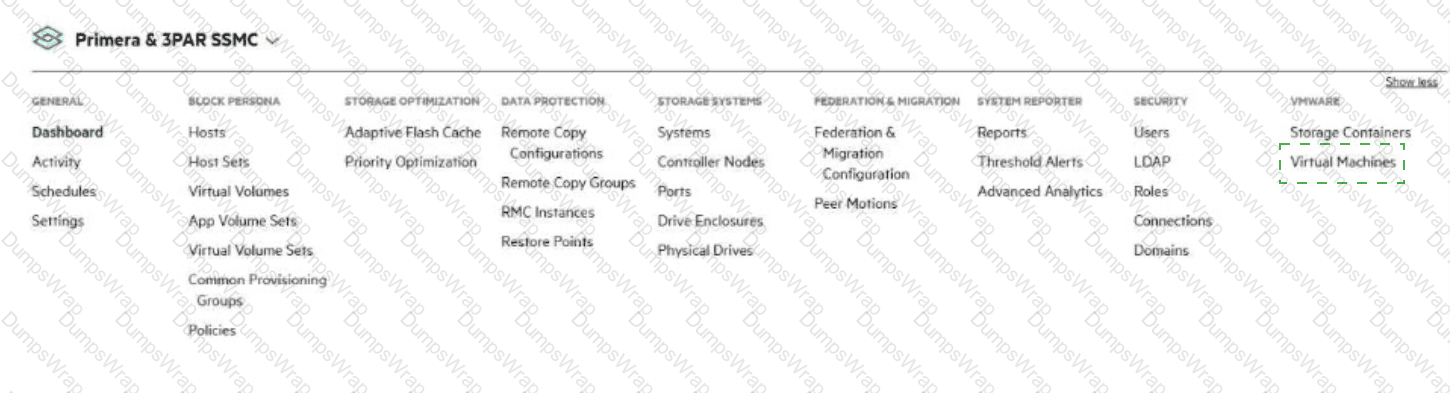

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

An HPE OneView support dump includes various diagnostic information, and by default, it contains a logical enclosure support dump. This comprehensive dump helps in troubleshooting by providing detailed logs and configuration data from the appliance and the logical enclosures it manages, enabling effective diagnosis of issues within the managed environment.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

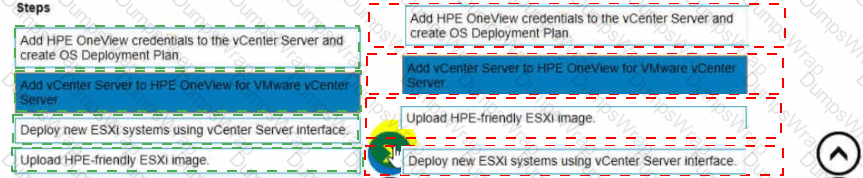

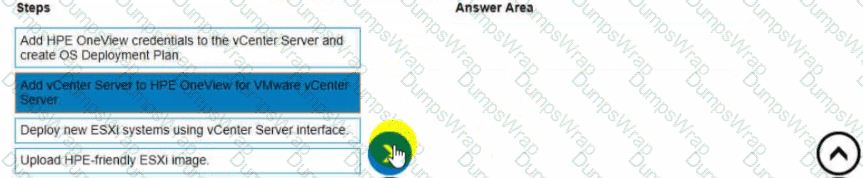

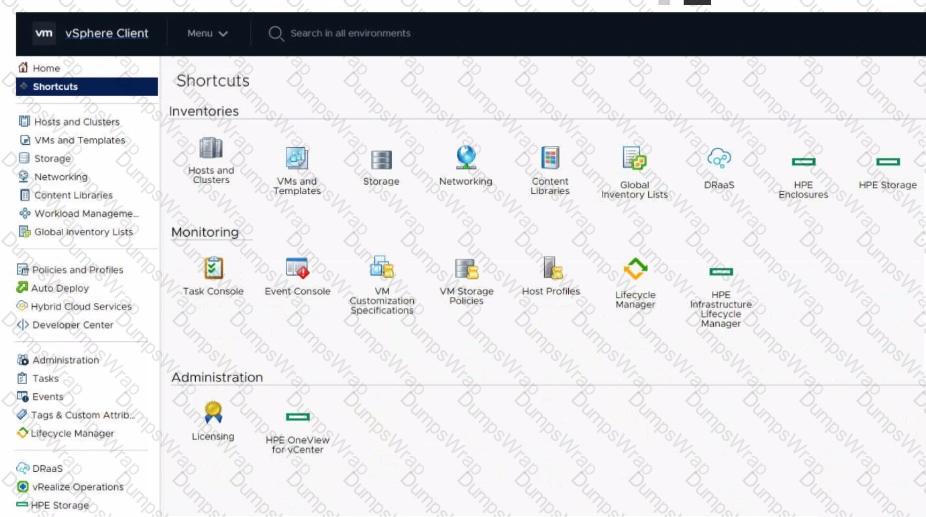

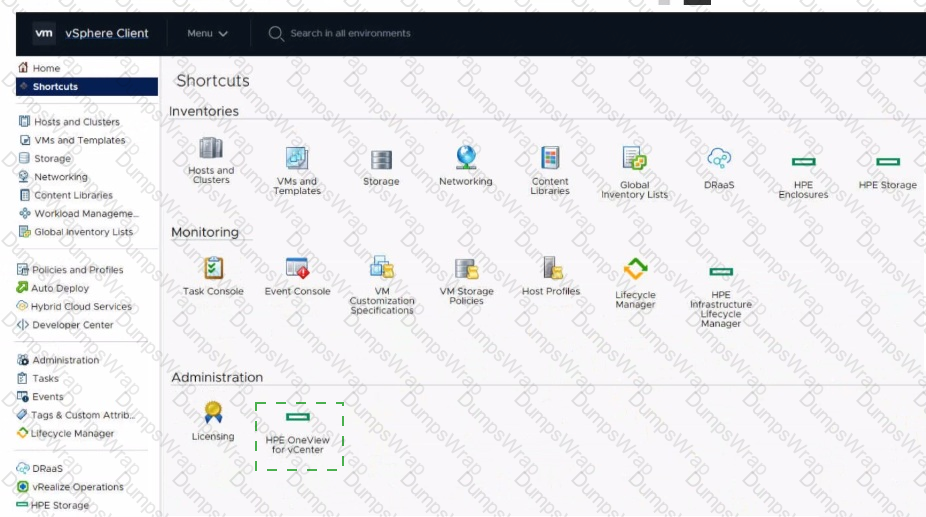

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan: Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server: Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image: Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface: Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.

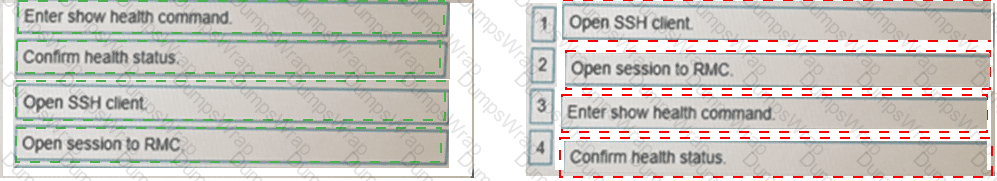

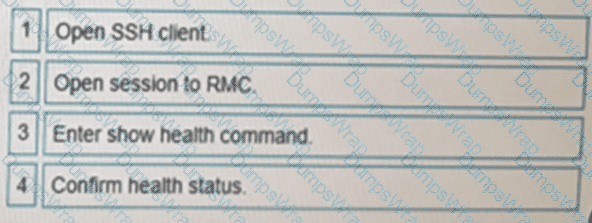

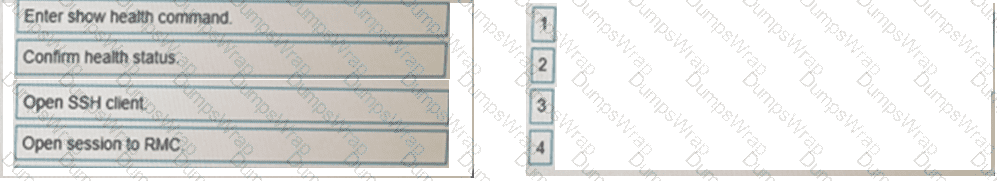

Open SSH client: Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC: Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command: Once connected to the RMC, enter the show health command. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status: Review the output of the show health command to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

The Rack Management Controller (RMC) is a critical component for configuring nPartitions (nPars) in HPE Superdome systems. The RMC provides the necessary control and management interfaces to define and manage nPars, ensuring proper allocation of resources and isolation of workloads.

HPE Private Cloud AI is a key component of the HPE GreenLake for Private Cloud portfolio, specifically co-engineered with NVIDIA. The architecture is designed to provide a " cloud-like " experience on-premises. To achieve this, HPE utilizes a distributed control plane model :

Management and Orchestration (The Control Plane): The management layer, which includes the Kubernetes orchestration, lifecycle management, and the user interface for provisioning AI workloads, is hosted in the HPE GreenLake cloud . This allows HPE to manage updates, monitoring, and security patches remotely as a managed service, reducing the operational burden on the customer.

The Data Plane (On-Premises): The actual compute power—consisting of HPE ProLiant servers (such as the DL380a or the newer Gen11/Gen12 NVIDIA-certified systems)—resides in the customer ' s data center. These are the " worker nodes " where the AI models are trained and inferred.

Connectivity: The on-premises infrastructure connects securely to the HPE GreenLake cloud control plane. While the compute and data stay local for performance, latency, and sovereignty reasons, the " logic " that dictates how those resources are sliced and managed stays in the cloud.

Why other options are incorrect:

Option A: Distributing the control plane across all worker nodes is a standard " vanilla " Kubernetes configuration but does not align with the " as-a-service " managed model of HPE GreenLake.

Option C: A two-node election would lack a " quorum, " making it unsuitable for high-availability control planes.

Option D: While some legacy or specific " Business Edition " private clouds used on-site management VMs, the Private Cloud AI architecture specifically leverages the HPE GreenLake cloud to provide a unified, scalable management experience across multiple locations.

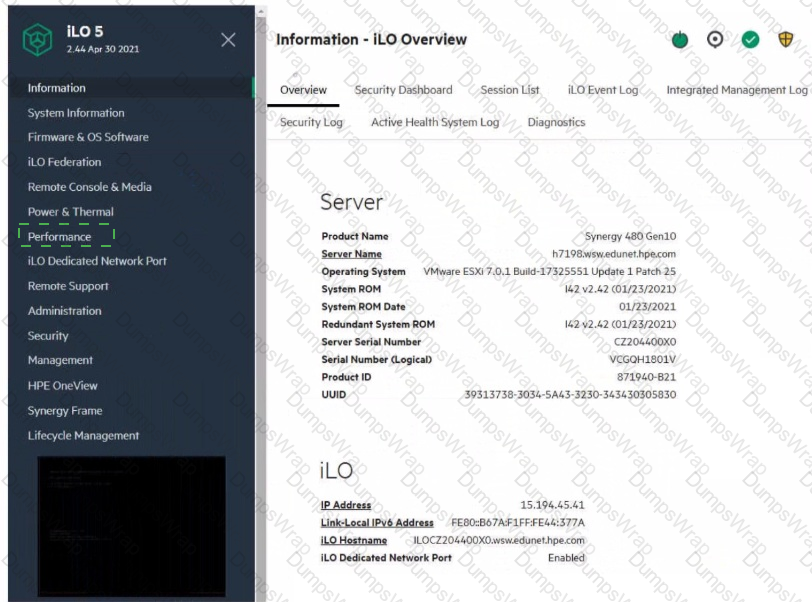

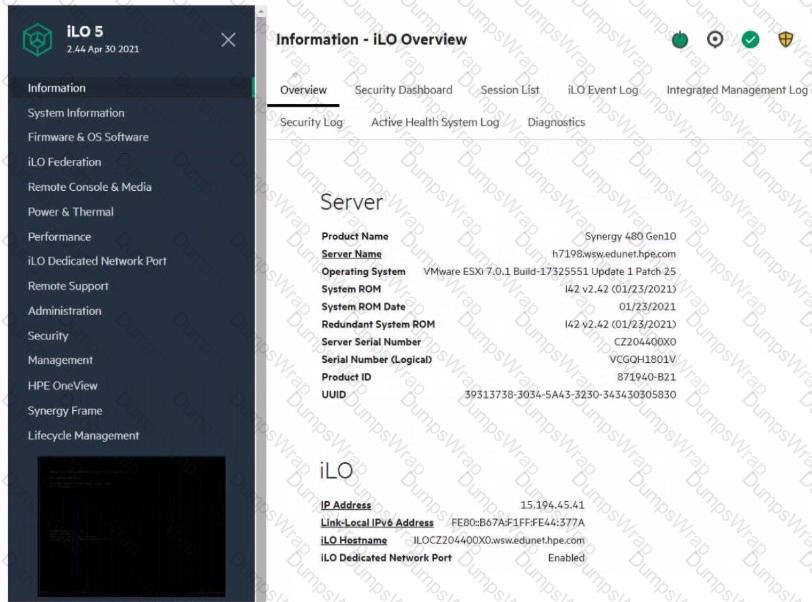

The Performance section within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server ' s performance, helping to optimize workloads and manage resources efficiently.

The HPE Synergy 480 Gen10 Plus Compute Module supports 8 memory channels and can accommodate memory DIMMs of up to 256GB. This capability ensures high memory bandwidth and large memory capacity, which are essential for demanding workloads and applications.

To enable dedicated Fibre Channel (FC) connectivity in an HPE Synergy frame, if using Brocade switches, it is necessary to create a logical interconnect group in HPE OneView. This group defines the configuration and management of FC connectivity for the compute modules. Properly configuring and managing this logical interconnect group ensures that the compute modules can establish dedicated FC connections.

HPE GreenLake for File Storage is a key component of the HPE Private Cloud AI architecture, designed to provide the high-throughput, low-latency performance required for AI workloads.

Hardware Foundation: The infrastructure underlying this service is based on the HPE Alletra Storage MP platform. These modular " MP " (Multi-Protocol) nodes are built using standard HPE ProLiant Gen11 hardware components. By leveraging the proven ProLiant ecosystem, HPE ensures the solution is both cost-effective (due to global supply chain efficiencies) and highly resilient (utilizing enterprise-grade power supplies, fans, and management via iLO).

NVMe Performance: To handle the massive data requirements of AI model training and inference, the infrastructure utilizes all-NVMe drives. This provides the parallelism and speed necessary to feed hungry GPUs without the bottlenecks associated with traditional SAS or SATA storage.

Disaggregated Architecture: Unlike legacy systems, this infrastructure separates performance (compute nodes) from capacity (JBOFs/Storage shelves), allowing the environment to scale efficiently as data grows.

Why other options are incorrect:

Option B: While Alletra MP Block storage offers a 100% availability guarantee, the File persona is designed for extreme durability and high availability but is typically marketed with 99.9999% (six nines) availability rather than the absolute 100% block storage claim.

Option C: HPE Private Cloud AI uses shared storage (Alletra MP) rather than local drives on the worker nodes. This ensures data persistence and allows multiple GPU nodes to access the same datasets simultaneously.

Option D: HPE GreenLake for File Storage is powered by the VAST Data software stack, not Lustre. While Lustre is common in classic HPC, the VAST-based HPE solution is preferred for modern enterprise AI due to its ease of management and superior data reduction capabilities.

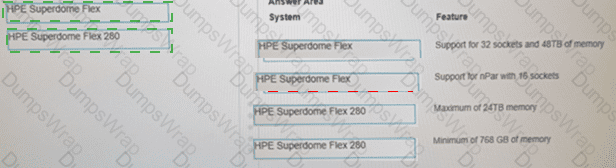

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

The HPE OneView Update Readiness Checker (URC) is a specialized utility designed to ensure a smooth transition during the appliance update process. Its primary and specific function is as follows:

Pre-Update Health Validation: The tool is designed to evaluate the internal health of the HPE OneView appliance (whether it is a VM or a Synergy Composer) for a set of known conditions that could potentially cause an update to fail. This includes checking database integrity, filesystem space, and internal service states.

Appliance-Centric Analysis: According to official HPE documentation, the checker evaluates conditions only on the appliance itself and not the managed environment (such as individual compute node firmware or interconnect modules). This makes it a " safety net " for the management layer specifically.

Deployment: It runs on a client system (Windows or Linux) outside the appliance and connects via the API to perform these health checks. It is recommended to run this tool immediately before any major or minor appliance update.

Why other options are incorrect:

Option A: Compatibility between Synergy Service Packs (SSPs) and OneView versions is typically checked via the HPE Synergy Software Releases documentation or the Synergy Management Combination matrix, not the URC utility.

Option C: Firmware compliance of compute nodes is handled by the HPE OneView Firmware Compliance reports and Server Profiles within the main OneView UI, not by the external Update Readiness Checker.

Option D: While milestone releases are critical for the update path, the URC checks for health and readiness rather than just identifying the current version number or milestone status, which is easily visible on the " About " page of the appliance.

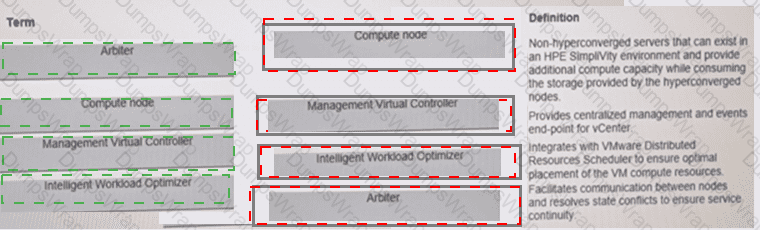

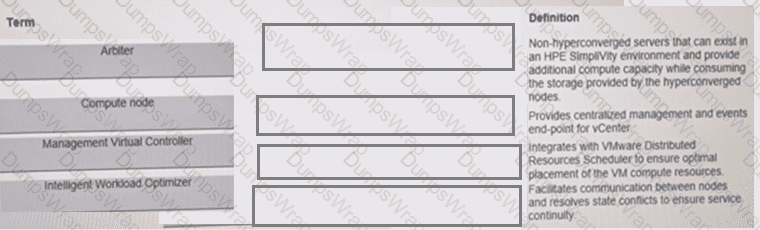

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Arbiter: This component is essential for ensuring that the HPE SimpliVity nodes communicate properly and that any state conflicts are resolved, which is critical for maintaining service continuity.

Compute node: These are non-hyperconverged servers that add additional compute capacity to the HPE SimpliVity environment. They utilize the storage resources provided by the hyperconverged nodes.

Management Virtual Controller: This controller is responsible for centralized management and acts as the events end-point for vCenter, allowing for streamlined management of the SimpliVity environment.

Intelligent Workload Optimizer: This tool integrates with VMware ' s Distributed Resources Scheduler (DRS) to ensure that virtual machine (VM) compute resources are placed optimally across the infrastructure.

For VMware vSAN deployments, it is recommended that all drives in the D3940 storage modules be SSD drives to ensure optimal performance and efficiency. SSDs provide the necessary speed and reliability required by vSAN for handling storage-intensive operations and maintaining high performance.

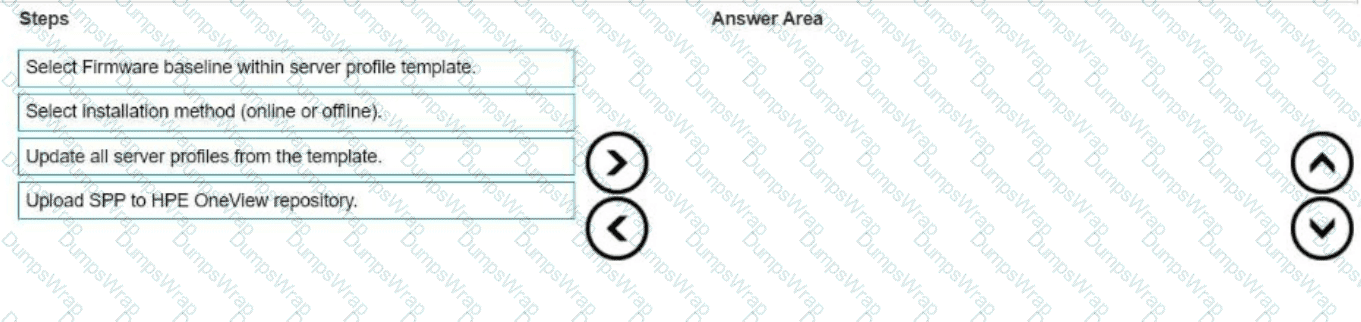

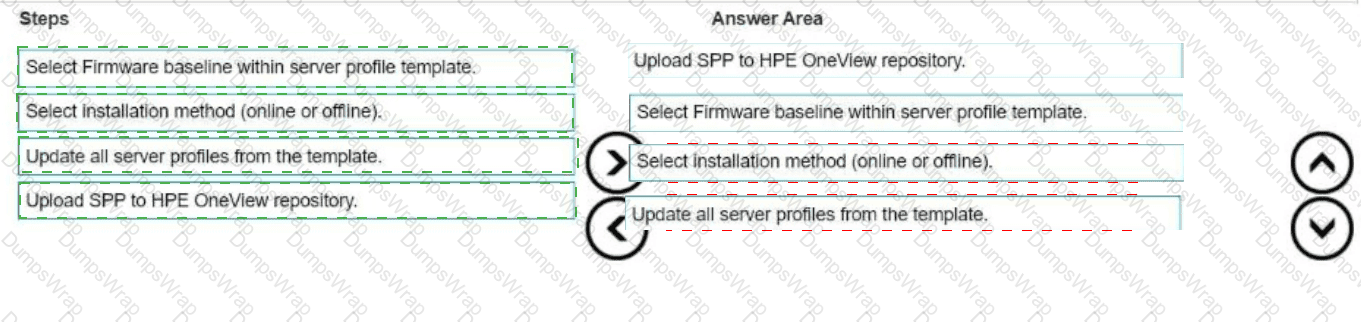

To update the firmware for the HPE Synergy 480 Gen 10 compute modules with a server profile assigned from a server profile template, the steps should be performed in the following order:

Upload SPP to HPE OneView repository. (First, the Service Pack for ProLiant (SPP) containing the firmware updates must be uploaded to the HPE OneView repository.)

Select Firmware baseline within server profile template. (Next, you need to select the desired firmware baseline in the server profile template.)

Select installation method (online or offline). (Choose whether the firmware updates will be installed online or offline.)

Update all server profiles from the template. (Finally, update all server profiles from the modified template to apply the firmware updates to the compute modules.)

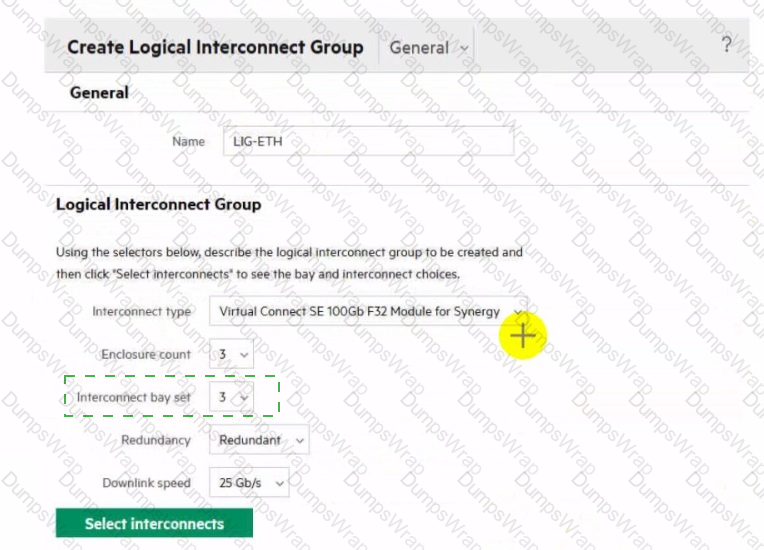

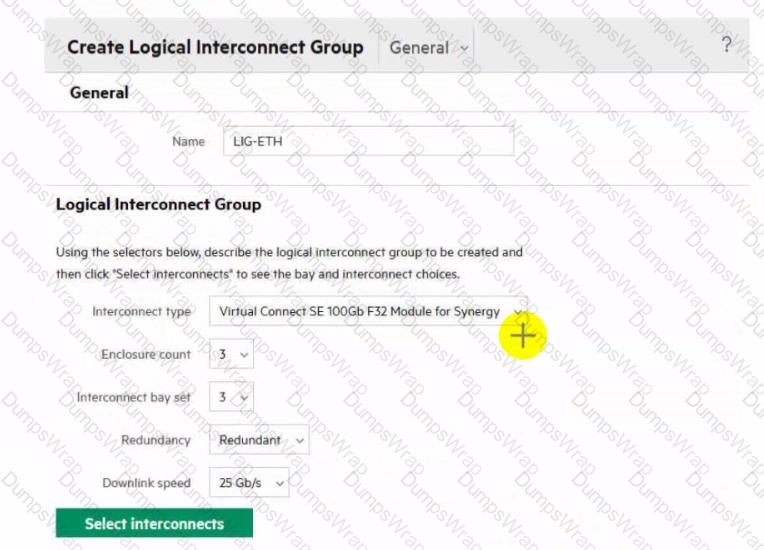

Click the drop-down menu next to " Interconnect bay set " .

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to " Interconnect bay set " allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

The transition from the first-generation HPE Synergy Composer (based on Gen9 technology) to the HPE Synergy Composer 2 (based on Gen10 technology) introduced a critical hardware advancement for system administrators and troubleshooting scenarios.

Integrated iLO 5 ASIC: Unlike the original Composer, which did not provide a user-accessible iLO interface for the appliance itself, the HPE Synergy Composer 2 is built with an integrated HPE iLO 5 management processor.

Remote Appliance Management: This allows administrators to connect directly to the iLO of the Composer 2 module via its own IP address. From this interface, you can perform tasks that were impossible on the first-generation hardware, such as:

Remote Console Access: View the startup sequence or the maintenance console of the management appliance even if the OneView software is not responding.

Power Management: Remotely reset or power cycle the management module without having to physically visit the data center to " reseat " the module.

Virtual Media: Mount an ISO to recover or re-image the appliance remotely.

Silicon Root of Trust: Being based on Gen10 architecture, the Composer 2 also brings the Silicon Root of Trust security feature to the management layer, providing hardware-level validation of the appliance firmware to protect against rootkits and compromised code.

Why other options are incorrect:

Option A: Both the original Composer and Composer 2 support a maximum of 21 frames in a single management ring (a single Logical Enclosure).

Option B: While the original Composer hardware is less powerful than Composer 2, HPE OneView 5.2 did not officially reduce the supported frame count to 12; the 21-frame limit remained standard for both, though performance is significantly better on Composer 2.

Option C: Both generations of Composers support the management of satellite frames (sometimes referred to in architectures as remote frames within the same rack/complex). " Remote frames " in the context of geographically distant frames is a function of the Global Dashboard, not a limitation of the local Composer hardware.

New HPE SimpliVity deployments offer customers the flexibility to choose between different hypervisors, such as VMware vSphere and Microsoft Hyper-V. This flexibility allows customers to select the hypervisor that best fits their existing infrastructure and operational preferences.

HPE Superdome Flex allows for the expansion of powered-on nPars (nPartitions), but this capability is subject to certain conditions. One of these conditions is that the nPar does not use HPE Persistent Memory. Expanding an nPar with Persistent Memory typically requires a shutdown to reconfigure the memory settings safely.

To manage HPE Superdome Flex systems, including the new Superdome Flex 280, using HPE OneView, the customer should deploy a dedicated HPE OneView appliance specifically for HPE Superdome Flex management. This approach ensures that the Superdome Flex systems are properly integrated and managed within the HPE OneView environment, allowing for consistent and centralized management alongside other HPE infrastructure.
