To isolate wired ports on the same VLAN on a large scale (such as hotel rooms) but allow communication within the same VLAN for common areas, Private VLANs (PVLANs) are recommended. PVLANs allow segmentation within a single VLAN by dividing it into primary and secondary VLANs, controlling communication between ports.

VPN and VXLAN are overlay technologies for different purposes.

UBT (User-Based Tunneling) is related to wireless user segmentation, not wired port isolation.

Therefore, PVLANs provide the simplest and most effective solution to isolate room ports within a single VLAN.

When establishing eBGP peering between devices that are not directly connected, the TTL (Time To Live) value of the BGP packets must be increased to allow them to traverse multiple hops. This is achieved by configuring ebgp-multihop, which increases the TTL beyond the default value of 1.

next-hop-self changes the BGP next-hop attribute but is not required for multihop eBGP.

route-reflector is a BGP design feature unrelated to multihop.

address-family ipv4 external is not a standard command on Aruba CX switches.

Therefore, to successfully peer eBGP sessions across multiple hops, ebgp-multihop must be configured.

For multicast to function efficiently on Aruba CX access switches, IGMP snooping needs to be enabled on the VLAN interfaces. IGMP snooping listens to IGMP join and leave messages between multicast clients and routers to allow the switch to forward multicast traffic only to interested ports, reducing unnecessary multicast flooding.

PIM is a multicast routing protocol and usually configured on routing devices, not access switches.

IGMP (without snooping) enables hosts to signal interest but does not control traffic forwarding at the switch layer.

Enabling IGMP snooping on SVI alone may not be sufficient; it should be enabled on VLANs that carry multicast clients.

Hence, enabling IGMP snooping on VLAN is necessary for efficient multicast traffic flow.

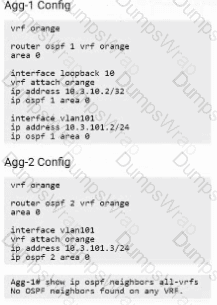

The question concerns an OSPF configuration where the interface does not come up as expected.

Common reasons for no OSPF adjacency or interface participation include:

Interfaces being passive (no adjacency formed)

Mismatched OSPF process IDs

Missing loopback interfaces (for router ID)

Layer-3 interfaces not associated with VRFs when VRFs are configured

Option D (a Layer-3 interface has not been associated with a VRF) is the root cause because in Aruba CX switches, when VRF is configured, all Layer-3 interfaces that participate in OSPF must be associated with the correct VRF instance to establish adjacency and participate correctly.

If an interface is not part of the VRF configured for OSPF, it will not appear in the OSPF interface list or form neighbors.

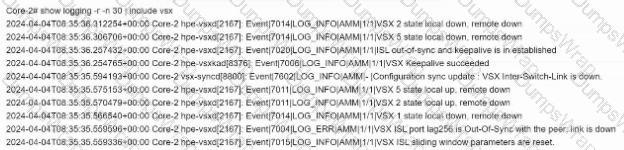

If the ISL between two VSX core switches is down and logs indicate that Core-2 has disabled its VSX LAG interfaces, it means Core-2 has disabled its VSX LAG interfaces, likely as a protective or failover mechanism.

Keepalive packets being dropped (Option B) may cause issues but logs specifically state interface disablement.

Both switches forwarding traffic (Option C) is unlikely if ISL is down.

Downstream switches inability to forward traffic (Option D) is a consequence, not the cause.

Backing up the switch configuration to a remote Linux SFTP server requires using the copy command with the correct protocol (SFTP in this case), username, server IP, filename, and optionally the VRF to route management traffic.

Option A uses SCP and vrf default but the question mentions SFTP server, so SFTP protocol should be used.

Option B is a server-side command (not the switch).

Option C correctly uses copy startup-config sftp://user@192.168.1.100/switch_config.cfg vrf mgmt which backs up the startup-config via SFTP using the management VRF.

Option D is also a server-side command.

Using vrf mgmt is required because the management IP is in a separate VRF on CX switches.

The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

To implement Dynamic User Roles (DUR) with Aruba ClearPass, an HTTPS certificate must be configured. This certificate enables secure communication between ClearPass and the Aruba CX switches for role downloading and authentication.

RadSec service enables secure RADIUS but is unrelated to DUR certificates.

Admin user roles and RADIUS dictionary attributes are necessary but secondary to certificate requirements.

To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface , such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast) , forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

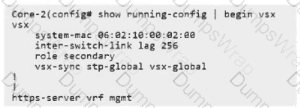

In a VSX cluster, certain configurations such as DHCP relay need to be synchronized between both nodes. To sync DHCP relay configuration from the primary to the secondary, the command:

vsx-sync dhcp-relay

must be added under the VSX configuration on the primary switch. This ensures that DHCP relay settings are pushed to the secondary member automatically.

Adding vsx-sync ip-helper relates to IP helper addresses, not DHCP relay specifically.

Adding the sync command on the secondary has no effect as synchronization originates from primary.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

Colorless Ports are a foundational element of Aruba’s Dynamic Segmentation strategy. They allow any device to be plugged into any access port without requiring manual VLAN or ACL configuration by the IT staff.

The Role of Authentication: When a device connects, the switch uses 802.1X or MAC Authentication to identify the device and communicate with Aruba ClearPass .

Downloadable User Roles (DUR): Instead of pre-configuring thousands of roles locally on every switch, the switch downloads the specific policy—including VLAN assignment, QoS, and Access Control Lists (ACLs)—directly from ClearPass. This is the Downloadable User Role .

Why this is " Colorless " : Because the policy is defined centrally and " downloaded " to the port only when needed, the physical port has no static identity (no " color " ). This simplifies deployment and ensures that security policies follow the user or device regardless of where they plug in.

The LACP fallback command in Aruba VSX configurations allows the system to continue forwarding traffic even if LACP negotiation fails or is not established. This is useful when provisioning a gateway or link that does not support LACP, ensuring that the port remains operational in a static manner.

It is not specifically for backward compatibility with LACP v1.

It does not relate to operation with a single partner interface.

It also is not about active/passive LACP modes per se.

Therefore, LACP fallback is configured to support provisioning a gateway without LACP.

LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.

When onboarding switches to HPE Aruba Networking Central , administrators can choose between two primary management modes defined at the Group level .

Managed Mode (Default): In this mode, Central is the " Source of Truth. " Any configuration change made in the Central UI or via templates is pushed to the switch. Local CLI changes are often overwritten or blocked.

Monitoring Only Mode: When a group is configured as " Monitoring Only, " Central acts purely as a telemetry and management platform rather than a configuration master.

Telemetry: Central monitors health, port status, and client data.

Firmware Management: You can still push firmware updates.

Configuration Backups: Central will periodically pull the configuration from the switch and store it as a backup/checkpoint.

Local Control: The administrator retains full control over configuration changes via the local CLI or NetEdit. Central will not attempt to push or overwrite the configuration.

Why other options are incorrect:

Option A: There is no " read-only " device attribute in Central that specifically allows backups while blocking all other configuration pushes; the behavior is governed by the Group type.

Options B and C: Both AOS-S and AOS-CX switches support being placed in " Monitor Only " groups within Central.

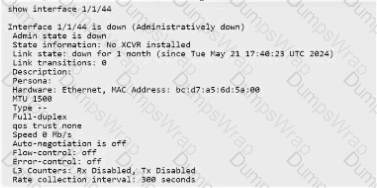

The question relates to configuring port 1/1/44 on an Aruba CX 8325 switch to connect to a 2930F switch (Aruba 2930F series). The key factor is interoperability between these two devices, especially regarding link aggregation and port channel settings.

The Aruba 2930F typically uses static or LACP link aggregation with standard settings. To connect an Aruba CX 8325 port to a 2930F port, the CX configuration must align with the 2930F settings, particularly regarding:

Enabling LACP (Link Aggregation Control Protocol) on the port.

Correct VLAN tagging or trunk mode.

Matching speed and duplex settings.

From the options given, answer A corresponds to enabling LACP with appropriate trunk configuration that matches the 2930F. The other options either have mismatches in aggregation or trunking mode or missing LACP.

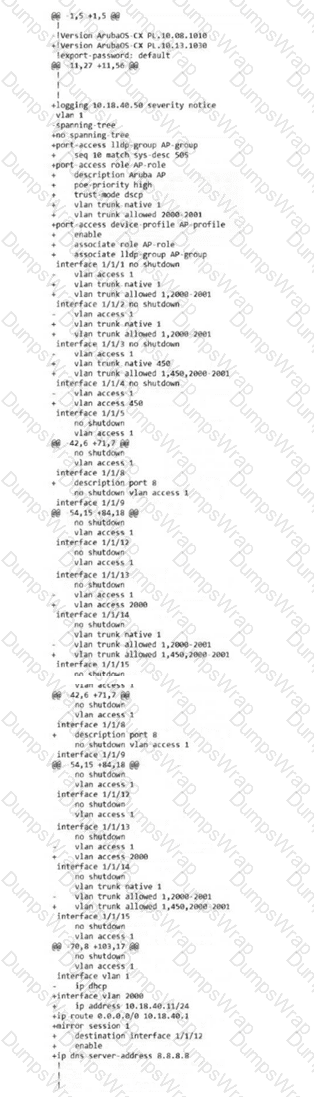

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

To find which changes were made on an HPE Aruba CX switch from the GUI, the correct command is:

show checkpoint diff — this compares the running configuration with stored saved-config revisions.

Using " saved-config revisions " as the comparison base allows the GUI to show what has changed since the last saved configuration.

Other options mix checkpoint and saved-config terminology incorrectly.

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.

When line card LEDs do not light up, and the cards are newly installed, the best troubleshooting methodology is Divide and conquer by swapping the line cards. This method isolates the problem by testing hardware in different slots or known working units.

Spot the difference involves comparing configurations, which does not directly isolate hardware failure.

Follow the path is more suited for connectivity issues.

Replace configuration relates to software or config problems.

Hardware issues are best isolated by physically swapping components.

To receive a monthly report tracking available licenses and their expiration dates in Aruba Central, the Infra Inventory report should be scheduled. It provides detailed information about device inventories, including licenses and expiration.

Switch Capacity Planning focuses on resource utilization.

Resource Utilization monitors system performance.

Network report focuses on topology and health.

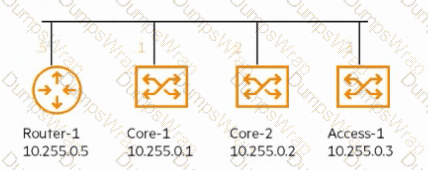

OSPF neighbors on broadcast networks typically reach the 2WAY state during the DR/BDR election process. It is normal behavior for OSPF neighbors on a broadcast network to be in the 2WAY state until a Designated Router (DR) and Backup DR (BDR) are elected.

The tie in DR election explains why multiple neighbors can be in 2WAY.

No OSPF networks advertised would not cause 2WAY.

IGMP snooping does not affect OSPF adjacency states.

In the Aruba troubleshooting framework, there are several structured approaches to resolving network issues.

Replace Configuration (Option A): This methodology involves reverting the system to a known good state. In AOS-CX, Checkpoints are snapshots of the switch configuration. By running copy checkpoint [name] running-config, the administrator is essentially performing a " rollback. " This is often used when a recent change (like the routing change mentioned) caused a failure, and the fastest way to restore service is to " replace " the current faulty configuration with a verified historical one.

Evaluating Other Methodologies:

Top-down/Bottom-up: These involve working through the OSI layers (either from physical to application or vice-versa).

Spot the difference: This involves comparing a working device/configuration with a non-working one. While you might use checkpoint diff to find the error, the act of copying the checkpoint itself is the " Replace " method.

Divide and conquer: This involves starting in the middle of a stack (e.g., Layer 3) and testing in both directions.

Colorless ports allow network devices to move or replace endpoints without changing port-level configurations, typically by automatically assigning network policies dynamically to any port.

HPE Aruba’s solution for colorless ports is the VNBT (Virtual Network Boundary Tagging) feature. VNBT allows dynamic segmentation of traffic, so ports can automatically take on the policies assigned to devices regardless of physical port location.

VRRP is a first-hop redundancy protocol and unrelated to port colorlessness.

VSF (Virtual Switching Framework) is for switch stacking.

VRF (Virtual Routing and Forwarding) is for traffic segmentation.

Thus, VNBT is the correct feature to meet colorless port requirements.

The configuration involves connecting two buildings over fiber using OM4 cabling with a distance of 200 meters. The current optics in use are 25GR (25 Gigabit Rate) optics.

For multimode fiber such as OM4, SR (Short Reach) optics are suitable for distances up to 300 meters. In contrast, LR (Long Reach) optics are typically designed for single-mode fiber and longer distances.

Therefore, to properly support the 200m OM4 fiber link, 25SR optics should be used instead of 25GR (which are often long-reach optics).

10SR and 10LR refer to 10Gbps optics, which do not meet the 25Gbps requirement.

25LR optics are for single-mode fiber and longer distances, not multimode.

To monitor BGP neighbor state changes and automatically create a helpdesk ticket, the NAE (Network Analytics Engine) action to use is a REST API call. This allows integration with external ticketing or automation systems, enabling automated ticket creation when a monitored event occurs.

Executing shell commands, sending emails, or generating logs are limited to internal actions and do not integrate as seamlessly with helpdesk systems.

REST API calls allow custom integration and automation.

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

To avoid split-brain scenarios in VSF stacks, the VSL split-detect mgrep command is used to enable multicast group detection over the Virtual Switching Link (VSL). This helps detect when the stack links are down or partitioned, triggering appropriate failover or shutdown mechanisms.

Options like vsf start-auto-stacking, vsf secondary-member 2, or vsf conductor-member 2 are related to stack initialization and member roles but do not address split-brain detection directly.

Hence, enabling split-detect with mgrep is the best practice for VSF stack stability.

In an AOS-CX Virtual Switching Extension (VSX) environment, the Configuration Synchronization (vsx-sync) feature simplifies management by allowing the Primary switch to automatically push configuration settings to the Secondary switch.

Primary-Only Configuration: A fundamental rule of vsx-sync is that all synchronization commands must be configured on the Primary VSX node . The Secondary node simply receives and applies the configuration; it does not initiate the sync.

The time Synchronization Module: In AOS-CX, the command used to synchronize all time-related parameters—including NTP servers , authentication keys, and time zone settings—is vsx-sync time.

Command Logic: By adding vsx-sync time under the vsx context on the Primary switch, the NTP configuration currently present on the Primary will be replicated to the Secondary switch ' s running configuration.

Why other options are incorrect:

Options B and C: These are incorrect because they suggest configuring the sync on the Secondary switch.

Option A: While it specifies the Primary switch, vsx-sync ntp is not the correct command syntax in AOS-CX; the feature is consolidated under the broader vsx-sync time module.

When configuring a Multi-Chassis Link Aggregation Group (MC-LAG) in a VSX environment, the two physical switches must act as a single logical entity to the connected device (the Gateway).

The Concept of Multi-Chassis (Option A): In many networking architectures, including Aruba ' s legacy AOS-Switch and the conceptual models taught in certification, a LAG must be explicitly identified as " Multi-Chassis " to enable the coordination between the two physical switches. In AOS-CX , while you don ' t literally type " multi-chassis " on the interface, the term is used in exam contexts to describe the MC-LAG functionality .

The " One Link Up " Problem: If the Gateway only sees one link up, it means the LACP negotiation has failed on one of the two switches. This happens because the two switches are not presenting the same LACP System ID to the Gateway. Without the proper multi-chassis/VSX coordination, Switch 1 and Switch 2 appear as two completely different devices. The Gateway’s LACP process will see two different IDs for what it thinks should be one bundle and will block one of the links to prevent a loop.

Why not B? vsx-sync is used to synchronize the commands between the two switches so you don ' t have to type them twice. While helpful for management, its absence doesn ' t prevent a link from coming up as long as you manually configured both sides identically.

Why not C? lacp mode active on the switch will work perfectly with either active or passive on the Gateway side.

Colorless Ports is a foundational concept in Aruba’s Dynamic Segmentation strategy. It refers to a switch configuration where all access ports are configured identically, and the network identity of the port changes dynamically based on the device that plugs into it.

Role of 802.1X: To achieve a colorless port, the switch must first identify the device or user. 802.1X (Port-based Network Access Control) is the industry-standard method for providing this identification. When a device connects, the switch challenges it for credentials. Based on the response, the RADIUS server tells the switch which " User Role " to apply, which then sets the VLAN, QoS, and ACLs.

Complementary Methods: While 802.1X is the primary answer here, colorless ports also frequently utilize MAC Authentication for devices that do not support 802.1X (like printers).

Evaluating Other Options:

Option A: 802.1Q is the standard for VLAN tagging. While colorless ports use VLANs, 802.1Q is a static trunking/tagging protocol and does not provide the " dynamic " intelligence required for a colorless environment.

Option C: 802.11X is a common " trick " option on exams. 802.11 is the standard for Wireless (Wi-Fi), and there is no specific " 802.11X " protocol used for wired switch port security.

Option D: 802.1AD refers to " QinQ " or double-tagging, used primarily in service provider environments to tunnel customer VLANs. It has no relevance to the colorless port security model.

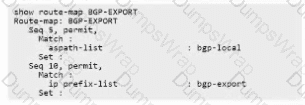

To keep the BGP routing table size manageable and below a specified threshold, the customer should consider enforcing routing policies with aggregation. Route aggregation reduces the number of individual routes advertised and stored by combining multiple routes into a summarized one.

Setting route metrics equal or advertising only a primary path does not reduce the number of routes as effectively.

Importing only the default route (0.0.0.0/0) is impractical for normal operations.

Thus, route aggregation is the best practice for controlling routing table size in merged BGP environments.

In AOS-CX architecture, management services (such as SSH, HTTPS, and SNMP) are VRF-aware. This is a security hardening feature designed to separate management traffic from data traffic.

Default Behavior: By default, AOS-CX switches enable the HTTPS server only on the mgmt VRF (the Out-of-Band Management port). This means the Web UI and REST API are only accessible through the dedicated physical management port.

In-Band Management: When you create an SVI (Switch Virtual Interface) like SVI 100, that interface resides in the default VRF (unless you manually assign it to a custom VRF). To manage the switch " in-band " through this SVI using a web browser, you must explicitly instruct the AOS-CX operating system to listen for HTTPS requests on that specific VRF.

The Command: The command https-server vrf default tells the switch to start the web server process for the default VRF. Without this command, any attempt to access the switch ' s IP address on SVI 100 via port 443 will be dropped by the switch ' s internal control plane protection, as the service is not active for that network context.

Verification of Options:

Option A: This command is typically already part of the factory default configuration to allow OOBM access; it does nothing for an SVI in the default VRF.

Option B: Incorrect, as HTTPS is restricted to the mgmt VRF out of the box for security.

Option C: This is a true statement regarding the default state , but it describes the problem rather than providing the solution to the requirement.

Option D: This is the correct administrative action to enable the service for the data plane (where SVI 100 lives).

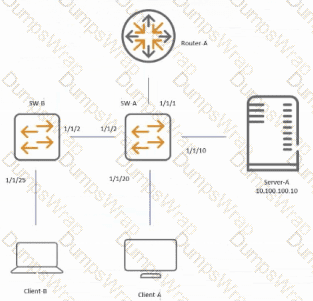

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

In a hotel environment where a single subnet is used for wired guests, but guest devices in a conference room need to communicate with each other (and with the default gateway), while remaining isolated from other guests elsewhere, Community VLANs are appropriate.

Community VLANs allow hosts within the same VLAN community to communicate with each other and the default gateway but are isolated from hosts in other communities.

Isolated VLANs block communication between ports and only allow communication to the gateway.

Therefore, assigning conference room guests to a community VLAN and the gateway to a primary VLAN allows the desired communication model.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

The output indicates the use of an aspath-list within a route-map, which is used to filter or match accepted AS paths in BGP. The aspath-list defines which AS paths are accepted, controlling route advertisement or acceptance.

The route-map is applied to neighbor configurations to filter routes based on AS paths.

Prefix-lists filter IP prefixes, not AS paths.

Neighbor remote-as export is not a valid command.

Therefore, the aspath-list is correctly used to define accepted AS paths.

In network environments where users might connect unauthorized, " dumb " (unmanaged) switches or hubs, standard Spanning Tree Protocol (STP) may not be sufficient to prevent loops.

The Limitation of STP and BPDU Guard: BPDU Guard is an excellent feature that disables a port if it receives a Bridge Protocol Data Unit (BPDU). However, many unmanaged switches do not participate in STP and therefore do not originate BPDUs. Some may simply forward BPDUs or drop them entirely. If a loop is created through an unmanaged switch that doesn ' t send BPDUs, BPDU Guard will never trigger.

How Loop Protection Works: AOS-CX Loop Protection is specifically designed for this scenario. The switch sends out proprietary Loop Protection packets at a configured interval. If the switch receives its own Loop Protection packet back on the same port (or a different port in the same VLAN), it knows a loop exists.

Action on Detection: Upon detecting the loop, the switch can be configured to send an SNMP trap and, more importantly, disable the port to stop the broadcast storm and prevent a network outage.

Best Practice: Loop protection is commonly recommended for " Access " or " Colorless " ports where end-user devices connect, as it provides a safety net against loops caused by non-STP aware devices.
