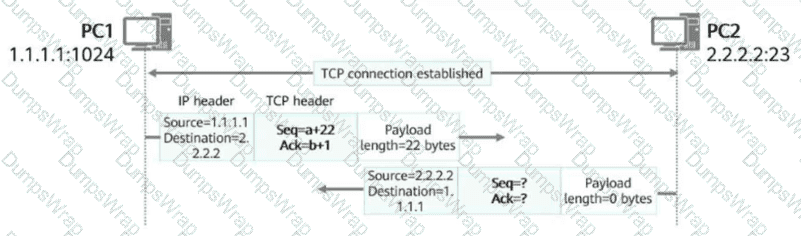

In TCP, the acknowledgment number indicates the next byte that the receiver expects to receive. In the figure, PC1 sends a TCP segment to PC2 with sequence number = a+22 and payload length = 22 bytes . Since TCP sequence numbers count bytes, the last byte carried in this segment corresponds to sequence number a+43 . Therefore, after PC2 successfully receives this data, it sends back an ACK indicating that the next expected byte is a+44 .

That is why option B is correct. This is a standard TCP reliability mechanism. TCP does not acknowledge “packets” as units; it acknowledges the byte stream. The ACK number always points to the next byte expected from the peer. The source and destination port numbers identify the session, but the sequence and acknowledgment numbers track ordered delivery. HCIA-Datacom uses this mechanism to explain connection-oriented transport, reliable delivery, retransmission, and traffic control. Understanding how the payload length affects sequence progression is essential when analyzing packet captures and troubleshooting TCP communication problems in enterprise networks.

============

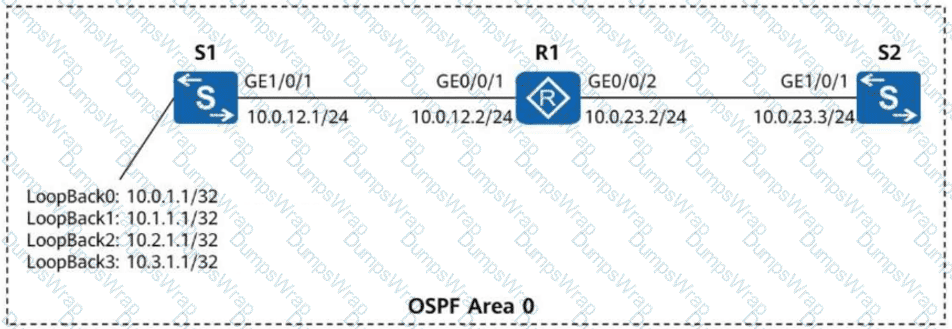

To check OSPF-learned routes in the global IP routing table , the correct command is display ip routing-table protocol ospf , so option A is correct. This command filters the routing table and shows only the routes whose source protocol is OSPF. It is especially useful when verifying whether OSPF-learned routes have been successfully installed into the forwarding table after neighbor establishment and LSDB calculation.

Option B , display ospf peer, is used to check OSPF neighbor information and adjacency states, not the routing table. Option C , display ospf interface, shows OSPF-related parameters on interfaces such as timers, network type, and cost. Option D , display ospf routing, displays OSPF route information maintained by the OSPF process itself, but the question specifically asks about routes in the global routing table , which is the RIB used for actual forwarding decisions. HCIA-Datacom distinguishes between protocol-specific route information and the final routing table seen by the device. Understanding this distinction helps engineers verify whether a protocol has only learned topology information or has actually produced usable forwarding entries.

============

This statement is true . When a device has multiple routes to the same destination prefix, route selection is based first on the longest prefix match , and when prefix length is the same, the device compares the route preference or administrative priority associated with each routing source. On Huawei devices, a direct route has a better preference than a static route , so the direct route is selected first when both routes have the same destination and mask.

A direct route is generated automatically when an IP address is configured on an interface and that interface is Up. Because the destination network is directly connected, this route is considered more trustworthy and efficient than a manually configured static route pointing to the same prefix. HCIA-Datacom uses this principle to explain route selection, routing-table generation, and troubleshooting cases where a configured static route does not appear as the active route because a direct or dynamic route has higher priority. This is a basic but important concept in IP forwarding and helps engineers correctly interpret routing tables on Huawei routers and Layer 3 switches.

============

On Huawei devices, the undo command is used to remove a previously applied configuration, disable a function, or restore a parameter to its default state. In option B , undo ip address is a valid interface-view command that removes the IP address configured on the interface. In option C , undo portswitch is also a valid interface command on switch interfaces that converts a Layer 2 interface into a Layer 3 interface when supported by the device. In option D , undo sysname restores the device name to the default hostname, which is valid in system view.

Option A is incorrect because system-view is a command used to enter system view from user view, but undo system-view is not a valid command for exiting that view. Exiting system view is done with commands such as quit, return, or by using shortcut keys. This question checks the understanding that undo only applies to configurable features and parameters, not to view-switching commands in the CLI hierarchy.

============

Comprehensive and Detailed 150 to 200 words of Explanation From Datacom knowledge:

The false statement is B . From the AAA configuration output, the value of Remote-admin-user block time is clearly shown as 5 Min(s) , which means the account lockout duration is 5 minutes , not 30 minutes.

Option A is true because Remote-admin-user block retry-time : 3 indicates that after 3 consecutive authentication failures , the account will be blocked. Option C is also true because the displayed Domain Name Delimiter is @ , which is the separator used in usernames such as user@huawei.com. Option D is true as well because the output shows Local-user : total: 512 used: 2 , meaning that the device supports a maximum of 512 local users , and currently 2 local users have been created.

This question checks the ability to correctly read AAA configuration output on Huawei devices. In HCIA-Datacom knowledge, it is important to distinguish between retry interval , retry count , and block time , because these values represent different security control parameters and are often confused during troubleshooting or configuration review.

============

In a WAC + Fit AP architecture, the WAC (Wireless Access Controller) centrally manages and controls the Fit APs, so option A is correct. Service configurations such as SSIDs, security policies, radio parameters, and access control are generally delivered from the WAC to the APs. The Fit AP mainly forwards wireless user traffic and executes the configuration issued by the controller.

Option D is also correct because a Fit AP provides 802.11 wireless access for stations (STAs) and serves as a bridge between the wireless side and the wired network. This is one of its basic roles in enterprise WLAN deployment. Option B is incorrect because users or administrators do not normally need to log in to each Fit AP individually to configure wireless services; centralized management by the WAC is the whole advantage of this architecture. Option C is incorrect because CAPWAP communication between the WAC and AP does not require Layer 2 adjacency ; the WAC and AP can communicate over Layer 3 as long as IP connectivity exists. HCIA-Datacom emphasizes centralized configuration, simplified operations, and scalable deployment as key benefits of WAC + Fit AP networking.

============

In the standard TCP/IP forwarding model, transport-layer headers such as TCP and UDP headers are added by the source host and are mainly interpreted by the destination host. Routers that forward packets between the source and destination operate primarily at the network layer , using the destination IP address in the IP header to make forwarding decisions. Therefore, under normal routing behavior, routers do not process transport-layer header information when deciding how to forward packets.

This is a key concept in layered communication. The source host encapsulates application data with a transport-layer header, then with an IP header, and finally with a data-link header. Each router along the path removes only the Layer 2 frame header, checks the Layer 3 destination IP information, decrements TTL, recalculates the IP header checksum when required, and forwards the packet. The transport-layer content remains unchanged in normal forwarding. HCIA-Datacom uses this principle to explain end-to-end communication and layer responsibilities. Although advanced devices may inspect higher-layer information for security or policy purposes, standard router forwarding in the basic TCP/IP model does not depend on transport-layer processing.

The address 224.0.0.1/24 cannot be configured as a normal host IP address by default because it belongs to the Class D multicast address range . IPv4 multicast addresses range from 224.0.0.0 to 239.255.255.255 and are reserved for multicast group communication rather than assignment to host interfaces as ordinary unicast addresses. Therefore, option D is correct.

The other three options are all private unicast address ranges and can be configured on hosts in private networks. 10.0.0.1/8 belongs to the 10.0.0.0/8 private range, 172.16.1.1/16 belongs to the 172.16.0.0/12 private range, and 192.168.1.1/24 belongs to the 192.168.0.0/16 private range. These are commonly used in enterprise and campus networks. HCIA-Datacom teaches that host IP address planning must distinguish between unicast, multicast, loopback, broadcast, and other special-purpose ranges. Multicast addresses identify multicast groups and are processed differently by hosts and network devices, so they are not valid default host addresses for ordinary end-to-end IP communication.

============

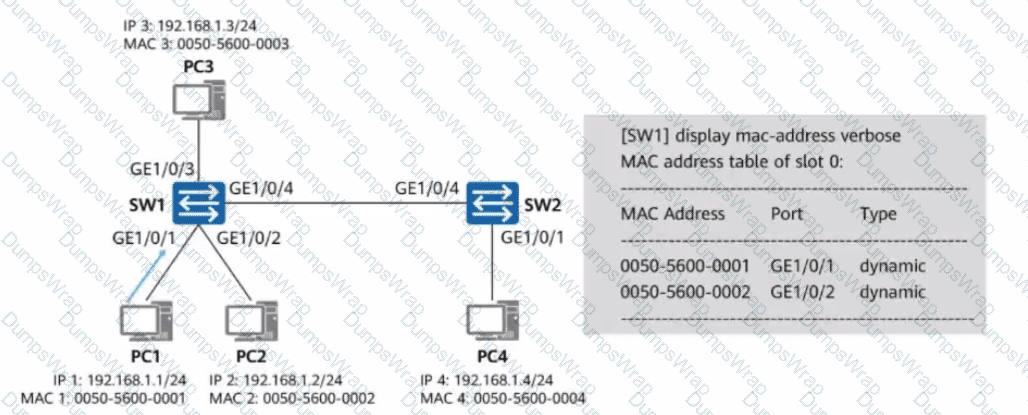

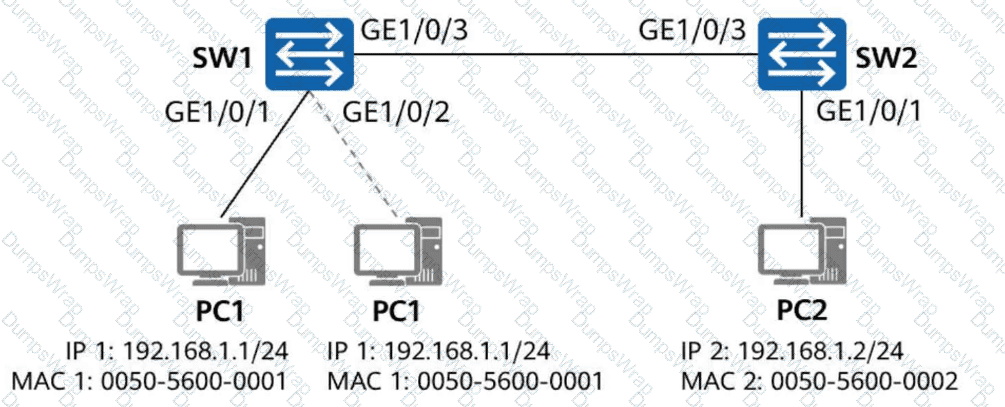

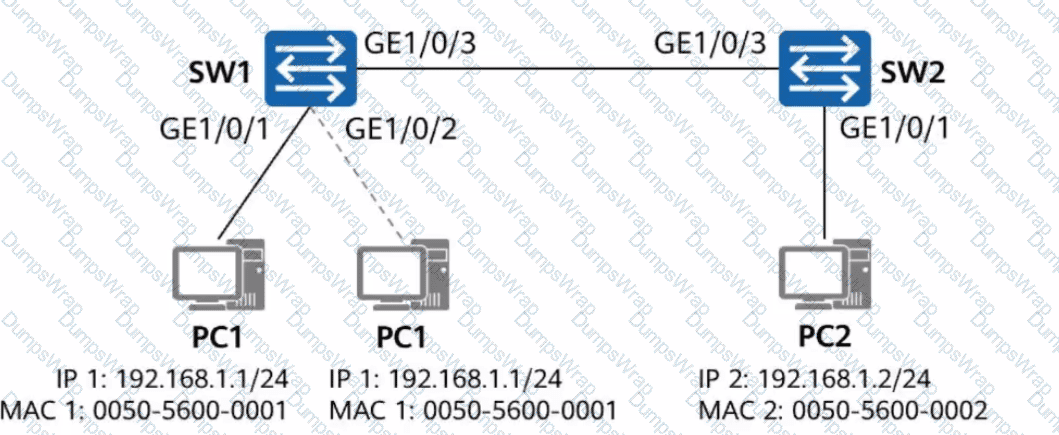

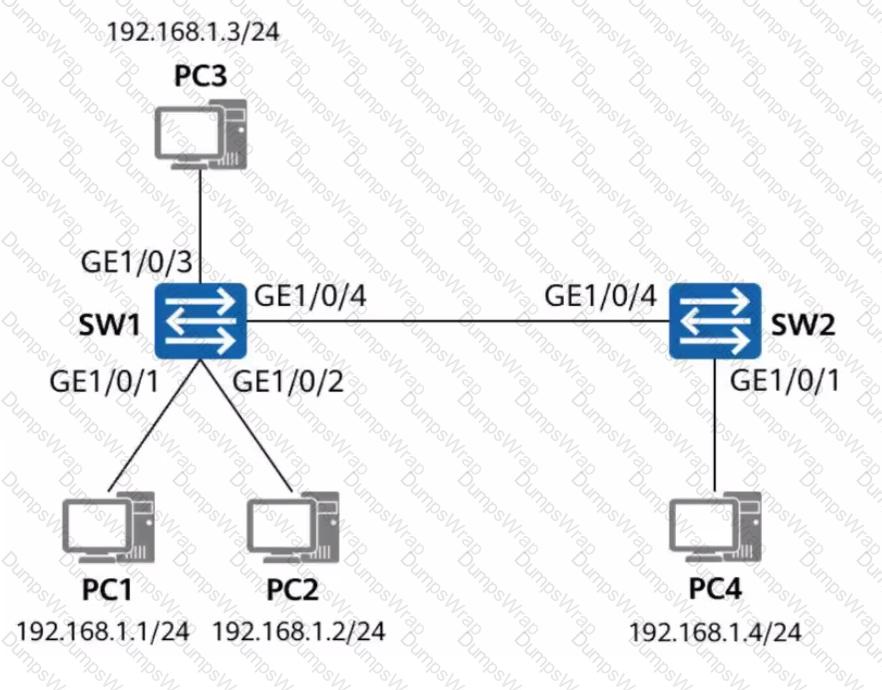

An Ethernet switch learns MAC address entries dynamically by examining the source MAC address of incoming frames. When SW1 first receives frames from PC1 on GE1/0/1, it creates a MAC address table entry mapping PC1’s MAC address to that port. If PC1 later sends frames that arrive on GE1/0/2, SW1 updates the learned entry to reflect the new incoming interface. Therefore, option B is correct: SW1 saves the mapping between PC1’s MAC address and GE1/0/2 and removes or overwrites the old mapping associated with GE1/0/1.

Option A is incorrect because a single dynamic MAC address is not normally maintained on two different ports within the same VLAN at the same time; that would cause forwarding ambiguity. Option C is incorrect because a normal move of one MAC address does not require clearing the entire MAC table. Option D is also incorrect because switches update MAC learning dynamically upon receiving new source traffic and do not have to wait for the previous entry to age out. HCIA-Datacom uses this principle to explain MAC address learning, migration, and troubleshooting of loops or host movement in switched Ethernet networks.

============

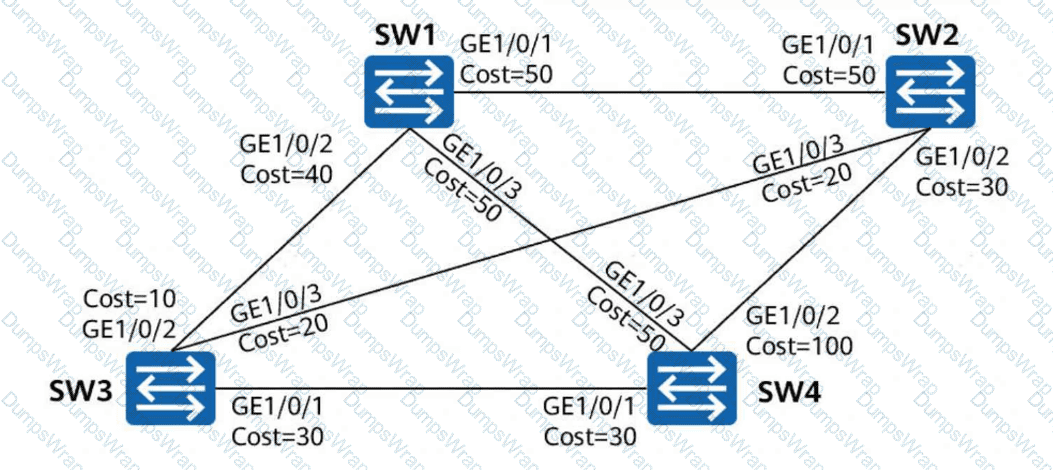

After STP convergence, only ports in the forwarding state participate in active traffic forwarding, while redundant ports may be placed into the blocking or discarding state to eliminate loops. According to the topology and STP role election shown in the question, the valid forwarding path from SW1 to SW4 is SW1 → SW3 → SW4, so option B is correct.

This means that the direct alternative path or the path through SW2 is not the active spanning-tree forwarding path after election and state transition. STP selects paths based on the root bridge, path cost, bridge ID, and port ID. Once the root bridge and port roles are determined, some links remain active and others are blocked to ensure a loop-free Layer 2 topology. HCIA-Datacom emphasizes that the resulting forwarding topology is a tree, not a mesh, even if the physical topology contains redundant links. Understanding the actual forwarding path after STP convergence is important for troubleshooting connectivity, predicting traffic behavior, and verifying whether bridge priority and path-cost settings have produced the intended design outcome in campus switching networks.

============

In STP, the root bridge is elected based on the lowest bridge ID (BID). A BID is composed of the bridge priority and the MAC address of the switch. The device with the smallest BID becomes the root bridge. Therefore, if an administrator wants SW2 to become the root bridge, the most direct and correct method is to configure a lower system priority on SW2, making option C correct.

Option A is incorrect because port priority affects port-role selection in some tie-breaking scenarios, but it does not determine root-bridge election. Option B is the opposite of what is required, because a higher system priority makes the BID larger and reduces the chance of being elected as root. Option D is also incorrect because root path cost is used by non-root bridges to select the best path to the existing root bridge; it does not determine which switch becomes the root bridge in the first place. HCIA-Datacom stresses that bridge priority tuning is the standard administrative method used to control root bridge placement in campus networks for stable and predictable Layer 2 topology design.

============

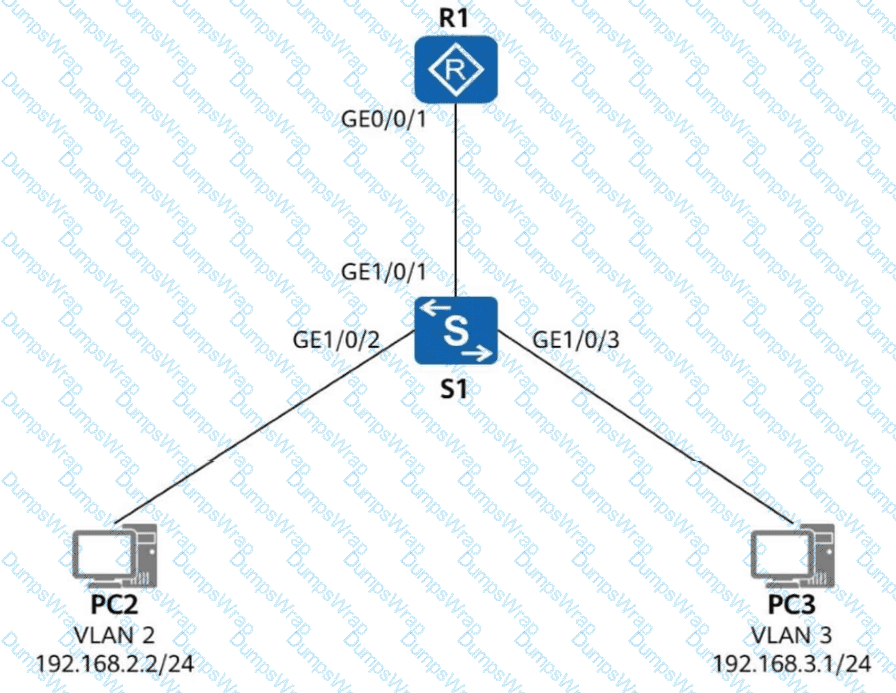

This scenario describes the classic router-on-a-stick inter-VLAN routing design. A single physical interface on R1 connects to switch S1, and multiple sub-interfaces are created on that physical interface to serve as gateways for multiple VLANs. Therefore, if R1 provides Layer 3 gateway functions for VLAN 2 and VLAN 3, sub-interfaces such as GE0/0/1.2 and GE0/0/1.3 must be configured, so option A is correct.

Because PC2 and PC3 are connected to switch S1, S1 learns their source MAC addresses dynamically and stores them in its MAC address table, making option B correct. R1 receives tagged frames from different VLANs on the trunk link and, through its sub-interfaces, can identify and terminate frames for VLAN 2 and VLAN 3, so option C is also correct. Option D is incorrect because hosts in different VLANs do not need to be connected to different physical switches; VLAN separation is logical, not necessarily physical. HCIA-Datacom uses this deployment to explain inter-VLAN communication, 802.1Q trunking, and flexible campus gateway design using limited router interfaces.

In OSPF, the packet type used to request specific link-state advertisements from a neighbor is the Link State Request (LSR) packet. Therefore, option B is correct. During database synchronization, OSPF neighbors first discover each other with Hello packets, then exchange summaries of their databases using Database Description (DD) packets. If one router finds that it is missing certain LSAs or has older versions, it sends an LSR packet to request the needed LSAs from its neighbor.

The neighbor then responds with a Link State Update (LSU) packet containing the requested LSAs. Finally, the receiving router confirms proper receipt with a Link State Acknowledgment (LSAck) packet. HCIA-Datacom emphasizes understanding the roles of these five OSPF packet types because they are central to neighbor formation, adjacency establishment, and LSDB synchronization. This question specifically tests whether the learner can distinguish between the request packet ( LSR ) and the update packet ( LSU ). The router does not use a DD packet to request detailed LSA content; DD packets provide database summaries, while LSR packets explicitly request the LSAs that are needed.

============

This statement is true . In SNMP, both Trap and Inform messages are used by managed devices to proactively report alarms or events to the Network Management System (NMS) . However, their reliability behavior is different. A Trap is sent without requiring an acknowledgment from the NMS. Once it is transmitted, the sender does not confirm whether the manager actually received it.

By contrast, an Inform Request requires the NMS to send a response confirming receipt. If the managed device does not receive the acknowledgment within the expected time, it can retransmit the Inform message. Because of this, Inform is considered more reliable than Trap, although it also introduces slightly more overhead. HCIA-Datacom highlights this difference when explaining SNMP-based monitoring and alarm reporting. In real network O & M scenarios, the choice between Trap and Inform depends on the required balance between reliability and simplicity. This question tests a very standard SNMP knowledge point: Trap is unacknowledged , while Inform is acknowledged . Understanding this distinction helps network engineers choose suitable alarm reporting mechanisms in enterprise monitoring platforms.

============

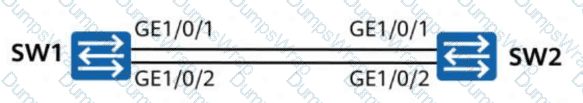

For an Eth-Trunk operating in manual load-balancing mode , the logical Eth-Trunk interface can remain Up as long as at least one member link is operational and properly added to the trunk. Therefore, if GE1/0/1 is Up and GE1/0/2 is Down, Eth-Trunk 1 can still stay Up, making option A correct.

Option B is incorrect because member interfaces in a manual Eth-Trunk do not need to be in identical physical states for the trunk itself to remain operational. Option C is also incorrect because there is no inherent rule here that two-member trunks must have both links active unless a separate minimum-links mechanism has been explicitly configured. No such condition is stated in the question. Option D is false because one of the key purposes of Eth-Trunk is redundancy; requiring all member interfaces to be Up would defeat that design advantage. HCIA-Datacom teaches that Eth-Trunk enhances link reliability by allowing continued forwarding when part of the bundle fails, provided the trunk still has an active forwarding member.

============

This statement is false . In Layer 3 in-path WLAN networking , the WAC and Fit APs communicate over Layer 3, which means the APs must discover the WAC through methods that are valid across Layer 3 boundaries. Broadcast is a Layer 2 mechanism and cannot normally be used for WAC discovery across Layer 3 networks. Therefore, saying that APs can obtain the WAC address through broadcast or DHCP in this scenario is incorrect.

In Huawei WLAN deployments, Fit APs can commonly discover the WAC address through methods such as DHCP option-based discovery , DNS , or preconfigured controller information, depending on the deployment model and product features. Because the WAC and AP are not in the same Layer 2 broadcast domain in Layer 3 in-path networking, broadcast discovery is not the standard mechanism here. HCIA-Datacom stresses the difference between Layer 2 direct discovery and Layer 3 discovery methods because this affects initial AP registration, CAPWAP establishment, and troubleshooting when APs fail to go online. Understanding the discovery mechanism is essential when planning IP addressing, DHCP options, and controller placement in enterprise WLAN designs.

============

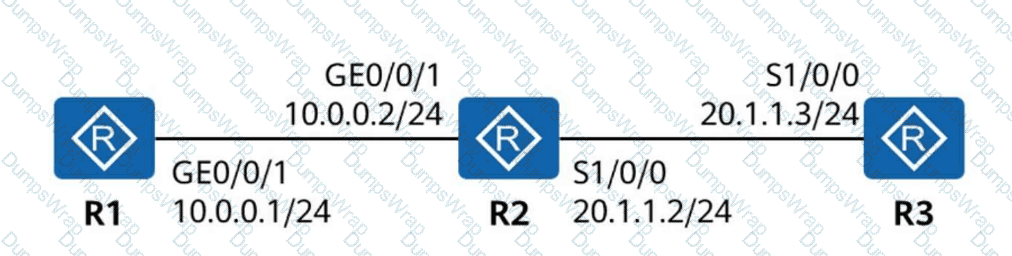

For two directly connected edge networks to communicate through intermediate routing, each end router must have a route to the remote destination network pointing to the correct next hop on the transit link. Since 10.0.0.0/24 is directly connected to R1 and 20.1.1.0/24 is directly connected to R3, R1 needs a route to 20.1.1.0/24, and R3 needs a route to 10.0.0.0/24.

Option A is correct because it configures on R1 a static route to the remote network 20.1.1.0/24 using next hop 10.0.0.2, which is the neighbor toward the transit path. Option D is correct because it configures on R3 a static route to the remote network 10.0.0.0/24 using next hop 20.1.1.1, which is the proper adjacent forwarding address in that direction. Option B is incorrect because a router cannot use a next hop that belongs to the remote destination network but is not directly reachable as a valid immediate forwarding address in this topology. Option C is also incorrect because the specified next hop is not the correct adjacent next-hop address for R3. HCIA-Datacom stresses that static routes must always point to a reachable next hop or outbound interface.

============

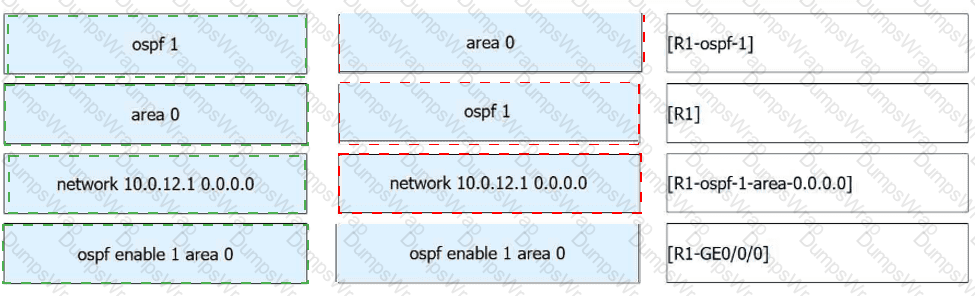

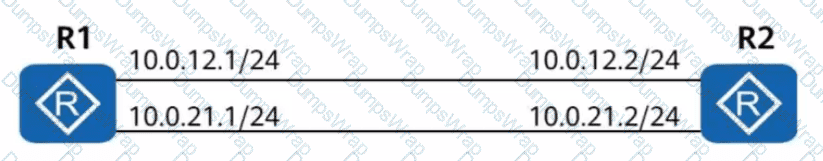

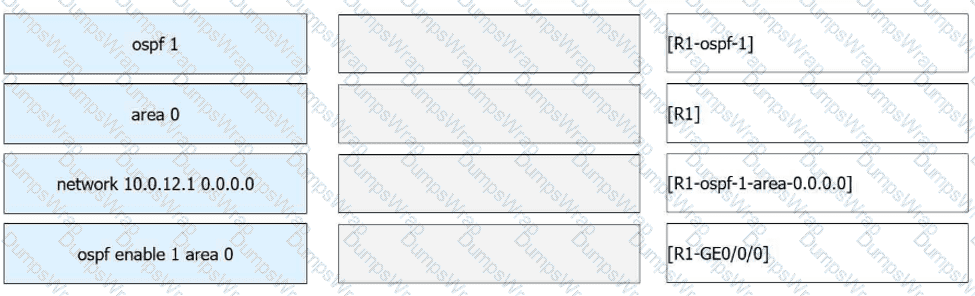

ospf 1 → [R1]

area 0 → [R1-ospf-1]

network 10.0.12.1 0.0.0.0 → [R1-ospf-1-area-0.0.0.0]

ospf enable 1 area 0 → [R1-GE0/0/0]

Huawei devices support two common ways to enable OSPF on an interface.

The first method is the process-based method . In this method, you first enter system view, then enter the OSPF process view using ospf 1, so this command belongs to [R1] . After that, you enter the area view using area 0, so this command belongs to [R1-ospf-1] . Inside the area view, the command network 10.0.12.1 0.0.0.0 is used to match the interface with IP address 10.0.12.1, so it belongs to [R1-ospf-1-area-0.0.0.0] .

The second method is the interface-based method . In this method, OSPF is enabled directly under the interface using ospf enable 1 area 0, so this command belongs to [R1-GE0/0/0] .

This question tests the difference between global OSPF process configuration and direct interface OSPF enabling , both of which are standard Huawei OSPF configuration methods.

============
