Comprehensive and Detailed In-Depth Explanation:

To determine the correct answers, we need to analyze OSPFv3 behavior and Inter-Area-Prefix LSAs (Type 3 LSAs).

1. Understanding OSPFv3 Inter-Area-Prefix LSAs (Type 3 LSAs)

Type 3 LSAs (Inter-Area-Prefix LSAs) are generated by an ABR (Area Border Router) to advertise networks between areas.

If a router in one area learns a prefix from another area, it generates a Type 3 LSA to advertise it further.

Stub areas (Area 1) do not allow external LSAs, including Type 3 LSAs for external routes.

NSSA areas (Area 3) accept external routes but redistribute them as Type 7 LSAs before being converted to Type 5 LSAs by an NSSA ABR.

2. Analyzing Each Answer Option:

✅ A. " The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 0. " → TRUE

R6 has 2000::6/128 in Area 2.

R2 is the ABR that brings this prefix into Area 0 as a Type 3 LSA.

R1, being in Area 0, learns this LSA from R2.

Thus, this statement is correct.

❌ B. " The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 3. " → FALSE

R1 is not an ABR for Area 3, so it does not generate an LSA for 2000::6/128 in Area 3.

Instead, R3 (the ABR between Area 0 and Area 3) would be responsible for propagating routes.

This statement is false.

❌ C. " The Inter-Area-Prefix-LSA that is generated by R2 and describes 2000::6/128 exists in Area 1. " → FALSE

Area 1 is a stub area and does not accept external LSAs (including Type 3 LSAs from other areas).

R2 cannot generate and send a Type 3 LSA for 2000::6/128 into Area 1.

This statement is false.

✅ D. " The Inter-Area-Prefix-LSA that is generated by R3 and describes 2000::6/128 exists in Area 2. " → TRUE

R3 is an ABR and learns 2000::6/128 from R2 (which originally learned it from R6 in Area 2).

Since Area 2 is a normal (non-stub, non-NSSA) area, Type 3 LSAs are allowed.

R3 generates and advertises this Inter-Area-Prefix-LSA for 2000::6/128 into Area 2.

Thus, this statement is correct.

VLAN aggregation and MUX VLAN provide different networking functions and use distinct VLAN roles.

VLAN aggregation combines multiple sub-VLANs under a super-VLAN. The sub-VLANs share the IP subnet and default gateway of the super-VLAN, reducing IP address consumption.

MUX VLAN controls Layer 2 communication using principal, group, and separate VLANs. It allows administrators to restrict communication among hosts while maintaining access to designated resources.

However, Huawei ' s MUX VLAN configuration requirements explicitly prohibit using the VLAN ID of a principal VLAN as a super-VLAN or sub-VLAN.

Consequently, an administrator cannot assign the same VLAN ID simultaneously to a super-VLAN and the principal MUX VLAN.

Separate VLAN identifiers must be allocated for the relevant VLAN functions to avoid configuration conflicts.

Therefore, the statement is FALSE.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

BGP supports Equal-Cost Multipath (ECMP) forwarding when multiple eligible routes have compatible path attributes. The maximum load-balancing 2 command permits up to two qualifying BGP routes to participate in load balancing.

R1, R2, and R3 originate the same prefix within AS 65123. R4 and R5 receive routes through different EBGP peers, with the same AS_PATH value, making them eligible for multipath forwarding when the remaining attributes match.

R6 can receive corresponding IBGP advertisements from R4 and R5 and use two equal-cost paths.

R2, however, originates the prefix locally, so its locally imported route is preferred rather than installing two equivalent external alternatives.

Huawei ' s BGP implementation requires matching route attributes, including AS_PATH, for ordinary BGP load balancing. Therefore, the correct statements are B, C, and D.

================

Huawei NetEngine AR6120 and AR6121 routers provide modular hardware expansion through service interface card slots.

Both models support two Service Interface Card (SIC) slots. These slots accommodate compatible interface modules that extend the router ' s connectivity and service capabilities.

An important hardware design feature is that two adjacent SIC slots can be combined into one Wide Service Interface Card (WSIC) slot.

This is achieved by removing the guide rail separating the SIC slots, permitting installation of a compatible larger interface card.

The combined slot uses the designated slot identifier specified in the hardware documentation.

This modular arrangement provides flexibility when selecting interface modules for enterprise WAN connectivity and network expansion.

Huawei ' s hardware specifications confirm that the two SIC slots can be combined into one WSIC slot.

Therefore, the statement is TRUE.

================

This topology uses OSPF for every PE–CE route exchange:

Spoke-CE1 advertises the route to Spoke-PE1 using OSPF 10.

Spoke-PE1 converts it into a VPNv4 route and advertises it through MP-IBGP to the Hub-PE.

The Hub-PE advertises it to the Hub-CE through OSPF 10 (VPN_in).

The Hub-CE redistributes it into OSPF 20 and advertises it back to the Hub-PE (VPN_out).

The Hub-PE imports the OSPF 20 route into BGP and advertises it to Spoke-PE2.

The decisive point is step 5: OSPF is an IGP and does not carry an AS_Path attribute. Therefore, when the route is imported from OSPF into BGP on the Hub-PE, its AS_Path is initialized as null/empty. Advertising it through MP-IBGP to Spoke-PE2 does not prepend backbone AS 100.

The AS numbers shown beside the sites are therefore not inserted, because those PE–CE connections use OSPF rather than EBGP. Huawei documentation represents an empty AS_Path as Nil. HCIP-Datacom training-material route process, Huawei BGP routing-table documentation.

Comprehensive and Detailed In-Depth Explanation:

Understanding the BGP and IS-IS Network Topology in the Question:

IS-IS Areas:

Area 49.0001 (Level-1 IS-IS): Contains R1, R2, R4, R5.

Area 49.0002 (Level-2 IS-IS): Contains R3, R6.

R2 acts as an ABR (Area Border Router) and redistributes routes between Level-1 and Level-2 using import-route isis level-2 into level-1.

BGP Route Reflection & Peering:

R2 and R5 are Route Reflectors (RRs).

iBGP peering is established among all routers (R1, R2, R3, R4, R5, R6).

R1 and R4 import 192.168.1.0/24 into BGP, meaning this prefix will be advertised to all iBGP peers.

R3 and R6 import 192.168.2.0/24 into BGP, meaning this prefix will also be advertised to all iBGP peers.

Route Distribution Analysis:

A. The route 192.168.2.0/24 in the routing table of R4 has two next hops. ✅ (Correct)

R3 and R6 import 192.168.2.0/24 into BGP.

R2 and R5 (Route Reflectors) learn this route and reflect it to their clients (R1, R3, R4, R6).

R4 receives two valid paths to 192.168.2.0/24 via R2 and R5 (both iBGP peers).

Since both routes have the same BGP attributes and cost, they are installed as equal-cost paths in R4 ' s routing table.

✅ Statement A is correct: The routing table of R4 has two next hops for 192.168.2.0/24.

B. The routing table of R1 contains two equal-cost default routes. ❌ (Incorrect)

In an IS-IS Level-1-2 setup, default routes are usually provided to Level-1 routers from an ABR (like R2).

However, the question does not mention that R1 is receiving two default routes or that it is in an equal-cost multipath (ECMP) scenario.

R1 may have only one default route, depending on route preference and cost.

❌ Statement B is incorrect: The routing table of R1 does not necessarily contain two equal-cost default routes.

C. The routing table of R4 contains two equal-cost default routes. ❌ (Incorrect)

Similar to R1, R4 is also a Level-1 router in IS-IS.

If R4 were receiving default routes from multiple ABRs (R2 and R5), then it could have equal-cost paths.

However, there is no indication that R4 is receiving two default routes in this scenario.

❌ Statement C is incorrect: The routing table of R4 does not necessarily contain two equal-cost default routes.

D. The routing table of R1 contains the route 192.168.2.0/24. ✅ (Correct)

R3 and R6 import 192.168.2.0/24 into BGP.

R2 and R5 (Route Reflectors) reflect this route to their iBGP peers, including R1.

Since R1 is an iBGP client of R2 and R5, it will receive 192.168.2.0/24 and install it in its routing table.

✅ Statement D is correct: The routing table of R1 contains the route 192.168.2.0/24.

Final Conclusion:

✅ A. The route 192.168.2.0/24 in the routing table of R4 has two next hops.

❌ B. The routing table of R1 does not necessarily contain two equal-cost default routes.

❌ C. The routing table of R4 does not necessarily contain two equal-cost default routes.

✅ D. The routing table of R1 contains the route 192.168.2.0/24.

Thus, the correct answers are: A, D.

In Huawei’s implementation of BGP peer groups, the goal is to ease configuration in large-scale BGP deployments. When you define a peer group, all peers within that group inherit common settings.

For IBGP peer groups, since the peers are in the same AS, you do not need to specify an AS number.

For EBGP peer groups, since the peers are in different ASes, you must specify the AS number during peer group configuration.

✅ Official Reference from Huawei:

" When configuring an IBGP peer group, the AS number does not need to be specified because all members belong to the same AS. However, when configuring an EBGP peer group, the peer AS must be explicitly specified. "

— [Huawei HCIA-Datacom Certification Guide – BGP Chapter]

A = 50

B = 10

C = 20

Comprehensive and Detailed In-Depth Explanation:

Understanding OSPF Path Selection and Cost Calculation:

OSPF selects the shortest path (lowest cost) to the destination.

The OSPF cost is determined by the cumulative sum of interface costs along a path.

By assigning specific costs to A, B, and C, we can influence OSPF’s path selection to meet the desired routing behavior.

Step-by-Step Analysis of Required Traffic Flow:

1. Traffic from PC1 to PC2 must take the route:

PC1 - > R1 - > R3 - > R2 - > PC2

To force traffic through R3, the cost of the direct link R1 - > R2 (Cost-A) must be higher than the alternative path via R3.

We assign Cost-A = 50 (high cost) to discourage direct routing from R1 - > R2.

The cost of R1 - > R3 (Cost-C) should be lower, so we assign Cost-C = 20.

The cost of R3 - > R2 (default Cost-20) remains unchanged.

Total cost via R3: 20 (R1- > R3) + 20 (R3- > R2) = 40, which is less than the direct link of 50, so OSPF prefers this path.

✅ Traffic follows: PC1 - > R1 - > R3 - > R2 - > PC2

2. Traffic from PC2 to PC1 must take the route:

PC2 - > R2 - > R1 - > PC1

We need to make R2 - > R1 (Cost-B) the best (lowest cost) route for return traffic.

Assign Cost-B = 10 (low cost).

This ensures that R2 prefers the direct path R2 - > R1 instead of R2 - > R3 - > R1 (which costs 20+20=40).

✅ Traffic follows: PC2 - > R2 - > R1 - > PC1

Final Cost Assignments for Correct Routing Behavior:

Cost

Assigned Value

Reason

Cost-A (R1 - > R2)

50

High to discourage direct R1- > R2 routing

Cost-B (R2 - > R1)

10

Low to ensure PC2- > PC1 prefers direct R2- > R1

Cost-C (R1 - > R3)

20

Medium to encourage R1- > R3- > R2 path

Key Takeaways:

Higher OSPF cost discourages path selection.

Lower OSPF cost encourages path selection.

By manipulating OSPF cost values, we achieve asymmetric routing between PC1 and PC2.

This aligns with OSPF path selection principles covered in HCIP-Datacom certification.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on OSPF Cost Calculation and Path Selection.

Huawei Enterprise Networking Training Materials, OSPF Path Optimization Techniques.

Huawei Datacom Configuration Guide, OSPF Cost and Traffic Engineering.

Comprehensive and Detailed In-Depth Explanation:

Key OSPF Concepts to Consider:

Area 1 is an NSSA (Not-So-Stubby Area):

NSSAs allow external routes but advertise them as Type-7 LSAs.

The ABR (R2) converts these Type-7 LSAs into Type-5 LSAs for the backbone (Area 0).

Area 2 is a Stub Area:

Stub areas do not allow external routes (Type-5 LSAs).

This means that R5 (inside Area 2) will NOT receive external routes like 10.0.4.4/32 or 10.0.4.0/24.

Effect of asbr-summary 10.0.4.0 255.255.255.0 on R1 and R3:

This command ensures that R1 and R3 will see a summarized route 10.0.4.0/24 instead of specific /32 routes.

Routing Table Analysis:

R1 (ABR for NSSA, with ASBR summary configured)

Connected to Area 1 (NSSA) and Area 0 (Backbone)

Since asbr-summary 10.0.4.0 255.255.255.0 is configured on R1, it contains both 10.0.4.4/32 (from R4) and the summarized 10.0.4.0/24.

✅ Matches Option 4: The routing table contains both 10.0.4.4/32 and 10.0.4.0/24.

R5 (Inside Area 2 - Stub Area)

Stub areas do not receive external routes (Type-5 LSAs).

Since R5 is inside a stub area, it does not contain 10.0.4.4/32 or 10.0.4.0/24.

✅ Matches Option 3: The routing table does not contain 10.0.4.4/32 or 10.0.4.0/24.

R2 (ABR between NSSA and Backbone, but no ASBR summary configured)

R2 converts Type-7 LSAs from R4 into Type-5 LSAs and advertises them into Area 0.

Since no ASBR summary is configured on R2, it only sees the specific external route 10.0.4.4/32 but not the summarized 10.0.4.0/24.

✅ Matches Option 1: The routing table contains 10.0.4.4/32 only.

R3 (Another ABR with ASBR summary configured)

R3 has asbr-summary 10.0.4.0 255.255.255.0 configured, which means it will summarize the external routes.

Instead of 10.0.4.4/32, R3 will only have the summarized 10.0.4.0/24 route.

✅ Matches Option 2: The routing table contains 10.0.4.0/24 only.

To determine the correct command, we need to analyze BGP behavior in a Hub-Spoke topology and how routes are advertised in MPLS VPN environments.

1. Understanding the Hub-Spoke BGP/MPLS VPN Topology

The network consists of Hub-PE and Spoke-PE routers, which are MPLS VPN PEs.

Hub-PE is responsible for distributing routes between Spoke-PE1 and Spoke-PE2.

Spoke routers do not have direct IBGP peering with each other; instead, they rely on the Hub-PE to relay routes.

BGP next-hop handling is critical for proper route advertisement.

2. Why is the " next-hop-self " Command Required?

By default, when BGP advertises a route, the next-hop remains unchanged (i.e., the original next-hop is retained).

In Hub-Spoke topology, Spoke routers would receive routes with a next-hop IP that belongs to another Spoke-PE, which is not reachable directly.

To solve this issue, we use the next-hop-self command on the Hub-PE, so that:

Hub-PE updates the next-hop to its own address before advertising routes to the Spoke-PEs.

This ensures that Spoke-PE routers use the Hub-PE as the next-hop, making routes reachable and preventing blackholing.

3. Correct Command Usage

The administrator must run the following command under the BGP IPv4 address family of the BGP-VPN_out instance on Hub-PE:

shell

CopyEdit

peer 10.1.2.1 next-hop-self

This ensures that the next-hop for advertised routes is changed to the Hub-PE ' s IP, allowing proper route transmission in the Hub-Spoke MPLS VPN environment.

Comprehensive and Detailed In-Depth Explanation:

OSPFv3 (for IPv6) NSSA LSA (Type 7 LSA) is used in Not-So-Stubby Areas (NSSA).

Generated by: An ASBR (Autonomous System Boundary Router) inside the NSSA area.

Purpose: Advertises external routes (outside the AS) inside the NSSA.

Conversion: When the LSA reaches an ABR, it gets converted to a Type 5 External LSA before being propagated to other OSPF areas.

Why is this needed? NSSA areas allow some external route advertisements but do not permit normal Type 5 LSAs, so they use Type 7 LSAs instead.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPF NSSA LSA

1. Understanding VLAN Aggregation in Huawei Switches

VLAN aggregation is a technique that groups multiple VLANs (sub-VLANs) under a single Super-VLAN.

Super-VLANs do not have member interfaces but include multiple Sub-VLANs that share a common gateway (VLANIF interface).

2. Inter-Sub-VLAN Communication Requirement

By default, hosts in different sub-VLANs cannot communicate directly.

To enable communication between different sub-VLANs within the same Super-VLAN, an inter-sub-VLAN proxy must be enabled.

This is done using the inter-sub-vlan-proxy enable command in the VLANIF interface of the Super-VLAN.

3. Correct Command Usage

The command format is:

shell

CopyEdit

supervlan inter-sub-vlan-proxy enable

This command must be executed under VLANIF 10, corresponding to the Super-VLAN.

4. Why is the Answer " supervlan " ?

The missing parameter in the command should be supervlan, because it is used to enable communication between Sub-VLANs under a Super-VLAN.

This is a specific Huawei command used in HCIP-Datacom-Advanced Routing & Switching Technology certification.

The AS_Path attribute records the autonomous systems through which a BGP route has passed. Huawei documentation describes it as a “private attribute of BGP,” meaning a BGP-specific route attribute. It is used for loop prevention, route selection and policy-based filtering.

The if-match as-path-filter command creates a route-policy matching condition based on an AS_Path filter. Because non-BGP routes do not carry the BGP AS_Path attribute, this matching clause applies only to BGP routes. Before configuring the matching clause, an AS_Path filter should be defined with the ip as-path-filter command. For example:

ip as-path-filter 2 permit _200_300

route-policy test permit node 10

if-match as-path-filter 2

This policy node matches BGP routes whose AS_Path satisfies the configured regular expression. Huawei’s “private attribute” wording should be understood as protocol-specific, not as saying that AS_PATH is an optional proprietary attribute; in standard BGP classification, AS_PATH is a well-known mandatory path attribute.

Huawei’s command reference explicitly states that if-match as-path-filter is applicable only to BGP routes. Huawei if-match as-path-filter reference

Comprehensive and Detailed In-Depth Explanation:

In MPLS (Multiprotocol Label Switching), label 0 is a special label known as the Implicit Null Label.

If an LSR (Label Switching Router) finds that the label to be swapped is 0, it performs PHP (Penultimate Hop Popping), meaning:✅ The label is removed (popped) from the MPLS packet.✅ The IP packet is forwarded to the next hop without an MPLS label.✅ This optimization reduces label processing overhead at the egress router.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – MPLS Label Processing & PHP Mechanism

In OSPFv3, several new LSA types were introduced to support IPv6. The Link-LSA and Intra-Area-Prefix-LSA have the following roles:

✅ Link-LSA is generated per link by each router. It includes:

Link-local IPv6 address

IPv6 prefix(es) associated with the link

Options related to the interface (bitfields)

✅ Intra-Area-Prefix-LSA describes IPv6 prefix information associated with a Router-LSA or a Network-LSA, rather than embedding it directly within them (as in OSPFv2).

❌ A device does not generate an Intra-Area-Prefix-LSA for each link; instead, it generates it per area, and it can contain multiple prefixes.

✅ Official Reference from Huawei:

" In OSPFv3, prefix information is no longer carried in Router-LSAs or Network-LSAs. Instead, Intra-Area-Prefix-LSAs are used to describe prefixes associated with them. "

" Each router generates one Link-LSA per link. The Link-LSA includes the link-local address and the list of IPv6 prefixes for the link. "

— [Huawei HCIA-Datacom Certification Guide – OSPFv3 Chapter]

Comprehensive and Detailed In-Depth Explanation:

Understanding the LSA Table in the Figure

The LSDB (Link-State Database) of R4 displays an Intra-Area-Prefix-LSA for Area 0.0.0.1. The table contains:

Three LSAs originating from R4 (10.0.4.4)

Prefixes referencing both Router-LSAs and Network-LSAs

Different Sequence Numbers and Checksums, indicating multiple link-state changes

OSPFv3 LSA Types Relevant to the Question

Router-LSA (Type 1)

Generated by every router to describe its links within an area.

Network-LSA (Type 2)

Generated only by the Designated Router (DR) for multi-access networks (such as Ethernet).

Advertises all routers connected to the same segment.

Intra-Area-Prefix-LSA (Type 9)

Advertises IPv6 prefixes associated with a Router-LSA (Type 1) or Network-LSA (Type 2).

Analysis of Each Statement

A. The three LSAs belong to area 1. ✅ (True)

The table explicitly shows " Intra-Area-Prefix-LSA (Area 0.0.0.1) " , meaning all LSAs are for Area 1.

The Link State IDs also indicate intra-area advertisements.

✅ Statement A is correct.

B. Area 1 is a stub area. ❌ (False)

There is no indication that Area 1 is a stub area.

Stub areas do not receive Type 5 (External) LSAs, and the LSDB does not show Type 3 (Inter-Area) LSAs either.

Network-LSAs (Type 2) are not typically seen in stub areas unless explicitly configured.

❌ Statement B is incorrect.

C. No OSPFv3 neighbor relationship is established on at least one link of R4. ✅ (True)

One LSA references a Router-LSA, while two reference Network-LSAs.

A Router-LSA alone suggests that R4 has at least one point-to-point or unnumbered link with no OSPFv3 adjacency.

This means R4 has an interface with no neighbor (e.g., a passive interface or down link).

✅ Statement C is correct.

D. R4 is the DR on a link. ✅ (True)

The presence of Network-LSAs (Type 2) indicates that a multi-access link exists.

Since R4 is the origin of the Network-LSA, it must be the DR (Designated Router) for that link.

✅ Statement D is correct.

Final Conclusion:

✅ A. The three LSAs belong to area 1. (True)

❌ B. Area 1 is a stub area. (False)

✅ C. No OSPFv3 neighbor relationship is established on at least one link of R4. (True)

✅ D. R4 is the DR on a link. (True)

Thus, the correct answers are: A, C, D.

When OSPF detects a failure in the network, it performs a series of actions to ensure traffic is rerouted to a valid path. The phases occur in this strict order:

✅ Fault Detection (A)

OSPF routers use Hello packets to maintain neighbor relationships.

If a Hello timeout or link down is detected, the fault is immediately recognized.

✅ LSA Update (B)

Upon detecting a failure, the router generates a new LSA (e.g., a Router-LSA or Network-LSA) and floods it to all other routers in the same area.

This LSA communicates the change in network topology.

✅ Route Calculation (C)

Each router that receives the updated LSAs runs the SPF algorithm to recompute the best path to every destination.

✅ Entry Delivery to the FIB (D)

After recalculating the routes, the router installs the new forwarding entries into the FIB (Forwarding Information Base), allowing data to be forwarded along the new optimal path.

✅ Official Huawei Reference:

" OSPF convergence after a network failure consists of fault detection, LSA flooding, SPF calculation, and updating the FIB. Each step must be completed for traffic to resume correctly on alternate paths. "

— [Huawei HCIA-Datacom Certification Guide – Chapter: OSPF Convergence and SPF Algorithm]

The statement contains two material technical errors. The LSP Number field is one byte, or 8 bits, not 4 bits. An 8-bit field provides values from 0 through 255, allowing an IS-IS process to generate a maximum of 256 original LSP fragments for a system ID. Four bits would allow only 16 values and could not identify 256 fragments.

The statement also incorrectly says “a minimum of 256 LSP fragments.” The correct term is maximum: the process can generate up to 256 fragments under its normal system ID; it is not required to generate at least 256.

The final concept is correct: IS-IS LSP fragment extension permits additional system IDs to be configured. Each additional system ID provides space for another 256 extended LSP fragments, enabling the originating IS-IS process to advertise more link-state information.

Because a true/false statement must be correct in its entirety, the incorrect field length and “minimum” wording make the supplied statement false. The corrected version would state: “The LSP Number field is one byte long, allowing a maximum of 256 LSP fragments per system ID.” Huawei IS-IS LSP Fragment Extension

Traffic suppression is an Ethernet switching mechanism used to control excessive traffic and prevent bandwidth exhaustion.

Huawei switches support traffic suppression for several packet categories, including broadcast, unknown multicast, unknown unicast, known multicast, and known unicast traffic.

Traffic suppression can be configured using thresholds expressed as percentages, packet rates, or bit rates, depending on the supported device and configuration mode.

The important distinction is that traffic suppression is not restricted to a single packet category per interface.

For example, a switch interface can have broadcast suppression, multicast suppression, and unicast suppression configured simultaneously, allowing independent traffic-rate control.

When incoming traffic exceeds the configured threshold, the switch discards excess packets instead of automatically disabling the interface.

Therefore, the statement incorrectly claims that only one packet type can be configured for suppression on an interface.

The correct answer is FALSE.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

In OSPF, Hello packets are exchanged periodically between neighboring routers to establish and maintain adjacency relationships. On point-to-point (P2P) and broadcast networks, the default Hello interval is 10 seconds, while the default Router Dead interval is 40 seconds.

The Hello interval determines how frequently a router sends Hello packets to its neighbors. The Router Dead interval specifies how long a router waits without receiving Hello packets before declaring its neighbor unavailable.

For a normal OSPF adjacency, neighboring interfaces must have compatible Hello and Dead timer settings. Mismatched timer values can prevent adjacency establishment.

Huawei ' s training material identifies 40 seconds as the default OSPF Dead timer. Technologies such as Bidirectional Forwarding Detection (BFD) can provide faster fault detection without requiring excessively short OSPF Hello intervals.

Therefore, the statement is TRUE.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

BGP/MPLS IP VPN forwarding normally uses a two-level MPLS label stack consisting of an outer transport label and an inner VPN label.

The outer label identifies the Label Switched Path (LSP) through the provider backbone. It is commonly distributed through LDP.

The inner label identifies VPN-specific forwarding information at the egress PE and is advertised through MP-BGP with VPNv4 routing information.

When Penultimate Hop Popping (PHP) is enabled, the router immediately before the egress PE removes the outer transport label. The egress PE therefore receives the packet carrying the remaining VPN label.

Option B accurately describes this process.

Options A, C, and D incorrectly describe label distribution or the role of CE routers. CE devices do not ordinarily exchange provider VPN labels through BGP Update messages.

Therefore, A, C, and D are false.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

MPLS packet forwarding is based on label information stored in the LFIB (Label Forwarding Information Base).

The role of different tables in MPLS:✅ RIB (Routing Information Base): Stores routing information, but does not handle MPLS label forwarding.✅ LIB (Label Information Base): Stores label bindings but is used for control-plane operations.✅ FIB (Forwarding Information Base): Used for IP forwarding, not MPLS forwarding.✅ LFIB (Label Forwarding Information Base): The correct table, which maps incoming labels to outgoing labels (or actions like swap, push, pop) and is used for actual MPLS packet forwarding.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – MPLS LFIB and Label Forwarding

Comprehensive and Detailed In-Depth Explanation:

Understanding DHCP Snooping and its Configuration

1. What is DHCP Snooping?

DHCP Snooping is a security feature that helps prevent rogue DHCP servers from providing false IP configurations to clients.

It classifies switch ports as either:

Trusted (allowing DHCP replies from legitimate DHCP servers or relay agents).

Untrusted (blocking unauthorized DHCP responses from clients or attackers).

Analysis of the Commands

✅ A. [SW3-GigabitEthernet0/0/2] dhcp snooping enable (Required)

Interface GigabitEthernet0/0/2 is connected to a DHCP client (PC2).

DHCP snooping must be enabled on this interface to filter DHCP messages and prevent rogue DHCP servers.

Since PC2 is a client, this port should remain UNTRUSTED.

✅ This command is required.

❌ B. [SW3] dhcp snooping enable ipv4 (Not Required - Correct Answer)

The correct command to enable DHCP Snooping globally on Huawei switches is:

dhcp snooping enable

There is no need to explicitly specify ipv4 since DHCP is inherently an IPv4-based protocol.

❌ This command is unnecessary, making it the correct answer.

✅ C. [SW3-GigabitEthernet0/0/3] dhcp snooping trusted (Required)

GigabitEthernet0/0/3 is connected to the DHCP relay agent, which forwards DHCP messages between clients and the DHCP server.

This port must be configured as " trusted " to allow DHCP responses from the relay or the DHCP server.

✅ This command is required.

✅ D. [SW3-GigabitEthernet0/0/1] dhcp snooping enable (Required)

GigabitEthernet0/0/1 is connected to a DHCP client (PC1).

Similar to Port 0/0/2, DHCP snooping must be enabled on this interface to filter DHCP messages and prevent rogue DHCP responses.

✅ This command is required.

Final Conclusion:

✅ A. Required (PC2’s port needs DHCP snooping enabled).

❌ B. Not required (Incorrect command syntax, ipv4 is unnecessary).

✅ C. Required (Port connected to DHCP relay must be trusted).

✅ D. Required (PC1’s port needs DHCP snooping enabled).

Thus, the correct answer is: B. [SW3] dhcp snooping enable ipv4.

Comprehensive and Detailed In-Depth Explanation:

The clock timezone command only affects the displayed time on the device and does not impact routing protocol operations.

Dynamic routing protocols such as OSPF, IS-IS, BGP, and EIGRP rely on timers, authentication, and correct network configurations, but they do not require the same time zone settings.

Potential issues with different time zones:✅ Log timestamps may be inconsistent, making troubleshooting harder.✅ Time-sensitive features like NTP synchronization might be affected.❌ But different time zones will not prevent dynamic routing neighbor relationships.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – System Time Configuration & Routing Protocols

Comprehensive and Detailed In-Depth Explanation:

To determine the correct configuration, we need to analyze how MPLS LDP (Label Distribution Protocol) is correctly enabled on a Huawei router.

1. Required Steps to Enable MPLS LDP on R1

To enable MPLS LDP on R1 and establish LDP sessions, the following steps must be followed:

✅ Step 1: Configure the MPLS LSR ID (Loopback IP recommended)

MPLS LSR ID is a unique identifier for the Label Switch Router (LSR).

Command:

shell

CopyEdit

mpls lsr-id 1.1.1.1

Why?

The LSR ID must be configured for LDP to function properly in an MPLS network.

It is usually set to a loopback address for stability and consistency.

✅ Step 2: Enable MPLS Globally

Command:

shell

CopyEdit

mpls

Why?

This enables MPLS forwarding on the device.

✅ Step 3: Enable MPLS LDP Globally

Command:

shell

CopyEdit

mpls ldp

Why?

LDP is needed for label distribution in the MPLS domain.

Without this, routers cannot exchange MPLS labels.

✅ Step 4: Enable MPLS and LDP on the Required Interface

Command:

shell

CopyEdit

interface gigabitethernet 0/0/1

mpls

mpls ldp

Why?

MPLS must be enabled on interfaces that participate in MPLS forwarding.

LDP must also be enabled on these interfaces to distribute labels over MPLS links.

2. Analyzing the Answer Choices

✅ Option B (Correct)

shell

CopyEdit

[R1] mpls lsr-id 1.1.1.1 ✅ (Sets LSR ID)

[R1] mpls ✅ (Enables MPLS globally)

[R1-mpls] quit

[R1] mpls ldp ✅ (Enables LDP globally)

[R1-mpls-ldp] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls ✅ (Enables MPLS on interface)

[R1-GigabitEthernet0/0/1] mpls ldp ✅ (Enables LDP on interface)

[R1-GigabitEthernet0/0/1] quit

This configuration correctly enables MPLS LDP on R1.

All required steps are followed, including the LSR ID, MPLS, LDP, and interface activation.

❌ Option A (Incorrect)

shell

CopyEdit

[R1] mpls lsr-id 1.1.1.1

[R1] mpls

[R1-mpls] quit

[R1] mpls ldp

[R1-mpls-ldp] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls ✅

[R1-GigabitEthernet0/0/1] quit ❌ (Missing " mpls ldp " under interface)

Missing mpls ldp under interface configuration.

Without this, the interface will not establish an LDP session → Incorrect.

❌ Option C (Incorrect)

shell

CopyEdit

[R1] mpls

[R1-mpls] quit

[R1] mpls ldp

[R1-mpls-ldp] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls

[R1-GigabitEthernet0/0/1] mpls ldp

[R1-GigabitEthernet0/0/1] quit

Missing mpls lsr-id 1.1.1.1.

LSR ID is critical for LDP sessions → Incorrect.

❌ Option D (Incorrect)

shell

CopyEdit

[R1] mpls lsr-id 1.1.1.1

[R1] mpls

[R1-mpls] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls

[R1-GigabitEthernet0/0/1] mpls ldp

[R1-GigabitEthernet0/0/1] quit

Missing global MPLS LDP configuration (mpls ldp).

Without enabling LDP globally, labels will not be distributed.

This makes LDP sessions fail. → Incorrect.

Comprehensive and Detailed In-Depth Explanation:

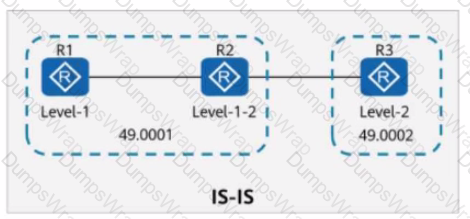

Understanding the IS-IS Network Structure in the Question:

Router Roles & IS-IS Levels:

R1 and R3: Level-1 routers.

R2: Level-1-2 router (interconnects Level-1 and Level-2 areas).

R4: Level-2 router.

Key Command Used: default-route-advertise always level-1

This command forces R1 to advertise a default route (0.0.0.0/0) to all Level-1 routers.

In an IS-IS network:

Level-1 routers do not see Level-2 routes unless a default route is provided.

The default route is propagated only within the Level-1 area and does not affect Level-2 routers unless explicitly redistributed.

Route Distribution Analysis:

R1 (Level-1) imports the default route and advertises it to all Level-1 routers.✅ R1 has the default route.

R3 (Level-1) is in the same Level-1 area as R1, so it receives the default route from R1.✅ R3 has the default route.

R2 (Level-1-2) connects Level-1 and Level-2. Since it participates in Level-1, it also learns the default route from R1.✅ R2 has the default route.

R4 (Level-2) is not in Level-1 and does not receive the default route unless it is explicitly redistributed from Level-1 to Level-2, which is not stated in the question.❌ R4 does NOT have the default route.

Final Conclusion:

R1, R2, and R3 have the default route.

R4 does not have the default route.

Thus, the correct answer is:

✅ R1, R2, and R3 have the default route in their routing tables.

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Network and IPv6 Route Summary Behavior

IS-IS Areas and Router Roles:

Area 49.0001 (Level-1-2): R1, R2, R4

Area 49.0002 (Level-1-2 & Level-1): R3 (Level-1-2), R5 (Level-1 only)

Effect of ipv6 summary 2000::/64 level-1-2 Command on R4

Route summarization in IS-IS allows an L1-L2 router (R4) to aggregate IPv6 prefixes and advertise a summary route (2000::/64) into both Level-1 and Level-2 areas.

This means R4 will advertise only 2000::/64 instead of specific /128 routes (like 2000::4/128).

All Level-1 and Level-2 routers connected to R4 will receive the summary route 2000::/64 instead of the detailed /128 routes.

Route Distribution Analysis for Each Statement

A. The routing table of R1 contains the route 2000::4/128. ✅ (True)

R1 is a Level-1-2 router in the same area (49.0001) as R4, so it receives both the summarized 2000::/64 route and the more specific 2000::4/128 route.

Since R1 is directly connected to R4, it can still learn the 2000::4/128 route.

✅ Statement A is true.

B. The routing table of R3 contains the route 2000::/64. ✅ (True)

R3 is a Level-1-2 router, meaning it can receive both Level-1 and Level-2 routes.

Since R4 (a Level-1-2 router) advertises the summarized 2000::/64 route into both levels, R3 will receive 2000::/64 in its routing table.

✅ Statement B is true.

C. The routing table of R2 contains the route 2000::/64. ✅ (True)

R2 is a Level-1-2 router in the same area as R4, meaning it receives the summarized 2000::/64 route.

This is expected behavior since R4 advertises the summary route into both Level-1 and Level-2 areas.

✅ Statement C is true.

D. The routing table of R5 does not contain the route 2000::/64. ❌ (False - Correct Answer)

R5 is a Level-1 router, meaning it can only receive Level-1 routes unless a default route is provided.

Since R3 (a Level-1-2 router) learns 2000::/64, it can propagate it into the Level-1 area (49.0002).

This means R5 will receive the summary route 2000::/64 from R3.

Thus, R5 does contain 2000::/64, making this statement false.

❌ Statement D is false (correct answer).

Final Conclusion:

✅ A. The routing table of R1 contains the route 2000::4/128. (True)

✅ B. The routing table of R3 contains the route 2000::/64. (True)

✅ C. The routing table of R2 contains the route 2000::/64. (True)

❌ D. The routing table of R5 does not contain the route 2000::/64. (False - Correct Answer)

Thus, the correct answer is: D. The routing table of R5 does not contain the route 2000::/64 (False Statement).

MP-BGP (Multiprotocol BGP) is an extension of BGP that supports multiple address families, including VPNv4 routes.

MP-BGP introduces a new BGP path attribute called MP_REACH_NLRI (for route advertisement) and MP_UNREACH_NLRI (for route withdrawal).

These attributes are used for:

Advertising VPNv4 and VPNv6 routes

Withdrawing unreachable VPNv4/VPNv6 routes

Supporting other AFI/SAFI combinations beyond IPv4 unicast

✅ Official Reference from Huawei:

" MP-BGP introduces MP_REACH_NLRI and MP_UNREACH_NLRI attributes to advertise or withdraw VPNv4/VPNv6 routes. "

— [Huawei HCIA-Datacom Certification Guide – BGP/MPLS VPN Section]

Traditional BGP-4 was designed primarily to advertise IPv4 unicast routing information between autonomous systems.

However, BGP/MPLS IP VPN networks require additional capabilities to transport VPN-specific route information, including Route Distinguishers, Route Targets, and VPN labels.

Multiprotocol BGP (MP-BGP) provides these capabilities by extending BGP through attributes such as MP_REACH_NLRI and MP_UNREACH_NLRI.

MP-BGP supports VPNv4 address families, enabling Provider Edge routers to exchange customer VPN routes while preserving routing separation between VPN instances.

The VPNv4 address family combines a 64-bit RD with a 32-bit IPv4 address, forming a 96-bit VPNv4 address.

Therefore, ordinary BGP-4 IPv4 unicast route advertisements are insufficient for exchanging VPNv4 routing information.

The statement is FALSE because VPNv4 route exchange requires MP-BGP capabilities rather than conventional BGP-4 IPv4 unicast advertisement.

Comprehensive and Detailed In-Depth Explanation:

Understanding the DHCP Process in This Scenario:

DHCP Server on R2:

The DHCP server is configured on interface GE0/0/0 of R2.

The address pool is an interface address pool, meaning that IP addresses are allocated from the subnet of GE0/0/0 (i.e., 10.0.12.0/24).

DHCP Clients on R1:

Both interfaces (GE0/0/0 and GE0/0/1) on R1 are set as DHCP clients, meaning they will send DHCP DISCOVER messages to obtain an IP address dynamically.

Why Only One Interface Gets an IP Address?

Interface address pools in Huawei devices assign only one IP address per MAC address (which is typically the router’s MAC).

Since both interfaces belong to R1, they share the same MAC address when making a DHCP request.

As a result, the DHCP server on R2 only assigns one IP address to the first requesting interface.

The second request is ignored or denied by the DHCP server due to the duplicate MAC address issue.

Key Takeaways:

Huawei routers using an interface-based DHCP address pool assign only one IP per MAC address.

Since both interfaces on R1 have the same MAC, only one gets an IP.

This behavior is expected in Huawei’s HCIP-Datacom-certified DHCP configurations.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on DHCP Server and Client Configurations.

Huawei Datacom Configuration Guide, Section on Interface Address Pools and Address Assignment Limitations.

Huawei Enterprise Networking Training Materials, DHCP Relay and DHCP Server Behavior.

Comprehensive and Detailed In-Depth Explanation:

The Link Layer Discovery Protocol (LLDP) is used for discovering neighboring devices. The given LLDP output contains key details about the neighboring device (R2), including its system name, interface, and management IP address. Let ' s analyze each option carefully:

Option A: " The sysname of the peer device is R2. " ✅ Correct

The output clearly shows System name: R2, which confirms that the neighbor ' s system name is indeed R2.

Option B: " The interface number of the peer device is GE0/0/0. " ✅ Correct

The Port ID in the LLDP output is GE0/0/0, which matches the statement in Option B.

Option C: " The VLAN ID of the peer device is 1. " ❌ Incorrect

The given LLDP output does not mention any VLAN ID information. Therefore, this option is false.

Option D: " The management IP address of the peer device is 192.168.1.1. " ✅ Correct

The Management address field in the LLDP output confirms the IP address as 192.168.1.1, making this statement true.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on LLDP and Network Device Discovery.

HCIA/HCIP Datacom Training Materials – LLDP Neighbor Discovery Commands.

Huawei Datacom Configuration Guide – Section on display lldp neighbor interface.

Huawei VRP supports output filtering by appending a pipe and a filtering action to a display command. The include action retains output lines that match the specified regular expression. Therefore:

display current-configuration | include 10.0.2.*

displays the lines in the current configuration that match the 10.0.2.* expression. Any configuration line containing the text 10.0.2 satisfies the intended match, and the trailing .* allows zero or more following characters. This makes the statement true in the context of Huawei’s command-output filtering behavior.

Strictly speaking, the period is a regular-expression metacharacter representing any single character. Consequently, the expression may also match strings in which another character appears where a literal period was intended. If an administrator requires an exact literal IPv4-style match, the periods should be escaped according to the VRP regular-expression syntax. That precision does not alter the exam answer: the supplied command can display all matching current-configuration lines containing 10.0.2.

Huawei’s documentation confirms that | include regular-expression filters display-command output and shows display current-configuration | include ... as the standard usage pattern. Huawei CLI output filtering

???? Topology Key Points:

Area 1 is an NSSA (Not-So-Stubby Area).

R4 is injecting an external route: 10.0.4.4/32.

The command asbr-summary 10.0.4.0 255.255.255.0 is applied on R1 and R3, which are ABRs connected to the NSSA.

???? Behavior of asbr-summary in Huawei OSPF:

The asbr-summary command summarizes external routes from an ASBR into an area.

It causes the ABR to generate a summary LSA (Type-3) for the summary prefix instead of the more specific original routes.

As a result, routers in other areas receive only the summary (e.g., 10.0.4.0/24), not the original more-specific route (10.0.4.4/32).

???? What Happens in Each Router:

✅ R4 originates route 10.0.4.4/32 as an NSSA Type-7 LSA.

✅ R1, as an ABR, translates the Type-7 LSA to Type-5 and applies the asbr-summary, advertising 10.0.4.0/24 into Area 0.

✅ R3, another ABR, learns the summarized route and advertises 10.0.4.0/24 into Area 2.

✅ R3 will NOT contain 10.0.4.4/32, only the summarized 10.0.4.0/24.

✅ Final Answer: C. The routing table of R3 contains the route 10.0.4.0/24.

Official Huawei Extract:

" When a summary route is configured using the asbr-summary command, the ABR or ASBR advertises the summary route into other areas instead of advertising specific routes. This helps reduce the size of the LSDB and routing table in large-scale networks. "

— [Huawei HCIA-Datacom Certification Guide – OSPF Route Summarization & NSSA Behavior]

The set-overload command places the router into an overload state, indicating to neighbors that the router should not be used as a transit node. This is mainly used during bootup to stabilize the routing environment.

By default, this overload state lasts for 600 seconds (10 minutes). After this time, the router automatically clears the overload state, assuming no manual configuration changes were made.

✅ Official Reference from Huawei:

" By default, a router remains in the overload state for 600 seconds after the IS-IS process restarts. During this period, the router does not function as a transit node in the SPF calculation. "

— [Huawei HCIA-Datacom Study Guide – IS-IS Protocol Chapter]

In Huawei’s BGP/MPLS IP VPN forwarding model:

???? Traffic Flow:

CE1 sends an IPv4 packet (unencrypted, unlabeled) to PE1.

PE1 determines the VPN routing table (VRF) based on the incoming interface.

PE1 performs a lookup in the VPN routing table for the destination.

PE1 finds the VPNv4 route (with BGP label) and also gets the LDP tunnel label for the next-hop PE router.

PE1 pushes two labels onto the packet:

Inner label: VPN label (BGP label for VPN route)

Outer label: LDP label (tunnel label to PE2)

???? Option A: PE1 searches for a VPN label based on the tunnel ID and adds a label header to the packet.

❌ Incorrect – VPN labels are not searched based on tunnel ID.

The VPN label is derived from VPNv4 BGP route, not from tunnel ID.

???? Option B: PE1 checks the forwarding table corresponding to VPN1 and obtains the tunnel ID.

✅ Correct –

PE1 first determines the VRF based on interface binding.

It then uses that to look up the VPNv4 route and retrieves the tunnel information (e.g., next-hop PE).

???? Option C: PE1 uses the LDP label corresponding to the Next_Hop address of a VPNv4 route as the outer label of a labeled packet.

✅ Correct –

The outer label is the LDP label for the LSP to the next-hop PE (e.g., PE2).

???? Option D: PE1 ' s interface that receives the traffic is bound to VPN1.

✅ Correct –

In MPLS VPN, PE routers bind CE-facing interfaces to VRFs (VPN routing tables).

This is how the device knows which VPN instance the traffic belongs to.

✅ Final Answer: B, C, D

Official Huawei Extract:

" In BGP/MPLS IP VPNs, PE devices use interface bindings to associate CE traffic with VRFs. When forwarding packets, PE devices push two labels: a VPN label (from BGP) and a transport label (from LDP) to reach the next-hop PE. "

— [Huawei HCIA-Datacom Certification Guide – MPLS VPN Packet Forwarding Chapter]

Comprehensive and Detailed In-Depth Explanation:

LSR ID (Label Switch Router ID) uniquely identifies an MPLS router in the network.

By default, the LSR ID is the IP address of a physical interface on the router.

Best Practice: Manually configuring the LSR ID to use a loopback interface address improves stability and reachability in MPLS networks.

The loopback interface is always up, ensuring that the LSR ID remains accessible even if physical interfaces go down.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – MPLS LSR ID Configuration

Comprehensive and Detailed In-Depth Explanation:

1. Understanding the Routing Issue

R1 and R4 are BGP routers and have an IBGP connection.

R2 and R3 are OSPF-only routers (they do not run BGP).

Networks 10.1.1.0/24 and 10.4.4.0/24 are advertised into BGP but not OSPF.

PC1 (10.1.1.1) and PC2 (10.4.4.1) need communication, but their networks are not known to OSPF routers R2 and R3.

To fix this, we need a method that ensures R2 and R3 learn the routes for 10.1.1.0/24 and 10.4.4.0/24.

2. Evaluating Each Answer Option

Option A: " Deploy policy-based routing on R1 and specify R2 as the next hop for traffic from PC1 to PC2. "

Incorrect.

Policy-Based Routing (PBR) does not solve the issue of missing routes in OSPF.

Even if R1 forwards traffic to R2, R2 does not know how to reach 10.4.4.0/24, causing packet drops.

A proper routing protocol solution is required instead of PBR.

Option B: " Deploy MPLS and LDP on R1 to R4 and establish LSPs for routes 1.1.1.1/32 and 4.4.4.4/32. "

Incorrect.

MPLS requires label-switched paths (LSPs) but does not distribute routing information itself.

The real problem is that R2 and R3 do not have routing entries for 10.1.1.0/24 and 10.4.4.0/24.

MPLS does not fix the missing route advertisement issue.

Option C: " Run BGP on R2 and R3, and establish full-mesh IBGP connections in AS 123. "

Correct.

If R2 and R3 run BGP, they can form IBGP sessions with R1 and R4 and learn routes 10.1.1.0/24 and 10.4.4.0/24 via BGP.

R2 and R3 would then be able to forward traffic correctly between PC1 and PC2.

This is a valid method to fix the issue.

Option D: " On R1 and R4, import routes 10.1.1.0/24 and 10.4.4.0/24 into OSPF. "

Correct.

By redistributing BGP routes into OSPF, R1 and R4 can ensure that R2 and R3 learn the missing networks (10.1.1.0/24 and 10.4.4.0/24) via OSPF.

This allows full reachability without running BGP on R2 and R3.

This is another valid method to fix the issue.

Final Answer:

✅ C and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

BGP and OSPF Route Redistribution

IBGP Full-Mesh Requirement and Route Propagation

How Policy-Based Routing Works and Its Limitations

Route Targets (RTs) are BGP extended communities that control the import and export of VPNv4 routes between VPN instances.

A PE exports routes with its configured Export RT (ERT). A receiving PE imports those routes only when the advertised RT matches one of its Import RTs (IRTs).

In option A, PE1 and PE2 use different RTs, preventing direct route exchange. PE3 imports and exports both RTs, enabling communication with both sites.

In option C, PE1 and PE2 export RT 200:1 and import RT 100:1. PE3 exports RT 100:1 and imports RT 200:1. This creates communication between PE3 and both spokes without allowing direct communication between the spokes.

Options B and D permit route exchange between PE1 and PE2.

Therefore, A and C satisfy the requirements.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

Understanding OSPFv3 Areas and Routing Behavior

OSPFv3 Area Types in the Network:

Area 1 (Stub Area): Does not accept external LSAs (Type 5) but can receive Inter-Area-Prefix-LSAs (Type 3).

Area 2 (Common Area): Fully functional area that allows both Type 3 (Inter-Area) and Type 5 (External) LSAs.

Area 3 (NSSA - Not-So-Stubby Area): Does not accept Type 5 (External) LSAs but allows ASBRs to inject external routes using Type 7 LSAs, which are later converted to Type 5 in other areas.

Effect of stub no-summary Command on Area 1 (Configured on R2):

This command prevents Type 3 LSAs from entering Area 1, meaning R4 will not learn about 2000::6/128 from other areas.

R4 only has a default route (::/0) provided by R2 but not individual routes like 2000::6/128.

Route and Packet Flow Analysis

A. " The LSDB of R4 contains the Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128. " ❌ (False)

R4 is in Area 1 (a totally stub area), which does not receive Type 3 LSAs.

Since 2000::6/128 is an external route from Area 2, it will not be present in R4’s LSDB.

Thus, R4 does NOT have the Inter-Area-Prefix-LSA for 2000::6/128.

❌ Statement A is incorrect.

B. " The path for data packets from R4 to 2000::6 is R4 - > R1 - > R5 - > R3 - > R6. " ❌ (False)

R4 is in a totally stub area (Area 1), and it does not have a specific route for 2000::6/128.

It only has a default route (::/0) pointing to R2.

If R4 forwards traffic, it will send it to R2, NOT via R1, R5, and R3.

❌ Statement B is incorrect.

C. " The routing table of R4 does not contain the route 2000::6/128. " ✅ (True - Correct Answer)

R4 is in a totally stub area (Area 1), meaning it only receives a default route from R2 (::/0).

It does NOT receive specific routes like 2000::6/128.

✅ Statement C is correct.

D. " The path for data packets from R4 to 2000::6 is R4 - > R2 - > R6. " ❌ (False)

While R4 does forward all unknown traffic to R2 (due to the default route), R2 will NOT directly forward to R6.

R2 is an ABR (Area Border Router), and the actual path to 2000::6 must traverse Area 2, likely through other routers.

❌ Statement D is incorrect.

Final Conclusion:

✅ C. The routing table of R4 does not contain the route 2000::6/128.

Thus, the correct answer is: C. The routing table of R4 does not contain the route 2000::6/128.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding Site of Origin (SoO) in MPLS VPNs

SoO (Site of Origin) is used in MPLS VPNs to prevent loops in multi-homed CE scenarios.

Routes with the same SoO value are not advertised back to the same site.

2. Analysis of Each Answer Choice

A. " To enable CE3 to receive the route, run the command peer 10.1.1.1 soo 200:1 on PE1. " (❌ False)

SoO is used to prevent loops by tagging routes that belong to the same site.

Applying SoO (200:1) on PE1 for CE1 means that any other PE (such as PE2) receiving the route will not advertise it back to the same site (CE1).

This statement is false because applying SoO here does not directly enable CE3 to receive the route. Instead, CE3 must accept routes with SoO values properly configured.

B. " If the commands peer 10.1.1.1 soo 200:1 and peer 10.1.2.1 soo 200:1 are run on PE1, CE2 accepts the route. " (❌ False)

SoO ensures that a route received from one CE is not sent back to another CE in the same site.

If SoO (200:1) is assigned to CE1 and CE2, routes will be blocked because they share the same SoO tag.

Thus, CE2 will not accept the route, making this statement false.

C. " If the command peer 10.1.3.1 substitute-as is run on PE2, CE3 accepts the route. " (✅ True)

substitute-as allows a router to replace the received AS number in the AS_PATH with another AS number, ensuring that routes are accepted even when AS_PATH filtering is in place.

This prevents CE3 from rejecting the route due to AS-Path loop prevention.

✅ Thus, this statement is true.

D. " If no additional action is taken, CE3 discards the route. " (✅ True)

By default, CE3 will discard the route because of BGP loop prevention (same AS in the AS_PATH).

To allow CE3 to receive the route, the allowas-in or substitute-as command must be configured on PE2.

✅ Thus, this statement is true.

3. Evaluating the Answer Choices

Option

Correct?

Reasoning

A

❌ False

Applying SoO does not directly enable CE3 to receive the route.

B

❌ False

If both CE1 and CE2 have the same SoO value, CE2 will reject the route.

C

✅ True

Substitute-AS allows CE3 to accept the route by modifying the AS-Path.

D

✅ True

Without additional configuration, CE3 will discard the route due to AS-Path loop prevention.

✅ Correct Answer: A and B are false.

Final Conclusion:

SoO prevents routing loops in MPLS VPN multi-homing.

CE2 will reject the route if it has the same SoO as CE1.

CE3 requires the substitute-as or allowas-in command to accept the route.

Thus, statements A and B are false.

Comprehensive and Detailed In-Depth Explanation:

Understanding the Spanning Tree Protocol (STP) and Root Bridge Selection

Spanning Tree Protocol (STP) is used to prevent loops in a Layer 2 network by electing a Root Bridge and determining a loop-free topology.

The Root Bridge is elected based on the lowest Bridge ID (BID), which consists of:

Priority Value (Lower is preferred, default is 32768).

MAC Address (Lower MAC wins in case of a tie).

The optimal forwarding path is chosen based on cost, which is usually determined by the link bandwidth.

Why the Path is Not Optimal?

The network engineer states that all links have the same cost, meaning that the STP Root Bridge election determines the topology rather than cost differences.

The fact that the path between PC1 and PC2 is suboptimal suggests that the Root Bridge may not be ideally placed.

Determining the Likely Root Bridge:

The Root Bridge is the switch with the lowest BID (priority + MAC).

All switches calculate the shortest path to the Root Bridge and place ports in either Forwarding or Blocking mode.

From the diagram, the traffic is flowing through SW2 → SW4 → SW3 instead of directly via SW2 → SW3.

This suggests that the Root Bridge is likely SW1 or SW4 because:

Root Bridges do not block any ports.

If SW1 or SW4 is the Root Bridge, the spanning tree topology might force the path to take a longer route.

Key Takeaways:

Root Bridge selection influences the entire Layer 2 forwarding path.

The lowest Bridge ID (priority + MAC) determines the Root Bridge.

If a suboptimal path is taken, the Root Bridge is likely placed in a location that forces certain links to block.

In this scenario, SW1 or SW4 is the most probable Root Bridge, forcing traffic through an unintended path.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on Spanning Tree Protocol (STP) and Root Bridge Selection.

Huawei Datacom Training Materials, Section on STP Convergence and Network Optimization.

Huawei Datacom Configuration Guide, Command Reference for STP Root Bridge Selection and Path Calculation.

Comprehensive and Detailed In-Depth Explanation:

Step 1: Identify the Primary Path

The shortest OSPF cost to 10.0.3.3/32 from R1 is through R5:

R1 → R5 (Cost 10) → R3 (Cost 10) = Total Cost 20

The primary outbound interface from R1 to R5 is GE0/0/1.

Step 2: Identify the Backup Path (OSPF IP FRR & ECMP)

OSPF IP Fast Reroute (FRR) provides a backup next-hop in case the primary link (R1 → R5) fails.

A feasible backup path must have a cost equal to or close to the primary path, but it must avoid the same failure point.

Alternative Path Calculation:

Path 1 (R1 → R2 → R3)

R1 → R2 (Cost 10), R2 → R3 (Cost 10) → Total Cost = 20 ✅

Uses interface GE0/0/2 on R1.

Path 2 (R1 → R4 → R3)

R1 → R4 (Cost 10), R4 → R3 (Cost 10) → Total Cost = 20 ✅

Uses interface GE0/0/3 on R1.

Final Decision on the Backup Interface

Since both paths R1 → R2 → R3 and R1 → R4 → R3 have equal costs, either can be used for backup.

However, R1 → R2 → R3 shares a direct cost path with R5, meaning it may not be preferred as a full FRR backup.

The best backup outbound interface in this scenario is GE0/0/3 (R1 → R4 → R3).

Final Answer: ✅ C (GE0/0/3)

Comprehensive and Detailed In-Depth Explanation:

The display startup command is used to check the startup and running configuration details of a Huawei network device.

It provides information on:✅ Running system software (currently active firmware).✅ Running configuration file (current settings in use).✅ Startup system software (firmware that will load on reboot).✅ Startup configuration file (configuration that will be applied on reboot).✅ Paths of these files in the storage system.

This command helps network administrators ensure that the correct firmware and configuration files are used when the device boots.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – System Management and Configuration Files

Huawei BGP AS_PATH filters use regular expressions to match autonomous system sequences contained in BGP routing updates.

Option A uses 00$, which matches an AS_PATH ending in 00. The provided path ends in AS 300, so the expression matches.

Option B uses .*, which matches any sequence of characters, including the entire AS_PATH. Consequently, this expression would deny all matching BGP routes.

Option C matches the substring 200, which appears in the middle of the AS_PATH.

Option D uses 00.*30, which matches a sequence beginning with 00, followed by any number of characters, and subsequently 30. The supplied AS_PATH satisfies this expression.

All four expressions match the specified path and can deny it. However, option B is excessively broad for selective production filtering.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

1. Understanding the Hub-Spoke BGP Design

Hub-Spoke topology is commonly used in MPLS Layer 3 VPNs, where:

Hub-PE acts as a central router.

Spoke-PEs connect to the hub but do not communicate directly with each other.

eBGP (External BGP) is used between the Hub-PE and Spoke-PE routers.

2. The Role of AS Numbers in BGP Route Transmission

By default, BGP prevents routes from being sent back to the same AS (Autonomous System) to avoid loops (via the AS_PATH loop prevention mechanism).

However, in a Hub-Spoke MPLS VPN, the Hub-PE must be allowed to re-advertise routes learned from one spoke to another spoke.

This requires allowing repetitive AS numbers within the same AS to avoid BGP rejecting valid routes.

3. Solution: Using " Allow-AS Loop " on the Hub-PE

The allowas-in or allow-as-loop command must be used on Hub-PE to allow repetitive local AS numbers.

This ensures that routes from Spoke-PE1 (AS65002) are advertised to Spoke-PE2 (AS65003) via Hub-PE, even if AS numbers are repeated.

Example Configuration on Hub-PE:

plaintext

CopyEdit

bgp 65001

peer Spoke-PE1 allow-as-loop 2

peer Spoke-PE2 allow-as-loop 2

This allows Hub-PE to accept and propagate routes even if the AS number appears more than once.

4. Evaluating the Answer Choices

Option

Correct?

Reasoning

A. TRUE

✅ Correct

Hub-PE can be configured to allow repetitive AS numbers using the allow-as-loop feature.

B. FALSE

❌ Incorrect

BGP by default prevents repeated AS numbers, but this can be overridden.

✅ Correct Answer: A. TRUE

Final Conclusion:

By default, BGP prevents AS loopbacks.

Hub-PE needs to allow repetitive AS numbers for proper route transmission in the hub-spoke model.

The " allow-as-loop " command enables this functionality.

Thus, the correct answer is: TRUE.

Software upgrades are important network maintenance activities that introduce new functionality, improve system stability, fix known defects, and enhance network performance.

A conventional Huawei VRP software upgrade involves obtaining a compatible target software package, transferring it to the device, specifying the startup software, and restarting the device when required.

However, the statement incorrectly assumes that all Huawei NetEngine AR series devices use the same software package.

Software package compatibility depends on the device platform, supported hardware, product family, and software version. Physical routers and virtual router platforms do not necessarily use interchangeable system images.

The HCIP training material specifically recommends backing up software packages according to the product and version.

Administrators must verify compatibility before upgrading because loading an unsupported package can cause upgrade failure or system instability.

Therefore, the statement is FALSE.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

1. Understanding DHCP Snooping

DHCP Snooping is a security feature that filters untrusted DHCP messages to prevent attacks such as:

Rogue DHCP servers distributing incorrect IP addresses.

DHCP starvation attacks.

In DHCP Snooping, switch ports are classified as:

Trusted Interfaces: Allow both DHCP requests and DHCP responses to pass through.

Untrusted Interfaces: Allow only DHCP requests but drop DHCP responses (to prevent rogue DHCP servers).

2. Analyzing Each Answer Option

Option A: " When receiving a DHCP response packet on GE0/0/2, the switch forwards the packet through GE0/0/1. "

Correct.

GE0/0/2 is a trusted interface (connected to the DHCP server).

DHCP responses (ACK, NAK, OFFER) come from the DHCP Server.

Since DHCP responses are allowed on trusted interfaces, the switch forwards them to the client (PC1) via GE0/0/1.

Option B: " When receiving a DHCP request packet on GE0/0/2, the switch forwards the packet through GE0/0/3. "

Incorrect.

DHCP requests originate from clients (PC1, attackers, etc.), not from the DHCP server.

The DHCP request should be forwarded to the DHCP server via a trusted interface (not GE0/0/3, which is untrusted).

Option C: " When receiving a DHCP response packet on GE0/0/3, the switch forwards the packet through GE0/0/1. "

Incorrect.

GE0/0/3 is an untrusted interface (connected to the attacker).

DHCP responses (ACK, OFFER) from untrusted interfaces are dropped to prevent rogue DHCP attacks.

The switch will not forward the packet.

Option D: " When receiving a DHCP request packet on GE0/0/3, the switch forwards the packet through GE0/0/2. "

Correct.

DHCP requests originate from clients (PC1 or attacker).

Since DHCP requests are allowed on untrusted interfaces, the switch forwards them to the DHCP server via the trusted interface (GE0/0/2).

Final Answer:

✅ A and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

DHCP Snooping and Port Trust Classification

How Trusted and Untrusted Ports Handle DHCP Packets

Preventing Rogue DHCP Servers Using DHCP Snooping
