The packet processing order in SRX with NAT and policies is:

Destination NAT (applies first, for inbound traffic).

Security Policy Evaluation (after destination NAT, before source NAT).

Source NAT (applies last, for outbound traffic).

Option A: Incorrect. Policies are not evaluated before destination NAT.

Option B: Correct. Security policies are evaluated before source NAT but after destination NAT. So in terms of order, policies are processed prior to source NAT.

Option C: Incorrect. Policies are not evaluated before source NAT — they are evaluated before source NAT is applied .

Option D: Correct. Policies are evaluated after destination NAT .

Correct Statements: B and D

The correct command is show security utm web-filtering status. This operational mode command verifies whether the web-filtering service connection is up. For NGWF, the SRX sends URL or destination IP information to the Juniper NGWF cloud, where the URL is categorized and reputation information is returned to the device. Because NGWF depends on cloud connectivity, checking web-filtering status is the appropriate troubleshooting and verification step. The anti-spam and anti-virus status commands verify different Content Security services, and content-filtering statistics show content-filter counters rather than cloud web-filtering connectivity. Juniper documentation also notes that this command can confirm whether web filtering is down because of a missing license or service condition.

Exception traffic is traffic that must be sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE) for processing, such as routing protocol updates, management traffic, or other control-plane packets. Because the RE is a limited and critical resource, Junos OS implements rate limiting on exception traffic .

The purpose is to prevent denial-of-service (DoS) attacks on the Routing Engine by controlling the amount of traffic directed to it.

This ensures the RE continues to process control-plane operations reliably, even under potential attack or heavy traffic conditions.

Rate limiting does not enhance forwarding plane performance (Option A), simplify interface configuration (Option B), or manage routing protocols directly (Option D).

SRX devices operate on a default deny-all policy if no explicit match is found:

If a packet does not match any configured zone-based or global policy, it is implicitly denied.

The traffic is discarded silently by the default security policy (Option A).

Option B: No predefined “safe zone” exists.

Option C: Logging occurs only if explicitly configured; default deny does not automatically log traffic.

Option D: Incorrect, since the firewall defaults to deny, not permit.

Correct Behavior: Traffic is discarded by the default security policy.

A functional zone is used for special purposes, such as management interfaces. Juniper documentation states that currently only the management (MGT) functional zone is supported, which makes option A correct. The management functional zone is used for dedicated management interfaces and can be configured with host-inbound-traffic and screen options to protect management access, which makes option D correct. Option B is incorrect because functional zones are not groups of logical interfaces belonging to multiple security zones; they are special-purpose zones. Option C is incorrect because Juniper specifically states that the management functional zone cannot be specified in security policies, and traffic entering the management zone does not match policies.

For an SRX firewall interface to respond to management traffic such as ICMP pings:

The interface must be assigned to a security zone (Option A). If an interface is not part of any zone, it is placed into the null zone, which drops all traffic.

Additionally, the zone must be configured to allow management traffic types as host-inbound-traffic (Option D). For ICMP, the protocol must be explicitly allowed under host-inbound-traffic for that zone.

Other options:

Security policies (Option B) control traffic traversing the firewall, not traffic destined to the SRX device itself.

Assigning the interface to the null zone (Option C) prevents any communication, including management.

Correct Actions: Assign the interface to a zone and configure ICMP under host-inbound-traffic.

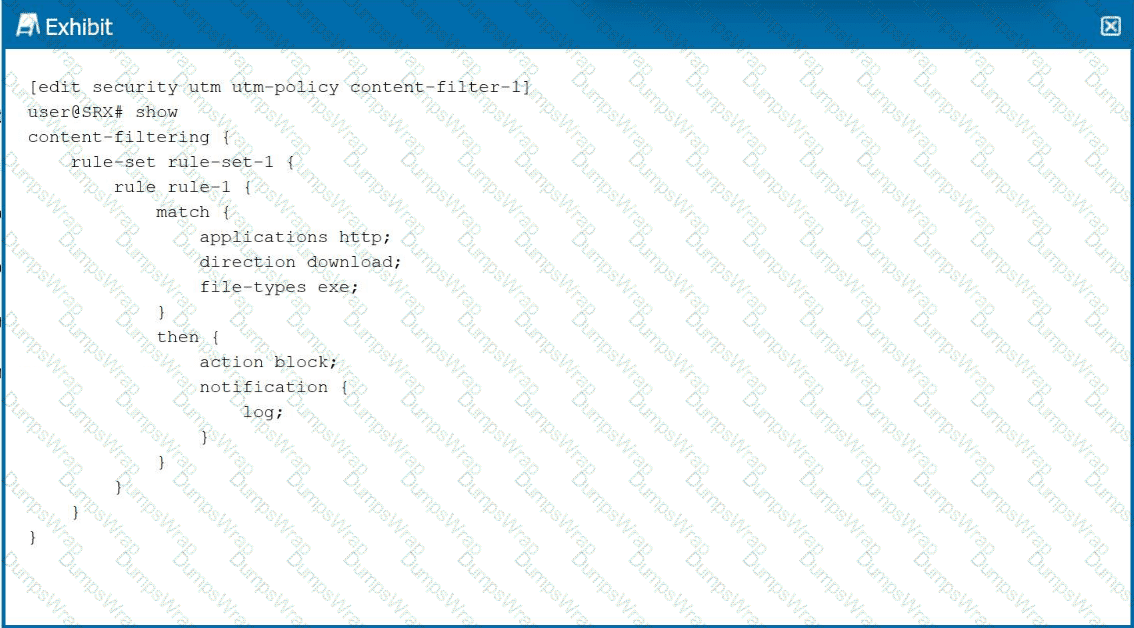

From the exhibit, the content filter configuration is as follows:

Match Conditions:

Application: HTTP

Direction: download

File-types: exe

Action:

block

notification log

Analysis of Options:

Option A: Incorrect. The configuration specifies the download direction , not upload. Uploads of .exe files are unaffected.

Option B: Correct. Because the rule applies to downloads , .exe files will be blocked when users attempt to download them over HTTP.

Option C: Correct. The notification { log; } statement ensures that an entry will be added to the SRX device’s log when the action is triggered.

Option D: Incorrect. No configuration for sending e-mail notifications is shown in the rule. Only logging is specified.

Correct Statements: B and C

SRX Series devices provide content security features that rely on advanced identification mechanisms. File identification is not based merely on file extensions (which can be easily spoofed), but instead on deep inspection techniques :

AppID (Application Identification): AppID is part of the AppSecure suite, allowing the device to classify applications and content regardless of port or protocol. This enables the SRX to detect applications and their related content for enforcement.

Protocol-based file type identification: The SRX can recognize and identify file types embedded within HTTP, FTP, and e-mail (SMTP, IMAP, POP3) protocols . This provides accurate content inspection and filtering, independent of file naming conventions.

Why not the others?

File extensions (Option A) are not reliable for content security, so SRX does not use them.

ALGs (Option D) are used for protocol handling, such as SIP or FTP control channels, not for content identification.

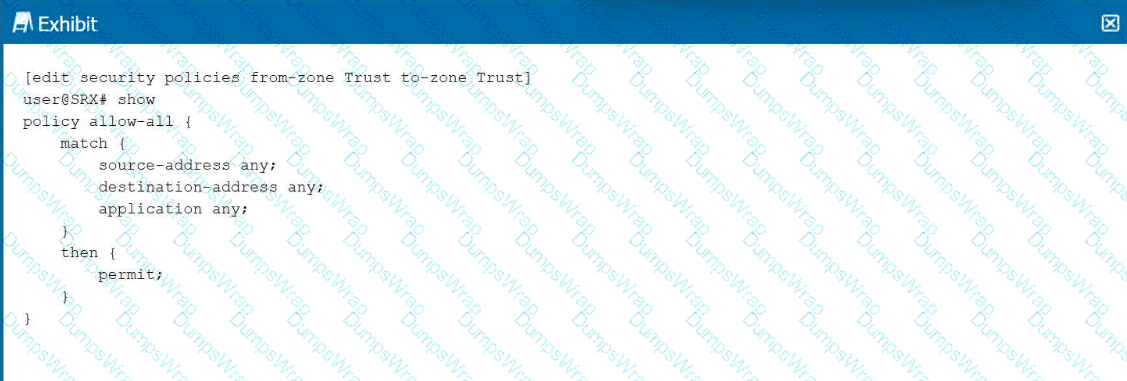

From the exhibit configuration:

[edit security policies from-zone Trust to-zone Trust]

policy allow-all {

match {

source-address any;

destination-address any;

application any;

}

then {

permit;

}

}

The from-zone and to-zone are both set to Trust → Trust .

This means the policy is governing traffic within the same zone .

Policies within the same zone are called intra-zone policies .

Analysis of options:

Global policy (A): Applied universally across zones, not zone-specific. Not the case here.

Inter-zone policy (B): Applies between two different zones (e.g., Trust → Untrust). Not the case here since both zones are Trust.

Intra-zone policy (C): Correct. Applies to traffic within the same zone (Trust → Trust).

Default policy (D): The implicit deny-all policy that applies when no policy matches. Not shown in this exhibit.

Correct Policy Type: Intra-zone policy

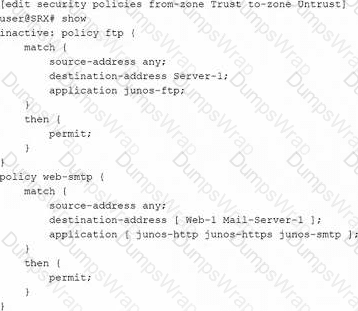

The exhibit shows that the FTP policy is marked inactive, so it remains in the configuration but does not take effect when the configuration is committed. Juniper documentation explains that inactive configuration elements are ignored and are not applied during commit. One valid fix is to activate the FTP policy and commit the configuration so that the policy becomes active again. Another valid fix is to use rollback 1 to return to the previously committed configuration, then commit that restored configuration. Simply moving the inactive FTP policy before another policy would not help because an inactive policy is still ignored. Changing the destination address to any is unnecessary because the primary problem shown is the inactive FTP policy.

Source NAT (Network Address Translation) is used on SRX devices to allow hosts with private IP addresses to access external networks, such as the Internet. The SRX translates the private IP address of the source host into a public IP address before forwarding traffic toward the destination.

It does not translate MAC addresses (Option A).

NAT is unidirectional in this case: it specifically translates private-to-public in the outbound direction, while the reverse (return traffic) is handled automatically through the session table. It is not a bidirectional translation (Option C).

NAT processing occurs as part of the flow module, not limited only to ingress traffic (Option D).

Therefore, the correct statement is that source NAT translates private IP addresses to public IP addresses .

Unified security policies integrate traditional zone-based policies with application-based policies . Their characteristics include:

Zone-based or global (Option B): Unified policies can be applied as either zone-specific or global policies.

AppID engine (Option C): They leverage the AppID engine for application identification, enabling fine-grained control at the application layer.

Policy matching (Option A): Policies are evaluated sequentially like standard security policies; applications are not matched before policy processing.

Multiple matches (Option D): If multiple policies could match, the first match applies (sequential order), not the “most restrictive.”

Correct Statements: B and C

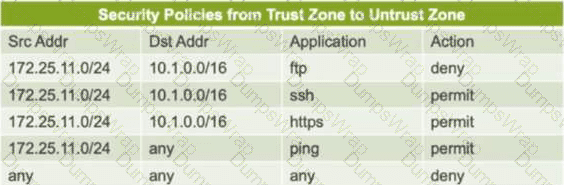

The policy table applies to traffic from the Trust zone to the Untrust zone. The source prefix 172.25.11.0/24 and destination prefix 10.1.0.0/16 are matched for FTP, SSH, HTTPS, and ping actions. FTP traffic from 172.25.11.11 to 10.1.0.10 matches the FTP deny policy, so option A is correct. SSH traffic from 172.25.11.10 to 10.1.0.10 matches the SSH permit policy, so option C is correct. Ping from 172.25.11.100 to 10.1.0.10 is permitted, not denied, because the ping policy permits it. Option D reverses the source and destination direction and does not match the displayed Trust-to-Untrust policy table. Security policies are matched using zone context, source address, destination address, and application.

Unified security policies (USPs) provide integrated application-aware controls using AppID and extend traditional zone-based policy enforcement.

Option A: Correct. If traffic matches a unified security policy, it is not re-evaluated by traditional security policies. Unified policies take precedence for matched flows.

Option B: Incorrect. Traditional policies rely on Layer 3/4 attributes. Unified policies go deeper by leveraging AppID, which inspects traffic up to Layer 7.

Option C: Incorrect. Traffic matching a traditional policy is unaffected by unified policy unless unified mode is explicitly configured for those flows.

Option D: Correct. Dynamic application recognition in unified policies uses Layer 7 (application-layer) inspection via AppID.

Correct Statements: A and D

Functional zones (e.g., junos-host, management, null) are not used for forwarding transit traffic. They are used to manage traffic destined to or from the SRX device itself.

Option A: Correct. If traffic enters through a functional zone interface, it is meant for the SRX, not for transit, so it cannot exit another interface.

Option D: Correct. Transit interfaces handle forwarding traffic, but they cannot send that traffic out through a functional zone interface.

Option B and C: Incorrect, because functional zones are strictly control-plane, not transit forwarding zones.

Correct Statements: A and D

Transit traffic is defined as traffic passing through the SRX firewall (from one interface/zone to another). To allow transit traffic:

Interfaces must be placed into a user-defined security zone (Option C).

Policies between zones are then applied to control traffic.

The null zone (Option A) discards all traffic.

The Junos-host zone (Option B) is used for traffic destined to the SRX itself, not transit.

Functional zones (Option D) are predefined and used for special purposes (like management), not for transit traffic.

Correct Configuration: User-defined security zone

Global policies (Option D): Evaluated before zone-based policies. They allow centralized control and can apply across all zones. Perfect for Internet-to-private traffic that must be enforced before other rules.

Routing policy (Option A): Controls routing decisions, not traffic forwarding/security.

Default policy (Option B): Denies all traffic by default, but cannot be customized for early evaluation.

Zone policy (Option C): Zone-based policies apply after global policies and are limited to specific zone pairs.

Correct Policy Type: Global policy

To enable Juniper NextGen Web Filtering, the SRX must have the required NGWF license and the web-filtering type must be configured for NGWF. Juniper documentation states that Enhanced Web Filtering and NGWF require separate licenses and that NGWF can use the wf_key_ng_juniper license key. Juniper also documents NGWF as a configurable web- filtering type, including ng-juniper, and notes that administrators can confirm missing license conditions using the web-filtering status command. A public IP address on the loopback interface is not a general NGWF requirement. SSL host inbound traffic on the untrust zone is also not required for enabling NGWF; SSL proxy or SNI behavior may affect HTTPS inspection, but it is not the base enablement step.

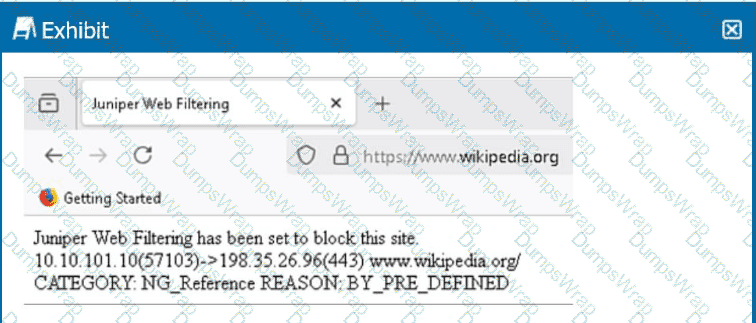

From the exhibit:

The user attempted to access

The block page indicates:

CATEGORY: NG_Reference

REASON: BY_PRE_DEFINED

The header states: “Juniper Web Filtering has been set to block this site.”

Analysis of options:

Option A: Correct. The log shows “REASON: BY_PRE_DEFINED,” which means the site was blocked because it matched a predefined category in the Web filtering database.

Option B: Correct. The category “NG_Reference” indicates that the NextGen (Enhanced/Cloud-based) Web Filtering type is being used.

Option C: Incorrect. The exhibit does not provide any information about SSL proxy configuration; it only shows that the HTTPS site was blocked.

Option D: Incorrect. The block page shown is the standard Juniper default block page, not a custom message.

Correct Statements: The URL matches a predefined Web filtering category, and the NextGen Web Filtering type is being used.

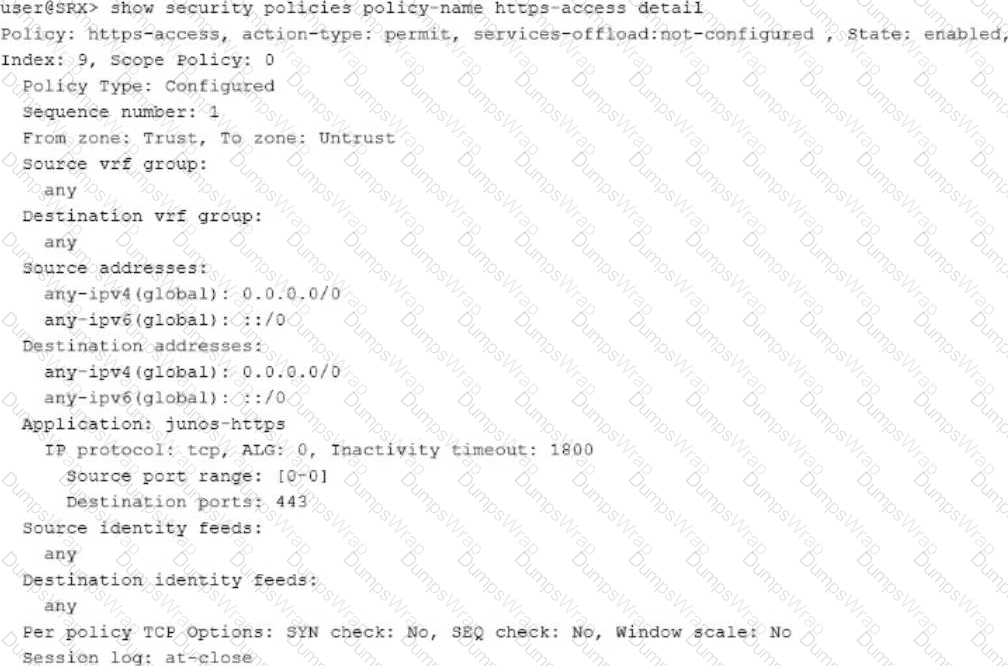

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

Routing instances: Security zones are local to their routing instance. They cannot be shared between routing instances (Option B is correct). Each routing instance must define its own zones.

Intrazone and interzone traffic: Both types of traffic require policies in Junos OS. Intrazone traffic must have an explicit intra-zone policy to be controlled (Option C is correct).

Sharing zones: Option A is incorrect, as zones cannot span routing instances.

Multiple zones: SRX devices fully support multiple security zones (trust, untrust, DMZ, etc.). Option D is incorrect.

Correct Statements: B and C

Interface-based source NAT uses the outgoing interface address as the translated source address and commonly relies on Port Address Translation to allow many internal hosts to share that single interface IP address. Juniper describes source NAT as translating private addresses to public routable addresses and specifically supports translating many addresses to a single address or smaller address block using port translation. Static NAT is a fixed one-to-one mapping and does not normally perform PAT. Source NAT with address shifting maps one address block to another and is not the interface overload method. Destination NAT without port forwarding changes the destination address, not the source address and port for outbound sharing.

The exhibit shows an internal source address and port being translated to a different external source address and port. This behavior identifies source NAT with Port Address Translation. Source NAT changes the source IP address of traffic leaving the SRX, commonly allowing private hosts to access public networks. PAT extends this by translating the source port as well, allowing multiple internal devices or sessions to share a smaller number of public addresses, often a single public IP address. The exhibit does not show destination NAT because the translated value is associated with the internal client’s source identity, not the destination server address. It is not source NAT without PAT because the port number is also changed. Therefore, source NAT with PAT is the correct answer.

To verify and demonstrate the effectiveness of content filtering on an SRX firewall, administrators use operational mode commands that display UTM statistics.

The command show security utm content-filtering statistics provides detailed counters showing how many connections were inspected, how many were blocked, and other related metrics.

This is the correct way to measure and demonstrate filtering effectiveness.

Commands in options A, B, and C provide status information for antispam, antivirus, and web filtering features, but they do not provide content filter effectiveness statistics.

Controlling read-only access versus posting content requires application-level visibility beyond basic ports and protocols. Juniper AppID can identify dynamic applications and micro-applications, which represent more specific application functions. Unified security policies support dynamic application matching, including Layer 7 application identity, and are the correct policy type for this kind of granular application control. Therefore, the micro-application objects should be included in unified security policies. Application identification must also be enabled so the SRX can detect the relevant application and micro-application behavior. Traditional security policies match mainly static applications and 5-tuple-style criteria and are not the correct mechanism for this Layer 7 micro-application enforcement. Zone-level application tracking alone provides visibility but does not enforce the required read-versus-post control.

The SBL (SurfControl Web Filtering) server integration is part of UTM web filtering on SRX. To confirm that the firewall is properly connected and communicating with the SBL server, the command used is:

show security web filtering status

This command displays connectivity information with the SBL server, license status, and filtering operations.

Other options:

Anti-virus (Option A) checks antivirus engine status.

Content-filtering statistics (Option C) shows local content filtering counters.

Anti-spam status (Option D) checks spam engine connectivity.

Correct Command: show security web filtering status

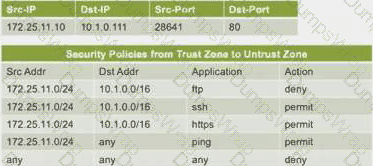

The incoming packet shown in the exhibit uses destination port 80, which represents HTTP traffic. The policy table contains entries for FTP, SSH, HTTPS, and ping before the final policy. Because the packet does not match FTP, SSH, HTTPS, or ping, it continues down the ordered policy list until it reaches the final any-any-any deny rule. Junos security policies are evaluated in order, and the first matching policy determines the action for the traffic. This makes option D correct. Since the final matching rule denies the packet, option C is also correct. The packet is not permitted by HTTPS because HTTPS uses TCP destination port 443, not port 80.

During web filtering, the SRX first checks local policy elements such as allow lists, block lists, and cached URL categorization information. If the URL is not available locally, the device sends the URL information to the cloud-based web filtering service for categorization. Juniper documentation for enhanced and cloud-based web filtering explains that when the URL is not present in the filtering cache, the device sends a categorization request to the cloud service. NextGen Web Filtering similarly uses the Juniper NGWF cloud to categorize the URL and provide reputation information. Therefore, the correct action is to forward the URL to the NextGen Web Filtering application in the Juniper cloud. It is not simply allowed, blocked, or reset by default before categorization is attempted.

Option B: Correct. Interfaces in the same security zone must belong to the same routing instance; zones cannot span multiple routing instances.

Option D: Correct. A security zone can contain multiple interfaces, allowing grouping of similar trust levels (e.g., multiple LAN subnets in a trust zone).

Option A: Incorrect. An interface can belong to only one zone at a time.

Option C: Incorrect. Interfaces within the same zone cannot be split across routing instances.

Correct Statements: Interfaces in the same zone must share the same routing instance, and a zone can contain multiple interfaces.

Static NAT: Provides a one-to-one bidirectional mapping between internal and external IP addresses. When configured, the translation automatically applies in both directions (Option A is correct). It does not use Port Address Translation (Option C is incorrect).

Destination NAT: Allows external clients to access internal resources by translating the destination address. It supports port forwarding so specific services (e.g., HTTP on port 80) can be forwarded to an internal host (Option D is correct). It does not require equal-sized address ranges (Option B is incorrect).

Correct Characteristics: Static NAT is bidirectional, and Destination NAT supports port forwarding.

Junos OS uses a modular software architecture. Instead of one monolithic process controlling all functions, Junos separates major functions into individual protected processes, such as routing, interface control, management, chassis control, and Packet Forwarding Engine communication. This separation improves operational stability because a failure in one process has little or no effect on other software processes. Juniper’s architecture documentation explains that Routing Engine software functions run as separate processes and that this modularity provides fault isolation. Therefore, Junos is built using independent software processes, and individual processes can be restarted with limited impact on the rest of the system. Options A and C are incorrect because they describe tightly coupled behavior, which is opposite to Junos modular design.

Static NAT creates a fixed one-to-one mapping between real and mapped addresses. Juniper documentation describes static NAT as mapping one IP subnet to another IP subnet and states that translation is limited to one-to-one mappings or address blocks of the same size. This makes option A correct. Juniper also states that no address pools are necessary for static NAT, which makes option C correct. Address pools are commonly associated with source NAT or destination NAT pool configurations, not the basic static NAT mapping model. Static NAT can support static port mapping in specific configurations, but the general static NAT behavior tested here is one-to-one address translation, not dynamic PAT. Therefore, the correct answers are A and C.

On high-end SRX platforms, control-plane (Routing Engine–destined) traffic transits the loopback (lo0) and is best captured by applying a firewall filter on lo0 with the then sample action , together with traffic sampling under forwarding-options to write packets to a file.

sample sends matched control-plane packets to the sampling process, which can record them for analysis.

datapath-debug capture focuses on data-plane/SPC paths and is not the tool for generic control-plane packet capture.

tcpdump from shell is not the supported workflow on SRX; the operational command is monitor traffic, but for high-end control-plane capture, the recommended and scalable method is lo0 filter + sampling .

Port mirroring mirrors transit data-plane traffic, not RE-destined control-plane packets.
