Task 9: Initialize the main branch (if it doesn’t exist) and create a pull request-triggered pipeline for .NET Core build

Step 1: Initialize the main Branch

In your Azure DevOps Project (Project1), navigate to Repos .

In the left menu, click Files .

If you see a message like “This repository is empty,” click Initialize .

Create a README.md file (or another file) and set the default branch name to main.

Click Initialize .

If the main branch already exists, you can skip this step.

Step 2: Create a New Branch for the Pipeline

In Repos > Files , click on the Branches tab.

Click New branch .

Enter:

Branch name: azure-pipelinesT

Based on: main

Click Create .

This creates a new branch named azure-pipelinesT from main.

Step 3: Create the Pipeline YAML File in the New Branch

Switch to the azure-pipelinesT branch.

In Files , click New file .

Name the file: azure-pipelines.yml.

Step 4: Write the YAML Pipeline for .NET Core Build

Here’s a sample YAML file:

trigger: none

pr:

branches:

include:

- main

pool:

vmImage: ' windows-latest '

variables:

buildConfiguration: ' Release '

steps:

- task: UseDotNet@2

displayName: ' Install .NET Core SDK '

inputs:

packageType: ' sdk '

version: ' 8.x ' # Or specify the exact version of .NET Core SDK you need

installationPath: $(Agent.ToolsDirectory)/dotnet

- script: dotnet build src --configuration $(buildConfiguration)

displayName: ' Build .NET Core project '

This pipeline:

Runs only when a pull request is created or updated targeting the main branch.

Uses the windows-latest agent.

Installs the .NET SDK and builds the project in the src directory.

Step 5: Commit the Pipeline File

In the bottom commit message box:

Message: Add PR-triggered pipeline for .NET Core build

Ensure the branch is set to azure-pipelinesT .

Click Commit .

Step 6: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines .

Click New pipeline .

Select:

Azure Repos Git .

Select your repository.

Choose Existing Azure Pipelines YAML file .

In the branch selector, choose the azure-pipelinesT branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and Run to validate.

Step 7: Test the Pipeline Trigger

Create a new branch (e.g., feature/test-pr).

Push a commit and create a pull request targeting main.

Verify that the pipeline runs automatically for this PR in Pipelines .

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create thestorage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

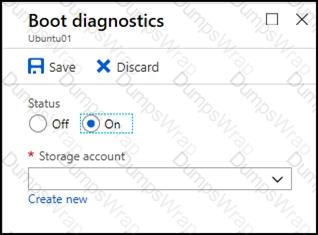

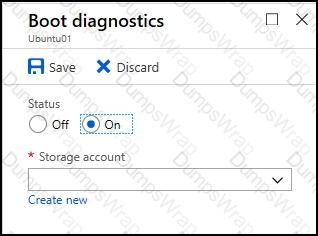

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.

In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

In Boot diagnostics settings, change the statusto On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

Save the change.

You must restart the virtual machine for the change to take effect.

Step 1: Log in to the Azure Portal

Go to .

Log in with your Azure account.

Step 2: Create an Azure App Configuration Instance

In the search bar at the top, type “App Configuration” and select App Configuration from the search results.

Click + Create .

Fill in the required fields:

Subscription: Your Azure subscription.

Resource Group: Create a new one or select an existing one.

Name: Provide a globally unique name (for example, myappconfig-instance).

Location: Choose a region close to your application.

Click Review + Create , then Create .

The instance will take a few seconds to deploy.

Step 3: Access the App Configuration Instance

Once the deployment is complete, click Go to resource .

You are now in the App Configuration resource.

Step 4: Enable Feature Management

In the left menu, click on Feature Manager (Preview) .

Click + Add to create a new feature flag.

Step 5: Create the Feature Flag

Provide the following details:

Feature flag name: feature1

Label: (optional)

Description: (optional)

State: Set to Enabled .

Click on the Add filters link if you want to add targeting filters (optional).

Click Save to create the feature flag.

Step 6: Set the Expiration Date for the Feature Flag

In the Feature Manager list, find the newly created feature1 flag.

Click on the three dots (context menu) next to feature1 and select Edit .

In the Edit feature pane, look for the Expiration date setting. If there is no direct UI for expiration date, you can store it as a custom key-value (metadata).

Here’s how to store expiration as metadata:

In the App Configuration left menu, click on Configuration Explorer .

Locate the key: .appconfig.featureflag/feature1.

Click on the key to edit.

Add a new label or add a custom key in the Content type or tags section to store expiration metadata:

Key: expiration

Value: yyyy-MM-dd (set to today + 7 days)

For example, if today is June 4, 2025, set the expiration as 2025-06-11.

Step 1: Navigate to Project Settings

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Project Settings:

In the left-hand menu, scroll down and select Project settings.

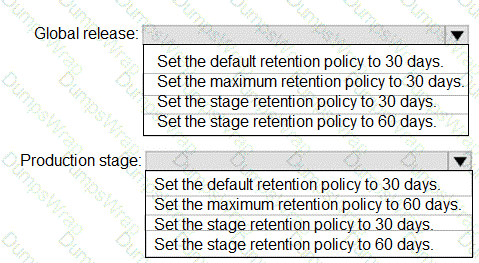

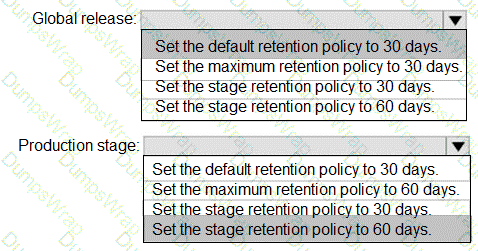

Step 2: Configure Retention Policies

Navigate to Pipelines Settings:

Under Pipelines, select Settings.

Set Retention Policies:

In the Retention section, set the number of days to keep artifacts, symbols, and attachments to 60 days.

Ensurethat the retention policy is applied to all relevant pipelines and branches.

Save Changes:

Click on Save to apply the retention policy1.

By following these steps, you will have successfully configured theretention policy to retain artifacts, symbols, and attachments for 60 days in Project1

To create an instance of Azure Application Insights namedaz400-38443478-mainand configure it to receive telemetry data from an Azure web app with the same name, you’ll need to follow these steps:

Create a Log Analytics Workspace:

Go to theAzure Portal.

Search for Log Analytics Workspaces and select Add.

Select a Subscription and either use an existing Resource Group or create a new one.

Provide a unique name for your Log Analytics workspace.

Choose the Region that is appropriate for you.

Review the settings and then selectCreate1.

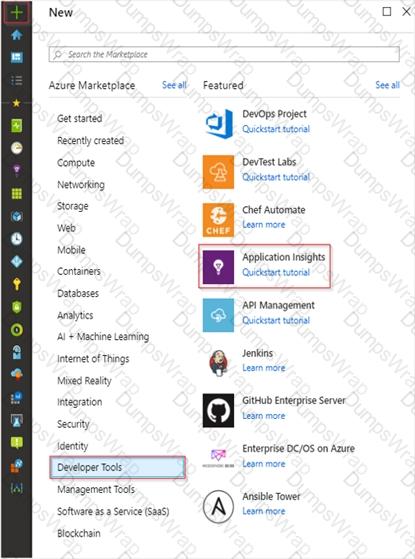

Create an Azure Application Insights Instance:

In the Azure Portal, navigate to Application Insights.

Click on + Create.

Fill in the instance details, ensuring the name isaz400-38443478-main.

Link the instance to the Log Analytics workspace you created in the previous step.

Review and create the Application Insights instance2.

Configure the Azure Web App to Send Telemetry Data:

Go to the Azure Web Appaz400-38443478-main.

Under Monitoring, selectApplication Insights.

Choose to use an existing resource and select the Application Insights instance you created.

Follow the prompts to set up the connection, which may involve adding the appropriate SDK to your web app and configuring the connection string or instrumentation key.

Verify Telemetry Data Reception:

After setting up, send some test traffic to your web app.

Then, go to the Application Insights instance and check the Overview or Performance sections to see if telemetry data is being received.

Remember to replace placeholder names with the actual names of your resources where necessary. These steps will help you set up Azure Application Insights to monitor your web app effectively.

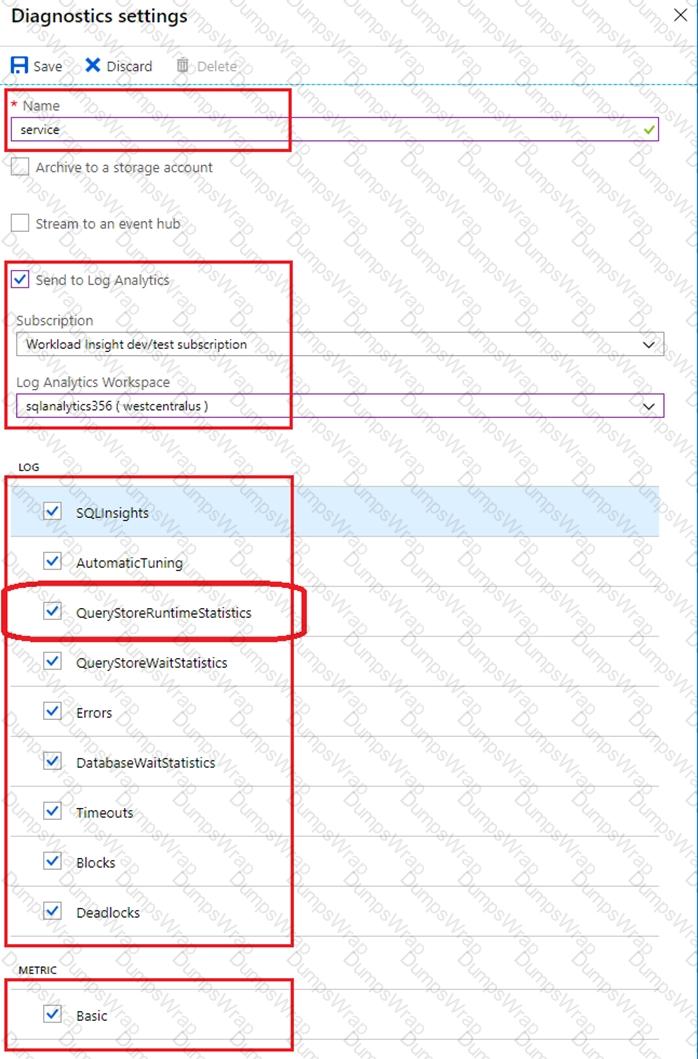

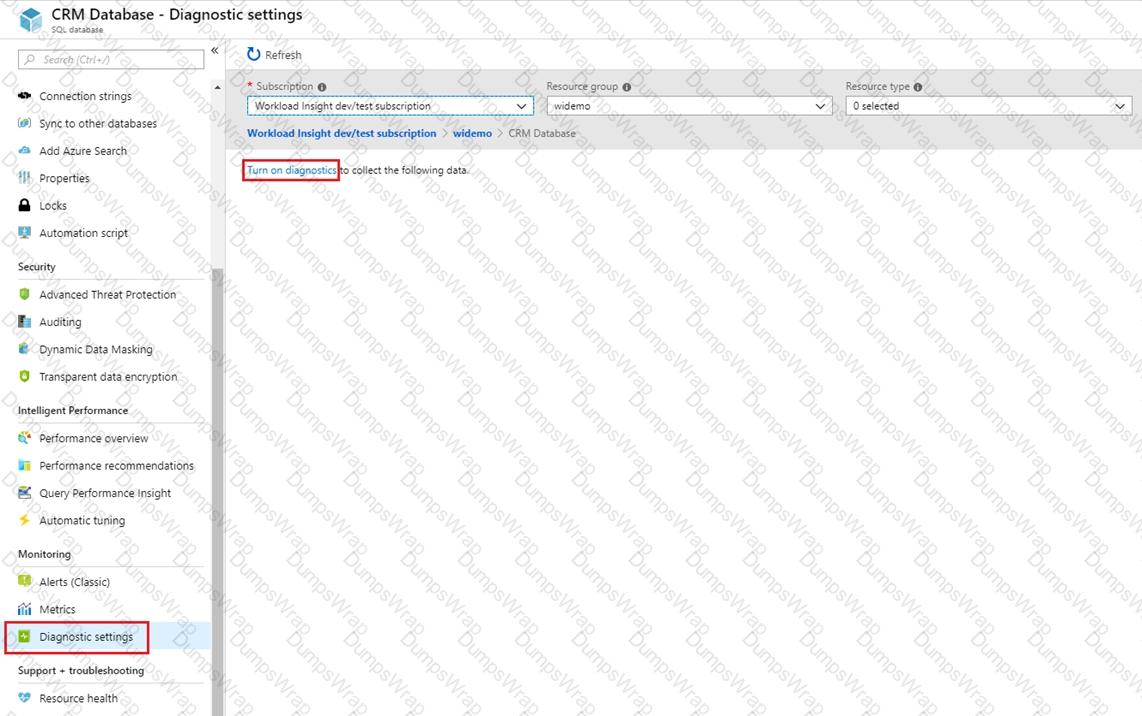

To enable streaming of diagnostic telemetry for a single or a pooled database, follow these steps:

1. Go to Azure SQL database resource.

2. Select Diagnostics settings.

3.Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

4. Select Add diagnostic setting to configure parallel streaming ofdiagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: QueryStoreRuntimeStatistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. SelectSave.

To ensure that the webhook called every time the repository namedaz40038443478acr1receives a new version of an image nameddotnetapp, you can follow these steps to configure a webhook in Azure Container Registry:

Navigate to the Azure Container Registry:

Go to the Azure Portal.

Find and select yourAzure Container Registry instanceaz40038443478acr1.

Create a New Webhook:

UnderServices, selectWebhooks.

Click on+ Addto create a new webhook.

Fill in the form with the following information:

Webhook name: Enter a unique name for your webhook.

ServiceURI:

Custom headers: (Optional) Add any headers you want to pass along with the POST request.

Trigger actions: SelectPushto trigger the webhook on image push events.

Scope: Specify the scope asaz40038443478acr1:dotnetappto target the specific image.

Status: Set toEnabled.

Save the Webhook Configuration:

Review the information and clickCreateto save the webhook.

Once configured, the webhook will send a POST request a new version of thedotnetappimage is pushed to theaz40038443478acr1repository in your Azure Container Registry1.

This setup will automate the notification process, ensuring that the specified webhook is called with each new image version, thus fulfilling the task requirements.

Task 7: Create a Pipeline to Deploy a Docker Image in a New Branch

Step 1: Create a New Branch

In your Azure DevOps Project (Project1), navigate to Repos .

In the left menu, click on Branches .

Click New branch .

Enter:

Branch name: azure-pipelines

Based on: main (or your default branch)

Click Create .

This creates a new branch named azure-pipelines.

Step 2: Switch to the New Branch

In Repos , click on Files .

In the top-left branch selector, choose azure-pipelines .

Step 3: Use the Predefined Docker Pipeline Template

Azure Pipelines has predefined YAML templates for common tasks, including Docker.

Here’s how to add it:

In the azure-pipelines branch, click New file .

Name the file: azure-pipelines.yml.

Click the Show templates button in the YAML editor (if available).

Search for the Docker template in the list of predefined templates.

Select the Docker template to auto-populate the YAML file.

If the editor doesn’t show the template picker, you can manually add the following basic Docker pipeline template:

yaml

Copy

# Predefined Docker pipeline template

trigger:

- main

resources:

- repo: self

variables:

imageName: ' mydockerimage '

stages:

- stage: Build

displayName: Build and push stage

jobs:

- job: Build

pool:

vmImage: ' ubuntu-latest '

steps:

- task: Docker@2

displayName: Build and push an image to container registry

inputs:

command: buildAndPush

repository: $(imageName)

dockerfile: ' **/Dockerfile '

containerRegistry: ' < your-container-registry-service-connection > '

tags: |

latest

Replace < your-container-registry-service-connection > with your actual Azure Container Registry (ACR) or DockerHub service connection name.

Step 4: Commit the Pipeline to the New Branch

In the YAML editor, review and adjust if needed (like setting the correct container registry service connection).

In the bottom commit message box:

Message: e.g., Add Docker deployment pipeline

Ensure the branch is set to azure-pipelines .

Click Commit (not commit to main).

This creates the pipeline YAML file in the new azure-pipelines branch.

Step 5: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines .

Click New pipeline .

Choose:

Azure Repos Git .

Select your repo.

Select Existing Azure Pipelines YAML file .

In the branch selector, choose the azure-pipelines branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and then Run to validate the pipeline.

anation:

1. In the Azure portal, navigate to the az400-9940427-main app ' s management page. In the app ' s left menu, click Configuration > Application settings.

2. Click New Application settings

3. Enter the following:

Name: MAX_ITEMS

Value: 50

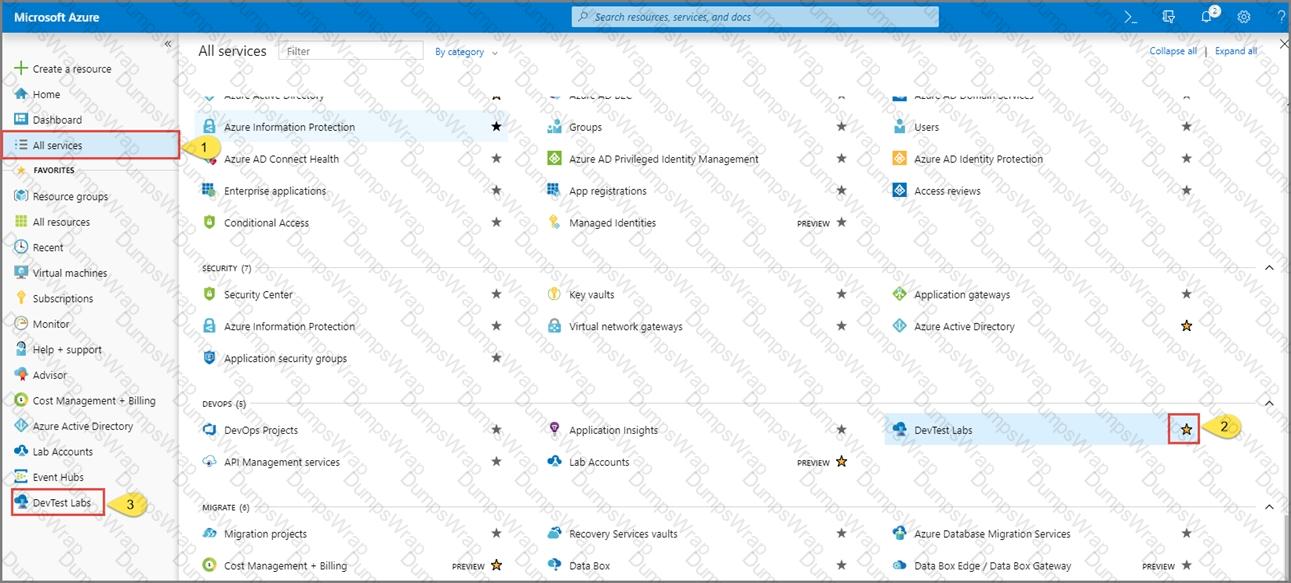

1. Open Microsoft Azure Portal

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating thevirtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

Task 12: Configure Iterations in Project1 for Azure Boards

Step 1: Navigate to Project Settings

In your Azure DevOps Project (Project1), click on the Project settings gear icon in the lower-left corner.

Step 2: Manage Project Iterations (Sprints)

In the Boards section of the Project settings, click Project configuration .

In the left menu, click on Iterations .

Step 3: Add Iterations

Click on the + New child link to add a new iteration under the root node (e.g., Project1).

Enter the following details:

Name: Sprint 1

Leave the start and end dates empty (or set them as needed for your planning).

Click Save and close .

Repeat the process:

Click + New child again.

Name: Sprint 2

Leave the start and end dates empty.

Click Save and close .

Finally, create Sprint 3 with specific dates:

Click + New child .

Name: Sprint 3

Start date: January 1 of next year (e.g., 2026-01-01).

End date: January 31 of next year (e.g., 2026-01-31).

Click Save and close .

Step 4: Assign Iterations to Work Items

With these iterations created, you can now assign them to work items (e.g., tasks, bugs, features) using Azure Boards.

In Boards , click on Work items .

Open any work item.

In the Iteration Path field, select one of your newly created iterations (Sprint 1, Sprint 2, or Sprint 3).

This ensures that work items can be tracked under the appropriate sprint.

To ensure that your Azure Web App namedaz400-38443478-maincan retrieve secrets from an Azure Key Vault namedaz400-3844J478-kv1using a system managed identity with the principle of least privilege, follow these detailed steps:

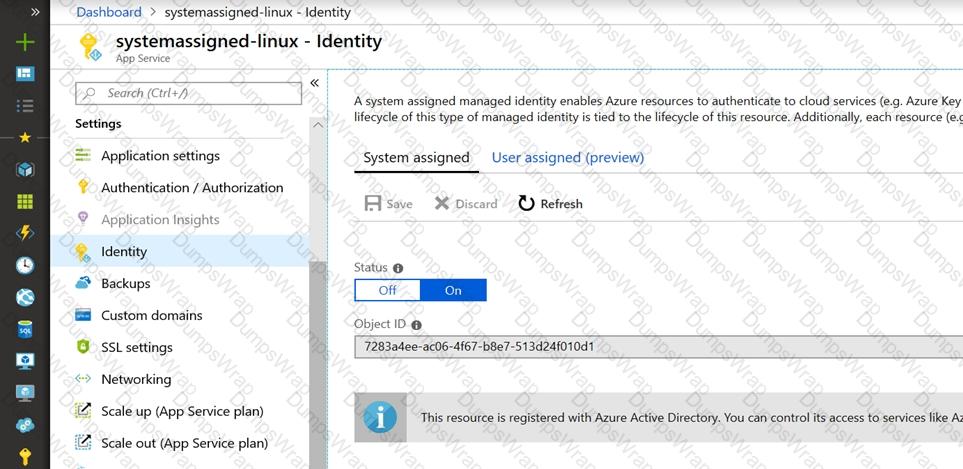

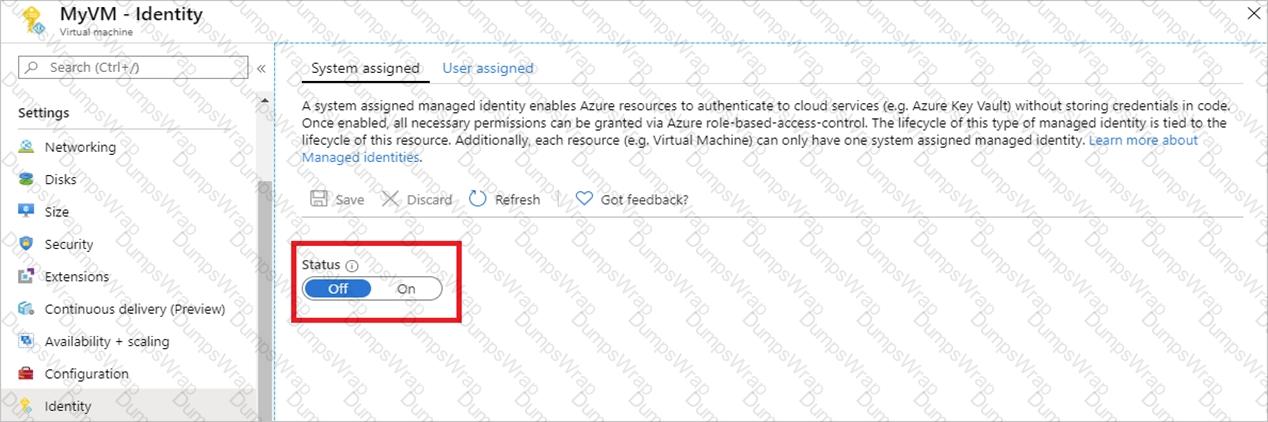

Enable a System Managed Identity for the Azure Web App:

Navigate to the Azure Portal.

Go to the Azure Web Appaz400-38443478-main.

SelectIdentityunder theSettingssection.

In theSystem assignedtab, switch theStatustoOn.

ClickSaveto apply the changes.

Grant the Web App Access to the Key Vault:

Go to the Azure Key Vaultaz400-3844J478-kv1.

SelectAccess policiesunder theSettingssection.

Click onAdd Access Policy.

ChooseSecret permissionsand selectGetandList. This grants the app the ability to read secrets, adhering to the principle of least privilege.

Click onSelect principal, search for your Web App nameaz400-38443478-main, and select it.

ClickAddto add the policy.

Don’t forget to clickSaveto save the access policy changes.

Retrieve Secrets in the Web App Code:

In your Web App’s code, use the Azure SDK to retrieve the secrets.

For example, in a .NET application,you can use theAzure.IdentityandAzure.Security.KeyVault.Secretsnamespaces.

Utilize theDefaultAzureCredentialclass which will automatically use the system managed identity when running on Azure.

using Azure.Identity;

usingAzure.Security.KeyVault.Secrets;

var client = new SecretClient(new Uri( " " ), new DefaultAzureCredential());

KeyVaultSecret secret = await client.GetSecretAsync( " my-secret-name " );

string secretValue =secret.Value;

Replace " my-secret-name " with the actual name of the secret you want to retrieve.

By following these steps, your Azure Web App will be able to securely retrieve secrets from the Azure Key Vault using a system managed identity, without needingto store credentials in the code, and adhering to the principle of least privilege. Remember to replace the placeholder names with the actual names of your Web App and Key Vault.

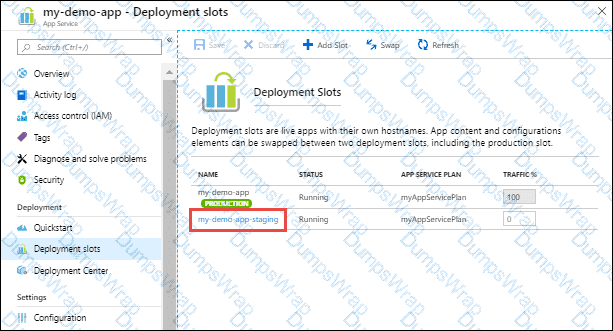

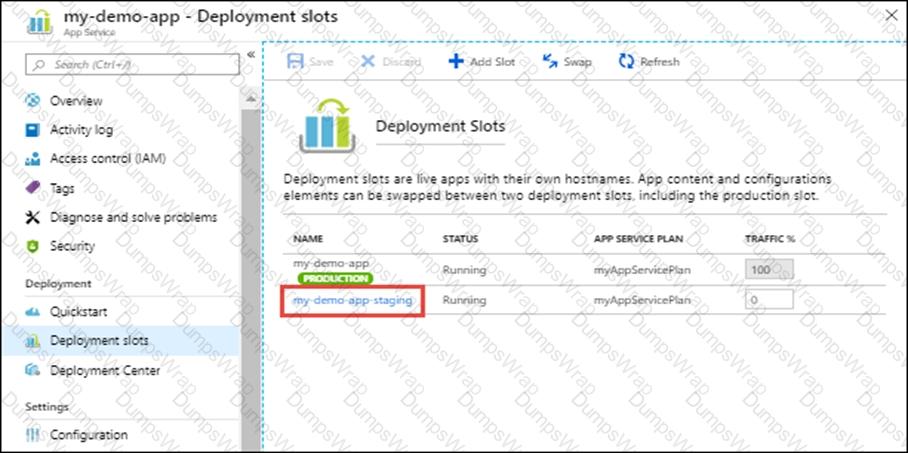

Set up staging environments in Azure App Service

1. Open Microsoft Azure Portal

2. Log into your Azure account, select your app ' s resource page, in the left pane, selectDeployment slots > Add Slot.

3. In the Add a slot dialog box, give the slot a name, and select whether to clone an app configuration from another deployment slot. Select Add to continue.

4. After the slot is added, select Close to close the dialogbox. The new slot is now shown on the Deployment slots page. By default, Traffic % is set to 0 for the new slot, with all customer traffic routed to the production slot.

5. Select the new deployment slot to open that slot ' s resource page.

6. Change TRAFFIC % to 10

Step 1: Create a Project Wiki

Navigate to Azure DevOps:

Go to Azure DevOps and sign inwith your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Create a Wiki:

In the left-hand menu, select Wiki.

Click on Create project wiki.

Enter the name Wiki1 and click Create.

Step 2: Add Mermaid Syntax to Render a Diagram

Open the Wiki Page:

Navigate to the newly created Wiki1.

Edit the Wiki Page:

Click on Edit to start editing the wiki page.

Insert Mermaid Diagram:

Use the following Mermaid syntax to render a diagram. For example, to render a simple flowchart, you canuse:

```mermaid

graph TD;

A-- > B;

A-- > C;

B-- > D;

C-- > D;

Save the Page:

Click on Save to save your changes.

Step 3: Render the TCP Handshake Diagram

Convert TCPHandshake.png to Mermaid Syntax:

Since you have a sample diagram in C:\Resources\TCPHandshake.png, you need to convert this diagram into Mermaid syntax. Here’s an example of how a TCP handshake might look in Mermaid syntax:

```mermaid

sequenceDiagram

participant Client

participant Server

Client- > > Server: SYN

Server-- > > Client: SYN-ACK

Client- > > Server: ACK

Add the Diagram to the Wiki:

Replace the sample Mermaid syntax with the TCP handshake diagram syntax in the wiki page.

Save the Page:

Click on Save to save your changes.

By following these steps, you will have created a project wiki named Wiki1 and used Mermaid syntax to render a diagram

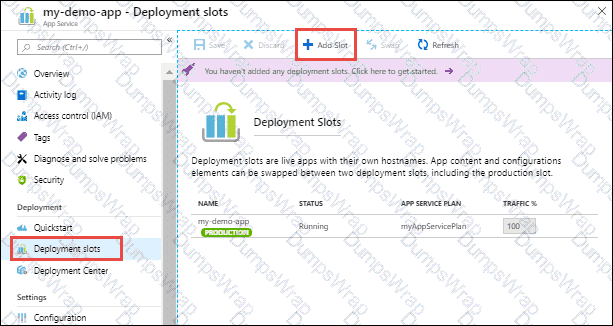

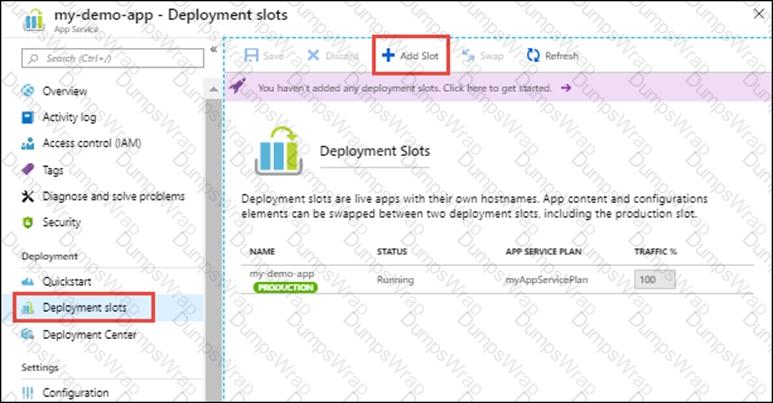

Add a slot

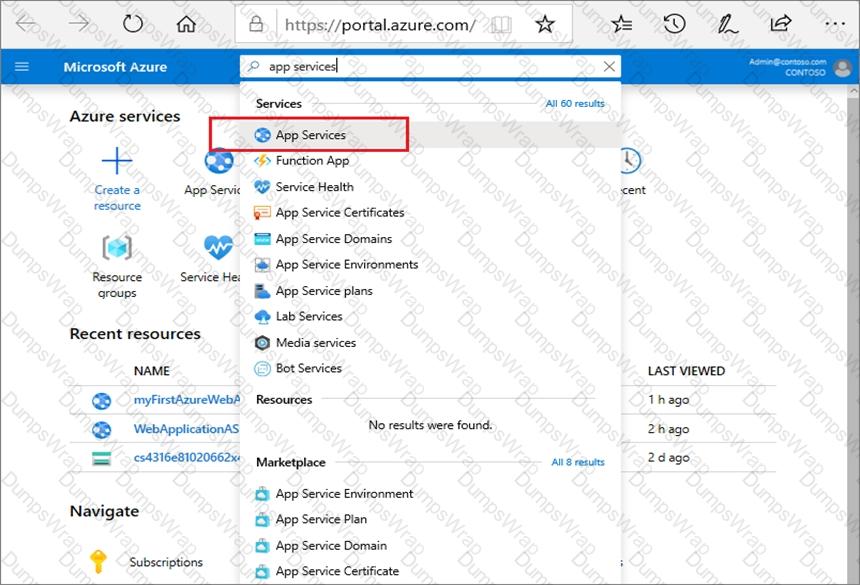

1. In the Azure portal, search for and select App Services and select your app az400-11566895-main.

2. In the left pane, select Deployment slots > Add Slot.

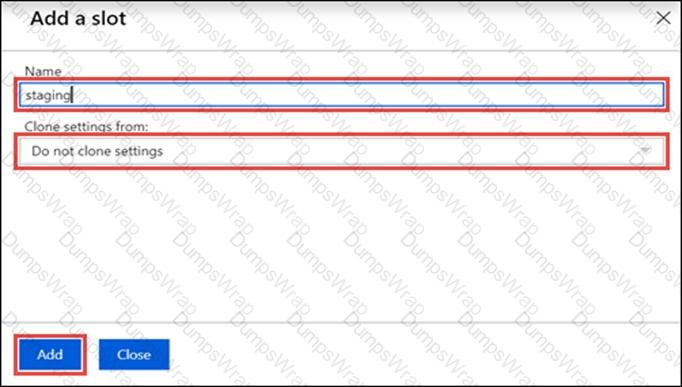

3. In the Add a slot dialog box, give the slot a name, and select whether to clone an app configuration from another deployment slot. Select Add to continue.

4. After the slot is added, select Close to close the dialog box. The new slot is now shown on the Deployment slots page.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources,type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create the storage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

1.Sign in to the Azure portal, and then select the virtual machine VM1.

2. In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

3. In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

4. Save the change.

You must restart the virtual machine for the change to take effect.

Step 1: Create an Action Group

Navigate to Azure Portal:

Go to Azure Portal and sign in with your credentials.

Access Azure Monitor:

In the left-hand menu, select Monitor.

Create ActionGroup:

Under Alerts, select Action groups.

Click on + Create.

Configure Basic Settings:

Subscription: Select your subscription.

Resource Group: Select RG1 lod42147S09.

Action Group Name: Enter DevOpsAG.

Display Name: Enter a display name for the action group.

Step 2: Define Actions

Add Email Notifications:

Click on Add action.

Action Type: Select Email/SMS message/Push/Voice.

Action Name: Enter a name for the action (e.g., EmailAdmins).

Email: Enter admin1@contoso.com and admin2@contoso.com.

Click OK.

Notify Resource Owners:

Click on Add action again.

Action Type: Select Email/SMS message/Push/Voice.

Action Name: Enter a name for the action (e.g., NotifyOwners).

Email: Select Notify all owners.

Click OK.

Step 3: Enable Common Alert Schema

Common Alert Schema:

In the Advanced tab, enable the Common alert schema option1.

Step 4: Review and Create

Review:

Review all the settings you have configured.

Create:

Click on Review + create and then Create.

By following these steps, you will have successfully created an action group named DevOpsAG that emails the specified users and notifies resource owners using the common alert schema

To prepare a Network Security Group (NSG) namedaz400-38443478-nsg1for hosting an Azure DevOps pipeline agent, while allowing only the required outbound port for Azure DevOps and denying all other inbound and outbound access to the Internet, follow these steps:

Create the NSG:

Navigate to the Azure Portal.

Go toNetwork Security Groupsand click on+ Create.

Fill in the details, including the nameaz400-38443478-nsg1, and create the NSG.

ConfigureOutbound Security Rules:

Once the NSG is created, go to its settings.

Navigate toOutbound security rules.

Click on+ Addto create a new rule.

Set theDestination port rangesto443, which is the required port for Azure DevOps12.

Set theProtocoltoTCP.

Set theActiontoAllow.

Assign aPrioritynumber (e.g.,100) that does not conflict with existing rules.

Provide a meaningfulNamefor the rule (e.g.,AllowAzureDevOps).

Configure Default Rules to Deny All Other Traffic:

In the sameOutbound security rulessection, edit the default rule to deny alltraffic.

Change theActiontoDenyfor the rule with the lowest priority (highest number).

Ensure that this rule applies to all protocols, source and destination IP ranges, and port ranges.

Associate the NSG with the Appropriate Resource:

Associate the NSGwith the subnet or network interface of the virtual machine or resource where the Azure DevOps pipeline agent will be hosted.

By following these steps, you will ensure that the Azure DevOps pipeline agent can communicate with Azure DevOps services over the required port while blocking all other inbound and outbound Internet access, adhering to the principle of least privilege and security best practices.

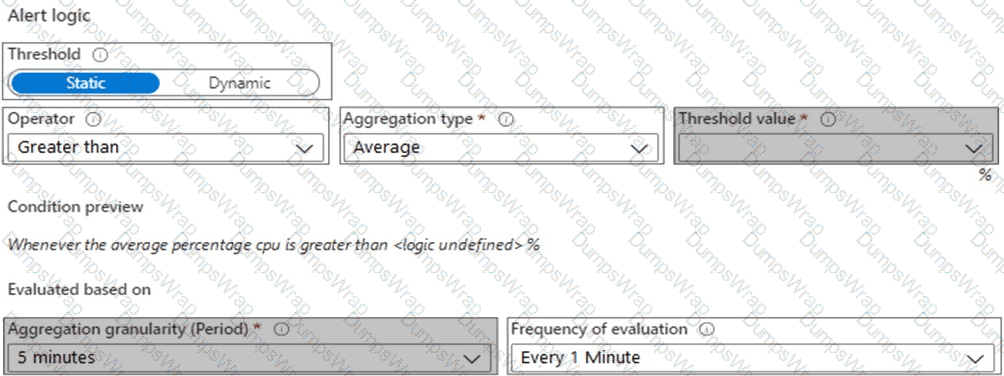

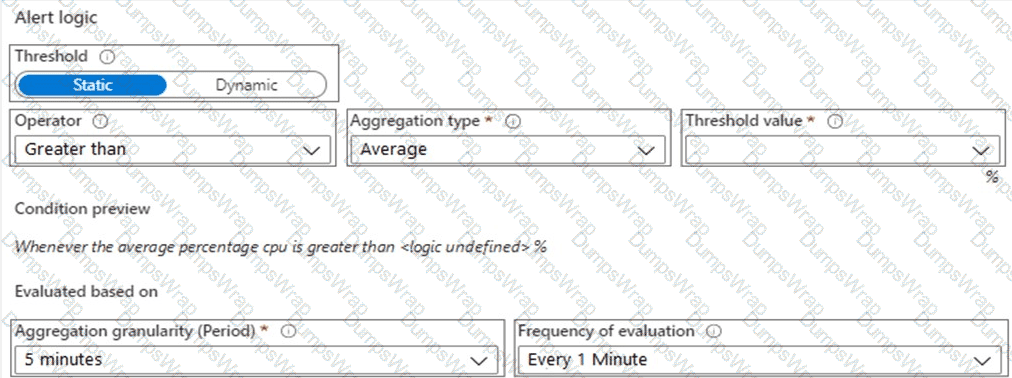

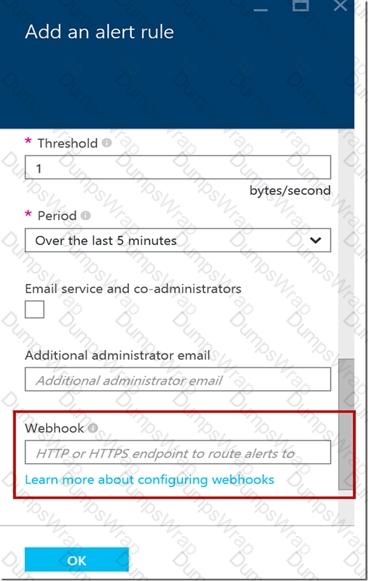

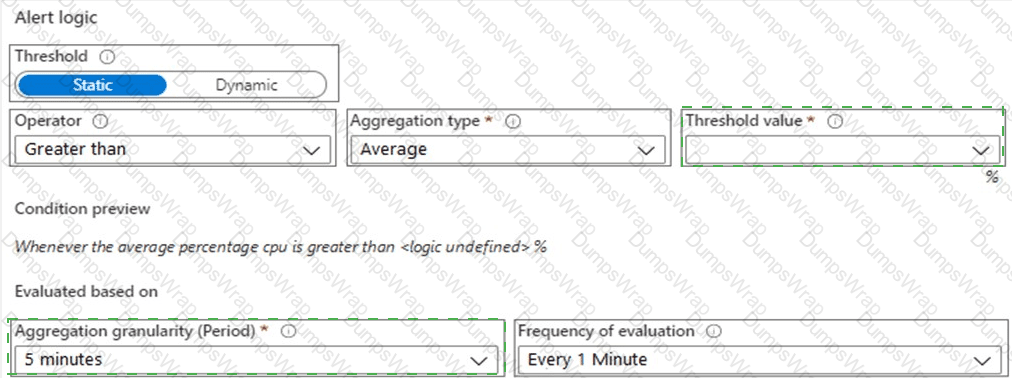

1. Open Microsoft Azure Portal

2. Log intoyour Azure account and go to App Service and look under Monitoring then you will see Alert.

3. Select Add an alert rule

4. Configure the alert rule as per below and click Ok.

Source: Alert on Metrics

Resource Group: az400-9940427-main

Resource: az400-9940427-main

Threshold: 5

Period: Over the last 5 minutes

Webhook:

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

SelectYour Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos  >  Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Install the Microsoft Security DevOps Extension

Navigate to Extensions:

In Azure DevOps, click on the Shopping Bag icon in the top right corner and select Browse Marketplace.

Search for the Extension:

Search for Microsoft Security DevOps.

Install the Extension:

Click on Get it free.

Select your organization (User1-42147509) and click Install.

Follow the prompts to complete the installation2.

Step 3: Create a New Starter Pipeline

Navigate to Pipelines:

Go to Pipelines  >  New pipeline.

Select the Repository:

Choose Azure Repos Git and select the relevant repository.

Configure the Pipeline:

Select Starter pipeline and replace the default YAML with the following starter code:

trigger:

- starter

pool:

vmImage: ' windows-latest '

steps:

- task: MicrosoftSecurityDevOps@1

inputs:

command: ' run '

policy: ' azuredevops '

publish: true

Save the Pipeline:

Click on Save and enter starter as the branch name.

Click on Save and run to save the pipeline to the new branch named starter3.

By following these steps,you will have successfully initialized the main branch, installed the Microsoft Security DevOps extension, and created a new starter pipeline named starter1 that includes the specified task

Step 1: Sign Up for Azure DevOps

Navigate to Azure DevOps.

Click on Start Free.

Enter the credentials:

Email: UserUsefl-42147509@ExamUsers.com

Password: eWrSalD2!

Follow the prompts to complete the sign-up process using the default settings.

Step 2: Create an Azure DevOps Organization

Once signed in, you will be prompted to create a new organization.

Enter a name for your organization and select your region.

Click on Continue to create the organization.

Step 3: Create a Private Project

In your new organization, click on New Project.

Name the project Project1.

Set the visibility to Private.

Click on Create.

Step 4: Add an External User as a Stakeholder

Go to the Organization Settings.

Under General, select Users.

Click on Add users.

Enter the email address: Usfrr2-42147S09@ExamUsers.com.

Set the access level to Stakeholder.

Add the user to the most restrictive group, which is typically the Readers group.

Click on Add to complete the process.

Step 5: Verify the User Addition

Ensure that the external user has been added successfully by checking the Users list.

Confirm that the user has the Stakeholder access level and is part of the Readers group.

By following thesesteps, you should be able to complete the task successfully. If you encounter any issues, feel free to ask for further assistance!

To ensure that your Azure Web App namedaz400-38443478-mainsupports rolling upgrades and only 10 percent of users connect to the updated version of the app, you can use deployment slots with the followingsteps:

Create a Deployment Slot:

Navigate to the Azure Portal.

Go to your Web Appaz400-38443478-main.

SelectDeployment slotsin the menu.

Click onAdd Slot.

Name the slot (e.g.,staging) and if needed, clone settings from the production slot.

Configure the Traffic Percentage:

In the Deployment Slots menu, you will see a column forTraffic %.

Set the traffic percentage to10%for thestagingslot1.

This will route only 10% of the traffic to the updated version of the app in thestagingslot.

Deploy the Updated App to the Staging Slot:

Deploy yourupdated application to thestagingslot.

Test the application in thestagingslot to ensure it’s working as expected.

Complete the Rolling Upgrade:

Once you’re satisfied with the performance and stability of the app in thestagingslot, you can graduallyincrease the percentage of traffic until you’re ready to swap with the production slot.

To swap slots, go to theDeployment slotsmenu and click onSwapwith the production slot.

By using deployment slots, you can achieve rolling upgrades with minimal administrative effort, as it allows you to test the new version on a subset of users before fully releasing it. Remember to adjust the traffic percentage and monitor the application’s performance throughout the process.

1. Open Microsoft Azure Portal

2. Log into your Azure account, select App Services in the Azure portal left navigation, and then select configureaz400-9940427-func1.

3. On the app page, select Deployment Center in the left menu.

4. On the Build provider page, select Azure Pipelines (Preview), and then select Continue.

5. On the Configure page, in the Code section:

For GitHub, drop down and select the Organization, Repository, and Branch you want to deploy continuously.

6. Select Continue.

7. On the Test page, choose whether to enable load tests, and then select Continue.

8. Depending on your App Service plan pricing tier, you may see a Deployto staging page. Choose whether to enable deployment slots, and then select Continue.

9. After you configure the build provider, review the settings on the Summary page, and then select Finish.

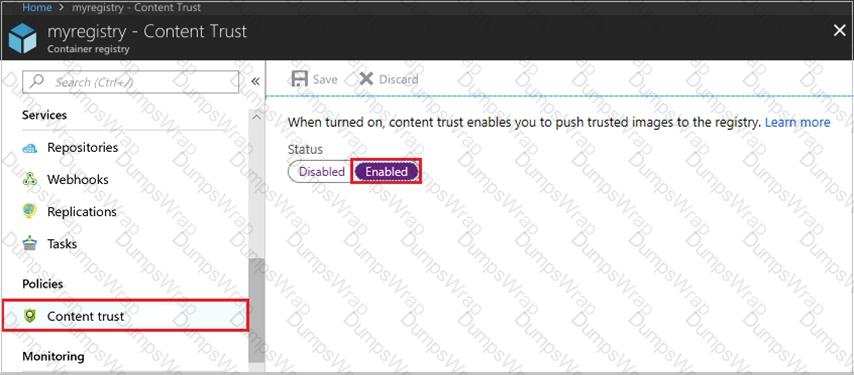

1. Open Microsoft Azure Portal, and select the Azure Container Registry instance named az4009940427acr1.

2. Under Policies, select Content Trust > Enabled > Save.

Scenario: Visual Studio App Center must be used to centralize the reporting of mobile application crashes and device types in use.

In order to use App Center, you need to opt in to the service(s) that you want to use, meaning by default no services are started and you will have to explicitly call each of them when starting the SDK.

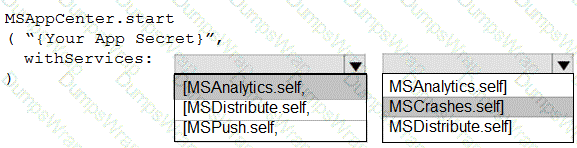

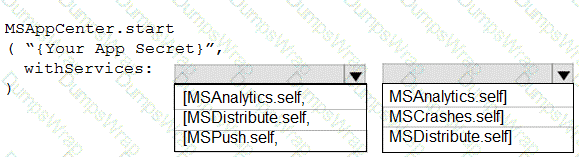

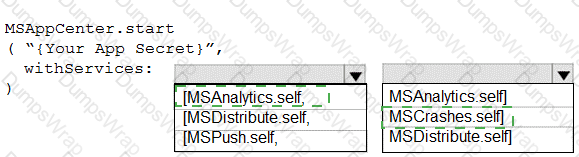

Insert the following line to start the SDK in your app ' s App Delete class in the didFinishLaunchingWithOptions method.

MSAppCenter.start( " {Your App Secret} " , withServices: [MSAnalytics.self, MSCrashes.self])

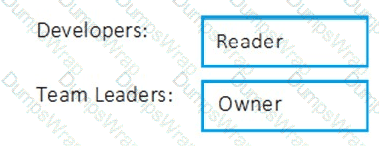

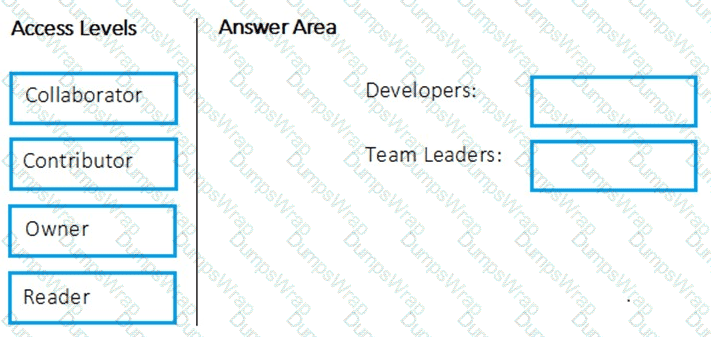

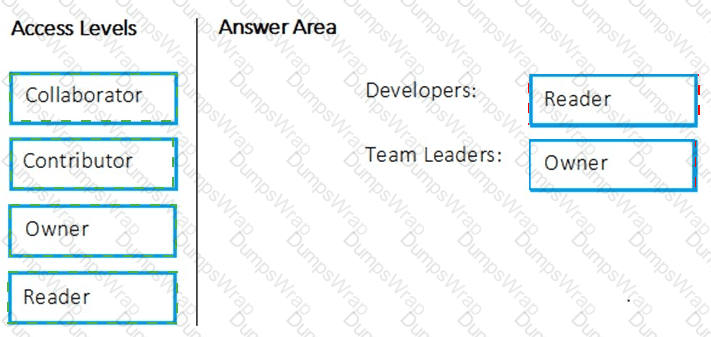

Box 1: Reader

Members of a group named Developers must be able to install packages.

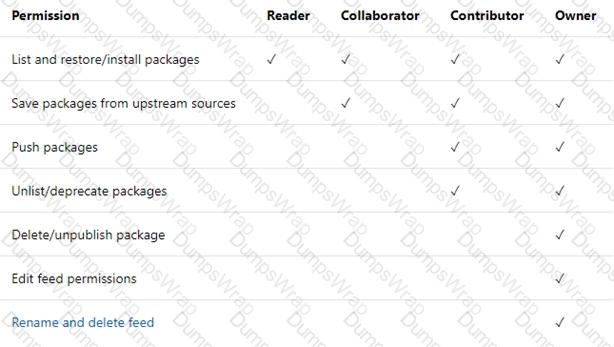

Feeds have four levels of access: Owners, Contributors, Collaborators, and Readers. Owners can add any type of identity-individuals, teams, and groups-to any access level.

Box 2: Owner

Members of a group named Team Leaders must be able to create new packages and edit the permissions of package feeds.

Scenario: A branching strategy that supports developing new functionality in isolation must be used.

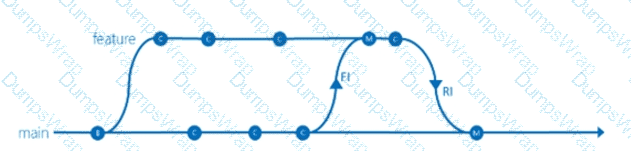

Feature isolation is a special derivation of the development isolation, allowing you to branch one or more feature branches from main, as shown, or from your dev branches.

When you need to work on a particular feature, it might be a good idea to create a feature branch.

Batching CI runs

If you have many team members uploading changes often, you may want to reduce the number of runs you start. If you set batch to true, when a pipeline is running, the system waits until the run is completed, then starts another run with all changes that have not yet been built.

Example:

# specific branch build with batching

trigger:

batch: true

branches:

include:

- master

To clarify this example, let us say that a push A to master caused the above pipeline to run. While that pipeline is running, additional pushes B and C occur into the repository. These updates do not start new independent runs immediately. But after the first run is completed, all pushes until that point of time are batched together and a new run is started.

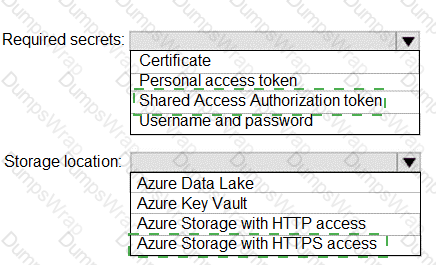

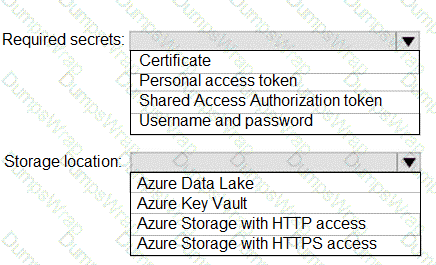

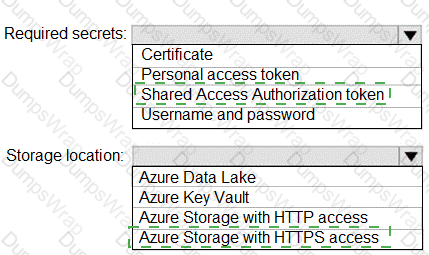

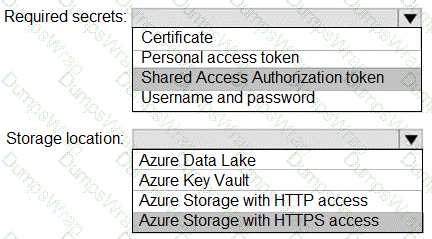

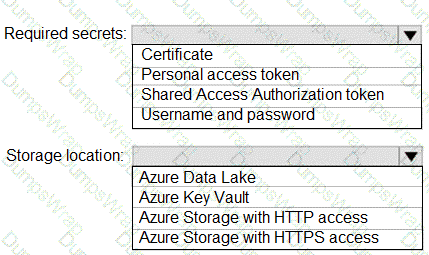

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

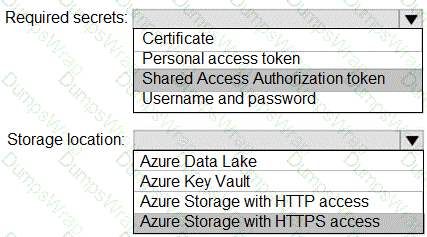

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

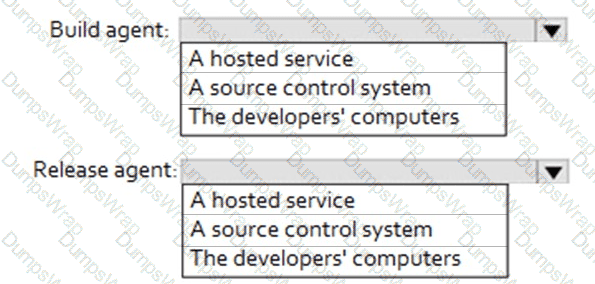

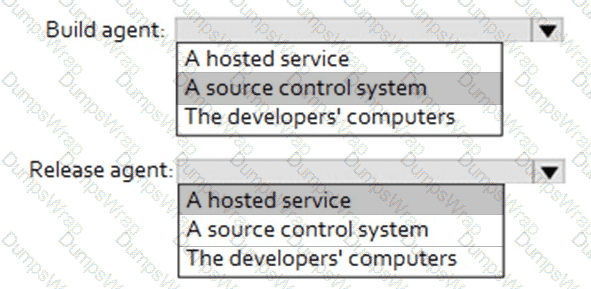

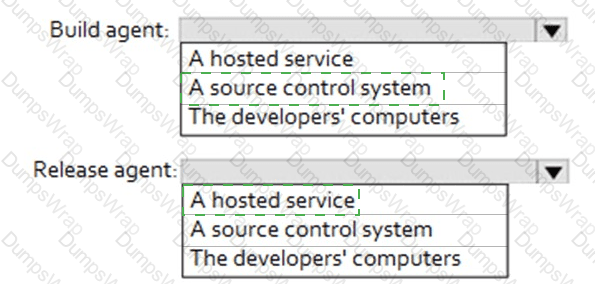

Box 1: A source control system

A source control system, also called a version control system, allows developers to collaborate on code and track changes. Source control is an essential tool for multi-developer projects.

Box 2: A hosted service

To build and deploy Xcode apps or Xamarin.iOS projects, you ' ll need at least one macOS agent. If your pipelines are in Azure Pipelines and a Microsoft-hosted agent meets your needs, you can skip setting up a self-hosted macOS agent.

Scenario: The investment planning applications suite will include one multi-tier web application and two iOS mobile applications. One mobile application will be used by employees; the other will be used by customers.

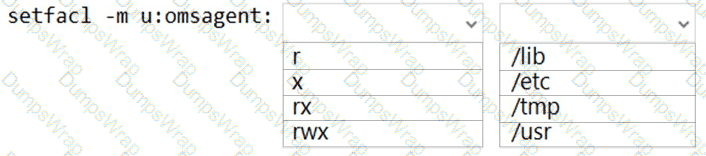

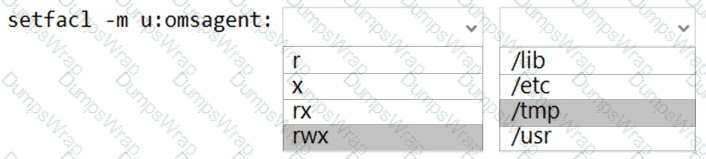

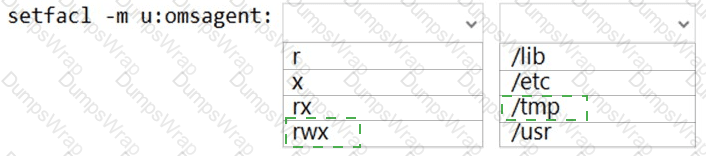

Box 1: rwx

The Log Analytics agent for Linux runs as the omsagent user. To grant > write permission to the omsagent user, run the command setfacl -m u:omsagent:rwx /tmp.

Box 2: /tmp

Deploying DSC to a Linux node uses the /tmp folder.

Scenario: By default, all releases must remain available for 30 days, except for production releases, which must be kept for 60 days.

Box 1: Set the default retention policy to 30 days

The Global default retention policy sets the default retention values for all the build pipelines. Authors of build pipelines can override these values.

Box 2: Set the stage retention policy to 60 days

You may want to retain more releases that have been deployed to specific stages.

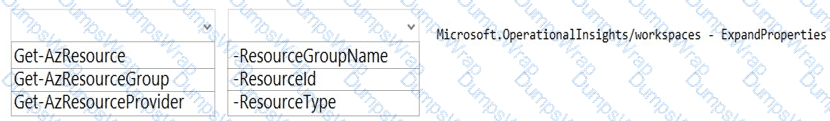

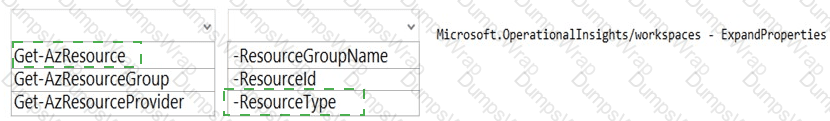

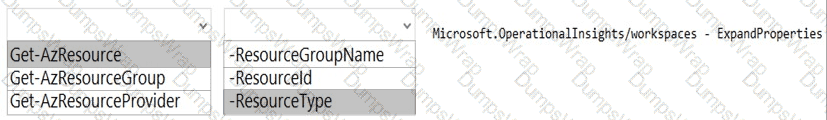

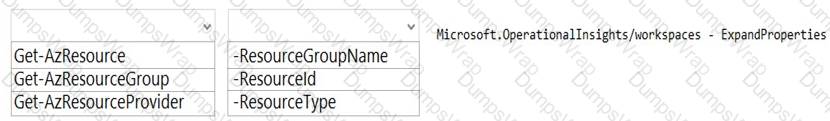

Box 1: Get-AzResource

Use the following command to examine the access control mode for all workspaces in the subscription:

PowerShell

Get-Az Resource –Resource Type Microsoft. Operational Insights/workspaces –Expand Properties | for each {s.Name + " : " + $_.Properties.features.enableLogAccessUsingOnlyResourcePermissions

Box 2: -Resource Type

Unattended config:

The agent can be set up from a script with no human intervention. You must pass --unattended and the answers to all questions.

To configure an agent, it must know the URL to your organization or collection and credentials of someone authorized to set up agents. All other responses are optional.

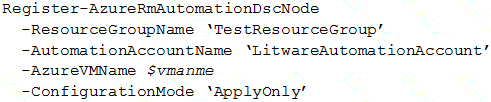

Change the ConfigurationMode parameter from ApplyOnly to ApplyAndAutocorrect.

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

Scenario: Current Technical Issue

The test servers are configured correctly when first deployed, but they experience configuration drift over time. Azure Automation State Configuration fails to correct the configurations.

Azure Automation State Configuration nodes are registered by using the following command.

The commit-msg hook is invoked by git-commit and git-merge, and can be bypassed with the --no-verify option.

Scenario:

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

Scenario: The Azure DevOps organization includes:

The Docker extension

A deployment pool named Pool7 that contains 10 Azure virtual machines that run Windows Server 2016

Scenario: Implement Project4 and configure the project to push Docker images to Azure Container Registry.

You use Azure Container Registry Tasks commands to quickly build, push, and run a Docker container image natively within Azure, showing how to offload your " inner-loop " development cycle to the cloud. ACR Tasks is a suite of features within Azure Container Registry to help you manage and modify container images across the container lifecycle.


Scenario:

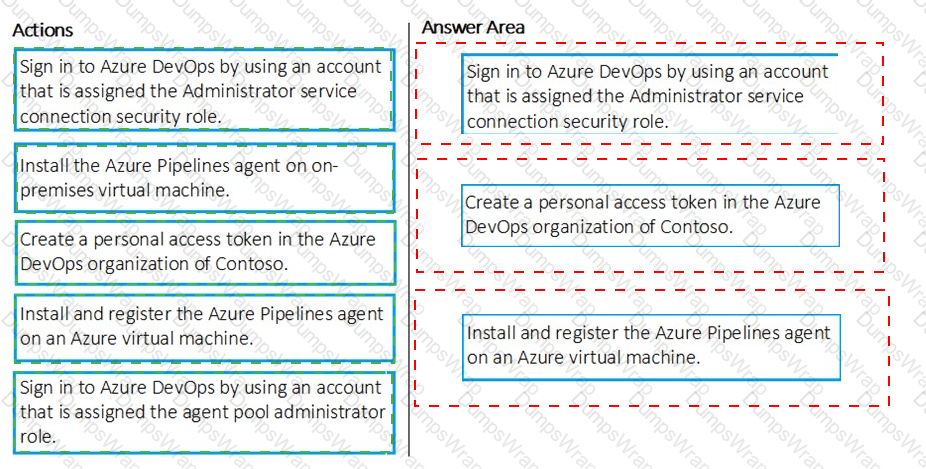

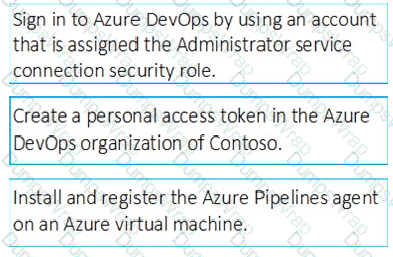

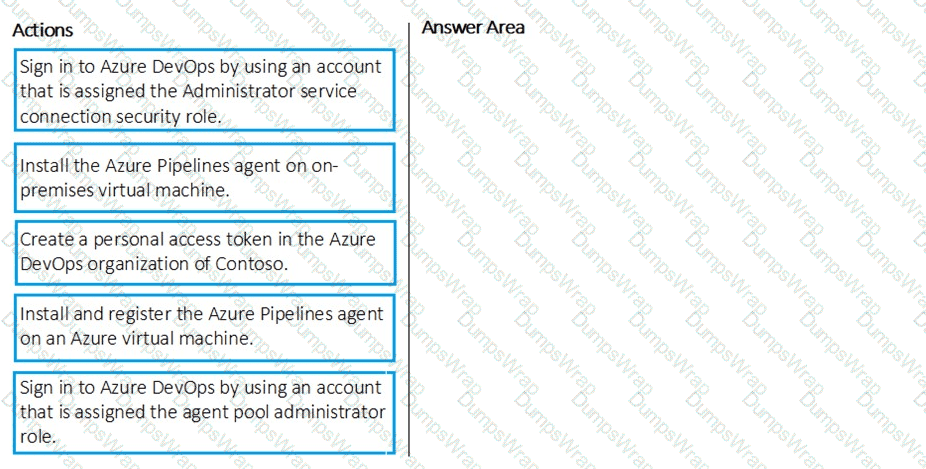

Step 1: Sign in to Azure Develops by using an account that is assigned the Administrator service connection security role.

Note: Under Agent Phase, click Deploy Service Fabric Application. Click Docker Settings and then click Configure Docker settings. In Registry Credentials Source, select Azure Resource Manager Service Connection. Then select your Azure subscription.

Step 2: Create a personal access token..

A personal access token or PAT is required so that a machine can join the pool created with the Agent Pools (read, manage) scope.

Step 3: Install and register the Azure Pipelines agent on an Azure virtual machine.

By running a Azure Pipeline agent in the cluster, we make it possible to test any service, regardless of type.

Scenario: Implement Project3, Project5, Project6, and Project7 based on the planned changes

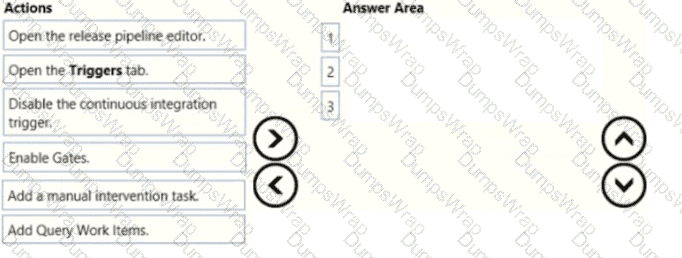

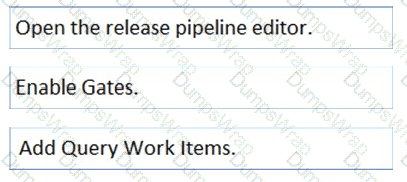

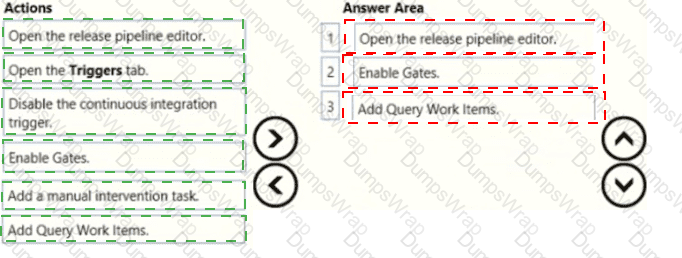

Step 1: Open the release pipeline editor.

In the Releases tab of Azure Pipelines, select your release pipeline and choose Edit to open the pipeline editor.

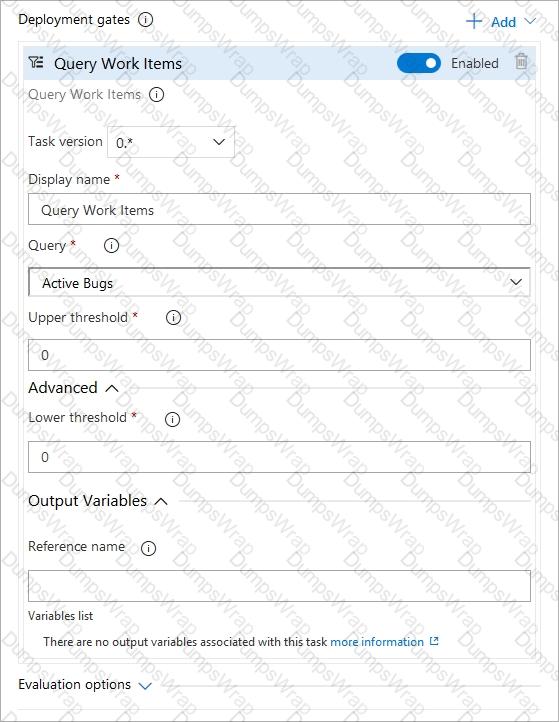

Step 2: Enable Gates.

Choose the pre-deployment conditions icon for the Production stage to open the conditions panel. Enable gates by using the switch control in the Gates section.

Step 3: Add Query Work items.

Choose + Add and select the Query Work Items gate.

Configure the gate by selecting an existing work item query.

Note: A case for release gate is:

Incident and issues management. Ensure the required status for work items, incidents, and issues. For example, ensure deployment occurs only if no priority zero bugs exist, and validation that there are no active incidents takes place after deployment.

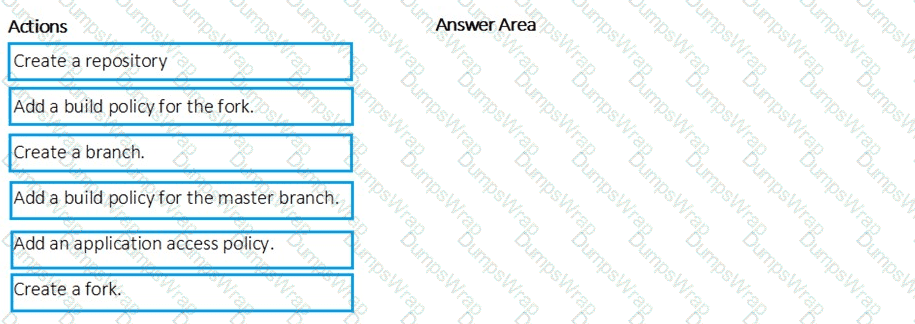

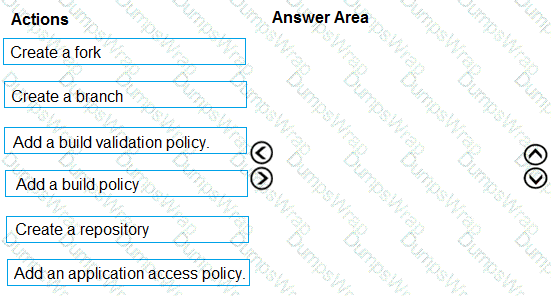

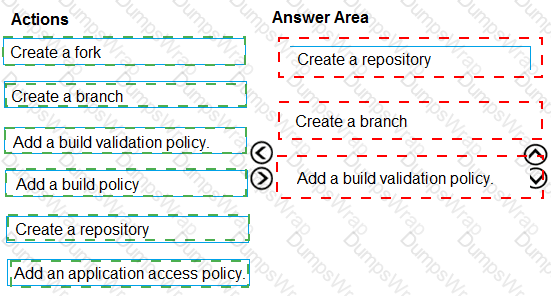

Step 1: Create a repository

A Git repository, or repo, is a folder that you ' ve told Git to help you track file changes in. You can have any number of repos on your computer, each stored in their own folder.

Step 2: Create a branch

Branch policies help teams protect their important branches of development. Policies enforce your team ' s code quality and change management standards.

Step 3: Add a build validation policy

When a build validation policy is enabled, a new build is queued when a new pull request is created or when changes are pushed to an existing pull request targeting this branch. The build policy then evaluates the results of the build to determine whether the pull request can be completed.

Scenario:

Implement a code flow strategy for Project2 that will:

Enable Team2 to submit pull requests for Project2.

Enable Team2 to work independently on changes to a copy of Project2.

Ensure that any intermediary changes performed by Team2 on a copy of Project2 will be subject to the same restrictions as the ones defined in the build policy of Project2.

The first thing to do is to declare your Sonar Qube server as a service endpoint in your VSTS/DevOps project settings.

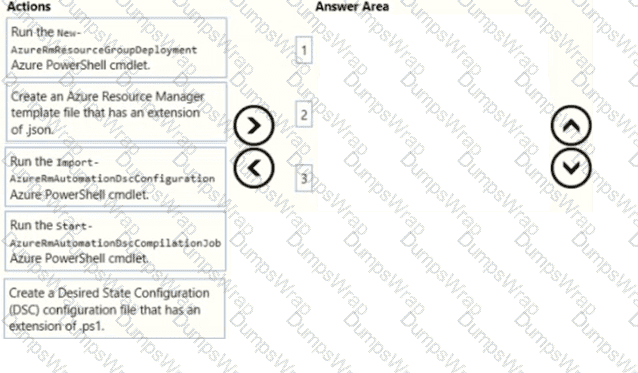

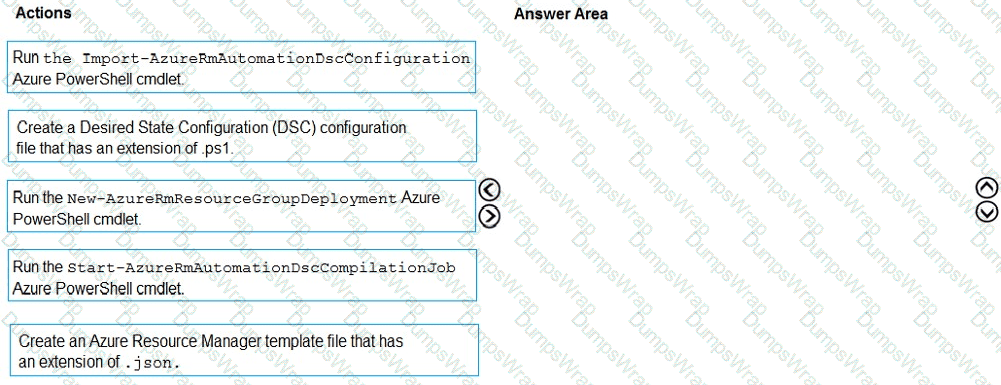

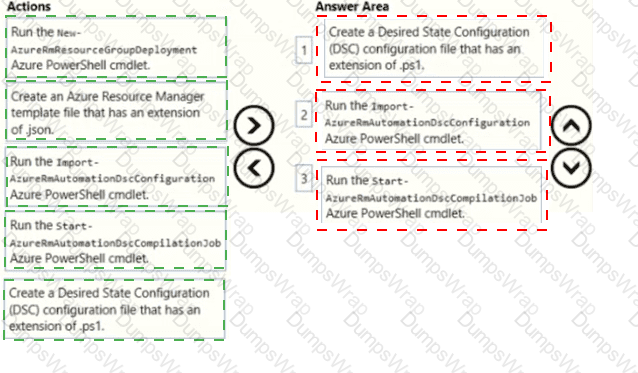

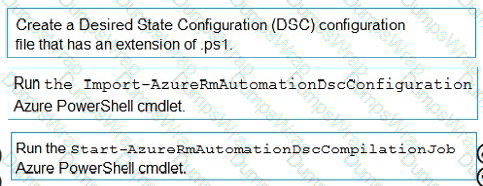

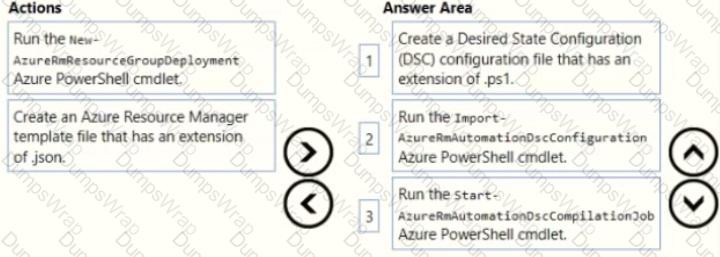

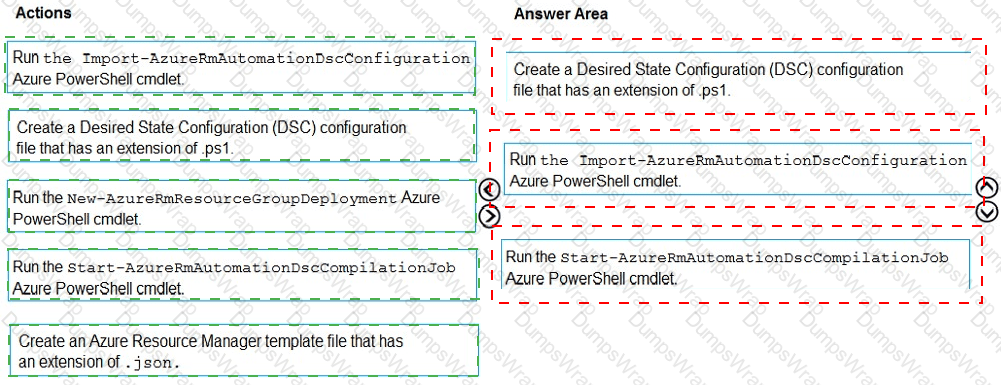

Step 1: Create a Desired State Configuration (DSC) configuration file that has an extension of .ps1.

Step 2: Run the Import-AzureRmAutomationDscConfiguration Azure Powershell cmdlet

The Import-AzureRmAutomationDscConfiguration cmdlet imports an APS Desired State Configuration (DSC) configuration into Azure Automation. Specify the path of an APS script that contains a single DSC configuration.

Example:

PS C:\ > Import-AzureRmAutomationDscConfiguration -AutomationAccountName " Contoso17 " -ResourceGroupName " ResourceGroup01 " -SourcePath " C:\DSC\client.ps1 " -Force

This command imports the DSC configuration in the file named client.ps1 into the Automation account named Contoso17. The command specifies the Force parameter. If there is an existing DSC configuration, this command replaces it.

Step 3: Run the Start-AzureRmAutomationDscCompilationJob Azure Powershell cmdlet

The Start-AzureRmAutomationDscCompilationJob cmdlet compiles an APS Desired State Configuration (DSC) configuration in Azure Automation.

When you connect to a Git repository from your Git client for the first time, the credential manager prompts for credentials. Provide your Microsoft account or Azure AD credentials.

Note: Git Credential Managers simplify authentication with your Azure Repos Git repositories. Credential managers let you use the same credentials that you use for the Azure DevOps Services web portal. Credential managers support multi-factor authentication through Microsoft account or Azure Active Directory (Azure AD). Besides supporting multi-factor authentication with Azure Repos, credential managers also support two-factor authentication with GitHub repositories.

SonarCloud is a cloud service offered by SonarSource and based on SonarQube. SonarQube is a widely

adopted open source platform to inspect continuously the quality of source code and detect bugs,

vulnerabilities and code smells in more than 20 different languages.

Note: The SonarCloud Azure DevOps extension brings everything you need to have your projects analyzed on SonarCloud very quickly.

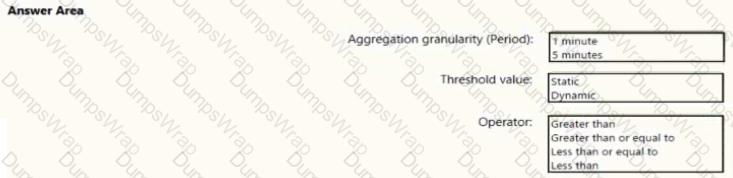

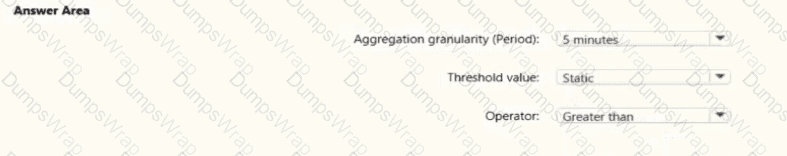

Box 1: 5 minutes

The alert must calculate the average once every minute.

Note: We [Microsoft] recommend choosing an Aggregation granularity (Period) that is larger than the Frequency of evaluation, to reduce the likelihood of missing the first evaluation of added time series

Box 2: Static

Box 3: Greater than

Example, say you have an App Service plan for your website. You want to monitor CPU usage on multiple instances running your web site/app. You can do that using a metric alert rule as follows:

Target resource: myAppServicePlan

Metric: Percentage CPU

Condition Type: Static

Dimensions

Instance = InstanceName1, InstanceName2

Time Aggregation: Average

Period: Over the last 5 mins

Frequency: 1 min

Operator: GreaterThan

Threshold: 70

Like before, this rule monitors if the average CPU usage for the last 5 minutes exceeds 70%.

Aggregation granularity

No fast-forward merge - This option merges the commit history of the source branch when the pull request closes and creates a merge commit in the target branch.

" To use secrets that are larger than 48 KB, you can use a workaround to store encrypted secrets in your repository and save the decryption passphrase as a secret on GitHub. " Because it requires less administrative privilege it ' s at repository level

" We strongly recommend that you include the version of the action you are using by specifying a Git ref, SHA, or Docker tag. If you don ' t specify a version, it could break your workflows or cause unexpected behavior when the action owner publishes an update. Using the commit SHA of a released action version is the safest for stability and security. If the action publishes major version tags, you should expect to receive critical fixes and security patches while still retaining compatibility. Note that this behavior is at the discretion of the action ' s author. Using the default branch of an action may be convenient, but if someone releases a new major version with a breaking change, your workflow could break. "

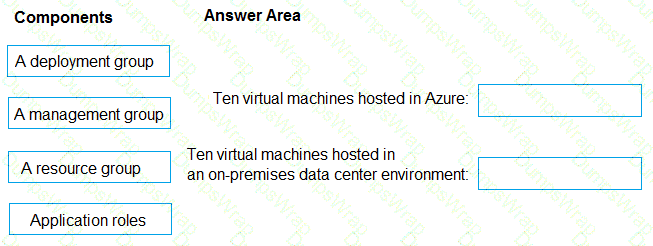

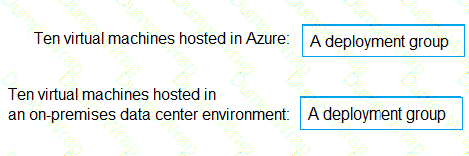

Box 1: A deployment group

When authoring an Azure Pipelines or TFS Release pipeline, you can specify the deployment targets for a job using a deployment group.

If the target machines are Azure VMs, you can quickly and easily prepare them by installing the Azure Pipelines Agent Azure VM extension on each of the VMs, or by using the Azure Resource Group Deployment task in your release pipeline to create a deployment group dynamically.

Box 2: A deployment group

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create the storage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

1. Sign in to the Azure portal, and then select the virtual machine VM1.

2. In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

3. In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

4. Save the change.

You must restart the virtual machine for the change to take effect.

GitHub App uses the Azure Pipelines identity.

A picture containing text Description automatically generated

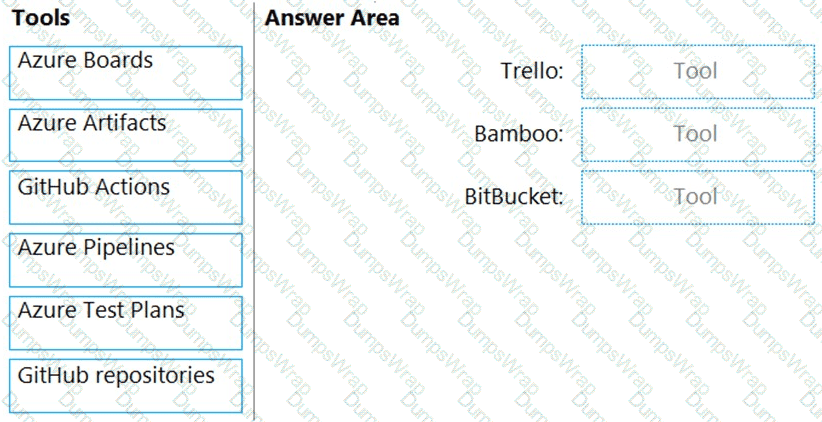

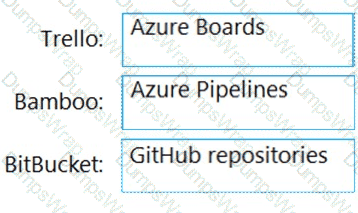

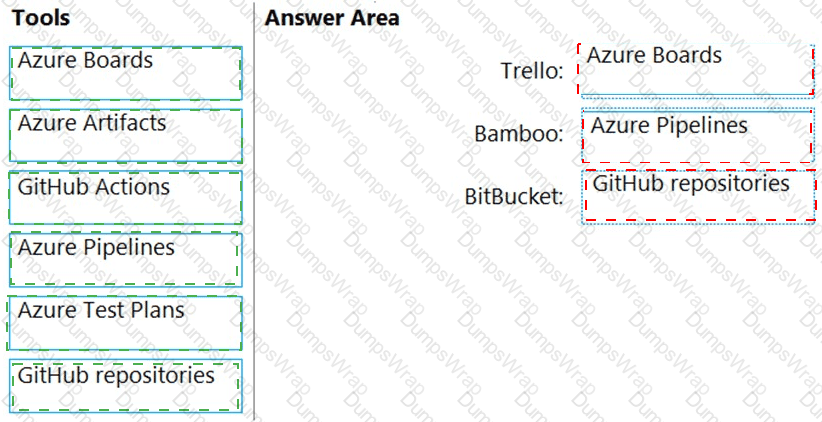

Box 1: Azure Boards

Azure Boards can be used to track work with Kanban boards, backlogs, team dashboards, and custom reporting

You can create multiple Trello boards, which are spaces to store tasks (for different work contexts, or even private boards)

You can easily share Trello boards with another person.

Box 2: Azure Pipelines

You can use Bamboo to implement CI/CD (Continuous Integration and Continuous Delivery) for a simple Azure function app using Atlassian Bamboo. Bamboo does continuous delivery of the project from source code to deployment. It has stages including Build, Test and Deploy.

Software teams in every industry are upgrading their continuous delivery pipeline with Bamboo. Easy build import from popular open source tools, user and group import from JIRA, seamless integration with Bitbucket, and native support for Git, Hg, and SVN means you ' ll be building and deploying like a champ.

Box 3: GitHub repositories

Bitbucket can be used as the Git repository, but you can use any other Git repository (Like TFS Git) for source control of the code.

Woodgrove Bank plans to implement the following changes to the DevOps environment:

Migrate all the source code from TFS1 to GitHub.

The Git-TFS tool is a two-way bridge between Team Foundation Version Control and Git, and can be used to perform a migration.

Graphical user interface, text, application Description automatically generated

Woodgrove Bank identifies the following technical requirements:

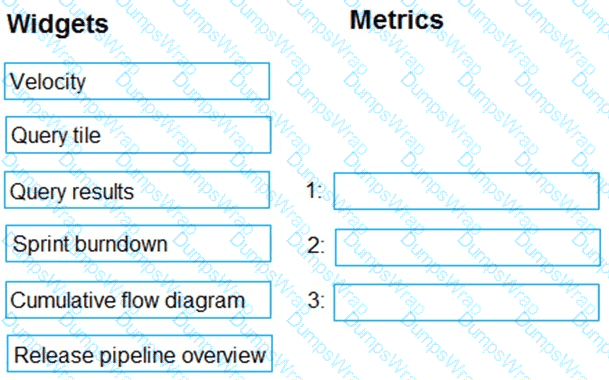

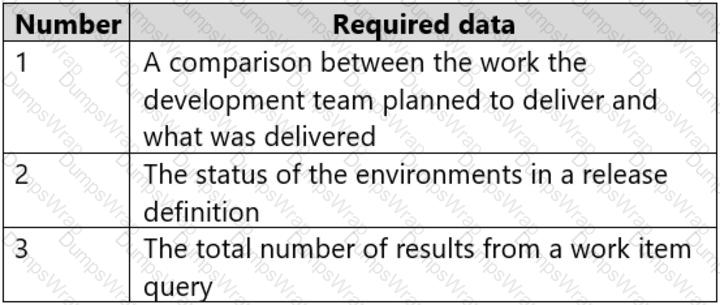

The Azure DevOps dashboard must display the metrics shown in the following table:

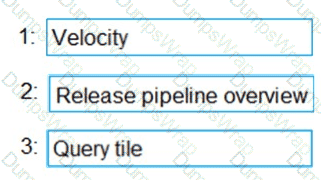

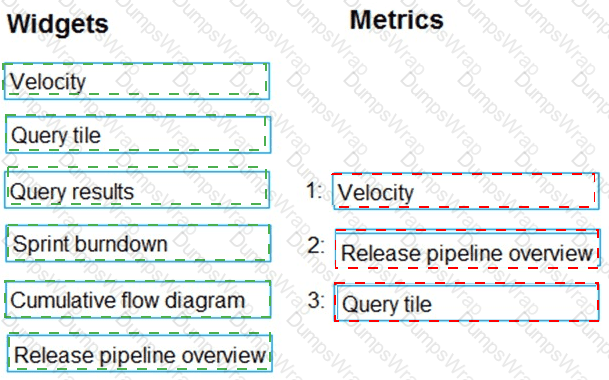

Box 1: Velocity

Velocity displays your team velocity. It shows what your team delivered as compared to plan.

Box 2: Release pipeline overview

Release pipeline overview shows the status of environments in a release definition.

Box 3: Query tile

Query tile displays the total number of results from a query.

Graphical user interface, text, application Description automatically generated

Setting 1: Threshold value

Set to 80 %

Scenario: An Azure Monitor alert for VM1 must be configured to meet the following requirements:

Be triggered when average CPU usage exceeds 80 percent for 15 minutes.

Calculate CPU usage averages once every minute.

Setting 2: Aggregation granularity

Set to 15 minutes.

Scenario: Access to Azure DevOps must be restricted to specific IP addresses.

Azure DevOps is authenticated through Azure Active Directory. You can use Azure AD ' s conditional access to prevent logins from certain geographies and address ranges.

Scenario: Deploy App2 to an Azure virtual machine named VM1.

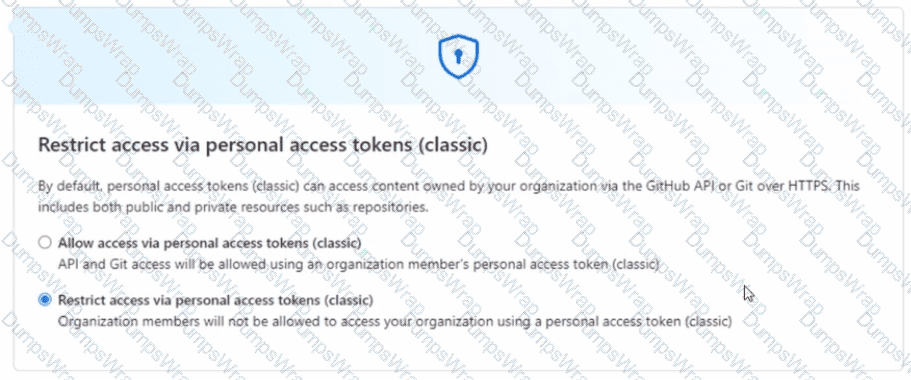

A personal access token (PAT) is used as an alternate password to authenticate into Azure DevOps.

Graphical user interface, text, application Description automatically generated

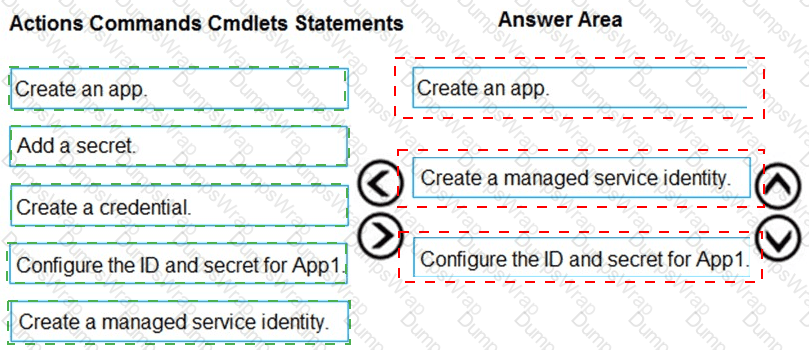

Woodgrove Bank plans to implement the following changes to the identity environment:

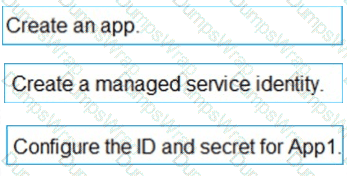

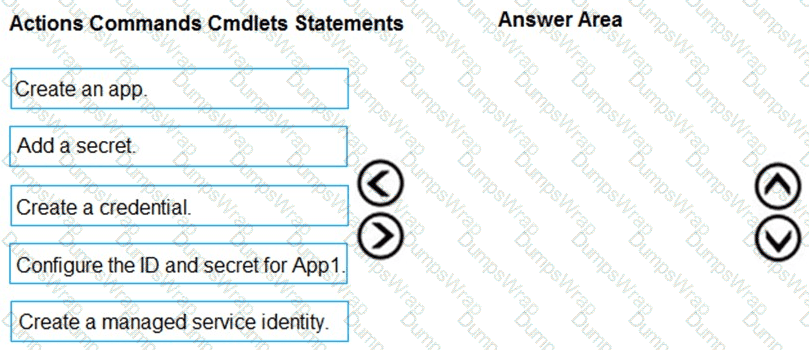

Configure App1 to use a service principal.
