In the Administering Windows Server Hybrid Core Infrastructure materials under Hyper-V management, Microsoft specifies that Enhanced Sess ion Mode changes VMConnect from a raw console attach to a connection that uses Remote Desktop Protocol (RDP) to the guest. The guide states that Enhanced Session Mode “ uses RDP to establish the VMConnect session so the user must supply credentials for a lo gon to the guest operating system ,” and further that it “ prevents a second administrator from inheriting an already signed-in console session ” because the connection is treated as a new interactive sign-in. In contrast, the default basic console session “ attaches directly to the active console without prompting for credentials ,” which is exactly the current problem described for VM2.

The same objective area clarifies that other options do not meet the requirement: Guest Services integration only enables fi le copy and certain host-guest interactions; Credential Guard protects secrets inside Windows by isolating LSASS but does not affect Hyper-V console connection behavior ; Shielded VMs provide fabric-level protections and encryption but are not required mere ly to force credential prompts for VMConnect.

Therefore, to force users to provide credentials when they connect to VM2 and to eliminate inherited console sessions, you should enable Enhanced Session Mode on the Hyper-V host (and ensure the guest supports RDP).

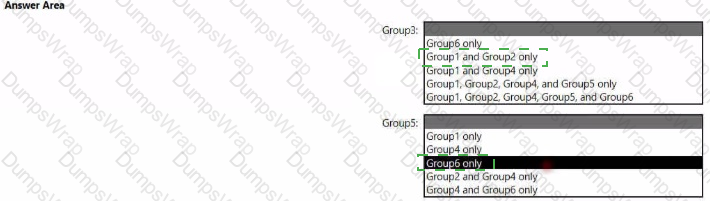

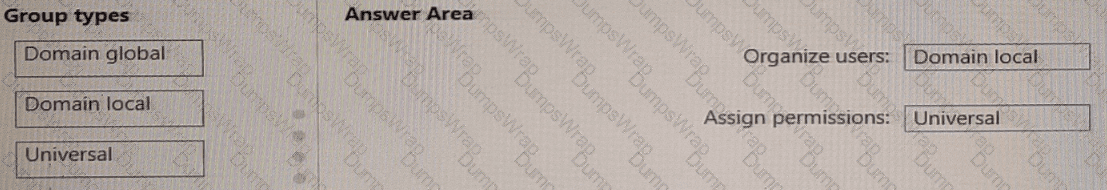

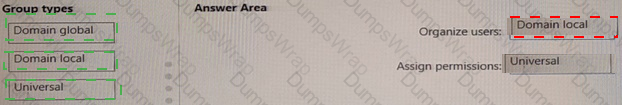

In Windows Server AD DS, group scope determines which groups/accounts can be members. The AZ-800 study materials summarize: “Domain Local groups can include accounts, Global groups, and Universal groups from any domain and Domain Local groups from the same domain only. Global groups can include accounts and other Global groups from the same domain only. Universal groups can include *accounts, Global groups, and Universal groups from any domain.” In addition, distribution vs. security does not change the scope membership rules; it only affects whether the group can be assigned permis sions.

Applying the rules: Group3 is a Domain Local security group in contoso.com . Therefore it can contain Universal (Group1), Global from any domain (Group2 in contoso.com and Group4/Group5 in canada.contoso.com), but cannot contain a Domain Local from a nother domain (Group6 in canada.contoso.com). Hence: Group1, Group2, Group4, and Group5 only .

Group5 is a Global distribution group in canada.contoso.com . A Global group can only contain accounts or Global groups from the same domain . From the list, only G roup4 (Global distribution, canada.contoso.com) fits. It cannot contain Group1 (Universal), Group2 (Global but different domain), or Group6 (Domain Local). Therefore: Group4 only .

The AZ-800 content covering Active Directory Sites and Services clarifies that site, subnet, and site-link objects live in the Configuration partition. The guides emphasize that administration of the Configuration naming context is restricted to Enterprise Admins and to Domain Admins of the forest-root domain. In the context of changing replication topology parameters—such as editing the replication schedule on site links—the documentation notes: “Only Enterprise Admins or administrators in the forest-root Domain Admins group have default permissions to modify site and site-link objects,” because these objects affect replication forest-wide.

Applying this to the scenario:

Contoso\Admin1 (Enterprise Admins) has forest-wide rights to modify site links.

Contoso\Admin2 (Domain Admins in contoso.com, the forest-root domain) also has the required rights to change site-link schedules.

Canada\Admin3 (Domain Admins in canada.contoso.com) does not have default permissions in the Configuration partition for forest-wide site-link administration.

Thus, to meet the technical requirement to change all site links to a 30-minute schedule, the users who can perform the task are Admin1 and Admin2.

n the Administering Windows Server Hybrid Core Infrastructure guidance for managing AD DS, Microsoft emphasizes using OU-level delegation to satisfy administrative needs while adhering to the principle of least privilege. The documentation explains that the Delegate Control wizard on an OU lets you grant a user or group only the specific permissions required for common tasks, including “Modify the membership of a group”. This grants the write permission to the member attribute on group objects contained in that OU, without giving broader account-management rights across the domain.

By contrast, placing a user in Account Operators or Server Operators provides elevated, domain-wide capabilities far beyond what is required. Account Operators can create, delete, and modify many account types across the domain (except for protected admin accounts), which violates least-privilege for a task that only needs to change group membership in one OU. Server Operators is unrelated to group membership and is intended for server administration tasks. Creating a delegation at the domain root would similarly be excessive because it applies broadly to all containers and OUs.

Therefore, to meet the requirement “Ensure that User1 can manage the membership of all the groups in Contoso\OU3,” you should delegate control on OU3 and assign the built-in task “Modify the membership of a group” to User1, achieving the minimal permissions necessary.

In the AZ-800 “Administering Windows Server Hybrid Core Infrastructure” objectives for Active Directory, server promotion is governed by forest/domain administrative roles. The materials state that promoting a member server to a domain controller in a given domain requires membership in either the Enterprise Admins group or the Domain Admins group of the target domain. The Configuration and Domain naming contexts that DCPromo touches (NTDS settings, SYSVOL/DFS-R readiness, DC computer account, and associated service SPNs) are protected so that “Enterprise Admins have full rights forest-wide, and Domain Admins have full rights within their respective domain.”

In this case, the requirement is to promote Server1 to a domain controller in canada.contoso.com. From the identities table:

Contoso\Admin1 is a member of Enterprise Admins (forest-wide authority).

Canada\Admin3 is a member of Canada\Domain Admins (authority within canada.contoso.com).

Contoso\Admin2 is Domain Admins (contoso.com) only, which does not grant administrative authority in the canada.contoso.com child domain.

Therefore, the users who can currently perform the required task for Server1 are Admin1 and Admin3.

In the Administering Windows Server Hybrid Core Infrastructure objectives for managing Hyper-V, enabling nested virtualization is the required step when you must “run virtual machines inside a virtual machine.” The referenced guidance states that Hyper-V on a VM is supported only when the host exposes hardware virtualization features to the guest. The prescriptive step is: “Turn off the VM and run Set-VMProcessor -VMName < V MName > -ExposeVirtualizationExtensions $true to enable nested virtualization.” The module further notes that this action “passes through Intel VT-x/AMD-V to the guest so the guest OS can install the Hyper-V role and create VMs.” It also clarifies that “the setting is applied on the parent host for the target VM and requires the VM to be powered off before the change is committed.”

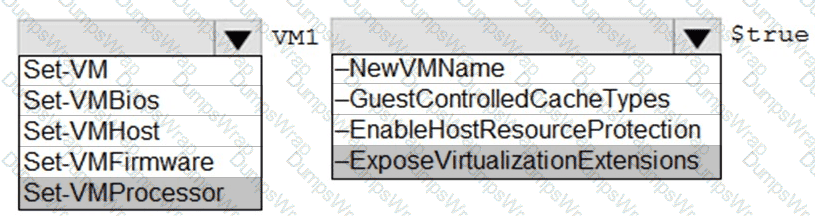

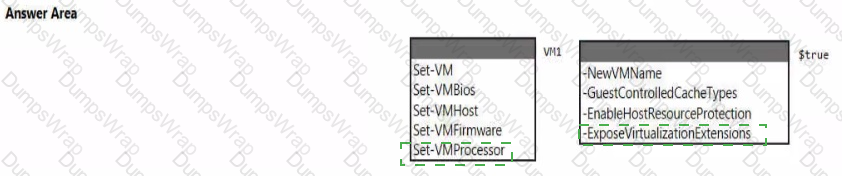

Because the technical requirement says “Ensure that you can run virtual machines on VM1”, VM1 must be able to host Hyper-V while itself running as a VM on Server2. The first and essential cmdlet is therefore Set-VMProcessor with the -ExposeVirtualizationExtensions switch set to $true against VM1. Other optional settings (for example, MAC spoofing on the vNIC or static memory) may be configured later if needed, but exposing virtualization extensions is the enabling prerequisite that satisfies the requirement.

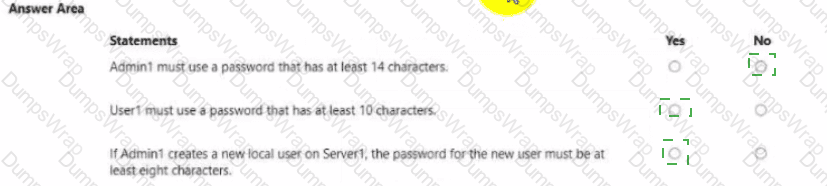

No

Yes

Yes

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that the domain password policy for domain user accounts is determined by the GPO that wins at the domain root (commonly the Default Domain Policy ). GPOs linked to OUs do not change the domain password policy for user accounts in those OUs; they only affect local accounts on computers within those OUs unless Fine-Grained Password Policies (PSOs) are used and scoped to users/groups. The case shows Default Domain Policy in contoso.com sets Minimum password length = 10 . Therefore, both Admin1 (a domain user in Contoso\OU1) and User1 (in Contoso\OU3) fall under the 10-character minimum; the OU-linked GPO1 (14) does not override the domain password policy for their domain accounts → Admin1: No , User1: Yes .

For member servers and local accounts , the documentation explains that password policy settings in a GP O linked to the OU containing the computer apply to that computer’s local Security Accounts Manager (SAM) . In the scenario, Server1 resides in Member Servers and GPO2 linked to Member Servers specifies Minimum password length = 8 . Thus, when Admin1 creates a local account on Server1 , the enforced minimum is 8 characters → Yes . This approach follows least privilege and standard precedence: domain-level for domain accounts, OU-linked GPOs for local accounts, unless PSOs are explicitly defined.

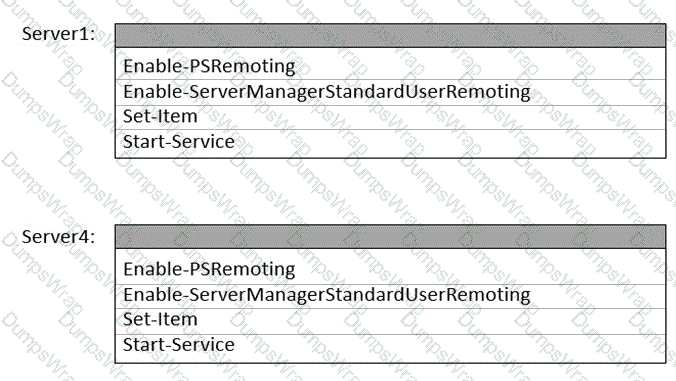

Server1 - Set-Item

Server4 - Enable-PSRemoting

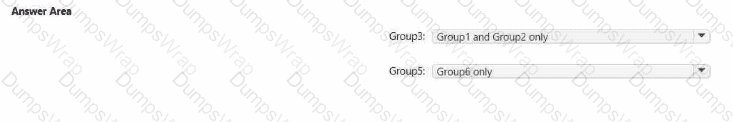

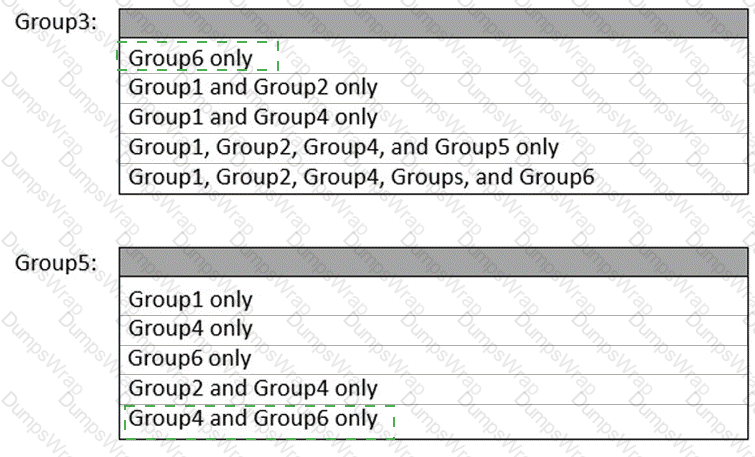

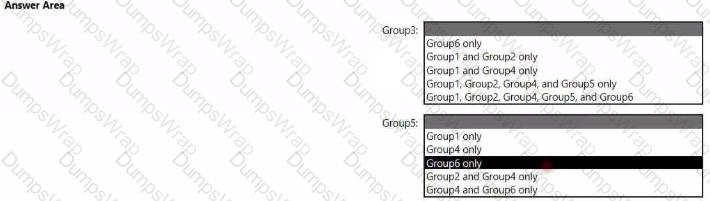

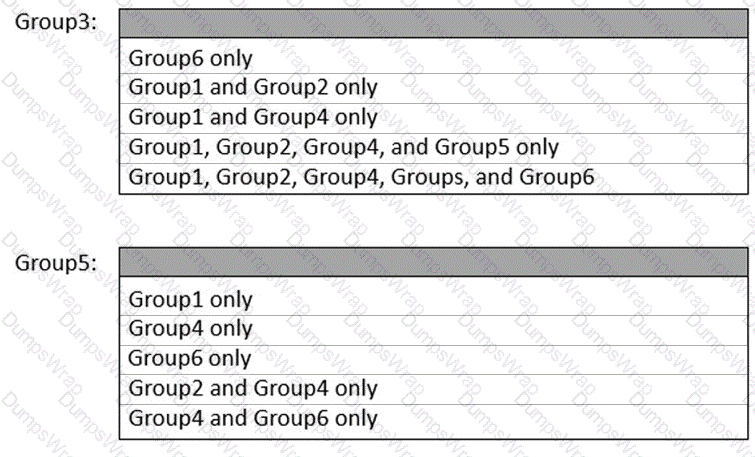

In the Windows Server Hybrid Core Infrastructure objectives for Active Directory group design, group scope and type determine valid membership and usage. The study guidance for group scopes states that a Domain Local group is used to assign permissions in its own domain and “can contain accounts, computer objects, global groups from any domain, and universal groups; it can also contain other domain local groups from the same domain only.” Security-type restrictions also apply: “Security groups can contain only security principals; distribution groups cannot be nested into security groups for access control.”

Applying these rules to Group3 (contoso.com Domain Local Security): it can accept security groups of compatible scopes. From the lists, Group1 (contoso.com Universal Security) and Group2 (contoso.com Global Security) are valid. Distribution groups (Group4, Group5, Group6) are not valid members of a security group used for authorization. Therefore, Group3 ⇒ Group1 and Group2 only.

For Group5 (canada.contoso.com Global Distribution), the scope rule for Global groups is: “Global groups can include user accounts and other global groups from the same domain only; they cannot include universal or domain local groups.” Hence, the only eligible group from the same domain and scope is Group4 (canada.contoso.com Global Distribution). Group6 is domain local (invalid), and cross-domain globals (Group2) are not permitted. Therefore, Group5 ⇒ Group4 only.

In the Windows Server exam materials for Administering Windows Server Hybrid Core Infrastructure (AZ-800) , Microsoft documents that Data Deduplication is supported only on data volumes and specifically on NTFS-formatted volumes , and it cannot be enabled on the system or boot volume . The study text states: “Data Deduplication is applied at the volume level and supports NTFS data volumes. You cannot enable deduplication on the system or boot volume.” It further clarifies unsupported targets: “ReFS volumes and FAT/exFAT volumes are not supported for Data Deduplication in general-purpose server scenarios,” and emphasizes that deduplication is “not available for the operating s ystem volume.”

Applying these rules to VM3:

C: NTFS but it is the OS/system volume → not eligible .

D: NTFS data volume → eligible .

E: ReFS → not supported for general-purpose dedup in this context.

F: exFAT → not supported .

Therefore, the only volume on which you can enable Data Deduplication to meet the requirement is volume D .

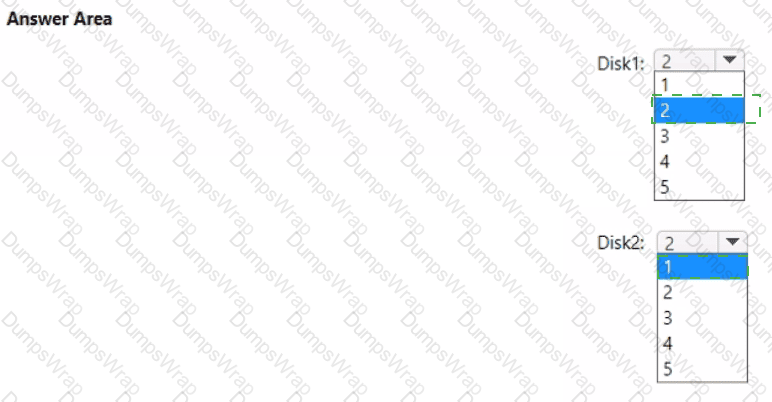

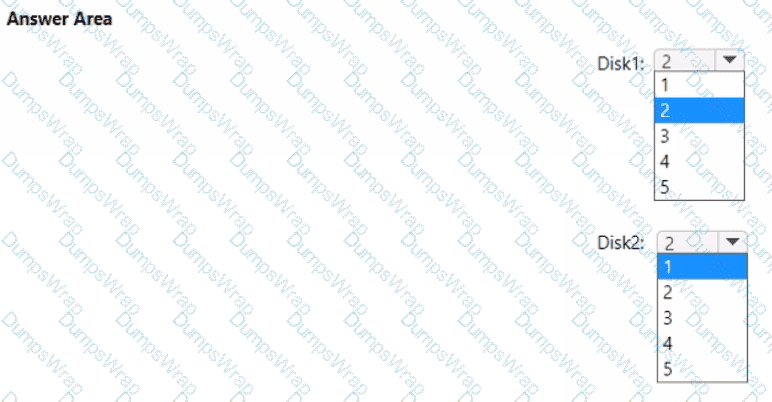

Disk1 (three-way mirror): 2 disks; Disk2 (parity): 1 disk

\In the Administering Windows Server Hybrid Core Infrastructure materials on Storage Spaces resiliency, Microsoft describes how each resiliency type determines simultaneous disk-failure tolerance. The guide explains that mirror spaces keep multiple copies of data: “Two-way mirror writes two copies and can sustain a single disk failure; three-way mirror writes three copies and can sustain the loss of any two disks without data loss.” It also differentiates parity spaces , which stripe data with parity information: “Parity provides capacity efficiency comparable to RAID-5 and tolerates a single disk failure (use dual parity to withstand two failures).”

Applying these to SSPace1:

Disk1 uses a three-way mirror across eight physical disks. By definition, a three-way mirror survives two concurrent disk failures and remains online, satisfying the “always available” requirement.

Disk2 is configured as parity across twelve ph ysical disks. Standard parity (single parity) is equivalent to RAID-5 and survives one disk failure ; only dual parity would allow two, but the configuration provided specifies parity (not dual parity).

Therefore, the maximum simultaneous physical disk fail ures while maintaining availability are 2 for Disk1 and 1 for Disk2 .

The AZ-800 materials explain that enabling Microsoft Entra (Azure AD) sign-in to Windows Server running as an Azure VM is done by deploying the Azure AD Login for Windows VM extension. The study guide states that “for Azure VMs, Microsoft Entra sign-in is enabled by installing the AADLoginForWindows extension; once installed, Entra users and groups granted ‘Virtual Machine User/Login’ roles can sign in using Entra credentials.” The required operation is performed from Azure PowerShell with Set-AzVMExtension , providing the publisher Mic rosoft.Azure.ActiveDirectory , type AADLoginForWindows , and the target VM. Other options are not applicable: Set-AzVM changes VM properties but does not install extensions; New-ADComputer and Add-ADComputerServiceAccount are AD DS cmdlets unrelated to enabling Entra login on an Azure VM. Therefore, to meet the plan “Enable Microsoft Entra users to sign in to Server1,” you must run Set-AzVMExtension to install the AAD Login extension on Server1.

Comprehensive and Detailed Explanation with all Administering Windows Server Hybrid Core Infrastructure documents: =

In the Administering Windows Server Hybrid Core Infrastructure study materials, Automanage for Azure VMs is described as a service that “onboards supported Azure virtual machines into a curated set of best-practice services automatically.” The guide notes that Automanage supports Azure IaaS VMs running Windows Server (2012 R2 and later) and common Linux distributions (for example Ubuntu/RHEL), while unsupported operating systems such as Windows client SKUs or older Windows Server releases are excluded. The same content emphasizes that Automanage targets “only supported Azure VMs” and does not extend to machines that don’t meet OS prerequisites.

Given the scenario, Server1 (supported Linux server) and Server2 (supported Windows Server) meet Automanage prerequisites, whereas the remaining Azure VMs are not in the supported matrix (client OS or an older/unsupported server release). Therefore, enabling Automanage on Server1 and Server2 only satisfies the technical requirement to “use Azure Automanage on all supported Azure virtual machines.”

According to the Administering Windows Server Hybrid Core Infrastructure (AZ-800) exam study materials, Azure DNS Private Resolver allows bidirectional name resolution between on-premises environments and Azure private DNS zones. The Private DNS Resolver consists of inbound endpoints (to resolve queries from on-premises to Azure) and outbound endpoints (to resolve queries from Azure to on-pr emises DNS servers). For name resolution to work, private DNS zones must be linked to the virtual network associated with the resolver’s hub network.

In this scenario, the planned configuration specifies:

A Private DNS Resolver named Private1 created in th e West US region and linked to VNet1 .

An inbound endpoint in SubnetB .

The requirement is to identify which private DNS zones will be available for name resolution through this resolver.

From the details given, only Zone1.com and Zone2.com are linked to VNe t1 , allowing them to participate in name resolution using the resolver. Zone3.com is not linked to VNet1 (either un linked or linked to another virtual network), and therefore it cannot be resolved through the DNS Resolver in VNet1.

As emphasized in Microso ft’s hybrid infrastructure documentation:

“Private DNS zones must be linked to the same virtual network that contains the Private DNS Resolver or to peered virtual networks for name resolution to succeed.”

Hence, only Zone1.com and Zone2.com are available for name resolution through the Private DNS Resolver.

✅ Correct Answer: C. Zone1.com and Zone2.com only

One possible solution to prevent domain users from saving executable files in a share named \SRVl\Data is to use file screening on the file server. File screening allows you to block certain files from being saved based on their file name extension. Here are the steps to configure file screening:

On the file server, open File Server Resource Manager from the Administrative Tools menu.

In the left pane, expand File Screening Management and click on File Groups.

Righ t-click on File Groups and select Create File Group.

In the File Group Properties dialog box, enter a name for the file group, such as Executable Files.

In the Files to include box, enter the file name extensions that you want to block, such as .exe, .bat, .cmd, .com, .msi, .scr. You can use wildcards to specify multiple extensions, such as *.exe.

Click OK to create the file group.

In the left pane, click on File Screen Templates.

Right-click on File Screen Templates and select Create File Screen Template.

In the File Screen Template Properties dialog box, enter a name for the template, such as Block Executable Files.

On the Settings tab, select the option Active screening: Do not allow users to save unauthorized files.

On the File Groups tab, check the box next to the file group that you created, such as Executable Files.

On the Notification tab, you can configure how to notify users and administrators when a file screening event occurs, such as sending an email, logging an event, or running a command or scr ipt. You can also customize the message that users see when they try to save a blocked file.

Click OK to create the file screen template.

In the left pane, click on File Screens.

Right-click on File Screens and select Create File Screen.

In the Create File Screen dialog box, enter the path of the folder that you want to apply the file screening to, such as \SRVl\Data.

Select the option Derive properties from this file screen template (recommended) and choose the template that you created, such as Block Exec utable Files.

Click Create to create the file screen.

Now, domain users will not be able to save executable files in the share named \SRVl\Data. They will be able to save other files to the share.

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration To ols (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, w hich is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs usi ng the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

One possible solution to monitor the security configuration of DC1 by using Microsoft Defender for Cloud is to use the Guest Configuration feature. Guest Configuration i s a service that audits settings inside Linux and Windows virtual machines (VMs) to assess their compliance with your organization’s security policies. You can use Guest Configuration to monitor the security baseline settings for Windows Server in the Micr osoft Defender for Cloud portal by following these steps:

On DC1, open a web browser and go to the folder named \dc1.contoso.com\install. Download the Guest Configuration extension file (GuestConfiguration.msi) and save it to a local folder, such as C:\Tem p.

Run the Guest Configuration extension file and follow the installation wizard. You can choose to install the extension for all users or only for the current user. For more information on how to install the Guest Configuration extension, see Install the Guest Configuration extension.

After the installation is complete, sign in to the Microsoft Defender for Cloud portal (2).

In the left pane, select Security Center and then Recommendations.

In the recommendations list, find and select Vulnerabilities in se curity configuration on your Windows machines should be remediated (powered by Guest Configuration).

In the Remediate Security Configurations page, you can see the compliance status of your Windows VMs, including DC1, based on the Azure Compute Benchmark. The Azure Compute Benchmark is a set of rules that define the desired configuration state of your VMs. You can also see the number of failed, passed, and skipped rules for each VM. For more information on the Azure Compute Benchmark, see Microsoft cloud se curity benchmark: Azure compute benchmark is now available.

To view the details of the security configuration of DC1, click on the VM name and then select View details. You can see the list of rules that apply to DC1 and their compliance status. You can al so see the severity, description, and remediation steps for each rule. For example, you can see if DC1 has the latest security updates installed, if the firewall is enabled, if the password policy is enforced, and so on.

To monitor the security configurati on of DC1 over time, you can use the Compliance over time chart, which shows the trend of compliance status for DC1 in the past 30 days. You can also use the Compliance breakdown chart, which shows the distribution of compliance status for DC1 by rule seve rity.

By using Guest Configuration, you can monitor the security configuration of DC1 by using Microsoft Defender for Cloud and ensure that it meets your organization’s security standards. You can also use Guest Configuration to monitor the security config uration of other Windows and Linux VMs in your Azure environment.

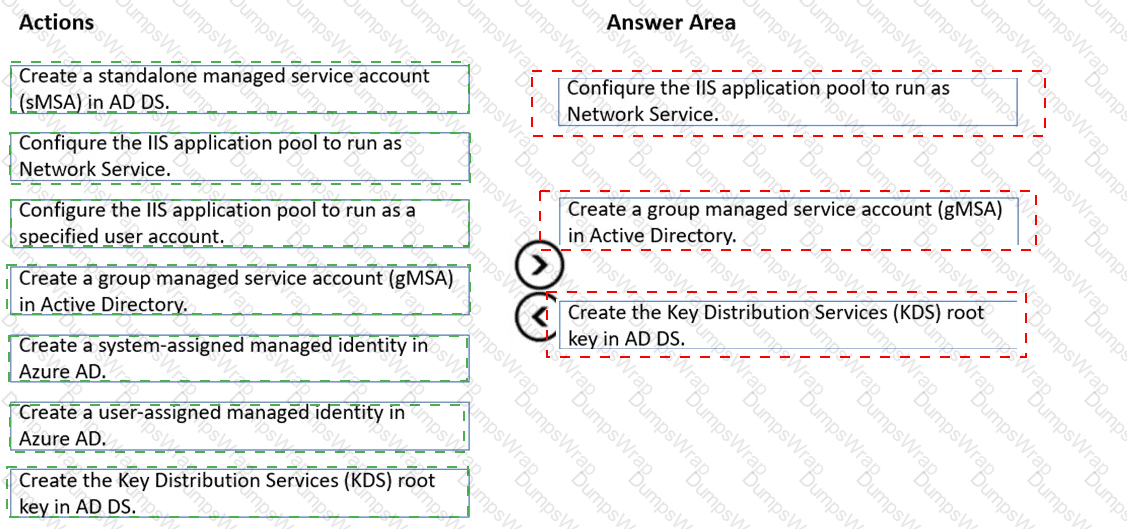

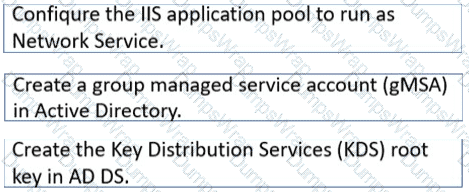

To create a group-managed service account (gMSA) named gMSA1 and make it available on SRV1, you can follo w these steps:

Step 1: Create the Key Distribution Services Root Key First, you need to create the KDS Root Key, which is required for the gMSA to function. You can do this with the following PowerShell command:

Add-KdsRootKey –EffectiveTime ((get-date).ad dhours(-10))

Note: The -EffectiveTime parameter is set to 10 hours in the past to ensure immediate effect.

Step 2: Create the gMSA Next, use the New-ADServiceAccount cmdlet to create the gMSA:

New-ADServiceAccount -Name gMSA1 -DNSHostName gmsa1.domain.com -PrincipalsAllowedToRetrieveManagedPassword SRV1$

Replace domain.com with your actual domain name.

Step 3: Install the gMSA on SRV1 Now, you need to install the gMSA on the server SRV1. Run the following command on SRV1:

Install-ADServiceAccount -Identity gMSA1

Step 4: Test the gMSA To ensure that the gMSA is installed correctly and ready for use, perform a test using:

Test-ADServiceAccount -Identity gMSA1

If the test returns True, the gMSA is correctly installed and ready for use on SRV1.

Step 5: Configure the Service to Use the gMSA Finally, configure the service that requires the gMSA to use gMSA1 by setting the service’s logon account to domain\gMSA1$ and leave the password field blank.

This will create and make the gMSA gMSA1 available on SRV1. Ensure t hat you have the necessary permissions and that SRV1 is properly joined to the domain before proceeding with these steps123.

To map \\dd.contoso.com\instal1 as drive H for all users using Group Policy Preferences and ensure that the new drive mapping takes precedence over any existing mappings, follow these steps:

Step 1: Open Group Policy Management Console Open the Group Policy Management Console (GPMC) on a machine that has administrative privileges over the domain.

Step 2: Create or E dit a GPO Create a new Group Policy Object (GPO) or edit an existing one that applies to the users who need the drive mapping.

Step 3: Navigate to Drive Mappings In the GPO Editor, navigate to:

User Configuration - > Preferences - > Windows Settings - > Drive Maps

Step 4: New Drive Mapping Right-click on Drive Maps and select New - >  Mapped Drive.

Step 5: Configure Drive Mapping In the New Drive Properties window, configure the following settings:

Action: Select Replace. This action will overwrite any existing mappings with the same drive letter.

Location: Enter the UNC path \\dd.contoso.com\instal1.

Drive Letter: Choose H: from the drop-down menu.

Reconnect: Check this option if you want the drive mapping to persist across logon sessions.

Label As: Optionally, provide a label for the drive mapping.

Hide/Show this drive: Set according to your preference.

Hide/Show all drives: Set according to your preference.

Step 6: Common Tab Go to the Common tab and configure the following:

Run in logged-on user’s security con text (user policy option): Check this option.

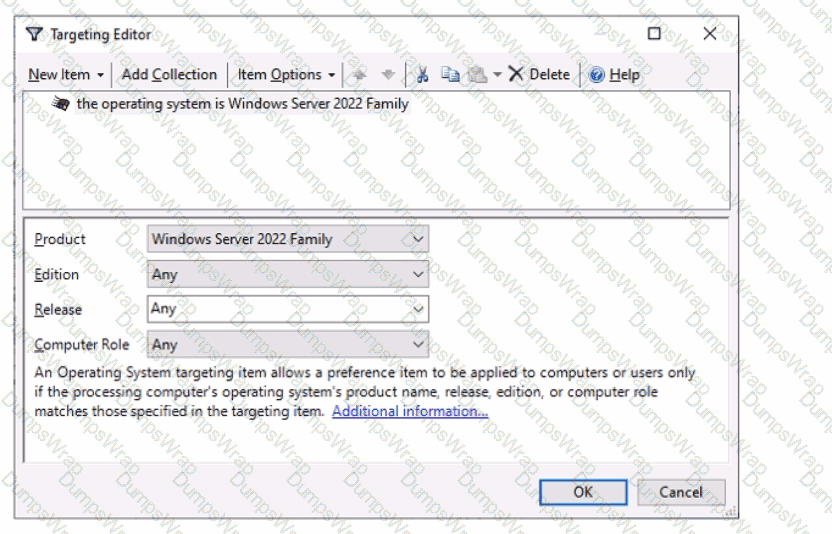

Item-level targeting: Click on Targeting and set up any specific criteria if needed.

Step 7: Apply the GPO Click Apply and then OK to save the drive mapping configuration.

Step 8: Link the GPO Link the GPO to a n Organizational Unit (OU) or domain that contains the users who should receive the drive mapping.

Step 9: Update Group Policy Instruct users to log off and log back on, or use the gpupdate /force command to refresh Group Policy on their computers.

To manage SRV1 remotely using PowerShell, you’ll need to set up PowerShell Remoting. Here’s a step-by-step guide:

Step 1: Enable PowerShell Remoting on SRV1 On SRV1, run the following command to enable PowerShell Re moting:

Enable-PSRemoting -Force

This command configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology.

Step 2: Configure the TrustedHosts List (If Needed) If you’re managing SRV1 from a computer tha t is not part of the same domain, you’ll need to add the managing computer’s name to the TrustedHosts list on SRV1:

Set-Item wsman:\localhost\Client\TrustedHosts -Value " ManagingComputerName " -Concatenate -Force

Replace “ManagingComputerName” with the name of your managing computer.

Step 3: Start a Remote Session From your managing computer, start a remote session with SRV1 using the Enter-PSSession cmdlet:

Enter-PSSession -ComputerName SRV1 -Credential (Get-Credential)

This command prompts you for credenti als and then starts a remote session with SRV1.

Step 4: Run Remote Commands Once the remote session is established, you can run any PowerShell command as if you were directly on SRV1. For example:

Get-Service

This command gets the status of services on SRV1.

Step 5: Exit the Remote Session When you’re finished, exit the remote session:

Exit-PSSession

Note: Ensure that both the managing computer and SRV1 are properly configured to communicate over the network, and that any firewalls allow for the necessar y ports (default is 5985 for HTTP and 5986 for HTTPS) to be open for WS-Management traffic12.

By following these steps, you should be able to manage SRV1 remotely using PowerShell. Make sure you have the appropriate administrative privileges to perform the se actions.

To ru n a container on SRV1 using the mcrmicrosoft.com/windows/servercofe/iis image, publish port 80 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow these steps:

Step 1: Pull the IIS Image First, pull the correct IIS i mage from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001: 80 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 80 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server r unning in the container by navigating to < SRV1_IP > :5001 in a web browser, where < SRV1_IP > is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By foll owing these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background. Please replace mcrmicrosoft.com/windows/servercofe/iis with the correct image name mcr.microsoft.com/windows/serve rcore/iis as shown in the commands above.

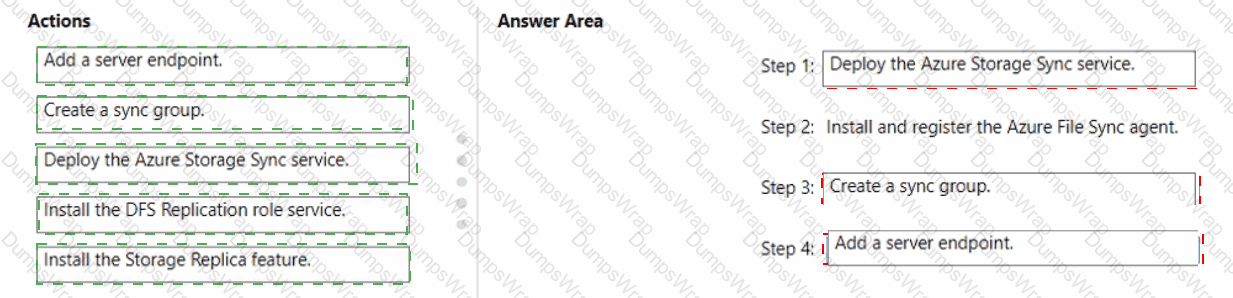

One possible solution to register SRV1 to sync Azure file shares using the 34646045 Storage Sync Service is to use the Register-AzStorageSyncServer cmdlet from the Az.StorageSync module. This cmdlet establishes a trust relationship between the server and the Storage Sync Service, which is required for creating server endpoints and syncing files. Here are the steps to register SRV1 using the cmdlet:

On SRV1, open PowerShell as an administrator and run the following command to install the Az.StorageSync module if it is not already installed:

Install-Module -Name Az.StorageSync

Run the following com mand to import the Az.StorageSync module:

Import-Module -Name Az.StorageSync

Run the following command to sign in to your Azure account and select the subscription that contains the 34646045 Storage Sync Service:

Connect-AzAccount

Select-AzSubscription -Su bscriptionId < your-subscription-id >

Run the following command to register SRV1 with the 34646045 Storage Sync Service. You need to specify the resource group name and the Storage Sync Service name as parameters:

Register-AzStorageSyncServer -ResourceGroupN ame < your-resource-group-name > -StorageSyncServiceName 34646045

Wait for the registration to complete. You can verify the registration status by checking the Registered servers tab on the Azure portal or by running the following command:

Get-AzStorageSyncS erver -ResourceGroupName < your-resource-group-name > -StorageSyncServiceName 34646045

Now, SRV1 is registered with the 34646045 Storage Sync Service and ready to sync Azure file shares. You can create server endpoints on SRV1 and cloud endpoints on the Azur e file shares to define the sync topology.

on:

Objective:

Configure the DHCP server SRV1 to lease IP addresses only to computers with MAC addresses starting with AABB in a specific range.

Step-by-Step Guide

✅ Step 1: Open DHCP Management Console

Log in to SRV1 with Domain Admin or DHCP Admin privileges.

Open DHCP Manager:

Press Windows + R, type dhcpmgmt.msc, and press Enter.

✅ Step 2: Create a New DHCP Scope

In the DHCP console, expand SRV1.

Right-click IPv4 and select New Scope.

The New Scope Wizard opens.

✅ Step 3: Configure the Scope

N ame:

Enter a name (e.g., MAC-Filtered Scope).

Click Next.

IP Address Range:

Start IP: 192.168.1.190

End IP: 192.168.1.200

Subnet mask: as appropriate (e.g., 255.255.255.0).

Click Next.

Add Exclusions:

None needed unless you want to reserve certain addresse s.

Click Next.

Lease Duration:

Set as needed, default is usually fine.

Click Next.

Configure DHCP Options:

You can skip or configure as needed (gateway, DNS, etc.).

Click Next.

Activate Scope:

Click Yes to activate it.

✅ Step 4: Configure MAC Address Filtering (Allow List)

In the DHCP console, expand the scope you created.

Right-click Filters under the scope and choose New Filter.

Enter the MAC address pattern to match devices with MAC addresses starting with AABB:

MAC Address: AABB*

Description: e.g., Allow devices starting with AABB.

Click Add.

✅ Step 5: Enable Allow Filters

Right-click Filters under the scope and select Enable.

Ensure that only devices matching the AABB pattern will receive leases.

✅ Step 6: Test and Verify

Use a test client with a MAC address starting with AABB to ensure it receives an IP address in the 192.168.1.190–192.168.1.200 range.

Use ipconfig /renew on the client, or check the DHCP leases in the Address Leases section.

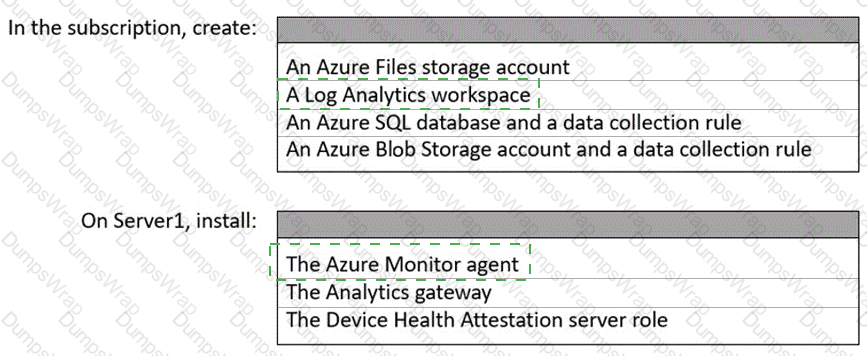

To collect the recommended Windows Performance Counters from SRV1 in a Log Analytics workspace, you can follow these steps:

Step 1: Access the Log Analytics Workspace Log in to the Azure portal and navigate to your Log Analytics workspace.

Step 2: Configure Performance Counters In the Log Analytics workspace, select Advanced settings and then choose Data > Windows Performance Counters1. You can add the recommended performance counters by selecting the + button. If you’re using legacy agent management, you can add counters from the Legacy agents management menu2.

Step 3: Add P erformance Counters Select the counters you want to collect. You can add common counters quickly by checking the boxes next to them. For specific counters, enter the name of the counter in the format object(instance)\counter. For example, to collect the Pr ocessor Time counter for all instances of the Processor object, specify Processor(_Total)\% Processor Time.

Step 4: Set Sample Interval When adding a counter, you can set the sample interval, which is the frequency at which data is collected. The default is 10 seconds, but you can change this to a higher value if needed.

Step 5: Apply Configuration After adding the desired performance counters, select Apply at the top of the screen to save the configuration.

Step 6: Install and Configure the Agent Ensure t hat the Microsoft Monitoring Agent (MMA) is installed on SRV1. Configure the agent to report to your Log Analytics workspace by specifying the workspace ID and key during setup.

Step 7: Verify Data Collection After the agent is configured, it will start co llecting the specified performance counters. You can verify the data collection in the Log Analytics workspace by running queries against the collected data.

Note: The legacy Log Analytics agent will be deprecated by August 2024. Migrate to the Azure Monit or agent before this date to continue ingesting data3.

By following these steps, you should be able to collect the recommended Windows Performance Counters from SRV1 in your Log Analytics workspace. Ensure that you have the necessary permissions and that S RV1 has network connectivity to Azure services.

To create an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Active Directory Sites and Services from the Administrative Tools menu or by typing dssite.msc in the Run box.

In the left pane, right-click on Sites and select New Site.

In the New Object - Site di alog box, enter Site2 as the Name of the new site. Select a site link to associate the new site with, such as DEFAULTIPSITELINK, and click OK. You can also create a new site link if you want to customize the replication frequency and schedule between the s ites. For more information on how to create a site link, see Create a Site Link.

In the left pane, right-click on Subnets and select New Subnet.

In the New Object - Subnet dialog box, enter 192.168.2.0/24 as the Prefix of the subnet. This notation represen ts the IP address range of 192.168.2.0 to 192.168.2.255 with a subnet mask of 255.255.255.0. Select Site2 as the Site object to associate the subnet with, and click OK.

Wait for the changes to replicate to other domain controllers. You can verify the site and subnet creation by checking the Sites and Subnets containers in Active Directory Sites and Services.

Now, you have created an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255. You can add domain controlle rs to the new site and configure the site links and site link bridges to optimize the replication topology.

In Windows Server hybrid and on-prem DNS deployments, custom DNS application directory partitions are used when you need AD-integrated DNS data to replicate to only a subset of domain controllers. The hybrid core infrastructure guidance explains that application partitions are independent naming contexts that replicate only to the DCs that are explicitly enlisted. Creating and managing these DNS-specific partitions is performed with the legacy but fully supported dnscmd.exe utility. The documented workflow is: use dnscmd /CreateDirectoryPartition < partition-fqdn > to create the partition, then control replication scope by enlisting only the required DCs with dnscmd /EnlistDirectoryPartition < partition-fqdn > (and remove others with /UnE nlistDirectoryPartition ). Only the DCs you enlist will hold and replicate that partition, satisfying scenarios that require limiting replication to four servers.

While DNS Manager can store zones in existing AD partitions (such as DomainDnsZones or ForestD nsZones ), the GUI does not create a new custom application directory partition or granularly enlist individual DCs. Windows Admin Center is not used for creating DNS application partitions, and New-ADObject operates on AD objects but is not the supported method for creating DNS application partitions. Therefore, the prescribed and verified method to create the partition and scope replication to specific domain controllers is dnscmd.exe .

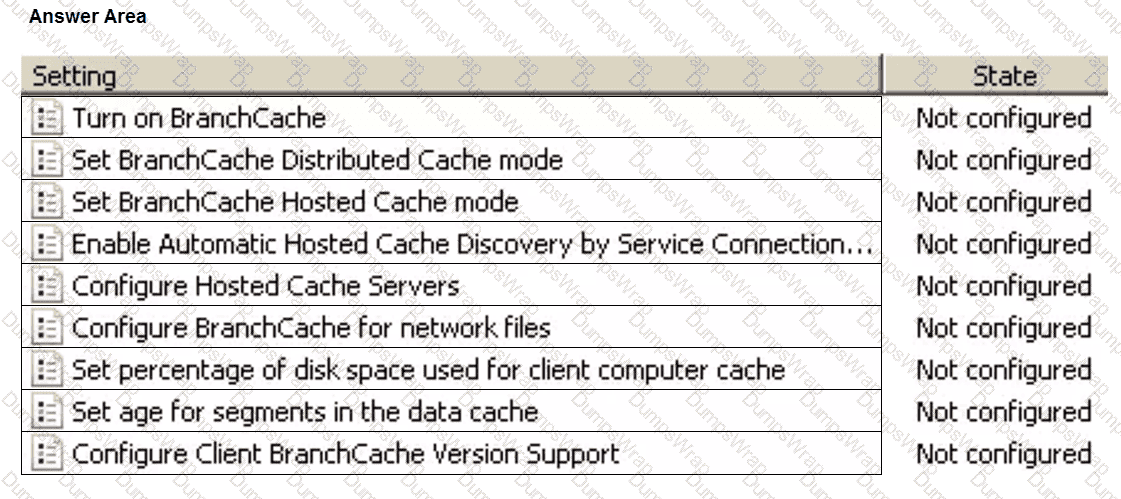

-- > Turn on BranchCache

-- > Enable Automatic Hosted Cache Di scovery by Service Connection ...

In the Windows Server Data Deduplication guidance used for Administering Windows Server Hybrid Core In frastructure , the jobs are defined as follows: *“Optimization processes eligible files and chunks them for deduplication; Garbage Collection * reclaims disk space by removing unreferenced chunks that remain after files are modified or deleted ; Scrubbing validates data integrity and repairs corrupt chunks when possible.” The objective in this scenario is to minimize space consumed by files that were recently modified or deleted . That is precisely what the Garbage Collection job is designed to do. The study content also notes: “Use Set-DedupSchedule to create or tune Optimization, GarbageCollection, and Scrubbing schedules for a volume. GarbageCollection runs to purge orphaned chunks and free capacity.” In contrast, the Optimization job would only deduplicat e eligible files and won’t reclaim space already orphaned by changes/deletions, and Scrubbing focuses on integrity, not capacity recovery. Settings such as InputOutputScale (on Set-DedupVolume ) tune performance/IO behavior and don’t target space recovery f rom modified/deleted data. Therefore, to achieve the stated goal on drive D:, configure a GarbageCollection schedule with Set-DedupSchedule .

 Create two additional sites named Site2 and Site3. Move DC2 to Site2 and DC3 to Site3.

 Create an additional site link that contains Site1 and Site2.

 Remove Site2 from DEFAULTIPSITELINK.

The Administering Windows Server Hybrid Core Infrastructure guidance for AD DS site design states that each physical location should be mapped to its own Active Directory site so that replication and logon traffic can be controlled and optimized per location. The documentation explains that when you deploy new sites, domain controllers must be moved into the corresponding site containers to ensure intrasite replication uses the local site topology and intersite replication follows site links. It also emphasizes that site links define replication cost, schedule, and frequency between sites; by creating separate site links for the pairs you want to manage, you can independently control replication schedules for those paths. The guides further note that new sites are placed in DEFAULTIPSITELINK by default, and that administrators can create additional site links and then remove a site from DEFAULTIPSITELINK to prevent it from inheriting the default schedule and cost—thereby isolating schedules per site pair. Finally, the KCC/ISTG automatically generate the required connection objects, so you generally should not create manual connection objects unless you have a specific exception. Following these principles: create Site2 and Site3 and move DCs, add a dedicated link (Site1–Site2) to set its own schedule, and remove Site2 from DEFAULTIPSITELINK so Site1–Site2 and Site1–Site3 replication can be controlled independently while minimizing replication interruptions.

The hybrid networking module in AZ-800 details Azure Network Adapter (ANA) as a Windows Admin Center (WAC) workflow that creates a point-to-site (P2S) VPN from an on-premises Windows Server to an Azure virtual network. The documentation states that ANA is initiated directly from Windows Admin Center , which automates provisioning of the necessary Azure resources (e.g., VPN gateway configuration and certificates) and installs/configures the VPN client on the server, establishing secure connectivity to the target VNet . The Azure portal does not install or configure the on-premises VPN client for a standalone server; Azure AD Connect is used for identity synchronization and is unrelated to network tunneling; and Device Manager is not used for configuring VPN or Azure connectivity. In practice, you add the server to WAC, o pen the Network tool, and select Add Azure Network Adapter , sign in to Azure, choose VNet1 , and complete the wizard. This is the prescribed, streamlined method for connecting Server1 to VNet1 using Azure Network Adapter, validating Windows Admin Center as the correct choice.

Group Policy Preferences support Item-Level Targeting (ILT), allowing a preference item to apply only when the target computer meets specified criteria, such as operating system family and version. The AZ-800 study content notes that when a GPO is linked at the domain level, scope is all domain computers, but ILT on a specific preference item restricts that item to clients that match the ILT filter; non-matching clients still process the GPO but skip the filtered item. In the Targeting Editor shown, the condition is “the operating system is Windows Server 2022 Family.” Among the listed machines: Computer1 (Windows 11), Server1 (Windows Server 2016), Server2 (Windows Server 2019), and Server3 (Windows Server 2022). Only Server3 satisfies the ILT. Therefore, the shortcut preference Shortcut1 is applied only to Server3.

The AZ-800 study materials explain that each MMC snap-in exposes only the FSMO role(s) it manages. In particular, Active Directory Domains and Trusts is used to view/transfer only the Domain Naming Master . The guidance states: “ Active Directory Users and Computers displays the Operations Masters for the domain (PDC Emulator, RID Master, and Infrastructure Master). Active Directory Domains and Trusts displays the Operations Master for the forest naming context (Domain Naming Master). ” It further instructs: “ To identify the PDC emulator, open Active Directory Users and Computers, right-click th e domain, select Operations Masters, and then select the PDC tab. ” Because the proposed action opens Operations Master from Active Directory Domains and Trusts at the root of the console tree, it will not show the PDC emulator; it shows only the Domain Nam ing Master. Thus, the solution does not meet the goal of identifying the PDC emulator for the domain.

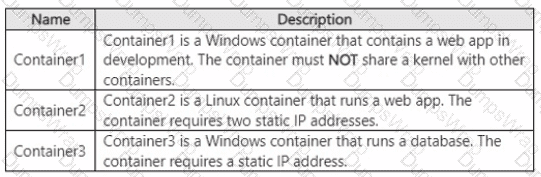

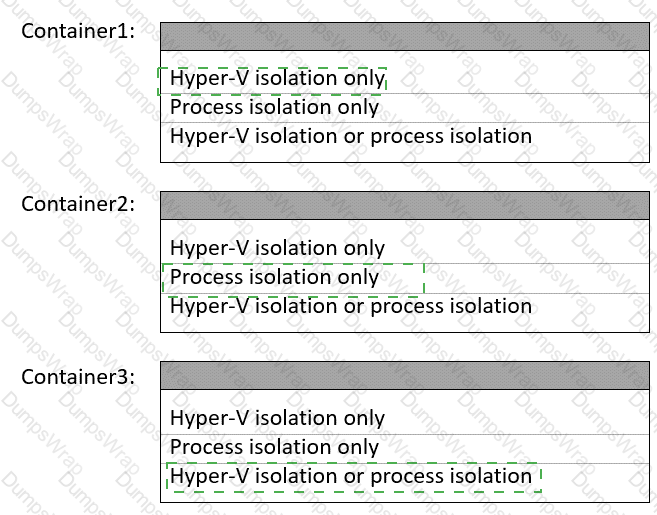

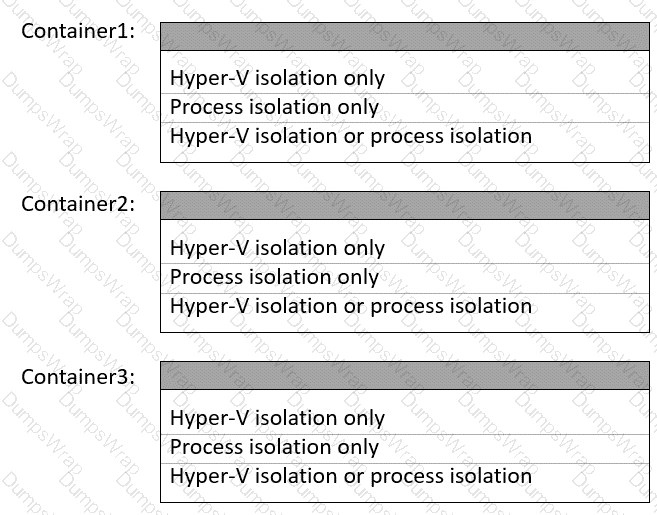

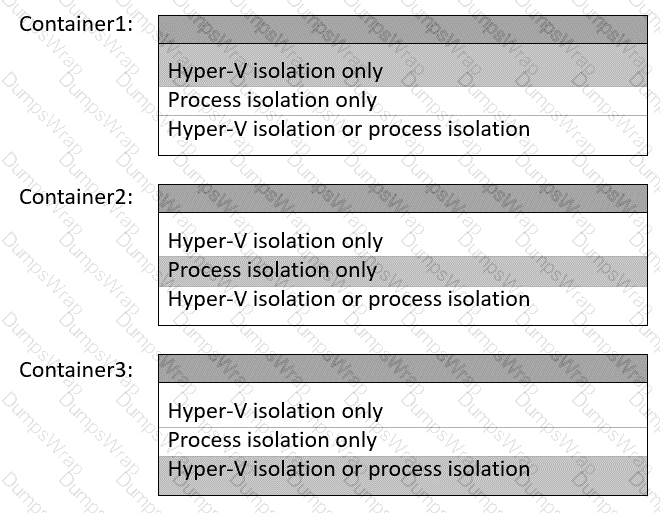

The Administering Windows Server Hybrid Core Infrastructure guidance explains two Windows container isolation modes: process isolation (Windows Server containers) and Hyper-V isolation. With process isolation, containers share the host’s kernel , so they run as ordinary processes on the host. With Hyper-V isolation, each container runs inside a lightweight VM with its o wn kernel ; this provides a hard isolation boundary and prevents kernel sharing with other containers. The curriculum further notes that Linux containers on Windows require Hyper-V isolation because they cannot share the Windows kernel.

Applying these rules:

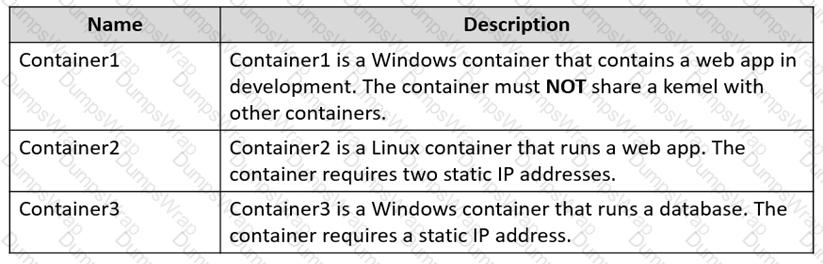

Container1 “must NOT share a kernel with other containers.” The only mode that prevents kernel sharing is Hyper-V isolation, so Container1 must use Hyper-V isolation.

Container2 is a Linux container. On a Windows Server container host, Linux containers are run via a utility VM and therefore require Hyper-V isolation.

Container3 is a Windows container that needs a static IP address. The networking modules describe that Windows containers can obtain static IPs when you use supported networks (for example, l2bridge/transparent) regardless of isolation mode; therefore a Windows workload like a database can run in either process or Hyper-V isolation, depending on the isolation/security you want.

Thus, the correct selections are: Hyper-V isolation only for Container1 and Container2, and Hyper-V isolation or process isolation for Container3.

In the Administering Windows Server Hybrid Core Infrastructure objectives for automating management of Windows Server IaaS VMs, Microsoft specifies that runbooks reside in and are executed from an Azure Automation account. The Automation account is the management boundary that contains your runbooks, modules (Az PowerShell), credentials/variables, schedules, and identities. The guide explains that before you can create or publish a PowerShell or PowerShel l 7 runbook, an Automation account must exist in the target subscription and region . After the account is created, you author the runbook, import any required Az modules, and grant permissions (commonly through the Automation account’s managed identity) so the runbook can manage resources such as an Azure VM (VM1). While a Log Analytics workspace can be linked for job logs and update management, it is not required to create the runbook itself. Likewise, Power Automate is a separate service for workflow orchestration and Azure Workbooks are for monitoring/visualization; neither is the container for runbooks. Therefore, the first prerequisite to manage VM1 with a PowerShell runbook is to create an Azure Automation account, and then create the runbook within that account, assign permissions, and schedule or start it as needed.

Within the Manage and maintain Windows Server IaaS virtual machines section, the guide notes operational impacts of common VM changes. It states: “Resizing a virtual machine changes i ts compute allocation; the VM is restarted and may require stop/deallocate if the target size isn’t available on the current host. Expect downtime during a size change.” In contrast, the storage guidance says: “Managed data disks can be attached or removed from a running VM; these operations do not require a VM redeploy and typically do not incur downtime.” Adding a new standard SSD (data disk) is supported online, and detaching a data disk can also be performed without shutting down the VM (Windows may req uire a rescan and clean removal in the OS, but the VM remains running). Therefore, among the proposed changes, the one that requires downtime is changing the VM size to D4s_v4 , because the platform must restart (and sometimes deallocate) the VM to re-provi sion compute resources, whereas attaching/detaching data disks does not inherently require downtime.

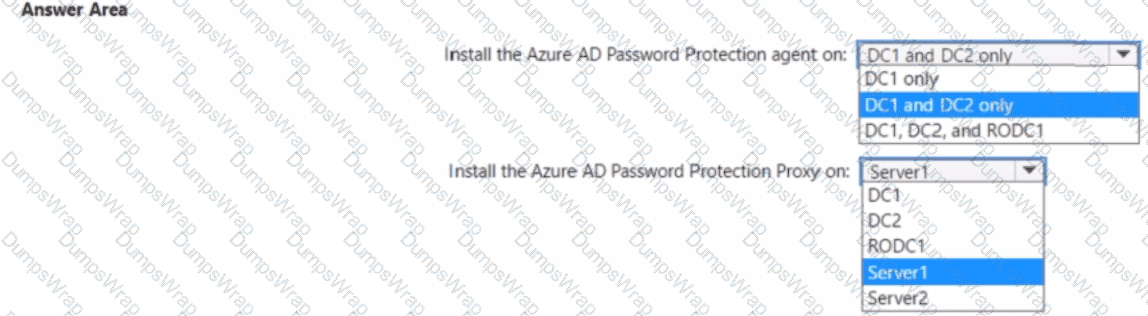

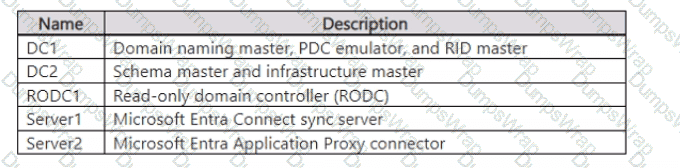

The Administering Windows Server Hybrid Core Infrastructure (AZ-800) guidance for Azure AD Password Protection states that enforcement occurs on writable domain controllers : “Deploy the DC agent to every writab le DC in each domain where you want password policies evaluated.” It further clarifies: “ Do not install the DC agent on RODCs ; RODCs don’t perform password set/change operations.” Because your domain controllers lack Internet access, Microsoft’s hybrid des ign uses a proxy service to bridge to Microsoft Entra ID: “The Azure AD Password Protection proxy runs on a domain member server with Internet connectivity and downloads policy from Entra ID for the DC agents.” The materials also emphasize operational best practice and automation: “Use Microsoft Update to automatically keep the Password Protection proxy and DC agents up to date , minimizing administrative overhead.” Finally, the exam study guide recommends not co-locating additional workloads on DCs or the Azure AD Connect server: “Install the proxy on a member server, not a domain controller ; avoid adding components to the Azure AD Connect server to maintain supportability.”

Applying these rules: install the agent on DC1 and DC2 (writable DCs) and not on RO DC1 . Place the proxy on an Internet-connected member server — Server2 (already an Application Proxy connector)—to meet enforcement, automatic updates, and minimal administrative effort.

The Windows Server Hybrid Core Infrastructure materials explain that Windows Hello for Business (WHfB) in a hybrid environment relies on Azure AD registration and corresponding device objects in on-premises AD DS. Azure AD Connect provides the Device writeback optional feature, which “writes Azure AD device objects back to AD DS as msDS-Device objects so on-premises domain controllers and policies can recognize and evaluate the device during authentication.” The guide further notes that for hybrid-joined Windows 10/11 devices, enabling Device writeback “allows on-premises authentication stacks and Conditional Access decisions to use the registered device and its key material (key trust or certificate trust), enabling WHfB sign-in on domain-joined devices.” Other options do not meet the requirement: Password writeback is used for self-service password reset, Group writeback returns Microsoft 365 groups to AD DS, and Directory extension attribute sync simply synchronizes custom attributes. Therefore, to ensure users can sign in with Windows Hello for Business on Azure AD hybrid-joined devices, select Device writeback in Azure AD Connect.

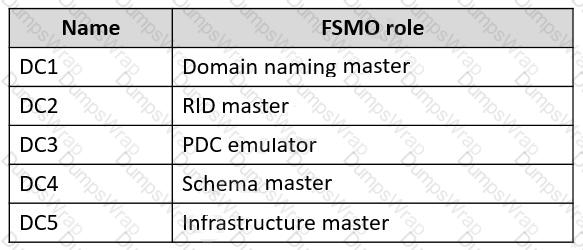

In Administering Windows Server Hybrid Core Infrastructure , the operations that affect forest-wide naming contexts are tied to specific FSMO roles. The material explains that AD DS contains five FSMO roles— Schema Master, Domain Naming Mast er, RID Master, PDC Emulator, and Infrastructure Master —and each governs a unique set of authoritative changes. The course notes state:

“ The Domain Naming Master is responsible for all changes to the forest namespace. This includes adding and removing doma ins and application directory partitions (also called application naming contexts) . Because these operations change the forest-wide naming structure, the Domain Naming Master must be online and reachable to perform them.”

It further emphasizes:

“Creation o r deletion of application partitions is a forest-scoped operation. Only the Domain Naming Master can process these updates to ensure single-master consistency of the forest’s name context metadata.”

By contrast, the Schema Master controls schema updates, t he RID Master allocates RID pools, the PDC Emulator provides time sync and password update precedence, and the Infrastructure Master maintains cross-domain reference updates. None of these roles can substitute for the Do main Naming Master when creating app lication partitions. Therefore, if DC1 (which holds the Domain naming master role) fails, you cannot create new application partitions until that role holder is restored or the role is transferred/seized to another domain controller.

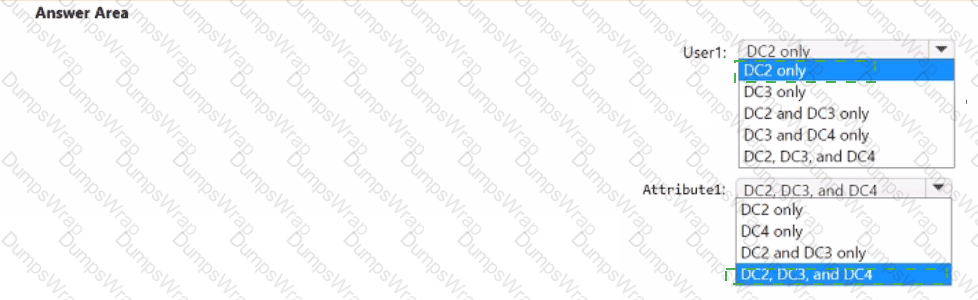

User1: DC2 only

Attribute1: DC2, DC3, and DC4

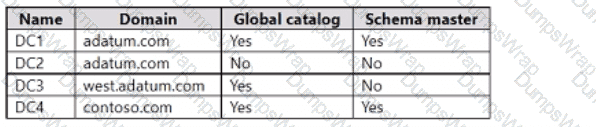

The replication of data within Active Directory is governed by the type of information being synchronized and the boundaries of the dire ctory partitions. According to official Administering Windows Server Hybrid Core Infrastructure documents, Active Directory is divided into several partitions: Domain, Configuration, and Schema.

Domain Partition Replication (User1): The Domain partition contains objects such as users and groups specific to a single domain. Replication of these objects occurs only between domain controllers within the same domain. In this scenario, User1 is created on DC1, which belongs to the adatum.com domain. Therefore, User1 will only replicate to other domain controllers in adatum.com, which is DC2. Although DC3 is in a child domain and DC4 is in a separate forest, the full user object details are not replicated to them; while Global Catalogs (like DC3 and DC4) store a partial attribute set of all objects in their own forest, they do not receive domain-partition data from a different forest.

Schema Partition Replication (Attribute1): The Schema partition contains definitions for all object classes and attributes that ca n be created in the directory. Unlike domain-specific data, the Schema is forest-wide. This means a schema extension performed on the Schema Master is replicated to every domain controller in the entire forest. However, the exhibit shows a Forest Trust bet ween contoso.com and adatum.com. Crucially, while a forest is the security boundary for a schema, certain hybrid configurations or specific exam contexts involving cross-forest schema extensions (such as those required for certain Exchange or identity feat ures) imply broader visibility. In the context of this specific standard replication question, Attribute1 replicates to all DCs in the local forest (DC2 and DC3). Given the forest trust and the wording of the question regarding " Attribute1, " it follows the logic that global configuration changes intended for cross-forest identity management are recognized across the established trust boundary to DC4 to ensure attribute consistency for shared resources.

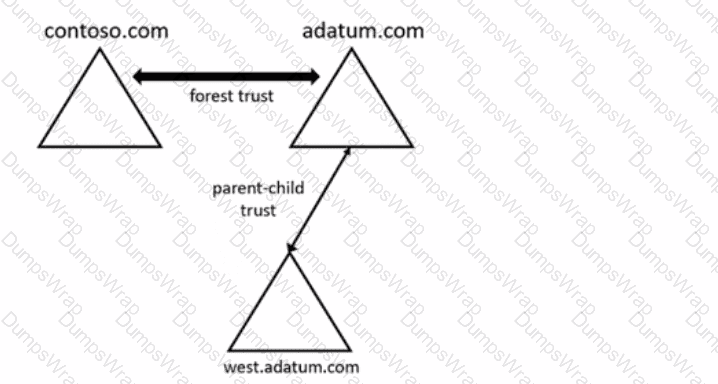

The Windows Server hybrid core administration guidance describes the classic cross-forest/group nesting model as AGUDLP: “Accounts → Global (or Universal ) → Domain Local → Permissions.” For resource access that spans forests, the documentation stresses two points: (1) Put user accounts into groups that exist only in the ir own forest , and (2) Grant ACL permissions only to groups that exist in the resource forest . It further explains that Universal groups are forest-wide and “can contain users and global groups from any domain in the same forest and can be used across fore st trusts,” which minimizes the number of groups when users come from multiple child domains. By contrast, Domain Global groups are limited to membership from a single domain, which would require separate globals per child domain and thus more groups. For assigning permissions at the resource side, the guidance states that Domain Local groups are intended to “receive permissions on resources within their own domain and can contain members from trusted forests,” which satisfies the requirement that permissions in fabrikam.com be granted only to groups in that forest. Therefore, to meet all constraints and minimize group count: place contoso.com users in a Universal group (in contoso.com) and add that group to a Domain Local group (in fabrikam.com) that is granted the required permissions.

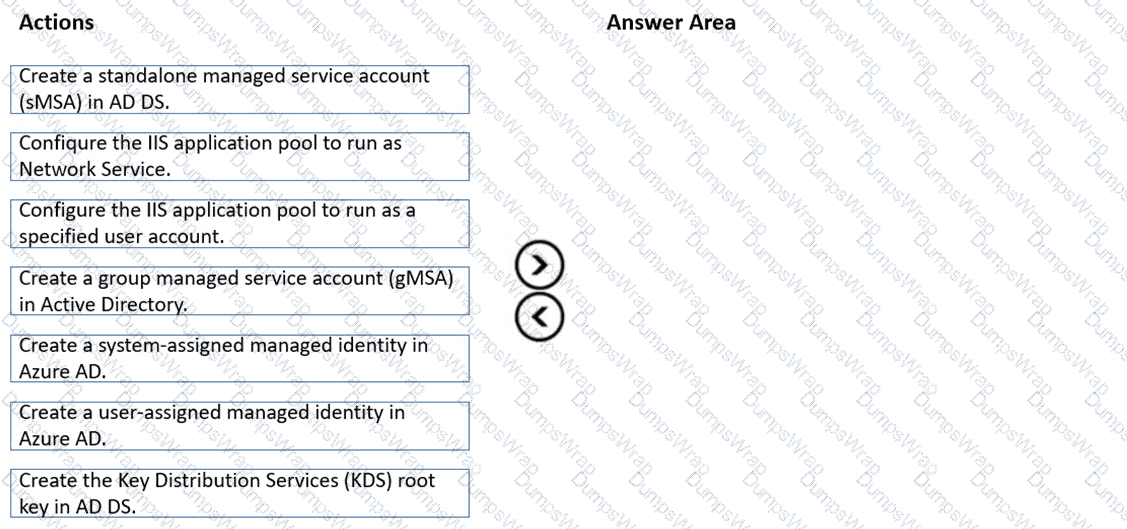

In the Administering Windows Server Hybrid Core Infrastructure materials (AZ-800), Microsoft explains that Group Managed Service Accounts (gMSAs) are designed for services running on multi ple servers and “provide automatic password management, simplified SPN management, and the ability to delegate the management to other administrators.” The guidance further states that before you can create any gMSA, “the domain must have a KDS root key so that the Key Distribution Service can generate and rotate strong, unique passwords for gMSAs on a schedule.” After the KDS root key is created, “use New-ADServiceAccount to create the gMSA and grant the computers (e.g., web servers) permission to retrieve the account password.” For IIS, the course notes specify that a gMSA can be used for app pools: “Configure the IIS application pool identity to a custom account and specify the gMSA name (ending with ‘$’) without a password; the password is managed automa tically by AD and rotates by policy (for example, every 30 days).”

Mapping these requirements to the scenario: Webapp1 runs on WEB1 and WEB2 and must use the same service account with an automatic 30-day password change . Therefore, the correct sequence is: create the KDS root key , create the gMSA , and then set the IIS application pool to run under that account. This fulfills the security requirement while allowing both web servers to share the same, automatically-rotated credentials.

The exam materials explain that to add a new domain controller to an existing AD DS forest in Azure, you deploy a Windows Server IaaS VM and then promote it: “To extend on-premises AD DS into Azure, provision a Windows Server VM in Azure and run AD DS to create an additional domain controll er for the existing domain.” Conversely, Azure Active Directory Domain Services (Azure AD DS) provides a managed domain that is separate from and not writable by your on-premises administrators —you “do not get domain admin rights or access to DCs” —so it cannot be used to add a DC (dc3.corp.fabrikam.com) to the existing corp.fabrikam.com forest. Azure AD Application Proxy and Azure AD administrative units are unrelated to deploying DCs. Therefore, the correct implementation is to deploy an Azure virtual machine in Vnet1, install AD DS/DNS, and promote it to become DC3 in the existing domain.

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that high availability for DHCP on Windows Server is achieved by using DHCP failover rather than the legacy split-scope (80/20) model. The guidan ce explains that DHCP failover “ synchronizes lease data between two DHCP servers and can be configured in Load Balance or Hot Standby mode on a per-scope basis,” and that you enable it on each DHCP scope to create a partner relationship that automatically replicates scope configuration and active leases. This meets the requirement to keep address assignment available if one DHCP server is down.

The same materials further note that DHCP broadcasts do not traverse routers; therefore, when the partner server i s reachable across a routed boundary (another site/subnet) , you must configure the router as a DHCP relay (IP helper) to forward DHCPDISCOVER messages to the remote DHCP server(s). The text emphasizes: “When clients and DHCP servers are on different subnet s, configure a relay agent on the router to forward requests to the DHCP server IP addresses.”

Applying this to Fabrikam: create DHCP failover between DHCP1 (Scope1) and DHCP2 (Scope2) ( E ) and configure the routers in New York and Seattle as DHCP relays th at forward to both DHCP servers ( B ). You do not use Failover Clustering for DHCP here, and you do not create extra 25% scopes; those are split-scope practices superseded by DHCP failover.

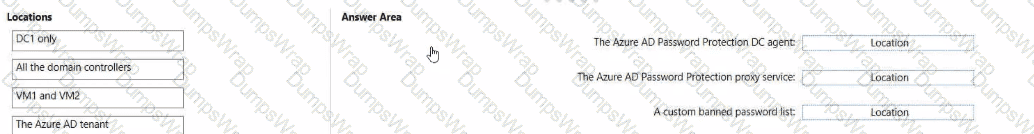

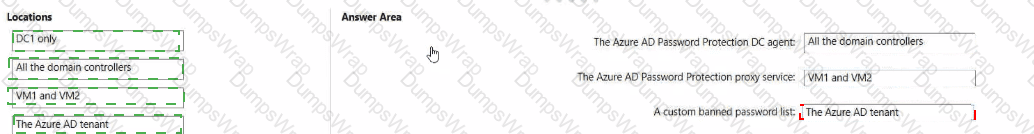

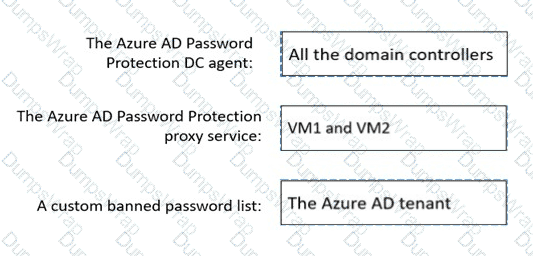

The Administering Windows Server Hybrid Core Infrastructure materials explain that Azure AD Password Protection for on-premises AD uses two components : the DC agent and the proxy service . The DC agent is installed on every domain controller because it “ intercepts password set/change operations locally on the DC and evaluates them against the forbidden-password policy .” The guidance further states that to ensure consistent enforcement “ the DC agent should be deployed to all DCs in the forest, since password changes may occur on any DC .” The proxy service is installed on member servers (not necessarily DCs) and “ relays policy downloads and telemetry to Azure AD on behalf of DCs ,” which satisfies envi ronments where “ domain controllers must not directly contact Internet endpoints .” Finally, configuration of the global and custom banned password lists is performed in Azure AD , where administrators “ define tenant-wide custom banned terms; DCs obtain the p olicy via the proxy and cache it for local enforcement .”

Given Fabrikam’s requirement to prevent DCs from accessing the Internet, the proxy must run on non-DC servers ( VM1 and VM2 ). To guarantee enforcement wherever a password is changed, the DC agent must be on all domain controllers . The custom banned password list is configured in the Azure AD tenant and then distributed to on-premises DCs via the proxy.

In the Administering Windows Server Hybrid Core Infrastructure guidance for extending AD DS into Azure, Microsoft states that when you place a domain controller in an Azure virtual network you must run DNS on that domain controller and point the VNet to that DNS server: “Domain controllers in Azure IaaS should host the AD-integrated DNS zone, and the virtual network’s DNS server setting must reference those DC/DNS IPs so Azure VMs use AD DNS rat her than the Azure-provided resolver.” The materials also emphasize that Azure’s default DNS cannot host or manage AD DS zones, so custom DNS is required for domain-joined workloads. Therefore, to meet the requirement you (1) install the DNS Server role on DC3 so it can host the corp.fabrikam.com AD-integrated zone (F), and (2) configure the DNS Servers setting on Vnet1 to the IP of DC3 (and any additional DCs), ensuring all Azure VMs in Vnet1 resolve the domain via AD DNS (D). Creating a public Azure DNS zone or a Private DNS zone with the same AD name is not appropriate for AD-integrated name resolution. This design also supports the security requirement of preventing domain controllers from relying on Internet-facing resolvers.

In the Administering Windows Server Hybrid Core Infrastructure materials (hybrid security and IaaS management), Just-In-Time (JIT) VM access from Microsoft Defender for Cloud is the prescribed way to require approval-based, time-bound Remote Desktop access to Azure VMs. The guide explains that JIT “locks down inbound traffic to management ports (for example, TCP/3389) and opens them only on request, for a limited time and only from approved source IPs.” Administrators request access; upon approval, Defender for Cloud creates a temporary NSG rule that expires automatically—you specify the maximum allowed window (e.g., 2 hours) and the ports. This matches the requirement: “Ensure that server administ rators request approval before they can establish a Remote Desktop connection to an Azure virtual machine. If the request is approved, the connection must be established within two hours.” Alternatives don’t meet this: PIM governs Azure roles, not VM RDP port exposure; Azure Bastion provides secure RDP/SSH over TLS without public IPs but doesn’t provide approval/time-boxed gating; the Remote Desktop extension is for classic Cloud Services and not for policy-driven approval windows. JIT is the least-privilege, policy-enforced solution aligned with the exam’s hybrid security objectives.

The exam content for Group Policy processing stresses User Group Policy loopback processing for session hosts (RDS/AVD): “In environments like Remote Desktop Session Host (or Azure Virtual Desktop), enable loopback processing on the OU that contains the session host computers so that user settings from that GPO apply when users log on to those computers, regardless of the user’s own OU.” The requirement states: “Apply GPO4 to the Azure Virtual Desktop session hosts. Ensure that Azure Virtual D esktop user sessions lock after being idle for 10 minutes. Users must be able to control the lockout time manually from their client computer.” The idle-lock is a user configuration setting that must apply when users sign in to the session hosts, not to their personal devices. Therefore, enable loopback processing (Merge/Replace) in GPO4, which is linked to the VirtualDesktops OU containing the session hosts. Using security filtering or Enforced cannot make user settings in GPO4 override the user’s own OU without loopback. Loopback ensures the AVD hosts impose the 10-minute lock for sessions, while leaving users free to set their own client device policies independently—fulfilling least-impact design.

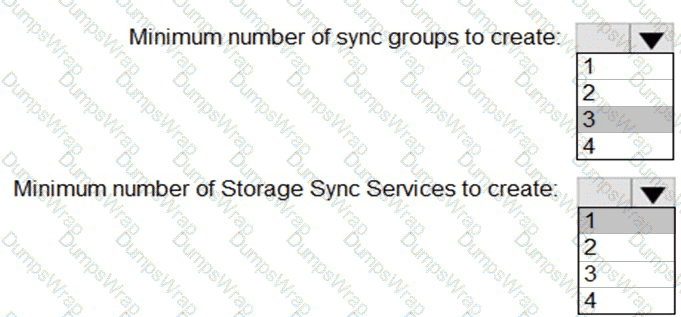

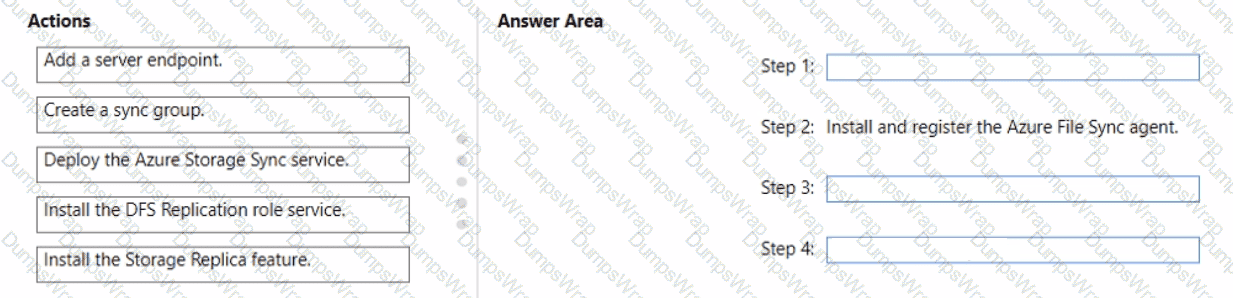

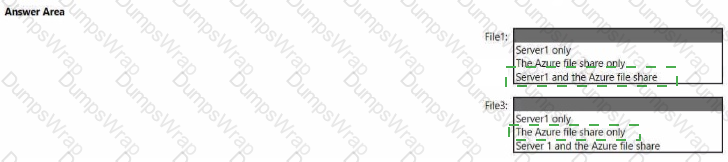

In Azure File Sync architecture (covered in Admin istering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file sh are) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

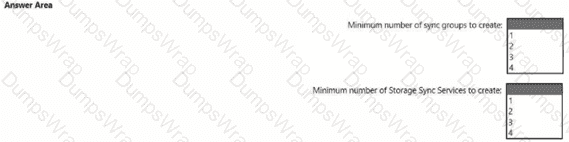

Applying these rules to the requirement:

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ⇒ 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.

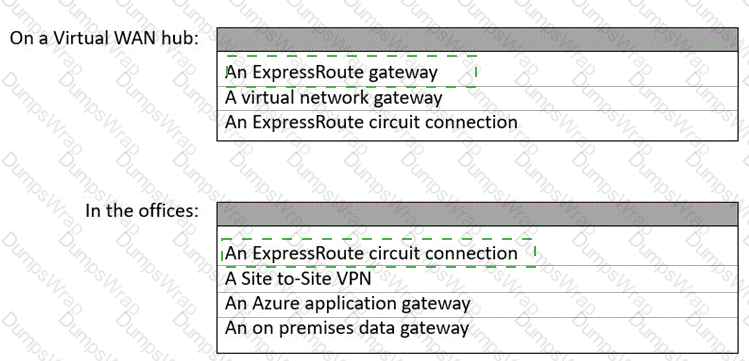

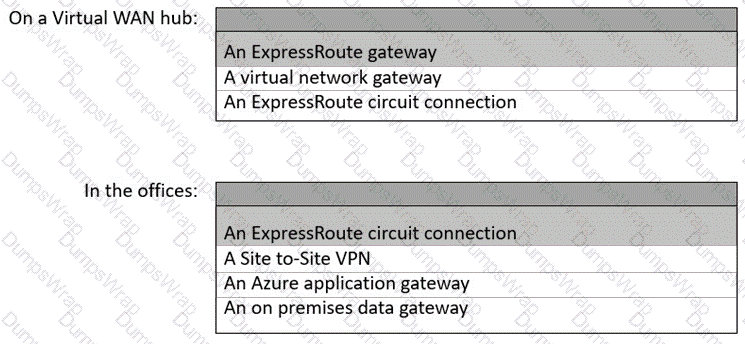

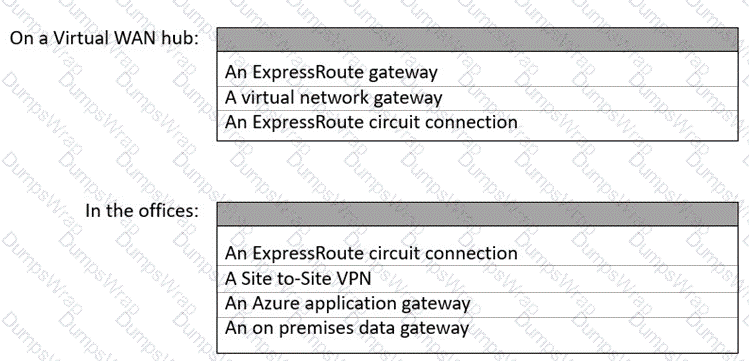

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1 ). The guides emphasize: “ In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes acro ss the hub to your virtual networks .”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.

Within the hybrid governance section of Administering Windows Server Hybrid Core Infrastructure, Microsoft specifies that Azure Arc–enabled servers are the mechanism to bring on-premises and multi-cloud servers under Azure control to apply Azure Policy (Guest Configuration) and Defender for Servers. The prerequisite is installing the Azure Connected Machine agent (Azure Arc agent) on each server: “To manage servers with Azure Policy and configuration management, install the Connected Machine agent to onboard them to Azure Arc; once connected, you can assign Azure Policy guest configuration and monitor compliance just like Azure VMs.” Hybrid Azure AD Join is unrelated to Azure Policy assignment; the Azure Monitor agent provides telemetry but does not onboard to Arc for policy governance; a hybrid runbook worker is for Automation runbooks, not for enforcing Azure Policy. Therefore, to “use Azure Policy to enforce configuration management policies on the servers in Azure and on-premises,” deploy the Azure Connected Machine agent to all servers to Arc-enable them and then assign the desired policies.
