Netapp NS0-194 Dumps

Compression, compaction, and thin provisioning are ONTAP storage efficiency techniques. Compression reduces the physical space consumed by compressible data blocks. Compaction packs small I/O writes more efficiently into storage blocks to reduce wasted space, especially on AFF systems. Thin provisioning presents logical capacity to clients without reserving all physical capacity up front, allowing storage to be consumed as data is actually written. Encryption protects data confidentiality but is not a capacity-saving technology. Advanced Drive Partitioning improves disk utilization by partitioning drives for root and data usage, but it is a platform layout mechanism rather than the standard ONTAP data-reduction efficiency listed with compression and compaction. The NCSE interpretation must distinguish capacity efficiency from security and hardware layout features. The three selected options are the technologies that reduce or optimize consumed capacity at the volume or aggregate layer. References/topics: ONTAP storage efficiencies, inline compression, data compaction, thin provisioning, AFF efficiency defaults, and capacity management.

For an unexplained ONTAP node reboot without a panic string or core file, the useful log sets are SP status and events all. If there is no panic and no core, the event may have originated below the ONTAP panic path, such as power, service processor, environmental, watchdog, or platform-level behavior. SP status information can reveal service processor state, power events, reset reason indicators, and platform management context. The events all output provides ONTAP EMS context before and after the reboot, allowing correlation with hardware, HA, environmental, or software messages. system core is not useful when no core file was generated. sp status -d is a detailed command variant, but the standard collected set in this answer context is SP status along with the complete event log. A support engineer should collect platform and EMS evidence before assuming a software panic. References/topics: ONTAP unexpected reboot triage, service processor status, EMS event collection, no-panic reboot investigation, and hardware/software diagnosis workflow.

NetApp Volume Encryption uses a KMIP server when encryption keys must be stored separately from encrypted data. KMIP is the Key Management Interoperability Protocol and is the standard method ONTAP uses to communicate with external key managers. RADIUS is an authentication protocol and does not store encryption keys for NVE. TLS secures communications but is not itself a key management server. TKIP is an older wireless encryption mechanism and is unrelated to ONTAP volume encryption. Separating keys from encrypted data is a core security control because compromise of storage media or data blocks should not also expose the keys required to decrypt them. In ONTAP environments, external key management provides centralized lifecycle control, auditing, and recovery considerations for encrypted volumes. Support engineers must also verify key-manager reachability before enabling encryption because inaccessible keys can prevent encrypted volumes from being brought online. References/topics: NetApp Volume Encryption, external key management, KMIP server configuration, encryption key separation, and ONTAP security architecture.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

CIFS domain controller selection is governed by the CIFS server discovery configuration, because ONTAP must discover and select domain controllers for authentication, name lookup, and domain services. Site membership can influence which domain controllers are preferred when Active Directory Sites and Services is correctly configured, but the configuration mechanism that determines how domain controllers are discovered is discovery mode. Enabled SMB versions control client protocol negotiation and do not define domain controller selection. Trusted domains define authentication trust boundaries but do not directly decide which domain controllers a specific CIFS server uses. In a troubleshooting context, when users experience CIFS authentication delays, logon failures, or inconsistent access, the support engineer checks DNS, site awareness, domain controller discovery, and CIFS domain status. The exam wording asks for the CIFS server configuration that determines the domain controllers used by the CIFS server, which is the discovery mode setting. References/topics: ONTAP SMB/CIFS server configuration, domain controller discovery, Active Directory site awareness, and CIFS authentication troubleshooting.

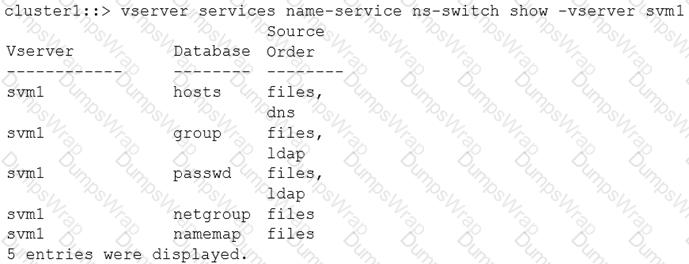

The UNIX user prof1 is looked up in files first because the name-service switch output shows the passwd database source order as files, then ldap. ONTAP follows the configured source order for the relevant database. Since a UNIX user lookup uses the passwd database, ONTAP checks the local files source before contacting LDAP. DNS is associated with host name resolution, not UNIX user identity lookup. NIS is not listed in the passwd source order shown in the exhibit, so it cannot be the first lookup source. LDAP is listed, but it is second after files. This question tests the engineer's ability to read ns-switch output and apply it to the correct identity database. For NAS access issues, source order directly affects user mapping, UID/GID resolution, group membership, and permission decisions. References/topics: ONTAP name service switch, passwd database lookup, UNIX identity resolution, files versus LDAP source order, and NAS authentication troubleshooting.

The output shows Storage Virtual Machine DR relationships because the source and destination paths are SVM names followed by a colon, not SVM:volume paths. In ONTAP SnapMirror syntax, a volume relationship uses a path such as svm1:vol1, while an SVM relationship uses the SVM name followed by a trailing colon, such as svm1:. The relationship type XDP is compatible with modern SnapMirror policy-based replication, including SVM DR. A single-volume asynchronous SnapMirror relationship would identify individual volumes. SnapMirror Synchronous would use synchronous relationship behavior, and SnapVault is a vaulting policy relationship rather than an SVM configuration replication relationship. The support engineer must read the path syntax rather than only the relationship type. Because each listed source and destination path represents an SVM object, the relationship is SVM DR. References/topics: SnapMirror show output, SVM DR syntax, source-path and destination-path trailing colon, XDP relationships, and SVM configuration replication.

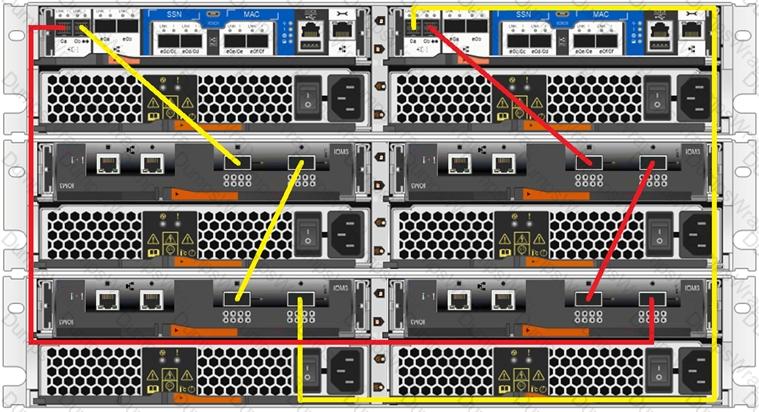

The controller of controller A should be replaced. The error reports an unknown device on adapter 0a from NetappA, with a SCSI check condition indicating a hardware error. In the cabling context of a FAS2750 HA pair, if the system is cabled according to the exhibit and the error remains isolated to controller A's path, the fault follows the controller-side hardware rather than the partner controller or only an external cable. Re-cabling per the guide would be appropriate if the exhibit showed incorrect cabling, and replacing a cable would be appropriate if the fault evidence isolated to the cable. Replacing controller B does not align with the reporting node and adapter. A support engineer should first map the error to node, adapter, shelf path, and cabling; then isolate whether the failing element is the controller path, cable, or external shelf component. Here, the reported hardware error points to controller A. References/topics: FAS2750 SAS path troubleshooting, SCSI check condition errors, controller path isolation, HA cabling validation, and hardware replacement workflow.

The NetApp HCI management node, or mNode, communicates with activeiq.solidfire.com and the Cloud Data Services portal. The mNode provides management services, telemetry collection, updates, and connectivity between the Element environment and NetApp cloud/support services. The vSphere plug-in is used by administrators to manage Element storage from VMware vCenter, but it is not the component responsible for cloud telemetry communication. Trident provides Kubernetes persistent storage orchestration and is unrelated to Active IQ connectivity for HCI. The Element Management Interface is a management UI/API surface, not the telemetry bridge described in the question. In support practice, mNode health, network access, DNS, certificates, and outbound connectivity are checked when HCI systems are not reporting correctly to Active IQ or cloud services. Without a healthy mNode path, cloud-based visibility and support automation can be incomplete even when the storage cluster itself is serving data. References/topics: NetApp HCI management node, Element telemetry, Active IQ SolidFire connectivity, Cloud Data Services portal, and HCI support architecture.

The correct security trace filter uses protocol cifs, the Windows name LAB\tester, and trace-allow yes. The purpose is to determine why this specific user can perform an operation while other HR users cannot. Because the successful operation is part of the investigation, ONTAP must trace allowed access events, not only denied events. The NFS options are wrong because the access path is a CIFS share and the identity is a Windows domain user. The trace-allow no option would trace only denied access, which would not capture the reason that LAB\tester succeeds. Security trace is used to diagnose permissions across share permissions, NTFS ACLs, UNIX identities, name mapping, and security style behavior. In this case, the engineer needs a targeted trace for the known working user to compare the granted access path against failing users. References/topics: ONTAP SMB security trace, vserver security trace filter create, CIFS identity tracing, trace-allow behavior, and NAS permissions troubleshooting.

The event log show command displays entries from ems.log. ONTAP Event Management System messages record significant occurrences in the cluster, such as hardware events, protocol issues, availability messages, and errors that support engineers use for diagnosis. messages.log is a broader system log concept, but event log show queries the event log/EMS content. bcomd.log and mgwd.log are daemon-specific logs and are not the direct source for event log show output. Knowing which command maps to which log matters because support investigations often require collecting the right file rather than searching every diagnostic bundle blindly. If the engineer needs administrative command activity, audit.log is used; if the engineer needs cluster events, EMS/event log is used. The correct mapping for this question is event log show to ems.log. References/topics: ONTAP EMS, event log show, ems.log, cluster event troubleshooting, and log-source selection.

A disk/shelf count mismatch AutoSupport message indicates that nodes in the cluster do not agree about visible disks or shelves, so the first areas to inspect are drive paths and SAS cabling. Drive paths reveal whether each controller can see the expected disks through the expected redundant routes. SAS cabling is a common physical cause because a missing, crossed, loose, or failed cable can make one path or shelf segment disappear from one controller's view. IOM firmware and drive firmware can matter in broader shelf troubleshooting, but a count mismatch is primarily about visibility and pathing, not code level on a disk or module. The support engineer should validate multipath HA, shelf stack cabling, port connections, and path status before replacing hardware. Correct path redundancy is essential because ONTAP expects consistent shelf and disk inventory across the HA pair or cluster. References/topics: AutoSupport disk/shelf count mismatch, SAS cabling, drive path validation, multipath HA, and shelf visibility troubleshooting.

The problem is that there are no FC adapters with a max-speed of 32 Gbps. NVMe/FC support depends on platform, adapter, and speed capability. The exhibit shows FC adapters, but their max-speed is 16 Gbps, which does not satisfy the requirement being tested. The issue is not that the physical protocol is already set to NVMe; FC adapters are configured and then used for FC or FC-NVMe services according to supported capabilities. Media type is not NVMe, because NVMe is a storage protocol, not an optical media type. The wording 'cannot enable the protocol' requires checking whether installed adapters meet the hardware support requirements. A support engineer should verify adapter model, max speed, port mode, firmware, and ONTAP support matrix before attempting to configure NVMe. In this exhibit, the absence of 32 Gb-capable FC adapters is the blocking condition. References/topics: ONTAP NVMe/FC adapter requirements, FC adapter max-speed, protocol enablement, SAN hardware support, and port capability validation.

A single node in a four-node MetroCluster can be taken down for maintenance by performing an HA takeover of that node. MetroCluster provides site-level disaster recovery, but routine maintenance of one controller is handled through the local HA pair so that the partner continues serving the node's storage and data remains online. A MetroCluster switchover is a site-level operation and would be excessive for planned maintenance of one node. Disabling HA would remove the very protection required to keep data online. Aggregate relocation of CFO aggregates alone is not the correct maintenance workflow because the HA takeover process handles controller ownership and service continuity for the node. The support engineer must choose the least disruptive protection mechanism that matches the failure or maintenance domain. For a single controller event inside a four-node MetroCluster, local HA takeover is the correct action. References/topics: MetroCluster maintenance, HA takeover and giveback, controller service operations, site-level switchover, and nondisruptive availability design.

In ONTAP 9.6, command-line activity is recorded in audit.log. The audit log captures administrative activity such as commands issued through the CLI and other management interfaces, which is essential for security review, accountability, and troubleshooting administrative changes. messages.log and ems.log are used for system and event messages, not specifically for recording administrator command history. command-history.log may sound plausible, but ONTAP 9.6 centralizes management audit activity in audit.log. mgwd.log records management gateway daemon behavior and can be useful for deeper support investigation, but it is not the primary file used to review CLI activity. A support engineer investigating who changed a configuration should know the difference between event logs, daemon logs, and audit logs. This distinction prevents wasted time during escalations because the correct log source depends on whether the issue is an administrator action, an EMS event, or daemon behavior. References/topics: ONTAP log architecture, audit.log, CLI activity auditing, administrative traceability, and management-plane troubleshooting.

An FC switch must be used with ONTAP in this tested configuration. Traditional ONTAP FC SAN connectivity relies on a switched fabric because ONTAP uses NPIV to present FC targets into the fabric. A direct cable from a host to an ONTAP FC target port will not provide the expected target presentation in this scenario, so the host cannot see the LUN even though the LUN and igroup exist. Multipathing to another FC path would improve redundancy but would not correct an unsupported direct-attach topology. NPV is a switch technology, not something enabled on the host to solve direct connection to ONTAP. NPIV must be supported and enabled on FC switches, not used as a host-only fix in this question. The support engineer should validate fabric login, zoning, target ports, initiator WWPNs, igroup mapping, and supported topology. References/topics: ONTAP FC SAN topology, NPIV requirement, switched fabric design, LUN visibility troubleshooting, and SAN host connectivity.

vserver security trace filter create is the appropriate command to troubleshoot why a user can read and write some files on an NFS volume but cannot read all files. The symptom points to file-level access evaluation rather than a simple export-policy failure. Export-policy check-access is useful to test whether a client can access an export path based on export rules, but it does not fully explain per-file permission differences inside the volume. security login create is for administrator login configuration and is unrelated to client file access. security audit show does not perform targeted access-decision tracing. ONTAP security trace can be used to trace NAS access decisions and identify whether permissions, user mapping, security style, ACLs, or UNIX mode bits are causing the denial. A support engineer should use it when access is inconsistent across files in the same volume. References/topics: ONTAP security trace, NFS file access troubleshooting, UNIX permissions, mixed security styles, and NAS authorization diagnostics.

The volume recovery queue is the correct recovery mechanism when a volume was accidentally deleted recently and no backups exist. ONTAP protects against accidental deletion by retaining deleted volumes in a recovery queue for a configured retention period, allowing administrators to recover them before they are permanently purged. A volume Snapshot cannot be used if the volume itself has been deleted and no accessible backup copy exists. An aggregate Snapshot revert is not a valid or normal ONTAP recovery method for restoring an individual deleted volume and would be far too disruptive. ONTAP System Manager may provide a graphical way to recover deleted volumes in later versions, but the feature being tested is the volume recovery queue itself. The support engineer should immediately check retention time, locate the deleted volume in the recovery queue, recover it, and then restore required junction or mapping details. References/topics: ONTAP volume recovery queue, accidental volume deletion protection, FlexVol recovery, retention period, and data recovery workflow.
