The warnings persist because the issuing certificate chain , not the renewed leaf certificates, is approaching expiration. VCF Operations Fleet Management can view certificate details and certificate alerts across VCF Management and VCF Instance components, including vCenter, NSX Manager, SDDC Manager, ESX, and VCF Operations components . Auto-renewal only renews supported component TLS certificates and occurs 60 days before certificate expiration; it does not renew root certificates . When certificates are issued by an enterprise Microsoft CA, the validity of endpoint certificates is constrained by the validity of the issuing chain. vSphere documentation states that a certificate cannot be renewed with an expiration date beyond the expiration of the trusted root certificate . Therefore, even if the component certificates were recently rotated and the template is configured for one year, the generated certificates may still inherit a shorter effective validity period if the Microsoft CA root or intermediate certificate is expiring soon. The correct remediation is to renew or replace the CA chain, not repeatedly clear alerts or manually renew endpoint certificates. Reference topic: Objective 4.14 – Fleet Management / Certificate Management / Auto-Renewal / CA Chain Validity .

The administrator must deregister the second VCF Instance from the existing Single Sign-On configuration . In this scenario, the second VCF Instance is currently attached to an SSO configuration whose identity source is managed by the first VCF Instance. The requirement is not merely to change the LDAP provider on the existing shared configuration; it is to connect the second instance to a new SAML 2.0 Identity Provider and a new VCF Single Sign-On configuration . The VCF 9.0 documentation provides a specific workflow for this condition: when a VCF Instance must be removed from an existing SSO configuration, the administrator navigates to the VCF Instance, opens Component Configuration , filters configured components, selects all configured components, and clicks Deregister Component . After all registered components are deregistered, the page reloads and allows the administrator to either connect to an existing SSO configuration or create a new SSO configuration for that VCF Instance . Resetting the first instance would disrupt the controlling SSO configuration. Resetting the second instance is used for changing identity-source details within its own SSO lifecycle, not for detaching it from an SSO configuration managed by another instance. Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / Deregister VCF Instance from SSO .

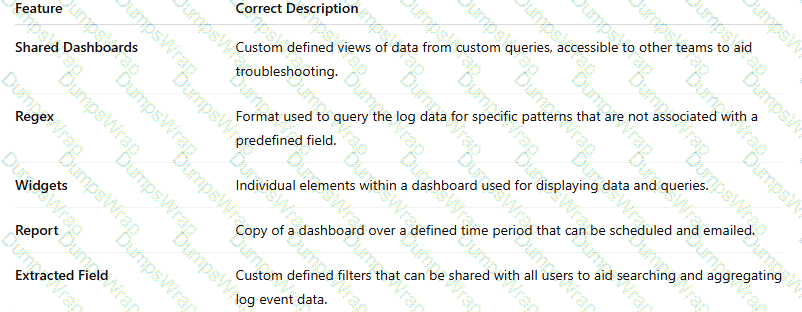

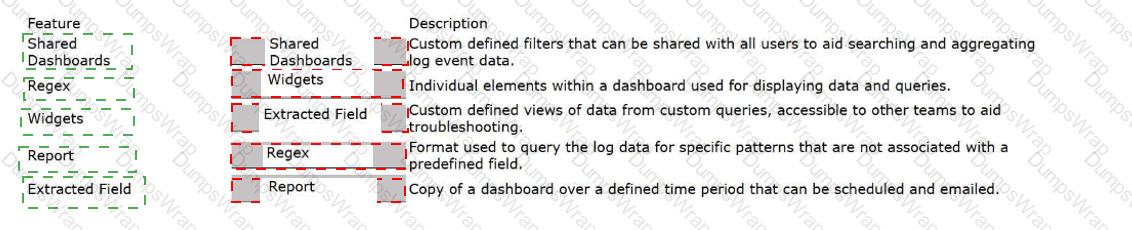

VCF Operations for Logs uses queries made from keywords, regular expressions, field operations, and aggregations. Regular expressions provide sophisticated pattern matching when keyword or glob searches are not sufficient. Extracted fields add structure to unstructured logs and can be used in filters and aggregations. Dashboards are created from widgets and views, while reports are scheduled snapshots of dashboards or views that can be distributed for offline review.

The correct view type is Distribution View . The requirement is not simply to list VMs or plot a time-series trend; it is to group VM metric values into defined ranges or “buckets” so the administrator can visualize how many VMs fall into each CPU Ready % band. VCF Operations documentation defines Distribution Views as views that provide aggregated data about resource distribution in the monitored environment. When used in dashboards, the administrator can click a section of a pie chart, bar chart, or donut chart to view the list of objects filtered by that selected segment . This directly fits the requested CPU Ready % spread visualization. The same configuration supports Manual Distribution , where the administrator specifies the number of buckets and the minimum and maximum values of each bucket . That is the exact model required for ranges such as 0–2%, 2–5%, 5–10%, and greater than 10%. List View is tabular, Trend View is time-based, and Summary View is not intended for bucketed metric distribution. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports / Distribution Views / Manual Distribution Buckets .

VCF Operations log analysis uses the search bar under Infrastructure Operations > Analyze > Logs to refine log-event results by keyword, phrase, glob, regular expression, or field operation. In the main search text box, multiple keywords entered together are treated as a logical AND , not an OR. The official guidance states that to find events containing specified keywords, the administrator enters complete keywords, globs, or phrases in the search text box, and that entering a space in the main search field is a logical AND operator . Therefore, entering esx.audit and firewall returns only log events that contain both terms: events matching esx.audit and also matching firewall. This is the correct behavior when the administrator is searching for ESX audit events specifically related to firewall changes. Option C would apply to OR-style behavior, but that applies to multiple values inside a single filter row when entered as separate filter values, not to the main search bar keyword syntax . Options A and B introduce unrelated terms and do not match the provided search criteria. Reference topic: Objective 4.12 – Log Event Monitoring and Analysis in VCF Operations / Searching and Filtering Log Events / Search bar keyword logic .

The OUT_OF_SYNC state indicates that the configuration template state in VCF Operations no longer matches the corresponding state expected from Source Control. VCF Operations supports GitHub-based source control so configuration templates can be synchronized to and from a repository, and the documented sync workflow explicitly changes template status back to IN_SYNC after the administrator uses the Sync option in VCF Operations . A template can become out of sync when it is modified outside the VCF Operations workflow, such as being edited directly in the GitHub repository. It can also become out of sync if the corresponding template file is deleted from the repository, because VCF Operations can no longer reconcile the local template object with its source-controlled copy. If the source-control configuration itself is deleted, VCF Operations loses the configured repository association required to validate and synchronize templates. Removing a template from a policy or removing a vCenter instance from a drift-detection job affects drift evaluation scope, not Git template synchronization. Reference topic: Objective 4.16 – Configuration Drift / Source Control Integration / Syncing Configuration Templates with GitHub .

The correct action is to adjust the Troubleshooting Workbench time range to cover the incident window, then inspect the Property Changes evidence. VCF Operations states that the workbench investigates potential evidence within a selected scope and time range, and that the time range can be changed up to seven days using the date and time controls . Property changes are one of the key evidence types displayed in the Potential Evidence tab, alongside Events and Anomalous Metrics. The documentation specifically describes Property Changes as important configuration changes that occurred within the selected scope and selected time, including both single and multiple property changes . Therefore, the administrator must set the Time Range to Last 7 days and review the listed Property Changes for the affected VM. Option B is incorrect because the maximum is not 24 hours. Option C is incorrect because evidence is tied to the selected time range. Option D is less precise because “Last week” may represent a calendar week rather than the last seven days. Reference topic: Objective 4.9 – VCF Operations Troubleshooting Tools and Methodologies / Troubleshooting Workbench / Potential Evidence / Property Changes .

The administrator should configure Workload Optimization - Consolidate . In VCF Operations, Operational Intent defines how workload placement and optimization should behave across clusters. The Consolidate mode is specifically intended to minimize the number of clusters used by workloads while still maintaining acceptable performance. Broadcom’s Workload Automation policy documentation describes Consolidate as the mode used to proactively minimize the number of clusters used by workloads, which directly aligns to the requirement to use the smallest possible number of clusters in the data center while continuing to meet performance goals. ( TechDocs ) Admission Control based on slots is a vSphere HA construct and does not provide VCF Operations workload-placement intent across multiple clusters. DRS aggressiveness affects balancing inside a cluster, not strategic placement across 10 clusters. Cluster Headroom reserves capacity buffer, but by itself it does not drive consolidation behavior. Reference topic: Objective 4.6 – Workload Optimization in VCF Operations / Operational Intent / Consolidate, Balance, and Moderate modes .

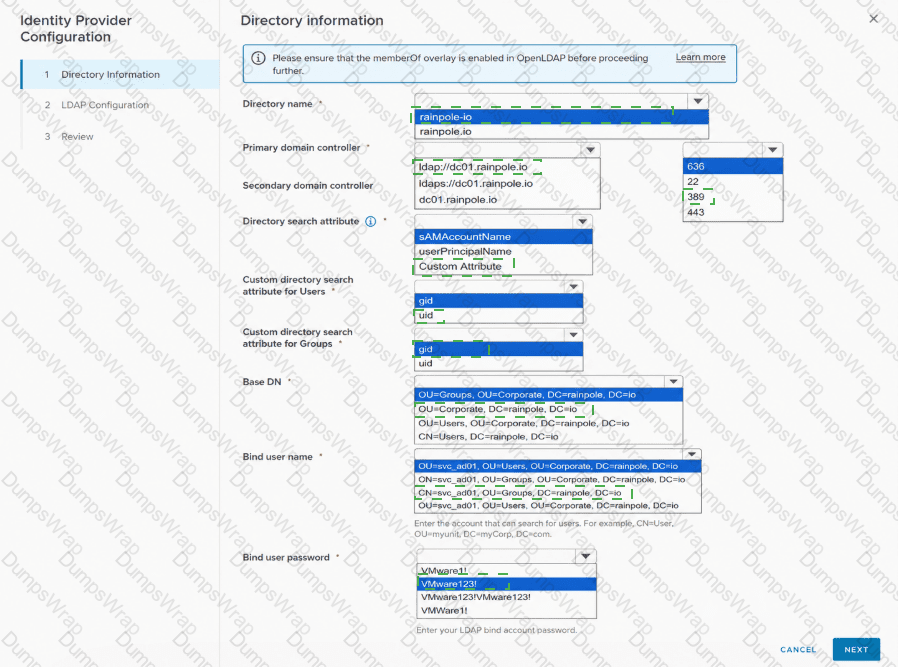

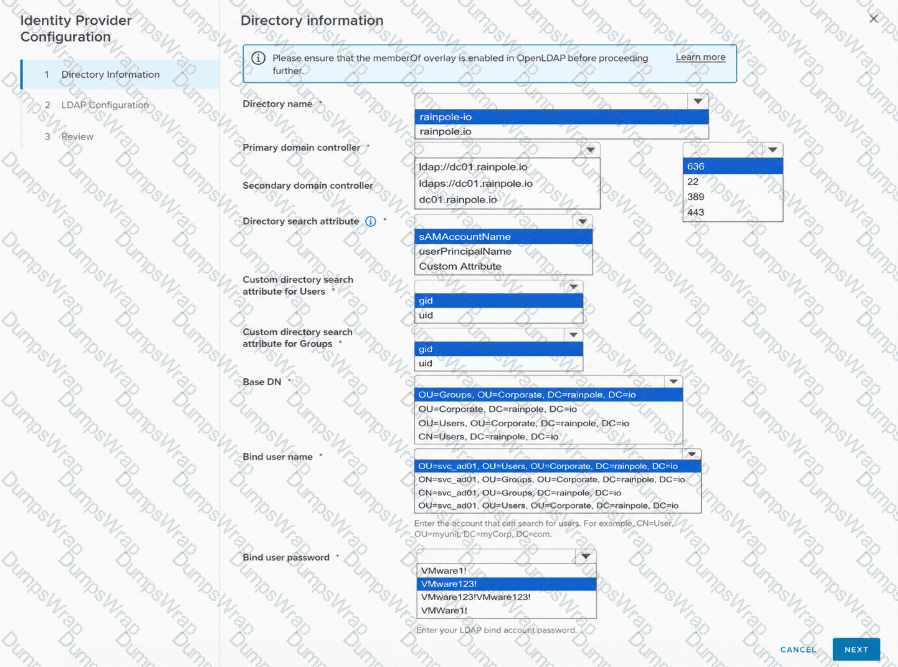

Directory name: rainpole-io

Primary domain controller: ldap://dc01.rainpole.io

Primary domain controller port: 389

Directory search attribute: Custom Attribute

Custom directory search attribute for Users: uid

Custom directory search attribute for Groups: gid

Base DN: OU=Corporate, DC=rainpole, DC=io

Bind user name: CN=svc_ad01, OU=Users, OU=Corporate, DC=rainpole, DC=io

Bind user password: VMware123!

The configuration must match the OpenLDAP hierarchy and transport requirements. Because the directory does not support SSL/TLS, the primary domain controller must use the non-secure LDAP scheme, ldap://dc01.rainpole.io , with standard LDAP port 389 , not LDAPS port 636. The directory name should use the VCF SSO directory identifier format, therefore rainpole-io is selected. Since the environment uses OpenLDAP-specific attributes rather than Active Directory defaults, the directory search attribute must be set to Custom Attribute . The user identifier is uid , so the custom user search attribute is uid; the group identifier is gid , so the custom group search attribute is gid. The Base DN must cover both the Users and Groups OUs. Because both are inside OU=Corporate , the correct base scope is OU=Corporate, DC=rainpole, DC=io , not only Users or only Groups. The bind user resides in the Users OU, so the bind DN is CN=svc_ad01, OU=Users, OU=Corporate, DC=rainpole, DC=io with password VMware123! . Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / LDAP Identity Provider Configuration .

The correct troubleshooting sources are the Request Log , the Management Pack Builder Adapter log , and the Integration Designer Controller log . Management Pack Builder troubleshooting is centered on validating the API requests, collection execution, adapter behavior, and server-side design processing. The VCF 9.0 documentation states that every test request or test collection in Management Pack Builder exposes request tabs showing the body, headers, and logs; these are used to diagnose response-code errors and request/response issues . For collection problems after installation, the administrator should review Management Pack Builder Adapter logs , located under $VCOPS_BASE/user/log/adapters/MPBAdapter on the selected node or cloud proxy, because these logs show adapter-side warnings and errors during collection . If the issue appears to be with Management Pack Builder itself, the official guidance identifies /usr/lib/vmware-vcops/user/log/integration-designer-controller.log as the server-side log to review . The Design Screen is used to build and verify definitions, but it is not one of the listed troubleshooting data sources. Observability Workbench is for infrastructure troubleshooting, not Management Pack Builder design diagnostics. Reference topic: Objective 4.8 – Management Pack Builder / Troubleshooting a Design .

The administrator must configure a Webhook Notification plug-in. Action-based notifications in VCF Operations are tied to Workload Placement actions, where the notification is sent when a workload-placement action succeeds, fails, or times out. Broadcom’s documentation for creating notification rules for notification type Action identifies this workflow as Workload Placement action-based notification. ( TechDocs ) For outbound delivery, the required plug-in type is the Webhook Notification plug-in, which is the supported outbound mechanism for sending action notification payloads to an external endpoint. Broadcom’s outbound plug-in documentation describes adding a Webhook Notification plug-in instance so alert or event data can be sent outside the operations platform. ( TechDocs ) A Log File plug-in is not used for action-based notification delivery. “SMTP Trap” is not the correct VCF Operations outbound plug-in type; email uses Standard Email, and trap delivery would be SNMP-oriented. Standard Email is valid for alert-style notification workflows, but WLP action-based notification requires Webhook. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications / Webhook Notification Plugin .

The administrator should create a Committed Scenario for the migration project. In VCF Operations, a standard What-If scenario models possible capacity impact, but a committed scenario is used when the organization has decided that capacity must be reserved for an upcoming or planned workload. The documentation states that when you are sure capacity must be reserved, you commit the scenario so VCF Operations sets aside resources for the planned workload, even before the actual changes are implemented . This directly satisfies the requirement that the migration capacity must not be consumed by other projects over the 12-month migration window. VCF Operations also explains that committed scenarios help capacity and operations teams understand current capacity and future capacity requirements, and that committed capacity prevents ad hoc resource increases from consuming resources while capacity planning is underway . Option B merges unrelated planning events and does not reserve capacity independently. Option C is for migration to VMware Cloud services, not unmanaged vCenter-to-VCF workload-domain migration. Option D delays future projects but does not reserve the migration capacity. Reference topic: Objective 4.3 – What-If Analysis / Committed Scenarios / Capacity Reservation .

The correct selections are A, C, and E . For VCF Operations for Logs content-pack query design, Broadcom’s documented leading practice is to build portable and efficient message queries. Queries should not be tied to environment-specific attributes such as a particular hostname, source, or facility, because content-pack queries must work consistently across customer environments and not depend on local naming conventions ( TechDocs ). For performance, the query should use the least expensive matching method first: keywords , then globs , and only then regular expressions when the simpler forms cannot meet the requirement. Broadcom explicitly documents that query construction should follow this keyword-to-glob-to-regex progression ( TechDocs ). Regular expressions are the most expensive search type, so when regex or field operations are required, the query should include as many selective keywords as possible to reduce the event set before regex processing occurs ( TechDocs ). Splitting text filters into multiple lines or multiple regex expressions increases complexity and cost. Boolean restructuring alone does not replace proper keyword-first design. Reference topic: Objective 4.12 – VCF Operations for Logs / Content Packs / Message Query Best Practices .

The administrator must change the custom group object type to Edge Transport Node . The tag criteria are already expressed correctly: nsx is the tag category and edge is the tag value. In VCF Operations custom groups, dynamic membership is calculated by matching the selected Object Type and the defined membership criteria. The documentation states that custom group membership criteria require selecting the object type first, then applying criteria such as metrics, relationships, properties, object name, or tag; VCF Operations then keeps dynamic group membership current based on those rules . The failure occurs because the objects that were tagged are NSX Edge nodes, while the group is filtering for Edge Cluster objects. NSX documentation identifies NSX Edge nodes as Edge Transport Nodes , and Edge nodes are configured and managed under System > Fabric > Nodes > Edge Transport Nodes . An Edge Cluster is a grouping construct and does not match the tagged edge-node objects. Changing the tag value to nsx:edge would incorrectly collapse category and value into one field. Reference topic: Objective 4.5 – VCF Policy / Custom Groups / Dynamic Tag-Based Membership .

The required action is to perform an inventory sync . In VCF Operations Fleet Management, vertical scale-up depends on current inventory data from the managed component. The scale workflow first validates that the Fleet Management appliance has an accurate view of the VCF Operations cluster, including node inventory and placement information. The documented vertical scale-up workflow states that after selecting Fleet Management > Lifecycle > Components , choosing the component, and selecting Vertical Scale Up , the administrator must acknowledge the downtime warning and click Trigger Inventory Sync to synchronize the VCF Operations Fleet Management appliance with the latest data from the cluster. After the inventory sync completes successfully, the administrator can click Proceed and continue selecting nodes and target scale-up sizing . Mandatory snapshots are not the corrective action for stale inventory. Taking the cluster offline is not the manual remediation for the “Needs Attention” inventory condition, although nodes are restarted during the scale operation. Scaling Cloud Proxies is unrelated to vertically increasing VCF Operations management-node resources. Reference topic: Objective 4.14 – Complete Fleet Management activities in VCF Operations / scaling VCF Fleet Management Lifecycle / vertical scale up for VCF Operations .

The correct answer is SDDC Manager . In VCF 9.0 password management, VCF Operations can manage many component credentials from Fleet Management > Passwords , including update and remediate operations for supported accounts. However, SDDC Manager is a special case. The documentation lists the VCF Instance/domain components managed from the VCF Operations console as ESX , NSX Manager , vCenter , and SDDC Manager backup password only . The SDDC Manager root and vcf accounts are not updated through the VCF Operations UI password workflow. Instead, the documented SDDC Manager account table shows that the vcf and root accounts are manually managed by using the operating system, while only the backup account is updated or remediated by using the VCF Operations UI or API . By contrast, the vCenter root account, NSX Local Manager root account, and ESX root account are listed as accounts that can be updated or remediated using the VCF Operations UI or API . Reference topic: Objective 4.14 – Complete Fleet Management activities in VCF Operations / Password Management / component account lifecycle management .

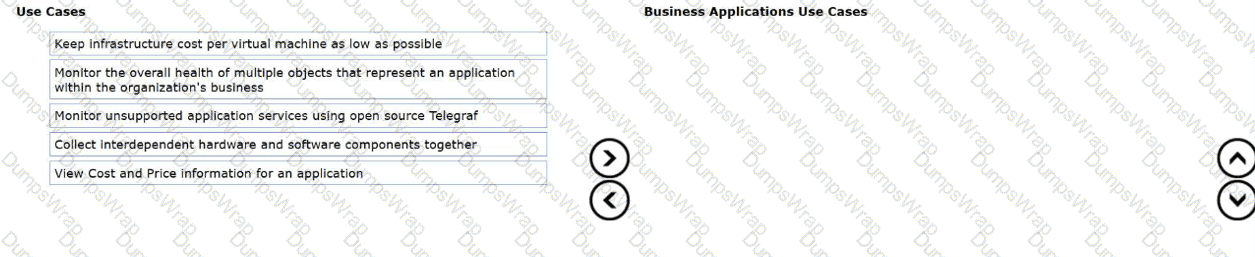

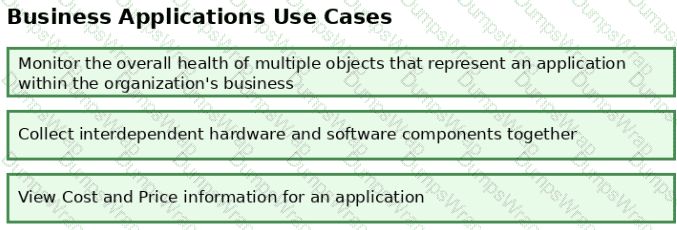

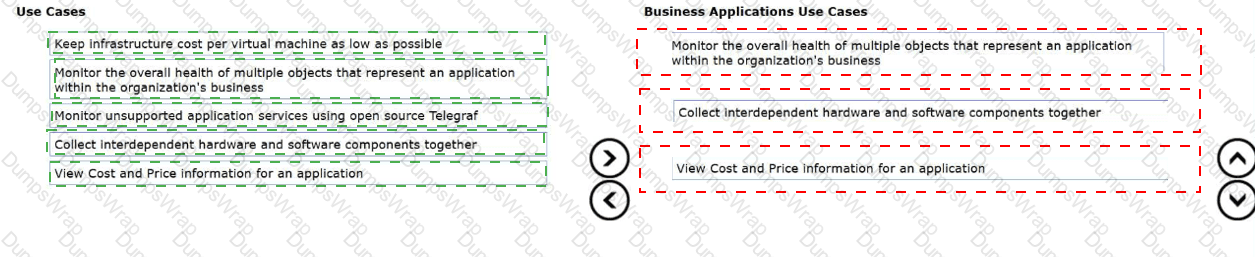

Business Applications in VCF Operations are application-centric container objects used to model and monitor the services that support the business. The documentation defines a Business Application as a set of interconnected applications, services, and hosts configured to offer a service to the organization, and also as a collection of interdependent hardware and software components that deliver a specific business capability . Therefore, monitoring the overall health of multiple objects that represent an application and collecting interdependent components together are direct use cases. The Business Applications page displays health in a sortable table, with the application health determined by the aggregated health of underlying objects . VCF Operations also states that after adding a Business Application, administrators can track object health and optimize capacity, cost, and run What-If Analysis on Business Applications . Cost and price analysis also supports container objects such as Business Apps and Custom Groups . Keeping VM cost as low as possible is a general FinOps goal, and unsupported service monitoring with open source Telegraf is an application-monitoring function, not a Business Application use case. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Business Applications / Application Health, Cost, and Capacity .

The administrator must first ensure that the new ESX hosts are properly prepared for workload-domain creation. In VCF, adding a new workload domain requires commissioned hosts that match the intended principal storage type and have the necessary network-pool resources available. Since the existing environment uses vSAN, the hosts used for the new domain must be suitable for the selected storage model and have the required networking in place before domain creation. Creating a workload domain adds a logical pool of compute, network, and storage resources to the VCF instance ( TechDocs ). The second requirement is management visibility from the existing vCenter. In VCF 9.0, this is achieved through vCenter Linking Groups , not Enhanced Linked Mode. vCenter linking in VCF Operations provides a single-pane-of-glass view of linked vCenter instances from one vSphere Client ( TechDocs ). Option B is incorrect because workload domains cannot use the management domain NSX Manager. Option D reflects older SSO-domain thinking and is not the VCF 9.0 linking model. Option E is incorrect because Enhanced Linked Mode is not the preferred VCF 9.0 mechanism. Reference topic: Objective 4.1 / 4.14 – Day 2 administration, workload-domain scaling, vCenter Linking Groups, and host preparation .
