Citrix 1Y0-205 Dumps

The identity disk is a small disk attached to each virtual machine that stores the unique information for that machine, such as computer name, IP address, and Active Directory account. This disk is created when using Machine Creation Services with the Desktop Experience set to ‘Random’.1

1: Identity disks

 Citrix Director is the tool designed for monitoring the overall daily performance of a Citrix Virtual Apps and Desktops Site. It provides administrators with insights into the environment’s operations, allowing for proactive management and troubleshooting

Citrix Gateway can be hosted in Citrix Cloud or in a customer-controlled resource location. It provides secure remote access to Citrix Virtual Apps and Desktops service deployments.

According to the Default policy settings document for Citrix Virtual Apps and Desktops 7 2308, the default compression policies are stored in the site database and are applied to the VDAs when they register with the broker or when a user connects to them. To use the default compression policies, a Citrix administrator needs to bind them to the virtual server that handles the ICA traffic. This can be done using the Web Studio console or the Local Group Policy Editor. The other options are not related to the default compression policies.

The Virtual Delivery Agent (VDA) is a software component that enables machines to deliver applications and desktops to users. The VDA registers with a Delivery Controller and communicates session information to the Controller, which brokers connections between users and their resources. Users access their resources through Citrix Workspace app or a compatible web browser1

1: Virtual Delivery Agent (VDA) | Citrix Virtual Apps and Desktops 7 2308

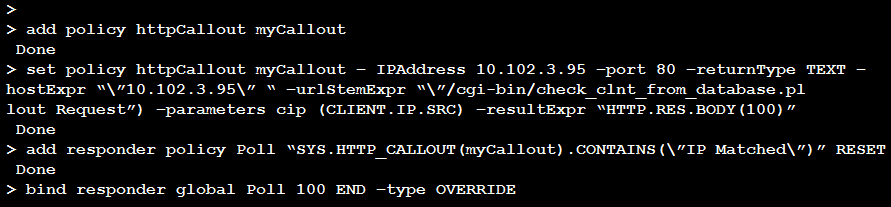

 The administrator should negate the expression of the Responder policy to avoid the HTTP callout recursion issue. According to the Citrix documentation, “If you configure an HTTP callout policy that is bound globally, you must ensure that the policy expression does not match the callout request. Otherwise, the callout request will trigger the policy, resulting in a callout recursion.” The expression in option B ensures that the policy does not match the callout request by adding the NOT operator at the end.

According to the Citrix documentation, when configuring a high availability pair, the administrator can set the primary node to STAY PRIMARY and the secondary node to STAY SECONDARY to prevent the configuration from being overwritten by the other node. Additionally, the administrator should enable HA monitoring on all the interfaces of both nodes to ensure that the HA status is updated correctly. Therefore, the correct answer is C and D.

 MAC-based forwarding (MBF) can be used to avoid multiple route/ARP lookups and to avoid asymmetrical packet flows. MBF caches the MAC address of the upstream router that forwarded the client request to the appliance. When a reply is received, it is passed through to the same router that sent the client request without going through any route lookup

According to the Manage | Citrix Virtual Apps and Desktops 7 2308 document, the order of evaluation of rewrite policies is determined by the following factors:

The priority of the policy. A lower number indicates a higher priority.

The bind point of the policy. A global policy has a lower priority than a policy bound to a specific virtual server.

The type of the policy. A request policy has a higher priority than a response policy.

In this scenario, the policies are all bound to the same virtual server and have the same type (response). Therefore, the order of evaluation is based on the priority of the policy. The policy with the lowest priority number (POL_2) is evaluated first, followed by the policy with the next lowest priority number (POL_3), and so on. The policy with the highest priority number (POL_1) is evaluated last. Therefore, the correct answer is C.

 According to the Policies page of Citrix Virtual Apps and Desktops 7 2308 documentation, Classic policies are a collection of settings that define how sessions, bandwidth, and security are managed for a group of users, devices, or connection types. You can apply policy settings to physical and virtual machines or to users. Classic policies can be filtered by various criteria, such as HTTP, IP, and TCP. These are the only options allowed when using Classic policies. Other options, such as CLIENT, SERVER, and DNS, are not valid filters for Classic policies.

Site-level GPOs are processed first for a Citrix Virtual Apps and Desktops Site, followed by domain-level GPOs, Citrix local-Site policies, and OU level GPOs. This is the policy processing order and precedence for Citrix policies, as described in the Work with policies article from the Citrix Virtual Apps and Desktops 7 2308 documentation.

When using an HDX Session printers policy, print jobs sent to a printer managed by the print server are routed directly to the network print server and then to the specified printer3.

The architecture Layer is the following:

User: represent the endpoints

Access: represent the storefront and Citrix Gateway

Control: represent the delivery controller, database, studio, license, director

Resources: represent the VDAs

Host: represent the hardware, fiscal server, storage, network, etc.

Page 33, 34 and 35from the hand book:

The Citrix Virtual Apps and Desktops documentation specifies that the Local Host Cache feature allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails1. This implies that the Delivery Controller, which is part of the FlexCast Management Architecture (FMA) services, uses the Local System account to access the Citrix Virtual Apps and Desktops SQL databases in scenarios where the primary database connection is unavailable.

 If client drives are not mapped in a HDX session despite the ‘Auto connect client drives’ setting being configured, it could be due to the absence of loopback processing. Enabling loopback processing in the Group Policy Object (GPO) allows user-specific settings to be applied regardless of where the user object is located in Active Directory, ensuring that the policy is effectively applied to the published desktops.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, the Citrix ADC can optimize the responses by using HTTP protocol for the services and SSL protocol for the virtual server. This configuration allows the Citrix ADC to terminate the SSL connection from the client and then communicate with the server using HTTP. This way, the data is encrypted between the client and the Citrix ADC, and the Citrix ADC can perform optimization tasks such as compression and caching1: Page 95, Module 5: Citrix Gateway and Citrix StoreFront Integration.

Option A is correct because if the VDA machine is not registered with the Site where the Citrix policy was configured, it will not receive the policy settings from the Site database. The VDA machine must register with a Delivery Controller in the Site to apply the Citrix policies1

Option B is correct because the Unfiltered policy is applied to all objects in the Site by default, and it has the lowest priority. If the Unfiltered policy contains settings that conflict with the Citrix policy configured by the administrator, the Unfiltered policy settings will override the administrator’s policy settings. The administrator can either disable the Unfiltered policy or change its priority to avoid this issue2

Option D is correct because if the VDA machine is not able to communicate with the Site database, it will not be able to retrieve the latest Citrix policy settings from the database. The VDA machine relies on the Delivery Controller to communicate with the Site database and apply the Citrix policies3

 According to the Plan your StoreFront deployment document, for single server deployments you can install StoreFront on a non-domain-joined server but certain functionality will be unavailable; otherwise, StoreFront servers must reside either within the Active Directory domain containing your users’ accounts or within a domain that has a trust relationship with the user accounts domain unless you enable delegation of authentication to the Citrix Virtual Apps and Desktops sites or farms. All the StoreFront servers in a group must reside within the same domain. Therefore, server groups are not supported for non-domain-joined StoreFront servers (option D). Also, according to the User authentication document, when you configure a store, you specify the type of authentication service to use. By default, users are authenticated on StoreFront. Alternatively, you can delegate authentication to Citrix ADC or to the Delivery Controllers (option E). Authentication does not occur at the Domain Controller (option A) or at the Citrix ADC (option C) by default. Two-factor authentication is supported for non-domain-joined StoreFront servers (option B) as long as the authentication is delegated to Citrix ADC or Delivery Controllers.

 According to the Citrix documentation2, the SDX platform is a multi-tenant appliance that supports multiple Citrix ADC instances. Each instance is fully isolated and has its own dedicated resources. The SDX platform allows administrators to create, manage, and monitor multiple instances from a single management interface.

 When creating a custom scope, the Full Administrator role is not available because custom scopes are designed to limit administrators’ permissions to specific objects or tasks within the Citrix environment.

 According to the Citrix documentation1, “Cloud Connectors are the communication channel between your resource location and Citrix Cloud. They enable cloud management without requiring any complex networking or infrastructure configuration such as VPNs or IPsec tunnels. Resource locations contain the resources you want to make available to your subscribers, such as applications and desktops. Each resource location requires at least one Cloud Connector to communicate with Citrix Cloud.” Therefore, the VDA machines should communicate with a Cloud Connector that is located in the on-premises location in order to become registered with the Site.

1: Cloud Connector Technical Details

 According to the Citrix documentation, the cacheForSecs parameter of the set httpcallout command specifies the time, in seconds, for which the response from the HTTP callout server is cached. Therefore, the effect of the command is to set the cache duration of the HTTP callout response to 120 seconds.

Citrix Studio provides a feature called Limit Visibility, which allows administrators to hide specific published resources (apps or desktops) from chosen users or groups. This is the correct method to selectively exclude users from seeing or launching certain apps without removing them from the Delivery Group.

Correct Approach:

To prevent HR10 from seeing or accessing APP_A, the administrator should configure Limit Visibility so that only HR1–HR9 are allowed visibility for APP_A.

This ensures:

The entire HR group still receives all published apps

Only HR10 is restricted from APP_A

The Delivery Group configuration remains intact

Why the other options are incorrect:

A. Remove HR10 from the Delivery Group:This would remove HR10’s access to all Delivery Group applications, not just APP_A.

C. Remove APP_A from the Delivery Group:This removes the app for everyone, not just HR10.

D. Limit visibility on APP_A to HR10:This would assign visibility only to HR10, the opposite of what is needed.

Documentation References

Citrix Virtual Apps and Desktops → Application Publishing and Visibility

Citrix Studio → App Properties → “Limit Visibility” Feature

Citrix App Assignment Best Practices

According to the Prepare to install article, the First-Time wizard automatically pops up when the appliance is configured with the default IP address (192.168.100.1) or when licenses are not present on the appliance. Therefore, options C and D are correct. Options A and B are not related to the First-Time wizard.

 According to the Access Control Lists documentation, the add ns acl command is used to create an extended ACL that can filter packets based on various parameters, such as source IP address, source port, action, and protocol. An extended ACL can define the conditions that a packet must satisfy for the Citrix ADC to process the packet, bridge the packet, or drop the packet. Therefore, to bridge traffic originating from 192.168.10.200, a Citrix Administrator can use the following command:

add ns acl bridge_192.168.10.200 BRIDGE -srcIP 192.168.10.200

This command creates an extended ACL named bridge_192.168.10.200 with the action BRIDGE and the source IP address 192.168.10.200. Any packet that matches these conditions will be bridged to the destination without processing by the Citrix ADC.

The Cloud Connector requires outbound connectivity on port 443 for communication with the internet2

According to the Create store page from the Citrix Product Documentation, the administrator can create a store for unauthenticated users by ticking the option “Allow only unauthenticated users to access this store” when creating the store. This option is suitable for contractors who will not be Active Directory users and need access to specific resources. The other options (HTTP Basic, Smart card, and Pass-through) are authentication methods that require user credentials.

According to the Delivery Controllers document, Citrix recommends having at least two Controllers on different physical servers for redundancy and scalability in a production site. The document also states that “additional Controllers enable you to handle more users and more applications and desktop requests, and can improve overall responsiveness.” Therefore, the minimum number of Delivery Controllers required to deploy Citrix Virtual Apps and Desktops for 500 users is 2.

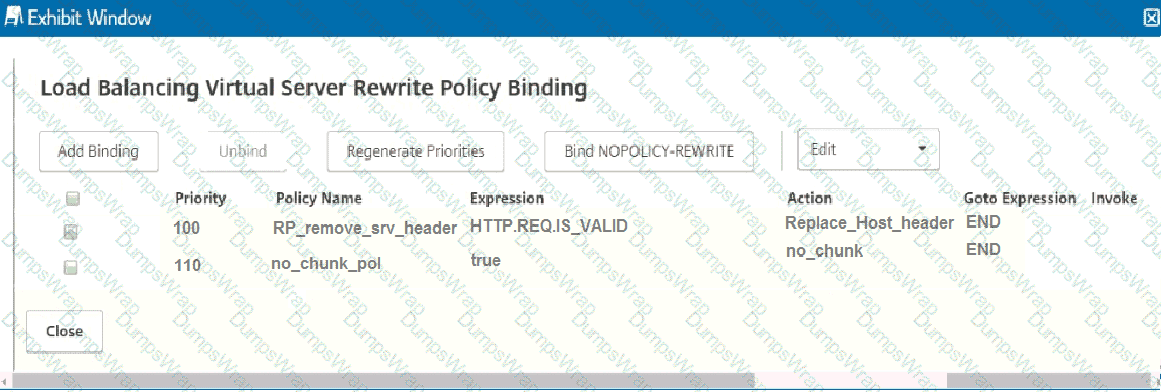

The issue is caused by the policy expression of the no_chunk_pol being ‘true’ and ‘NOT HTTP.REQ.IS_VALID’. This means that the policy will always be true and thus, always be invoked, preventing the other policy from being used. This is explained in the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, under the section “Load Balancing Virtual Server Rewrite Policy Binding”.

According to the Citrix documentation1, burst capacity allows an instance to use more bandwidth than its dedicated bandwidth when there is spare bandwidth available on the SDX appliance. The priority parameter determines which instance gets the spare bandwidth first. A higher priority value indicates a higher priority. Therefore, the administrator can configure burst capacity of 1GB with priority 10 on the instance that requires more bandwidth, to meet traffic requirements.

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - Configure burst capacity

To get application enumeration working in a Citrix Cloud migration scenario with on-premises StoreFront and Citrix ADC, the administrator needs to add the Citrix Cloud Connectors as Secure Ticket Authority (STA) servers on both Citrix ADC and StoreFront12.

StoreFront system requirements in the Citrix 2402 LTSR documentation specify that StoreFront can only be installed on supported modern Windows Server operating systems. As of the 2402 LTSR release, the minimum supported OS for StoreFront is Windows Server 2019.

Windows Server 2016 and Windows Server 2012 R2 are no longer supported for StoreFront in the 2402 LTSR lifecycle.

Windows Server 2022 is supported, but it is not the minimum requirement — Server 2019 is.

Documentation References:

Citrix StoreFront 2402 LTSR System Requirements

Citrix Virtual Apps and Desktops 2402 LTSR Product Documentation → StoreFront Requirements

 To enable Azure AD authentication for the Workspace Experience, the administrator needs to enable Azure AD authentication under Workspace Configuration in Citrix Cloud and add Azure AD Account under Identity Providers in Citrix Cloud. This allows users to authenticate using their Azure AD credentials to access their applications and desktops through the Workspace Experience. The Cloud Connectors are not directly involved in the Azure AD authentication process for Workspace Experience12.

The PowerShell command Get-Service -DisplayName *citrix* is used to display all the Citrix services installed on the Delivery Controller. This command filters services by their display name to only show those related to Citrix, which typically include various components of the Citrix Virtual Apps and Desktops 7 Deployment and Administration.

The redirectURL parameter of the set cs vserver command specifies the URL where the user requests are redirected if the status of the content switching virtual server is DOWN1. This parameter is used for configuring backup servers or displaying maintenance messages1.

 Process Explorer is a tool that can be used to get further details on orphaned processes in the session. According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Process Explorer can be used to “identify processes that are preventing a session from logging off” (Module 6: Troubleshooting User Connection Issues, Lesson: Troubleshooting Session Logon and Logoff Issues, Slide 8). Additionally, according to the Citrix Virtual Apps and Desktops 7 Administration Exam Guide, one of the objectives is to “use Process Explorer to identify orphaned processes” (Objective 6.3: Troubleshoot Session Logon and Logoff Issues). Therefore, Process Explorer is the correct answer.

According to the Citrix Virtual Apps and Desktops 7 Advanced Administration guide1, the administrator can use custom access in Citrix Cloud to grant the contractor access to specific services and features, such as the Citrix Virtual Apps and Desktops Service. The administrator can also use the Delivery Group Administrator role in the Citrix Virtual Apps and Desktops Service to allow the contractor to deliver applications, desktops, and machines, and manage the associated sessions. This role has the minimum permissions required to administer the inventory application. The other roles are either too broad or too restrictive for the scenario.

 To ensure the line-of-business application is added to Favorites and users cannot remove it, the Citrix Administrator should add the phrase “KEYWORDS: Mandatory” to the application properties3.

In the scenario described, when network connectivity to Citrix Cloud is lost, the Local Host Cache (LHC) feature allows one of the Citrix Cloud Connectors at the resource location to become the primary broker. This enables it to broker new sessions and manage existing HDX connections using the LHC, ensuring continuity of service during outages

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, the course covers how to deploy and manage machines running the VDA in both on-premises datacenters and public clouds, such as AWS1. The Citrix Virtual Apps and Desktops service also supports Azure and Google Cloud Platform as resource locations for VDAs3. Citrix Cloud is not a resource location, but a platform that hosts the Citrix Virtual Apps and Desktops service3. VMware Workspace One is not a supported resource location for VDAs, but a competing product from VMware.

 To allocate the Citrix Virtual Desktops license file from the Citrix.com account, a Citrix Administrator needs the hostname of the Citrix License Server. The hostname is case sensitive and must match the name entered in the Citrix Licensing Manager or the License Server Console

To monitor running published applications, Citrix administrators use Broker PowerShell cmdlets. Citrix documentation defines the role of the following:

✔ Get-BrokerApplicationInstance

This cmdlet returns active instances of published applications, including:

Which application is running

Which user is running it

Which session it belongs to

Launch time and instance metadata

This is the only cmdlet dedicated to reporting per-application instance activity.

Why the others are incorrect:

Get-BrokerApplication:Returns application configuration, not active app sessions.

Get-BrokerSession:Returns session details (user, endpoint, VDA, etc.) but does not list individual running application instances.

Get-BrokerSessionPreLaunch:Only shows information about pre-launch sessions, not active applications.

Documentation References

Citrix Virtual Apps & Desktops PowerShell SDK → Broker Application Instance Cmdlets

Citrix PowerShell Admin Guide → Monitoring Active Application Instances

Typically, Citrix Director is used for monitoring and managing user sessions, including machine sessions and application instances. The “Filters” option allows administrators to view and manage specific sessions, which aligns with the scenario described.

Option B is correct because spillover policies are applied on the GSLB virtual server level, not on the individual GSLB service level. Therefore, the user cannot have a backup for a subset of GSLB services1.

Option C is correct because the selection of a GSLB service is based on the load balancing method configured on the GSLB virtual server, which applies to all the GSLB services bound to it. The user cannot restrict the selection of a GSLB service from a subset of GSLB services for the given domain1.

Option A is incorrect because an administrator can define a backup for a backup Vserver in an active standby GSLB setup for a given GSLB domain by using the backup domain option2.

Option D is incorrect because a GSLB Vserver can load-balance multiple FQDNs by using the domain list option

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration documentation1, the collation sequence for the site database should be _100_CI_AS_KS. This collation sequence is case-insensitive, accent-sensitive, kana-sensitive, and width-insensitive. It is also compatible with the SQL Server mirroring feature. Other collation sequences might cause errors or unexpected behavior when using SQL Server mirroring2.

Citrix Studio is the management console that allows administrators to provide customized permissions, including adding applications to junior administrators1.

 According to the Citrix documentation1, the correct syntax for adding a simple ACL rule is:

add simpleacl < aclname > < ALLOW | DENY > -srcIP < IPAddress > [-destIP < IPAddress > ] [-TTL < timeInSeconds > ]

The correct syntax for adding an extended ACL rule is:

add ns acl < aclname > < ALLOW | DENY > -srcIP < IPAddress > [-destIP < IPAddress > ] [-TTL < timeInSeconds > ]

Therefore, the correct answer is B, because it uses the extended ACL rule format and specifies the destination IP address of the load balancing virtual server (192.168.100.25) and the TTL value of 10 minutes (600 seconds).

Citrix Cloud is the hosting platform that minimizes management and maintenance for administrators while maintaining control of the VDA machines1.

Citrix Director can capture utilization statistics for CPU, IOPS, and memory for each machine in a selected delivery group1. The resource utilization tab in the trends page displays the historical data for these metrics, along with the peak concurrent sessions graph2. The machine statistics page also shows the CPU and memory usage of the selected machine over time, as well as the processes contributing to high resource consumption3. Citrix Director does not capture utilization statistics for disk space or network, but it does provide other information related to these components, such as disk latency4 and network analysis5.

1: Monitor historical trends across a site | Director 2: How to use Director to monitor storage performance - Citrix 3: Machine Statistics | Citrix Analytics for Performance 4: Citrix Director Provides Disk Usage Information 5: [Network analysis | Director]

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, the Generate Support File option on the Citrix ADC appliance allows the administrator to collect logs and configuration information for troubleshooting purposes. The support file can be downloaded and sent to the Citrix Support Engineer for analysis. The other options are not relevant for this scenario.

Gateway Insight provides information about user authentication failures, such as the failure reason, the time of failure, and the number of failures1. It also shows the list of users who faced authentication failures and the authentication type they used2.

The expression B matches the required traffic because it uses the IN_SUBNET function to check if the source IP address belongs to the subnet 10.107.149.0/24, and it uses parentheses to group the logical OR condition for the destination port being either UDP or TCP 53. The other expressions are either syntactically incorrect or do not match the subnet correctly. See Policy Expressions and Classic Expressions for more information.

 The Citrix Universal Print Server provides universal printing support for network printers. The Universal Print Server uses the Universal print driver, a single driver on the Multi-session OS machine that allows local or network printing from any device, including thin clients and tablets. This feature can help reduce the number of Windows drivers on the VDA machines by using a single driver for all network printers

Citrix Cloud Connector requires the machine to be joined to a domain as part of its prerequisites for installation. If the machine is not domain-joined, it could prevent the Cloud Connector from installing properly. This is because Cloud Connector needs to communicate with Citrix Cloud services and typically relies on domain credentials for authentication and other functions within a domain environment.

According to the Citrix documentation, the Operator command policy grants full access to all features except shell access, user configuration, and partition configuration. The Sysadmin command policy grants full access to all features except shell access. The Network command policy grants full access to all features except shell access and user configuration. The Superuser command policy grants full access to all features, including shell access. Therefore, the Operator command policy is the best option for the scenario.

 In general, to improve HDX session performance for high-latency, low bandwidth connections, administrators can configure settings that reduce the amount of data transferred and the resources required. This includes optimizing the visual experience (B, D, E) by adjusting the frame rate, color depth, and video quality.

 The command set dns parameter -setAABit YES sets the authoritative answer (AA) bit in the DNS response header. This indicates that the Citrix ADC is the authoritative server for the domain name in the query. This can be useful when the Citrix ADC is configured as a DNS proxy server1

1: 2 - DNS Parameters

Machine Creation Services (MCS) is suitable for deploying a large number of virtual desktops with low impact on network infrastructure. MCS allows for user-installed applications and persistency by using differencing disks and personal vDisks.

 Installing the Cloud Connector on a machine template (before cloning) is not supported. If you clone a machine with the Cloud Connector installed, the Cloud Connector services won’t run and the machine can’t connect to Citrix Cloud1. Therefore, the administrator should provision each machine from a cloned machine template and install the Cloud Connector software on them. This way, the Cloud Connectors can communicate with Citrix Cloud and register with the same resource location2.

1: Cloud Connector Installation | Citrix Cloud 2: Install Cloud Connectors from the command line | Citrix Cloud Government
